Helm basic deployment

Last updated on

A Helm basic deployment runs helm upgrade --install against the target cluster in a single phase. Harness fetches the chart, merges values files, executes the Helm command, and waits for all workloads to reach steady state. If the deployment fails, Harness rolls back automatically by running helm rollback.

Before you begin​

  • A Helm service: Go Helm services set up a service with a chart source and values files.
  • A Helm infrastructure: Go Helm infrastructure connect a cluster and namespace.
  • A Harness delegate in the target cluster: The delegate runs Helm commands against your cluster.
  • Runtime configuration: Every Helm stage requires a runtime block specifying the connector and namespace. Go Helm runtime configuration understand the required fields.

How basic deployments work​

A Helm basic deployment applies your chart directly to all instances in the target namespace in one phase. Harness runs helm upgrade --install, which creates a new release if one does not exist or upgrades it in place if it does. Helm handles revision tracking natively; each upgrade increments the release revision, so rollback targets a specific numbered revision rather than a separate manifest copy.

Use a basic deployment when:

  • You want the simplest, single-phase delivery path with automatic rollback on failure.
  • Your application does not require canary traffic validation or blue-green isolation before full promotion.
  • You are updating a chart that is safe to apply immediately to all instances.

Pipeline YAML​

View complete basic stage YAML
pipeline:
  name: helm-native-basic
  identifier: helm_native_basic
  clone:
    disabled: true
  stages:
    - name: basic-deploy
      id: basic_deploy
      service:
        type: helm
        items:
          - <your-service-id>
      environment:
        id: <your-environment-id>
        deploy-to: <your-infrastructure-id>
      steps:
        - name: Helm Basic Deploy
          id: helmBasicDeployStep
          template:
            uses: helmBasicDeployStep
      rollback:
        - group:
            steps:
              - name: Helm Rollback
                id: helmRollbackStep
                template:
                  uses: helmRollbackStep
            id: helmBasicRollback
            name: Helm Basic Rollback
      on-failure:
        errors: all
        action: stage-rollback
      runtime:
        kubernetes:
          namespace: <target-namespace>
          connector: <your-kubernetes-connector-id>
          delegate: <your-delegate-name>

Go Helm runtime configuration understand the required runtime block and how to find your connector and namespace values.

Configure basic stage​

Select basic strategy​

When creating a new Helm stage, the strategy wizard asks you to choose a deployment strategy. Select Basic from the list.

Harness automatically adds one step to the stage canvas.

Configure Helm Basic Deploy step​

Click Helm Basic Deploy in the stage canvas to open its configuration panel.

The following fields are available:

ParameterDescriptionDefault
NameDisplay name for the step in the pipeline canvas.Helm Basic Deploy
Ignore Failed Release HistoryWhen true, proceeds with deployment even if the previous Helm release has a failed status. Use this to recover from a broken release without manual cleanup.false
Skip Steady State CheckWhen true, skips waiting for all deployed workloads to reach steady state after helm upgrade --install.false
Run Chart TestsWhen true, runs helm test against the release after a successful deployment.false
Environment VariablesAdditional environment variables to pass into the Helm plugin execution.none
Command FlagsAdditional flags to append to the helm upgrade command, for example --atomic or --cleanup-on-fail.none

Select + More options to access additional fields:

ParameterDescriptionDefault
Skip CleanupWhen true, skips cleanup of a failed first release. Use this to inspect resources left behind after a failed initial install.false
Print ManifestsWhen true, logs the full rendered chart manifest to the step output with secrets redacted.false
Server-Side RenderingWhen true, passes --server to helm template so manifests are rendered against the live cluster rather than locally.false

Go Helm Basic Deploy step reference review the full field reference.

Insert steps between deploy and end

The basic strategy adds a single step by default. You can insert approval, verification, or notification steps anywhere in the stage before or after the Helm Basic Deploy step.

Rollback​

If the Helm Basic Deploy step fails, Harness runs the rollback group automatically. The rollback group contains one step: Helm Rollback. Click it in the rollback canvas to configure it.

The following fields are available:

ParameterDescriptionDefault
NameDisplay name for the rollback step.Helm Rollback
Skip Steady State CheckWhen true, skips waiting for workloads to reach steady state after helm rollback.false
Run Chart TestsWhen true, runs helm test after a successful rollback.false
Environment VariablesAdditional environment variables to pass into the rollback execution.none
Command FlagsAdditional flags to append to the helm rollback command.none

The step retrieves the previous release revision from Helm's built-in release history and runs helm rollback <release-name> <previous-revision>.

Go Helm Rollback step reference review the full reference.

What happens on execution​

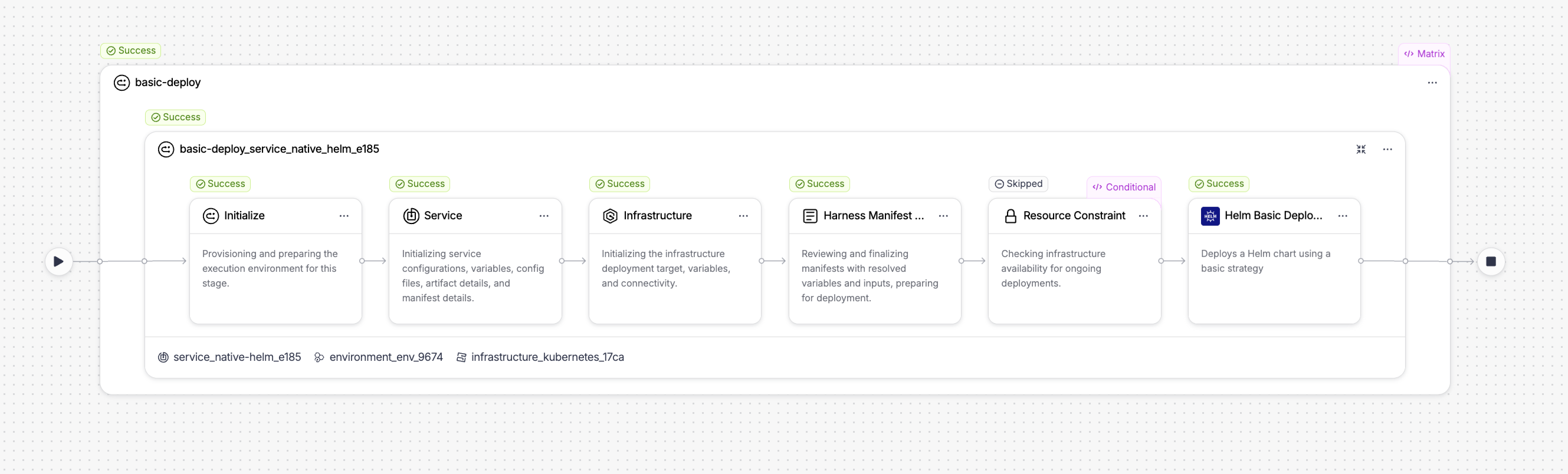

When you run a pipeline with a basic stage, the execution view shows the full step sequence. A successful run looks like this:

The execution includes setup steps Harness runs automatically before the configured step:

  • Initialize: Provisions and prepares the execution environment for the stage.
  • Service: Initializes service configurations, variables, config files, artifact details, and manifest details.
  • Infrastructure: Initializes the infrastructure deployment target, variables, and connectivity.
  • Harness Manifest: Reviews and finalizes manifests with resolved variables and inputs, preparing for deployment.
  • Resource Constraint: Checks infrastructure availability for concurrent deployments. Skipped if no resource constraints are configured.

The configured step follows.

Helm Basic Deploy step in execution​

The step executes the following actions internally:

  1. Input validation: Resolves and prints all input parameters, including release name, chart path, values files, Helm flags, namespace, and credentials. Prints PARAM VALIDATION: All looks good before proceeding.

  2. Helm version check: Detects the Helm CLI version available on the delegate. Harness uses helm3 by default.

  3. Release history check: Runs helm history to inspect the current state of the release. If no release exists, Harness proceeds with a fresh install. If Ignore Failed Release History is enabled and the last release shows a failed status, Harness clears it before upgrading.

  4. Helm upgrade: Runs helm upgrade --install <release-name> <chart-path> with all resolved values files and command flags. Helm creates a new revision on the release.

  5. Steady state check: Polls the cluster until all Deployment, StatefulSet, and DaemonSet workloads in the release reach ready status. Bypassed if Skip Steady State Check is enabled.

Next steps​
