Module Version Lifecycle Management

Last updated on

This topic walks you through configuring version lifecycle rules on a module in the Harness IaCM Module Registry, choosing how each tier is enforced, and adding manual overrides for exceptions.

Version lifecycle management classifies each module version into one of three tiers: supported, update required, or deprecated. You define a sliding window rule that assigns those tiers automatically based on how recent each version is. When a pipeline uses a module, Harness checks the module version against the rule and either lets it proceed, logs a warning, or fails the run, depending on the enforcement behaviour you set for that tier.

Optionally, you can pin a specific version to any tier with a manual override, for example to archive a broken version or to continue using a deprecated version for testing.

Beta

This feature is in beta. Contact Harness Support to enable it.

What will you learn?​

By the end of this topic, you will be able to:

Before you begin​

Before you configure version lifecycle rules, make sure you have the following:

  • Registered module: A module already registered in the IaCM Module Registry. Go to register modules to add a new module.
  • Published versions: The module has more than one published version. Lifecycle tiers apply only when multiple versions exist.
  • Edit permission: You need the Edit permission on the IaCM module registry resource to configure lifecycle rules or overrides. Anyone with View permission can see the lifecycle status, but only Edit lets you change the rule. Go to RBAC in Harness to configure roles, and go to the Permissions reference to review the IaCM permissions.
Default behaviour

If no rule is configured on a module, all versions are treated as supported and nothing is enforced. Existing modules behave exactly as before until you configure a rule.

Three lifecycle tiers​

Every version falls into one of the following three tiers. Supported versions are always allowed. For the other two tiers, you set an Enforcement behaviour that controls what happens when a pipeline uses a version in that tier.

TierWhat it meansEnforcement behaviour
SupportedThe most recent versions. You can reference them without any warning.Not enforced
Update RequiredVersions just outside the supported range. You are warned but not blocked by default.Configurable. Default: Warning
DeprecatedAll older versions. These should not be used, for example because of security gaps or known issues.Configurable. Default: Fail

A version's badge (Supported, Update Required, or Deprecated) appears in the version dropdown and the module detail header, so you can see its status without opening the Lifecycle Management tab.

How are tiers assigned to a version?​

You define two numbers, and a sliding window assigns tiers from the newest version down:

  • most recent versions (N): how many of the most recent versions are supported.
  • next versions after supported (M): how many versions after the supported ones are in the update required tier.

Everything older falls into the deprecated tier. Versions are ordered by semantic version, newest first, not by publish date. A backport patch published later than a higher version does not jump ahead of the tier.

For example, with most recent versions set to 3 and next versions after supported set to 2, on a module whose latest version is v2.3.0:

  • Supported: v2.3.0, v2.2.0, v2.1.0
  • Update required: v2.0.0, v1.9.0
  • Deprecated: everything older
Fewer versions than the supported count

If a module has fewer versions than the most recent versions count, all of its versions are supported. The update required and deprecated tiers apply only once enough versions exist.

When you publish v2.4.0, the window slides automatically. v2.4.0 becomes supported, the oldest supported version drops into update required, and so on down the list.

New versions shift the window

Publishing a version can move existing versions down a tier. A pipeline that passed yesterday can start to warn or fail today, with no change to the consumer's code, because a newer version was published. Tell consumer teams about the rule before you set the deprecated tier's Enforcement behaviour to Fail, and start with a generous supported count.

Configure a lifecycle rule​

Complete the following steps to configure the sliding window and enforcement behaviour on the module's Lifecycle Management tab:

  1. In Harness, navigate to the module in the IaCM Module Registry and select the Lifecycle Management tab.

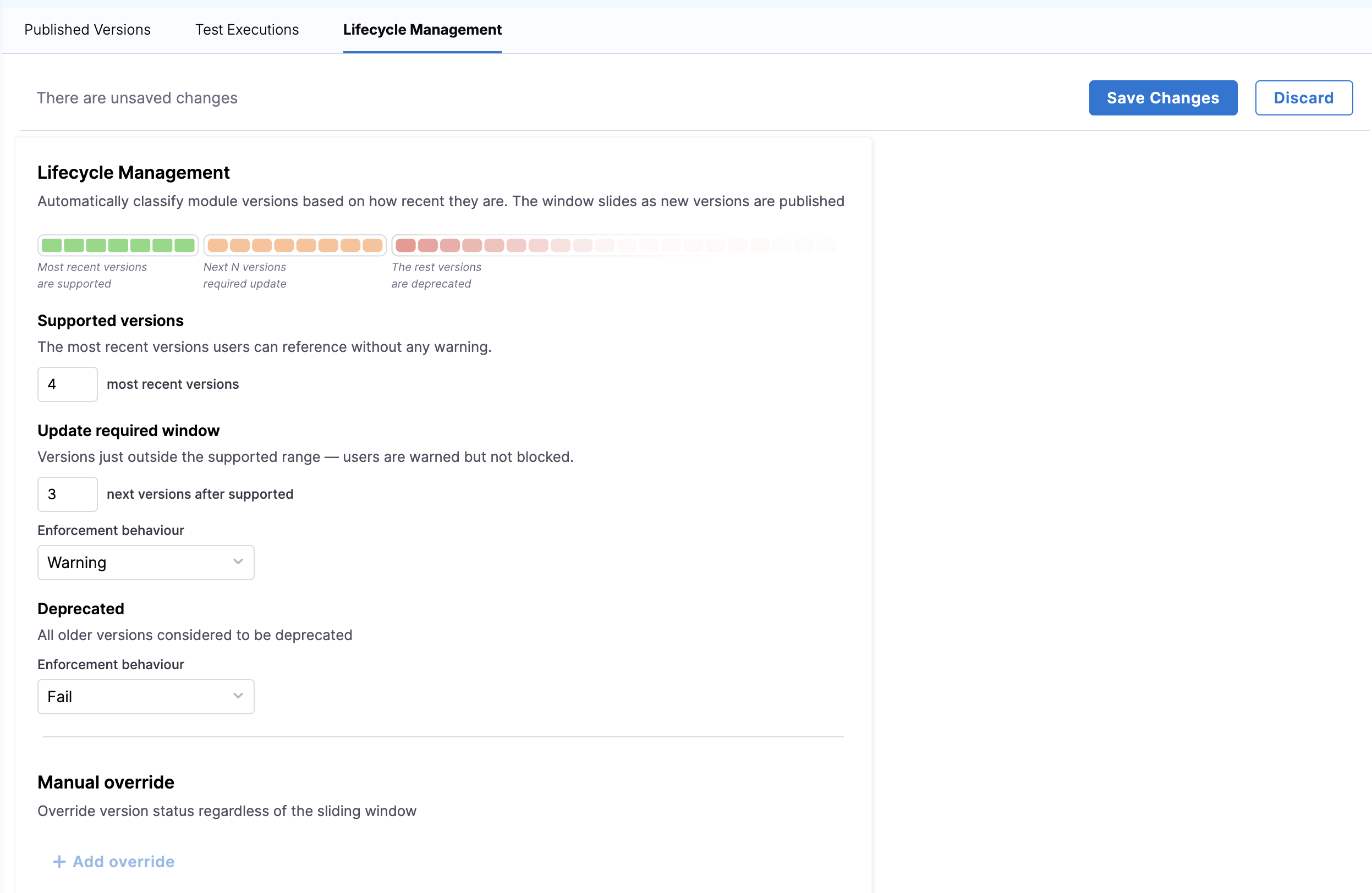

    Lifecycle Management tab showing the Supported versions, Update required window, and Deprecated enforcement fields

    The Lifecycle Management tab with the sliding window configuration fields.

  2. Under Supported versions, set most recent versions to the number of newest versions to keep supported.

  3. Under Update required window, set next versions after supported to the number of versions to flag, then set the Enforcement behaviour (default Warning).

  4. Under Deprecated, set the Enforcement behaviour (default Fail).

  5. Click Save Changes. The rule takes effect immediately.

Add manual overrides for exceptions​

A manual override pins a specific version to any tier, regardless of where the sliding window would place it. An override always wins over the window. Complete the following steps to add a manual override:

  1. On the Lifecycle Management tab, under Manual override, select Add override.

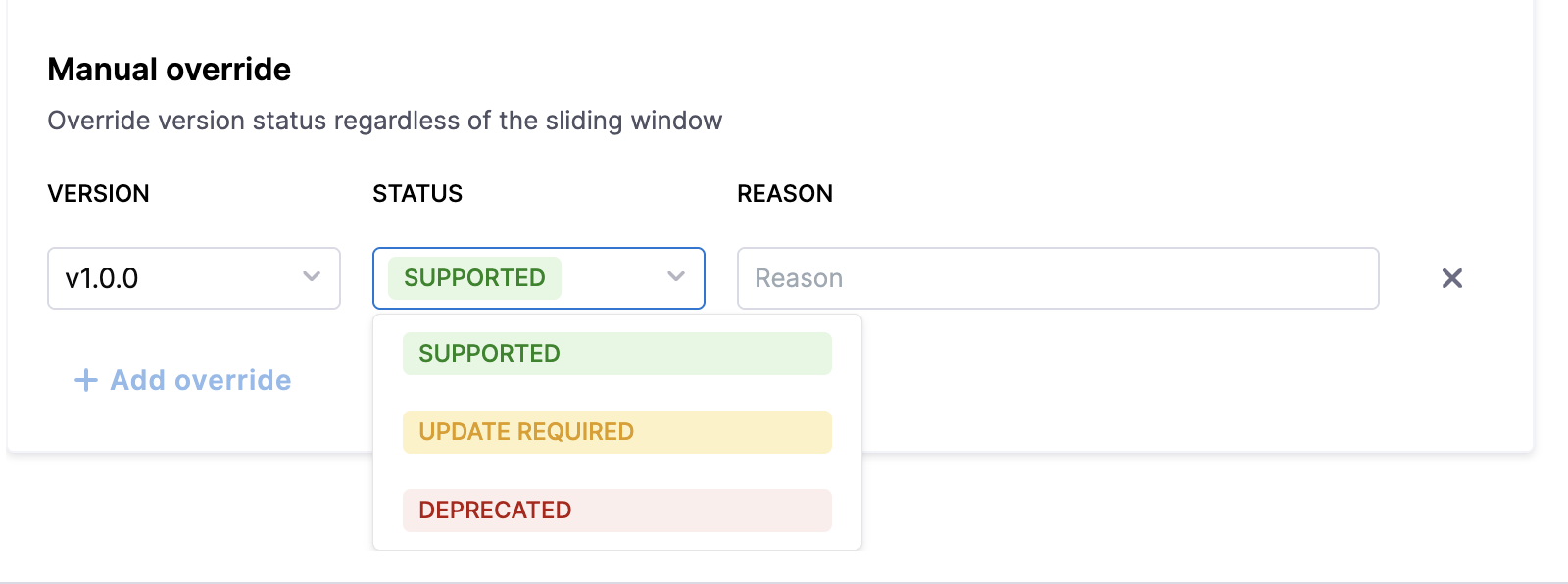

    Manual override panel with Version, Status, and Reason fields

    The Manual override panel where you select the version, target tier, and reason for the exception.

  2. In Version, select the version to override.

  3. In Status, select the tier to pin the version to: Supported, Update required, or Deprecated.

  4. In Reason, enter why you are overriding the version, so other admins understand the exception.

  5. Click Save Changes.

To remove an override, click the × icon next to it. The version then follows the sliding window again.

Common uses:

  • Archive a bad version: A version that would otherwise be supported has a known critical bug, so you pin it to deprecated. Any pipeline that resolves that version then fails.
  • Extend support for an exception: A team needs more time to migrate off a deprecated version, so you pin that one version to supported or update required for a period.
Override persistence

An override stays in place until you remove it. If you pin a version to supported as a temporary exception, remove the override once the team migrates, otherwise that version stays supported no matter where the sliding window places it.

How tier enforcement works during a pipeline run​

Enforcement happens inside the Harness IaCM pipeline step, not at the registry level. The check runs after terraform init resolves the module versions and before plan proceeds. The Enforcement behaviour you set for a tier maps to one of the following outcomes:

  • No enforcement: the version proceeds with no message. This is always the case for supported versions.
  • Warning: the pipeline step succeeds but logs an upgrade notice that names the module, the current version, and the recommended version.
  • Fail: the pipeline step errors out before plan, with a message naming the module, the version, its status, and the minimum supported version.

Best practices​

Keep the following in mind when working with lifecycle enforcement in Harness pipelines:

  • Resolved version is checked: If your Terraform code uses a version constraint such as ~> 2.0, the version that terraform init resolves is the one evaluated.
  • Direct references only: Enforcement applies to modules referenced directly in your workspace. Transitive dependencies (a module that depends on another module) are not evaluated.
  • Plan is the gate: Enforcement runs at plan time. A plan that passes is not re-evaluated at apply.
  • Harness pipelines are the boundary: Running Terraform locally or outside Harness bypasses lifecycle enforcement by design.
Governance scope

Because Harness pipelines are the enforcement boundary, lifecycle rules govern usage but do not physically remove a version. A developer running Terraform locally can still resolve a deprecated version. Treat this as a governance guardrail within Harness, not a hard removal from the registry.

Troubleshooting​

A pipeline started failing after a new module version was published

Publishing a new version shifts the sliding window, which can move the version a workspace uses into the update required or deprecated tier. Check the module's Lifecycle Management tab to see the current tier of the version your workspace resolves, then either upgrade the workspace to a supported version or add a manual override for the affected version.

A deprecated version is not being blocked in a pipeline

Confirm the deprecated tier's Enforcement behaviour is set to Fail rather than Warning. Enforcement also applies only to modules referenced directly in the workspace and only within Harness pipelines. Local Terraform runs are not enforced.

A version shows an unexpected tier

A manual override always wins over the sliding window. Check the Manual override section on the Lifecycle Management tab to see whether the version is pinned.

Next steps​

You have configured version lifecycle rules on a module and can now enforce upgrade policies across Harness pipelines.
