# Cloud Asset Governance Architecture

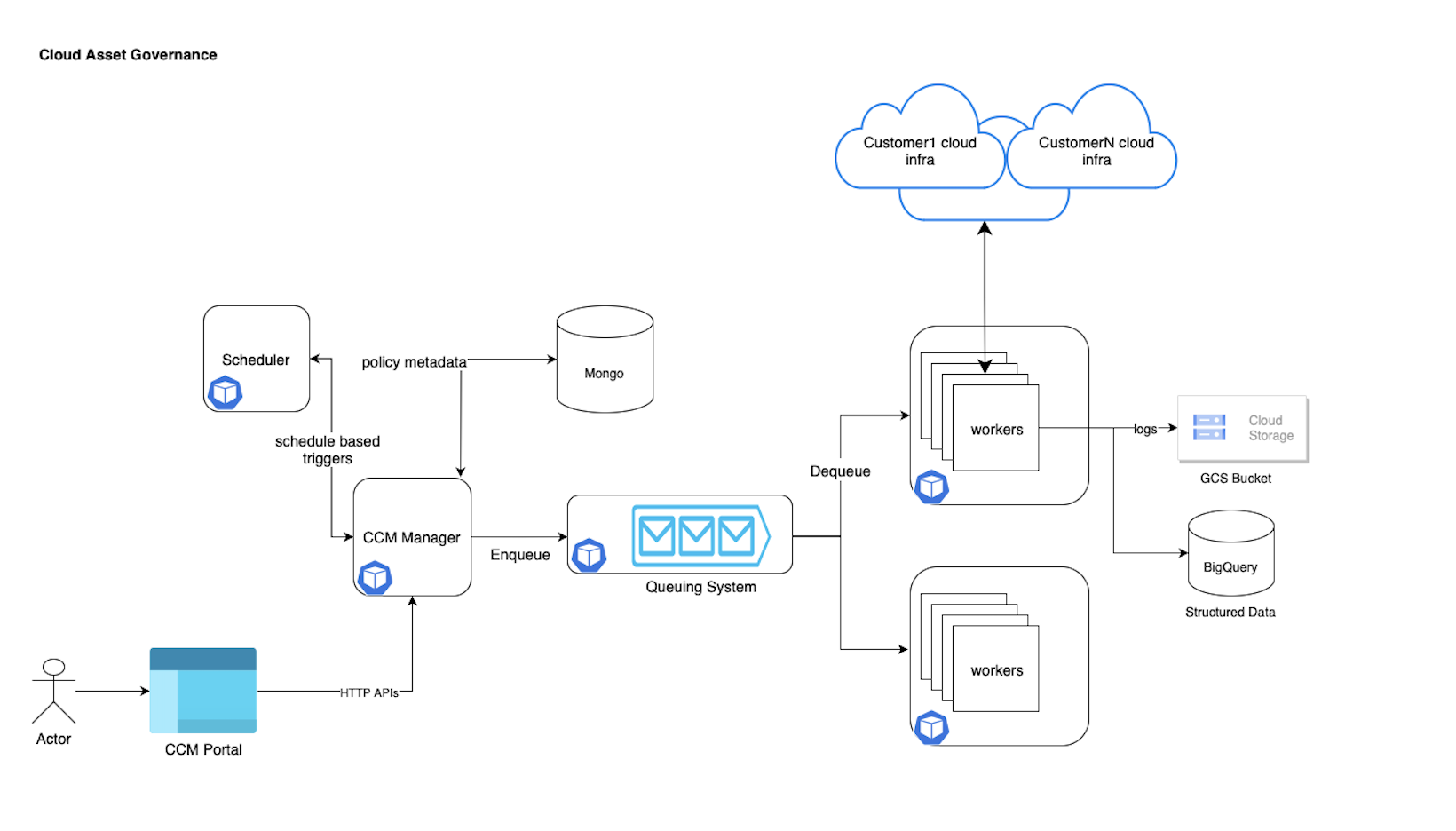

Cloud Asset Governance Architecture

<figure><img src="https://1217180450-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FO2HVWkYMptNUG08jo8hr%2Fuploads%2Fgit-blob-2dcfa0cd562e748dc5b73aa925af81f0984484fe%2FCloud_Asset_Governance_Architecture.png?alt=media" alt=""><figcaption><p>Click to view full size image</p></figcaption></figure>

Let's take a simple look at how the Cloud Asset Governance feature works. This feature helps keep things organized in the cloud.

**How It Works:**

* **Worker Microservice**:
  * This is like the main worker. It does the main job of making sure rules are followed.
  * It uses a tool called Cloud Custodian to do different tasks in the cloud.
* **Logging and Storage**:
  * Logs from doing things like enforcing rules are kept safe in a place called Google Cloud Storage (GCS).
  * Important data that helps us understand what's happening is stored in BigQuery.
* **Job Queue**:
  * Tasks to do are put in a line to keep things organized.
  * The worker microservice takes tasks from this line and does them.

**Other Important Services:**

* **CCM Manager**:
  * Helps organize and manage different parts of the Cloud Asset Governance feature.
* **Scheduler Service**:
  * Makes sure tasks are done on time according to a schedule. This helps keep things running smoothly.
* **MongoDB**:
  * Keeps track of important information about rules and what happened when they were enforced.

**How It All Works Together:**

* **Getting Tasks**:
  * Tasks related to following rules are put in the line to be done.
* **Doing Tasks**:
  * The worker microservice, with the help of Cloud Custodian, does tasks from the line.
* **Following Rules**:
  * Cloud Custodian makes sure rules are followed in the cloud.
* **Keeping Track**:
  * Logs from doing tasks are kept safe in GCS.
  * Important data about what happened is stored in BigQuery for later checking.
* **Managing Information**:
  * MongoDB keeps track of important information about rules and what happened when they were enforced.
* **Watching Everything**:
  * The CCM Manager makes sure everything works well together.
