# Traffic shift step

Reference for the Shift Google Agent Runtime Traffic step.

The traffic shift step routes a percentage of traffic to the revision produced by the deploy step. Add a step for each stage of the canary, for example 10 percent, 25 percent, 50 percent, and 100 percent.

The step type is `ShiftGoogleAgentRuntimeTraffic`. Configure the following fields:

* **Container Registry:** A Harness connector for the registry that hosts the plugin image.
* **Image:** The traffic shift plugin image, `harness/google-agent-runtime-plugin:1.0.0-linux-amd64`.
* **Target Revision ID:** The revision produced by the deploy step, `<+steps.DeployGoogleAgentRuntimeRevision.agentDeployment.revisionId>`.
* **Weight (%):** The percentage of traffic to route to the target revision for this shift.

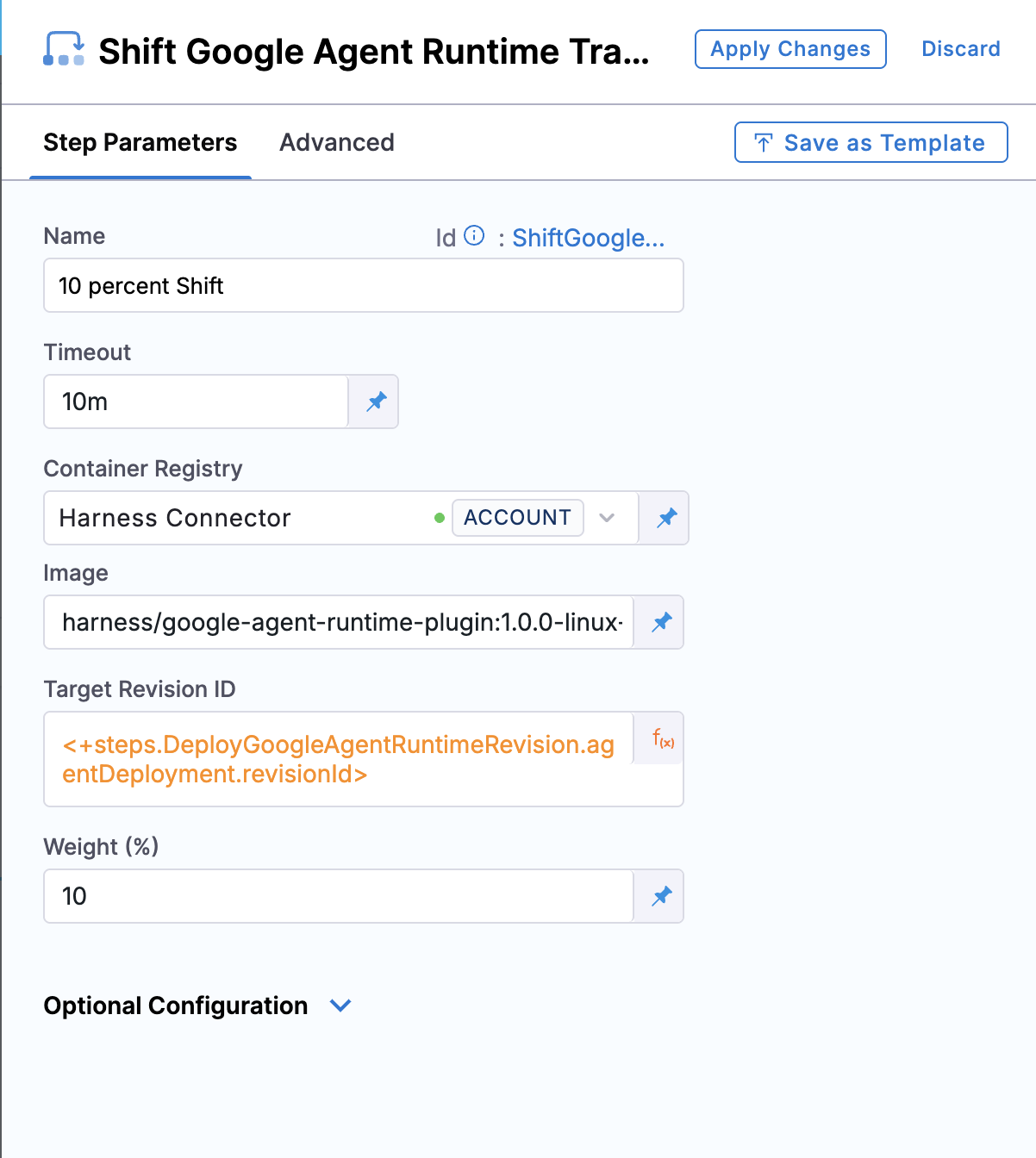

  <figure><img src="https://3694223630-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fy1JhZ4oKIppwY7d5AhPj%2Fuploads%2Fgit-blob-700705ecc97dfe8c621e7e21e675e2d3ae8ec61b%2Fstep-shift-google.png?alt=media" alt="Shift Google Agent Runtime Traffic step parameters showing image, target revision ID, and weight"><figcaption><p>Click to view full size</p></figcaption></figure>
