Exporting service variables as environment variables in a Shell Script step

Learn how to export service variables as environment variables when using a Shell Script step

You can use the Export Service Variables as Env Variables setting to export service variables as environment variables. This setting is available at account, organization, and project levels.

To enable this setting, go to Account Settings > Account Resources > Default Settings > Pipeline, and then expand Pipeline. Next, set the Export Service Variables as Env Variables setting to true.

Once you enable this setting, a service's variables are available as Bash variables in any Shell Script step in a stage that deploys that service. You can access the service variables like you access any Bash variables. For example, the service variable, var1 is available for use in a Shell Script step as $var1.

When you add a service variable, you can select variables of type String, Secret, or Number.

Let's consider an example where you have added the following service variables:

Variable name

Type

Value

svar1

String

normalValue

svar2

String

value-with-hyphen

svar3

String

value_with_underscores

secretServiceVar

Secret

yourSecret

nvar1

Number

svar4

String

abc%def%123

svar5$abc

String

key_With_Dollar

svar6

String

abc,ghj,klk

In your Shell Script step, you can use these service variables as environment variables if you had enabled the Export Service Variables as Env Variables setting.

LIMITATION

Shell scripts executing on remote hosts cannot export the correct value if you're using special characters such as -, _, $, %, and spaces in Bash.

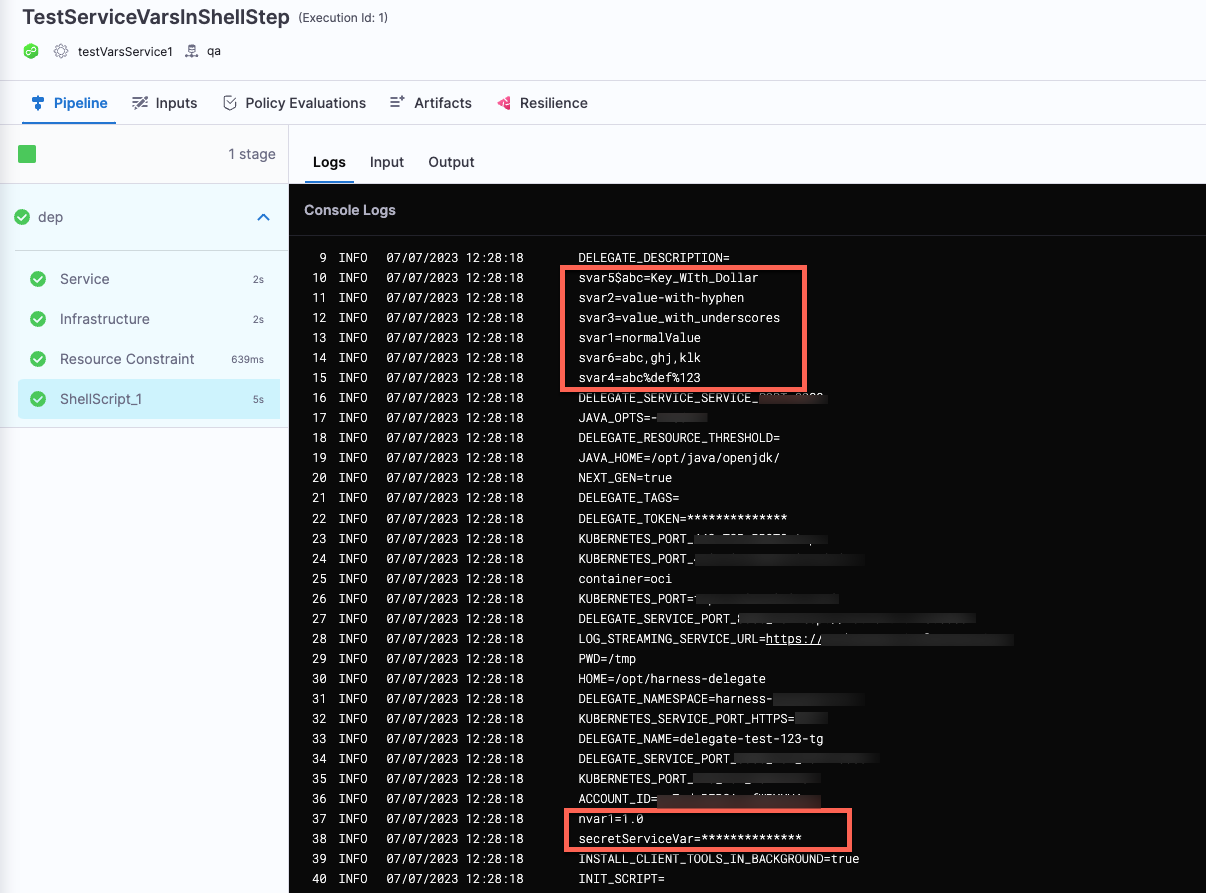

When you run the pipeline, you can see the value of the service variables passed as environment variables.
