Use Harness expressions in GitOps manifests

Inject Harness service variables, environment variables, and secrets into Argo CD manifests at manifest generation time.

Use the Harness GitOps plugin to resolve Harness expressions in Kubernetes manifests during Argo CD's manifest generation phase. This lets you inject dynamic values from Harness services and environments into your manifests before Argo CD applies them to the cluster.

Application detection

The Harness plugin uses an explicit, per-application connection to determine which applications it processes. The plugin does not automatically claim an application based on repository contents alone. Each application must specify one of the following:

• spec.source.plugin.name: argocd-harness-plugin on the Argo CD Application.

• .harness.yaml in the application's source directory.

Without an explicit connection, Harness expressions remain unresolved in generated manifests.

Go to Connect an application to the plugin to configure the connection.

What you will learn from this topic

• How to configure the plugin on new or existing GitOps agents

• How to connect an application to the plugin so expressions resolve

• How the plugin detects your manifest tool (Helm, Kustomize, or plain manifests)

• How to use expressions for service variables, environment variables, and secrets

• How to override variables per environment

• How to troubleshoot common expression resolution issues

Secrets and security

This topic covers expressions and tool detection. Go to Secret injection in GitOps applications for Vault and Secret Manager integration and the security model.

---

Before you begin

Before using Harness expressions in GitOps manifests, ensure you have:

• GitOps Agent: Agent version v0.105.x or later installed and running. Go to Install a Harness GitOps Agent for installation steps.

• Agent installer helper: gitops-agent-installer-helper version v0.0.16 or later (v0.0.18 or later is required for Kustomize support).

• Harness service: A GitOps service configured with variables. Go to GitOps services to create and configure services.

• Harness environment: An environment configured with variables and linked to your service. Go to Environments overview to configure environments and variables.

---

Configure the Harness Argo CD plugin

Do this once when setting up the agent. If the plugin is already enabled on your agent, skip to Connect an application to the plugin.

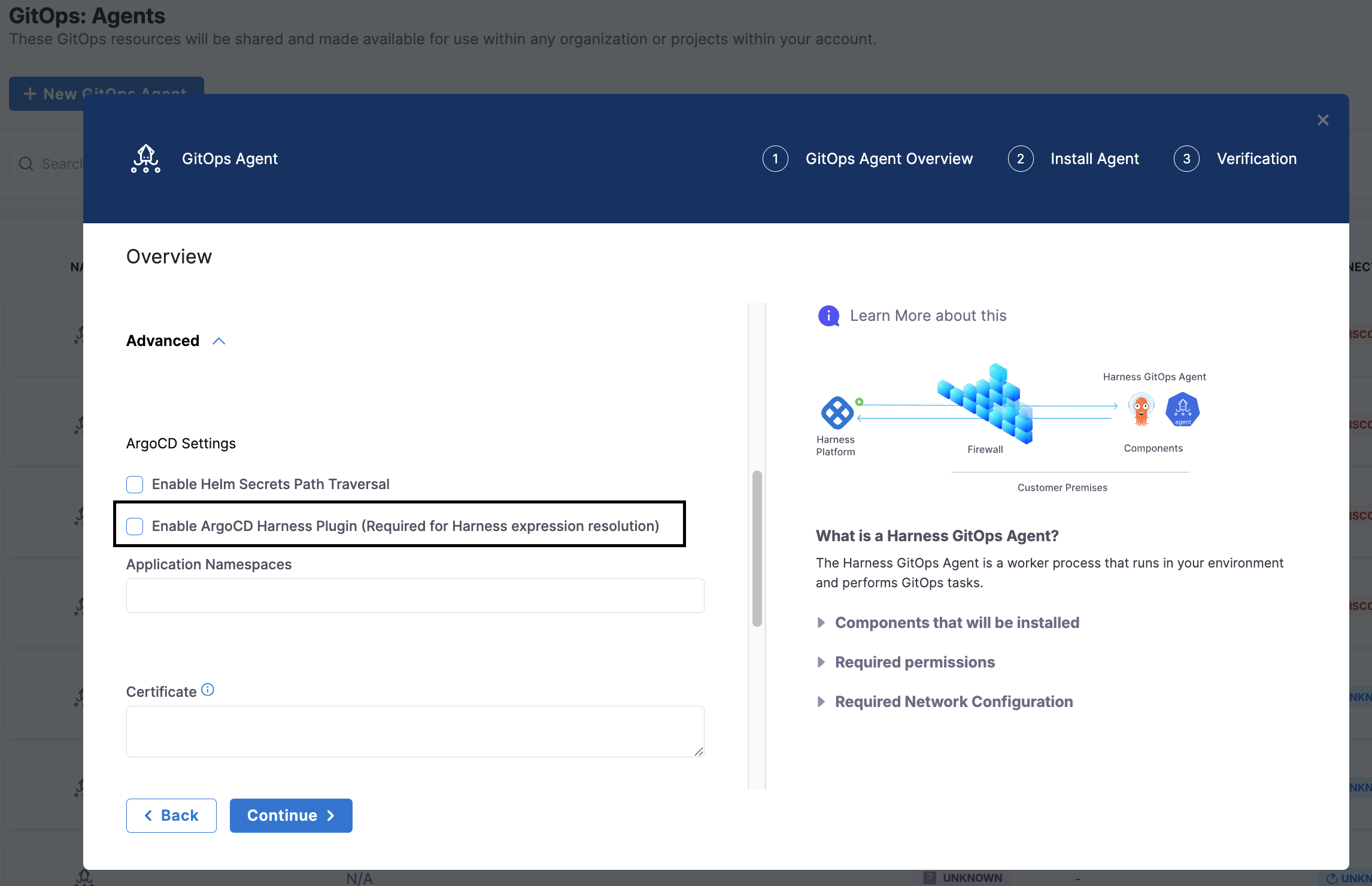

For new Agent installations: Select the Enable ArgoCD Harness Plugin (Required for Harness expression resolution) checkbox during GitOps agent installation to use this feature. No additional configuration is needed.

For existing Agent installations (BYOA or Harness-installed Argo): The Enable ArgoCD Harness Plugin (Required for Harness expression resolution) checkbox cannot be changed after the initial installation. You must configure the Harness Argo CD plugin manually. Go to Enable the plugin on an existing agent or BYOA for instructions.

Once enabled, connect each Application to the plugin and use expressions in your manifests:

Step 1. Connect the Application to the plugin

Set the plugin name on the Application:

spec:
  source:
    repoURL: https://github.com/your-org/your-repo
    targetRevision: HEAD
    path: manifests/
    plugin:
      name: argocd-harness-plugin

Or add .harness.yaml to the Application's source directory. Go to Connect an application to the plugin for details on both methods.

Step 2. Use expressions in your manifests

spec:
  replicas: <+serviceVariables.replicas>
  template:
    spec:
      containers:
        - name: app
          image: myapp:<+serviceVariables.imageTag>
          env:
            - name: LOG_LEVEL
              value: <+env.variables.logLevel>
            - name: ENV_NAME
              value: <+env.name>

Expressions resolve at manifest generation time. Sync (or let auto-sync trigger) and the deployed manifest contains the resolved values.

Limitations

The following limitations apply when you use the Harness plugin:

Limitation	Details
Kustomize secretGenerator	Secret resolution inside secretGenerator-produced Secret objects is unverified; use plain Secret manifests instead until confirmed.
Application source type shows as Plugin	Argo CD shows source type as Plugin instead of Helm/Directory. Path listing in UI will not work; specify paths manually.
HELM_ARGS	Shell-injection risk; go to HELM_ARGS environment variable for the warning.

---

Connect an application to the plugin

Application routing is required

The plugin processes an application's manifests only when Argo CD is configured to route the application to the Harness plugin. If the application is not routed to the plugin, Harness expressions remain unresolved and appear literally in the generated manifests.

There are two ways to connect an Application to the plugin. Use either method:

Method	How
Explicit plugin name	Set spec.source.plugin.name: argocd-harness-plugin on the Application
File-based activation	Add .harness.yaml to the Application's source directory

Explicit plugin name:

spec:
  source:
    repoURL: https://github.com/your-org/your-repo
    targetRevision: HEAD
    path: manifests/
    plugin:
      name: argocd-harness-plugin

File-based activation: commit .harness.yaml to the application's source directory:

# An empty file is valid.

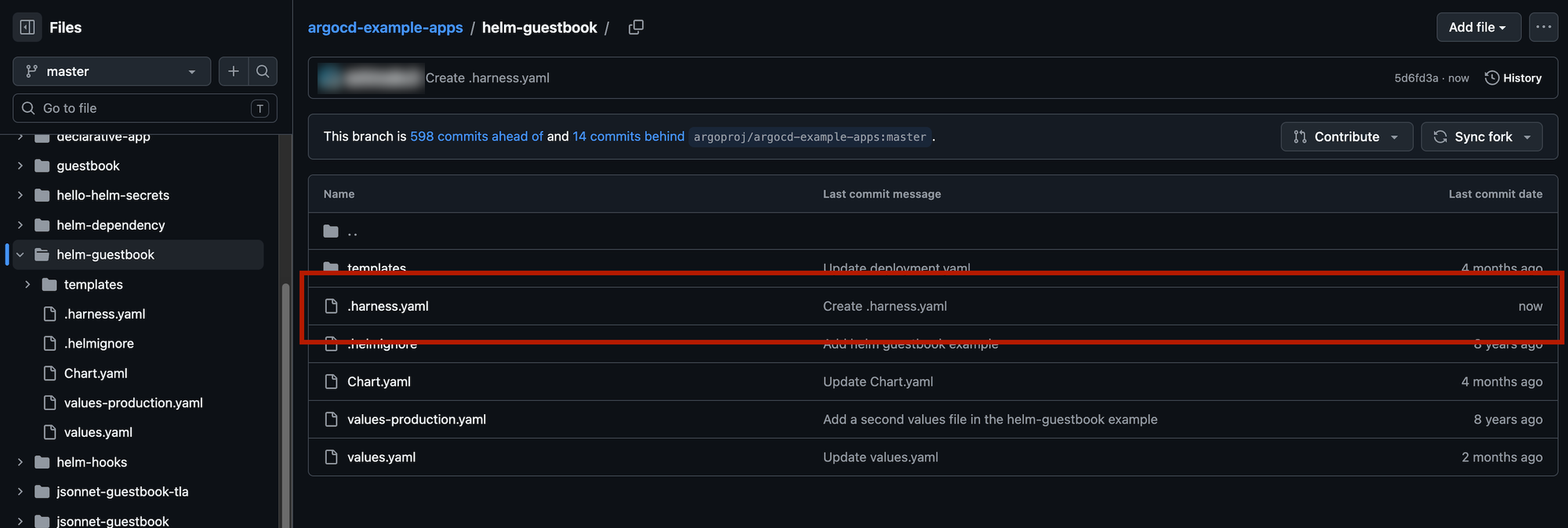

In the example below, the Argo CD Application's spec.source.path is helm-guestbook. The .harness.yaml file is committed inside that directory, alongside Chart.yaml and values.yaml.

.harness.yaml must be inside spec.source.path

Argo CD checks for the file inside the Application's source path. If your Application's path is charts/myapp, the file must be at charts/myapp/.harness.yaml. A file at the repo root will not be found.

Custom activation conditions (optional, advanced)

Not required for most setups. Use this only if neither the explicit plugin name nor the .harness.yaml marker fits your workflow, for example, if you want to use a different filename, or check for multiple possible markers.

The plugin checks for .harness.yaml using a shell command in the ConfigManagementPlugin spec. You can replace that command with any shell expression that exits 0 for applications the plugin should process and non-zero for those it should not. The command runs inside the Application's source directory (spec.source.path).

To customize, edit the discover.find.command in the plugin ConfigMap directly. Go to Enable the plugin on an existing agent or BYOA for the ConfigMap structure.

discover:
  find:
    command:
      - /bin/sh
      - -c
      - "test -f .harness.yaml || test -f .harness-plugin"  # activate on either file

Or check for a specific key inside the file:

      - "grep -q '^harness:' .harness.yaml 2>/dev/null"

The built-in default (test -f .harness.yaml) is sufficient for almost all cases. Custom conditions are a BYOA or Helm-managed install concern; Harness-provisioned agents manage this ConfigMap automatically.

---

Manifest tool selection

No configuration needed for most applications. The plugin detects Helm, Kustomize, or plain manifests automatically. Read this section only if auto-detection is picking the wrong tool for your application.

Tool selection at generation time

Once the plugin is processing an Application, it auto-detects the manifest tool by inspecting the source directory. For most applications this requires no configuration. The following table lists the detection rules:

Condition	Tool used
kustomization.yaml, kustomization.yml, or Kustomization exists	kustomize build .
Chart.yaml or values.yaml exists	helm template
None of the above	Plain manifests (native)

Expressions are resolved on the tool's output, after Helm or Kustomize has already rendered the manifests.

If auto-detection picks the wrong tool, you can override it. Go to Overriding the manifest tool.

Plain manifests

No Chart.yaml or kustomization.yaml: just raw manifests. No extra configuration needed:

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:
  log-level: <+env.variables.logLevel>
  cluster: <+env.variables.clusterName>

Helm

Plugin runs helm template and resolves expressions in the output. Helm subchart dependencies (helm dependency build) run automatically; no need to vendor charts/:

replicaCount: <+serviceVariables.replicas>
image:
  tag: <+serviceVariables.imageTag>

Kustomize

Plugin runs kustomize build . and resolves expressions in the output. Expressions can appear in any resource Kustomize renders, including patches:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp
spec:
  replicas: <+serviceVariables.replicas>

Kustomize and secretGenerator

Expression resolution for kind: Secret objects produced by Kustomize's secretGenerator is not yet verified. Use plain Secret manifests (not secretGenerator) if you need secret injection with Kustomize.

Overriding the manifest tool

If auto-detection picks the wrong tool, add a tool: key to .harness.yaml:

tool: kustomize   # one of: helm, kustomize, native

---

Expression reference

All expressions resolve at manifest generation time (pre-deployment, not runtime).

Expression types

The following expressions are available in GitOps manifests:

Expression	Source	Example
<+serviceVariables.name>	Service-level variables	<+serviceVariables.replicas>
<+env.variables.name>	Environment-level variables	<+env.variables.logLevel>
<+env.name>	Environment display name	production
<+env.identifier>	Environment identifier	prod
<+env.type>	Environment type	Production or PreProduction
<+env.description>	Environment description
<+variable.account.name>	Account-scope fixed variable	<+variable.account.companyId>
<+variable.org.name>	Org-scope fixed variable	<+variable.org.defaultRegion>
<+variable.name>	Project-scope fixed variable	<+variable.projectCode>
<+secrets.getValue("ref")>	Secret (direct reference)	<+secrets.getValue("vault_secret")>
<+serviceVariables.name> (Secret type)	Secret via service variable	resolves to <+secrets.getValue(...)>

Define variables

• Service variables: Deployments -> Services -> select the service -> Configuration -> Variables

• Environment variables: Deployments -> Environments -> select the environment -> Configuration -> Variables

• Fixed variables: Account, Org, or Project Settings -> Variables

Override priority

When the same variable name exists at multiple levels, the highest-priority override wins:

ENV_SERVICE  >  Service (base)  >  ENV_GLOBAL  >  Environment (base)

The following table describes each override type:

Override type	How to configure	Scope
ENV_SERVICE	Environment -> Service Overrides -> select service	Overrides a service variable for a specific service and environment pair
ENV_GLOBAL	Environment -> Configuration -> Variables	Overrides an environment variable for all services in that environment

Secret variables

Variables defined as type Secret in Harness go through two-stage resolution:

1. Manifest generation: <+serviceVariables.dbPassword> resolves to <+secrets.getValue('account.prodDbPassword')>.

2. Deployment time: The actual secret value is injected into the cluster.

apiVersion: v1
kind: Secret
metadata:
  name: app-secrets
type: Opaque
stringData:
  db-password: <+serviceVariables.dbPassword>
  api-key: <+serviceVariables.apiKey>

Secret expressions (<+secrets.getValue()>) are only resolved when they appear inside a kind: Secret resource.

Complete example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp
  namespace: <+env.variables.namespace>
  labels:
    environment: <+env.type>
spec:
  replicas: <+serviceVariables.replicas>
  template:
    spec:
      containers:
        - name: myapp
          image: myapp:<+serviceVariables.imageTag>
          env:
            - name: LOG_LEVEL
              value: <+env.variables.logLevel>
            - name: REGION
              value: <+serviceVariables.region>
            - name: ENV_NAME
              value: <+env.name>
          resources:
            limits:
              memory: <+serviceVariables.memoryLimit>
              cpu: <+serviceVariables.cpuLimit>

GitOps expressions vs pipeline expressions

GitOps expressions are a subset of Harness expressions: they only have access to service and environment context, not pipeline runtime context.

Exception for PR pipelines

When syncing manifests within PR Pipelines (for example, using the GitOps Sync step), GitOps expressions can access pipeline runtime context. This allows you to reference pipeline variables, execution details, and other pipeline-level expressions during PR Pipeline execution.

The following table compares GitOps expressions and pipeline expressions:

	GitOps expressions	Pipeline expressions
When resolved	Manifest generation (pre-deploy)	Pipeline runtime
Context	Service + environment + metadata	Full pipeline (artifact.*, infra.*, stage.*, etc.)
Not available	pipeline.*, stage.*, artifact.*, infra.*

Use GitOps expressions when the value is known at manifest generation time and tied to service or environment config. Use pipeline expressions for artifact versions, build numbers, or step outputs.

---

Enable the plugin on an existing agent or BYOA

The Enable ArgoCD Harness Plugin checkbox can only be set at initial Agent installation. Use one of these patch paths if your agent is already installed.

Helm chart installations

1. Set in values.yaml:

   harness:
     argocdHarnessPlugin:
       enabled: true

2. Upgrade the release:

   helm upgrade <release-name> gitops-agent/gitops-helm \
     --values values.yaml \
     --namespace <agent-namespace>

3. Verify Kustomize is available (requires sidecar image ≥ v0.0.18):

   kubectl exec -n <agent-namespace> <argocd-repo-server-pod> \
     -c argocd-harness-plugin -- kustomize version

   kubectl exec -n <agent-namespace> <argocd-repo-server-pod> \
     -c argocd-harness-plugin -- helm version

   If kustomize version returns "command not found," bump the sidecar image tag above v0.0.18 and re-apply.

Plain Kubernetes manifest installations

1. Apply the plugin ConfigMap:

   kubectl apply -n <agent-namespace> -f - <<'EOF'
   apiVersion: v1
   kind: ConfigMap
   metadata:
     name: argocd-harness-plugin
     namespace: <agent-namespace>
   data:
     harness.yaml: |
       ---
       apiVersion: argoproj.io/v1alpha1
       kind: ConfigManagementPlugin
       metadata:
         name: argocd-harness-plugin
       spec:
         version: v1.0
         allowConcurrency: true
         discover:
           find:
             command:
               - /bin/sh
               - -c
               - "test -f .harness.yaml"
         init:
           command:
             - /bin/sh
             - -c
             - |
               set -o pipefail
               if [ -f "Chart.yaml" ]; then
                 helm dependency build > /dev/null 2>&1 || true
               fi
         generate:
           command:
             - /bin/sh
             - -c
             - |
               set -o pipefail
               if [ -f ".harness.yaml" ] && grep -q '^tool:' ".harness.yaml"; then
                 TOOL=$(grep '^tool:' ".harness.yaml" | head -1 | cut -d: -f2 | tr -d ' "')
               else
                 TOOL=""
               fi

               if [ "$TOOL" = "kustomize" ] || { [ -z "$TOOL" ] && { [ -f "kustomization.yaml" ] || [ -f "kustomization.yml" ] || [ -f "Kustomization" ]; }; }; then
                 kustomize build . | argocd-harness-plugin generate -
               elif [ "$TOOL" = "helm" ] || { [ -z "$TOOL" ] && { [ -f "Chart.yaml" ] || [ -f "values.yaml" ]; }; }; then
                 helm template $ARGOCD_APP_NAME -n $ARGOCD_APP_NAMESPACE ${ARGOCD_ENV_HELM_ARGS} --include-crds . \
                   | argocd-harness-plugin generate -
               else
                 argocd-harness-plugin generate .
               fi
         lockRepo: false
   EOF

2. Patch the argocd-repo-server Deployment to add the sidecar (skip if already present):

   kubectl patch deployment argocd-repo-server -n <agent-namespace> --type=json -p='[
     {"op": "add", "path": "/spec/template/spec/containers/-", "value": {
       "name": "argocd-harness-plugin",
       "command": ["/var/run/argocd/argocd-cmp-server"],
       "image": "harness/gitops-agent-installer-helper:v0.0.18",
       "imagePullPolicy": "IfNotPresent",
       "securityContext": {"runAsUser": 999, "runAsGroup": 999, "capabilities": {"drop": ["NET_RAW"]}},
       "volumeMounts": [
         {"name": "var-files", "mountPath": "/var/run/argocd"},
         {"name": "plugins", "mountPath": "/home/argocd/cmp-server/plugins"},
         {"name": "tmp", "mountPath": "/tmp"},
         {"name": "argocd-harness-plugin", "mountPath": "/home/argocd/cmp-server/config/plugin.yaml", "subPath": "harness.yaml"}
       ]
     }},
     {"op": "add", "path": "/spec/template/spec/volumes/-", "value": {
       "name": "argocd-harness-plugin",
       "configMap": {"name": "argocd-harness-plugin"}
     }}
   ]'

3. Verify:

   kubectl rollout status deployment/argocd-repo-server -n <agent-namespace>
   kubectl exec -n <agent-namespace> <argocd-repo-server-pod> \
     -c argocd-harness-plugin -- kustomize version

Upgrade from an older plugin install

If you already have an argocd-harness-plugin ConfigMap from a previous install, re-applying the ConfigMap in step 1 is sufficient; you do not need to re-patch the Deployment. Just verify the sidecar image tag is ≥ v0.0.18.

HELM_ARGS environment variable

The plugin passes ${ARGOCD_ENV_HELM_ARGS} directly to helm template:

spec:
  source:
    plugin:
      name: argocd-harness-plugin
      env:
        - name: HELM_ARGS
          value: -f values-dev.yaml --set replicaCount=3

Shell injection risk

HELM_ARGS is passed to helm template without escaping. Only use it when all users with Application edit access are trusted. Prefer chart-native values.yaml overrides in shared or multi-tenant clusters.

---

Troubleshooting

Expression appears literally in the deployed manifest

The expression was not resolved: it shows as <+serviceVariables.replicas> instead of 3.

Try first: Hard-refresh the Argo CD application to invalidate the manifest cache.

Then check:

1. Variable exists? Verify the variable name and scope in Harness UI (exact match, case-sensitive).

2. Plugin enabled? Check that spec.source.plugin.name: argocd-harness-plugin is set on the Application.

3. Typo? Check for extra spaces or incorrect syntax; expressions are <+serviceVariables.name> not <+ serviceVariables.name>.

Kustomize: "command not found"

kustomize: command not found

The sidecar image predates Kustomize support. Bump the image tag to ≥ v0.0.18 and re-apply. Go to Enable the plugin on an existing agent or BYOA.

Override not taking effect

1. Wrong scope: Service variables must be overridden at ENV_SERVICE level; environment variables at ENV_GLOBAL. You cannot override a service variable using ENV_GLOBAL.

2. Not saved? Verify the override is saved and the correct service+environment combination is selected.

3. Name mismatch? Override variable name must match exactly (case-sensitive).

Numeric value rendered as string

Define the variable as type Number (not String) in Harness:

variables:
  - name: replicas
    type: Number   # not String
    value: 3

Harness expressions stopped resolving after an agent upgrade or recreation

Symptom: An application that previously had Harness expressions resolved in its manifests no longer resolves them after you upgraded or recreated the agent. The expressions appear literally in the deployed manifests (for example, <+serviceVariables.replicas> instead of 3).

Cause: If the application did not have spec.source.plugin.name: argocd-harness-plugin set, expression resolution depends on .harness.yaml being present in the application's source directory. If that file is absent, the Harness plugin does not process the application's manifests.

Fix:

Choose one of the following options:

• Set spec.source.plugin.name: argocd-harness-plugin on the Application. Argo CD routes the Application directly to the plugin regardless of what files are in the repo.

• Commit .harness.yaml to the application's source path. The file must be inside spec.source.path, not the repo root. Go to Connect an application to the plugin for details.

Secret not resolving

1. Variable must be type Secret (not String) to trigger two-stage resolution.

2. Secret must exist in Harness Secrets Manager before being referenced.

3. Check secret reference format: account.secretName or org.secretName.

---

Next steps

• Secret injection in GitOps applications: Vault, Harness Secret Manager, and security model

• Manage GitOps Applications: Create, sync, and manage ArgoCD applications in Harness

• Harness GitOps basics: Core concepts and architecture of Harness GitOps
