ServiceNow Integration for Runbooks

Last updated on Aug 7, 2026

Harness AI SRE offers comprehensive integration with ServiceNow, enabling both outbound (AI SRE to ServiceNow) and inbound (ServiceNow to AI SRE) incident management and tracking.

Overview

ServiceNow integration enables your runbooks to:

Create and update incidents
Track incident progress
Automate workflow transitions
Sync incident updates bidirectionally

Integration setup

Prerequisites

ServiceNow admin access
Instance URL
Service account credentials
Harness Project Admin role

Configure the ServiceNow connector

Set up the ServiceNow connector with the following steps:

Go to Project Settings, then Third Party Integrations (AI SRE).
Select ServiceNow from the available integrations.
Configure authentication:
- Instance URL
- Username
- Password/OAuth credentials
Test the connection.

Required permissions

The ServiceNow service account requires these roles:

incident_manager role
itil role
rest_service role
web_service_admin role

Use ServiceNow actions in runbooks

ServiceNow actions are configured through the runbook action form in the UI:

In your runbook, click New Step, then Action.

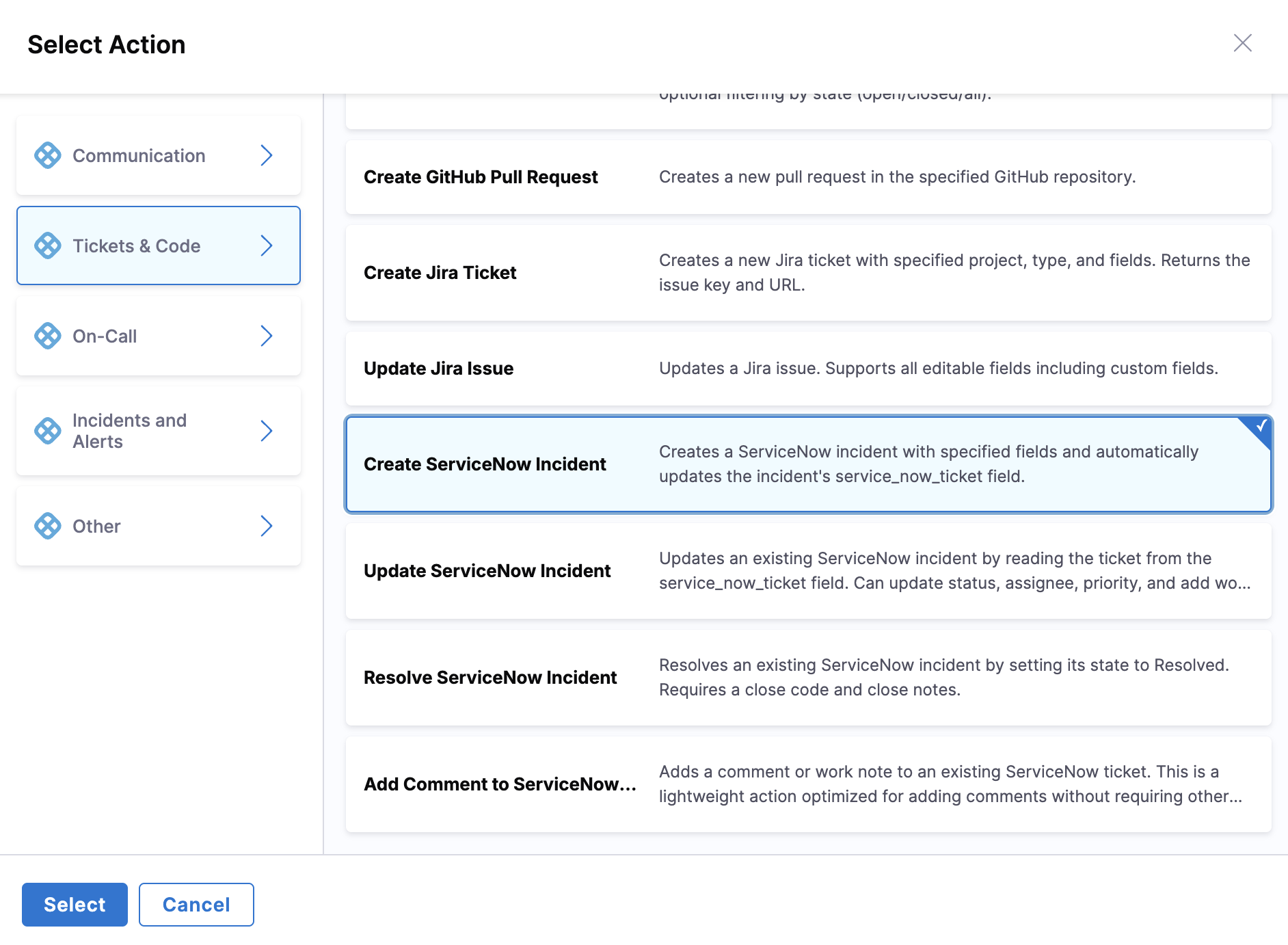

In the Select Action dialog, go to the Tickets & Code category.
Select the ServiceNow action you need from the available options.
Configure the action through a form-based interface with the following fields.

Create ServiceNow Incident action

The Create ServiceNow Incident action creates a new incident in ServiceNow and automatically updates the AI SRE incident's service_now_ticket field with the ServiceNow incident number.

Form fields:

Short Description: Brief title for the ServiceNow incident
- Example: {{Activity.title}}
Description: Detailed description of the incident
- Example: {{Activity.summary}}
Urgency: Urgency level (High, Medium, Low)
Impact: Impact level (High, Medium, Low)
Assigned To (optional): ServiceNow user sys_id or username to assign the incident to

Available Mustache variables:

{{Activity.title}}: AI SRE incident title
{{Activity.summary}}: AI SRE incident summary
{{Activity.severity}}: AI SRE incident severity
{{Activity.status}}: AI SRE incident status
Any custom incident fields configured in your incident template

Field change triggers

You can configure runbooks to trigger when specific AI SRE incident fields change, enabling automatic updates to ServiceNow:

Supported trigger types:

State changes
Priority updates
Severity modifications
Assignment changes

When a field changes in AI SRE, the runbook can execute ServiceNow actions to keep both systems synchronized.

Advanced features

Sync architecture

note

Outbound sync (AI SRE to ServiceNow) is native and handled via runbook actions as described above.

Inbound sync (ServiceNow to AI SRE) is not a built-in feature. It can be configured using Harness Pipelines as the integration mechanism. You create a ServiceNow Business Rule that sends a webhook to a Harness Pipeline, which then updates the corresponding AI SRE incident. Go to Create webhooks in ServiceNow to review the setup instructions.

Capabilities

A pipeline-based inbound sync can provide the following capabilities:

Incident sync
- ServiceNow to Harness AI SRE status mapping
- Automatic state transitions
- Priority synchronization
Work notes sync
- Bidirectional updates flow
- Attachment synchronization
- User mapping

Best practices

Incident management

Follow these practices for incident management:

Use standard categorization
Include business impact
Maintain SLA tracking

Workflow integration

Follow these practices for workflow integration:

Define clear state mappings
Document transition rules
Set up appropriate triggers
Monitor sync status

Field configuration

Follow these practices for field configuration:

Map essential fields
Use custom fields appropriately
Document field purposes
Validate field values

Common use cases

Major incident management

Use a runbook to drive major incident management through these steps:

Create ServiceNow incident
Assign response teams
Track resolution progress
Update stakeholders

SLA compliance

Use a runbook to track SLA compliance through these steps:

Monitor response times
Track resolution progress
Generate reports
Escalate as needed

Troubleshooting

ServiceNow runbook action fails with an authentication error

Verify the ServiceNow connector credentials, confirm the service account has the incident_manager, itil, rest_service, and web_service_admin roles, and confirm the instance URL is reachable.

ServiceNow field update fails during a runbook action

Validate the ServiceNow field names, confirm all required fields are populated, and verify each value matches the field's expected format.

ServiceNow incident state transition is rejected

Check the ServiceNow workflow rules, verify the state mappings between AI SRE and ServiceNow, and confirm the service account has permission to perform the transition.

Create incidents in AI SRE from ServiceNow

This section walks you through setting up an integration in Harness AI SRE to receive incident data from ServiceNow. By following these steps, you can automatically create incidents in Harness AI SRE based on ServiceNow incidents.

Integration setup process

1. Create the integration in AI SRE

Create the integration in AI SRE with the following steps:

Go to Integrations in AI SRE.
Click New Integration.
Set the following values:
- Name: ServiceNow Incidents
- Type: Incident
- Template: ServiceNow Incident

Copy the generated Webhook URL.

2. Test the integration with cURL

Use the following curl command to test sending incident data from ServiceNow. Replace YOUR_URL with the URL you copied from AI SRE.

Test URL

curl -X 'POST' 'YOUR_URL' \
  -H 'host: IR' \
  -H 'user-agent: ServiceNow/1.0' \
  -H 'x-snc-integration-source: c9fdbaf8ebbce694c040fddacad0cd90' \
  -H 'content-type: application/json' \
  -d $'{
    "number": "INC0010166",
    "reported_by_email": "admin@example.com",
    "opened_at": "2025-07-08 18:08:05",
    "impact": "1",
    "urgency": "1",
    "short_description": "Testing SNOW Creation",
    "description": "Testing SNOW Creation",
    "category": "software",
    "priority": "1",
    "sys_id": "096654f28362ea10ea8ff3a6feaad338",
    "subcategory": null,
    "state": "2",
    "incident_url": "https://<INSTANCE>.service-now.com/incident.do?number=<INCIDENTID>"
  }'

3. Configure the payload in AI SRE

Configure the payload in AI SRE with the following steps:

In AI SRE, go to the newly created ServiceNow Incidents integration.
Click Payload Configuration.
Click Refetch Payload to load the fields.
Select all available values for use in AI SRE.

Payload Configuration

custom fields

If custom ServiceNow fields are not showing up, update your ServiceNow Business Rule to include those fields in the payload.

Data mapping: ServiceNow to AI SRE

State to Status Mapping
Priority to Severity Mapping

ServiceNow Value	ServiceNow Label	AI SRE Status
1	New	New
2	In Progress	Investigating
3	On Hold	Monitoring
4	Resolved	Closed
5	Closed	Closed
6	Canceled	Closed

ServiceNow Value	ServiceNow Label	AI SRE Severity
1	Critical	SEV0:Critical
2	High	SEV1:Major
3	Moderate	SEV2:Moderate
4	Low	SEV3:Minor
5	Planning	SEV4:Cosmetic

mapping usage

Use these mappings when parsing state and priority from the webhook payload to translate ServiceNow values into meaningful context within AI SRE.

Create webhooks in ServiceNow

Send data from ServiceNow to Harness AI SRE using a Business Rule and RESTMessageV2. This integration enables automatic incident creation and updates in Harness AI SRE when ServiceNow incidents are created or modified.

Setup instructions

Configure the incident Business Rule with the following steps:

Go to Business Rules
- Go to System Definition > Business Rules.
- Click New.
Configure the Business Rule
- Name: Send Incident to Harness AI SRE
- Table: Incident
- Active: ✅
- Advanced: ✅
Set when to run
- When: After
- Insert: ✅
- Update: ✅
- (Optional) Add filter conditions to limit which incidents trigger the webhook
Add the script
- Go to the Advanced tab and paste the following:

(function executeRule(current, previous /*null when async*/ ) {
    try {
        var r = new sn_ws.RESTMessageV2();
        // Replace the URL below with your Harness webhook URL:
        r.setEndpoint("https://app.harness.io/api/v1/incident/webhook");
        r.setHttpMethod("post");
        r.setRequestHeader("Content-Type", "application/json");

        var usr = new GlideRecord('sys_user');
        usr.get('sys_id', current.getValue("caller_id"));
        var reported_by_email = usr.getValue('email');

        var number = current.getValue("number");
        var opened_at = current.getValue("opened_at");
        var impact = current.getValue("impact");
        var urgency = current.getValue("urgency");
        var short_description = current.getValue("short_description");
        var description = current.getValue("description");
        var category = current.getValue("category");
        var priority = current.getValue("priority");
        var sys_id = current.getValue("sys_id");
        var subcategory = current.getValue("subcategory");
        var state = current.getValue("state");

        var instanceUrl = gs.getProperty('glide.servlet.uri');
        var incident_url = instanceUrl
            + "nav_to.do?uri=/incident.do?sysparm_query=number=" + number;

        var obj = {
            "number": number,
            "reported_by_email": reported_by_email,
            "opened_at": opened_at,
            "impact": impact,
            "urgency": urgency,
            "short_description": short_description,
            "description": description,
            "category": category,
            "priority": priority,
            "sys_id": sys_id,
            "subcategory": subcategory,
            "state": state,
            "incident_url": incident_url
        };

        var body = JSON.stringify(obj);
        gs.info("AI SRE webhook payload: " + body);
        r.setRequestBody(body);

        var response = r.execute();
        gs.info("AI SRE webhook HTTP status: " + response.getStatusCode());
        gs.info("AI SRE webhook response: " + response.getBody());

    } catch (ex) {
        gs.error("Error sending webhook to AI SRE: " + ex.message);
    }

})(current, previous);

Test the integration

Verify the incident webhook with the following steps:

Create a test incident
- Create a new incident in ServiceNow to trigger the business rule.
Check system logs
- Go to System Logs > All.
- Confirm log output containing "AI SRE webhook payload" and response information.
Verify in Harness AI SRE
- Log in to your Harness AI SRE account.
- Go to the Incidents section.
- Confirm the incident was created with the correct data.

important fields

Ensure that all required fields are included in the webhook payload. The minimum fields needed for proper incident creation are: number, short_description, state, and priority.

Sync from ServiceNow to AI SRE

To enable bidirectional synchronization where ServiceNow comments and work notes are automatically sent to AI SRE, create an additional Business Rule that triggers when journal entries are added to incidents.

Create the journal entry Business Rule

This Business Rule automatically pushes comments and work notes from ServiceNow to AI SRE, ensuring both systems stay synchronized even when updates are made directly in ServiceNow.

Setup instructions

Configure the journal entry Business Rule with the following steps:

Go to Business Rules
- Go to System Definition > Business Rules.
- Click New.
Configure the Business Rule
- Name: Sync Comments to Harness AI SRE
- Table: Journal Entry [sys_journal_field]
- Active: ✅
- Advanced: ✅
Set when to run
- When: After
- Insert: ✅
- (Optional) Add filter conditions to limit to specific journal types
Add the script
- Go to the Advanced tab and paste the following script:

(function executeRule(current) {
  gs.info("[Harness IR] BR triggered for journal entry: "
    + current.getValue('sys_id'));

  // Determine note type (e.g., comments or work_notes)
  var type = current.getValue('element');

  // Only continue for work_notes or comments
  // if (type !== "work_notes" && type !== "comments") {
  //   gs.info("[Harness IR] Skipped (not a supported journal type)");
  //   return;
  // }

  // Fetch the related Incident record
  var incidentId = current.getValue('element_id');
  var inc = new GlideRecord('incident');
  if (!inc.get(incidentId)) {
    gs.info("[Harness IR] Skipped (incident not found): " + incidentId);
    return;
  }

  // Detect instance URL dynamically
  // e.g. https://dev319566.service-now.com/
  var instanceUrl = gs.getProperty('glide.servlet.uri');
  var incidentNumber = inc.getValue('number');
  var incidentUrl = instanceUrl
    + "nav_to.do?uri=/incident.do?sysparm_query=number=" + incidentNumber;

  // Build payload
  var payload = {
    snow_incidentId: incidentNumber,                     // e.g. INC0010234
    snow_incidentSysId: inc.getUniqueValue(),            // Stable sys_id
    note_type: type, // "comments" | "work_notes"
    note_text: current.getValue('value') || '',
    author: current.getValue('sys_created_by') || '',
    created_on: current.sys_created_on.getGlideObject().getNumericValue(),
    priority: inc.getValue('priority') || '',
    short_description: inc.getValue('short_description') || '',
    note_id: current.getValue('sys_id'),                 // journal entry sys_id
    incident_url: incidentUrl // Deep link to incident
  };

  gs.info("[Harness IR] Payload prepared: " + JSON.stringify(payload));

  try {
    var r = new sn_ws.RESTMessageV2();

    // Replace with your AI-SRE project/org/template webhook endpoint.
    // Tip: paste the full webhook URL from AI SRE as one string.
    var endpoint = 'https://app.harness.io/ir/tp/api/v1/mc'
      + '/account/<ACCOUNT_ID>'
      + '/orgs/<ORG_ID>'
      + '/projects/<PROJECT_ID>'
      + '/incidentTemplate/<TEMPLATE_ID>'
      + '/servicenow/webhook';
    r.setEndpoint(endpoint);
    r.setHttpMethod('POST');
    r.setRequestHeader("Content-Type", "application/json");
    r.setRequestBody(JSON.stringify(payload));

    var response = r.execute();
    var status = response.getStatusCode();
    var body = response.getBody();

    if (status === 200) {
      gs.info("[Harness IR] Webhook successfully sent. Status: " + status);
    } else {
      gs.error("[Harness IR] Webhook returned non-200. Status: "
        + status + " Body: " + body);
    }
  } catch (ex) {
    gs.error("[Harness IR] Webhook failed: " + ex.getMessage());
  }
})(current);

Configuration notes

Keep these configuration notes in mind:

Optional filtering
- The script includes commented lines that filter for only work_notes and comments.
- Uncomment these lines (remove //) to limit synchronization to these specific journal types:
```
if (type !== "work_notes" && type !== "comments") {
  gs.info("[Harness IR] Skipped (not a supported journal type)");
  return;
}
```
Table configuration
- This Business Rule must be created on the sys_journal_field table.
- It triggers when journal entries (comments, work notes, etc.) are added to any record.
- The script filters for incident-related entries automatically.

Endpoint substitution guide

Use this guide to correctly substitute the placeholders in the webhook endpoint used by the Business Rule. The full path is one URL; it is shown across lines here only for readability:

https://app.harness.io/ir/tp/api/v1/mc
  /account/<ACCOUNT_ID>
  /orgs/<ORG_ID>
  /projects/<PROJECT_ID>
  /incidentTemplate/<TEMPLATE_ID>
  /servicenow/webhook

<ACCOUNT_ID>: Your Harness account identifier.
<ORG_ID>: The organization identifier in which AI SRE is configured.
<PROJECT_ID>: The project identifier that contains your AI SRE runbooks/incidents.
<TEMPLATE_ID>: The incident template identifier used for this ServiceNow sync.

Recommended ways to obtain values:

Copy from AI SRE: In AI SRE, open the relevant integration/template and copy the generated webhook URL. It already includes all identifiers. Paste it into r.setEndpoint(...).
From UI URLs/settings: When viewing your org or project in Harness, the URL path shows orgs/<ORG_ID>/projects/<PROJECT_ID>. Account ID is available in account settings. The template ID is visible in the incident template details or within the generated webhook URL.

Example (for illustration only; the real value is a single line):

https://app.harness.io/ir/tp/api/v1/mc
  /account/acc_123456
  /orgs/engineering
  /projects/sre
  /incidentTemplate/incident_default
  /servicenow/webhook

Test the integration

Verify the journal entry webhook with the following steps:

Create a test comment
- Open an existing incident in ServiceNow.
- Add a comment or work note.
- Check the system logs for webhook activity.
Verify system logs
- Go to System Logs > All.
- Look for entries containing "[Harness IR]" to track the webhook execution.
- Confirm successful HTTP 200 responses.
Check AI SRE
- Go to the corresponding incident in AI SRE.
- Verify that the comment or work note appears in the incident timeline.

best practices

Test the integration in a development environment first.
Monitor system logs regularly to ensure webhook reliability.
Consider adding additional filtering based on your organization's needs.
Document any custom fields or modifications for future reference.

Next steps

Jira Integration: Configure Jira actions for runbooks.
Microsoft Teams Integration: Send incident notifications to Teams.
Runbooks Overview: Return to the runbooks overview.

Overview​

Integration setup​

Prerequisites​

Configure the ServiceNow connector​

Required permissions​

Use ServiceNow actions in runbooks​

Create ServiceNow Incident action​

Field change triggers​

Advanced features​

Sync architecture​

Capabilities​

Best practices​

Incident management​

Workflow integration​

Field configuration​

Common use cases​

Major incident management​

SLA compliance​

Troubleshooting​

Create incidents in AI SRE from ServiceNow​

Integration setup process​

1. Create the integration in AI SRE​

2. Test the integration with cURL​

3. Configure the payload in AI SRE​

Data mapping: ServiceNow to AI SRE​

Create webhooks in ServiceNow​

Setup instructions​

Test the integration​

Sync from ServiceNow to AI SRE​

Create the journal entry Business Rule​

Setup instructions​

Configuration notes​

Endpoint substitution guide​

Test the integration​

Next steps​

Overview

Integration setup

Prerequisites

Configure the ServiceNow connector

Required permissions

Use ServiceNow actions in runbooks

Create ServiceNow Incident action

Field change triggers

Advanced features

Sync architecture

Capabilities

Best practices

Incident management

Workflow integration

Field configuration

Common use cases

Major incident management

SLA compliance

Troubleshooting

Create incidents in AI SRE from ServiceNow

Integration setup process

1. Create the integration in AI SRE

2. Test the integration with cURL

3. Configure the payload in AI SRE

Data mapping: ServiceNow to AI SRE

Create webhooks in ServiceNow

Setup instructions

Test the integration

Sync from ServiceNow to AI SRE

Create the journal entry Business Rule

Setup instructions

Configuration notes

Endpoint substitution guide

Test the integration

Next steps
