Capture Response Data

Last updated on

Capturing response data from network calls allows you to extract dynamic values generated during test execution and use them in subsequent test steps. This powerful feature enables you to validate what's happening behind the UI, chain test steps together, and create more robust, data-driven tests.

The Capture Response Data option is available under Advanced Options in user action steps. You can access it when configuring:

  • Click action
  • Navigate action
  • Write action

For this guide, we'll focus on using capture response data with Click actions.

Why Use Capture Response Data?​

Capturing network responses provides several key advantages:

  • Validate AI output - Verify that backend systems are generating correct responses, not just checking UI elements
  • Enable step-to-step chaining - Use data from one step as input for subsequent steps, creating dynamic test flows
  • Improve traceability for debugging - Access raw network data to understand exactly what the application is doing
  • Allow rule-based value validations - Apply assertions and validations on response data before it's displayed in the UI

Overview​

This guide demonstrates how to capture network response data and use it in subsequent test steps. The workflow involves:

  1. Creating a URL for JSON data by clicking a button
  2. Capturing the generated URL from the network response (similar to inspecting network calls in browser DevTools)
  3. Making a GET API call to fetch the JSON data using the captured URL
  4. Verifying the retrieved data by writing it to a notepad

This approach allows you to test the complete data flow from generation to retrieval, ensuring your application correctly handles dynamic content.

Step-by-Step Guide​

Step 1: Capture Response Data from Click Action​

Use a Click user action to trigger the button that generates a URL for your JSON data. In the Advanced Options, configure the capture response data settings.

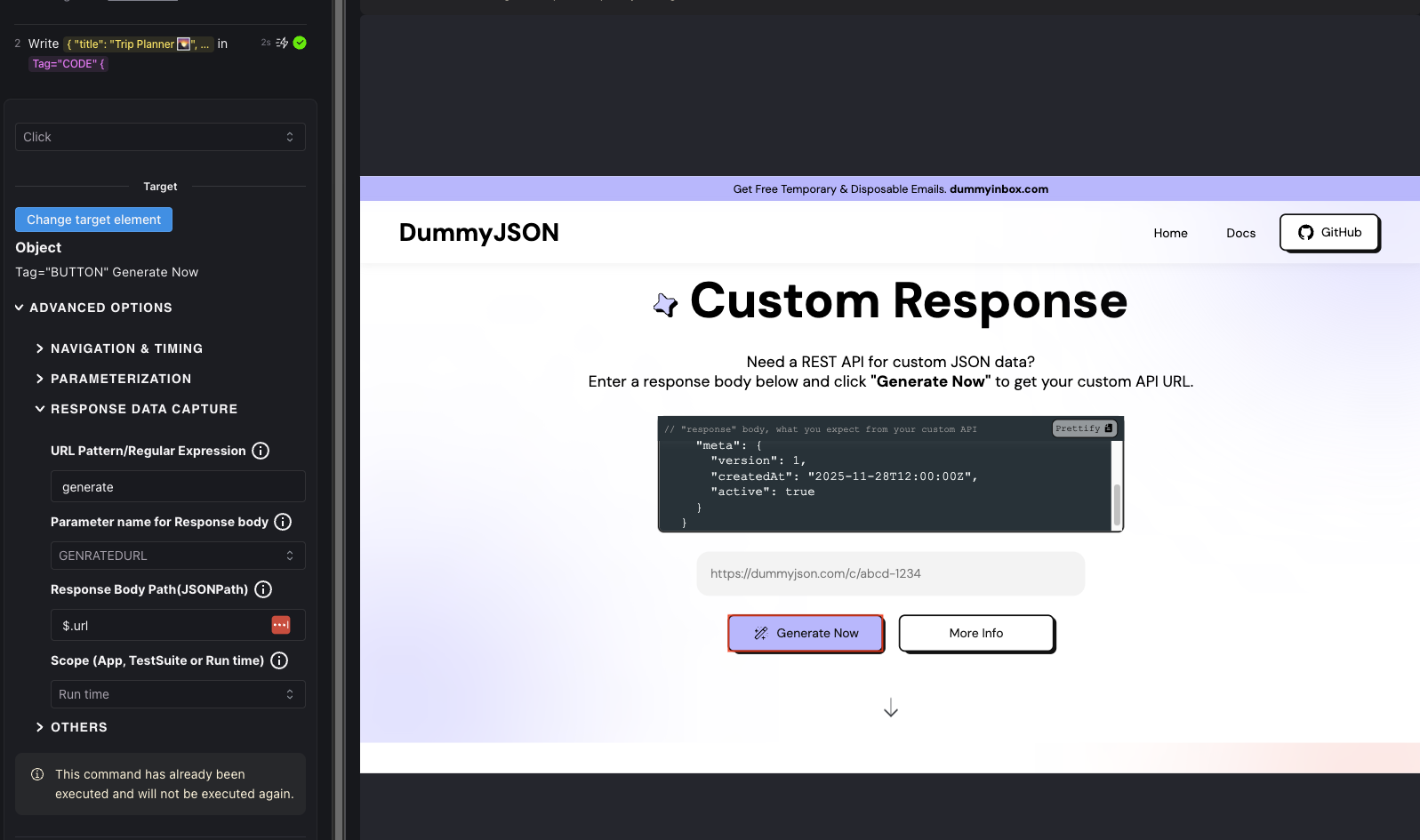

Capture Data Response

Configuration:

  1. Add a Click user action.
  2. Open Advanced Options
  3. Configure Capture Response Data:
    • Specify the endpoint pattern to match the network request
    • Define the variable name to store the captured URL (e.g., GENERATEDURL)
    • Provide the response body path to extract the URL from the response payload
  4. Click the 'Generate' button after that to apply the settings.
  • When you click the button, the application makes a network request
  • The backend generates a unique URL for your JSON data
  • The response contains this URL in the network payload
  • Harness captures the URL from the response (similar to viewing network calls in browser DevTools)
  • The captured URL is stored in the GENERATEDURL variable

Step 2: Make a GET API Call with the Captured URL​

Use the captured URL to fetch the JSON data via an API call user action.

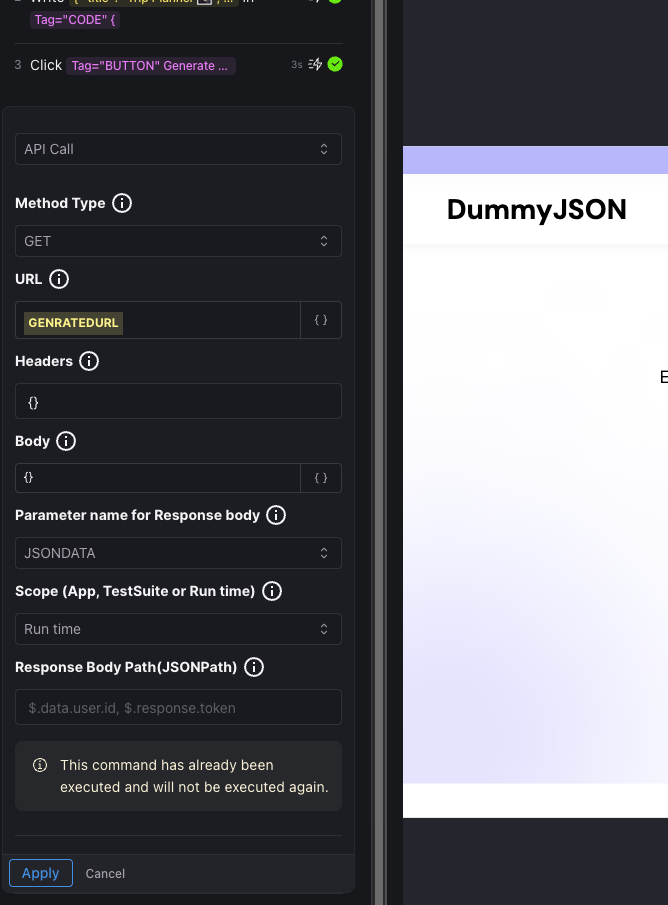

API Call

What happens:

  • The test makes an HTTP GET request using the variable GENERATEDURL from the previous step
  • The endpoint returns the JSON data
  • The response is saved in the JSONDATA variable

Step 3: Verify the Data in a Notepad​

To confirm you've retrieved the correct data, write it to an online notepad.

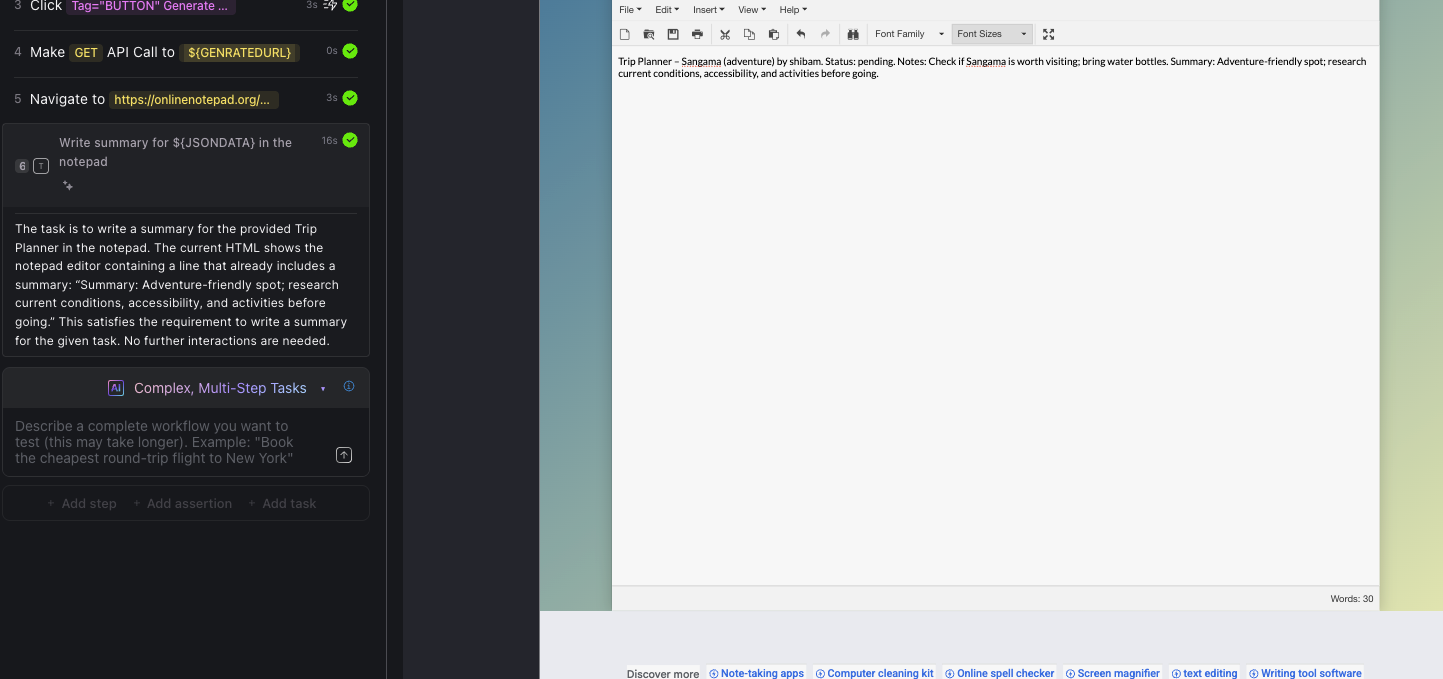

Complex AI
  1. Navigate to https://onlinenotepad.org using the Navigate To action
  2. Use complex MultiStep AI task to pass the prompt of : Write summary for ${JSONDATA} in the notepad.
  • The screen navigates to the online notepad
  • The AI writes the summary of JSON data from the JSONDATA variable
  • You can visually verify that the data matches what you expected

This confirms the complete workflow: from generating a URL, capturing it from the network response, fetching the data, and displaying it.
