AI Test Automation with Harness CI and CD

Last updated on Jun 10, 2026

---

AI Test Automation is seamlessly integrated into the Harness Platform so you can run checks from Harness Continuous Integration (CI) and Harness Continuous Delivery (CD) pipelines. You add the same step (AI Test Automation) in a CI, CD, or Custom stage, wherever testing fits best in your pipeline. The Framework dropdown decides whether the step runs an AI test suite or a Playwright build; the rest of the form stays the same. See Framework: AI test or Playwright for the field reference.

Benefits

• Flexible pipeline placement: Add the step in a CI, CD, or Custom stage, wherever testing belongs in your delivery flow.
• Early detection of issues: Identify and resolve potential problems before they reach production environments.
• Increased release confidence: Deploy with confidence knowing your application has passed the runs you wired in.
• Reduced manual testing: Decrease dependency on time-consuming manual verification steps.
• Continuous validation: Ensure application behavior meets expectations at the exact point in the pipeline where the step runs.

How it works

The AI Test Automation step runs work in your AI Test Automation project. Add it to a CI, CD, or Custom stage in Pipeline Studio so your test execution lives in one clear place in the same pipeline.

The Framework setting selects what gets executed:

• AI test: Runs a test suite created with the AI Test option under Test Suites. Create and manage those suites in AI Test Automation.
• Playwright: Runs a Playwright build created with the Playwright option under Test Suites. Configure builds in Playwright in AI Test Automation.

The field labels (Project, Test Suite, Environment, Tunnel Name) are the same regardless of which framework you pick; the dropdowns just list the suites or builds defined in that area of your project.

Setup instructions

Add the AI Test Automation step

1. Open your Harness pipeline in Pipeline Studio.
2. Pick (or add) the stage where AI Test Automation should run. The step is supported in CI, CD, and Custom stages, so choose whichever fits your flow. For how Harness defines stages, see Add a stage.

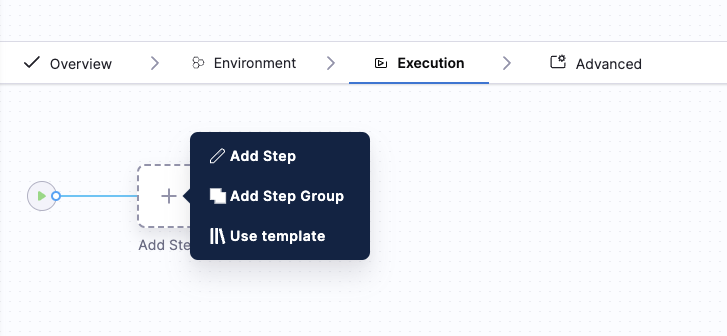

3. In that stage, open the area where you add steps (for example Execution or the equivalent tab for the stage type).

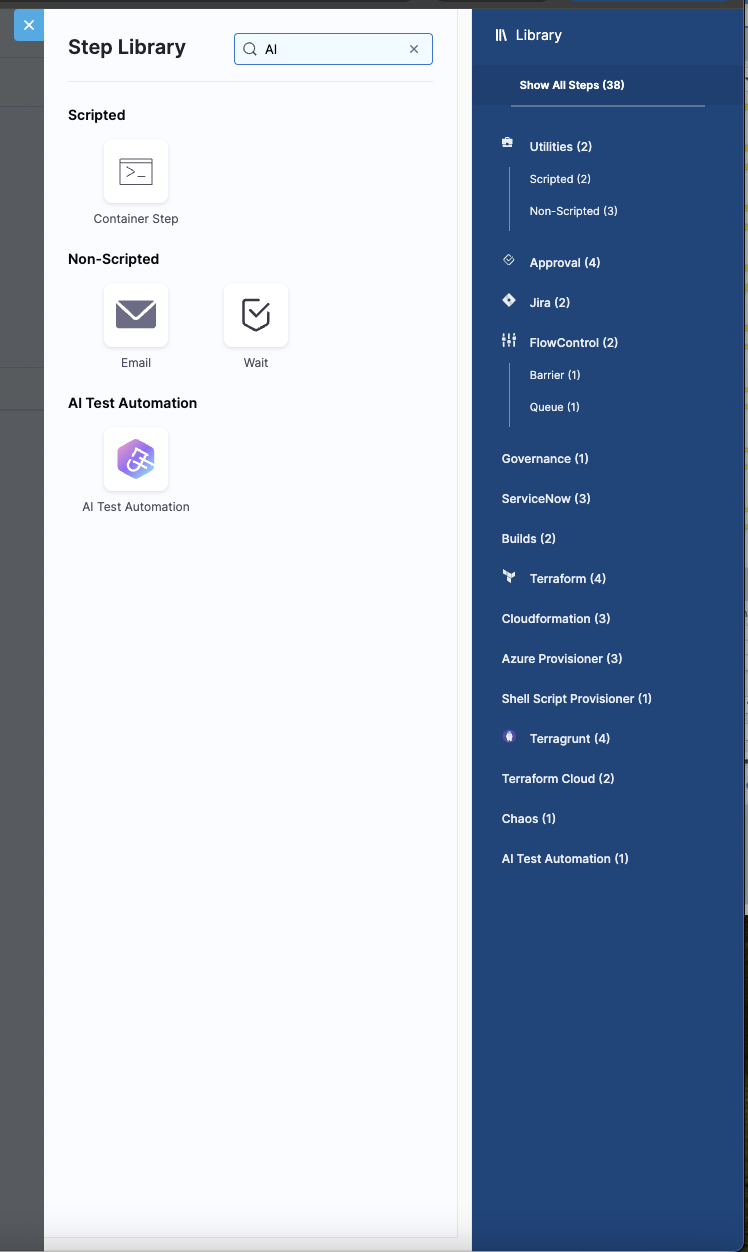

4. Add a new step and select AI Test Automation from the available options.

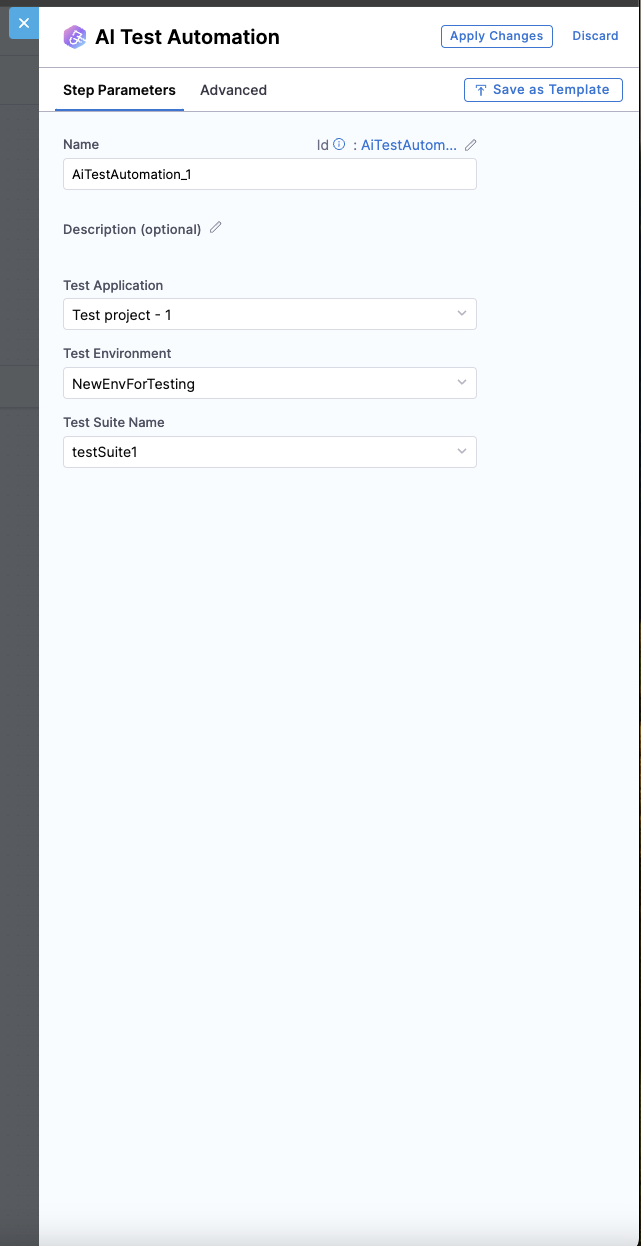

5. Configure the step in Step Parameters (and Advanced if needed). Set Framework to AI test or Playwright, then complete the remaining fields as described under Framework: AI test or Playwright.

6. Select Apply Changes when you are done editing the step, then save your pipeline configuration.

Framework: AI test or Playwright

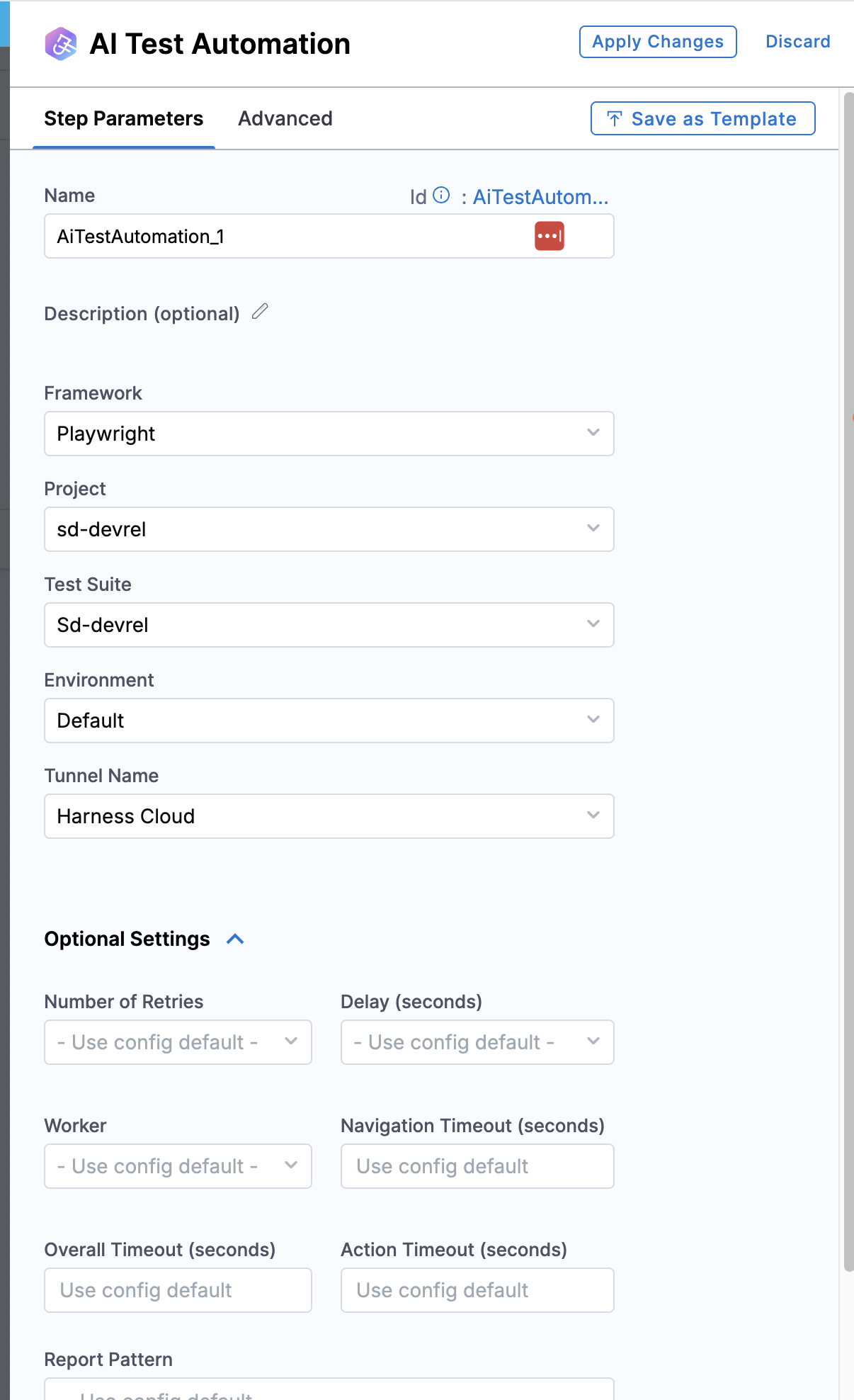

In Step Parameters, Framework is the switch. The rest of the form uses the same labels regardless of the framework; only the dropdown contents differ (suites vs. builds).

Core fields

• Name: Step identifier in the pipeline (for example AiTestAutomation_1); an Id appears beside it for the step entity.
• Description (optional): Optional note for operators.
• Framework: AI test or Playwright. Selects whether the step runs an AI-authored suite or a Playwright build.
• Project: The AI Test Automation project (application) that owns the suites/builds.
• Test Suite: The suite to run when Framework is AI test, or the Playwright build to run when Framework is Playwright. The dropdown lists what is defined in Test Suites for the selected framework.
• Environment: Target application environment for the run (for example Default).
• Tunnel Name: How traffic reaches the system under test. Choose a value from the dropdown (for example Harness Cloud for Harness-hosted execution); available options depend on your project.

Optional Settings

Expand Optional Settings to override defaults at run time. Leave any field blank or set to - Use config default - to keep the value from your project's configuration (for Playwright, the values in playwright.config).

Expression inputs

All pipeline variable fields in this step support Harness expressions. For example, set Environment to <+pipeline.variables.target_env> or Tunnel Name to <+stage.variables.tunnel> to parameterize runs at trigger time without editing the step.

The Playwright-specific overrides match the ones in the Run Configuration modal for a Playwright build:

• Number of Retries
• Delay (seconds)
• Worker
• Navigation Timeout (seconds)
• Overall Timeout (seconds)
• Action Timeout (seconds)
• Report Pattern

Other controls

• Advanced tab: Additional step configuration (failure strategies, conditional execution, looping) next to Step Parameters.
• Save as Template: Available from the step header when you want to reuse the configuration across pipelines.

Configuration reference

Field	Description
Name	Identifier for this step in the pipeline.
Framework	AI test for AI-authored suites, Playwright for Playwright builds.
Project	AI Test Automation project that owns the suite or build.
Test Suite	Suite (AI test) or build (Playwright) to execute.
Environment	Application environment to run against.
Tunnel Name	Tunnel used for execution (choices depend on project setup).
Optional Settings	Run-time overrides such as retries, workers, timeouts, and report pattern (Playwright). Leave blank to use config defaults.

Sample video explaining the flow

View test results in CI

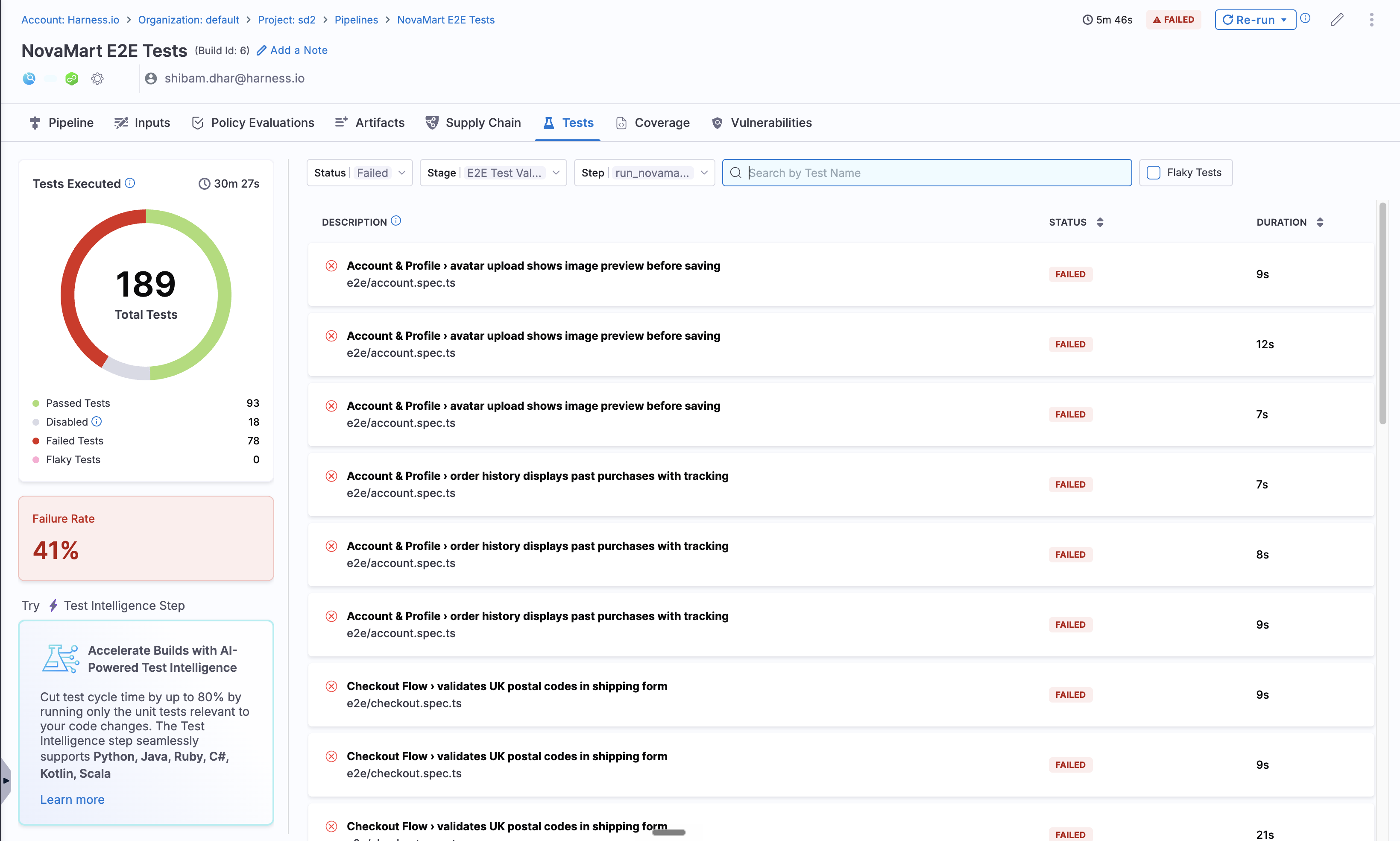

After the AI Test Automation step completes in a CI stage, open the Tests tab in the build execution view to see the full test results. For Playwright runs, this shows the total test count, pass/fail/flaky breakdown, failure rate, and individual test details.

Conclusion

AI Test Automation in Harness CI and CD uses one step type that you can place in a CI, CD, or Custom stage: pick AI test or Playwright under Framework, complete the Project, Test Suite, Environment, and Tunnel Name fields, optionally override defaults under Optional Settings, and save the pipeline so each run triggers the correct suite or build.
