Affected Pipelines

Last updated on

The Affected Pipelines tab in Dependency Firewall shows which CI/CD pipelines have encountered blocked dependencies. Use this view to identify impacted pipelines, trace transitive dependency chains back to their root package, and understand which direct dependency to update or replace.

Before you begin​

  • Dependency Firewall is enabled on your upstream proxy registry. Go to Enable Dependency Firewall to set it up.
  • Harness CLI (hc) v1.3.18 or later is installed. Go to Install the Harness CLI to install it.
  • Your pipeline uses the hc artifact install wrappers instead of native install commands. Native commands (npm install, mvn install) do not generate dependency graph data.

Understand the execution flow​

The Harness CLI install wrappers (hc artifact npm install, hc artifact mvn install, etc.) execute a four-phase flow:

  1. Run native install: Execute the native package manager (npm, mvn, pip, dotnet) to install dependencies through the configured upstream proxy.
  2. Generate dependency graph: Parse the lockfile or resolution output to build a full dependency tree with transitive relationships.
  3. Upload build info: Send the dependency graph and pipeline context to Harness via the build-info API, linking the pipeline execution to every resolved package.
  4. Handle firewall blocks: If any package returns a 403 (blocked by Dependency Firewall), display a detailed error showing the policy violation and dependency chain.

The dependency graph resolution strategy varies by package manager:

Package managerResolution methodOutput parsed
npmnpm install --package-lock-onlypackage-lock.json
Mavenmvn dependency:treeStdout (indented tree)
pippip install --dry-run --report report.jsonreport.json
NuGetdotnet restoreproject.assets.json

Configure pipeline context​

When running inside a Harness CI pipeline, the CLI automatically captures pipeline context from environment variables:

Environment variableMaps to
HARNESS_PIPELINE_IDPipeline identifier
HARNESS_BUILD_IDExecution identifier
HARNESS_STAGE_IDStage identifier
ORG_IDENTIFIEROrganization
PROJECT_IDENTIFIERProject

This context links the dependency graph to the specific pipeline execution, enabling the Affected Pipelines view.

View Affected Pipelines​

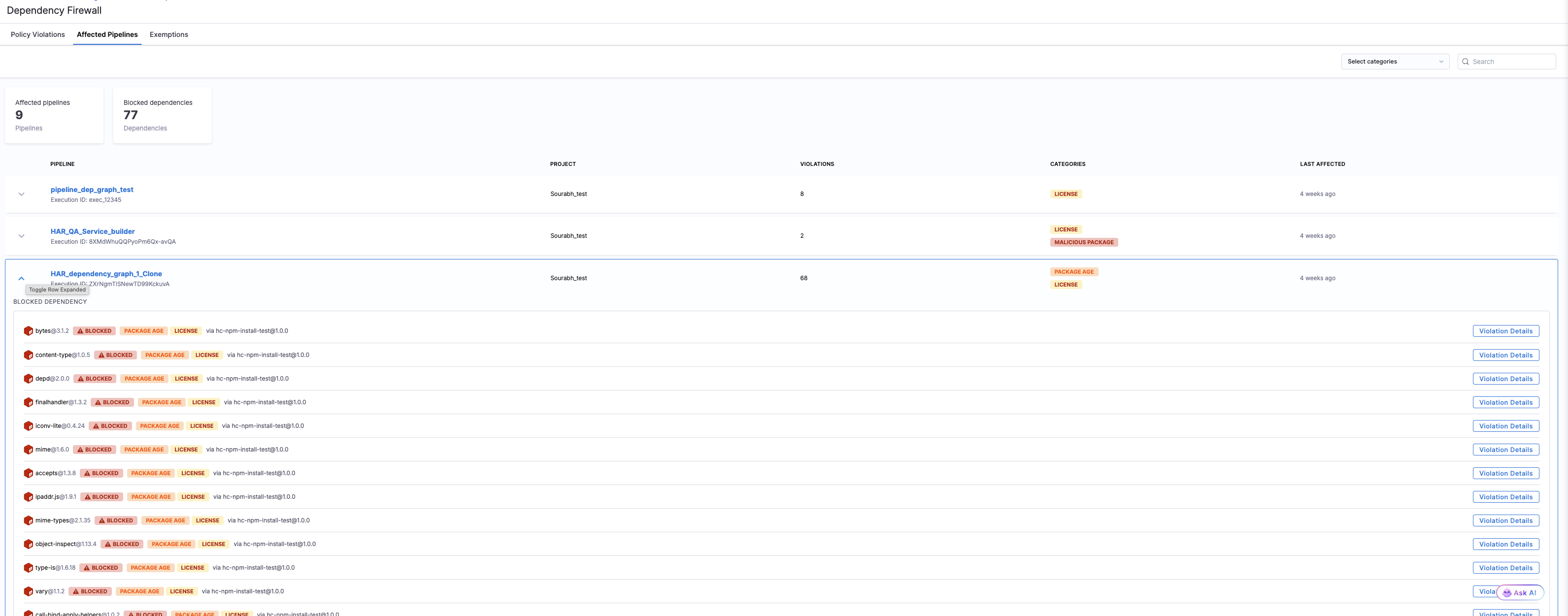

Select the Affected Pipelines tab in the Dependency Firewall dashboard.

The summary cards show:

  • Affected pipelines: Total number of pipelines that have encountered blocked dependencies.
  • Blocked dependencies: Total count of blocked packages across all affected pipelines.
  • Failed policy sets: Number of distinct policy sets that triggered violations.

The table lists each affected pipeline with:

ColumnDescription
PipelinePipeline name and execution ID.
ProjectThe project the pipeline belongs to.
ViolationsNumber of blocked packages in this execution.
CategoriesPolicy categories that triggered violations (SECURITY, PACKAGE AGE, LICENSE).
Last AffectedWhen this pipeline last encountered a blocked dependency.

Expand a pipeline row to see the individual blocked packages, their versions, violation categories, and the upstream registry that evaluated them.

View pipelines for a specific package​

From the Violation Details sidebar on any blocked package, the Affected Pipelines section shows how many pipelines depend on this package. Select View pipelines to see the filtered list.

This view shows only the pipelines that depend on that specific package and version, along with the policy sets that blocked it.

Trace the root package (Pulled in By)​

The Pulled in By section in the Violation Details sidebar shows which root package is downloading the vulnerable package. This tells you which of your direct dependencies is responsible for pulling in the flagged transitive dependency.

Each entry displays:

root-package@version → blocked-package@version

For example, if bytes@3.1.2 is blocked and pulled in by two different root packages:

  • hc-npm-install-test@1.0.0 → bytes@3.1.2
  • tyest-1@1.0.0 → bytes@3.1.2

This helps you identify which root dependency to update or replace to resolve the violation.

Set up dependency tracking​

To populate Affected Pipelines and Pulled in By data, use the Harness CLI install wrappers in your pipeline.

Supported commands​

Package typeCommandWraps
npmhc artifact npm installnpm install
npmhc artifact npm cinpm ci
Mavenhc artifact mvn installmvn install
Pythonhc artifact pip installpip install
NuGet/.NEThc artifact dotnet restoredotnet restore

All other subcommands are passed through to the native tool without firewall evaluation or dependency graph generation.

Pipeline example (npm)​

# Authenticate with Harness
hc auth login \
  --api-url https://app.harness.io \
  --api-token $HARNESS_API_TOKEN \
  --account $HARNESS_ACCOUNT_ID

# Configure npm to use your upstream proxy registry
hc registry configure npm \
  --registry npm-upstream \
  --org $ORG \
  --project $PROJECT \
  --global

# Install packages with dependency tracking and firewall evaluation
hc artifact npm install

Pipeline example (Maven)​

hc auth login --api-url https://app.harness.io --api-token $HARNESS_API_TOKEN --account $HARNESS_ACCOUNT_ID
hc registry configure maven --registry maven-upstream
hc artifact mvn install

Pipeline example (Python)​

hc auth login --api-url https://app.harness.io --api-token $HARNESS_API_TOKEN --account $HARNESS_ACCOUNT_ID
hc registry configure pip --registry pypi-upstream
hc artifact pip install

Pipeline example (dotnet)​

hc auth login --api-url https://app.harness.io --api-token $HARNESS_API_TOKEN --account $HARNESS_ACCOUNT_ID
hc registry configure nuget --registry nuget-upstream
hc artifact dotnet restore

Understand blocked package behavior​

When the CLI encounters blocked packages during install:

  1. The native install fails with HTTP 403 (Dependency Firewall blocks the package at the upstream proxy).
  2. The CLI resolves the full dependency tree from the lockfile or manifest, including transitive dependencies.
  3. The CLI evaluates all resolved packages against firewall policies and displays detailed results:
FIREWALL EVALUATION: 15 package(s) evaluated

  ❌ BLOCKED  lodash@4.18.1
    Policy Set: Firewall
      Category: License | Policy: firewall-license
      Blocked License: MIT
      Allowed Licenses: Apache-2.0

  ❌ BLOCKED  bytes@3.1.2
    Chain: my-app@1.0.0 -> express@4.18.0 -> body-parser@1.20.0 -> bytes@3.1.2
    Policy Set: Firewall
      Category: PackageAge | Policy: firewall-age

  ✅ PASSED   express@4.18.2
  1. Build info (dependency graph with all node relationships) is uploaded to Harness regardless of whether the install succeeded or failed.

The pipeline execution appears in the Affected Pipelines tab even if the install fails. This gives you visibility into which pipelines are blocked and by which dependencies, enabling faster remediation.

Troubleshooting​

My pipeline does not appear in the Affected Pipelines tab

Affected Pipelines data is only generated when you use the hc artifact install wrappers (hc artifact npm install, hc artifact mvn install, etc.). Native install commands do not upload build info. Also verify that your pipeline runs inside Harness CI where the HARNESS_PIPELINE_ID environment variable is set automatically.

Pulled in By shows 0 direct dependencies

The Pulled in By field requires the Harness CLI to generate and upload the dependency graph. If you use native install commands instead of hc artifact npm install (or the equivalent for your package type), the dependency graph is not generated. Switch to the hc artifact wrappers in your pipeline to populate this field.

The dependency graph shows fewer dependencies than expected

The CLI resolves dependencies from your lockfile or manifest. If no lockfile exists, the CLI generates one using the native resolution mechanism. Ensure your project has a valid package.json (npm), pom.xml (Maven), requirements.txt (pip), or .csproj (dotnet) in the working directory when the command runs.
