Artifact Registry Metadata

Last updated on Dec 10, 2025

---

Metadata in Harness Artifact Registry enables you to attach custom key-value pairs to your artifacts, enhancing searchability, governance, and compliance capabilities. This feature allows you to categorize, tag, and manage artifacts according to your organization's specific workflows and requirements.

Feature Flag Requirement

To use this feature, you must have the HAR_CUSTOM_METADATA_ENABLED feature flag enabled. Contact Harness Support to activate it.

Overview

Custom metadata provides a flexible way to add contextual information to your artifacts without modifying the artifacts themselves.

Key benefits:

• Enhanced searchability: Filter and search artifacts based on custom attributes
• Improved governance: Track ownership, security levels, and compliance information
• Better organization: Categorize artifacts by team, component type, or lifecycle stage
• Audit trail: Maintain version-specific metadata for build and deployment tracking

Managing Metadata

Harness Artifact Registry supports metadata at three independent levels. Metadata at each level operates independently without inheritance or hierarchy, giving you flexibility to organize and tag artifacts according to your specific needs.

Registry Level

Registry Level Metadata

Apply metadata to entire registries for high-level categorization and filtering. This is useful for identifying registry purpose, ownership, or environment classification.

Use cases:

• Categorize registries by team, department, or project
• Tag registries by environment (dev, staging, production)
• Track registry ownership and responsibility

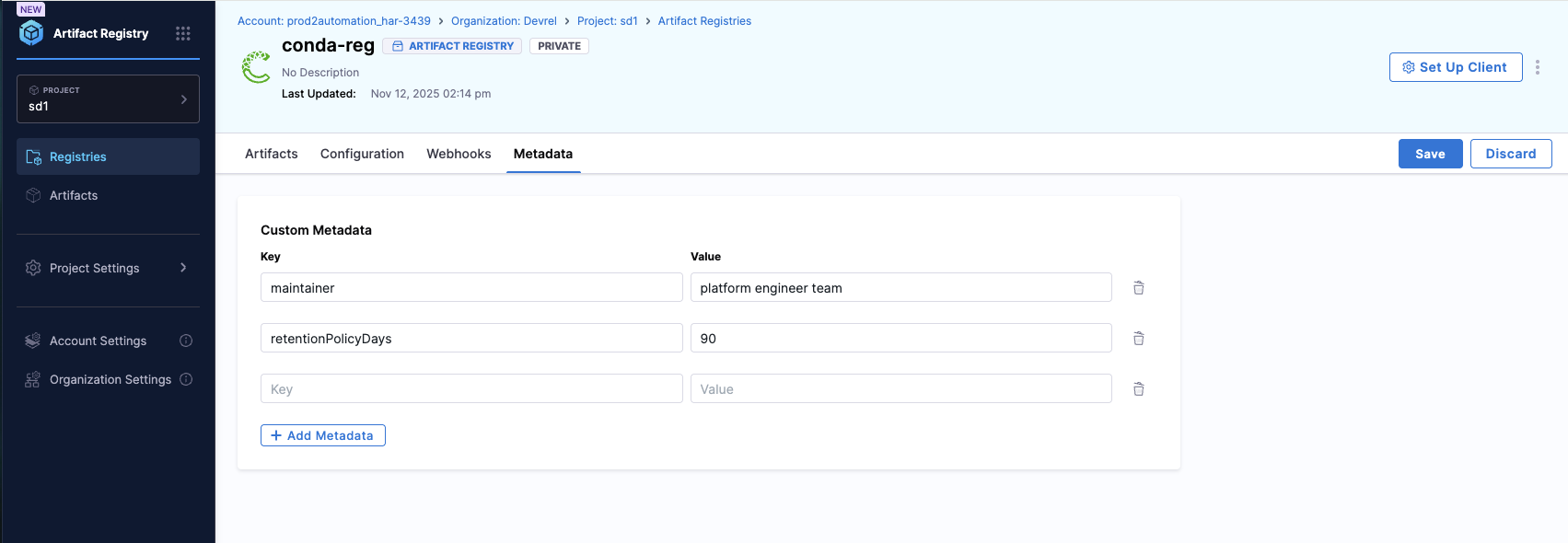

How to add metadata to a registry:

1. Navigate to the Artifact Registry module in your Harness project
2. Locate the registry you want to add metadata to
3. Click on the registry to open its details page
4. Select the Metadata tab
5. Click Add Property.
6. Enter key-value pairs (e.g., owner: platform-team, environment: production)
7. Click Save to apply the metadata

Your registry metadata will now be visible in the registry list and can be used for filtering.

Artifact Level

Artifact Level Metadata

Attach metadata to specific artifacts within a registry. This level is ideal for properties that apply across all versions of an artifact, such as component type, owner team, or documentation links.

Use cases:

• Identify component type (service, library, configuration)
• Track artifact ownership and maintainers
• Link to documentation or source repositories
• Set security classifications

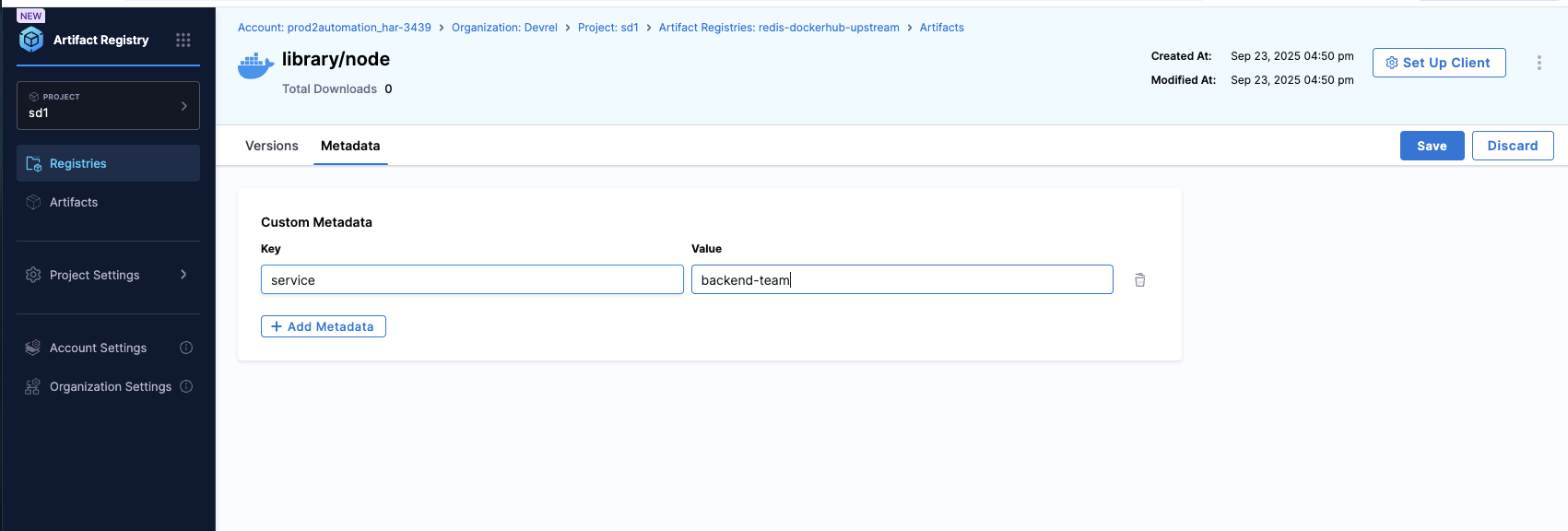

How to add metadata to an artifact:

1. Navigate to your registry in the Artifact Registry module
2. Click on the registry then select the artifact you want to add metadata to
3. In the artifact details page, locate the Metadata tab
4. Click Add Property.
5. Add key-value pairs (e.g., component.type: service, owner: backend-team)
6. Click Save to apply the metadata

Artifact metadata will be displayed in the artifact details and can be used for filtering within the registry.

Package Level

Package Level Metadata

Add metadata to individual packages (versions) within an artifact. Use this for version-specific information like build IDs, Git commits, test results, or approval status. Each package version can have its own unique metadata.

Use cases:

• Track build information (build ID, timestamp, commit hash)
• Record test and security scan results
• Document approval status and deployment targets
• Link to CI/CD pipeline runs

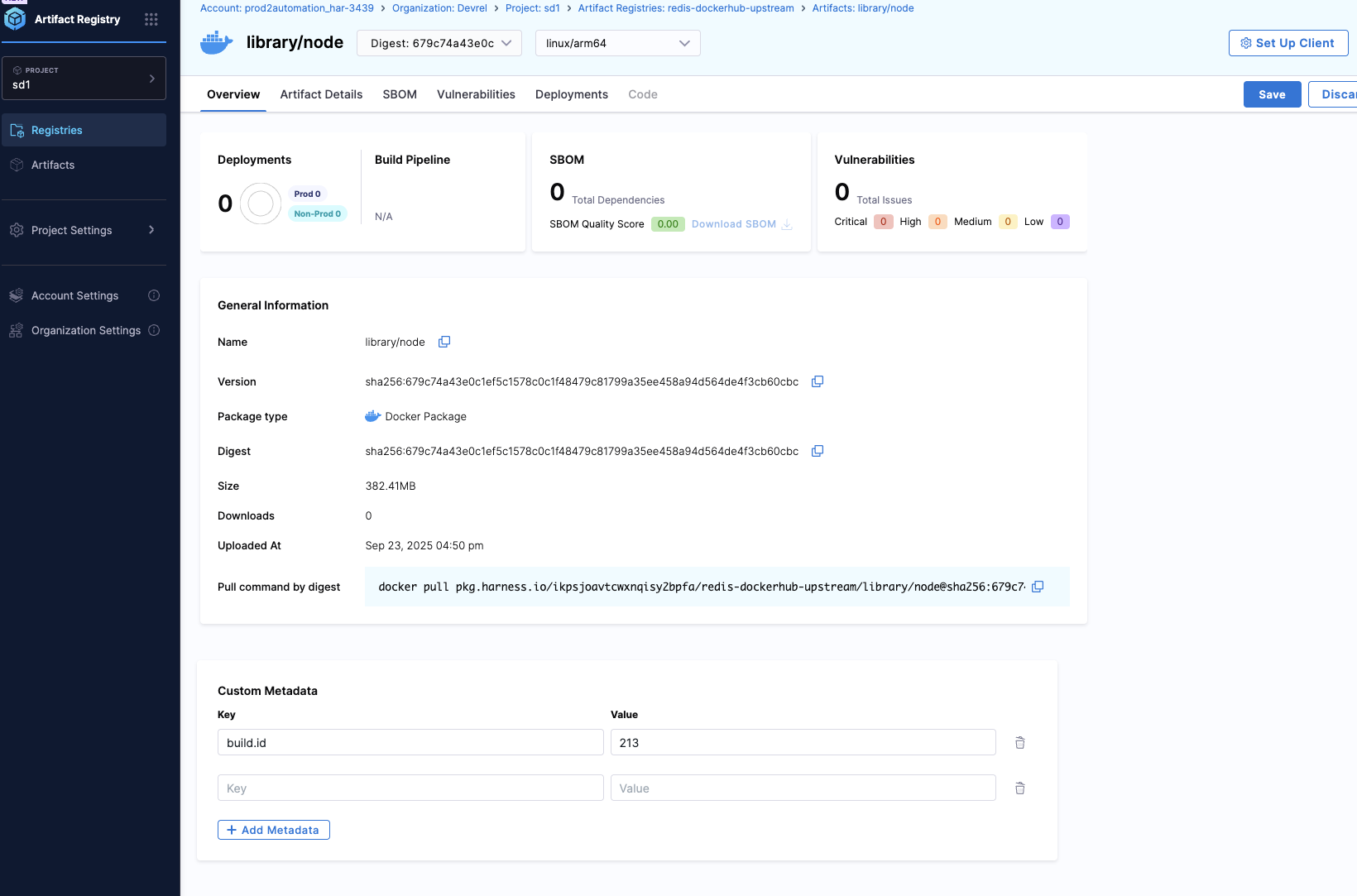

How to add metadata to a package:

1. Navigate to your Artifact list and select an artifact
2. In the artifact details page, locate the Versions or Packages list
3. Click on the specific version/package you want to add metadata to
4. In the package overview page, locate the Custom Metadata below.
5. Click Add Property.
6. Add key-value pairs (e.g., build.id: build-1234, git.commit: a1b2c3d4)
7. Click Save to apply the metadata

Package metadata is version-specific and will only appear for that particular version.

Metadata Properties

Key-Value Structure

• Multiple pairs: You can add multiple key-value pairs to any artifact or registry
• Duplicate keys allowed: The same key can be used with different values across different artifacts
• String values: All values are stored as strings, including numbers and booleans

Data Type Handling

All metadata values are stored as strings, regardless of the input type. Numbers and booleans will be converted to string format (e.g., true becomes "true", 42 becomes "42").

Metadata Limitations

• Maximum of 50 key-value pairs per artifact or registry
• Key length: Maximum 128 characters
• Value length: Maximum 256 characters

Search and Filter Artifacts Using Metadata

Harness Artifact Registry provides powerful metadata-based search and filtering capabilities at multiple levels, allowing you to quickly find the artifacts you need based on custom attributes.

Where You Can Filter

Metadata filtering is available at four levels:

1. Registry list view: Filter registries by metadata in the main registry listing page
2. Artifact list within a registry: Filter artifacts inside a specific registry using metadata
3. Package/version list: Filter specific package versions based on their metadata
4. Global artifact search: Search across all artifacts using metadata criteria

Each level includes a dropdown filter that allows you to select metadata keys and values to narrow down your results.

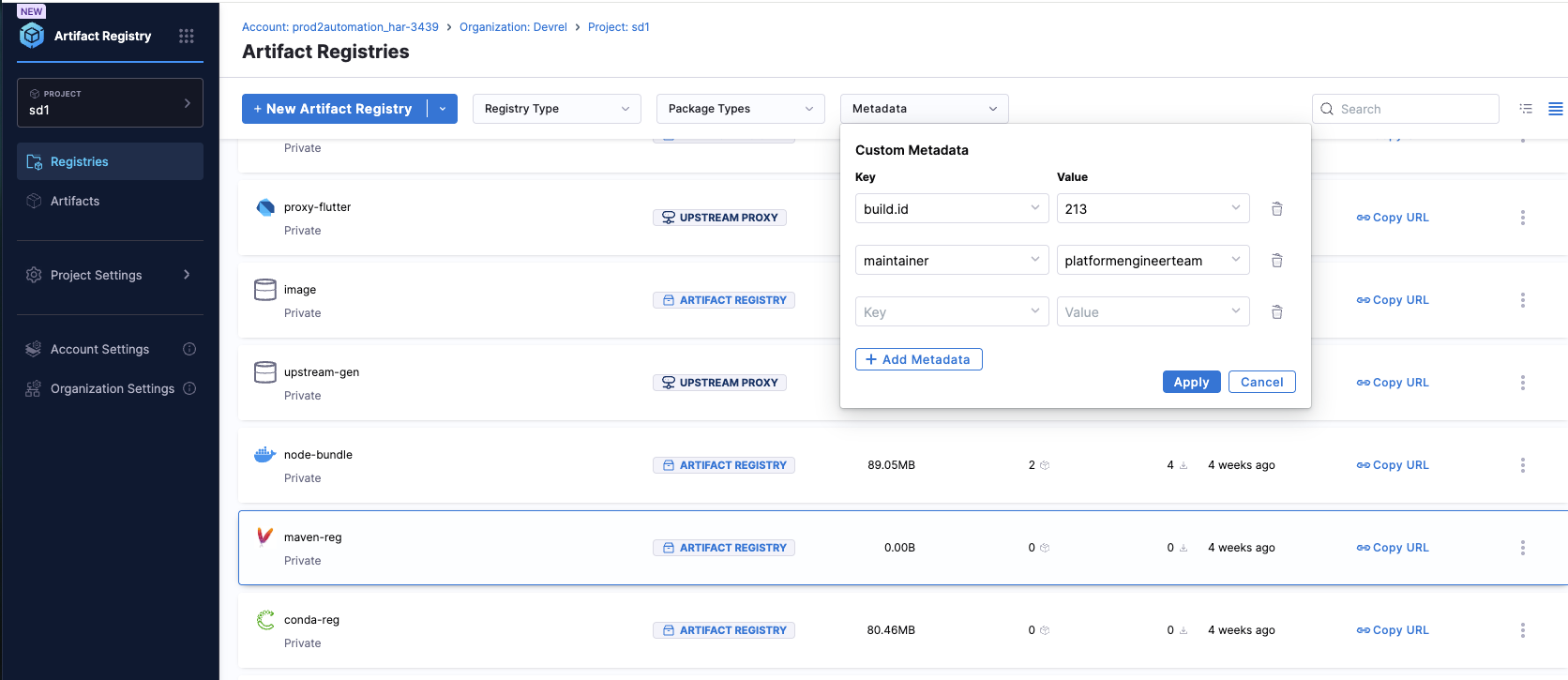

How to Filter by Metadata

Follow these steps to filter artifacts and registries using metadata:

1. Navigate to the appropriate list view (registries, artifacts, or packages)
2. Locate the metadata filter dropdown.
3. Select the metadata key you want to filter by
4. Choose or enter the value to filter
5. The list will update to show only matching items

Common Metadata Use Cases

Artifact-Level Metadata Examples

Key	Description	Example Value
owner	Team or person responsible	"platform-team"
component.type	Type of component	"service", "library", "config"
security.level	Security classification	"public", "internal", "confidential"
lifecycle.status	Current lifecycle stage	"active", "deprecated", "experimental"
docs.url	Documentation link	"https://docs.example.com/service"
source.repo	Source code repository	"https://github.com/org/repo"

Package-Level Metadata Examples

Key	Description	Example Value
build.id	CI build identifier	"build-1234"
build.timestamp	Build creation time	"2023-03-15T14:33:22"
git.commit	Git commit hash	"a1b2c3d4e5f6"
git.branch	Source branch	"main", "feature/xyz"
approvals.status	Approval status	"pending", "approved", "rejected"
security.scan.status	Security scan result	"passed", "failed", "exempted"
tests.status	Test execution status	"passed", "failed"
deployment.targets	Target environments	"dev,staging,prod"

tip

You can combine multiple metadata filters to narrow down your results further and find exactly what you're looking for.

Best Practices

1. Establish naming conventions: Define standard metadata keys across your organization for consistency
2. Use hierarchical keys: Adopt dot notation for related metadata (e.g., security.level, security.scan.status)
3. Keep values concise: Stay within the 256-character limit for better readability
4. Document your schema: Maintain documentation of standard metadata keys and their expected values
5. Leverage version-specific metadata: Use package-level metadata for build and deployment tracking
6. Regular cleanup: Review and remove obsolete metadata to maintain clarity
