Get Started
Before You Begin
To setup Commitment Orchestrator in Harness CCM, you need:
-
Active CCM Connectors: You must have at least one active cloud connector set up for the cloud providers you want to categorize costs for: Set Up CCM Connectors.
-
A master account with the right permissions to be added via AWS connector on which you want to enable orchestration.
-
Required Permissions (Read-Only): Your Harness user account must belong to a user group with the following role permissions:
Details
Required Read-Only Permissions
To enable visibility, in the master account connector, you need to add the following permissions."ec2:DescribeReservedInstancesOfferings",
"ce:GetSavingsPlansUtilization",
"ce:GetReservationUtilization",
"ec2:DescribeInstanceTypeOfferings",
"ce:GetDimensionValues",
"ce:GetSavingsPlansUtilizationDetails",
"ec2:DescribeReservedInstances",
"ce:GetReservationCoverage",
"ce:GetSavingsPlansCoverage",
"savingsplans:DescribeSavingsPlans",
"organizations:DescribeOrganization"
"ce:GetCostAndUsage"
And to enable actual orchestration, you need to add the following permissions.
"ec2:PurchaseReservedInstancesOffering",
"ec2:GetReservedInstancesExchangeQuote",
"ec2:DescribeInstanceTypeOfferings",
"ec2:AcceptReservedInstancesExchangeQuote",
"ec2:DescribeReservedInstancesModifications",
"ec2:ModifyReservedInstances"
"ce:GetCostAndUsage"
savingsplans:DescribeSavingsPlansOfferings
savingsplans:CreateSavingsPlan
Steps to configure:
- Go to Commitment Orchestrator > Setup Orchestrator.
- Account and Service details
- Orchestrator Exclusions (Optional)
- Orchestration Preferences
- Review & Complete
-

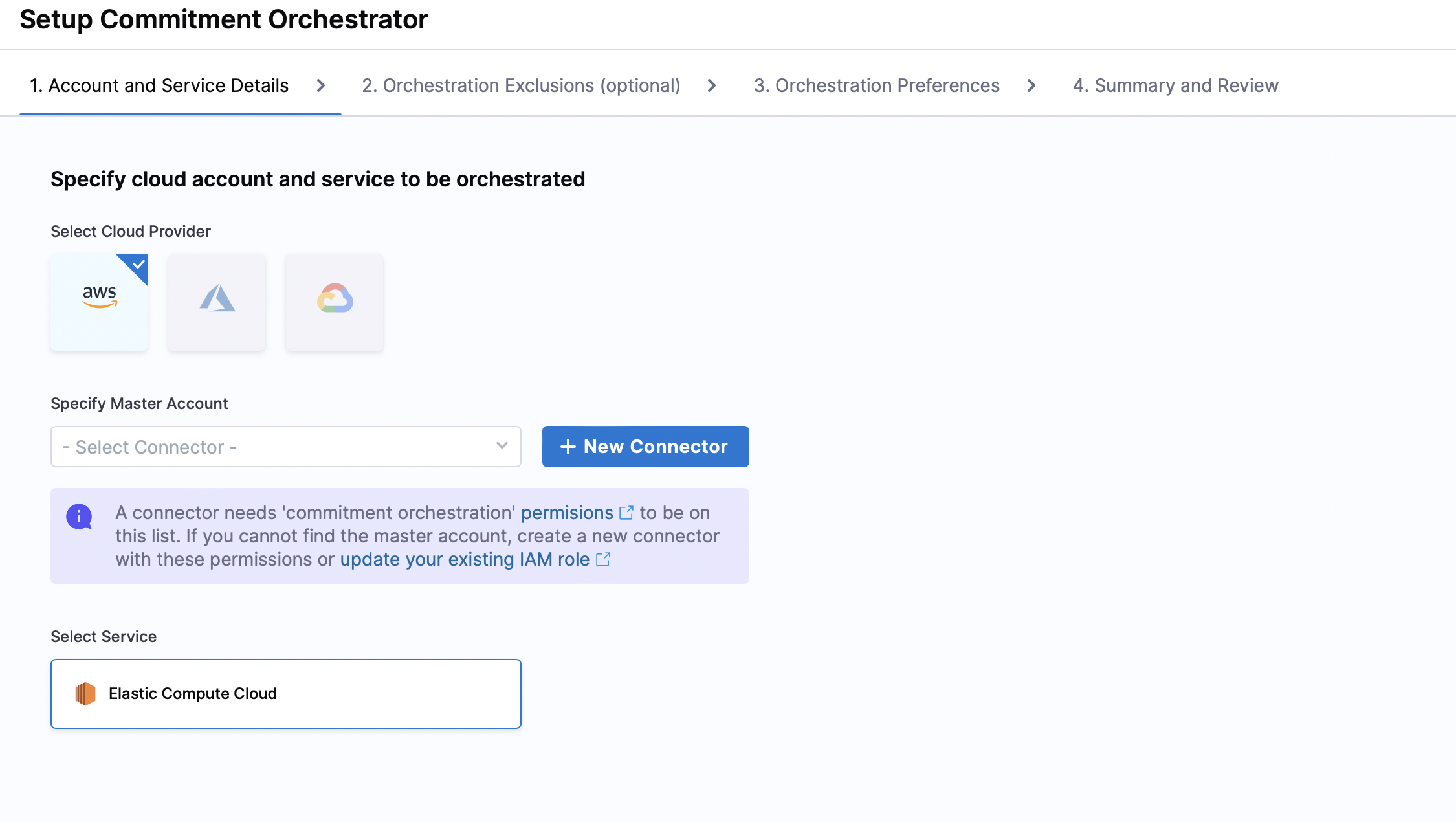

Specify the cloud account and service for which you want to enable orchestration. Currently, Commitment Orchestrator supports AWS Elastic Compute Cloud (EC2). Support for other cloud providers is in the works.
-
Specify the Master Account Connector. You need to select the master account with the right permissions to be added via connector on which you want to enable orchestration. You can either select an existing connector for your master account or create one. Please note, even if "Commitment Orchestrator" is enabled in Connector Set Up for any other Account except for Master, it will not be visible in the connector list in Commitment Orchestrator Setup since Commitment Orchestrator requires Master Account connector.
Commitment Orchestrator provides you with an option to exclude Accounts, Regions and Instances from the orchestration.

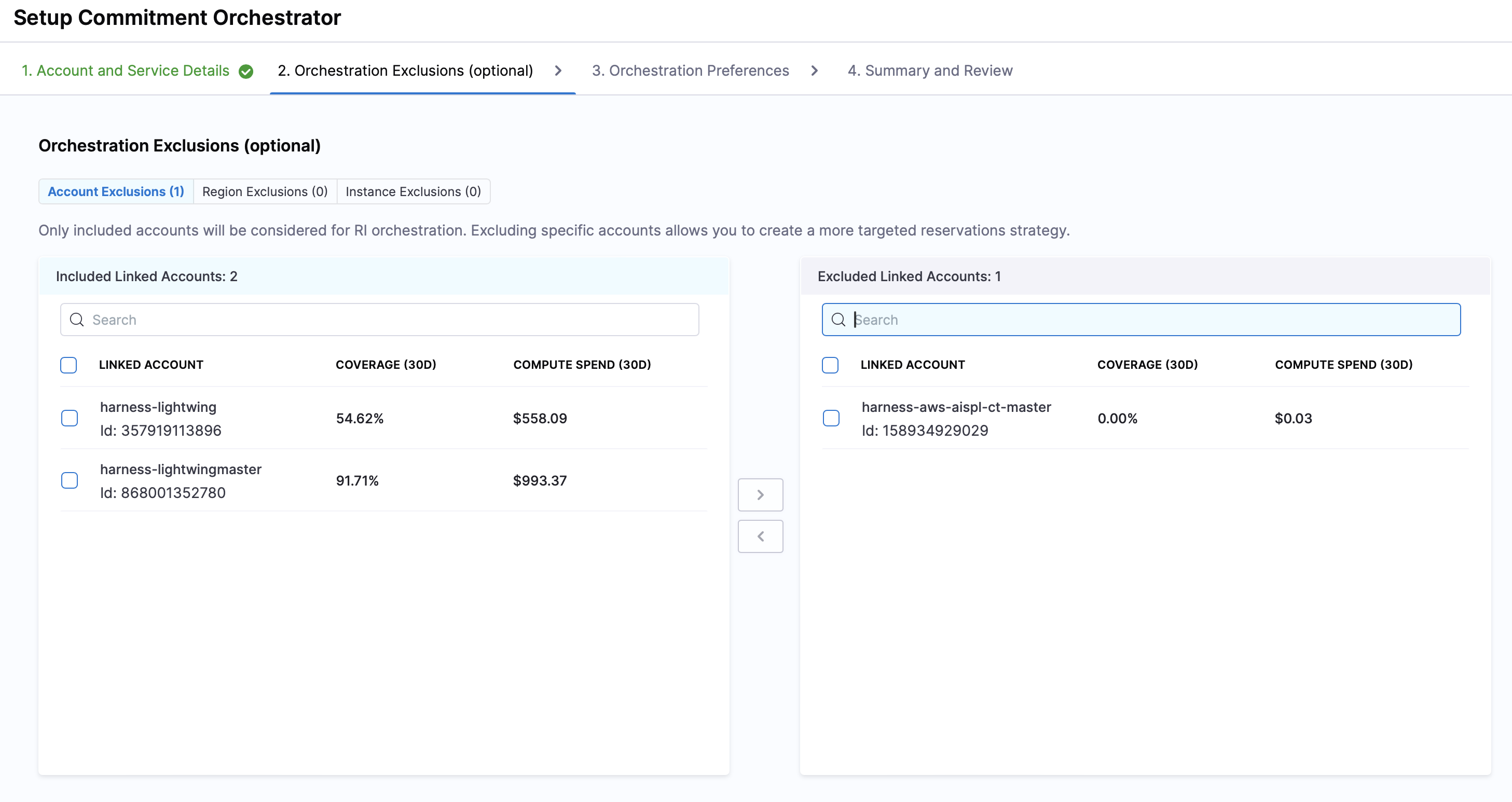

- Account Exclusions: You can include or exclude specific accounts from the orchestration. The accounts marked as included will be considered for RI Orchestration.

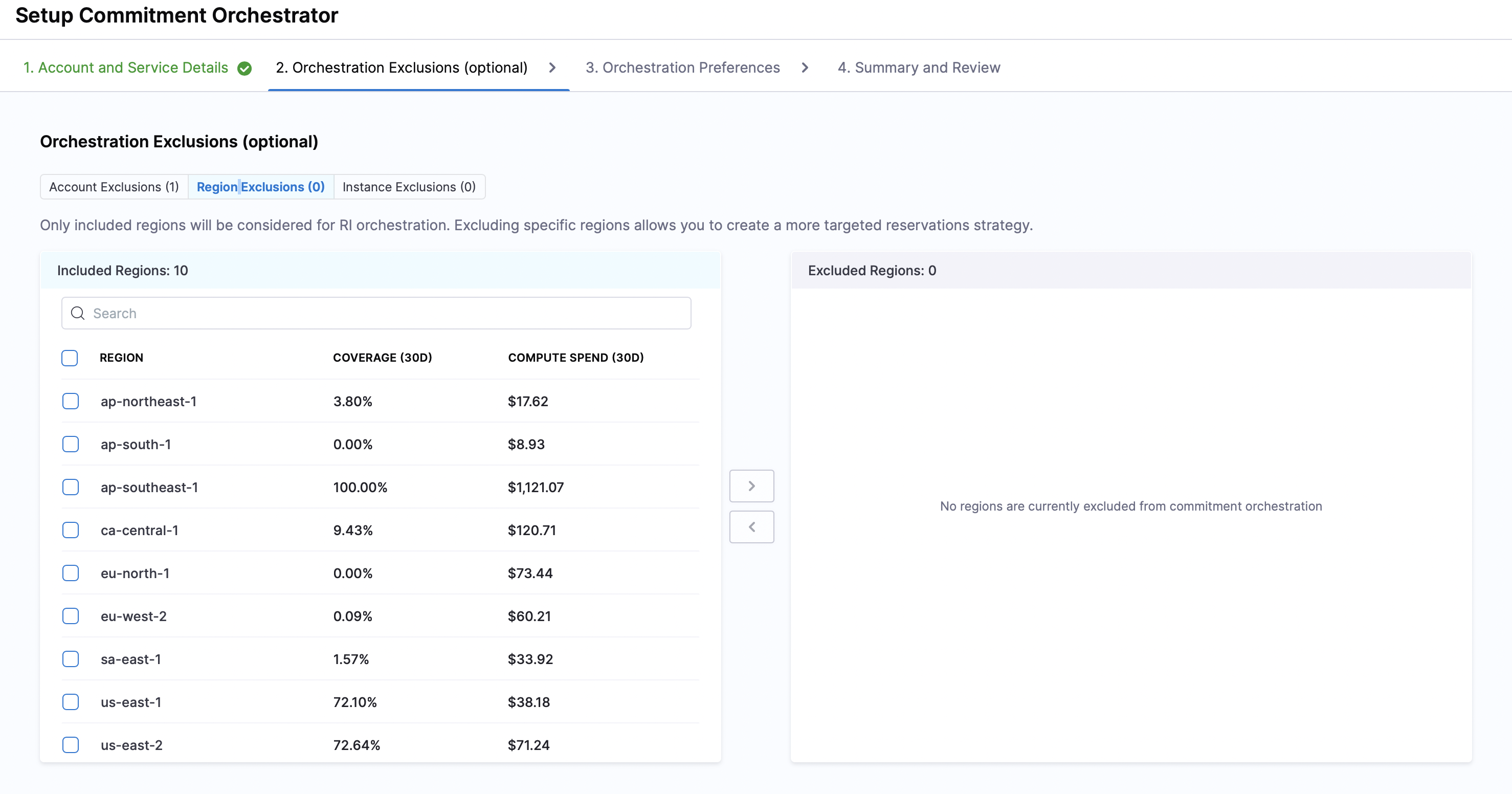

- Region Exclusions: You can include or exclude specific regions from the orchestration. All the regions are shown with their coverage and compute spend for making an informed decision

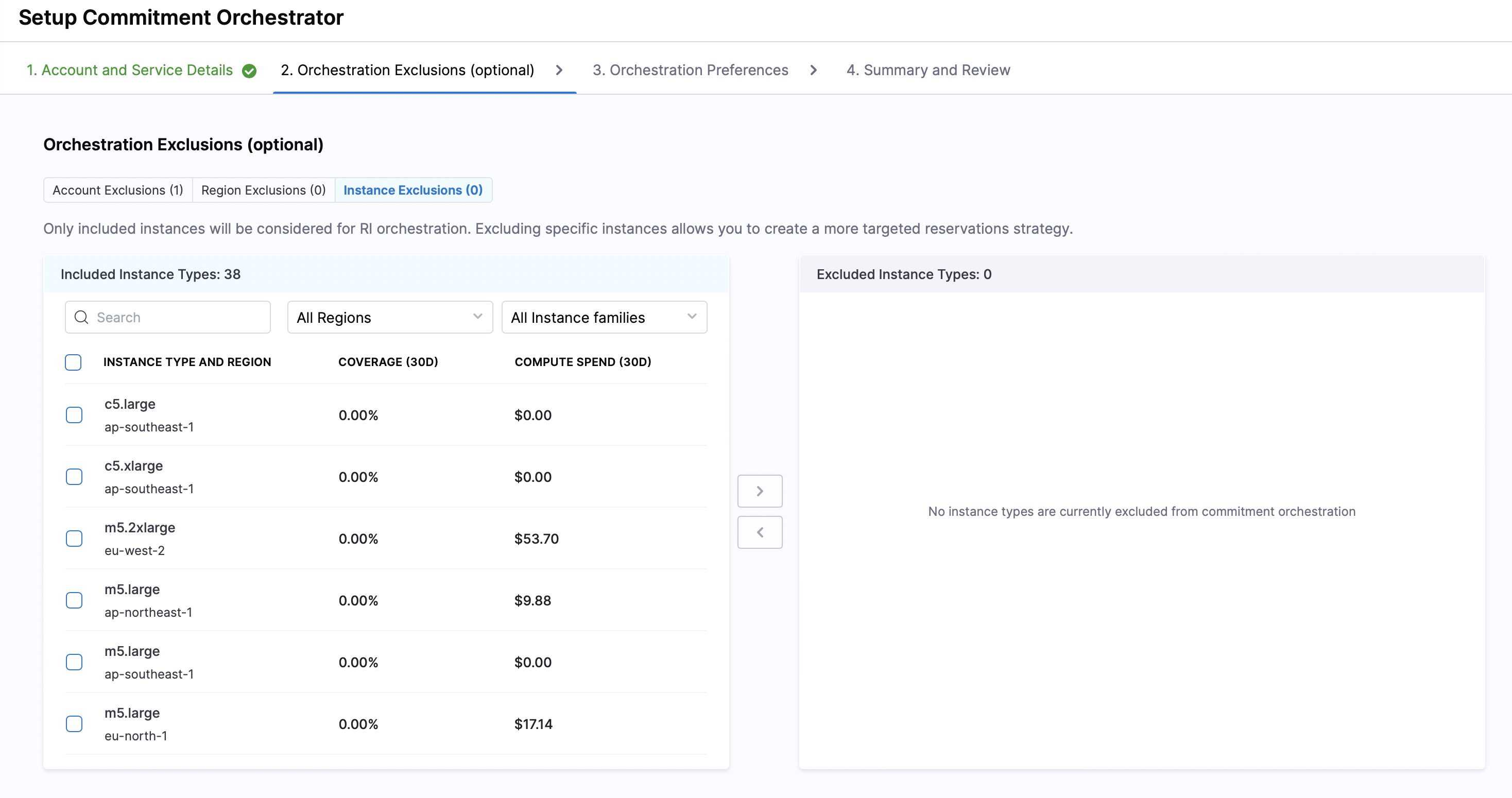

- Instance Exclusions: You can include or exclude specific instances from the orchestration.
The purchases will happen only at master account level and thus will be in turn applicable for child accounts as well. The exclusion list will only be considered for the compute spend calulations and actual RI/SP may be used against the instances if they are part of child accounts.
-
Target Coverage: The maximum percentage of your compute spend that you want covered by Savings Plans and/or Reserved Instances. Any remaining spend will continue to run on On-Demand. The Commitment Orchestrator automatically adjusts coverage levels based on evolving usage patterns.
-
Atomization: Atomization helps with restricting all RI based transactions to a specified date. To extend on this approach, Harness Commitment Orchestrator intends to buy a Atom RI on a monthly basis in each of the regions to create a situation where in the future there would be a Atom RI expiring on a monthly basis.
You can select the Atom purchase frequency and select the Atom purchase terms and you can also see the cost implications of Atomization. By default, CCM sets it for one year, but you can also set it for three years.
-

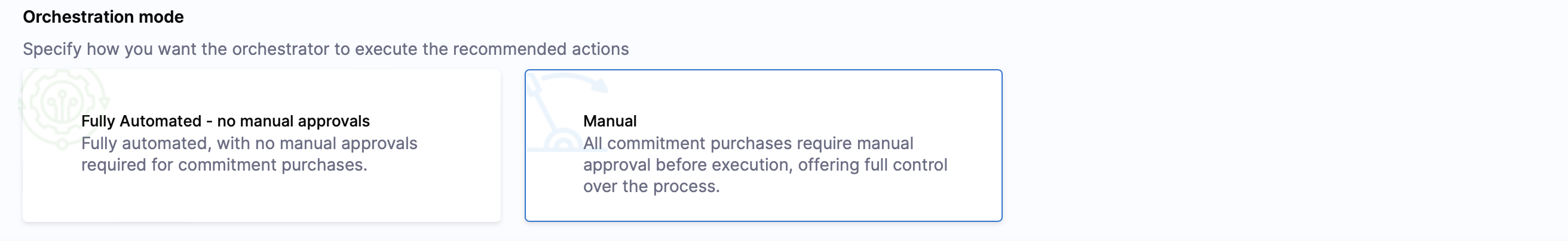

Orchestration Mode: Select how the orchestrator executes recommended commitment purchases:
-
Fully Automated: Commitment purchases are executed automatically without requiring manual approval.
-
Manual: All commitment purchases require explicit manual approval before execution, giving you complete control over the process. All the recommendations are visible in the Actions tab on the dashboard.
-
