Set up perspective preferences

With perspective preferences, you have the flexibility to tailor the cost data presented in your perspective. You can opt to include or exclude specific cost data provided by the Cloud Service Providers (CSPs) according to your needs and requirements. This can help customize your CSP dashboard with Harness perspective view by ensuring accurate and comprehensive cost analysis.

Default settings for perspective preferences

You can configure perspective preferences in the Cloud Costs > Setup > Default Settings page. You can override these settings at the perspective level if needed. The following table provides the default values of perspective preferences:

General	AWS	GCP	Azure
Show Anomalies - Enabled	Include Discounts - Enabled	Include Discounts - Disabled	Show costs as - Actual
Show Others - Disabled	Include Credit - Enabled	Include Taxes - Enabled	-
Show Unallocated cost in Clusters - Disabled	Include Refunds - Enabled	-	-
-	Include Taxes - Enabled	-	-
-	Show costs as: Amortised Net-amortised Unblended Blended Effective Default value: Unblended	-	-

info

• Changes made to these settings affect all CCM perspectives. To ensure smooth operations, it is advisable not to update these settings frequently. If changes are necessary, it's recommended to allow a time gap of at least 5 minutes between updates.
• Even if GCP discounts are included in the default settings, the overview page will not take the discounted costs into account. In other words, any available discounts for GCP services will not be reflected in the cost calculations and summary provided in the overview section.

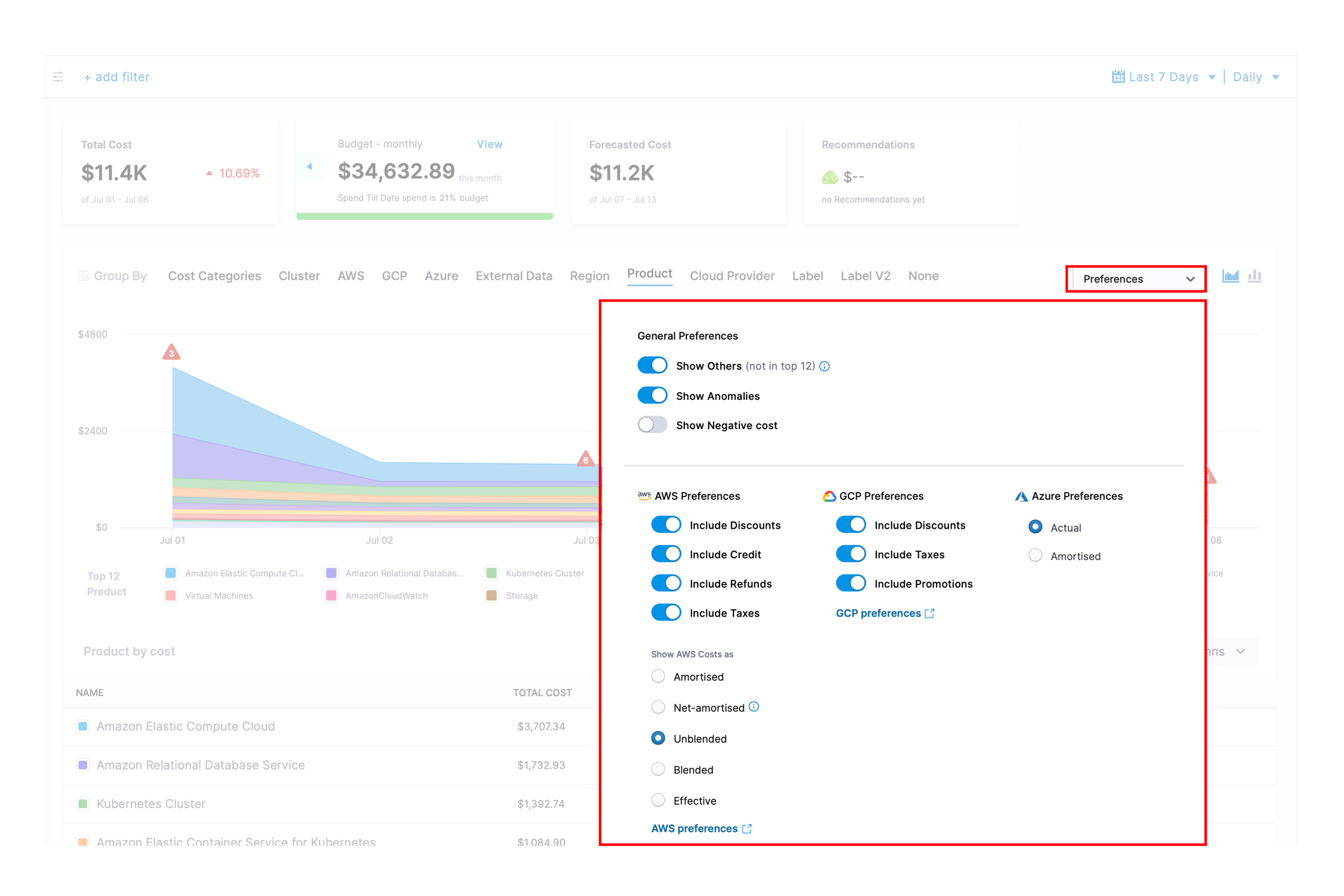

To edit preferences for a specific perspective:

1. Go to Cloud Costs.
2. Select Perspectives.
3. Select the required perspective.
4. Open the Preferences dropdown.
5. Enable and disable preferences based on your requirements.
6. Select Apply.

The cost data shown in the perspective chart is influenced by the set preferences. But it's important to note that for these changes to be permanent and take effect, you need to edit the perspective and update the preferences accordingly. Applying the preferences on the perspective page will not make the changes persistent. To learn how to edit a perspective, go to Edit a perspective.

General preferences

The following preferences are applicable to all perspectives. By default, some of these preferences are enabled. However, you could choose to disable or enable these preferences in individual perspectives.

• Show anomalies

Displays the anomalies in the perspective. This option is enabled by default. For more information about cloud cost anomalies, go to Detect anomalies.

• Show others

  The graphs displayed in a Perspective show the top 12 costs only. The remaining data is displayed as Others. Others is always the total cost minus the top 12 costs listed in the graph you are viewing.



• Show negative cost

  Displays the negative cost with a dotted red bar and labels it as NegativeCost in the legend. To view it, please select "Group By" as None because in other Group Bys, it might not appear in the top 12 entries.

  info

  This is a toggle only. This can't be saved at the perspective or account settings level.



• Show "unallocated" costs on clusters

  In certain graphs, you may come across an item labeled as Unallocated. This entry is included to provide a comprehensive view of all costs. When you examine the Total Cost in the perspective, it encompasses the costs of all items, including the unallocated cost. This option is available only in perspectives with cluster rules. For more information, go to Unallocated Cost.



  The Show "unallocated" costs on clusters option is only available in the chart when the Group By is using Cluster and the following options are selected:

  • Namespace
  • Namespace ID
  • Workload
  • Workload ID
  • ECS Task
  • ECS Task ID
  • ECS Service ID
  • ECS Service
  • ECS Launch Type ID
  • ECS Launch Type

To know how to analyze your cluster perspective data, go to Analyze cost for Kubernetes or AWS ECS.

AWS preferences

When creating your perspective, the Preferences section allows you to include specific cost factors sourced from the AWS Cost and Usage Reports (AWS CUR). These selected cost factors will be incorporated into your perspective for a more tailored and comprehensive view of your cloud costs.

• Include Discounts: Includes any discounts that AWS applied to your usage.

• Include Credit: Includes any credits that AWS has applied to your bill.

• Include Refunds: Includes the negative charges that AWS refunded money for.

• Include Taxes: Includes any taxes that AWS applied to your bill. For example, VAT or US sales tax.

• Show costs as: The following are the various AWS cost types supported by Perspectives.

  • Net amortized

    Net amortized cost in AWS is the actual cost of using resources, accounting for upfront payments made for Reserved Instances. It evenly spreads the upfront costs over the reservation term, considers monthly fees, and includes discounts like RI volume discounts.

  • Blended

    Blended Cost is the total cost of using AWS services, which includes both upfront and usage-based charges, divided by the total number of usage units. Blended rates are the rates associated with total usage in an organization averaged across accounts. For a line item, the blended cost is usage multiplied by the blended rate. The blended cost is the cost attributed to the account's usage as a linked account in an organization.

  • Unblended

    A vast majority of AWS customers use the unblended cost dataset to understand their usage. This is the default cost type.Unblended cost is the direct cost incurred for using AWS services, without factoring in any upfront payments or volume discounts. Unblended rates are the rates associated with an individual account's service usage. For a line item, the unblended cost is usage multiplied by the unblended rate. The unblended cost would be the cost of the account's usage if it were a standalone account. Unblended costs represent your usage costs on the day they are charged to you. In finance terms, they represent your costs on a cash basis of accounting.

  • Amortized

    Amortized cost refers to the total upfront payment for reserved instances spread evenly over the term of the reservation. This method is used to allocate the upfront costs equally across the duration of the reservation, making it easier to analyze the cost distribution.

    For example, Alejandro decides to buy a Partial Upfront t2.micro Reserved Instance (RI) with a one-year term. The upfront cost for this RI is 30 USD, which he pays at the beginning. Additionally, there is a monthly fee of 2.48 USD associated with the RI. In this case, the Cost Explorer chart will show Alejandro's RI costs as a spike on the first day of each month. This spike represents the monthly fee of 2.48 USD being charged. When Alejandro chooses "Amortized costs" in the Cost Explorer settings, it provides a different perspective on the cost data. Amortization is a process of spreading the upfront cost of a reserved instance over its duration (one year in this case). Instead of showing a large upfront cost, Amortized costs evenly distribute the upfront cost over the term of the RI. Selecting Amortized costs and considering a 30-day month, the Cost Explorer chart will display a daily effective rate. This daily effective rate is calculated by taking the EC2 effective rate (which is the hourly cost of running an instance) and multiplying it by the number of hours in a day. So, if the EC2 effective rate for the t2.micro instance is 0.165 USD per hour, the daily effective rate will be 0.165 USD multiplied by 24 hours, resulting in 3.96 USD.

  • Effective

    Effective Cost, in the context of Reserved Instances (RI), is the average hourly rate obtained by combining both the upfront payment and the hourly rate. EffectiveCost is calculated by adding the amortizedUpfrontCostForUsage to the recurringFeeForUsage.

AWS discount types supported by Harness CCM

Currently, Harness CCM considers only three types of discounts under the LineItemType:

• BundledDiscount: A usage-based discount that provides free or discounted usage of a service or feature based on the usage of another service or feature.

• PrivateRateDiscount: Discount provided by AWS for using private pricing rates. When customers negotiate custom pricing with AWS, they may receive discounted rates for specific services based on their agreement.

• EdpDiscount: Discounts associated with the use of AWS Enterprise Discount Program (EDP). The AWS Enterprise Discount Program offers volume-based discounts to customers who commit to certain usage levels and financial commitments with AWS.

To know how to analyze the AWS perspective data, go to Analyze cost for AWS.

GCP preferences

The following cost factors retrieved from your GCP Billing Export data can be included or excluded in your perspectives for a more comprehensive view of your cloud costs.

• Include Discounts: Includes any discounts that GCP applied to your usage.
• Include Taxes: Includes any taxes that GCP applied to your bill. For example, VAT or US sales tax. This option is enabled by default.

To know how to analyze the perspective data, go to Analyze cost for GCP.

For details about the GCP Invoice Month filter, go to Add filters.

Azure preferences

Azure provides two types of cost export metrics: Actual Cost and Amortized Cost, each serving distinct financial tracking and analysis needs. In the Azure portal, users can toggle between these cost types to gain insights into their billing data. CCM allows users to configure their Azure connector to support both cost types, offering enhanced visibility and control over their expenses.

Actual Cost

Actual Cost refers to the real-time, pay-as-you-go pricing for Azure resources and services. It is calculated based on hourly or per-minute usage, directly reflecting the charges that can vary with demand and utilization. This cost model is ideal for real-time monitoring and cost analysis, as it provides a precise view of expenses as they occur.

Amortized Cost

Amortized Cost offers a predictable, averaged representation of costs over a specified period, typically on a monthly basis. This approach spreads the upfront payments or commitments of Reserved Instances (RIs) over their term, which can be either one or three years. Amortized costs are particularly useful for evenly distributing expenses over reservation terms, aiding in financial projections and budgeting by providing a stable cost structure.

To accommodate the diverse needs of different teams,CCM supports the setup of both Actual and Amortized cost exports within the same connector. Users can view and toggle between these costs on their perspectives.

note

• In order to accurately track costs, ensure that your connector has one billing type set to "Actual." If not set while creating the connector, the creation will fail and for existing connectors, update the connectors such that one of the billing type should be "Actual" otherwise connector test connection would fail.

• Billing type will be set to "Actual" in billing export in places where billing type was not present before this feature launch.

• CCM will maintain data with the Azure cost type set to "Actual." All cost computations will be based on this setting.

• For Active Spend and License-Util APIs, Costs will be queried assuming Azure cost type "Actual".

• Prior to Azure preferences, all data was ingested as 'Actual,' even if Amortized billing was used. After Azure preferences, we ingested the new Amortized billing export data. Due to this, in some cases, 'Actual' data might no longer show. To fix this, kindly change the Azure cost type filter to ‘Amortized’.
