This is your first step in configuring Self Hosted Gitspaces on GCP Cloud Infrastructure.

In order to get started with Self Hosted Gitspaces, you'll first need to configure your infrastructure. This infrastructure is where your Gitspaces will be hosted, so you must define and configure it from Harness UI. This guide will take you through the detailed steps to configure your infrastructure using the Harness UI.

Prerequisites​

  1. Ensure you've enabled the feature flag CDE_HYBRID_ENABLED in your Harness account since Self Hosted Gitspaces are currently available behind this feature flag. Contact Harness Support to enable this feature flag.
  2. Ensure you’ve read through the Fundamentals and Prerequisites of Self Hosted Gitspaces. This will help you gain a deeper understanding of the basic concepts and setup steps.
  3. Only users with Account-level access can configure Gitspace infrastructure for now. Read more about the Permissions Hierarchy.
  4. Ensure that your GCP project (as defined in your infra config) has the following APIs enabled, here's a quick reference guide to learn more about enabling APIs in your GCP project:

Configure GCP Cloud Infrastructure​

Configuring your Gitspace Infrastructure involves adding your infrastructure details in the Harness UI using the steps below. This process generates an Infra Config YAML — a YAML file that captures your entire infrastructure configuration. This YAML is a required input when running the Harness Gitspace Terraform Module to provision the necessary GCP VM infrastructure.

Access Gitspace Infrastructure​

  1. Only users with the Account-level access can configure Gitspace Infrastructure.
  2. Navigate to the Cloud Development Environments module and open your Account Settings.
  3. In the side navbar under Account Settings, select Gitspace Infrastructure.

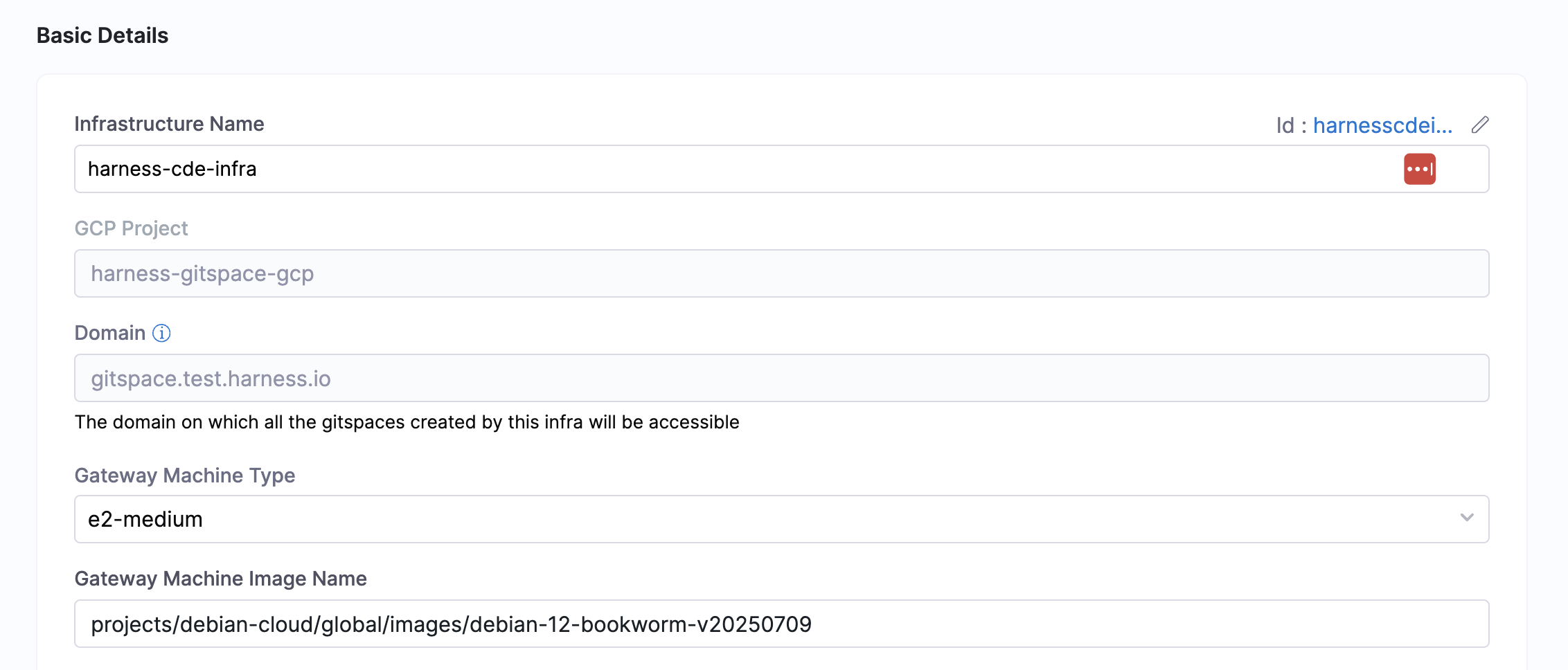

Provide Basic Infrastructure Details​

Custom Gateway Machine Image
  • For a custom gateway machine image, only ubuntu image variants are currently supported.
  • Run this command to get the list of compute engine images available in your GCP project: gcloud compute images list
  • You can only use images that are available in your GCP project.
  1. Infrastructure Name: Provide a name for your Gitspace infrastructure. This name will be used while referencing your infrastructure for creating Gitspaces.
  2. GCP Project: Enter the name of your GCP project. This is where the GCP VM Instance hosting your Gitspaces will reside.
  3. Domain: Provide the domain under which all Gitspaces created in this infrastructure will be accessible.
  4. Gateway Machine Type: Specify the VM machine type for your Gateway.
  5. Gateway Machine Image Name: Specify the VM image name for your Gateway. In case you don't have a custom image, there's a default image (projects/ubuntu-os-cloud/global/images/family/ubuntu-2404-lts-amd64) used by Harness automatically.

Configure Regions​

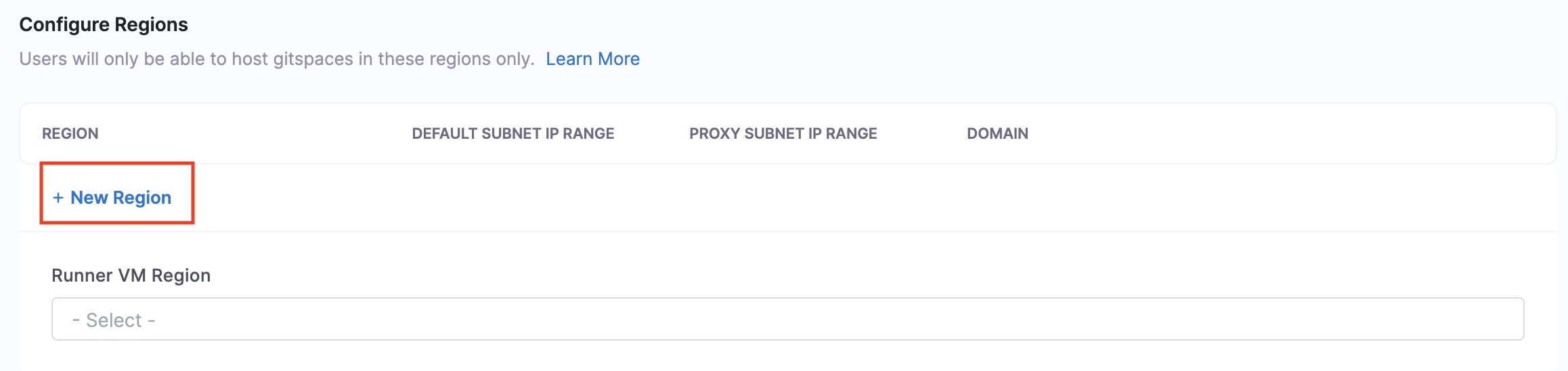

You can add and configure regions for Gitspaces. Note that users will only be able to host Gitspaces in these defined regions. Click on New Region to add a new region.

info

You can create and manage Self Hosted Gitspaces only if your infrastructure has at least one region added.

Use the following input parameters:

  1. Region Name: Enter the region name. Refer to the GCP documentation to view available regions.
  2. IP Details: Provide the IP configuration for each region.
    • Default Subnet IP Range: This is the primary IP range of the subnet and is used to assign internal IPs to your resources.
    • Proxy IP Range: This is a special subnet created specifically for certain Google-managed services and is used by Google's proxies for internal LB traffic routing.
  3. Sub-Domain: Enter the domain for each region. This field consists of a sub-domain and a root-domain. The root-domain is the same domain entered above in the basic details.

Here's how all the added regions will look for your infrastructure.

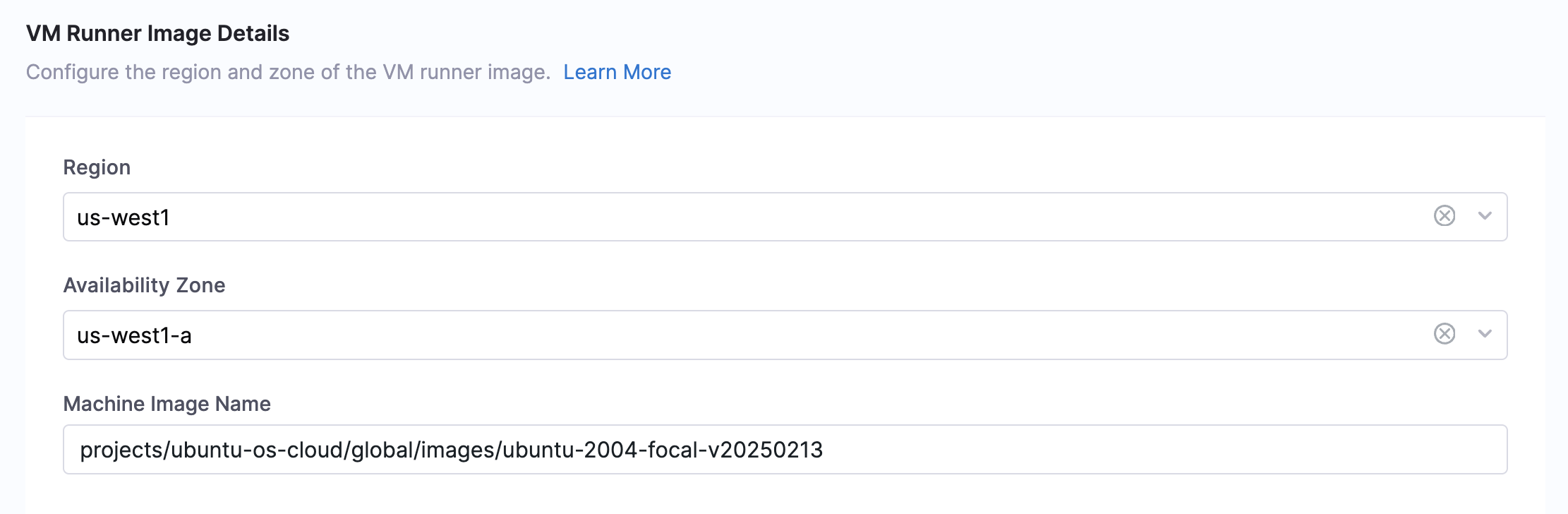

Configure VM for Runner & Delegate​

You'll have to configure the VM for Runner & Delegate to ensure that the GCP VM instance required for hosting the VM Runner and Delegate is provisioned as per these details.

Custom Machine Image
  • For a custom machine image, only ubuntu image variants are currently supported.
  • Run this command to get the list of compute engine images available in your GCP project: gcloud compute images list
  • You can only use images that are available in your GCP project.

Use the following input parameters:

  1. Region: Choose the region from the list of regions added for your infrastructure to host your VM instance.
  2. Availability Zone: Choose the availability zone from the region selected above for your VM instance.
  3. Machine Image Name: Specify the Machine image name for your VM instance. In case you don't have a custom machine image, there's a default image (projects/ubuntu-os-cloud/global/images/family/ubuntu-2404-lts-amd64) used by Harness automatically.

Download the Infrastructure Config YAML​

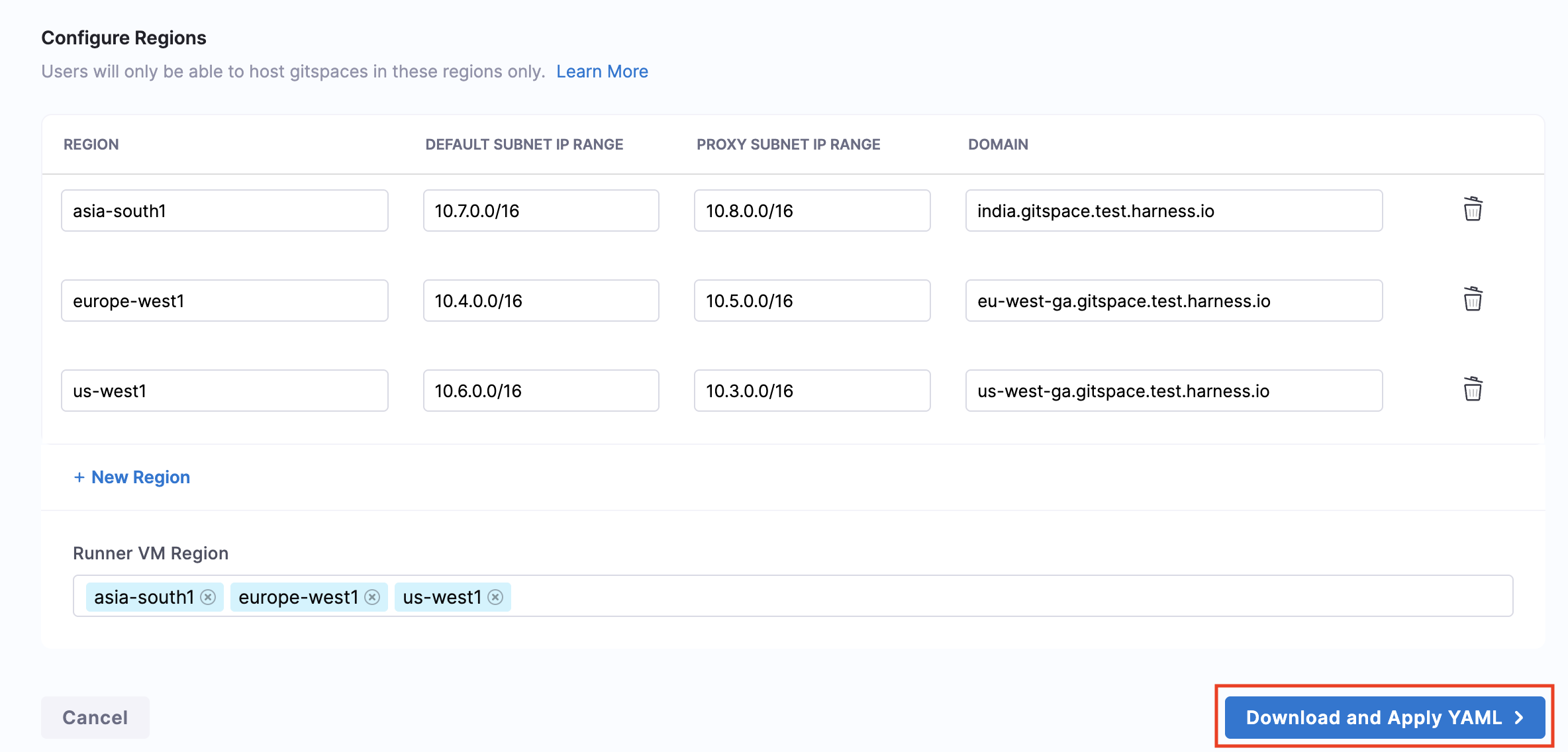

Once all details have been entered, click on Download and Apply YAML. This will generate the Infra Config YAML, which contains the entire Gitspace Infra configuration. This YAML is a mandatory input for configuring and setting up the Harness Gitspaces Terraform Module, which provisions the GCP infrastructure in your selected project.

This is what a sample Infrastructure Config YAML looks like:

account_identifier: <ACCOUNT_IDENTIFIER>
infra_provider_config_identifier: <INFRA_PROVIDER_CONFIG_IDENTIFIER>
name: <INFRA_NAME>
gitspace_vm_tags:
- gcp-gitspace
project:
  id: <PROJECT_ID>
  service_account: <SERVICE_ACCOUNT>
domain: <DOMAIN>
delegateselectors:
- selector: gitspaces
  origin: ""
gateway:
  instances: 1
  machine_type: <MACHINE_TYPE>
  vm_tags:
  - gateway
  vm_image:
    family: debian-11
    project: debian-cloud
  shared_secret: <SHARED_SECRET>
  cde_manager_url: https://app.harness.io/gateway/gratis/cde
  version: 1.15.0
runner_vm_region:
- <REGION_NAME>
runner:
  vm_image: <VM_IMAGE>
region_configs:
  <REGION_NAME>:
    region_name: <REGION_NAME>
    default_subnet_ip_range: <DEFAULT_SUBNET_IP_RANGE>
    proxy_subnet_ip_range: <PROXY_SUBNET_IP_RANGE>
    certificates:
      contents:
      - domain: <DOMAIN>

Manage Gitspace Infrastructure​

Edit Gitspace Infrastructure​

Once your infrastructure is configured, you also have the option to edit and update it. Please note that only Gitspace Admins with Account-level access are permitted to make changes.

Here's how you can edit your infrastructure:

  1. Go to your Gitspace Infrastructure UI.
  2. Click on the Edit button on the top-right corner.
  3. Whenever you make changes to your infrastructure configuration, you’ll need to download the updated Infra Config YAML. Use this updated YAML to reapply your Terraform module to reflect the changes. You can learn more about this process in the next steps.

Delete Gitspace Infrastructure​

Warning: Irreversible Action

Deleting your infrastructure is permanent and cannot be undone. This action will permanently remove your entire infrastructure configuration.

Please proceed only if you are absolutely certain you want to delete this infrastructure.

You can delete your infrastructure from the Gitspace Infrastructure UI. Please note that only users with account-level access are permitted to perform this action.

You can delete the Gitspace Infrastructure only if the following conditions are met:

  • All Gitspaces associated with this infrastructure have been deleted.
  • All Machines associated with this infrastructure have been deleted.

If these conditions are not met, you will not be able to delete the Gitspace Infrastructure.

Deleting Gitspaces​

You can delete Gitspaces (created within a specific infrastructure) using the Harness UI. Refer to the documentation for detailed steps on deleting a Gitspace.

Deleting Machines​

Follow this documentation to get detailed instructions on how to delete Machines from your Gitspace Infrastructure.

Deleting Infrastructure​

Here's how you can delete your infrastructure:

  1. Go to your Gitspace Infrastructure UI.
  2. Scroll down to the bottom of the page. You’ll find the option to Delete Infrastructure. Click this button to permanently delete the selected infrastructure.

Assess Gateway Group Health for Gitspace Infrastructure​

You can assess the Gateway Group Health for your Gitspace infrastructure from the Infra Details UI. Go to Locations and Machines, and click on the region for which you want to assess the Gateway health. In case the Gateway is Unhealthy, you will not be able to create any Gitspaces since no requests will be routed forward. You can find the following details:

  • Gateway Group Name: System-generated name of the Gateway Group
  • Gateway Group Health: Health status of the Gateway Group
  • Gateway Instance Name: System-generated name of the Gateway Group instance
  • Envoy Health: Health status of Envoy
  • Gateway Version Number: Gateway image version number

Next Steps​

Now that you have the Infra Config YAML downloaded, proceed to configure and apply the Terraform module to provision your self-hosted Gitspaces.
