Canary deployment

Last updated on

The pipeline execution defines how Harness rolls out a new agent revision. For Google Agent Runtime, Harness deploys the new revision, then shifts traffic to it in stages so you can validate the new version before it takes all traffic. This page shows you how to configure the canary execution on the pipeline stage.

note

Agent deployments are behind the feature flag CDS_AGENT_RUNTIME_DEPLOYMENT. Contact Harness Support to enable the feature.

You need a registered agent service and an environment with a Google Agent Runtime infrastructure definition. For all prerequisites, go to Before you begin on the overview.

Select the execution strategy​

On the Execution tab of the stage, select the execution strategy. Select Canary to scaffold the deploy and traffic shift steps, or select Blank Canvas to build the execution from an empty step group.

Execution Strategies selection showing Canary and Blank Canvas options
info

Canary is the only execution strategy for agent deployments in this release. Support for more deployment strategies is planned.

Default canary steps​

When you select the Canary strategy, Harness adds a step group with two steps: a deploy step and a single traffic shift step that routes 100 percent of traffic to the new revision. Harness also adds a rollback step group with the rollback step.

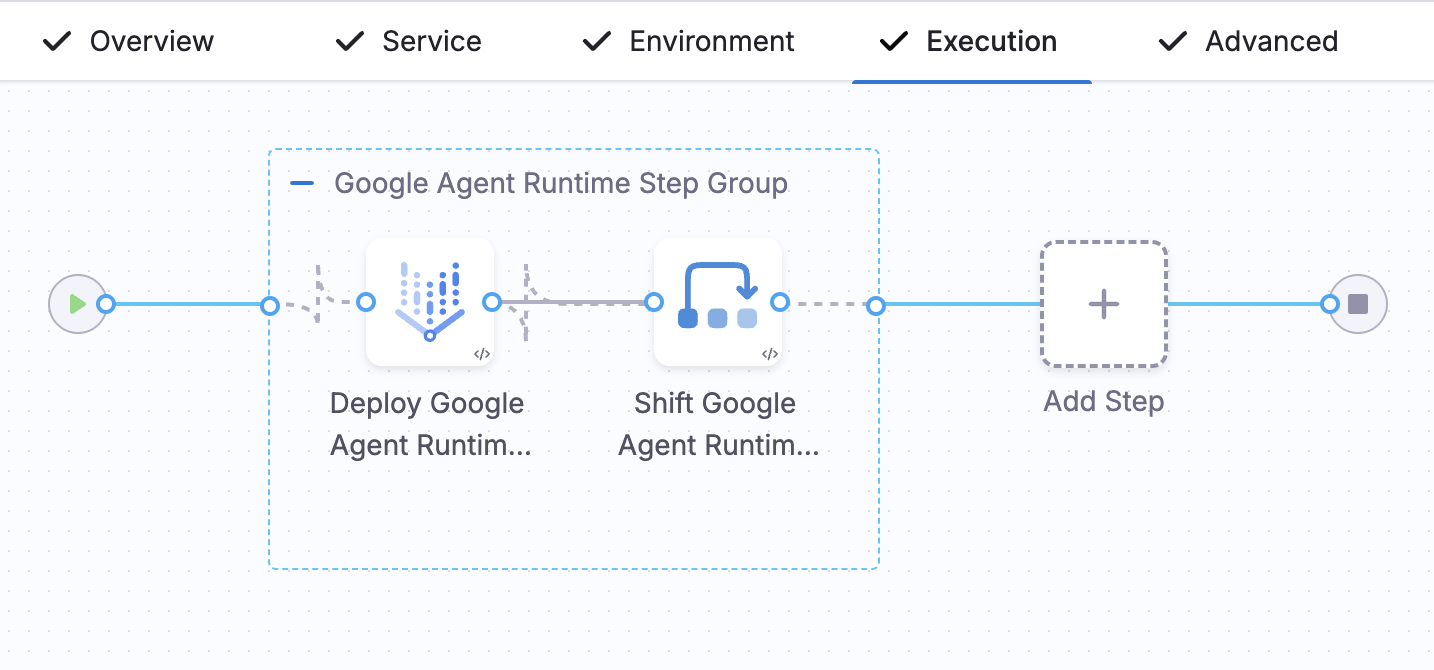

Execution tab showing the default canary with a deploy step and a single traffic shift step

Deploy step​

The deploy step creates a deployment for the agent on Google Agent Runtime. On the first deployment for an agent, it creates the deployment. When a deployment already exists, it creates a new revision under the same deployment. The step publishes the new revision id as output that the traffic shift steps read.

The step type is DeployGoogleAgentRuntimeRevision. Configure the following fields:

  • Container Registry: A Harness connector for the registry that hosts the plugin image.
  • Image: The deploy plugin image, harness/google-agent-runtime-plugin:1.0.0-linux-amd64.
  • Wait for the revision to be ready: Enable this so the pipeline waits until the revision is ready before it continues.
Deploy Google Agent Runtime Revision step parameters showing timeout, container registry, image, and wait for revision ready

Traffic shift step​

The traffic shift step routes a percentage of traffic to the revision produced by the deploy step. Add a step for each stage of the canary, for example 10 percent, 25 percent, 50 percent, and 100 percent.

The step type is ShiftGoogleAgentRuntimeTraffic. Configure the following fields:

  • Container Registry: A Harness connector for the registry that hosts the plugin image.
  • Image: The traffic shift plugin image, harness/google-agent-runtime-plugin:1.0.0-linux-amd64.
  • Target Revision ID: The revision produced by the deploy step, <+steps.DeployGoogleAgentRuntimeRevision.agentDeployment.revisionId>.
  • Weight (%): The percentage of traffic to route to the target revision for this shift.
Shift Google Agent Runtime Traffic step parameters showing image, target revision ID, and weight

Rollback step​

The rollback step reverts traffic to the previous revision. Harness adds it to the stage rollback steps so it runs when a deploy or traffic shift step fails.

The step type is RollbackGoogleAgentRuntimeRevision and the Image is harness/google-agent-runtime-plugin:1.0.0-linux-amd64.

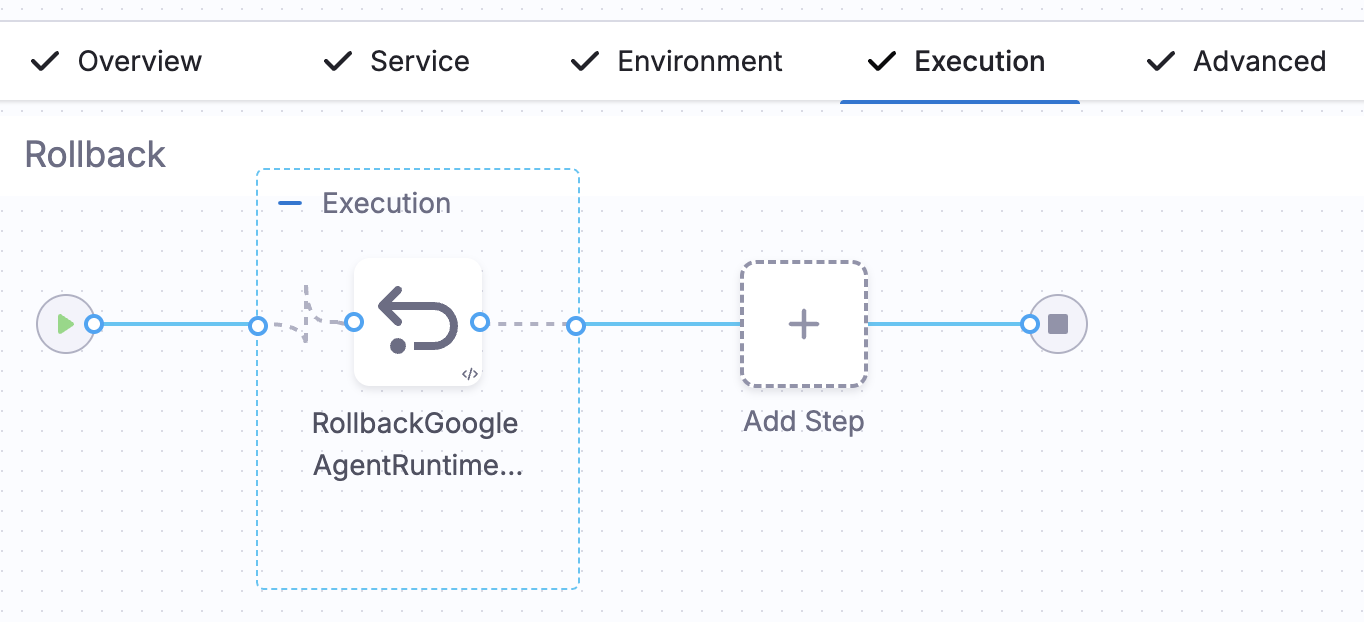

Rollback view showing the rollback step in the stage rollback steps
Default canary pipeline YAML
pipeline:
  projectIdentifier: Demo
  orgIdentifier: default
  tags: {}
  stages:
    - stage:
        name: AI Agent
        identifier: AI_Agent
        description: ""
        type: Deployment
        spec:
          deploymentType: AiAgent
          service:
            serviceRef: Google_Weather_Agent
          environment:
            environmentRef: Google_Agent_Platform
            deployToAll: false
            infrastructureDefinitions:
              - identifier: GoogleAgentPlatform
          execution:
            steps:
              - stepGroup:
                  steps:
                    - step:
                        type: DeployGoogleAgentRuntimeRevision
                        name: Deploy Google Agent Runtime Revision
                        identifier: Deploy_Google_Agent_Runtime_Revision
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          waitReady: true
                    - step:
                        type: ShiftGoogleAgentRuntimeTraffic
                        name: Shift Google Agent Runtime Traffic
                        identifier: Shift_Google_Agent_Runtime_Traffic
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          target:
                            revisionId: <+steps.Deploy_Google_Agent_Runtime_Revision.agentDeployment.revisionId>
                          weight: 100
                  name: Google Agent Runtime Step Group
                  identifier: Google_Agent_Runtime_Step_Group
                  sharedPaths:
                    - /var/run
                    - /var/lib/docker
                  stepGroupInfra:
                    type: KubernetesDirect
                    spec:
                      connectorRef: <+input>
                      namespace: default
            rollbackSteps:
              - stepGroup:
                  name: Google Agent Runtime Rollback Step Group
                  identifier: Google_Agent_Runtime_Rollback_Step_Group
                  steps:
                    - step:
                        type: RollbackGoogleAgentRuntimeRevision
                        name: Rollback Google Agent Runtime Revision
                        identifier: Rollback_Google_Agent_Runtime_Revision
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                  sharedPaths:
                    - /var/run
                    - /var/lib/docker
                  stepGroupInfra:
                    type: KubernetesDirect
                    spec:
                      connectorRef: <+input>
                      namespace: default
        tags: {}
        failureStrategies:
          - onFailure:
              errors:
                - AllErrors
              action:
                type: StageRollback
  identifier: Sample_Google_Agent_Runtime_Deployment
  name: Sample Google Agent Runtime Deployment

Add staged traffic shifts​

To roll out more gradually, add more traffic shift steps between the deploy step and the final 100 percent shift. Each step routes an increasing percentage of traffic to the new revision, for example 10 percent, 25 percent, 50 percent, and 100 percent. Between the shifts, you can add smoke tests, evals, approval gates, or release gates to validate each stage before more traffic moves to the new revision.

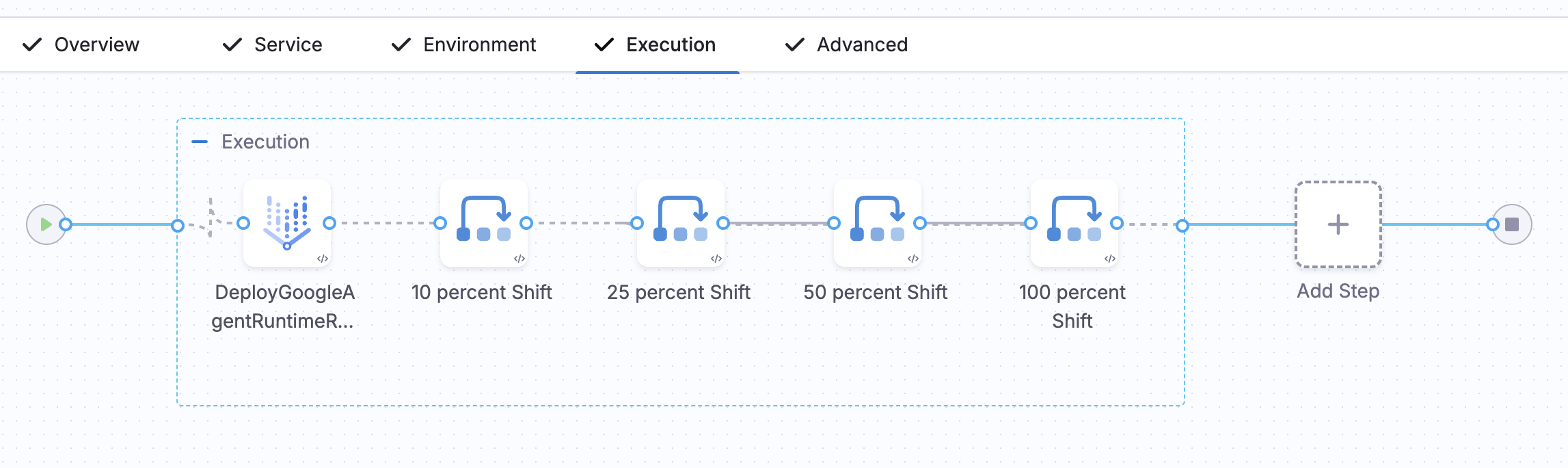

Execution tab showing the deploy step followed by 10, 25, 50, and 100 percent traffic shift steps
Staged canary pipeline YAML
pipeline:
  projectIdentifier: Demo
  orgIdentifier: default
  tags: {}
  stages:
    - stage:
        name: Deploy
        identifier: Deploy
        description: ""
        type: Deployment
        spec:
          deploymentType: AiAgent
          service:
            serviceRef: Google_Weather_Agent
          environment:
            environmentRef: Google_Agent_Platform
            deployToAll: false
            infrastructureDefinitions:
              - identifier: GoogleAgentPlatform
          execution:
            steps:
              - stepGroup:
                  name: Google Agent Runtime Step Group
                  identifier: Google_Agent_Runtime_Step_Group
                  steps:
                    - step:
                        type: DeployGoogleAgentRuntimeRevision
                        name: Deploy Google Agent Runtime Revision
                        identifier: Deploy_Google_Agent_Runtime_Revision
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          waitReady: true
                        timeout: 10m
                    - step:
                        type: ShiftGoogleAgentRuntimeTraffic
                        name: 10 percent Shift
                        identifier: ShiftGoogleAgentRuntimeTraffic_10
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          target:
                            revisionId: <+steps.Deploy_Google_Agent_Runtime_Revision.agentDeployment.revisionId>
                          weight: 10
                        timeout: 10m
                    - step:
                        type: ShiftGoogleAgentRuntimeTraffic
                        name: 25 percent Shift
                        identifier: ShiftGoogleAgentRuntimeTraffic_25
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          target:
                            revisionId: <+steps.Deploy_Google_Agent_Runtime_Revision.agentDeployment.revisionId>
                          weight: 25
                        timeout: 10m
                    - step:
                        type: ShiftGoogleAgentRuntimeTraffic
                        name: 50 percent Shift
                        identifier: ShiftGoogleAgentRuntimeTraffic_50
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          target:
                            revisionId: <+steps.Deploy_Google_Agent_Runtime_Revision.agentDeployment.revisionId>
                          weight: 50
                        timeout: 10m
                    - step:
                        type: ShiftGoogleAgentRuntimeTraffic
                        name: 100 percent Shift
                        identifier: ShiftGoogleAgentRuntimeTraffic_100
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                          target:
                            revisionId: <+steps.Deploy_Google_Agent_Runtime_Revision.agentDeployment.revisionId>
                          weight: 100
                        timeout: 10m
                  sharedPaths:
                    - /var/run
                    - /var/lib/docker
                  stepGroupInfra:
                    type: KubernetesDirect
                    spec:
                      connectorRef: <+input>
                      namespace: default
            rollbackSteps:
              - stepGroup:
                  name: Google Agent Runtime Rollback Step Group
                  identifier: Google_Agent_Runtime_Rollback_Step_Group
                  steps:
                    - step:
                        type: RollbackGoogleAgentRuntimeRevision
                        name: Rollback Google Agent Runtime Revision
                        identifier: Rollback_Google_Agent_Runtime_Revision
                        spec:
                          connectorRef: account.harness_image_registry
                          image: harness/google-agent-runtime-plugin:1.0.0-linux-amd64
                          imagePullPolicy: Always
                  sharedPaths:
                    - /var/run
                    - /var/lib/docker
                  stepGroupInfra:
                    type: KubernetesDirect
                    spec:
                      connectorRef: <+input>
                      namespace: default
        tags: {}
        failureStrategies:
          - onFailure:
              errors:
                - AllErrors
              action:
                type: StageRollback
  identifier: Sample_Google_Agent_Runtime_Staged_Canary
  name: Sample Google Agent Runtime Staged Canary

Run and monitor the deployment​

Run the pipeline to deploy the agent. After the pipeline runs, open the agent service to review the deployment. The Summary tab lists every deployment that references the agent service, with its status and start time, and the Configuration tab shows the platform configuration, which you can edit.

Because the agent is a Harness deployment, approvals, OPA policies, and RBAC apply the same way they do for any other stage.

Next steps​

You have deployed an agent service to Google Agent Runtime with a canary strategy. You can now add approvals and policies to the stage, or configure additional environments.
