Environment

Last updated on

The environment defines where an agent deploys. It groups your deployment targets, and its infrastructure definition describes the Google Agent Runtime target, such as the connector, project, region, and networking. This page shows you how to add a Google Agent Runtime infrastructure definition.

note

Agent deployments are behind the feature flag CDS_AGENT_RUNTIME_DEPLOYMENT. Contact Harness Support to enable the feature.

You need a registered agent service with Google Agent Runtime as its deploy target and a GCP connector with permission to deploy to Agent Runtime. For all prerequisites, go to Before you begin on the overview. For how environments and infrastructure definitions work in CD, go to Environment overview.

Create the environment​

Create an environment for your agent deployments, or reuse an existing one. Set the environment type to Production or Pre-Production based on the target. Go to Create environments to add one.

Add an infrastructure definition​

The infrastructure definition describes the cloud target for one environment. In the environment, open the Infrastructure Definitions tab and select Infrastructure Definition to add one.

  1. Enter a name for the infrastructure definition.
  2. Set Deployment Type to AI Agent Services.
  3. Under Select Infrastructure Type, select Google Agent Runtime.
  4. Under Cluster Details, configure the connector and target. Go to Configure the infrastructure for the fields.
  5. Select Save.

Configure the infrastructure​

The cluster details define the connector Harness uses and the Vertex target the agent deploys to. Configure the following fields:

  • Connector: The GCP connector with permission to deploy to Agent Runtime.
  • Project: The GCP project that hosts the agent runtime.
  • Region: A region where Vertex Agent Runtime is available, for example us-east1.
  • Networking Type: Select None for public access, or PSC (Private Service Connect) when the agent must reach private resources.

When you select PSC (Private Service Connect), provide the Network Attachment and, optionally, one or more DNS Peering entries. Each DNS peering entry takes a Domain, which must end with a dot, a Target Project, and a Target Network.

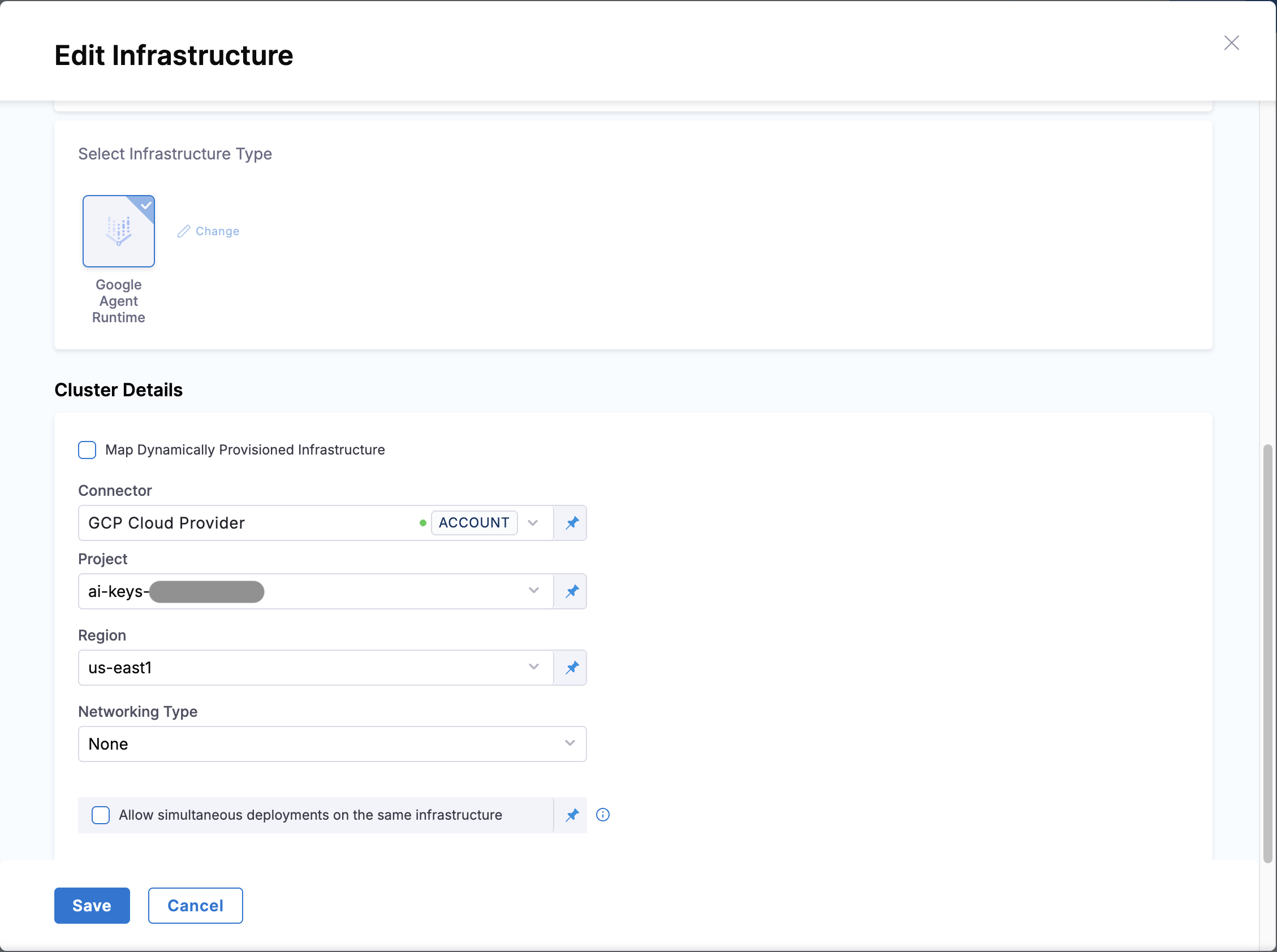

Edit Infrastructure panel for Google Agent Runtime showing connector, project, region, and networking type
Google Agent Runtime infrastructure definition YAML
infrastructureDefinition:
  name: GoogleAgentPlatform
  identifier: GoogleAgentPlatform
  orgIdentifier: default
  projectIdentifier: Demo
  environmentRef: Google_Agent_Platform
  deploymentType: AiAgent
  type: GoogleAgentRuntime
  spec:
    connectorRef: account.gcp_connector
    projectId: my-gcp-project
    location: us-east1
    networking:
      type: none
  allowSimultaneousDeployments: false

Next steps​

With the infrastructure defined, build the pipeline stage that wires the service, environment, and infrastructure together.
