Overview
This guide walks you through the process of building custom AWS SAM plugin images for use with Harness Continuous Delivery. By following these instructions, you can create compatible Docker images that combine the Harness SAM plugin with specific AWS Lambda runtime environments.
These custom images enable you to deploy serverless applications written in your preferred programming language while leveraging Harness deployment capabilities.
Understanding SAM Runtimes
SAM runtimes refer to the programming language environments that AWS Serverless Application Model (SAM) supports for Lambda function development. Each runtime provides the necessary language-specific libraries, tools, and dependencies needed to build, test, and deploy serverless applications.
Common SAM runtimes include:
- Node.js: Versions like nodejs18.x, nodejs20.x
- Python: Versions like python3.9, python3.10, python3.11
- Java: Versions like java11, java17
- Ruby: Versions like ruby3.2
- Go: Versions like go1.x
When you build your own image using the Harness pipeline, you're combining the Harness SAM plugin (which provides the integration with Harness CD) with a specific SAM runtime image from AWS. This allows you to deploy serverless applications written in your preferred programming language while leveraging Harness deployment capabilities.
Key Components
- Uses a Deployment stage with Kubernetes infrastructure
- Runs in a step group with KubernetesDirect infrastructure
- Takes SAM base image from AWS ECR public gallery
- Extracts runtime and version information from the base image name
- Final image format:
aws-sam-plugin:${VERSION}-${SAM_RUNTIME}-${SAM_VERSION}-linux-amd64
Pipeline Runner Permissions and Privileged Settings
Certain steps in the pipeline require the Kubernetes pod to run in privileged mode. This is necessary for starting Docker daemons (DinD), building container images inside pipeline steps, and granting the permissions Docker needs at runtime.
Why privileged mode is required:
- Enables Docker-in-Docker (DinD) support for building and pushing images.
- Allows installation and execution of docker CLI and manipulation of containers within the build step.
- Required for root access and mounting Docker volumes.
To enable privileged execution, set privileged: true in the step group or step-level security context. Example:
stepGroup:
privileged: true
name: k8s-step-group
sharedPaths:
- /var/run
- /var/lib/docker
For individual steps:
step:
name: dinD
privileged: true
...
Without this setting, Docker builds and image pushes may fail due to insufficient permissions inside the container.
Quick Start
- Copy the provided pipeline yaml and paste it in your Harness Project.
- Add an empty/do-nothing service to the pipeline.
- Add a Kubernetes environment to the pipeline.
- In the execution section, enable container-based execution and add the Kubernetes cluster connector to the pipeline. Save the pipeline.
- Click Run Pipeline.
- Enter the required parameters:
- VERSION: Version number for your plugin (e.g.,
1.1.2). With each new code change, a new tag and Docker image are published, letting users access specific plugin versions. . You can find the Harness base image from Harness DockerHub - SAM_BASE_IMAGE: SAM base image from AWS ECR Gallery (e.g.,
public.ecr.aws/sam/build-nodejs18.x:1.143.0-20250502200316-x86_64).
- VERSION: Version number for your plugin (e.g.,
Base Image Requirements
SAM Base Image Format
The pipeline supports only full formats for the SAM base image:
Full Format: public.ecr.aws/sam/build-nodejs18.x:1.143.0-20250502200316-x86_64
SAM Base Image Requirements
warning
Only official AWS SAM build images from the AWS ECR Public Gallery are supported.
- Only use SAM base images from: AWS ECR Gallery - SAM
- Only
x86_64architecture images are supported - Using different base images may cause library dependency issues
- Non-standard base images may cause the plugin to not function as required
Example of supported base image: public.ecr.aws/sam/build-nodejs18.x:1.143.0-20250502200316-x86_64
Image Configuration
Final Image Naming
The final image follows this naming pattern:
aws-sam-plugin:${VERSION}-${SAM_RUNTIME}-${SAM_VERSION}-linux-amd64
Example:
aws-sam-plugin:1.1.2-nodejs18.x-1.138.0-linux-amd64
Where:
VERSION: Your plugin version (e.g.,1.1.2)SAM_RUNTIME: Runtime extracted from SAM base image (e.g.,nodejs18.x)SAM_VERSION: Version extracted from SAM base image (e.g.,1.143.0)
Variables Used in Privileged Steps
These variables are actively used in the privileged steps of your pipeline for building and pushing the image that you need to con:
| Variable | Description | Example | Required |
|---|---|---|---|
| VERSION | Plugin image/version tag | 1.1.2 | Yes |
| BASE_IMAGE | Reference to your built base image | harness/aws-sam-plugin:1.1.2-beta-base-image | Yes |
| SAM_BASE_IMAGE | AWS SAM base image from ECR | public.ecr.aws/sam/build-python3.12:1.143.0-20250822194415-x86_64 | Yes |
| TARGET_REPO | Target Docker repository | your_account/aws-sam-plugin | Yes |
| DOCKER_USERNAME | Docker registry username | your_dockerhub_username | Yes |
| DOCKER_PASSWORD | Docker registry password/token | your_dockerhub_pat | Yes |
TARGET_REPO, DOCKER_USERNAME and DOCKER_PASSWORD are the variables that you set one time in the pipeline. VERSION, BASE_IMAGE and SAM_BASE_IMAGE are the variables that you set every time you run the pipeline.

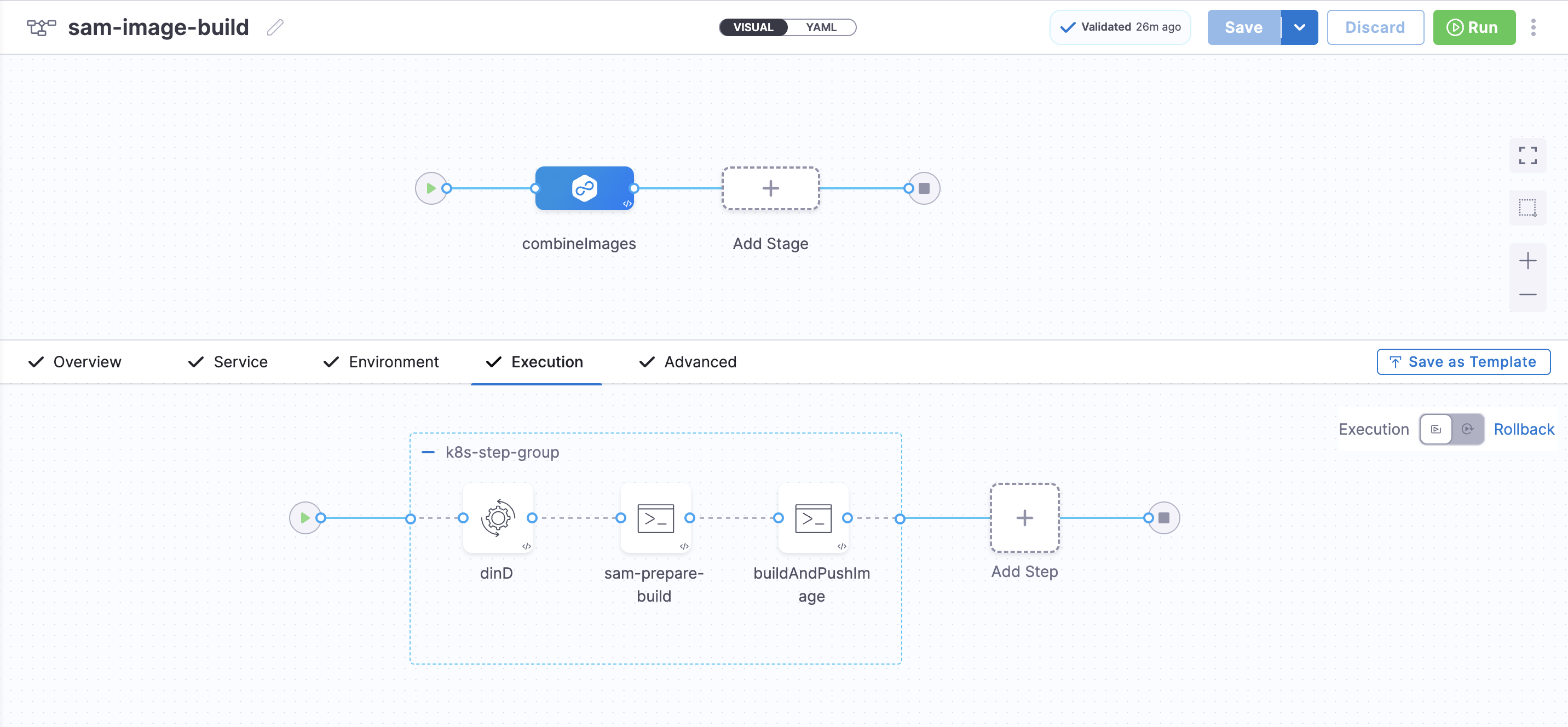

Pipeline Configuration
Pipeline YAML
Additional parameters you need to change:
projectIdentifier: Your Harness project identifierorgIdentifier: Your Harness organization identifierconnectorRef: Your Kubernetes cluster connector identifieryour_k8s_connector: Your Kubernetes cluster connector identifier
pipeline:
name: sam-image-build
identifier: sam-image-build
projectIdentifier: your_project
orgIdentifier: default
tags: {}
stages:
- stage:
name: combineImages
identifier: combineImages
description: Combine scratch image with SAM base image and push to Docker
type: Deployment
spec:
deploymentType: Kubernetes
service:
serviceRef: service
environment:
environmentRef: k8s
deployToAll: false
infrastructureDefinitions:
- identifier: your_k8s_infra
execution:
steps:
- stepGroup:
privileged: true
name: k8s-step-group
identifier: k8sstepgroup
sharedPaths:
- /var/run
- /var/lib/docker
steps:
- step:
type: Background
name: dinD
identifier: Background
spec:
connectorRef: account.dockerhub
image: docker:24-dind
shell: Sh
privileged: true
- step:
identifier: generateTimestamp
type: Run
name: sam-prepare-build
spec:
connectorRef: account.dockerhub
image: docker:24
shell: Sh
command: |-
#!/bin/bash
set -e
echo "Waiting for Docker daemon"
ls -l /var/run/docker.sock
until docker info; do sleep 1; done
export DEBIAN_FRONTEND=noninteractive
export TZ=UTC
VERSION="${VERSION:-<+pipeline.variables.VERSION>}"
SCRATCH_IMAGE="${SCRATCH_IMAGE:-<+pipeline.variables.SCRATCH_IMAGE>}"
SAM_BASE_IMAGE="${SAM_BASE_IMAGE:-<+pipeline.variables.SAM_BASE_IMAGE>}"
TARGET_REPO="${TARGET_REPO:-<+pipeline.variables.TARGET_REPO>}"
DOCKER_USERNAME="<+pipeline.variables.DOCKER_USERNAME>"
DOCKER_PASSWORD="<+pipeline.variables.DOCKER_PASSWORD>"
TIMESTAMP=$(date -u +"%Y%m%d%H%M%S")
SAM_RUNTIME=$(echo "${SAM_BASE_IMAGE}" | sed 's|.*build-\([^:]*\):.*|\1|')
SAM_VERSION=$(echo "${SAM_BASE_IMAGE}" | sed 's|.*:\([0-9]*\.[0-9]*\.[0-9]*\).*|\1|')
if [ -z "$SAM_RUNTIME" ] || [ -z "$SAM_VERSION" ]; then
echo "ERROR: Could not parse SAM base image format"
exit 1
fi
FINAL_IMAGE="${TARGET_REPO}:${VERSION}-${SAM_RUNTIME}-${SAM_VERSION}-linux-amd64-${TIMESTAMP}"
if ! command -v docker >/dev/null 2>&1; then
apt-get update && apt-get install -y docker.io
fi
echo "=== Waiting for Docker daemon ==="
until docker info >/dev/null 2>&1; do
sleep 2
done
echo "=== Docker login ==="
echo "${DOCKER_PASSWORD}" | docker login -u "${DOCKER_USERNAME}" --password-stdin
echo "=== Creating build context ==="
mkdir -p /tmp/sam-build
cd /tmp/sam-build
cat > Dockerfile << EOF
FROM ${SAM_BASE_IMAGE}
ENV HARNESS_GO_PLUGIN_VERSION=v0.4.5
ENV DOCKER_VERSION=26.0.1
ENV INSTALL_GO_TEMPLATE_BINARY=true
ENV UNIFIED_PIPELINE=false
# Install Docker CLI
# RUN apt-get update && \\
# apt-get install -y docker.io && \\
# rm -rf /var/lib/apt/lists/*
RUN if command -v apt-get >/dev/null 2>&1; then \
apt-get update && apt-get install -y docker.io && rm -rf /var/lib/apt/lists/*; \
elif command -v yum >/dev/null 2>&1; then \
yum install -y yum-utils && \
echo "[docker-ce]" > /etc/yum.repos.d/docker-ce.repo && \
echo "name=Docker CE Repository" >> /etc/yum.repos.d/docker-ce.repo && \
echo "baseurl=https://download.docker.com/linux/centos/7/x86_64/stable" >> /etc/yum.repos.d/docker-ce.repo && \
echo "enabled=1" >> /etc/yum.repos.d/docker-ce.repo && \
echo "gpgcheck=1" >> /etc/yum.repos.d/docker-ce.repo && \
echo "gpgkey=https://download.docker.com/linux/centos/gpg" >> /etc/yum.repos.d/docker-ce.repo && \
yum install -y docker-ce-cli; \
elif command -v microdnf >/dev/null 2>&1; then \
echo "[docker-ce]" > /etc/yum.repos.d/docker-ce.repo && \
echo "name=Docker CE Repository" >> /etc/yum.repos.d/docker-ce.repo && \
echo "baseurl=https://download.docker.com/linux/centos/7/x86_64/stable" >> /etc/yum.repos.d/docker-ce.repo && \
echo "enabled=1" >> /etc/yum.repos.d/docker-ce.repo && \
echo "gpgcheck=1" >> /etc/yum.repos.d/docker-ce.repo && \
echo "gpgkey=https://download.docker.com/linux/centos/gpg" >> /etc/yum.repos.d/docker-ce.repo && \
microdnf install -y docker-ce-cli; \
elif command -v apk >/dev/null 2>&1; then \
apk add --no-cache docker-cli; \
else \
echo "Package manager not found, skipping docker CLI install"; \
fi
RUN mkdir -m 777 -p /opt/harness/bin/ && \\
mkdir -m 777 -p /opt/harness/scripts/ && \\
mkdir -m 777 -p /opt/harness/client-tools/
COPY --from=${SCRATCH_IMAGE} /opt/harness/bin/harness-sam-plugin /opt/harness/bin/harness-sam-plugin
COPY --from=${SCRATCH_IMAGE} /opt/harness/scripts/ /opt/harness/scripts/
RUN chmod +x /opt/harness/bin/harness-sam-plugin && \\
chmod +x /opt/harness/scripts/sam-plugin.sh
RUN if [ "\$INSTALL_GO_TEMPLATE_BINARY" = "true" ] && [ "\$UNIFIED_PIPELINE" != "true" ]; then \\
curl -s -L -o /opt/harness/client-tools/go-template https://app.harness.io/public/shared/tools/go-template/release/\${HARNESS_GO_PLUGIN_VERSION}/bin/linux/amd64/go-template && \\
chmod +x /opt/harness/client-tools/go-template; \\
else \\
echo "Skipping go-template binary."; \\
fi
ENTRYPOINT ["/opt/harness/scripts/sam-plugin.sh"]
EOF
echo "=== Building and pushing image ==="
docker build -t ${FINAL_IMAGE} .
docker push ${FINAL_IMAGE}
echo "✓ SUCCESS: ${FINAL_IMAGE}"
envVariables:
VERSION: <+pipeline.variables.VERSION>
SAM_BASE_IMAGE: <+pipeline.variables.SAM_BASE_IMAGE>
SOURCE_REGISTRY: <+pipeline.variables.SOURCE_REGISTRY>
TARGET_REGISTRY: <+pipeline.variables.TARGET_REGISTRY>
outputVariables:
- name: TIMESTAMP
type: String
value: TIMESTAMP
- name: VCS_REF
type: String
value: VCS_REF
- name: SAM_RUNTIME
type: String
value: SAM_RUNTIME
- name: SAM_VERSION
type: String
value: SAM_VERSION
resources:
limits:
memory: 4Gi
cpu: 2000m
description: SAM Prepare Build
timeout: 30m
- step:
identifier: buildAndPushFinal
type: Run
name: buildAndPushFinal
spec:
connectorRef: account.dockerhub
image: ubuntu:20.04
shell: Bash
command: |-
#!/bin/bash
set -e
# Set non-interactive mode
export DEBIAN_FRONTEND=noninteractive
export TZ=UTC
# Set non-interactive mode
export DEBIAN_FRONTEND=noninteractive
export TZ=UTC
# Define variables from pipeline variables
VERSION="<+pipeline.variables.VERSION>"
SCRATCH_IMAGE="<+pipeline.variables.SCRATCH_IMAGE>"
SAM_BASE_IMAGE="<+pipeline.variables.SAM_BASE_IMAGE>"
TIMESTAMP="<+pipeline.variables.TIMESTAMP>"
# Print all variables for debugging
echo "VERSION: $VERSION"
echo "SCRATCH_IMAGE: $SCRATCH_IMAGE"
echo "SAM_BASE_IMAGE: $SAM_BASE_IMAGE"
echo "TIMESTAMP: $TIMESTAMP"
apt-get update && apt-get install -y docker.io
# Start Docker daemon
dockerd &
sleep 10
# Wait for Docker
until docker info >/dev/null 2>&1; do sleep 1; done
# Login to Docker
echo "${DOCKER_PASSWORD}" | docker login -u "${DOCKER_USERNAME}" --password-stdin
# Go to build context (created by Step 1)
cd /harness/sam-build
# Build and push (exactly like your local script)
echo "=== Building and pushing image ==="
docker build -t ${FINAL_IMAGE} .
docker push ${FINAL_IMAGE}
echo "✓ SUCCESS: ${FINAL_IMAGE}"
privileged: true
envVariables:
VERSION: <+pipeline.variables.VERSION>
SAM_BASE_IMAGE: <+pipeline.variables.SAM_BASE_IMAGE>
SOURCE_REGISTRY: <+pipeline.variables.SOURCE_REGISTRY>
TARGET_REGISTRY: <+pipeline.variables.TARGET_REGISTRY>
SOURCE_REGISTRY_HOST: <+pipeline.variables.SOURCE_REGISTRY_HOST>
TARGET_REGISTRY_HOST: <+pipeline.variables.TARGET_REGISTRY_HOST>
DOCKER_USERNAME: <+pipeline.variables.DOCKER_USERNAME>
DOCKER_TOKEN: <+pipeline.variables.DOCKER_TOKEN>
TARGET_DOCKER_USERNAME: <+pipeline.variables.TARGET_DOCKER_USERNAME>
TARGET_DOCKER_TOKEN: <+pipeline.variables.TARGET_DOCKER_TOKEN>
TIMESTAMP: <+steps.generateTimestamp.output.outputVariables.TIMESTAMP>
VCS_REF: <+steps.generateTimestamp.output.outputVariables.VCS_REF>
SAM_RUNTIME: <+steps.generateTimestamp.output.outputVariables.SAM_RUNTIME>
SAM_VERSION: <+steps.generateTimestamp.output.outputVariables.SAM_VERSION>
resources:
limits:
memory: 8Gi
cpu: 4000m
timeout: 30m
when:
stageStatus: Success
condition: "false"
stepGroupInfra:
type: KubernetesDirect
spec:
connectorRef: your_k8s_connector
rollbackSteps: []
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback
allowStageExecutions: true
variables:
- name: VERSION
type: String
description: Plugin version (e.g., 1.1.2-beta)
required: true
value: <+input>
- name: SCRATCH_IMAGE
type: String
description: Scratch image from Pipeline 1
required: true
value: <+input>
- name: SAM_BASE_IMAGE
type: String
description: SAM base image (e.g., public.ecr.aws/sam/build-python3.12:1.143.0-20250822194415-x86_64)
required: true
value: <+input>
- name: DOCKER_USERNAME
type: String
description: Docker Hub username
required: false
value: your_dockerhub_username
- name: DOCKER_PASSWORD
type: String
description: Docker Hub PAT
required: false
value: <+secrets.getValue("dockerhub_pat")>
- name: TARGET_REPO
type: String
description: Target repository
required: false
value: vishalav95/plugin-test-vishal
- name: TIMESTAMP
type: String
description: Build timestamp
required: false
value: <+execution.steps.k8sstepgroup.steps.sampreparebuild.output.outputVariables.TIMESTAMP>
How Pipeline Works
Pipeline Stages
-
Generate Timestamp:
- Creates a timestamp for image labels
- Extracts SAM runtime and version from the base image name
-
Build and Push Final Image:
- Attempts multiple strategies to build the final image in order of preference:
- Strategy 1: Buildah (rootless) - Tries to build a container without privileged access
- Strategy 2: Skopeo - Falls back to copying the scratch image as the final solution
- Attempts multiple strategies to build the final image in order of preference:
