Azure Container Apps Rollback

The Azure Container Apps Rollback step restores your container app to its previous state using the rollback data captured before deployment. This step is automatically executed when a deployment fails or when you manually trigger a rollback.

Prerequisites

• This step must be added within a Container Step Group in the Rollback section. The step runs as a containerized task and requires the container infrastructure configuration provided by the step group.
• An Azure Container Apps Prepare Rollback Data step must have executed successfully to capture the current state before deployment.

What this step does

The Azure Container Apps Rollback step performs the following operations:

1. Retrieves rollback data: Reads the rollback data captured by the Prepare Rollback Data step
2. Restores traffic configuration: Reverts traffic distribution to the previous state
3. Reactivates previous revisions: Ensures the previous revisions are active and receiving traffic
4. Deactivates failed revision: Optionally deactivates the newly deployed revision that failed

This step ensures that if something goes wrong during deployment, Harness can restore your container app to its exact previous state, including traffic distribution across revisions.

Step configuration

The rollback step appears in the Rollback section of your deployment pipeline and is automatically configured when you use the Basic or Canary deployment strategies.

Step parameters

Parameter	Description	Required
Name	Display name for the step	No
Timeout	Maximum time allowed for the step to complete (default: 30m)	No

Container configuration

Parameter	Description
Container Registry	Harness connector for authenticating to your container registry. This connector pulls the deployment plugin image.
Image	The deployment plugin container image. Use the official Harness image: harness/azure-container-apps-plugin:0.0.1-linux-amd64
Image Pull Policy	Policy for pulling the container image (default: Always)
Resources	Resource limits for the container (e.g., 512Mi memory, 0.5 CPU)

When rollback executes

The rollback step executes automatically in the following scenarios:

• Deployment failure: When any step in the deployment workflow fails
• Manual rollback: When you manually trigger a rollback from the Harness UI
• Failure strategy: When a failure strategy is configured to trigger rollback on specific errors

Rollback process

The rollback step restores your container app using the following process:

1. Parse rollback data: Reads the saved traffic configuration and revision details
2. Restore previous state: Updates the container app to match the previous configuration
3. Reactivate revisions: Ensures previous revisions are active and receiving traffic according to the saved weights
4. Verify restoration: Confirms the rollback completed successfully

Usage in pipeline

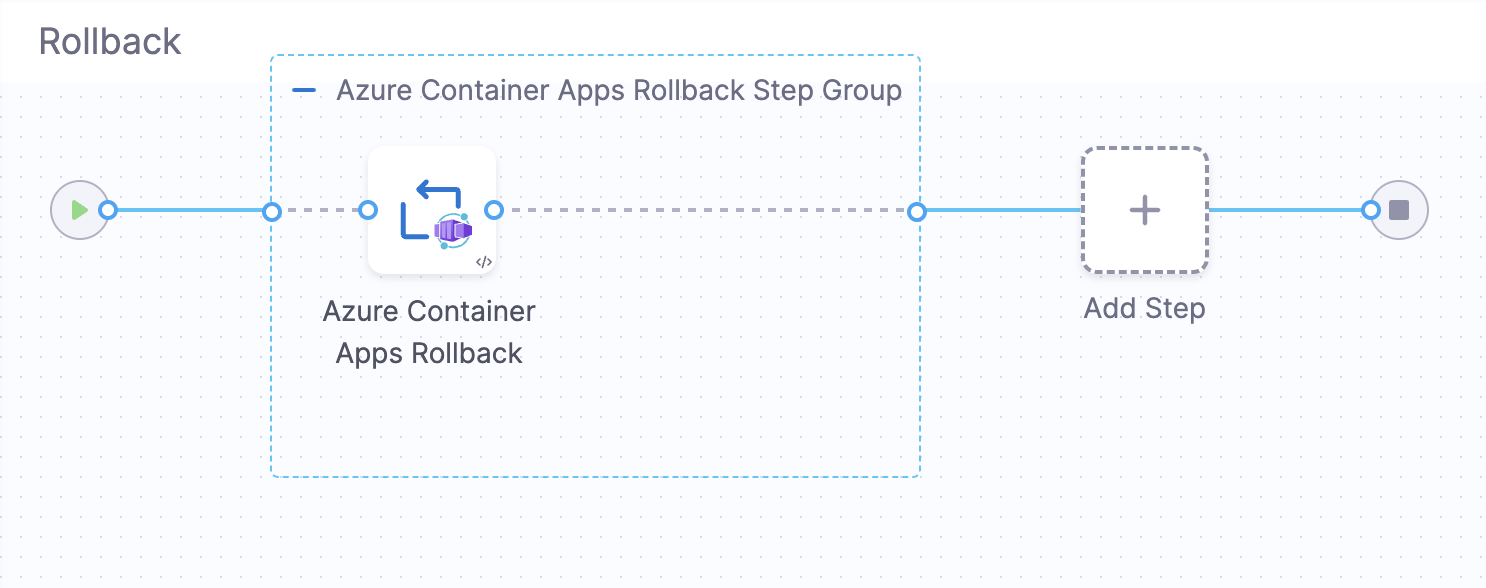

The Azure Container Apps Rollback step should be placed in the Rollback Steps section within a Container Step Group. When you select Basic or Canary deployment strategies, Harness automatically adds this step to the rollback section.

YAML Example

rollbackSteps:
  - stepGroup:
      name: Azure Container Apps Rollback Step Group
      identifier: aca_rollback
      steps:
        - step:
            name: Azure Container Apps Rollback
            identifier: AcaRollbackStep
            type: AzureContainerAppsRollback
            timeout: 30m
            spec:
              connectorRef: account.harnessImage
              image: harness/azure-container-apps-plugin:0.0.1-linux-amd64
              imagePullPolicy: Always
      stepGroupInfra:
        type: KubernetesDirect
        spec:
          connectorRef: <+input>
          namespace: default
