Create a Kubernetes progressive canary deployment
This guide shows you how to create a progressive canary deployment for Kubernetes workloads. A progressive canary rolls out a new version in percentage-based phases (for example, 25%, 50%, and 100%), with verification or approval gates between phases, while keeping the total pod count within a fixed budget throughout the rollout.
Progressive canary is a sub-type of the Kubernetes Canary strategy. Unlike a standard canary, which adds extra canary pods on top of the primary deployment, a progressive canary maintains two Deployments and shifts replicas between them, so the total pod count never significantly exceeds your declared replica count. This gives you fine-grained, budget-constrained control over how a new version replaces the old one.
For a comparison of Kubernetes deployment strategies, go to Deployment concepts and strategies to understand when to use each strategy.
This feature is behind the feature flag CDS_K8S_PROGRESSIVE_CANARY. Contact Harness Support to enable the feature.
How progressive canary differs from standard canary
A standard Harness canary deployment creates a separate canary Deployment alongside the full primary fleet. If the primary runs 100 replicas and you target a 25% canary, the cluster temporarily runs 125 pods (100 primary plus 25 canary). The canary is verified, deleted, and then a full rolling update replaces the primary.
A progressive canary keeps the total pod count constant. It creates a second Deployment for the new version at 0 replicas and then shifts replicas from the old version to the new version in controlled batches. At each phase, the old version scales down as the new version scales up, so the combined total stays within your replica budget.
The following table compares the pod counts for a 100-replica workload rolling out to 25%, 50%, and 100%.
| Phase | Old version (v1) | New version (v2) | Total pods |
|---|---|---|---|
| Initial | 100 | 0 | 100 |
| Phase 1 (25%) | 75 | 25 | 100 |
| Phase 2 (50%) | 50 | 50 | 100 |
| Phase 3 (100%) | 0 | 100 | 100 |
During a phase transition, the total can briefly reach the budget plus maxSurge (for example, 105 pods with maxSurge=5), but it never exceeds that bound. New pods must pass readiness checks before old pods are removed.
Use a progressive canary when you want phased, verifiable rollouts without doubling your infrastructure footprint, or when your cluster has a fixed capacity budget that a standard canary would exceed.
Before you begin
Before you create a progressive canary deployment, make sure you have the following:
- Feature flag enabled: The
CDS_K8S_PROGRESSIVE_CANARYflag must be enabled on your account. Contact Harness Support to enable it. - A CD pipeline stage: A Deploy stage with a Kubernetes service and infrastructure. Go to Add Kubernetes manifests to configure your service.
- A single Deployment workload: Progressive canary supports one Kubernetes Deployment workload per stage, the same as standard canary. Go to Define your Kubernetes target infrastructure to configure your infrastructure.
What workloads can you deploy?
Progressive canary supports a single Kubernetes Deployment workload, the same as the standard Canary and Blue Green strategies.
Progressive canary supports only one Deployment workload. If your service manifests contain multiple workloads, the deployment fails. Deploy additional objects with the Apply step.
Select the progressive canary strategy
Progressive canary is selected as a sub-type of the Canary strategy.
- In your Deploy stage, go to the Execution tab.
- Select the Canary execution strategy.

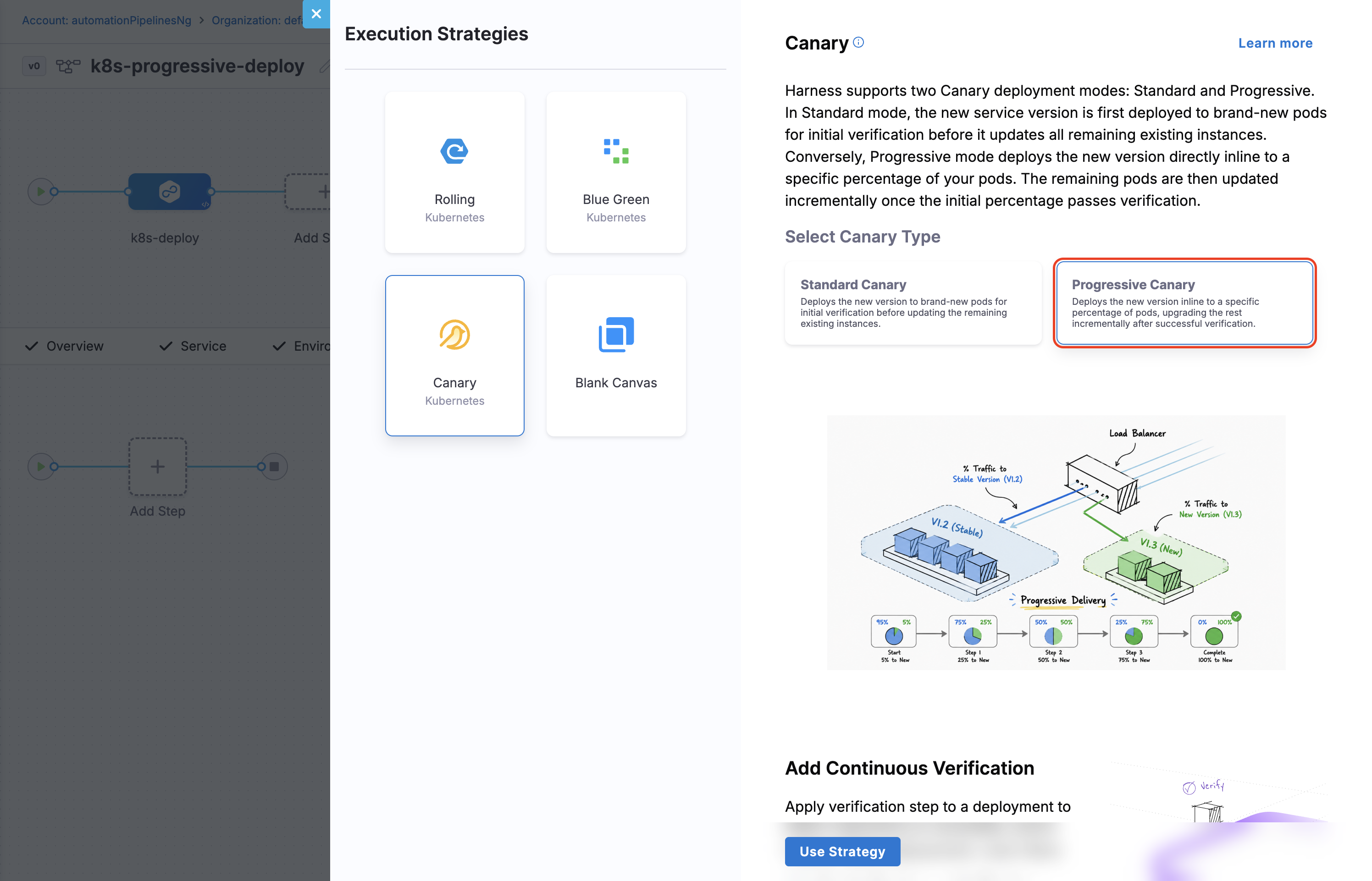

- In the Select Canary Type panel, select Progressive Canary.
The two canary types are:
- Standard Canary: Creates extra canary pods alongside the primary deployment. The total pod count is the primary replicas plus the canary count. This is the existing canary behavior.
- Progressive Canary: Uses two Deployments and shifts replicas between them so the total pod count stays within your replica budget.

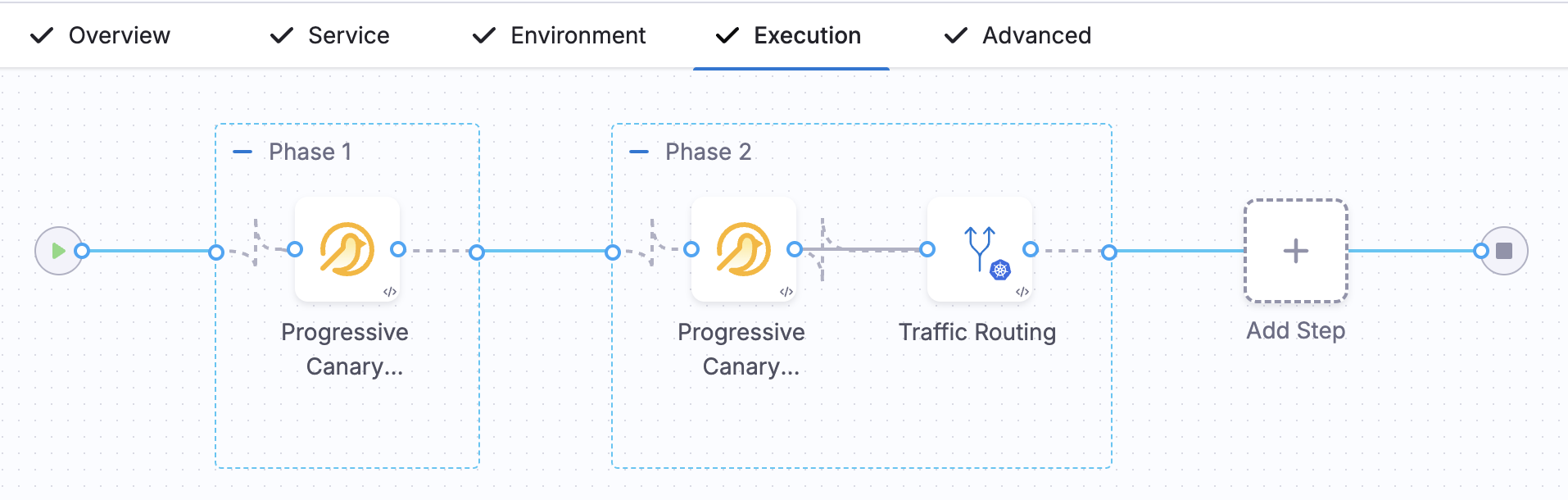

When you select Progressive Canary, Harness generates the phased deploy steps, verification gates, and rollback steps for you. The following image shows the generated execution graph with two phases and a Traffic Routing step after the second phase.
Configure the phases
A progressive canary rollout is a sequence of Canary Deployment steps, each targeting a higher percentage, with a verification or approval gate between phases.

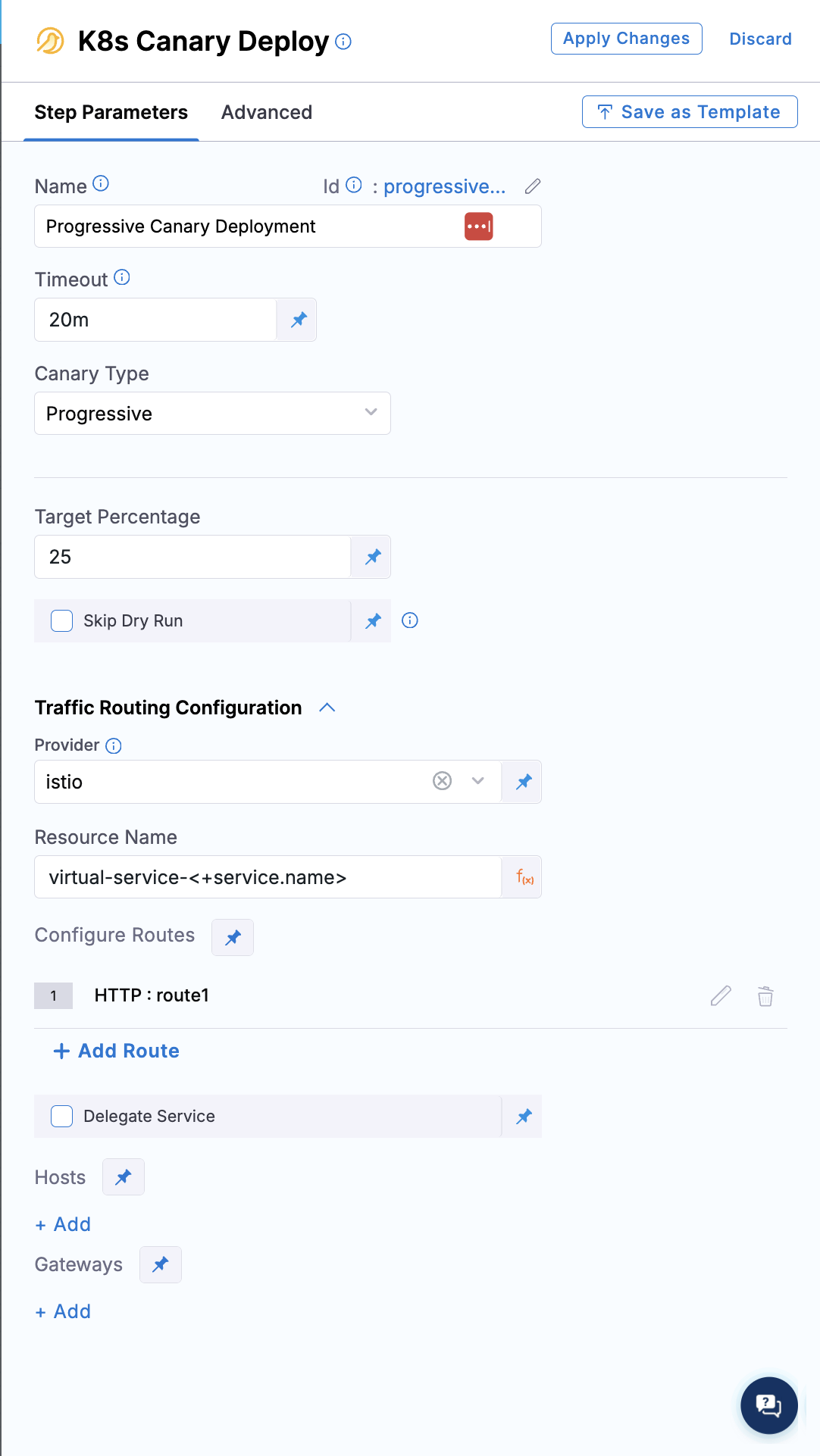

Each Canary Deployment step in a progressive canary has two relevant fields:
- Canary Type: Set to
Progressive. Harness populates this automatically from your strategy selection, so the delegate runs the progressive code path at runtime. - Target Percentage: The percentage of total replicas that the new version reaches by the end of this phase. Enter a value from 1 to 100. This field is specific to progressive canary and replaces the instance count and percentage fields used by standard canary.
For a phased rollout, you configure a Canary Deployment step in each phase and set a higher target percentage for each phase. Each step reads the current replica counts from the cluster and scales toward its target, so phases build on each other. To shift traffic explicitly with Istio, add a Traffic Routing step after a phase.
Harness generates a K8sProgressiveCanaryRollback step in the stage's rollback section automatically, so you do not add rollback steps manually.
Here is the pipeline YAML for a two-phase progressive canary rollout with Istio traffic routing.
Progressive canary pipeline YAML
pipeline:
name: k8s-progressive-deploy
identifier: k8sprogressivedeploy
tags: {}
projectIdentifier: my_project
orgIdentifier: default
stages:
- stage:
name: k8s-deploy
identifier: k8sdeploy
description: ""
type: Deployment
spec:
deploymentType: Kubernetes
service:
serviceRef: <+input>
serviceInputs: <+input>
environment:
environmentRef: <+input>
deployToAll: false
environmentInputs: <+input>
serviceOverrideInputs: <+input>
infrastructureDefinitions: <+input>
execution:
steps:
- stepGroup:
name: Phase 1
identifier: phase1
steps:
- step:
name: Progressive Canary Deployment
identifier: progressiveCanaryDeployment
type: K8sCanaryDeploy
timeout: 20m
spec:
canaryType: Progressive
skipDryRun: false
trafficRouting:
provider: istio
spec:
name: virtual-service-<+service.name>
routes:
- route:
type: http
name: route1
destinations:
- destination:
host: stable
- destination:
host: canary
- stepGroup:
name: Phase 2
identifier: phase2
steps:
- step:
name: Progressive Canary Deployment
identifier: progressiveCanaryDeployment
type: K8sCanaryDeploy
timeout: 20m
spec:
canaryType: Progressive
skipDryRun: false
- step:
name: Traffic Routing
identifier: trafficRouting
type: K8sTrafficRouting
timeout: 10m
spec:
type: inherit
trafficRouting:
routes:
- route:
name: route1
destinations:
- destination:
host: stable
- destination:
host: canary
rollbackSteps:
- step:
name: Progressive Canary Rollback
identifier: progressiveCanaryRollback
type: K8sProgressiveCanaryRollback
timeout: 20m
spec: {}
tags: {}
failureStrategies:
- onFailure:
errors:
- AllErrors
action:
type: StageRollback
How the rollout works
When you run a progressive canary, Harness executes each phase against the live cluster state.
The first Canary Deployment step creates the new-version Deployment. Harness clones your workload manifest, appends an incrementing version suffix such as -v5 to the name, and applies it with the new image at 0 replicas. The same suffix is applied to the associated ConfigMaps and Secrets. Harness then runs a batch scaling loop to reach the target percentage: it scales up the new version by a batch of pods, waits for those pods to pass readiness probes and minReadySeconds, and then scales down the old version by an equivalent batch. This repeats until the new version reaches the target and the old version is reduced to match.
Each subsequent Canary Deployment step reads the current replica counts of both Deployments directly from the cluster and continues the batch scaling loop toward its own target percentage. Because the state lives in the cluster, no external state store is required, and a retried step resumes from wherever the cluster currently is.
Harness tracks each rollout as a numbered version deployment and tracks the pods of both versions separately, so on the service instances page you can always see how many instances of each version are running. After each phase, Harness stores both the old and new workload manifests in the release history so that a later rollback can restore the previous version.
The batch size is derived from your maxSurge and maxUnavailable settings, and the combined pod count stays within the range of budget - maxUnavailable to budget + maxSurge at every step. The following example shows the scaling cycles for the 25% phase of a 100-replica workload with maxSurge=5 and maxUnavailable=0.
Batch scaling cycles for the 25% phase
Start: v1=100, v2=0 (total=100)
Cycle 1: scale up v2 to 5, wait for readiness, scale down v1 to 95 (total=100)
Cycle 2: scale up v2 to 10, wait for readiness, scale down v1 to 90 (total=100)
Cycle 3: scale up v2 to 15, wait for readiness, scale down v1 to 85 (total=100)
Cycle 4: scale up v2 to 20, wait for readiness, scale down v1 to 80 (total=100)
Cycle 5: scale up v2 to 25, wait for readiness, scale down v1 to 75 (total=100)
Phase complete: v1=75, v2=25
Clean up the old version
When the final phase reaches 100%, the old version is scaled down to 0 replicas, and Harness removes the old-version Deployment along with its associated Horizontal Pod Autoscaler (HPA) and Pod Disruption Budget (PDB). Harness verifies that the old version has 0 replicas before deleting it, so it never removes a version that is still serving traffic.
Traffic routing
By default, progressive canary uses a single Kubernetes Service that selects pods from both Deployments. Traffic is distributed approximately in proportion to the pod ratio. With 75 old-version pods and 25 new-version pods, kube-proxy routes roughly 75% of requests to the old version and 25% to the new version. This split is approximate, not exact.
To control the exact traffic percentage independently of the pod ratio, add a traffic routing configuration using Istio. When traffic routing is configured, Harness isolates the two versions behind separate Services using pod labels and manages a weighted VirtualService so you can send, for example, 10% of traffic to the new version even when it runs 50% of the pods.
You set up the traffic routing infrastructure in the first Canary Deployment step, where you define the stable and canary service weights. For example, you can start with a stable weight of 100 and a canary weight of 0, or any other split such as 25 and 75.

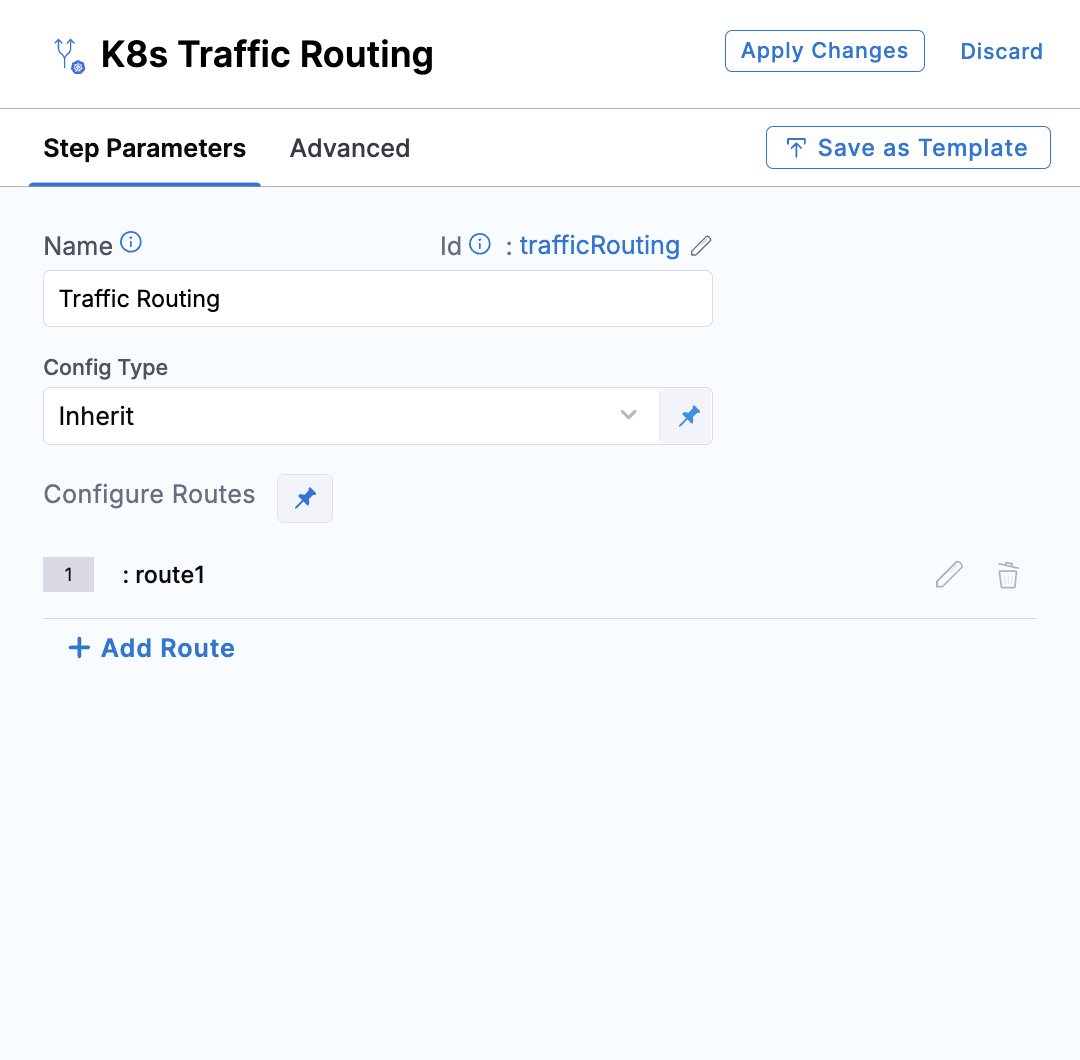

In each later phase, add a Traffic Routing step and set its Config Type to Inherit. The step reuses the configuration from the first deploy step and patches only the weights between the stable and canary services, so you can shift traffic gradually at your own pace. For example, you can set the phases to 75/25, then 90/10, and so on.
At the final 100% phase, you do not need a separate Traffic Routing step. The deploy step handles the cutover itself. When the rollout completes, the primary Service points to the new version, so 100% of traffic flows there automatically.
Go to the Traffic routing step reference to configure weighted traffic routing.
Rollback

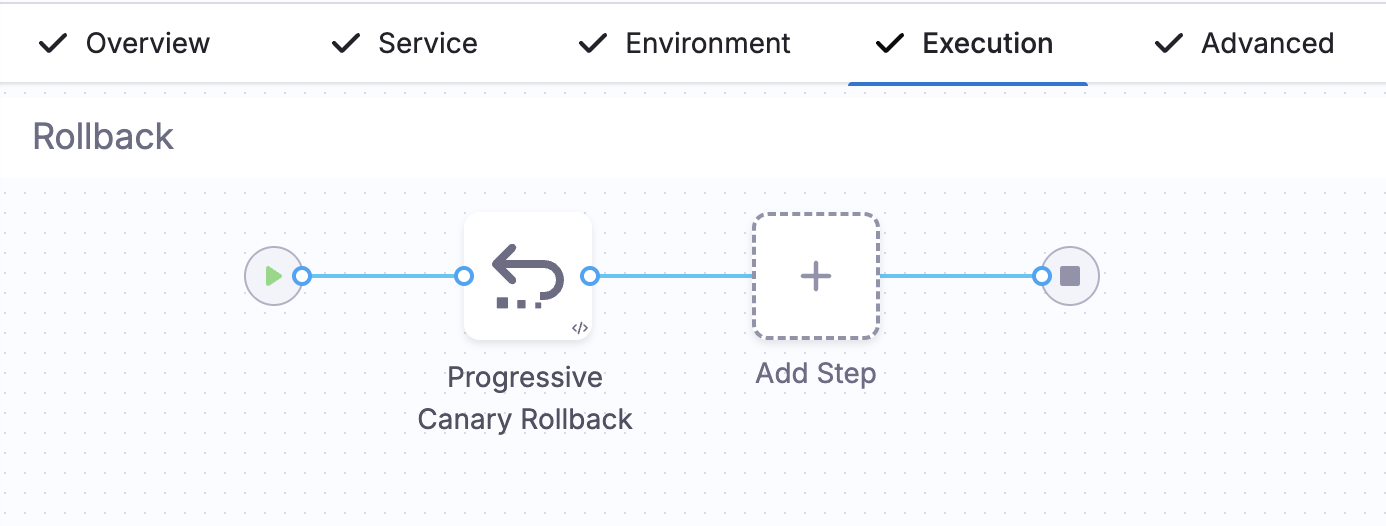

Progressive canary uses a dedicated Progressive Canary Rollback step (K8sProgressiveCanaryRollback), which Harness adds to the stage's rollback section automatically when you select the progressive canary strategy.
The rollback runs the batch scaling algorithm in reverse: it scales the old version back up and the new version back down, respecting the same budget constraints, until the old version is fully restored and the new version is removed. After the rollback completes, Harness deletes the failed version's Deployment, ConfigMaps, and Secrets.
Rollback prioritizes availability over speed. Because a progressive rollout controls a fixed pod budget, the rollback keeps enough pods serving traffic throughout rather than scaling down as fast as possible. It spends most of its time waiting for pods to reach a ready state anyway, so keeping the services available throughout adds no extra cost.
The rollback behavior depends on how far the deployment progressed.
For the first-ever progressive canary deployment in a namespace, there is no previous successful version to restore. Harness detects this in the step logs, and the traffic routing steps are intentionally skipped because there is no previous version to route traffic from.
If a phase fails partway through, the cluster is left in a partially scaled state, and the Progressive Canary Rollback step reads the current replica counts and scales the old version back to 100% and the new version to 0. Because the algorithm is idempotent, a retried rollback resumes from the current cluster state and converges to the same result.
If the deployment reached 100% and the old version was already deleted, Harness reads the stored old-version manifest from the release history, recreates that Deployment at 0 replicas, and then runs the reverse scaling loop to restore it to full capacity before removing the new version.
When traffic routing is enabled, the rollback patches the VirtualService weights at scaling checkpoints to match the current pod ratio, so traffic tracks the pods as they shift back to the old version. The traffic routing resources are cleaned up after the rollback completes.
Horizontal Pod Autoscaler and Pod Disruption Budget
HPA and PDB support requires the feature flag CDS_SUPPORT_HPA_AND_PDB_NG. Contact Harness Support to enable the feature.
Progressive canary supports HPA and PDB resources using the same cloning pattern as Blue Green deployments. When your manifests include an HPA that targets the workload, Harness keeps the original HPA on the old version and creates a second HPA for the new-version Deployment.
At each phase, Harness patches both HPAs so that their minReplicas and maxReplicas reflect the current phase percentage. For example, an original HPA range of min=50, max=100 is split proportionally at the 25% phase to min=38, max=75 on the old version and min=13, max=25 on the new version. Harness applies these proportional values before each phase's scaling loop begins, which prevents the autoscaler from fighting the scaling commands during the rollout. PDB resources are cloned and renamed for the new version using the same mechanism.
When the old version is deleted at the end of the rollout, its HPA and PDB are removed, and the new-version HPA takes over the full original range.
Important notes
- Progressive canary supports a single Kubernetes Deployment workload per stage.
- The total pod count can briefly reach
budget + maxSurgeduring a phase transition, but it never exceeds that bound. - The default traffic split without a traffic routing configuration is approximate and follows the pod ratio. Use Istio traffic routing for exact traffic percentages.
- New pods must pass readiness probes and
minReadySecondsbefore old pods are removed in each cycle.
