Manage ArgoCD Projects

Last updated on

Harness GitOps lets you manage ArgoCD Projects (AppProjects) from the Harness UI through the GitOps Agent that runs them. You can edit project metadata, control which repositories and clusters applications target, define roles, schedule sync windows, and inspect events without switching to the Argo CD CLI or editing AppProject manifests.

ArgoCD Projects group applications and define access boundaries for repositories, clusters, and namespaces. Each project controls which source repositories an application can pull from, which destination clusters and namespaces it can deploy to, and what sync behaviors are allowed.

Before you begin​

  • GitOps Agent: A running Harness GitOps Agent (v0.117.0 or later) with at least one mapped Argo project. Go to Install a Harness GitOps Agent to set one up.
  • Mapped Argo project: An Argo project mapped to a Harness project on the agent. Go to Map existing Argo projects to create the mapping.
  • RBAC permissions: Edit permissions on GitOps resources in the target Harness project. Go to RBAC in Harness to configure roles.

Minimum component versions​

The ArgoCD Projects management UI depends on the following minimum component versions:

ComponentMinimum version
platform-servicev1.114.0
access-controlv1.252.0

Open the Argo Project panel​

You manage ArgoCD Projects from the GitOps Agent overview page. The Mapped Harness Project section lists every Argo project the agent serves, along with the Harness projects each one is mapped to.

  1. In your Harness project, go to CD > GitOps > Settings.
  2. Select GitOps Agents.
  3. Select the agent that serves the Argo project you want to manage. The agent overview opens.
  4. Scroll to the Mapped Harness Project section.
  5. In the ARGO PROJECTS column, select the project name.

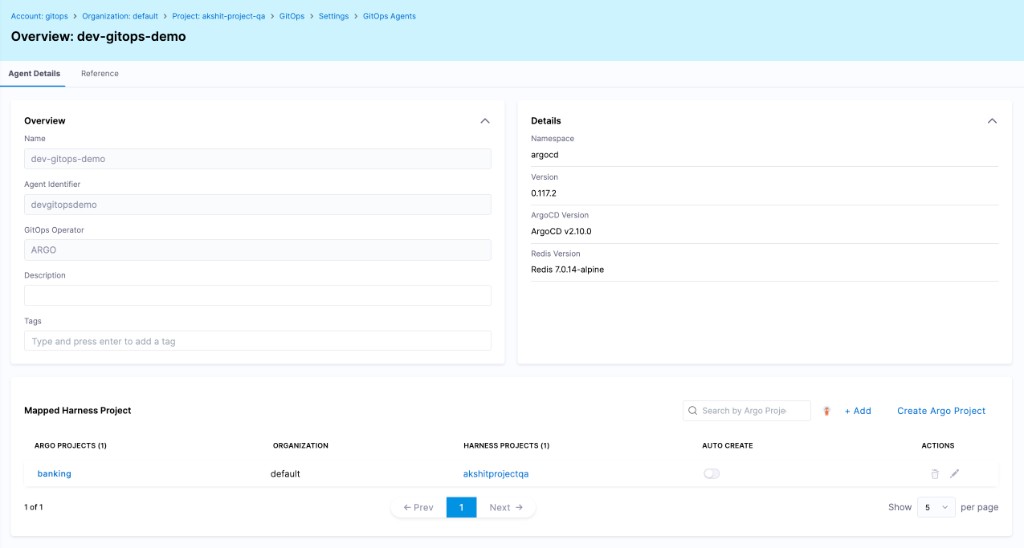

GitOps agent overview showing the Mapped Harness Project section with an Argo project entry

The Argo Project panel opens on the right with four tabs: Summary, Roles, Sync Windows, and Events.

After you make changes in any tab, select Apply Changes in the top-right of the panel to save them, or Discard to revert. Select Delete to remove the Argo project from the agent.

Edit project settings on the Summary tab​

The Summary tab contains the AppProject spec: general metadata, source repository allow lists, destination cluster and namespace rules, cluster and namespace resource lists, signature keys, orphaned resource monitoring, and cluster restrictions.

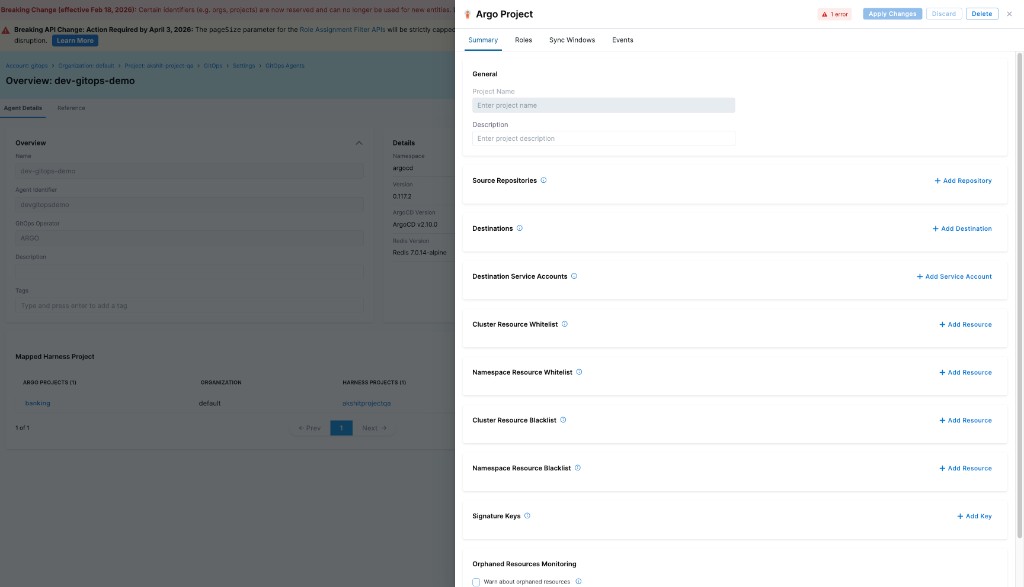

Summary tab of the Argo Project panel showing General, Source Repositories, Destinations, and Resource Whitelist and Blacklist sections

General​

  • Project Name: The Argo project identifier. The name is read-only after creation.
  • Description: A short summary of the project purpose.

Source Repositories​

Define which Git repositories applications in this project can pull manifests from. Select + Add Repository to add an entry. Use * to allow all repositories.

Restricting source repositories ensures that applications in this project only deploy configurations from approved sources.

Destinations​

Define which clusters and namespaces applications in this project can deploy to. Select + Add Destination to add an entry. Each destination accepts a server URL (or * for all clusters) and a namespace (or * for all namespaces).

Least-privilege access

Restrict destinations to follow the principle of least privilege. Grant applications access only to the clusters and namespaces they need.

Destination Service Accounts​

Map destinations to specific Kubernetes service accounts. Argo CD impersonates the service account when deploying to that destination. Select + Add Service Account to add an entry.

Cluster Resource Whitelist​

Specify cluster-scoped Kubernetes resources (for example, ClusterRole or Namespace) that applications in this project are allowed to manage. Select + Add Resource to add a group/kind entry. If the list is empty, no cluster-scoped resources are allowed.

Namespace Resource Whitelist​

Specify namespace-scoped Kubernetes resources that applications in this project are allowed to manage. Select + Add Resource to add an entry. If the list is empty, all namespace-scoped resources are allowed.

Cluster Resource Blacklist​

Specify cluster-scoped resources that applications in this project are explicitly denied, even if the whitelist would otherwise allow them. Select + Add Resource to add an entry.

Namespace Resource Blacklist​

Specify namespace-scoped resources that applications in this project are explicitly denied. Select + Add Resource to add an entry.

Signature Keys​

Require manifests to be signed by specific GPG keys. Select + Add Key to add a key ID. Applications in this project sync only when manifests are signed by one of the listed keys.

Orphaned Resources Monitoring and Cluster Restrictions​

The bottom of the Summary tab contains two governance toggles.

Orphaned Resources Monitoring and Cluster Restrictions sections at the bottom of the Summary tab
  • Warn about orphaned resources: When enabled, Harness flags Kubernetes resources that exist in a namespace managed by an application but are not tracked by that application.
  • Permit only project-scoped clusters: When enabled, applications in this project can deploy only to clusters that are explicitly listed in Destinations. The Argo CD in-cluster destination and any cluster not listed are denied.

Configure roles on the Roles tab​

Use roles to delegate scoped access to the Argo project. Each role bundles a set of policies that grant specific actions on specific resources, and can optionally be bound to OIDC groups so that single sign-on users inherit the role automatically.

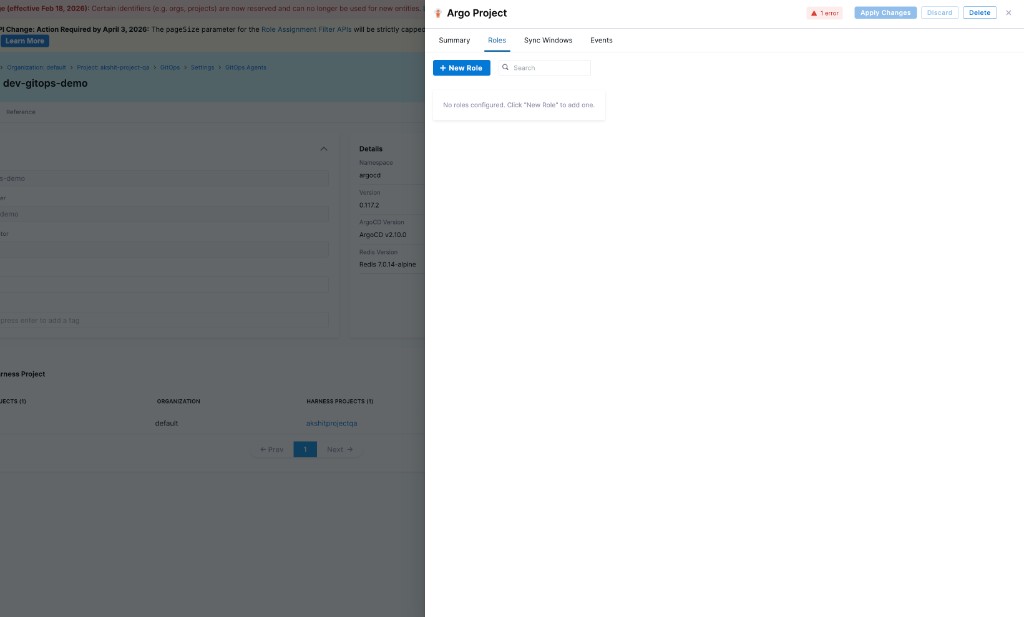

Roles tab of the Argo Project panel showing the New Role button and an empty role list

Add a role​

  1. Open the Roles tab.
  2. Select + New Role. The New Role dialog opens.

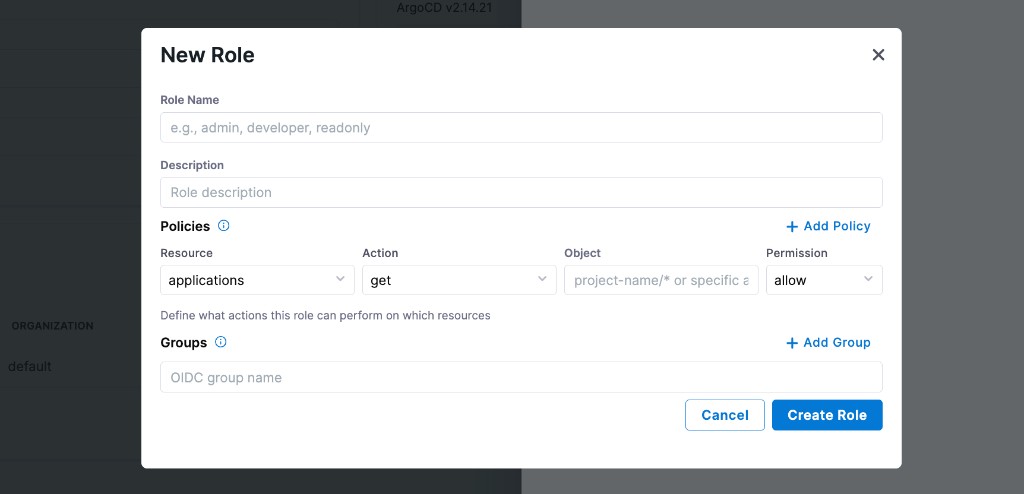

New Role dialog showing Role Name, Description, Policies, and Groups fields

  1. Configure the role:

    • Role Name: A short identifier for the role, for example admin, developer, or readonly. The name must be unique within the project.
    • Description: An optional summary of what the role grants.

  2. Add one or more Policies. Each policy is a row that defines a single permission. Select + Add Policy to add another row. For each policy, configure:

    • Resource: The Argo CD resource the policy applies to. Choose from applications, applicationsets, repositories, clusters, exec, logs, or projects.
    • Action: The action the role can perform on the resource. Common actions include get, create, update, delete, sync, and override. Use * to allow every action.
    • Object: The specific object the action applies to, in the format project-name/object-name. Use <project-name>/* to match every object in the project, or name a single application (for example, banking/frontend-app).
    • Permission: Set to allow to grant the action, or deny to explicitly block it. Deny rules take precedence over allow rules.

  3. Bind the role to one or more Groups (optional). Select + Add Group and enter an OIDC group name. Any user that signs in through SSO and belongs to that group inherits the role's policies automatically.

  4. Select Create Role.

  5. Back in the Argo Project panel, select Apply Changes to persist the new role on the AppProject.

Roles are scoped to the Argo project and stack on top of the Harness project's RBAC.

Edit or delete a role​

In the Roles tab, hover over an existing role to reveal the edit and delete icons. Editing reopens the same dialog. Deleting removes the role and all its policies; select Apply Changes afterwards to save.

Schedule sync windows on the Sync Windows tab​

Sync windows control when applications in this project are allowed or denied automatic synchronization. Use sync windows to enforce change freezes, maintenance hours, or approved deployment windows.

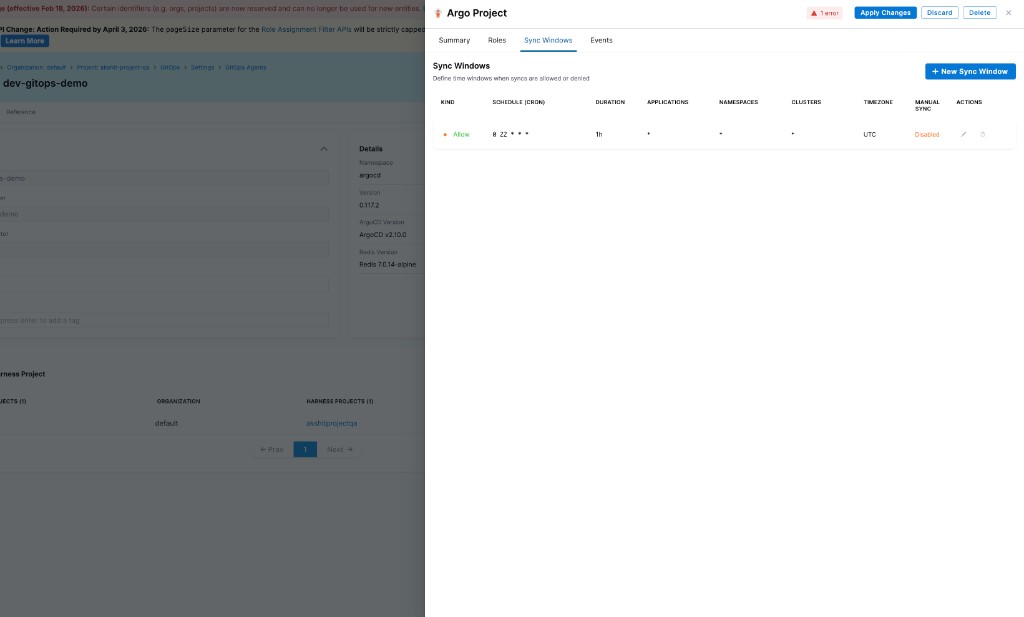

Sync Windows tab of the Argo Project panel showing a single Allow window with cron schedule and duration
  1. Open the Sync Windows tab.
  2. Select + New Sync Window.
  3. Configure the window:
    • Kind: Select Allow to permit syncs during the window, or Deny to block them.
    • Schedule (cron): Enter a cron expression that defines when the window opens. For example, 0 22 * * * opens the window at 10 PM daily.
    • Duration: How long the window stays open. For example, 1h for one hour.
    • Applications: Which applications the window applies to. Use * for all.
    • Namespaces: Which namespaces the window applies to. Use * for all.
    • Clusters: Which clusters the window applies to. Use * for all.
    • Timezone: The timezone the schedule is evaluated in. Defaults to UTC.
    • Manual Sync: Set to Enabled to allow manual syncs from the UI even during a Deny window, or Disabled to block them.
  4. Select Apply Changes to save.

You can configure multiple sync windows on a single project. When windows overlap, Deny wins over Allow.

View project events on the Events tab​

The Events tab displays Kubernetes events emitted for the underlying AppProject resource. Use it to confirm that recent edits were applied successfully or to investigate why a change was rejected by the Argo CD application controller.

Delete an Argo project​

To remove an Argo project from the agent:

  1. Open the Argo Project panel for the project you want to delete.
  2. Select Delete in the top-right of the panel.
  3. Confirm the deletion.

You can also delete a mapping inline from the Mapped Harness Project table by selecting the trash icon in the ACTIONS column.

warning

Deleting an Argo project does not delete the applications, repositories, or clusters associated with it. Applications that still reference the deleted project will fail to sync until they are reassigned to a valid project.

Import existing ArgoCD Projects​

If you have existing ArgoCD Projects in your Argo CD cluster, you can import them into Harness during the Bring Your Own Argo CD (BYOA) agent setup. Harness maps your Argo CD projects to Harness projects and imports all associated entities (applications, clusters, and repositories) automatically.

Go to Bring Your Own Argo CD into Harness GitOps to configure BYOA and import your Argo CD projects.

For declarative management of ArgoCD Projects through Git, go to Manage Argo CD configurations in Git to set up AppProject manifests with the required Harness-specific fields.

Next steps​

Now that you can manage Argo projects from the agent, configure the entities your applications depend on:
