Validate releases with Dynatrace Site Reliability Guardian

Last updated on

If your organization already uses Dynatrace Site Reliability Guardian (SRG) to evaluate release quality, you can integrate it directly into your Harness CD pipelines. This lets you combine Dynatrace's metric-driven validation with Harness's deployment orchestration and the Continuous Verification (CV) Verify step — giving you two independent layers of release verification.

Harness handles the deployment and makes the final promotion decision. Dynatrace performs the reliability evaluation. Together, they create a robust release gate that catches regressions before they reach production traffic.

The integration uses standard Harness pipeline primitives — HTTP steps, shell scripts, and a reusable step group template — to call the Dynatrace SRG API. No custom plugins or feature flags are required.

Prerequisites​

Before setting up this integration, make sure you have:

  • A Harness CD deployment pipeline. This integration works with any deployment strategy (canary, rolling, blue-green, etc.). For more information, go to CD overview.
  • A Dynatrace environment with Site Reliability Guardian configured and a workflow that runs the SRG validation.
  • A Dynatrace API token (platform token with automation:workflows:run and automation:workflows:read scopes) stored in Harness Secret Manager (for example, as dyna-pf-token).
  • The Dynatrace Platform URL (for example, https://abc123.apps.dynatrace.com) and Workflow ID for your SRG guardian.

SRG Validation step group template​

The SRG integration is packaged as a reusable step group template that you can reference from any pipeline. The template handles three things: waiting for the canary to warm up, triggering the Dynatrace SRG workflow, and polling for the result.

Template inputs​

The template accepts a single input variable:

  • podName: The name of the canary pod deployed by Harness. This is passed to Dynatrace so SRG evaluates metrics scoped to the canary instance only.

What each step does​

The step group contains three steps that execute sequentially:

  1. Wait (3 minutes): A bake period that gives the canary pod time to receive traffic and generate meaningful metrics before SRG evaluation begins.

  2. Trigger SRG: An HTTP POST step that calls the Dynatrace Automation API to start the SRG workflow. It passes the canary pod name and a 10-minute evaluation window (now-10m to now) as input parameters. The step captures the executionId from the response for use in the next step.

  3. Poll SRG Result: An HTTP GET step that polls the workflow execution endpoint until SRG finishes. It uses a retry strategy (up to 10 retries at 5-second intervals) to wait for the guardian to complete evaluation. Once finished, it captures four output variables:

    • VALIDATION_STATUS — The SRG verdict (pass or fail).
    • TASK_STATE — The execution state of the guardian task.
    • GUARDIAN_NAME — The name of the guardian that ran the evaluation.
    • POLL_RESPONSE — The full response body for debugging.

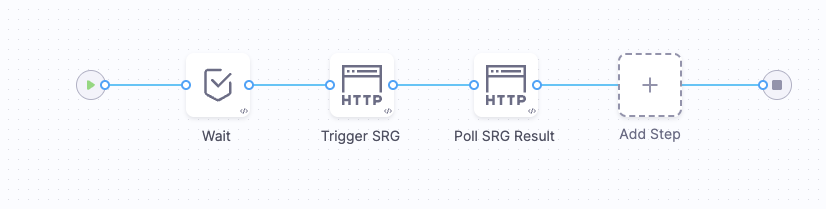

The following screenshot shows the SRG Validation step group template in the Harness Pipeline Studio:

SRG Validation step group template

Template YAML​

Create this as an Account-level step group template so it can be reused across projects.

SRG Validation step group template YAML
template:
  name: SRG Validation
  identifier: SRG_Validation
  versionLabel: "1"
  type: StepGroup
  tags: {}
  spec:
    stageType: Deployment
    steps:
      - step:
          type: Wait
          name: Wait
          identifier: Wait
          spec:
            duration: 3m
      - step:
          name: Trigger SRG
          identifier: triggerSRG
          type: Http
          timeout: 2m
          spec:
            url: <+pipeline.variables.dynaUrl>/platform/automation/v1/workflows/<+pipeline.variables.workflowId>/run
            method: POST
            headers:
              - key: Authorization
                value: Bearer <+secrets.getValue("dyna-pf-token")>
              - key: Content-Type
                value: application/json
            requestBody: |-
              {
                "input": {
                  "timeframe.from": "now-10m",
                  "timeframe.to": "now",
                  "pod.name": "<+stepGroup.variables.podName>"
                }
              }
            outputVariables:
              - name: executionId
                type: String
                value: <+json.select("id", httpResponseBody)>
            inputVariables: []
            assertion: <+httpResponseCode> == 201
      - step:
          type: Http
          name: Poll SRG Result
          identifier: pollSrgResult
          spec:
            url: <+pipeline.variables.dynaUrl>/platform/automation/v1/executions/<+steps.triggerSRG.output.outputVariables.executionId>/tasks
            method: GET
            headers:
              - key: Authorization
                value: Bearer <+secrets.getValue("dyna-pf-token")>
              - key: Accept
                value: application/json
            assertion: <+httpResponseCode> == 200 && <+json.select(".site_reliability_guardian_1.state", httpResponseBody)> != "RUNNING"
            outputVariables:
              - name: POLL_RESPONSE
                type: String
                value: <+httpResponseBody>
              - name: TASK_STATE
                type: String
                value: <+json.select(".site_reliability_guardian_1.state", httpResponseBody)>
              - name: VALIDATION_STATUS
                type: String
                value: <+json.select(".site_reliability_guardian_1.result.validation_status", httpResponseBody)>
              - name: GUARDIAN_NAME
                type: String
                value: <+json.select(".site_reliability_guardian_1.result.guardian_name", httpResponseBody)>
            inputVariables: []
          timeout: 30s
          failureStrategies:
            - onFailure:
                errors:
                  - AllErrors
                action:
                  type: Retry
                  spec:
                    retryCount: 10
                    retryIntervals:
                      - 5s
                    onRetryFailure:
                      action:
                        type: MarkAsFailure
          when:
            stageStatus: Success
    variables:
      - name: podName
        type: String
        value: <+input>
        description: canary pod name
        required: false

Set up the pipeline​

The following pipeline demonstrates a complete canary deployment with both Dynatrace SRG and Harness CV running in parallel. It uses the SRG Validation template from above and adds a Verify step alongside it.

Pipeline variables​

Define these variables at the pipeline level:

  • dynaUrl: Your Dynatrace platform URL (for example, https://abc123.apps.dynatrace.com).
  • workflowId: The ID of the Dynatrace Automation workflow that runs your SRG guardian.

Execution flow​

The pipeline execution follows this sequence:

  1. K8sCanaryDeploy — Deploys a single canary pod.
  2. Parallel verification — The SRG Validation step group and the CV Verify step run simultaneously. The step group template receives the canary pod name dynamically using the deployment info outcome expression.
  3. Release Verification Summary — A shell script logs the verdicts from both SRG and CV for visibility. This step runs regardless of the previous step outcomes (configured with stageStatus: All).
  4. K8sCanaryDelete — Cleans up the canary pod.
  5. K8sRollingDeploy — Promotes the deployment to all pods, but only if SRG returned pass. This is controlled by a conditional execution expression on the step.

If any step fails, the pipeline triggers a stage rollback using K8sRollingRollback.

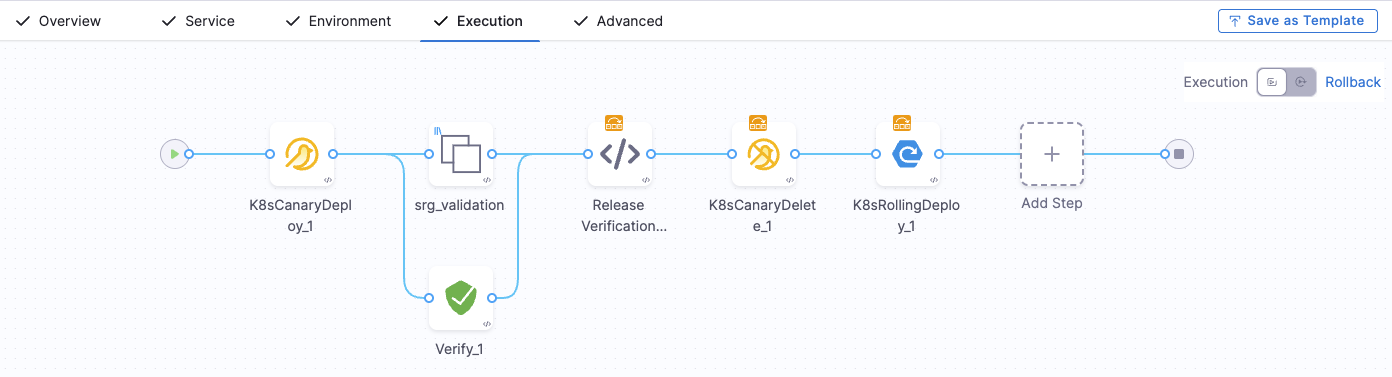

The following screenshot shows the full pipeline execution flow in the Harness Pipeline Studio, with the SRG Validation step group and the CV Verify step running in parallel:

Pipeline execution flow with SRG and CV in parallel

Pipeline YAML​

Replace the service, environment, infrastructure, and connector references with your own.

Complete pipeline YAML
pipeline:
  projectIdentifier: <PROJECT_ID>
  orgIdentifier: <ORG_ID>
  tags: {}
  stages:
    - stage:
        name: Grail-Deploy
        identifier: GrailDeploy
        description: ""
        type: Deployment
        spec:
          deploymentType: Kubernetes
          service:
            serviceRef: <SERVICE_REF>
            failureStrategies:
              - onFailure:
                  errors:
                    - Timeout
                    - Unknown
                  action:
                    type: PipelineRollback
          environment:
            environmentRef: <ENV_REF>
            deployToAll: false
            infrastructureDefinitions:
              - identifier: <INFRA_DEF_ID>
          execution:
            steps:
              - step:
                  type: K8sCanaryDeploy
                  name: K8sCanaryDeploy_1
                  identifier: K8sCanaryDeploy_1
                  spec:
                    skipDryRun: false
                    instanceSelection:
                      type: Count
                      spec:
                        count: 1
                  timeout: 10m
              - parallel:
                  - stepGroup:
                      name: srg_validation
                      identifier: srg_validation
                      template:
                        templateRef: account.SRG_Validation
                        versionLabel: "1"
                        templateInputs:
                          variables:
                            - name: podName
                              type: String
                              value: <+pipeline.stages.GrailDeploy.spec.execution.steps.K8sCanaryDeploy_1.deploymentInfoOutcome.serverInstanceInfoList.get(<+pipeline.stages.GrailDeploy.spec.execution.steps.K8sCanaryDeploy_1.deploymentInfoOutcome.serverInstanceInfoList.size()> - 1).name>
                    contextType: Pipeline
                  - step:
                      type: Verify
                      name: Verify_1
                      identifier: Verify_1
                      spec:
                        isMultiServicesOrEnvs: false
                        type: Canary
                        monitoredService:
                          type: Default
                          spec: {}
                        spec:
                          sensitivity: HIGH
                          duration: 5m
                      timeout: 2h
                      failureStrategies:
                        - onFailure:
                            errors:
                              - Verification
                            action:
                              type: MarkAsFailure
                        - onFailure:
                            errors:
                              - Unknown
                            action:
                              type: MarkAsFailure
                      when:
                        stageStatus: Success
              - step:
                  type: ShellScript
                  name: Release Verification Summary
                  identifier: Release_Verification_Summary
                  spec:
                    shell: Bash
                    executionTarget: {}
                    source:
                      type: Inline
                      spec:
                        script: |-
                          #!/bin/bash

                          echo "=========================================="
                          echo "  DEPLOYMENT VERIFICATION SUMMARY"
                          echo "=========================================="

                          VALIDATION_STATUS="<+pipeline.stages.GrailDeploy.spec.execution.steps.srg_validation.steps.pollSrgResult.output.outputVariables.VALIDATION_STATUS>"
                          CV_STEP_STATUS="<+pipeline.stages.GrailDeploy.spec.execution.steps.Verify_1.status>"
                          EXECUTION_ID="<+pipeline.stages.GrailDeploy.spec.execution.steps.srg_validation.steps.triggerSRG.output.outputVariables.executionId>"
                          DYNA_URL="<+pipeline.variables.dynaUrl>"

                          echo ""
                          echo "CV Verdict       : $CV_STEP_STATUS"
                          echo "SRG Verdict      : $VALIDATION_STATUS"
                          echo "Dynatrace Run    : ${DYNA_URL}/ui/apps/dynatrace.automations/executions/${EXECUTION_ID}"
                          echo ""
                          echo "=========================================="
                    environmentVariables: []
                    outputVariables: []
                  timeout: 10m
                  when:
                    stageStatus: All
                contextType: Pipeline
              - step:
                  type: K8sCanaryDelete
                  name: K8sCanaryDelete_1
                  identifier: K8sCanaryDelete_1
                  spec: {}
                  timeout: 10m
                  when:
                    stageStatus: All
                contextType: Pipeline
              - step:
                  type: K8sRollingDeploy
                  name: K8sRollingDeploy_1
                  identifier: K8sRollingDeploy_1
                  spec:
                    skipDryRun: false
                    pruningEnabled: false
                  timeout: 10m
                  when:
                    stageStatus: Success
                    condition: <+pipeline.stages.GrailDeploy.spec.execution.steps.srg_validation.steps.pollSrgResult.output.outputVariables.VALIDATION_STATUS>=="pass"
            rollbackSteps:
              - step:
                  name: Rolling Rollback
                  identifier: rollingRollback
                  type: K8sRollingRollback
                  timeout: 10m
                  spec: {}
        tags: {}
        failureStrategies:
          - onFailure:
              errors:
                - AllErrors
              action:
                type: StageRollback
  timeout: 20m
  variables:
    - name: dynaUrl
      type: String
      description: ""
      required: false
      value: <DYNATRACE_PLATFORM_URL>
    - name: workflowId
      type: String
      description: ""
      required: false
      value: <WORKFLOW_ID>
  identifier: Harness_SRG_Canary
  name: Harness-SRG-Canary

Key expressions explained​

A few expressions in this pipeline reference deployment outputs dynamically:

  • Canary pod name passed to SRG: The podName variable uses a chained expression to get the last deployed pod from the canary step's output:

    <+pipeline.stages.GrailDeploy.spec.execution.steps.K8sCanaryDeploy_1
      .deploymentInfoOutcome.serverInstanceInfoList
      .get(<+...serverInstanceInfoList.size()> - 1).name>

    This ensures SRG always evaluates metrics for the correct canary pod, even if the pod name changes between runs.

  • Promotion condition: The rolling deploy step uses a conditional execution to check the SRG verdict:

    <+pipeline.stages.GrailDeploy.spec.execution.steps.srg_validation
      .steps.pollSrgResult.output.outputVariables.VALIDATION_STATUS>=="pass"

    The deployment only promotes if the SRG validation returned pass.

How it works​

Once the pipeline is set up, the execution follows this flow:

  1. Deploy: Harness deploys the new version using your chosen deployment strategy (canary, rolling, blue-green, etc.).
  2. Run verification in parallel: Two verification paths execute simultaneously:
    • Dynatrace SRG validation — The step group triggers a Dynatrace SRG workflow, waits for it to complete, and captures the verdict.
    • Harness CV Verify step — The standard Verify step evaluates health source metrics using Harness ML-based analysis.
  3. Gate the release: A shell script inspects the SRG verdict. If SRG returns pass and the CV step succeeds, Harness promotes the deployment. If either check fails, the pipeline stops and rolls back.

This parallel approach means SRG and CV validate the deployment independently. A failure from either source blocks the release.

Successful execution​

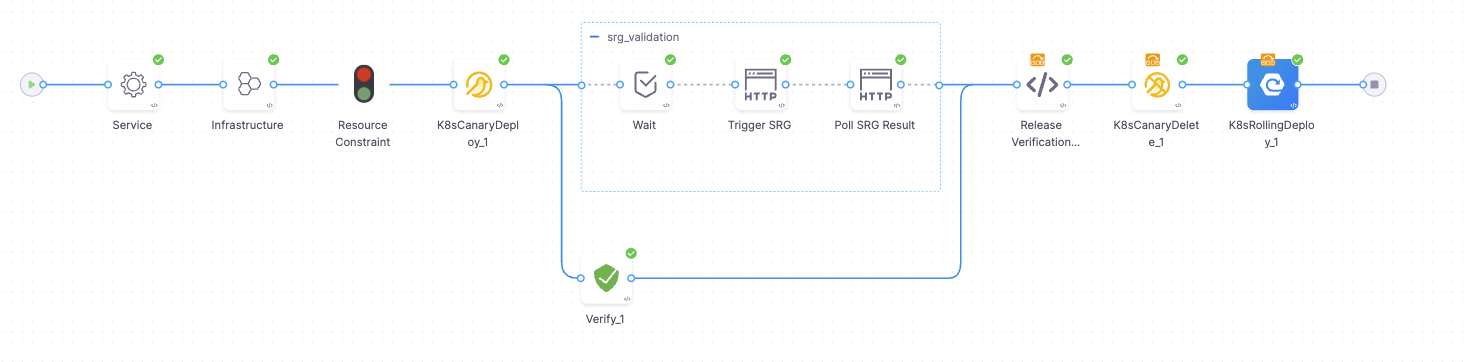

When both SRG and CV pass, the pipeline promotes the deployment and all steps complete successfully:

Successful pipeline execution with SRG and CV passing

Failed execution​

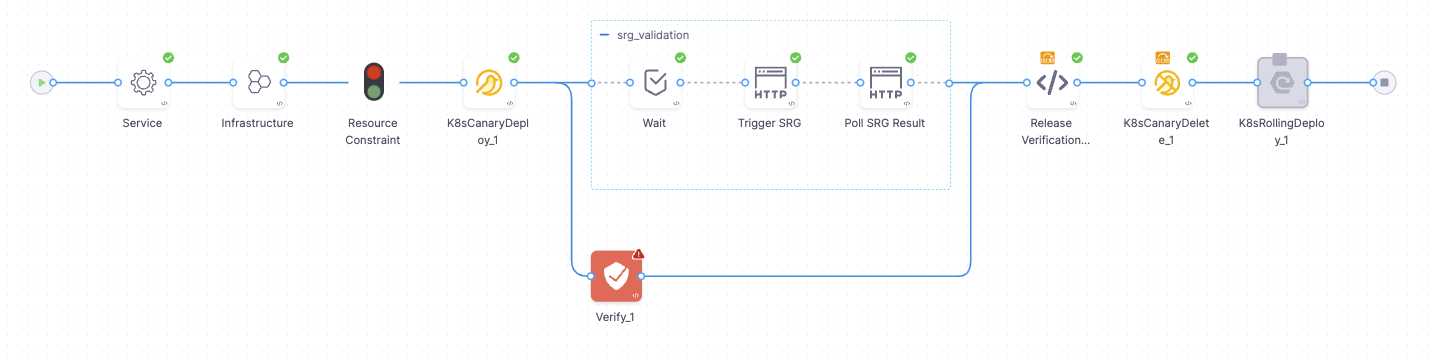

When CV detects anomalies or SRG returns a failing verdict, the pipeline stops the promotion. In this example, the Verify step failed while SRG passed — the downstream steps are skipped and the deployment is not promoted:

Failed pipeline execution where CV detected issues

Verification outcomes​

Running SRG and CV in parallel produces three possible outcomes:

SRG VerdictCV VerdictResult
passSuccessDeployment promoted to all pods
failSuccessDeployment stopped — SRG blocked the release
passFailureDeployment stopped — CV detected anomalies

When both checks fail, the pipeline triggers a rollback automatically through the stage failure strategy.
