CD manifest and template sources

Last updated on

Harness CD services reference manifest and template files that define how your application is deployed. These files — Kubernetes manifests, Helm charts, instance templates, and other configuration — need to be stored somewhere accessible to your pipelines.

Most deployment types support Git-based sources (GitHub, GitLab, Bitbucket) and the Harness File Store. Some deployment types support additional stores. This page covers the supplementary manifest store options available in Harness.

Google Cloud Storage (GCS)​

Google Cloud Storage can serve as a manifest store for Google Managed Instance Group (MIG) deployments. This lets you store MIG manifest files — instance templates, MIG configurations, autoscaler settings, and health checks — directly in a GCS bucket rather than in a Git repository.

GCS is a good fit when your team already manages infrastructure configuration in Cloud Storage, or when you want to keep GCP-specific manifests alongside other GCP resources without introducing a Git workflow.

Supported deployment types

GCS as a manifest store is currently supported only for Google Managed Instance Group (MIG) deployments. The MIG deployment type is behind the feature flag CDS_GOOGLE_MIG. Contact Harness Support to enable it.

Prerequisites​

Before configuring GCS as a manifest store, ensure you have:

  • A GCS bucket containing your MIG manifest JSON files (instance template, MIG configuration, etc.).
  • A Harness GCP connector with read access to the bucket. The connector can use either OIDC (keyless) authentication or a service account key.
  • IAM permissions: The service account associated with the connector needs the storage.objects.get and storage.objects.list permissions on the target bucket (the Storage Object Viewer role covers both).

Select GCS as the manifest store​

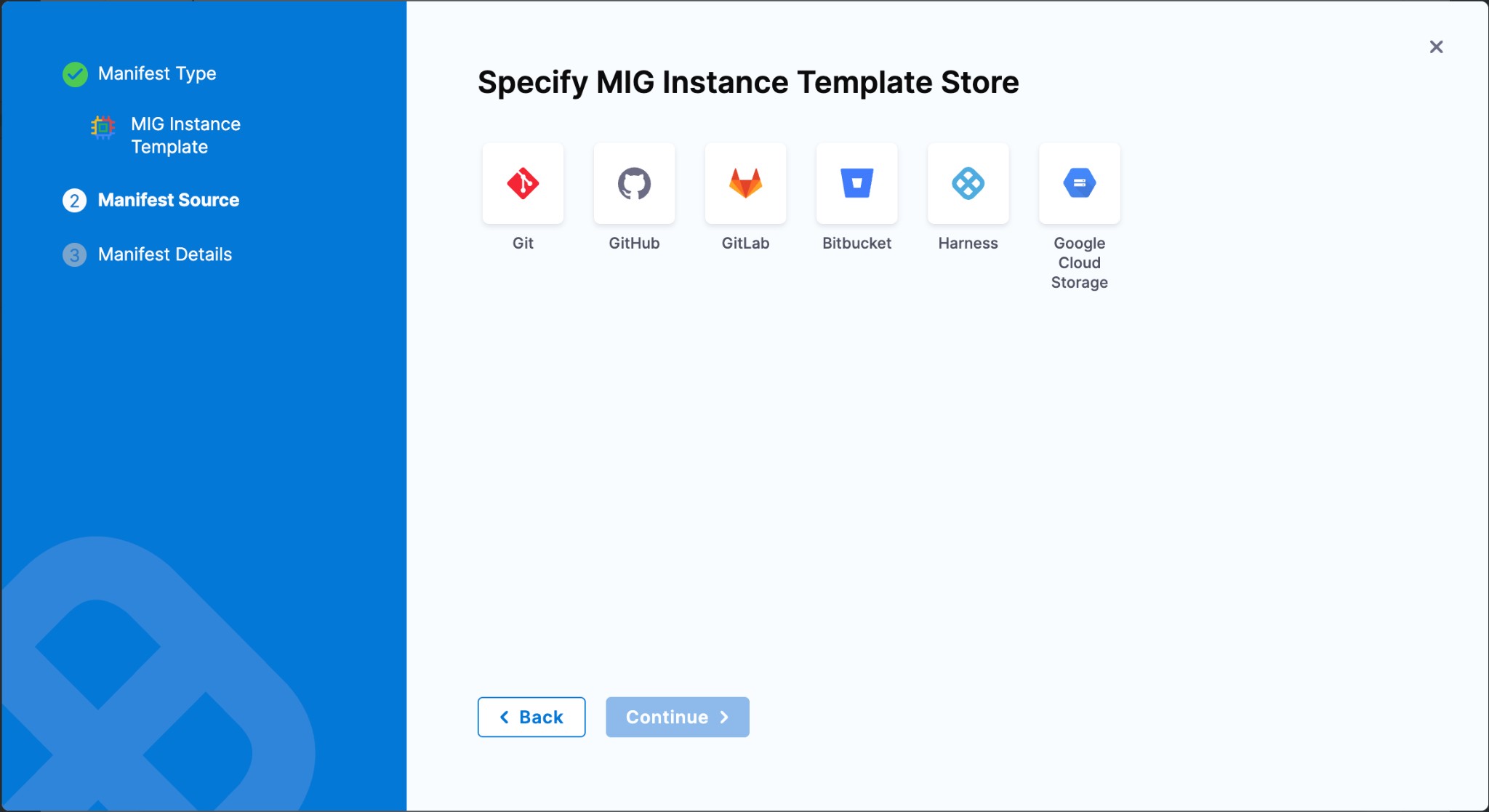

When adding a manifest to your MIG service definition (Instance Template, MIG Configuration, Autoscaler, or Health Check), Harness prompts you to choose a manifest store. Select Google Cloud Storage from the available options.

Configure the GCP connector​

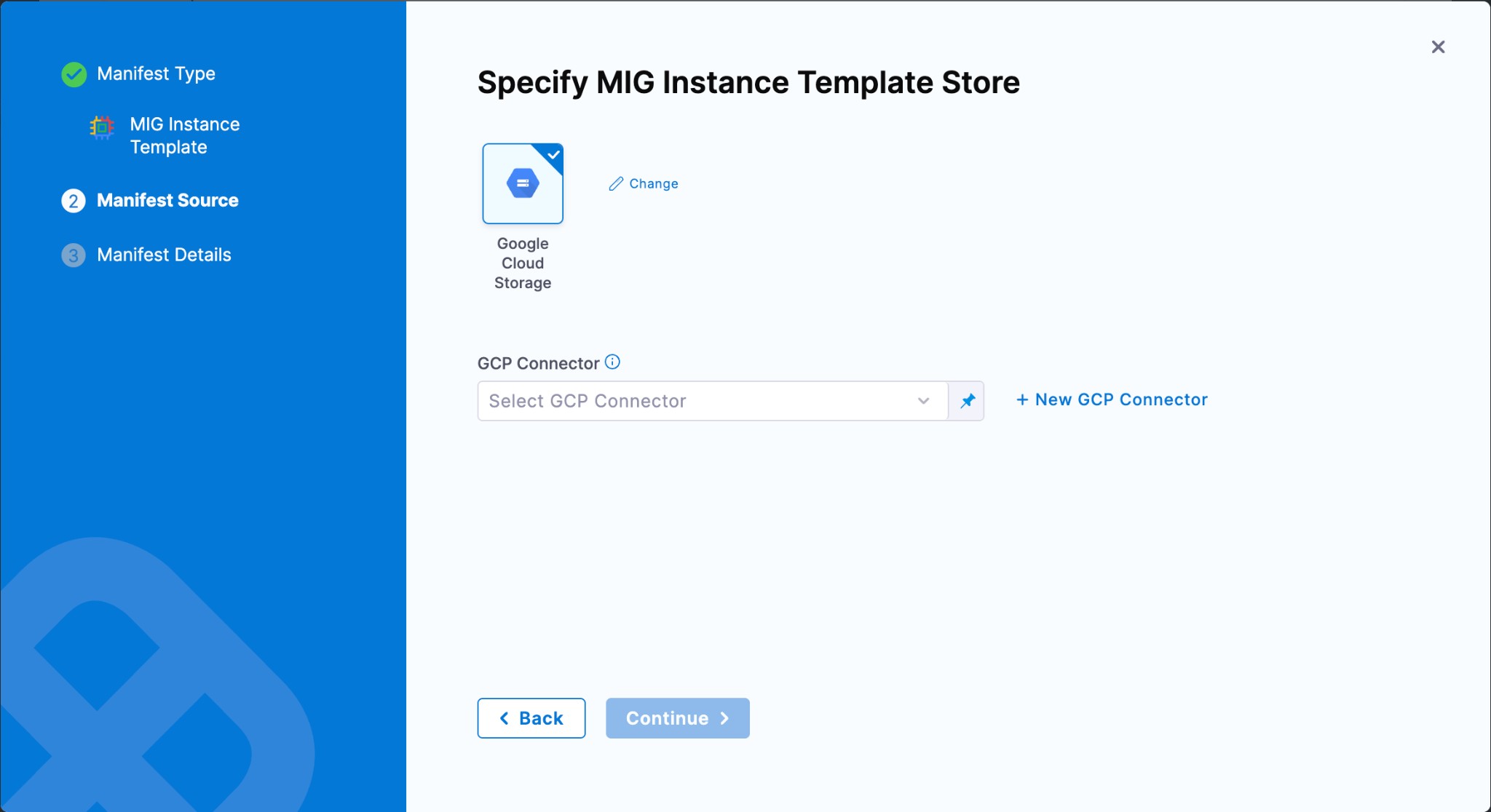

After selecting Google Cloud Storage, choose an existing Harness GCP connector or create a new one. This connector authenticates Harness with your GCP account and provides access to the bucket where your manifests are stored.

If you don't have a connector yet, select + New GCP Connector and follow the setup flow. For details, see Create a GCP connector.

Provide manifest details​

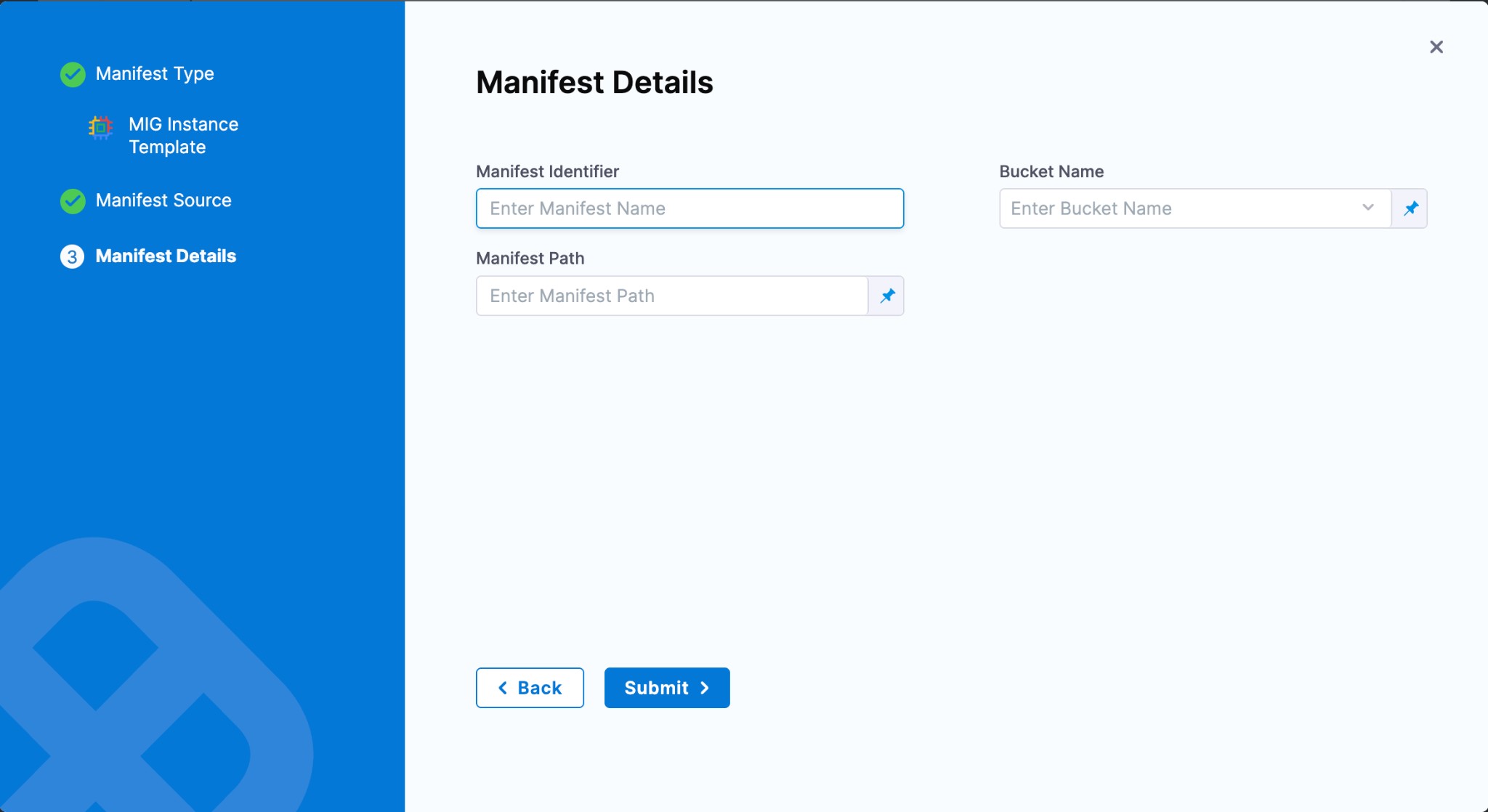

On the Manifest Details screen, fill in the following fields:

  • Manifest Identifier: A unique name for this manifest within the service (e.g., instancetemplate or migconfig).
  • Bucket Name: The GCS bucket that contains your manifest file. Harness lists available buckets from the connected GCP project.
  • Manifest Path: The path to the JSON file inside the bucket (e.g., mig/templates/instance-template.json).

Click Submit to save the manifest. Repeat this process for each MIG manifest type you want to store in GCS — you can mix sources, storing some manifests in GCS and others in Git or the Harness File Store.

YAML example​

Here is a service definition that references an instance template stored in a GCS bucket:

service:
  name: my-mig-service
  identifier: my_mig_service
  serviceDefinition:
    type: GoogleManagedInstanceGroup
    spec:
      manifests:
        - manifest:
            identifier: instancetemplate
            type: GoogleMigInstanceTemplate
            spec:
              store:
                type: GoogleCloudStorage
                spec:
                  connectorRef: my_gcp_connector
                  bucket: my-manifests-bucket
                  path: mig/templates/instance-template.json
        - manifest:
            identifier: migconfig
            type: GoogleMigConfiguration
            spec:
              store:
                type: Github
                spec:
                  connectorRef: my_github_connector
                  gitFetchType: Branch
                  paths:
                    - mig/my-project/mig-manifest.json
                  repoName: my-repo
                  branch: main

In this example, the instance template is fetched from GCS while the MIG configuration comes from GitHub — showing that you can mix manifest stores within a single service.
