Pipeline Annotations allow you to publish rich, structured insights directly into the Harness pipeline execution page.

Instead of searching through thousands of lines of logs to find critical information like test summaries, security scan results, or deployment notes, you can use the hcli annotate command to push this data to a dedicated Annotations tab in the Harness UI.

This feature enables you to:

  • Improve debugging: Surface test failures, lint errors, or coverage reports inline.
  • Increase confidence: Review deployment summaries and changelogs at a glance before approval.
  • Reduce toil: Eliminate manual log parsing on an execution's console view for key metrics.
Supported infrastructure

Pipeline Annotations are currently supported on Kubernetes infrastructure. You can publish annotations from supported shell-based steps, such as Run steps in CI and Shell Script steps in CD.

What you will learn from this topic​

Before you begin​

  • Harness project access: You need View and Execute permissions on Pipelines. An administrator must assign you a role that includes these permissions. For more information, refer to RBAC in Harness.
  • Kubernetes infrastructure: Pipelines must run on Kubernetes infrastructure. Other infrastructure types are not yet supported.
  • Existing pipeline: You need a pipeline with steps that generate content you want to annotate. For more information, refer to Add a stage.

Feature availability​

Pipeline Annotations are available on supported pipeline infrastructure and execution environments.

This feature is currently behind the feature flags CI_ENABLE_HARNESS_ANNOTATIONS and PIPE_HARNESS_ANNOTATIONS.

If Pipeline Annotations are not available in your account, contact Harness Support to enable these feature flags.

How annotations work​

Harness makes the hcli binary available out of the box. There is nothing you need to install or configure. When your script runs hcli annotate, Harness automatically collects the data and publishes it to the Annotations tab.

Perform the following steps to create an annotation:

  1. Generate content: In your shell (for example, Run step in CI or Shell step in CD), your script generates necessary information (for example, it runs tests and outputs a results.md file).
  2. Run CLI: You call hcli annotate within the same step, specifying a unique context and the content source (a markdown file or inline content).
  3. Publish: Harness securely captures this data and publishes it to the pipeline.
  4. View: The annotation appears in the Annotations tab of the pipeline execution details.

Annotation syntax​

hcli annotate --context <context-name> (--summary <string> | --summary-file <path>) [options]

Parameters​

ParameterRequiredDefaultDescription
--contextYesA unique identifier for the annotation within this pipeline execution (for example, test-summary, security-scan).
--summary-fileConditionalPath to a markdown file containing the annotation content. You must use either this or --summary.
--summaryConditionalA direct string containing the annotation content. Best for short messages.
--styleNoINFOVisual style hint for the UI. Options: SUCCESS, INFO, WARNING, FAILURE.
--priorityNo5Sets priority (1-10). Priority 1 is highest; priority 10 is lowest. Cards are sorted ascending.
--modeNoreplaceOperational mode: replace, append, or delete. For more information, refer to Annotation modes.

Annotation modes​

Use annotation modes to create, update, or remove annotations. The available modes are replace, append, and delete.

ModeBehavior
replaceUpdates only the fields you specify and keeps all other annotation fields unchanged
appendAdds the new --summary or --summary-file content to the end of the existing summary, separated by a newline. If you provide --style or --priority while using append, those values are updated as well.
deleteRemoves the entire annotation document associated with the context.

Annotation lifecycle​

An annotation is identified by its context within a pipeline execution.

  • The first hcli annotate command with a context creates the annotation.
  • Running the command again with the same context updates the annotation according to the selected mode.
    • Replace updates the existing annotation.
    • Append adds content to the existing summary.
    • Delete removes the annotation associated with the context.
  • A different context creates a separate annotation.

This makes the relationship between context and mode clear for managing annotations throughout pipeline execution.

Example usage​

Here is a complete example of a Run step in a CI pipeline that generates several different markdown files and then uses hcli annotate to publish them as distinct annotations.

- step:
    identifier: build_and_test
    type: Run
    name: Build and Test
    spec:
      connectorRef: my-k8s-connector
      image: harness/ci-addon:latest
      shell: Bash
      command: |-
        # Step 1: Create markdown content for the reports
        # A comprehensive build report
        cat > build-results.md << 'EOF'
        # Build Pipeline Results
        ![Build Status](https://img.shields.io/badge/build-passing-brightgreen.svg)
        > **Note:** View full build logs [here](https://example.com).
        ## Test Summary
        - **Total Tests:** 247
        - **Passed:** 245
        - **Failed:** 2
        - **Coverage:** **92.4%**
        EOF

        # A detailed coverage report
        cat > coverage.md << 'EOF'
        # Coverage Summary
        - **Line:** 92.4%
        - **Branch:** 88.1%
        EOF

        # A linting report
        cat > lint-report.md << 'EOF'
        # Lint Report
        ![Lint Status](https://img.shields.io/badge/lint-fail-red.svg)
        - **Errors:** 3
        - **Warnings:** 12
        EOF

        # Step 2: Publish the annotations using hcli

        # Publish the main build report with a WARNING style and high priority
        hcli annotate --context "build-validation" --style "warning" --summary-file "build-results.md" --priority 8

        # Publish a simple, successful annotation with an inline summary
        hcli annotate --context "unit-tests" --style "success" --summary "All 245 unit tests passed." --priority 7

        # Publish the coverage and lint reports as separate annotations
        hcli annotate --context "coverage-report" --style "info" --summary-file "coverage.md" --priority 5
        hcli annotate --context "lint-results" --style "warning" --summary-file "lint-report.md" --priority 6

        # Step 3: Append additional notes to an existing context
        echo "Flaky tests have been quarantined." > extra-notes.md
        hcli annotate --context "build-validation" --summary-file "extra-notes.md" --mode "append"

Create content: The script first creates three markdown files: build-results.md, coverage.md, and lint-report.md.

Publish annotations:

  • The build-validation annotation is published using the build-results.md file. It is given a warning style and a high priority of 8.
  • The unit-tests annotation is a simple success message passed directly using the --summary flag.
  • The coverage-report and lint-results annotations are created from their respective files, each with its own style and priority.

Append to a context: The final command targets the same build-validation context but uses --mode "append". This adds the content of extra-notes.md to the bottom of the existing build report summary, rather than overwriting it.

View annotations in the UI​

During pipeline execution, select the Annotations tab on the execution details page.

The left panel lists all annotation contexts, sorted by priority (highest to lowest).

The right panel displays the rendered markdown summary for the selected annotation.

Annotations are updated as the pipeline executes and hcli annotate commands run.

Annotation content​

Annotation summaries use Markdown format for content displayed in the UI.

Supported content includes:

  • Headings
  • Lists
  • Links
  • Code blocks
  • Bold and italic text
  • Standard Markdown images

HTML is not supported and will be stripped for security reasons.

Keep annotation content concise and use links to external reports or artifacts if the content is large.

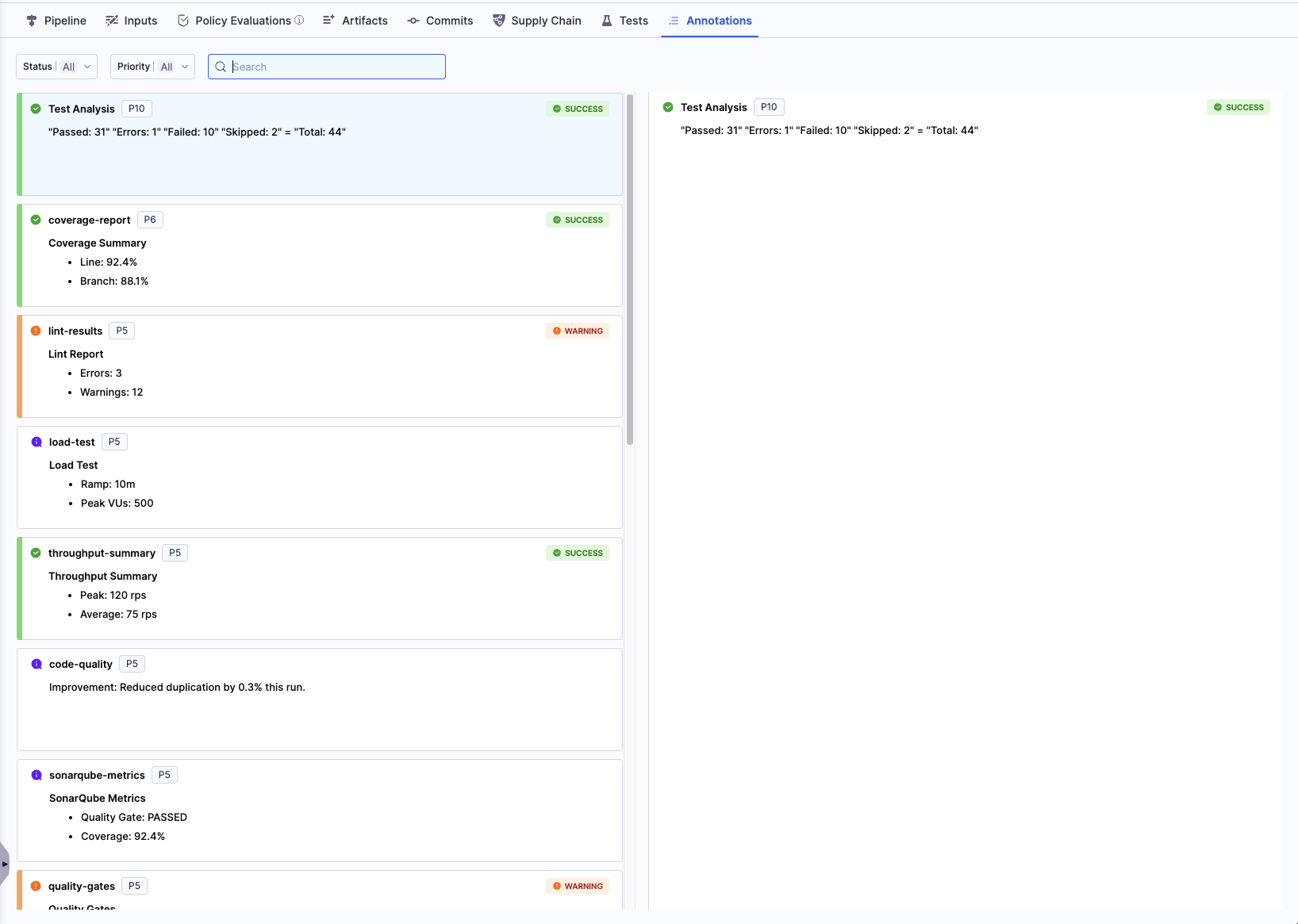

Annotations tab showing multiple annotation cards with rendered markdown content

Key concepts​

Context​

The --context parameter is the unique key for an annotation within a single pipeline execution.

  • Creating a new annotation: Use a context name that has not been used yet in the execution.
  • Updating an existing annotation: Re-run the hcli annotate command with the same context name. By default, this will replace the existing summary.
note

Each context can only have one active card in the Annotations tab. Updating with the same context refreshes the same card.

Context uniqueness​

A context identifies an annotation within a pipeline execution. Use a stable context name when you want subsequent commands to update the same annotation.

For example, repeatedly using:

hcli annotate --context "test-summary" ...

updates the test-summary annotation instead of creating a new annotation card.

This reinforces the most important concept behind replace and append.

Limits and guardrails​

GuardrailLimitBehavior on exceeding
Summary size64KB per annotationTruncation happens silently in the annotation, with a warning emitted to step logs.
Annotation count50 annotations per executionThe request is rejected with an error.
Context name length256 charactersThe annotation is skipped, and a warning is logged.

Use pipeline data in annotations​

Generate annotation content dynamically from values produced during pipeline execution.

For example, a script can use test results, build versions, deployment information, or pipeline variables to generate a Markdown summary before publishing it.

# Generate dynamic annotation content
VERSION="1.2.3"
TESTS_PASSED=245
TESTS_FAILED=2

cat > summary.md << EOF
# Build Summary

- **Version:** ${VERSION}
- **Tests passed:** ${TESTS_PASSED}
- **Tests failed:** ${TESTS_FAILED}
EOF

# Publish the annotation
hcli annotate \
  --context "build-summary" \
  --summary-file "summary.md"

This approach allows annotations to reflect the results of the current pipeline execution rather than using only static content.

Best practices​

  • Use meaningful context names (test-summary, coverage, deploy-notes)
  • Prefer concise markdown (less than 10 lines per card)
  • Link to artifacts or dashboards instead of embedding large tables
  • Avoid emojis in context keys (safe in content, not in key)
  • Use append only for incremental updates; prefer replace for clarity
tip

If annotation publishing should not cause a pipeline step to fail, append || true to the hcli annotate command. This is useful when annotations are informational and should not affect the pipeline result.

hcli annotate --context "my-report" --summary-file "report.md" || true

If annotation publishing is required for the pipeline to succeed, do not suppress the command's exit status so failures are reported normally.

Troubleshooting​

Summary file not found error when running hcli annotate with --summary-file

Verify the file path is correct relative to the step's working directory. Use ls -l to list files and confirm the markdown file exists at the specified path before running hcli annotate.

Failed to read environment variable error when running hcli annotate command

Ensure the script is executing within a Harness pipeline stage with a valid shell environment. The hcli command requires Harness pipeline context and environment variables to function properly.

Invalid style value error when using --style parameter in hcli annotate

Use one of the allowed style values: SUCCESS, INFO, WARNING, or FAILURE. The --style parameter is case-sensitive and must match exactly one of these options.

Priority out of range error when using --priority parameter in hcli annotate

Set --priority to an integer value between 1 and 10, where 1 is highest priority and 10 is lowest priority. Values outside this range are not accepted.
