CI Run step settings

You can use a CI Run step to run scripts in CI Build stages. This topic describes settings for the Run step.


Depending on the stage's build infrastructure, some settings may be unavailable or optional.


Enter a name summarizing the step's purpose. Harness automatically assigns an Id (Entity Identifier Reference) based on the Name. You can change the Id.


Optional text string describing the step's purpose.

Container Registry and Image

The Container Registry is a Harness container registry connector for the image that you want Harness to run build commands on, such as Docker Hub.

The Image is the FQN (fully-qualified name) or artifact name of the Docker image to use when this step runs commands, for example The image name should include the tag. If you don't include a tag, Harness uses the latest tag.

You can use any Docker image from any Docker registry, including Docker images from private registries. Different container registries require different name formats:

  • Docker Registry: Input the name of the artifact you want to deploy, such as library/tomcat. Wildcards aren't supported. FQN is required for images in private container registries.

  • ECR: Input the FQN (fully-qualified name) of the artifact you want to deploy. Images in repos must reference a path, for example:

  • GCR: Input the FQN (fully-qualified name) of the artifact you want to deploy. Images in repos must reference a path starting with the project ID that the artifact is in, for example:

    Figure 1: Configuring GCR Container Registry and Image settings.

The stage's build infrastructure determines whether these fields are required or optional:

Shell and Command

Use these fields to define the commands that you need to run in this step.

For Shell, select the shell script type. Options include: Bash, PowerShell, Pwsh, Sh, and Python. If the step includes commands that aren't supported for the selected shell type, the build fails. Required binaries must be available on the build infrastructure or the specified image, as described in Container Registry and Image.

In the Command field, enter POSIX shell script commands for this step. The script is invoked as if it were the entry point. If the step runs in a container, the commands are executed inside the container.


You can reference services started in Background steps by using the Background step's Id in your Run step's Command. For example, a cURL command could call [backgroundStepId]:5000 where it might otherwise call localhost:5000.

Figure 2: The Background step ID, pythonscript, is used in a cURL command in a Run step.

If the Background step is inside a step group, you must include step group ID, such as [stepGroupId]_[backgroundStepId]:5000, even if both steps are in the same step group.

Select each tab below to view examples for each shell type.

This Bash script example checks the Java version.

              - step:
shell: Bash
command: |-
JAVA_VER=$(java -version 2>&1 | head -1 | cut -d'"' -f2 | sed '/^1\./s///' | cut -d'.' -f1)
if [[ $JAVA_VER == 17 ]]; then
echo successfully installed $JAVA_VER
exit 1

If your script produces an output variable, you must declare the output variable in the Run step's Output Variables. For example, the following step runs a python script that defines an output variable called OS_VAR, and OS_VAR is also declared in the outputVariables.

              - step:
type: Run
name: Run_2
identifier: Run_2
shell: Python
command: |-
import os
os.environ["OS_VAR"] = value
- name: OS_VAR

Optional Configuration

Use the following settings to add additional configuration to the step. Settings specific to containers, such as Set Container Resources, are not applicable when using the step in a stage with VM or Harness Cloud build infrastructure.


Enable this option to run the container with escalated privileges. This is equivalent to running a container with the Docker --privileged flag.

Report Paths

Specify one or more paths to files that store test results in JUnit XML format. You can add multiple paths. If you specify multiple paths, make sure the files contain unique tests to avoid duplicates. Glob is supported.

This setting is required for the Run step to be able to publish test results.

Environment Variables

You can inject environment variables into a container and use them in the Command script. You must input a Name and Value for each variable.

You can reference environment variables in the Command script by their name. For example, a Bash script would use $var_name or ${var_name}, and a Windows PowerShell script would use $Env:varName.

Variable values can be Fixed Values, Runtime Inputs, and Expressions. For example, if the value type is expression, you can input a value that references the value of some other setting in the stage or pipeline. Select the Thumbtack to change the value type.

Figure 3: Using a Harness expression for an environment variable value.

For more information, go to the Built-in Harness Variables Reference.

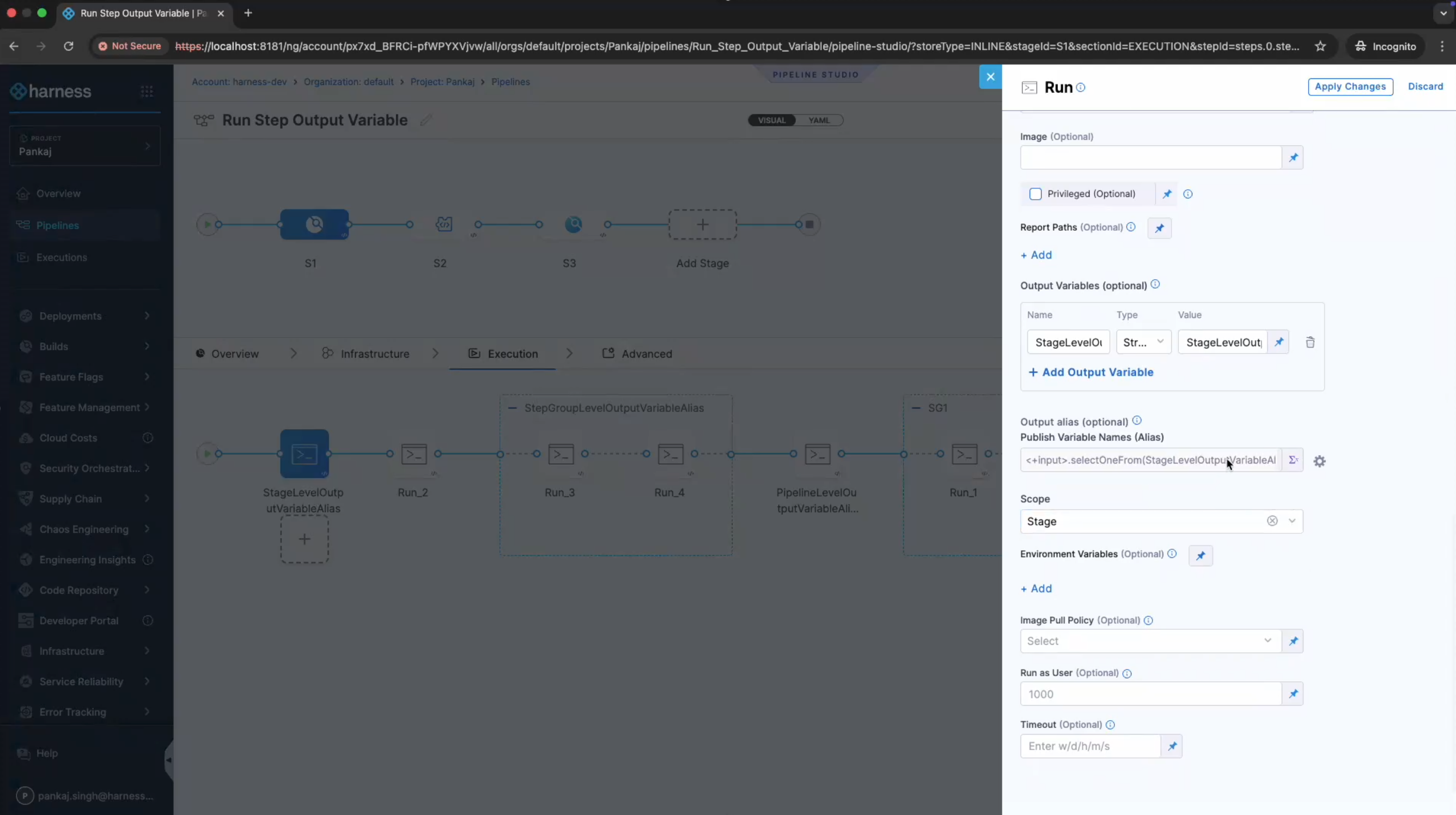

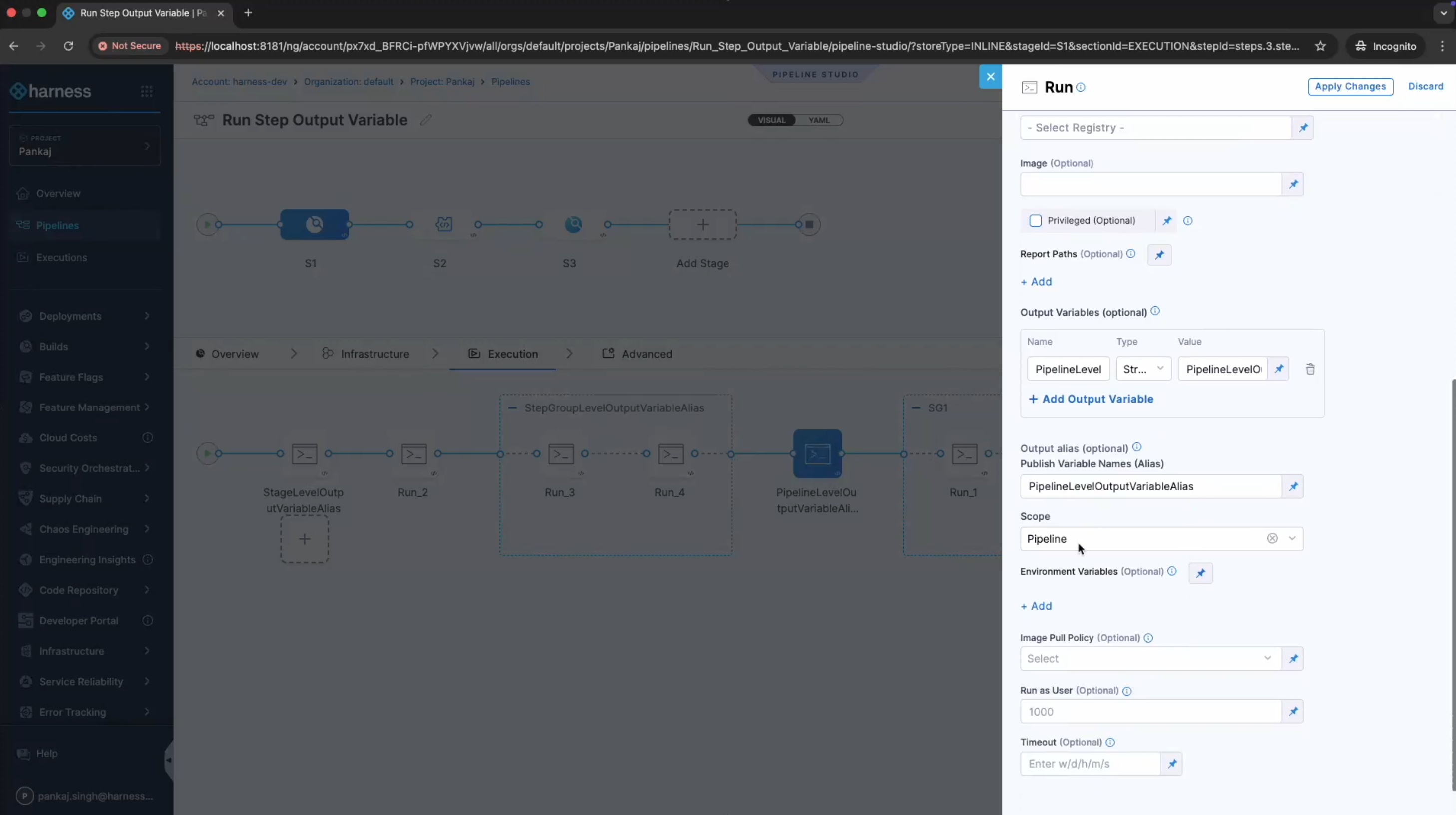

Output Variables

Output variables expose values for use by other steps or stages in the pipeline.

To create an output variable, do the following in the step where the output variable originates:

  1. In the Command field, export the output variable. For example, the following command exports a variable called myVar with a value of varValue:

    export myVar=varValue
  2. In the step's Output Variables, declare the variable name, such as myVar.

To call a previously-exported output variable in a later step or stage in the same pipeline, use a variable expression that includes the originating step's ID and the variable name.

To reference an output variable in another step in the same stage, use either of the following expressions:


To reference an output variable in a different stage than the one where it originated, use either of the following expressions:

YAML example: Output variable

In the following YAML example, step alpha exports an output variable called myVar, and then step beta references that output variable.

              - step:
type: Run
name: alpha
identifier: alpha
shell: Sh
command: export myVar=varValue
- name: myVar
- step:
type: Run
name: beta
identifier: beta
shell: Sh
command: |-
echo <+steps.alpha.output.outputVariables.myVar>
echo <+execution.steps.alpha.output.outputVariables.myVar>

Image Pull Policy

If you specified a Container Registry and Image, you can specify an image pull policy:

  • Always: The kubelet queries the container image registry to resolve the name to an image digest every time the kubelet launches a container. If the kubelet encounters an exact digest cached locally, it uses its cached image; otherwise, the kubelet downloads (pulls) the image with the resolved digest, and uses that image to launch the container.
  • If Not Present: The image is pulled only if it is not already present locally.
  • Never: The image is assumed to exist locally. No attempt is made to pull the image.

Run as User

If you specified a Container Registry and Image, you can specify the user ID to use for running processes in containerized steps.

For a Kubernetes cluster build infrastructure, the step uses this user ID to run all processes in the pod. For more information, go to Set the security context for a pod.

Set Container Resources

Maximum resources limits for the resources used by the container at runtime:

  • Limit Memory: Maximum memory that the container can use. You can express memory as a plain integer or as a fixed-point number with the suffixes G or M. You can also use the power-of-two equivalents, Gi or Mi. Do not include spaces when entering a fixed value. The default is 500Mi.
  • Limit CPU: The maximum number of cores that the container can use. CPU limits are measured in CPU units. Fractional requests are allowed. For example, you can specify one hundred millicpu as 0.1 or 100m. The default is 400m. For more information, go to Resource units in Kubernetes.


Set the timeout limit for the step. Once the timeout limit is reached, the step fails and pipeline execution continues. To set skip conditions or failure handling for steps, go to:
