Code Coverage

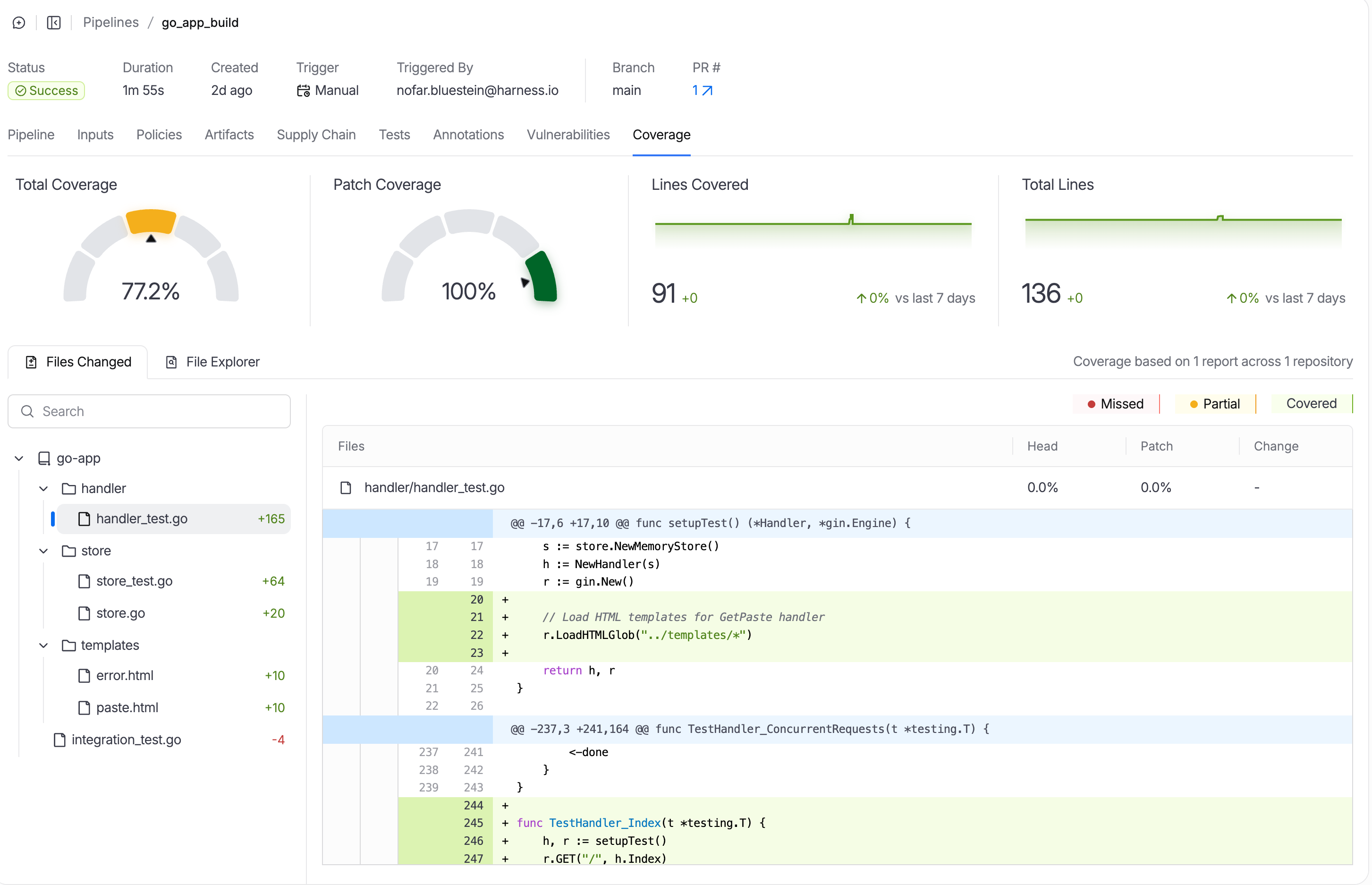

Code coverage shows what percentage of your code is exercised by tests. Harness displays coverage metrics in the Coverage tab of your pipeline execution, helping you identify untested code paths.

What You'll See

Metric	Description
Total Coverage	Percentage of all lines covered by tests
Patch Coverage	Percentage of changed lines covered (PRs only)
Per-File Breakdown	Coverage percentage for each source file

For pull requests, the diff view shows line-by-line coverage:

• Green - Line is covered
• Red - Line is not covered
• Yellow - Partially covered (some branches)

Supported Formats

Format	File Extension	Languages
LCOV	.info, .lcov	Python, Node.js, C/C++
JaCoCo XML	.xml	Java, Kotlin, Scala
Go Coverage	.out	Go

Pipeline Examples

Python

- run:
    script: |-
      # Install dependencies
      pip install pytest pytest-cov

      # Run tests with coverage
      pytest tests/ \
        --junitxml=test-results.xml \
        --cov=src \
        --cov-report=lcov:lcov.info \
        -v

      # Upload test results
      hcli test-reports upload test-results.xml

      # Analyze coverage locally (optional)
      hcli cov analyze --file lcov.info

      # Upload coverage to Harness
      hcli cov upload \
        --file=lcov.info \
        --provider=github \
        --owner="$HARNESS_ORG_ID" \
        --identifier="my-repo"
    env:
      CI_ENABLE_QUARANTINED_TEST_SKIP: "true"

Java/Gradle

- step:
    type: Run
    name: Run Tests with Coverage
    spec:
      shell: Sh
      command: |
        # Run tests with JaCoCo coverage
        ./gradlew test jacocoTestReport

        # Upload test results
        hcli test-reports upload "build/test-results/test/*.xml"

        # Upload coverage
        hcli cov upload \
          --file=build/reports/jacoco/test/jacocoTestReport.xml \
          --provider=github \
          --owner="$HARNESS_ORG_ID" \
          --identifier="my-repo"

Go

- run:
    script: |-
      # Install JUnit reporter
      go install github.com/jstemmer/go-junit-report/v2@latest

      # Run tests with coverage
      go test -v -coverprofile=coverage.out ./... 2>&1 | go-junit-report > report.xml

      # Upload test results
      hcli test-reports upload report.xml

      # Upload coverage
      hcli cov upload \
        --file=coverage.out \
        --provider=Harness \
        --owner="$HARNESS_ORG_ID" \
        --identifier="my-repo"
    env:
      CI_ENABLE_QUARANTINED_TEST_SKIP: "true"

Analyze Coverage Locally

Before uploading, you can analyze coverage locally:

hcli cov analyze --file lcov.info

This outputs coverage statistics without uploading to Harness, useful for debugging or local development.

Quality Gates

Enforce minimum coverage thresholds to fail pipelines that don't meet your standards. Use hcli cov wait-until to block the pipeline until coverage meets the specified thresholds:

hcli cov wait-until \
  --gt=70 \
  --patch-gt=80 \
  --timeout=1m \
  --endpoint="$HARNESS_TI_SERVICE_ENDPOINT/coverage"

This command:

1. Waits for coverage data to be available
2. Checks if total coverage exceeds the --gt threshold (70%)
3. Checks if patch coverage exceeds the --patch-gt threshold (80%)
4. Fails the pipeline if thresholds are not met

Example output when the quality gate fails:

Coverage: 84.53%
Lines: 579/685 covered
Patch Coverage: 78.57%
Patch Lines: 11/14 covered
Quality Gate FAILED:
  - patch coverage 78.57% is not > 80.00%
Error: quality gate failed: 1 threshold(s) not met

Quality Gate Parameters

Parameter	Description
--gt	Minimum total coverage percentage required
--patch-gt	Minimum patch coverage percentage required (for PRs)
--timeout	How long to wait for coverage data (e.g., 1m, 30s)
--endpoint	Coverage service endpoint

CLI Reference

cov upload

hcli cov upload \
  --file=<coverage-file> \
  --provider=<provider> \
  --owner=<owner> \
  --identifier=<repo-name>

Parameter	Required	Description
--file	Yes	Path to coverage file
--provider	Yes	Git provider: github, gitlab, bitbucket, or Harness
--owner	Yes	Organization or owner identifier
--identifier	Yes	Repository name

cov analyze

hcli cov analyze --file <coverage-file>

Parameter	Required	Description
--file	Yes	Path to coverage file

cov wait-until

hcli cov wait-until \
  --gt=<total-threshold> \
  --patch-gt=<patch-threshold> \
  --timeout=<duration> \
  --endpoint=<endpoint>

Parameter	Required	Description
--gt	No	Minimum total coverage percentage (e.g., 70)
--patch-gt	No	Minimum patch coverage percentage (e.g., 80)
--timeout	No	Wait timeout (e.g., 1m, 30s). Default: 30s
--endpoint	Yes	Coverage service endpoint ($HARNESS_TI_SERVICE_ENDPOINT/coverage)

Troubleshooting

Issue	Solution
Coverage shows 0%	Verify the coverage file path matches your tool's output
Patch coverage not showing	Ensure you're running on a pull request build
File not found	Confirm coverage file was generated before the upload step
Invalid format	Verify the file format matches supported types (LCOV, JaCoCo, Go)

Next Steps

• Upload test results to see tests alongside coverage
• View flaky tests to identify unreliable tests
