Targeting With Custom Attributes

Last updated on

AttributesA key-value pair used to describe a user, account, or entity during feature flag evaluation. Attributes can be used in targeting rules to determine which treatment is served. let you create dynamic targeting rules in Harness FME using runtime data passed during feature flag evaluation. You can use custom attributes to target users based on:

  • Rapidly changing or contextual data (for example: time since last login, browser type, app version, or device type)
  • Business or customer metadata (for example: subscription tier, purchase amount, or customer status).

Use segments instead of attributes when group membership changes infrequently or needs to be standardized across your organization (for example: internal users, QA teams, or strategic customer accounts).

Prerequisites​

To manage custom attributes in FME Settings, you need the FME Administrator role.

Create custom attributes​

You can create custom attributes in three ways:

Attributes created in FME Settings or through the Harness FME API are associated with a project and traffic type, and appear in your feature flag's attribute-based targeting rules as reusable User Attributes. On the other hand, attributes created directly inside an attribute-based targeting rule only exist within that feature flag definition and are not reusable across projects or traffic types.

info

The labels shown in the Targeting section of a feature flag definition depend on the configured traffic type. For example, when creating an attribute-based targeting rule, if a feature flag uses the account traffic type, the labels display Account and Account Attributes instead of User and User Attributes.

Regardless of how a custom attribute is created, attribute values must still be passed in the SDK evaluation request (for example, getTreatment) for targeting rules to evaluate correctly. For implementation examples, refer to the relevant SDK documentation.

Create custom attributes within feature flag targeting rules​

You can create custom attributes directly within a feature flag's targeting rules on the Definition tab. Attributes created within a targeting rule become part of that feature flag definition only, and are not associated with a project or traffic type.

To create and use a custom attribute in an attribute-based targeting rule, see Using custom attributes in feature flag targeting. You can also create custom attributes that use SemVer matchers for version-based targeting rules.

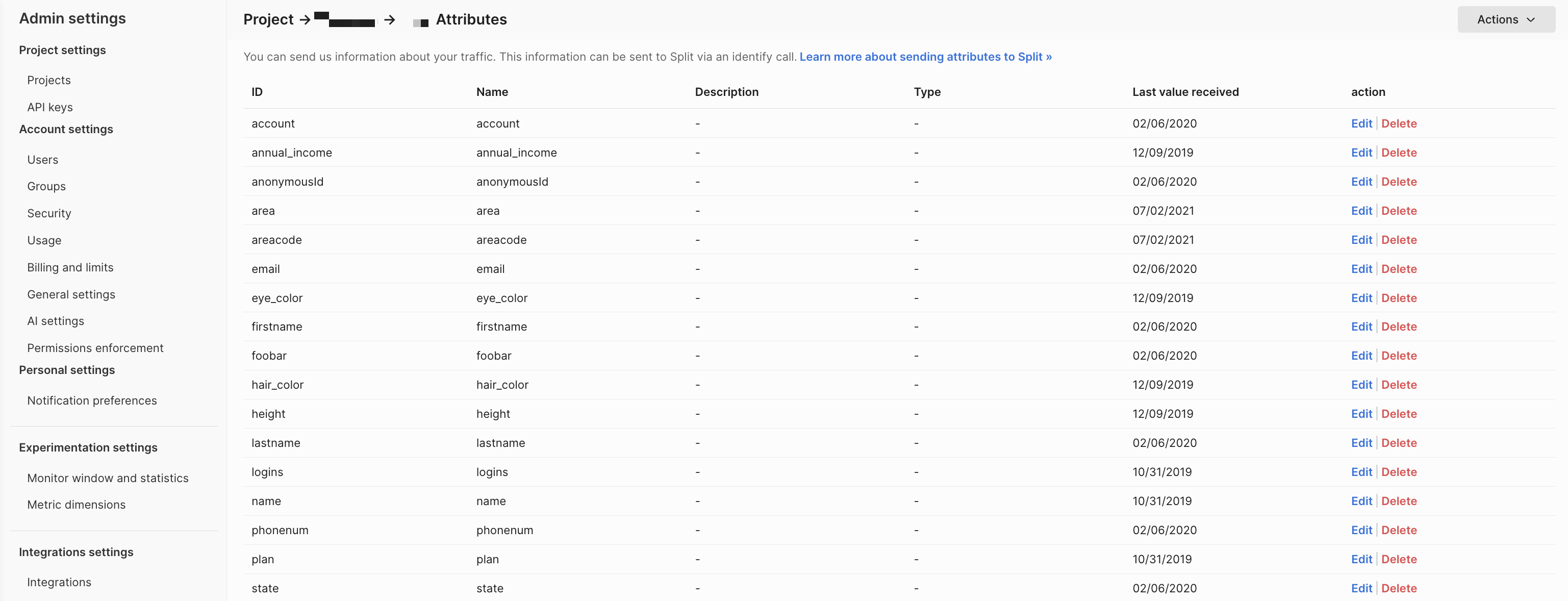

Create custom attributes in FME settings​

You can define reusable custom attributes for a specific project and traffic type in FME Settings. Attributes created in FME Settings appear as reusable User Attributes in targeting rules for feature flags that use the same traffic type.

You can create attributes individually or bulk import them using a CSV file. If the CSV file contains attribute IDs that already exist for the selected project and traffic type, the existing attributes are overwritten.

To create a reusable custom attribute:

  1. From the FME navigation menu, navigate to FME Settings > Projects.

  2. Click View on the project you want to configure and navigate to the Traffic types tab.

  3. Click View/Edit attributes for the traffic type you want to configure.

  4. Click the Actions dropdown menu and select Create an attribute.

  5. Enter a unique attribute identifier/key (for example, purchase_amount) in the ID field. Attribute IDs cannot be changed after creation. If you reuse an existing attribute ID, the existing attribute is overwritten.

    Syntax requirements

    Attribute IDs must start with a letter and can contain letters (a-z, A-Z), numbers (0-9), dashes (-), and underscores (_).

  6. Enter a descriptive display name in the Name field (for example, Checkout Customer Cart Amount).

  7. Optionally, enter a description.

  8. Select an attribute type: String, Number, Set, Datetime, Boolean, or Semver. If you select the String or SemVer attribute type, a Suggested values field appears.

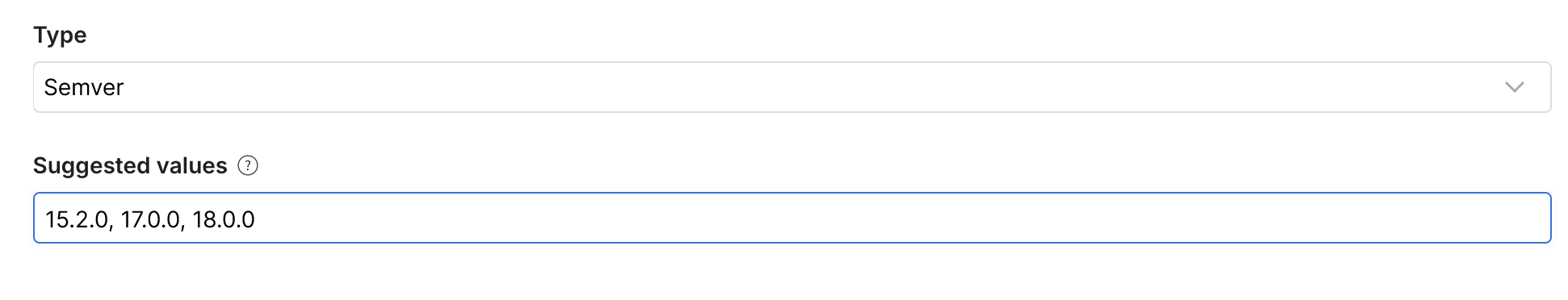

    Suggested values provide predefined values that appear in the targeting rule builder when configuring attribute-based targeting rules. Enter values as a comma-separated list (for example, enterprise, midmarket, smb).

  9. Click Create.

The attribute is now available as a reusable User Attribute in attribute-based targeting rules for feature flags with matching traffic types.

Store identity attributes for targeting workflows​

You can store identity data in Harness FME to improve targeting, debugging, and identity inspection workflows. Stored identity data enables key type-ahead suggestions, identity tooltips that display attribute values, and enriched impression analysis.

These identity-aware workflows are available in feature flag targeting rules, the Live Tail tab of a feature flag after pausing the event stream, and segment definitions when adding individual users.

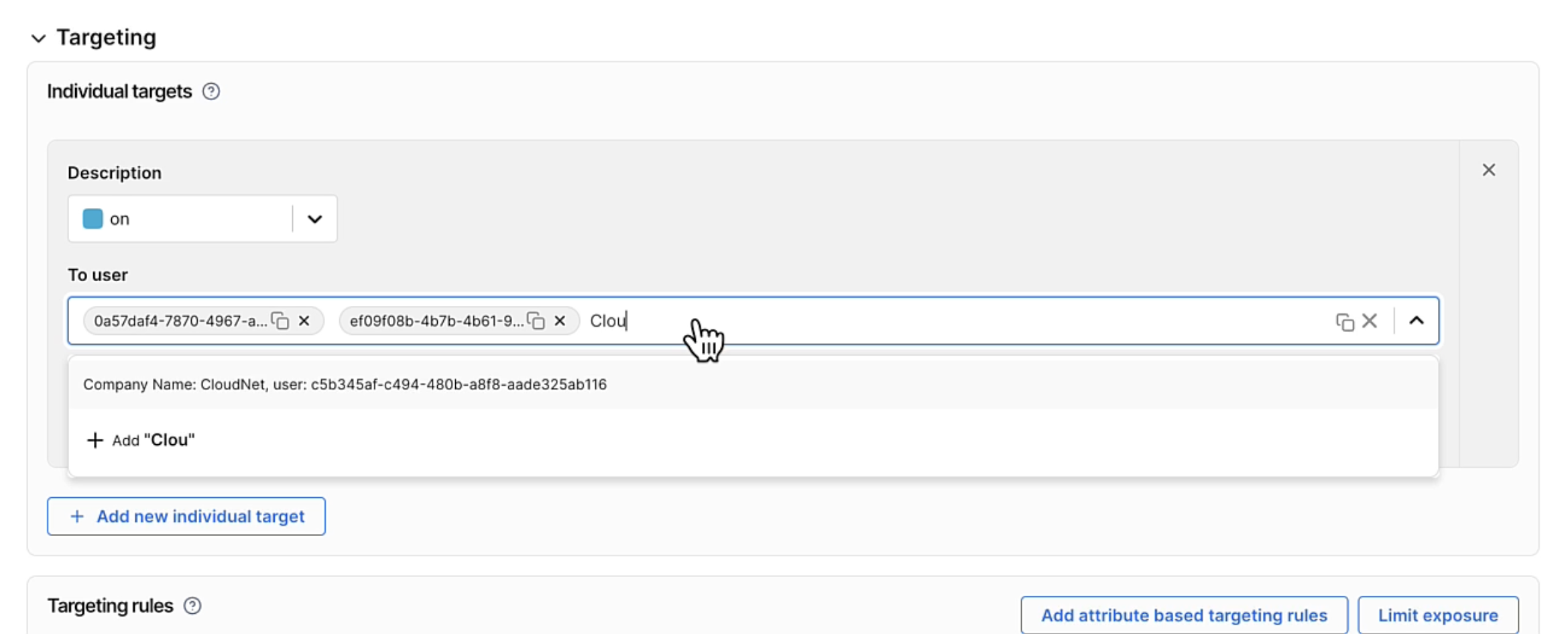

When adding individual keys to targeting rules for a feature flag, you can type the leading characters of an attribute value to see matching identitiesA unique key representing a user, account, device, or other entity in Harness FME. Identities can store associated attribute data used for targeting workflows, search, and analysis. from your uploaded identity data.

Type-ahead matching is case-sensitive and only matches leading characters.

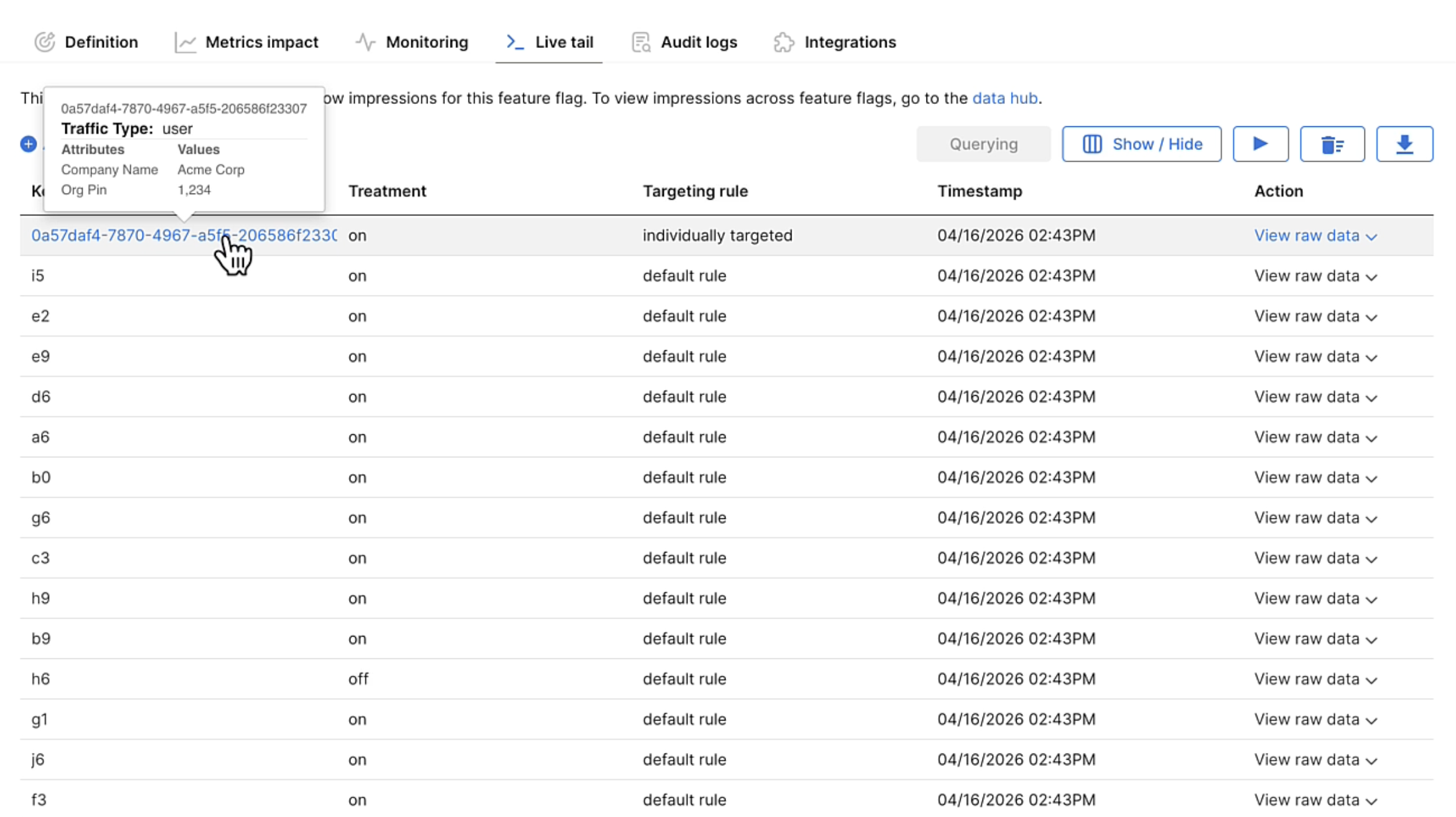

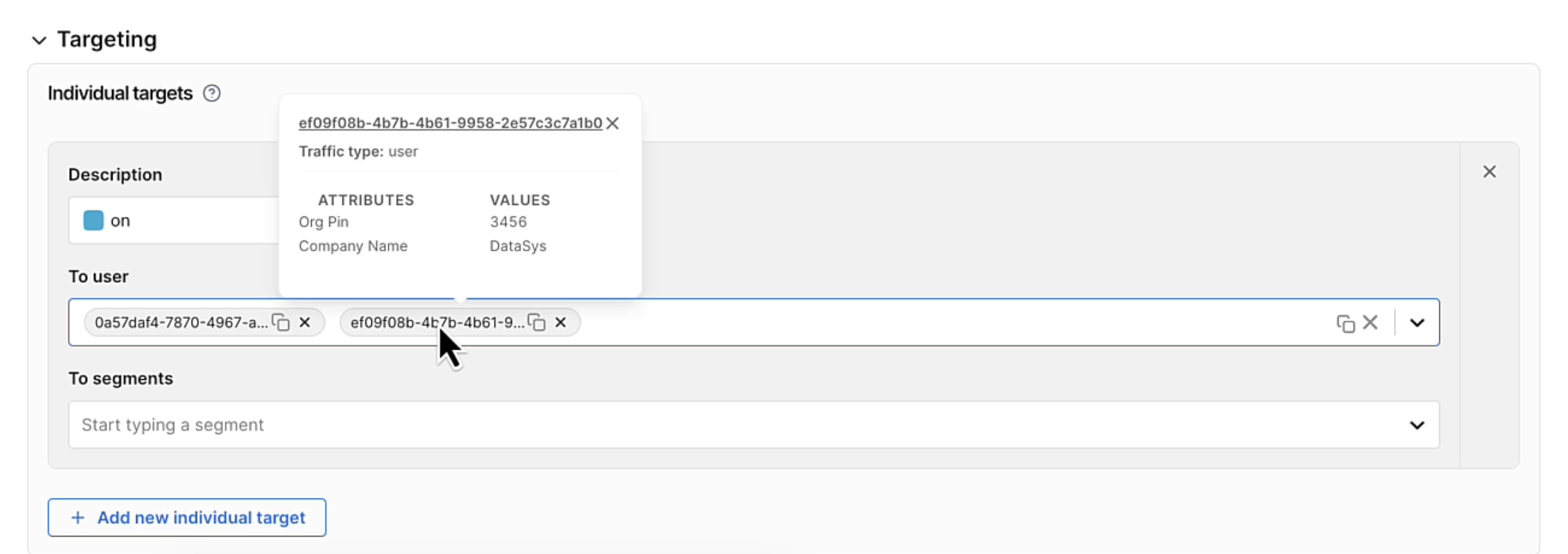

Hover over a user key in the UI to view the attribute values associated with that identity.

Stored identity attributes vs. runtime targeting attributes

Attributes stored using the Identities API are not automatically used during feature flag evaluation or getTreatment calls.

To evaluate targeting rules based on attributes, you must still pass those attributes in the SDK evaluation request. For example, if a targeting rule checks whether plan=enterprise, the plan attribute must be included in the attributes object passed to getTreatment.

Create identity attributes​

Setting up identity attributes requires two steps:

  1. Define reusable attributes in FME Settings for a project and traffic type.

  2. Use the Identities API endpoints to upload identity data and associated attribute values.

    EndpointDescription
    Save attributeCreate or update a reusable attribute definition associated with a project and traffic type.
    Save identityCreate or update a single identity record while preserving unspecified attributes.
    Save identitiesBulk create or update multiple identity records and replace attributes for identities included in the request.

Identity data is stored per environment in Harness FME. You can upload different identity datasets for development, staging, and production environments.

EnvironmentRecommendation
ProductionUpload sanitized production identity data
StagingUpload realistic test data
DevelopmentUpload a smaller sample dataset for testing
Bulk Upload Identity Data with the Helper Tool

For large identity imports, Harness provides a helper tool (fme_bulk_identities.py) that converts CSV data into the required JSON payload format and uploads identities using the Identities API. The helper tool is included in fme_identities_upload_tool.zip.

  1. Create a CSV file.

    FME Identities Example File
    key,company,short_code,account,region
    00000000-0000-0000-0000-000000000000, Placeholder Name, PLCH, ACC-00000, region-0
    11111111-1111-1111-1111-111111111111, Sample Entity LLC, SAMP, ACC-11111, region-1
    22222222-2222-2222-2222-222222222222, Generic Corp, GENR, ACC-22222, region-2

  2. Create a configuration file that maps CSV columns to reusable attribute identifiers defined in FME Settings.

    FME Identities Config JSON File
    {
    "api_base_url": "https://api.split.io/internal/api/v2",
    "traffic_type_id": "user",
    "environment_id": "<YOUR_ENVIRONMENT_ID>",
    "admin_api_key": "<YOUR_API_KEY>",
    "attribute_mapping": {
       "company": "company_name",
       "short_code": "company_short_code",
       "account": "account_number",
       "region": "region"
    }
    }

  3. Run the utility.

    python3 fme_bulk_identities.py \
      --csv identities.csv \
      --config config.json \
      [--batch-size 1000] \
      [--dry-run] \
      [--patch-mode] \

    The following flags are available:

    FlagDescription
    --dry-runPreview the generated API payload without uploading data.
    --batch-sizeConfigure the number of identities uploaded per batch.
    --patch-modePreserve unspecified attributes by using the Save identity endpoint.

By default, bulk uploads replace all attributes for identities included in the request. The attribute_mapping object maps CSV column names to the attribute identifiers configured in FME Settings.

CSV columnFME attribute ID
companycompany_name
short_codecompany_short_code
accountaccount_number
regionregion

Stored identity data becomes available throughout Harness FME for key type-ahead suggestions, identity tooltips, targeting workflows, impression analysis, and identity inspection.

Use custom attributes in feature flag targeting​

After you create a feature flag, you can add and use custom attributes in targeting rules to control treatment delivery.

To add an attribute-based targeting rule:

  1. On the feature flag's Definition tab, click Add attribute based targeting rules in the Targeting rules section.

  2. Select an existing User Attribute from the IF dropdown menu or create an attribute directly in the targeting rule by entering an attribute ID.

  3. Select a matcher to evaluate the attribute values passed in from your source code.

  4. Configure the values to match and select the treatment(s) to serve.

Additional Targeting Rule Examples

Serve the on treatment for users with custom attribute app_version greater than or equal to 16.0.0:

Serve the on treatment for users with custom attribute age greater than or equal to 20:

Serve the on treatment for users with custom attribute deal_size between 500,000 and 10,000,000:

Serve the on treatment for users with custom attribute registered_date on or after a specified date:

Custom attribute types and matchers​

Each custom attributeA key-value pair used to describe a user, account, or entity during feature flag evaluation. Attributes can be used in targeting rules to determine which treatment is served. type supports a specific of comparison operators, or matchers, that can be used in attribute-based targeting rules.

When you select an existing attribute in the targeting rule builder, Harness FME only shows matchers compatible with that attribute type. You can also enter a new attribute ID directly in the IF field to create a custom attribute inline while building a targeting rule.

String attributes​

String attributes store text values. Use String matchers to create targeting rules based on string comparisons, regular expressions, or lists of string values.

The following matchers are supported:

  • is in list
  • is not in list
  • starts with
  • does not start with
  • ends with
  • does not end with
  • contains
  • does not contain
  • matches (regular expression)
  • does not match (regular expression)
Use cases for String Attributes

String attributes work well for targeting based on categorical or label-based data, such as subscription tiers, regions, or customer segments.

For example, use an subscription_plan String attribute to target customers on the Business or Enterprise plan.

SemVer attributes​

SemVer attributes store version strings that follow the Semantic Version specification. Use SemVer matchers to create targeting rules based on application or operating system versions.

The following matchers are supported:

  • is =
  • is not =
  • is >=
  • is <=
  • is in list
  • is between (inclusive)
  • is not between (inclusive)

SemVer values must include a patch version number. For example, 2.2 is invalid, while 2.2.0 is valid. Pre-release identifiers and build metadata are also supported.

Use cases for SemVer attributes

SemVer attributes work well for version-based targeting, such as rolling out features to specific app versions, operating systems, or SDK releases.

For example, use an os_version SemVer attribute to enable a feature only for users running version >= 2.2.0.

Supported SDKs and customer-deployed components for SemVer matcher​

SemVer matchers are only supported in specific SDK and customer-deployed component versions. If your SDK or customer-deployed component version does not support SemVer matchers, upgrade to a supported version to ensure targeting rules evaluate correctly.

If an unsupported SDK evaluates a feature flag containing a SemVer matcher, the SDK returns the control treatment and logs a corresponding impression event.

The following versions support SemVer matchers:

Client-side SDK SuiteVersion that supports SemVer
Android SDK Suite1.2.0 and later
Browser SDK Suite1.4.0 and later
iOS SDK Suite1.2.0 and later

Set attributes​

Set attributes store lists of string values. Use Set matchers to create targeting rules based on membership in multiple values.

The following matchers are supported:

  • is equal to
  • is not equal to
  • has any of
  • does not have any of
  • has all of
  • does not have all of
  • is part of
  • is not part of
Use cases for Set attributes

Set attributes work well for targeting users based on membership in multiple values, such as visited regions, enabled products, permissions, or user interests.

For example, use a us_states_visited Set attribute to target users who have visited one or more states on the US West Coast.

Number attributes​

Number attributes store positive or negative whole numbers. Decimal values are not supported. Use Number matchers to create targeting rules based on thresholds or ranges.

The following matchers are supported:

  • is =
  • is >=
  • is <=
  • is between (inclusive)
  • is not between (inclusive)
Use cases for Number attributes

Number attributes work well for targeting based on thresholds or ranges, such as purchase amounts, login counts, account age, or usage metrics.

For example, use an orders_last_quarter Number attribute to target customers who placed at least 20 orders in the last quarter.

DateTime attributes​

Depending on the SDK you are using, DateTime values must be passed as either milliseconds since epoch or seconds since epoch. Use DateTime matchers to create targeting rules based on time windows.

The following matchers are supported:

  • is on
  • is not on
  • is after
  • is before
  • is between (inclusive)
  • is not between (inclusive)
Use cases for DateTime attributes

DateTime attributes work well for time-based targeting, such as onboarding periods, contract dates, subscription expirations, or scheduled feature rollouts.

For example, use a contract_signed DateTime attribute to keep a legacy feature enabled for customers who signed up before a specific date.

Boolean attributes​

Boolean attributes store either true or false. Use Boolean matchers to create targeting rules based on conditions.

The supported matcher is is.

Use cases for Boolean attributes

Boolean attributes work well for simple yes-or-no targeting conditions, such as account verification status, beta program enrollment, or feature eligibility flags.

For example, use a homeowner Boolean attribute to target customers based on home ownership status.

Use regex with custom attributes​

String attributes support regex-based matching for advanced targeting scenarios. If your application versions follow semantic versioning, Harness recommends using SemVer matchers instead of regex whenever possible.

Regex Targeting Rule Examples

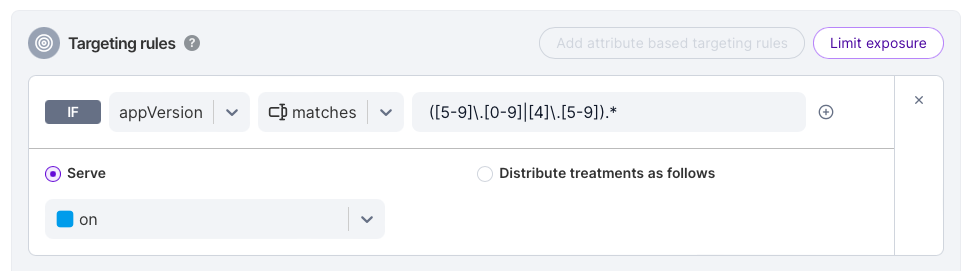

Target specific app major version​

To target users with app version greater than or equal to 4.5 to get the on treatment, this regex could be used for matching the appVersion attribute:

(\[5-9\]\\.\[0-9\]|\[4\]\\.\[5-9\]).*

You can use the matches operator in the targeting rule editor within the Split user interface to match the value of a passed attribute (such as an app version) to a regular expression and specify treatment assignments for any versions that match the expression.

This approach also works when versions are formatted in Major.Minor and you want a specific treatment for versions below a certain threshold (for example, versions below 2.1.0).

Example of passing the appVersion attribute for the JavaScript SDK:

var attributes = {appVersion: "4.567.33"};

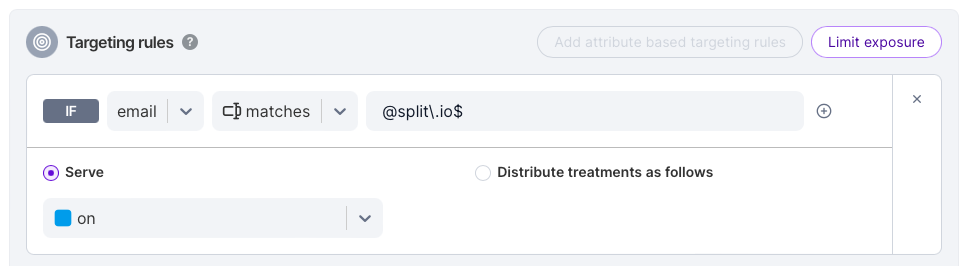

Target all population of specific domain of user emails​

For this example, to serve the on treatment for all employees of split.io, we can use the Regex below for email attribute:

@split.io$

Example of passing the email attribute for the JavaScript SDK:

var attributes = {email: "bilal@split.io"};

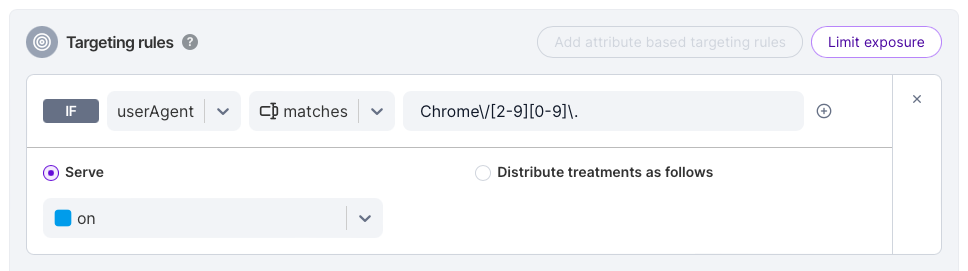

Target users on Chrome version 20 and later​

This example we are serving the on treatment to Chrome users only. However, we want to only use Chrome versions 20 and later for compatibility reasons. The attribute passed is userAgent:

Chrome\/[2-9][0-9]\.

Example for the JavaScript SDK:

var attributes = {userAgent: "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/27.0.1453.93 Safari/537.36"};

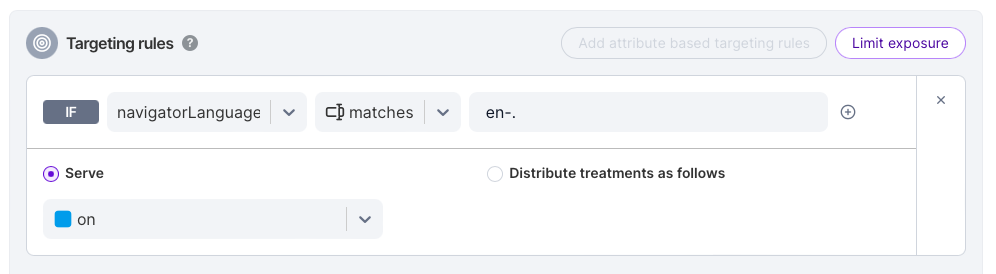

Target English speaking users world wide​

An experiment is designed for English speaking users in any country by detecting the default language setting in the browser, the attribute passed is navigatorLanguage en-.

Example for the JavaScript SDK:

var attributes = {navigatorLanguage: navigator.language};

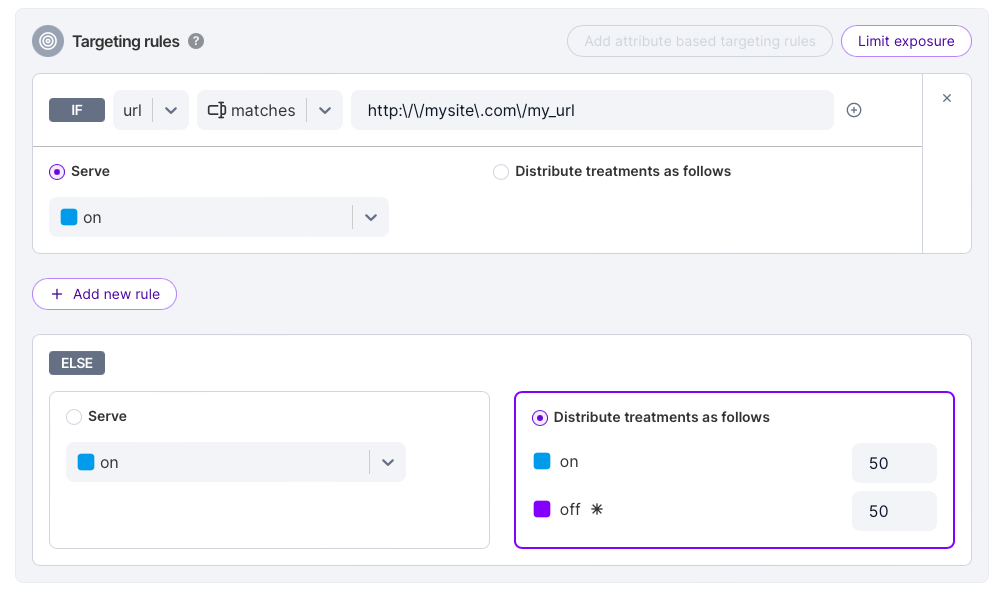

Target specific URL​

To target an experiment that applies only to users that land on a specific URL, the extracted URL can be passed as an attribute to the targeting rule:

http:\/\/mysite\.com\/my_url

Example for the JavaScript SDK:

var attributes = {url: window.location.href};

Troubleshooting​

How targeting rules evaluate custom attributes

Attribute-based targeting rules only evaluate against the attribute values passed during SDK evaluation requests (for example, getTreatment). If an attribute is missing or uses the wrong attribute type, the targeting rule does not match.

Missing attribute values​

If a targeting rule references an attribute that is not included in the SDK evaluation request, the rule evaluates to false.

For example:

Attribute-based Targeting Rule
if age <= 20 then 100% : on
else 100% : off

If the age attribute is not included in the attributes object passed to getTreatment, the condition age <= 20 evaluates to false, and the off treatment is served.

Incorrect attribute type​

If an attribute value does not match the expected attribute type, the targeting rule evaluates to false.

For example:

Attribute-based Targeting Rule
if user.plan_type is "basic" then 100% : on
else 100% : off

If plan_type is passed as a number instead of a string, the condition user.plan_type is "basic" evaluates to false, and the off treatment is served.
