Customizing your Harness Project Configuration

Last updated on Dec 5, 2025

---

note

Before proceeding, ensure that the Harness Solutions Factory has been deployed into your account

Modify the Harness Project Setup workflow to source from the Custom Template Library

1. Log into your Harness Account and select Code Repository

2. Change your scope to the organization named Harness Platform Management

3. Select the repository - harness-template-library and clone this locally to your machine

4. Select the repository - custom-harness-template-library and clone this locally to your machine

5. Open both repositories in separate VSCode windows. When prompted, do not click Reopen in Container. We will do this after the initial copy process

6. Locally, in the harness-template-library repository, find the folder named harness-project

7. Copy the folder to the root of the custom-harness-template-library

8. Prepare the IDP Resource Manager file

   • Open the idp_registration_mgr.yaml in the repository harness-template-library
   • Find the harness-project entry

     - org: Harness_Platform_Management
         project: Solutions_Factory
         workflows:
         - name: harness-project

   • Open the idp_registration_mgr.yaml in the repository custom-harness-template-library
   • Paste the above code snippet entry under the entities key.
     note

     You will need to remove the [] at the end of this line entities: []

9. Reopen the custom-harness-template-library in the container

   • On the bottom left corner of VSCode is a blue box ><, click on this icon to open the DevContainers management panel and choose Reopen in Container

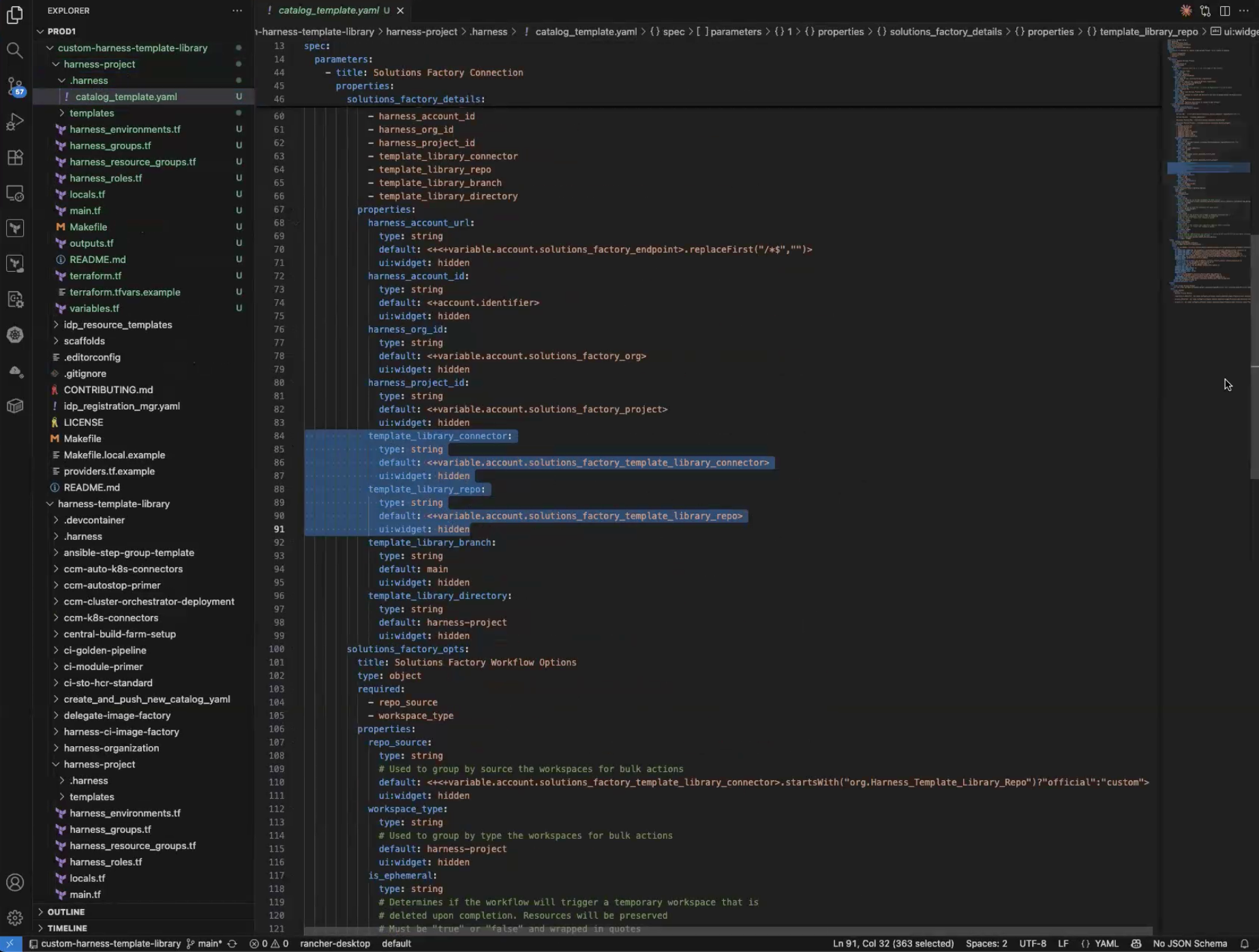

10. Now we will modify the Harness IDP workflow for the harness-project template - open the file harness-project/.harness/catalog_template.yaml in VSCode

    note

    There are account level variables that manage the configuration of the Custom Template Library Connector and Repositories. You can access these variables and adjust them by updating the variable in the Account Settings for the platform.

11. Find and Modify the following Solutions Factory Details parameters to match the following values

            template_library_connector:
              type: string
              default: <+variable.account.custom_template_library_connector>
              ui:widget: hidden
            template_library_repo:
              type: string
              default: <+variable.account.custom_template_library_repo>
              ui:widget: hidden
            template_library_branch:
              type: string
              default: main
              ui:widget: hidden

12. Find and Modify the following Solutions Factory Options parameters to match the following values

repo_source:
        type: string
        # Used to group by source the workspaces for bulk actions
        default: custom
        ui:widget: hidden

13. Save and Commit your changes.
    note

    For this workshop, we will just commit directly to* main*. In a different workshop, we will work through a feature branch upgrade process

14. Push your changes to Harness Code
15. Find and Execute the pipeline named Register Custom IDP Templates:
    • Navigate to the Solutions Factory project in your Harness Account
    • Filter your pipelines by typing idp in the pipeline search bar
    note

    For this execution, we will make no changes to the inputs and accept the default details

16. Navigate to IDP and review the YAML for the workflow harness-project
    note

    If you would like to verify that the change has been made, you can click the three dots and choose View Yaml. You should see the following annotations:

    annotations:
        is_harness_official: "False"
        source: custom-template-library
        created_by: custom

17. Create a new Project with the name Custom Project
    • Wait for the execution to complete.
18. Review the IACM Workspace Lab_Custom-Project in the Solutions Factory project
    • Select the Configuration Tab
    • Notice the Tags source:custom and type:harness-project
    • Verify that the Repository Git Connector is Custom Harness Template Library Repo

Customize your Harness Project template

1. Open the custom-harness-template-library in VSCode. Make sure you Reopen in Container
2. Create the file harness-project/templates/roles/Security_Admins.yaml
3. Copy the contents from this file harness-project/templates/roles/permission_sets/Security_Orchestration.yaml into the new role file created.
   note

   Multiple permissions could be added and interspersed from other permission sets. For the purposes of this exercise, we will just copy the entire set.

4. Create the file harness-project/templates/groups/Security_Champions.yaml
5. Copy the contents from this file harness-project/templates/groups/Project_Viewers.yaml into the new group file created.
6. Add a new role binding to include our new role.

   - role: Security_Admins
     resource_group: _all_project_level_resources

7. Save and commit your changes.
   note

   For this workshop, we will just commit directly to main. In a different workshop, we will work through a feature branch upgrade process

8. Push your changes to Harness Code
9. Apply customizations to the custom project
   • Navigate to the Solutions Factory project in your Harness Account
   • Open the IACM Workspaces and select the workspace Lab_Custom-Project
   • Click Provision and Run the pipeline
     note

     This pipeline will require a review to verify the changes to be applied. Based on the changes included, you should see four resources Added

   • Approve the change and wait for the pipeline to finish
10. Navigate to the Custom Project project and look at the new RBAC configuration that was added
11. Apply the change to all the existing workspaces
    • Navigate to the Solutions Factory project in your Harness Account
    • Filter your pipelines by typing iacm in the pipeline search bar
    • Run the pipeline Bulk Workspace Management
      • WORKSPACE_SOURCE = official
      • WORKSPACE_TYPE = harness-project
      • WORKSPACE_STATUS = any
      • WORKSPACE_CHANGE_SOURCE = yes
      • WORKSPACE_ACTION = apply
      note

      This pipeline will migrate the original two projects created to use our new custom-template-library changes.

    • After the Bulk Workspace Management completes, it will have started new executions of the Provision Workspace pipeline for each matching IACM Workspace
    • Approve the changes to the existing workspaces
12. Verify the changes have been applied.
    • The projects should include the new changes
    • The Workspaces will now be source:custom and the Repository Git Connector is Custom Harness Template Library Repo
