Metric Aggregation Rule
Metric aggregation rules roll up a raw numeric field stored in entity metadata to higher levels in your organizational hierarchy. The aggregated value is ingested as a new metadata property on the target hierarchy entity.
Common sources for metric fields:
- Properties ingested via the Catalog Ingestion API
- DORA metrics synced from a CD integration (e.g.
metadata.changeFailureRatePercent,metadata.avgDeploymentTime) - Custom properties defined in entity YAML
Metric aggregation works with any entity kind, including custom kinds.
If a metadata field does not exist on a given entity, that entity is skipped during aggregation.
Create a Metric Aggregation Rule
Step 1: Confirm the field exists on your source entities

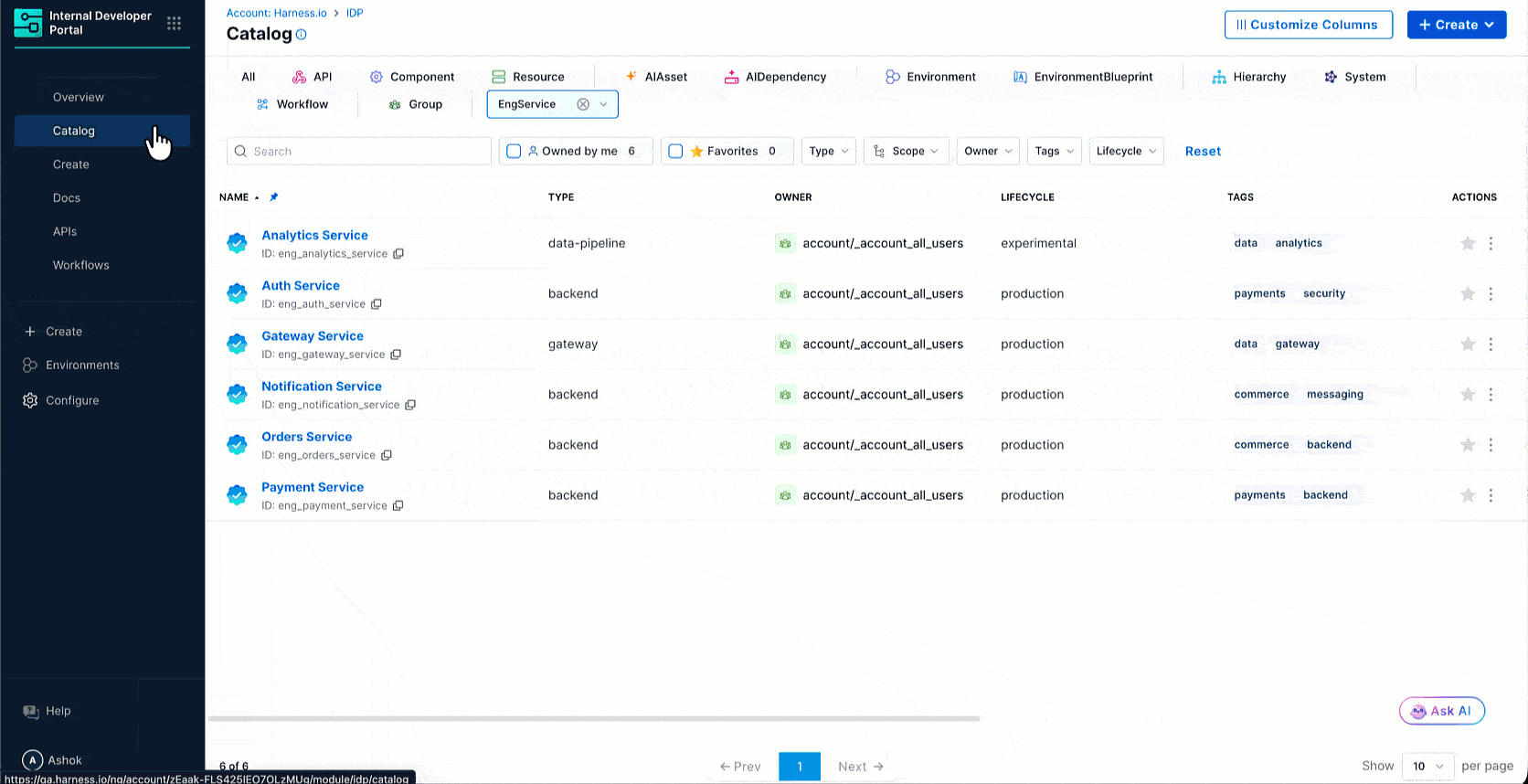

Open any source entity in the catalog, click View YAML, and check Raw YAML or Ingested Properties for the field you intend to aggregate.
If the field is missing, ingest it first via the Catalog Ingestion API or a CD integration.
Finding the correct field path: Use the dot-notation key exactly as it appears in the YAML, including casing. For example:
metadata:
avgDeploymentTime: 45
The field path would be metadata.avgDeploymentTime. Field paths are case-sensitive.
Step 2: Fill in the rule form
Navigate to Configure → Aggregation Rules and click + New Aggregation Rule.
| Field | Required | Description |
|---|---|---|
| Aggregation Type | Yes | Select METRIC |
| Metric / Field to Aggregate | Yes | Dot-notation path from Step 1, e.g. metadata.avgDeploymentTime |
| Aggregation Formula | Yes | Choose the operation: Average (mean across all), Sum (total), Min (lowest), Max (highest), Median (middle value) |
| Aggregation Property Name | Yes | Name of the new property written to hierarchy entities, e.g. avg_deployment_time |
| Description | No | Write a brief description about the rule you create |

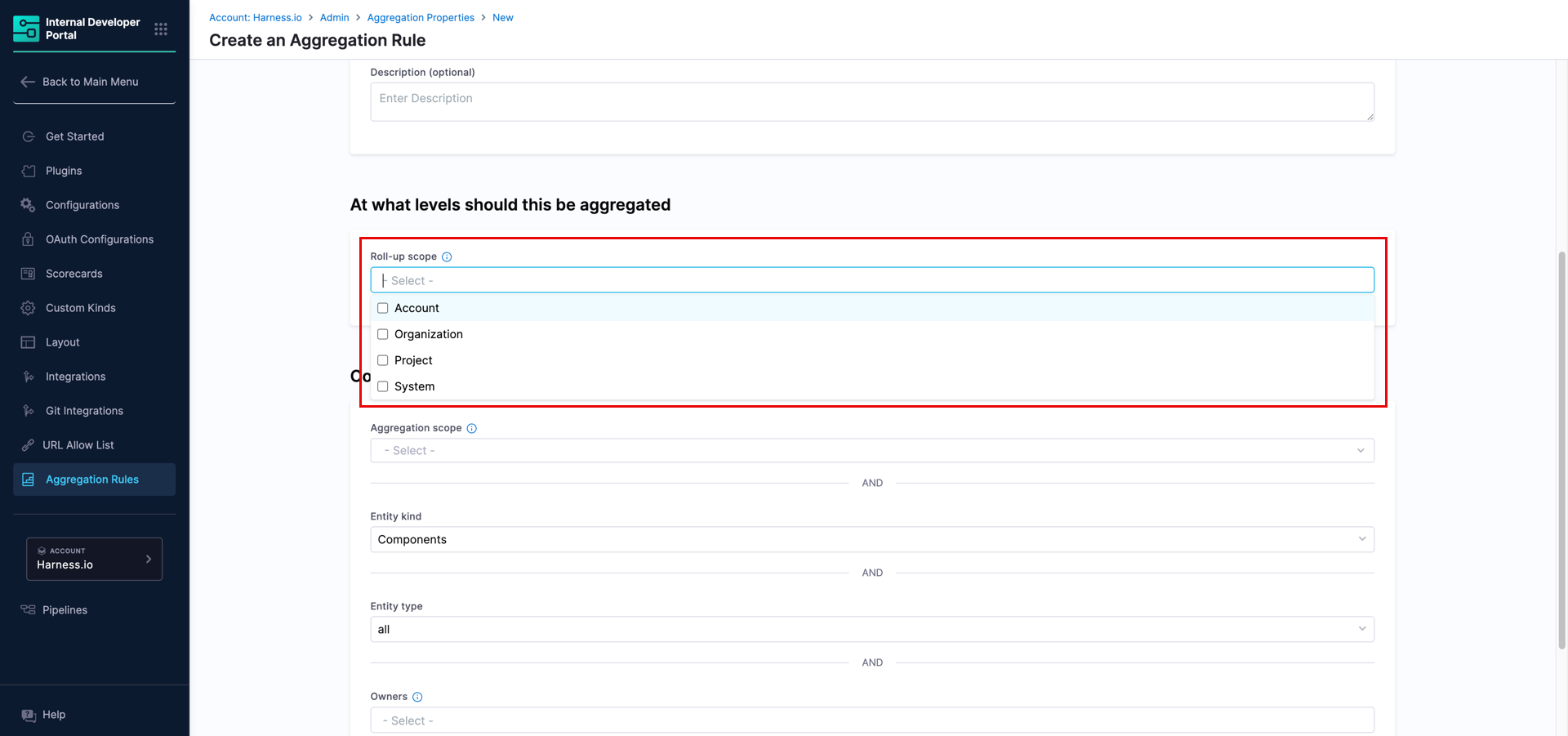

Roll-up Scope
Select the hierarchy levels where the aggregated value should be stored. You can select multiple levels simultaneously.
| Level | Aggregates from |
|---|---|
| Account | All matching entities in the entire account |
| Organization | All matching entities within each organization |
| Project | All matching entities within each project |
| System | All matching entities associated with each system |
Each level is computed independently from the source entities. The account value is never derived by averaging project values. It is always computed fresh from source entities directly.
Configure Entities to Aggregate From
All filters are combined with AND logic.
| Filter | Required | Description |
|---|---|---|
| Aggregation Scope | No | Restrict to a specific account, org, or project. Leave blank (*) for all. |
| Entity Kind | No | e.g. Component or hierarchy |
| Entity Type | No | e.g. service |
| Owners | No | Filter by owner |
| Tags | No | Filter by tags |
| Lifecycle | No | Filter by lifecycle stage |

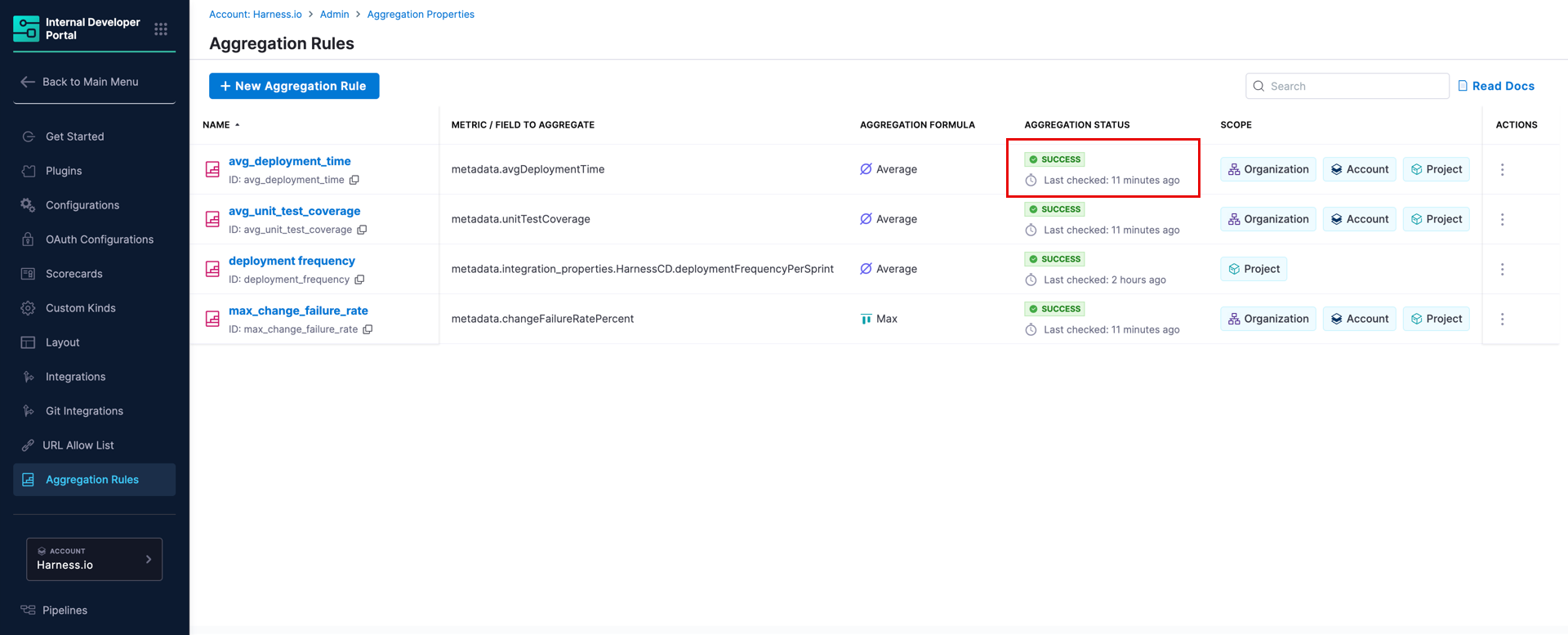

Click Save. The rule appears in your Aggregation Rules list with a SUCCESS status once the first computation completes.
Step 3: Verify the value is ingested

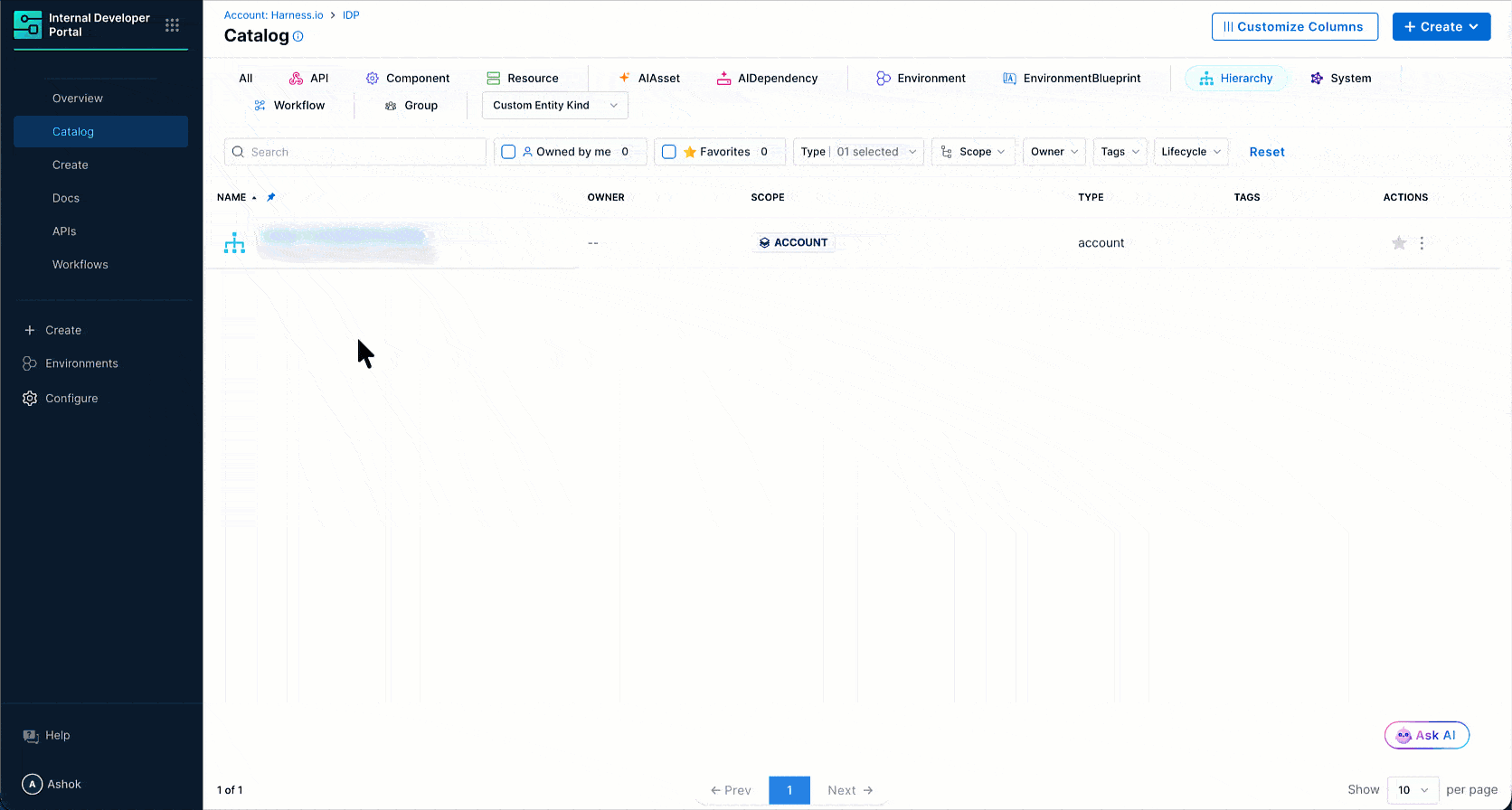

Open the hierarchy entity where the aggregated value should appear (for example, the account entity). Click View YAML → Ingested Properties and confirm the new property is present.
metadata:
avg_deployment_time: 19.0
If the property is missing, check that:
- The field path in your rule exactly matches the key in entity metadata (casing matters).
- At least one entity in your aggregation scope has the field present.
- The rule status is SUCCESS. If it shows an error, click Compute from the three-dot menu to trigger a fresh run.
Step 4: Surface the value in the catalog layout
The aggregated value is stored as a metadata property but does not appear on the entity page automatically. Add a StatsCard to the hierarchy entity's catalog layout to display it.
This is intentional. Harness IDP gives you control over which values appear on which pages and how they are labeled. The same property can appear on multiple layouts with different titles for different audiences.

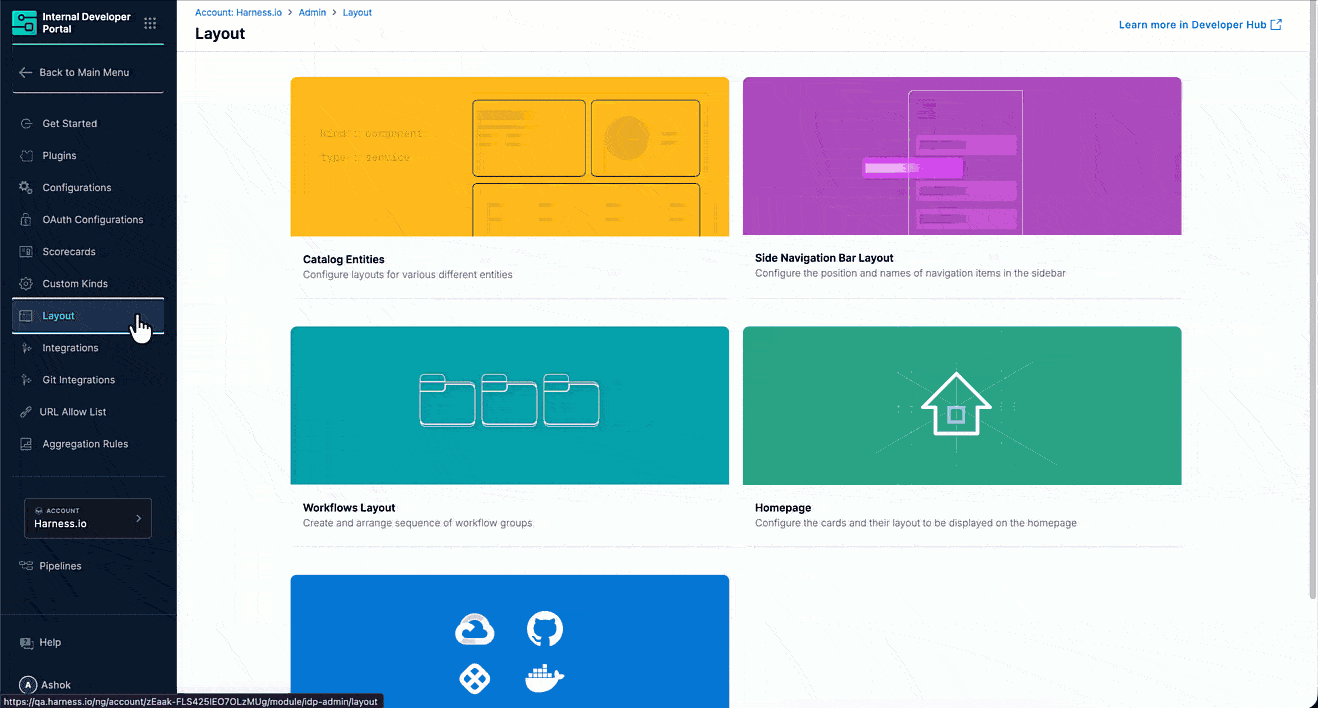

Navigate to Configure → Layout → Catalog Entities → Hierarchy → select the entity type → Edit Layout.

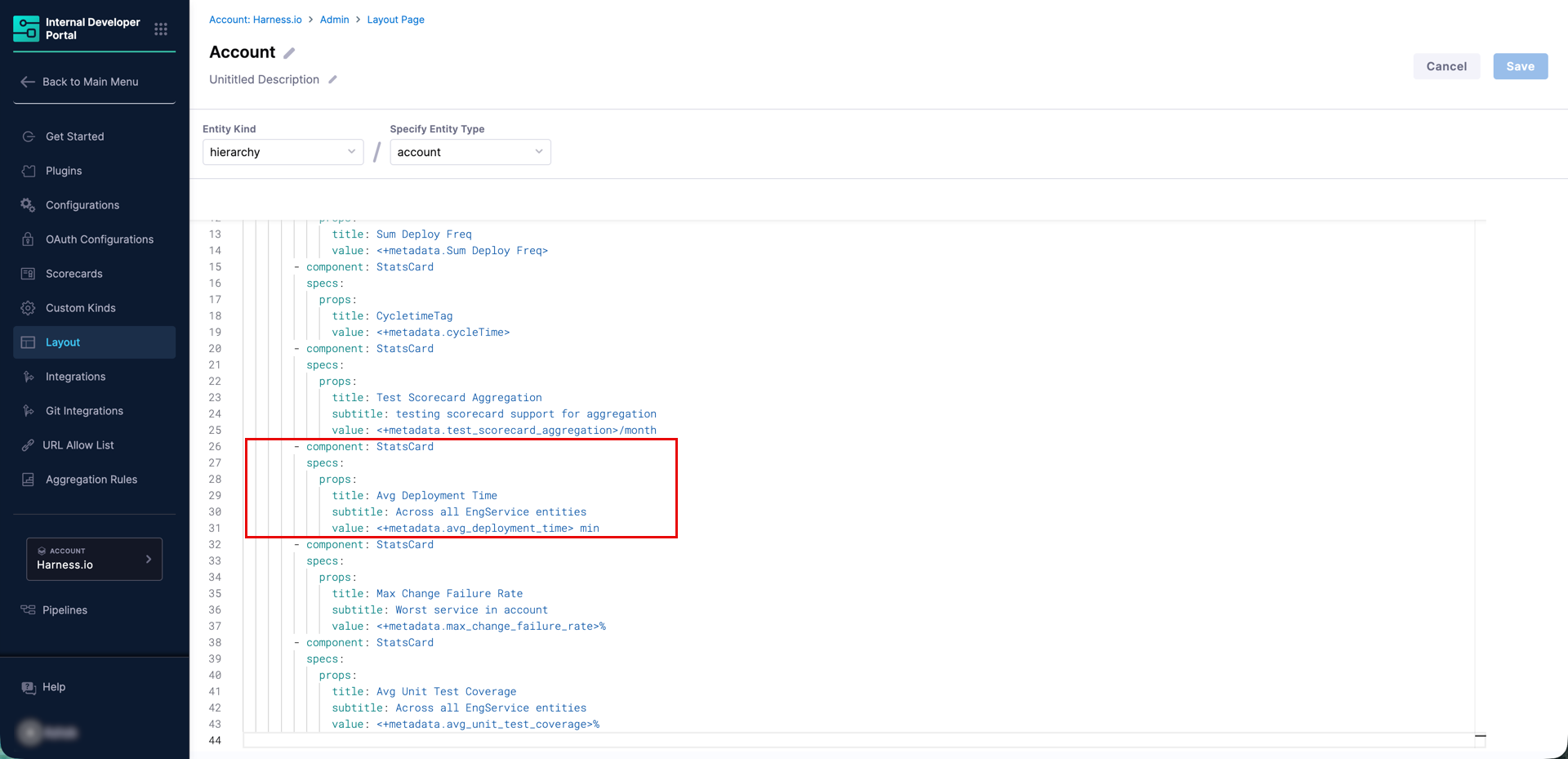

Add a StatsCard referencing the aggregated property using <+metadata.propertyName> syntax given below:
- component: StatsCard
specs:
props:
title: Avg Deployment Time
subtitle: Across all services
value: <+metadata.avg_deployment_time> min

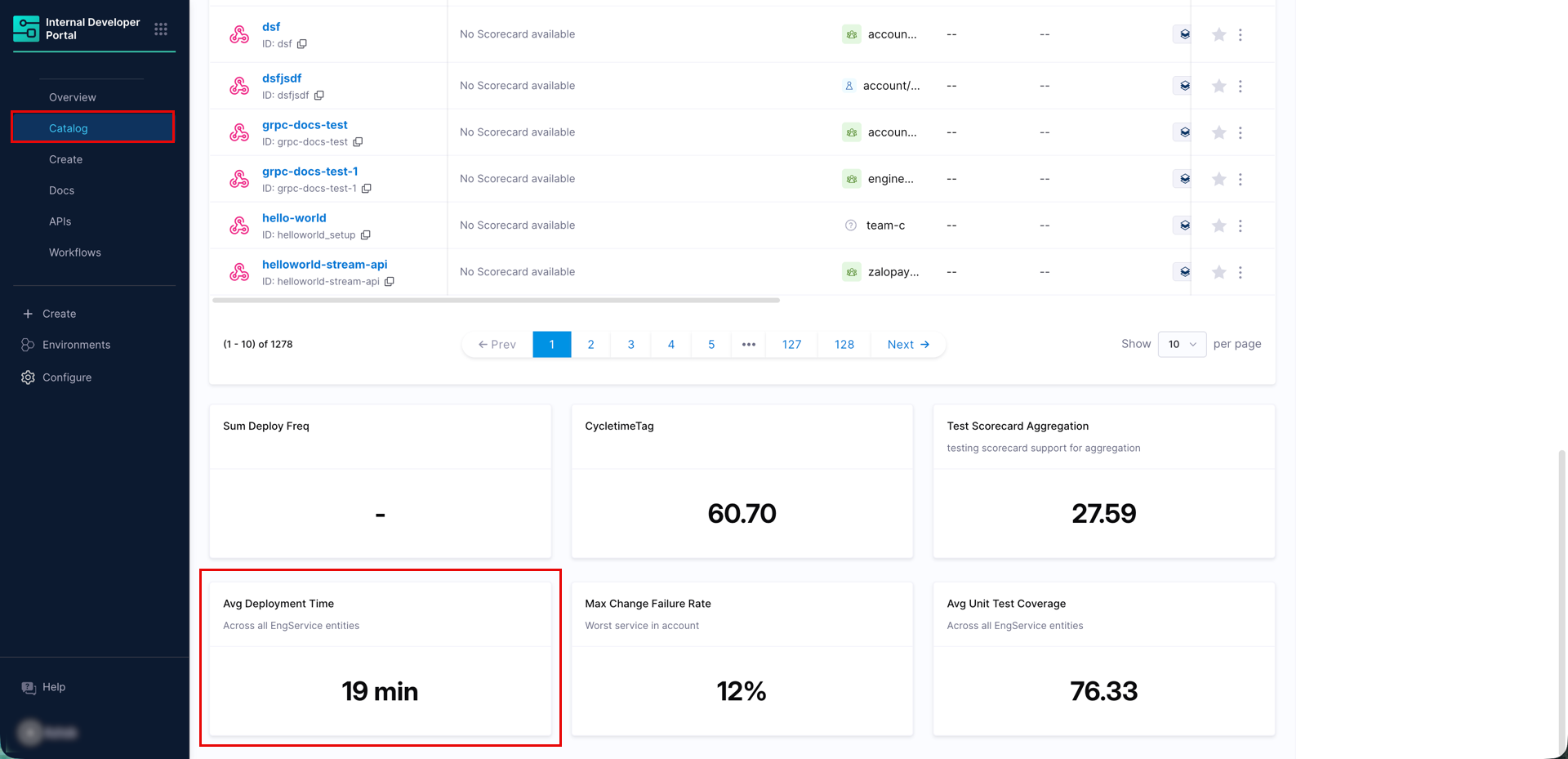

Save the layout. The aggregated value now appears as a card on the hierarchy entity page.
Use Cases
Use Case 1: DORA Metrics from CD Integration
Aggregation Type: Metric
Field to Aggregate: metadata.changeFailureRatePercent
Aggregation Property Name: max_change_failure_rate
Formula: Maximum
Roll-up Scope: Project, Organization, Account
Entity Kind: Component
Type: service
Result: metadata.Max Change Failure Rate is available on project, organization, and account entities.
Use Case 2: Custom Ingested Properties
Aggregate any custom property ingested via the Catalog Ingestion API.
Aggregation Type: Metric
Field to Aggregate: metadata.mttr
Aggregation Property Name: max_MTTR
Formula: Maximum
Roll-up Scope: Project, Organization
Entity Kind: Component
Type: service
Result: metadata.max_MTTR is available on project and organization entities.
Use Case 3: Hierarchical Aggregation
Aggregation Type: Metric
Field to Aggregate: metadata.qa.integrationTestCoverage
Aggregation Property Name: avg_unit_test_coverage
Formula: Average
Roll-up Scope: Organization, Account
Entity Kind: hierarchy
Type: project
Result: metadata.avg_unit_test_coverage is available on organization and account entities.
Frequently Asked Questions
My metric field is not showing up in the aggregated value. Why?
Check the following in order:
- Field path casing: The path in your rule must exactly match the key as it appears in the entity's Ingested Properties YAML, including casing.
metadata.avgDeploymentTimeandmetadata.AvgDeploymentTimeare treated as different fields. - Field presence: Open the Entity Inspector on one of your source entities and confirm the field exists under Ingested Properties. If it is missing, the data has not been ingested yet.
- Rule status: If the rule shows an error status rather than SUCCESS, click Compute from the three-dot menu to trigger a fresh run.
- Entity filters: Confirm the Entity Kind, Type, and Aggregation Scope in your rule match the entities that carry the field. If your filters are too narrow, no entities may qualify.
For more FAQs, see the Aggregation Rules Overview.
The overview page covers shared questions including where aggregated values live, how to restrict aggregation to a subset of projects, and how to display values in the catalog layout.
