Metrics

Last updated on

Metrics let you push time-series data into Harness IDP and display it as charts on catalog entity pages. Use them for anything you would plot over time, for example, latency percentiles, error rates, deployment frequency, uptime, or any numeric value that changes continuously.

Metrics are configured and managed separately from Custom Integrations, but they share the same feature flag (IDP_CUSTOM_INTEGRATION), sit on the same Integrations page, and use the same correlation model.

info

Custom Integrations ingest records (discrete events like builds, deployments, and incidents) displayed as tables. Metrics ingest data points (numeric values over time) displayed as charts. If your data is a table of events, use a Custom Integration. If your data is a number that changes over time, use a Metric.

Before you begin​

Create a Metric​

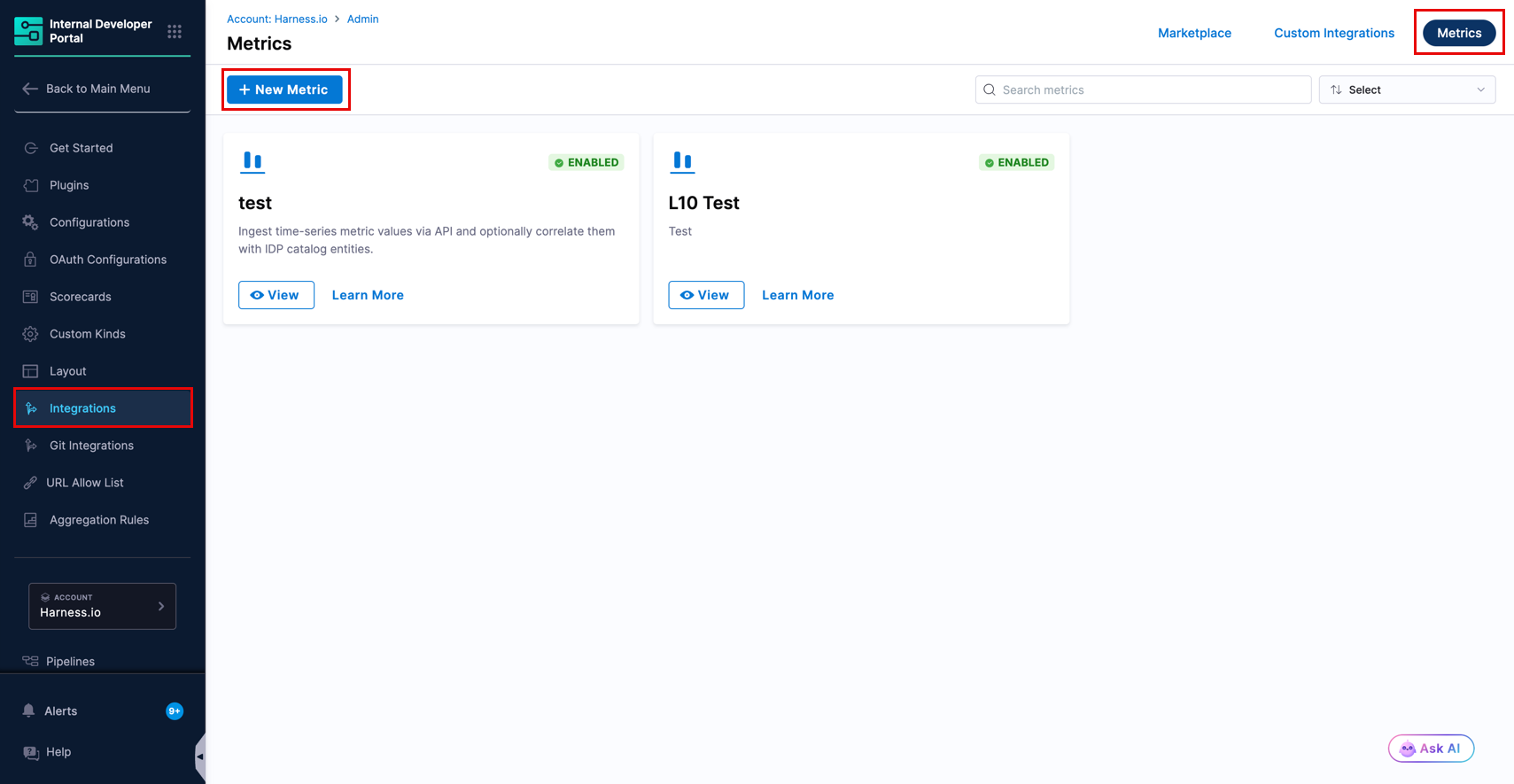

  1. In Harness IDP, go to Configure → Integrations.

  2. Select Metrics at the top right of the page.

  3. Select + New Metric.

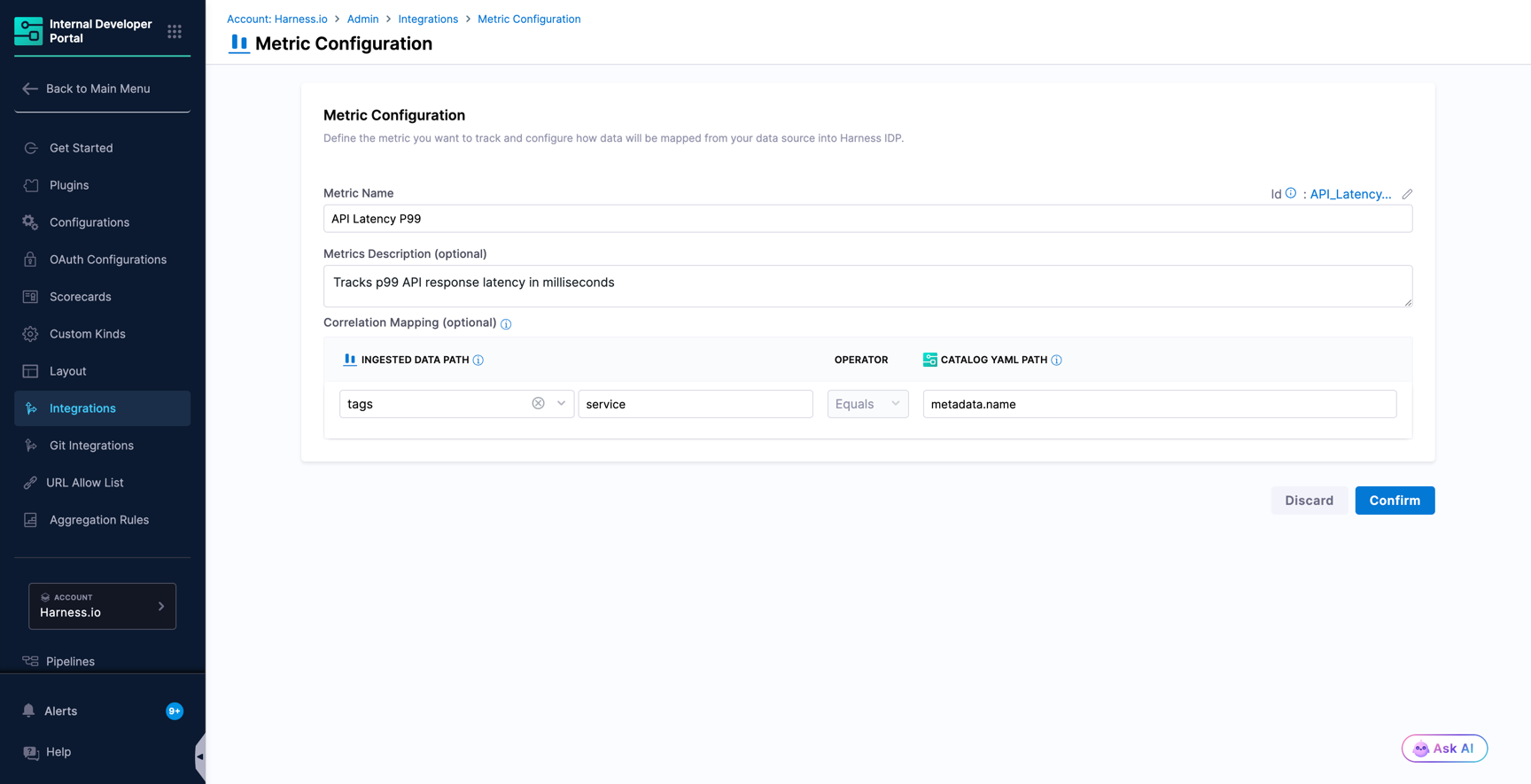

Step 1: Configure the metric​

The Metric Configuration form has three sections:

FieldRequiredDescription
Metric NameYesA human-readable name, for example Deployment Frequency or API Latency P99.
IdYesAuto-generated from the name. Select the pencil icon to change it. The Id becomes part of the ingestion endpoint URL and cannot be changed after creation.
Metrics DescriptionNoWhat the metric tracks, for example "Tracks how often code is deployed to production".

Step 2: Configure Correlation Mapping (optional)​

Correlation Mapping links metric data points to catalog entities, using the same model as Custom Integrations.

FieldDescription
Ingested Data PathThe field in the incoming payload to match on. The dropdown lists the available fields: entity_ref and any tag keys.
OperatorThe comparison to apply. Equals is supported.
Catalog YAML PathThe path in the catalog entity YAML to match against, for example metadata.name.

If you leave Correlation Mapping empty, data points must carry an entity_ref in the payload to be linked to an entity.

Step 3: Confirm​

Select Confirm. The metric is created and its detail page opens.

Ingest metric data​

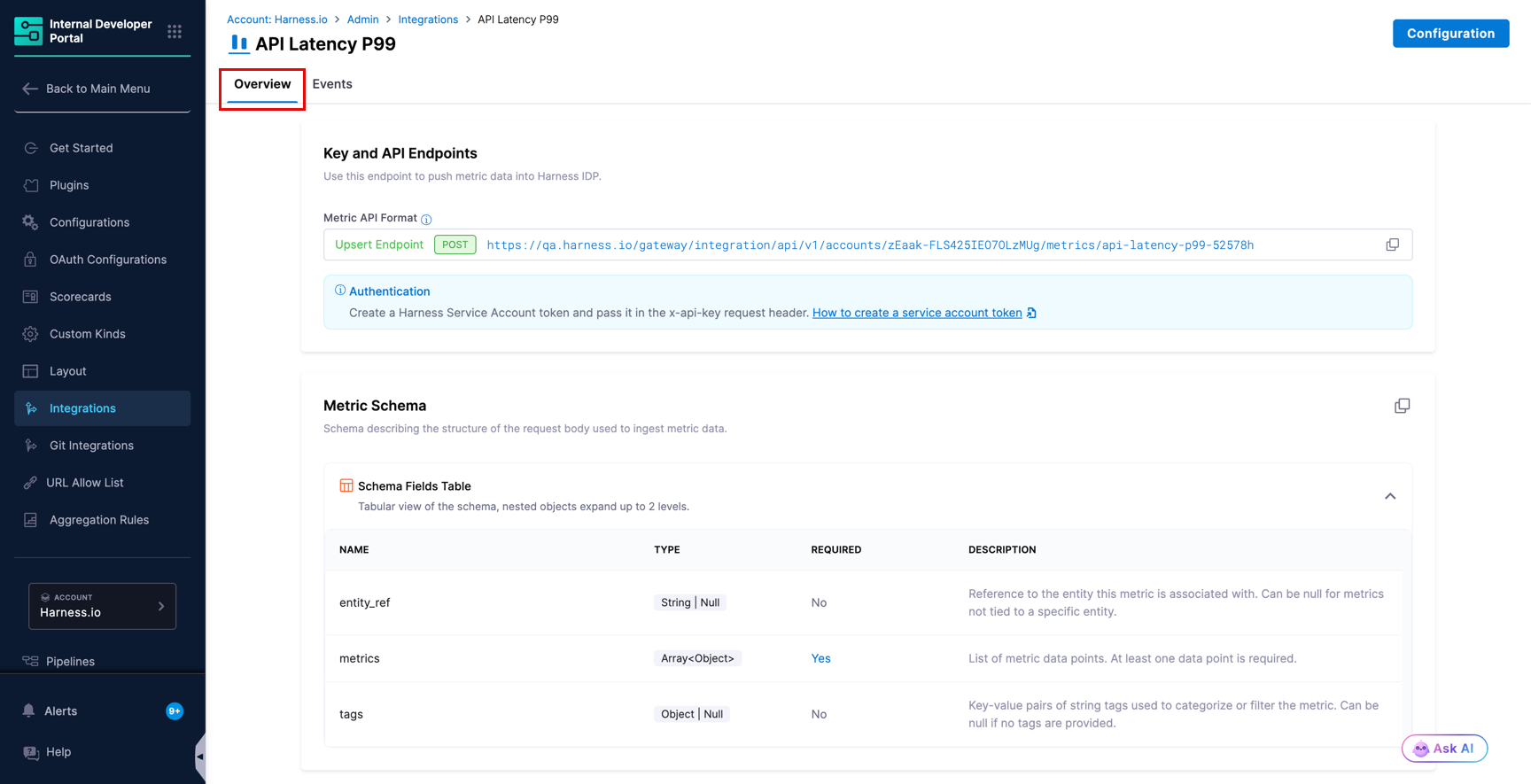

On the metric's Overview tab, copy the Upsert Endpoint:

The endpoint has this shape:

POST https://app.harness.io/gateway/integration/api/v1/accounts/{accountId}/metrics/{metricId}

Headers​

HeaderRequiredValue
x-api-keyYesBoth service account tokens (SAT) and personal access tokens (PAT) are supported. Refer Add and manage api keys.
Harness-AccountYesYour Harness account ID.
Content-TypeYesapplication/json

Request body​

FieldTypeRequiredDescription
metricsarray of objectsYesAt least one data point. Each point has a value (number) and a timestamp (ISO 8601 string).
entity_refstringNoLinks these data points to a catalog entity directly. Can be null for metrics not tied to a specific entity.
tagsobjectNoKey-value pairs of string tags to categorize or filter the metric. Usable as the source side of a Correlation Mapping.
Example payload
{
  "entity_ref": "component:default/auth-service",
  "tags": { "env": "prod", "region": "us-east-1" },
  "metrics": [
    { "value": 245.8, "timestamp": "2026-05-26T12:00:00Z" },
    { "value": 312.1, "timestamp": "2026-05-26T12:05:00Z" }
  ]
}

cURL example​

curl \
--location 'https://app.harness.io/gateway/integration/api/v1/accounts/<ACCOUNT_ID>/metrics/<METRIC_ID>' \
--header 'Content-Type: application/json' \
--header 'x-api-key: <HARNESS_TOKEN>' \
--header 'Harness-Account: <ACCOUNT_ID>' \
--data '{
  "entity_ref": "component:default/auth-service",
  "tags": { "env": "prod", "region": "us-east-1" },
  "metrics": [
    { "value": 245.8, "timestamp": "2026-05-26T12:00:00Z" },
    { "value": 312.1, "timestamp": "2026-05-26T12:05:00Z" }
  ]
}'
info

Metric data points are append-only. Each push inserts new points; it does not update or replace earlier ones. There is no delete endpoint for metrics.

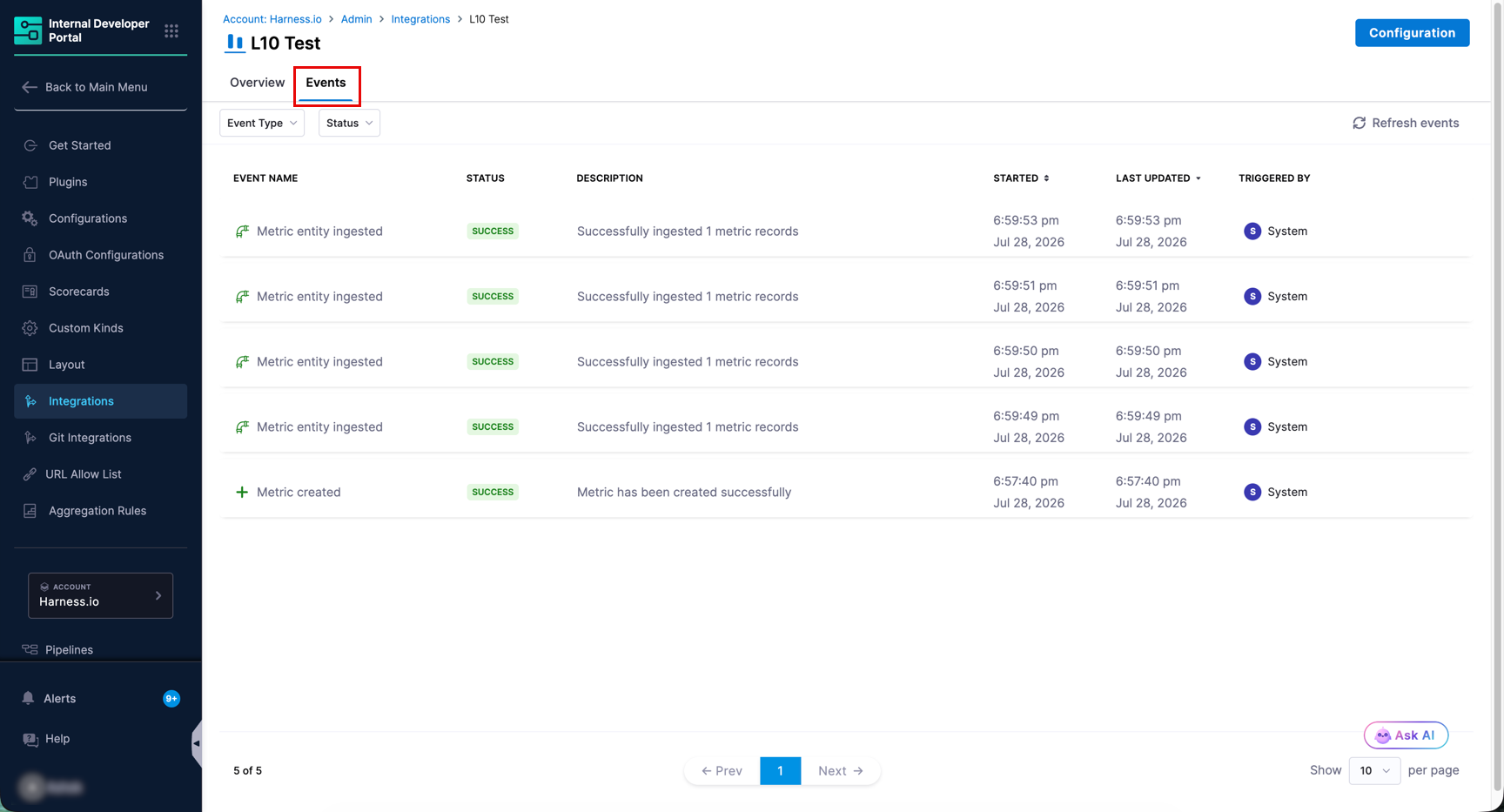

Monitor ingestion with the Events tab​

Every Metric has an Events tab that records creation and ingestion activity, identical in structure to the Events tab on Custom Integrations.

Event NameMeaning
Metric createdThe metric was created successfully.
Metric entity ingestedData points were ingested successfully. The description shows how many.
Metric entity rejectedAn incoming payload was not ingested. The description gives the reason.

Display metrics on entity pages​

To show metric data on a catalog entity page, add a tab to your entity layout using the CustomMetricsTab component:

Layout YAML
    - name: Custom Metrics
      path: /custom-metrics
      title: Custom Metrics
      contents:
        - component: CustomMetricsTab
          specs:
            props:
              type: custom

Follow the same steps as for Custom Integration tabs: go to Configure → Layout → Catalog Entities, edit the layout for the relevant entity kind and type, add the tab entry, and select Save. See Configure the layout for the full walkthrough.

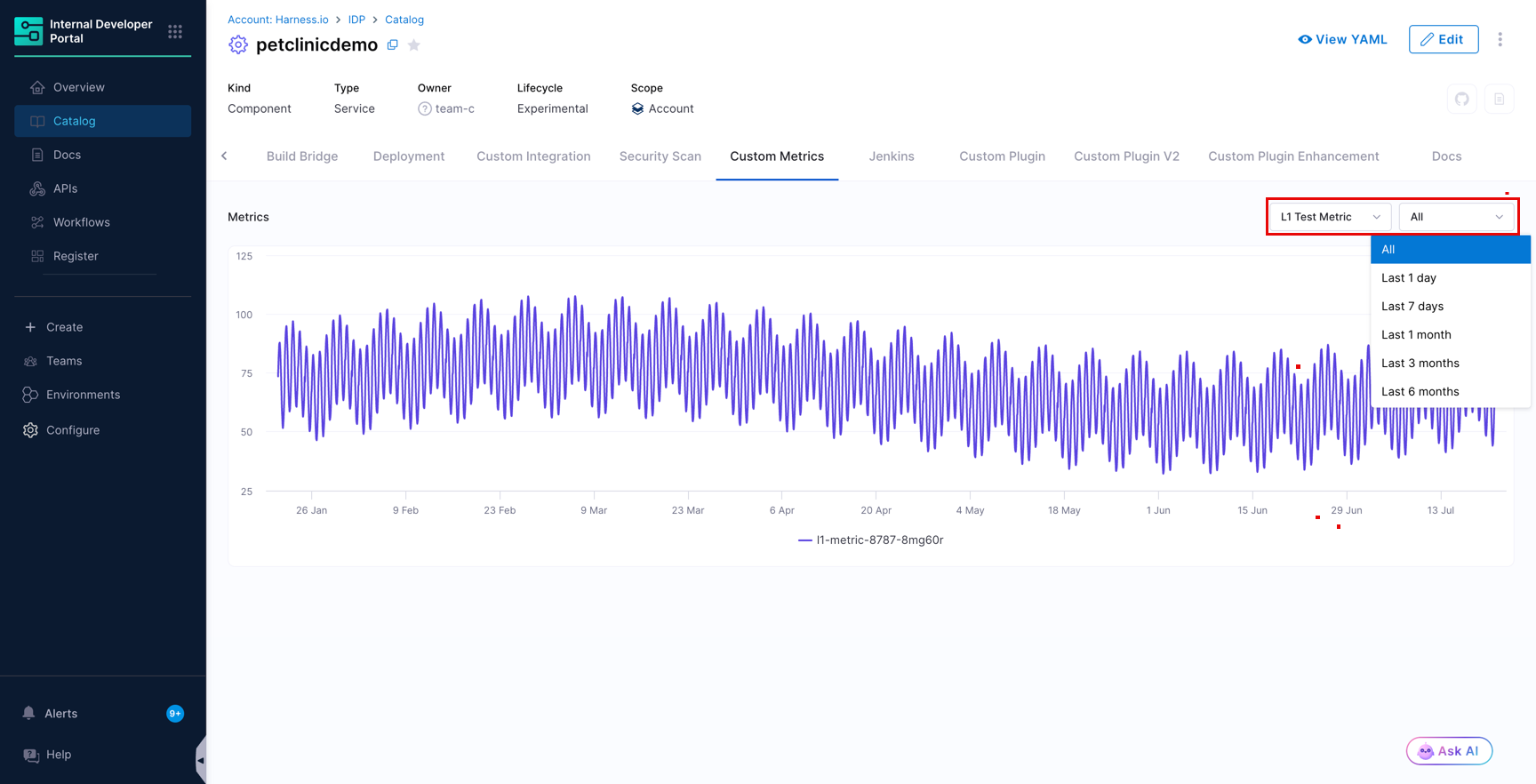

The tab displays a chart of the metric data points over time for that entity. Users can select a time range and hover over data points to see the value and timestamp.

Manage a Metric​

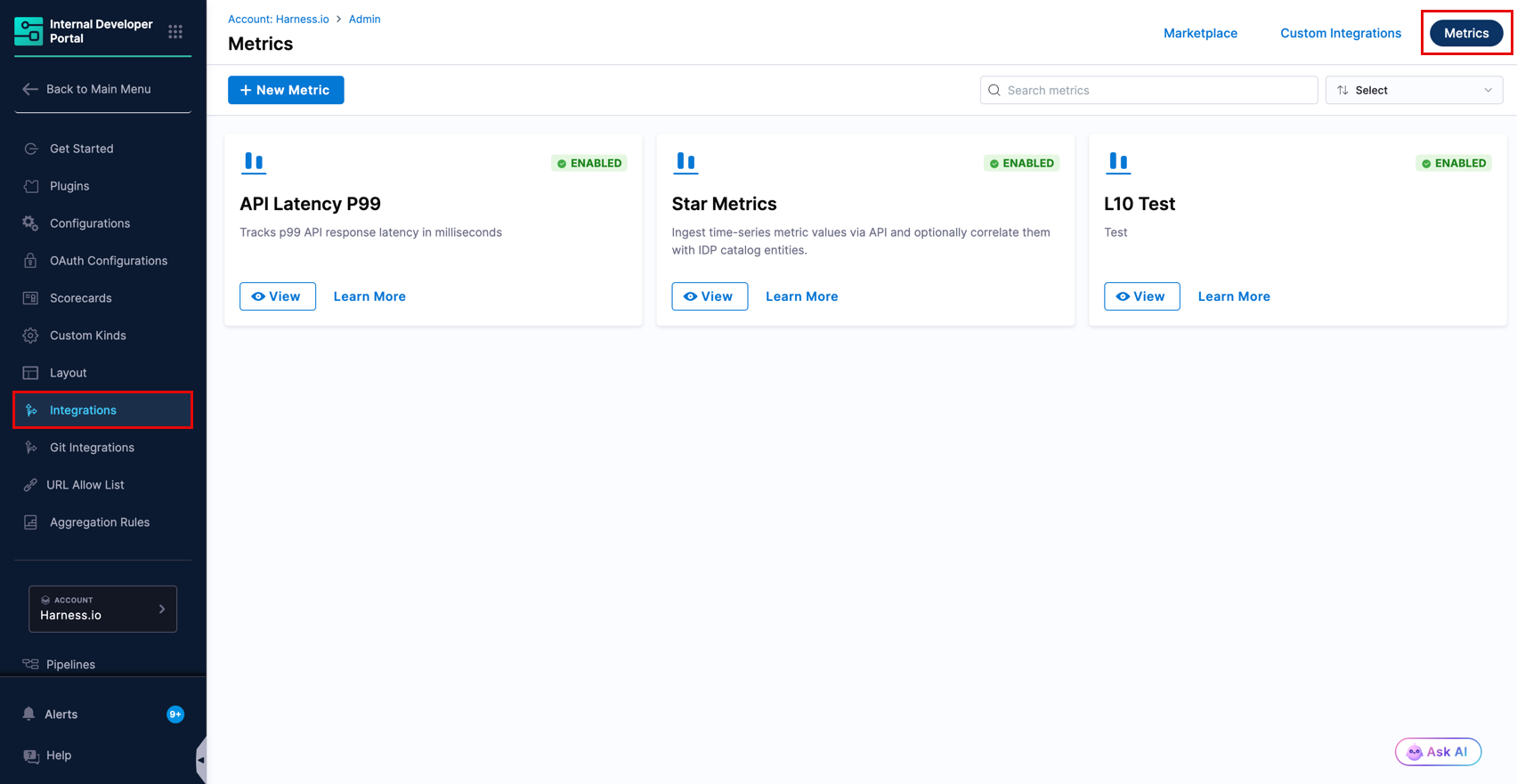

To manage an existing metric, go to Configure → Integrations → Metrics, find its card, and select View. Then select Configuration at the top right.

You can update the Metric Name, Metrics Description, and the Catalog YAML Path of the Correlation Mapping.

The Id and the Ingested Data Path of the Correlation Mapping are fixed after creation.

FAQs​

How is a Metric different from a Custom Integration?

A Custom Integration ingests discrete records (builds, deployments, incidents) and displays them in a table. A Metric ingests numeric data points over time and displays them as a chart. Use a Custom Integration for events, a Metric for time-series.

Can I update or delete metric data points?

No. Metric data points are append-only. Each push inserts new points. There is no update or delete endpoint for metric data.

Can I send metrics without linking them to an entity?

Yes. The entity_ref field is optional and can be null. Metrics not tied to a specific entity are ingested but will not appear on any entity page.

What is the Ingested Data Path dropdown limited to?

For metrics, the Correlation Mapping source can be set to entity_ref or any tag key you send in the payload. Unlike Custom Integrations, there are no schema-defined fields beyond entity_ref, tags, and metrics.

My metric data is ingested but nothing shows on the entity page.

Check the same things as for Custom Integrations: the layout must include a CustomMetricsTab tab for that entity kind and type, and the data points must be correlated to the entity through either Correlation Mapping or entity_ref in the payload. See Display metrics on entity pages.
