View data in the catalog

Last updated on

Ingesting data and displaying it are two separate steps. Once records are arriving and correlating to entities, you add a tab to your entity layout to surface them. This is a one-time configuration per entity kind and type.

info

If your Events tab shows successful ingestion but entity pages show nothing, the layout configuration is almost always the missing piece.

Before you begin​

  • Confirm data is being ingested successfully. Go to Monitor ingestion.
  • Know the entity kind and type you want to show the data on, for example kind component and type service.
  • You need permissions to edit layouts.

Configure the layout​

Each data kind gets its own tab. To show builds and deployments on the same entity page, add two tabs.

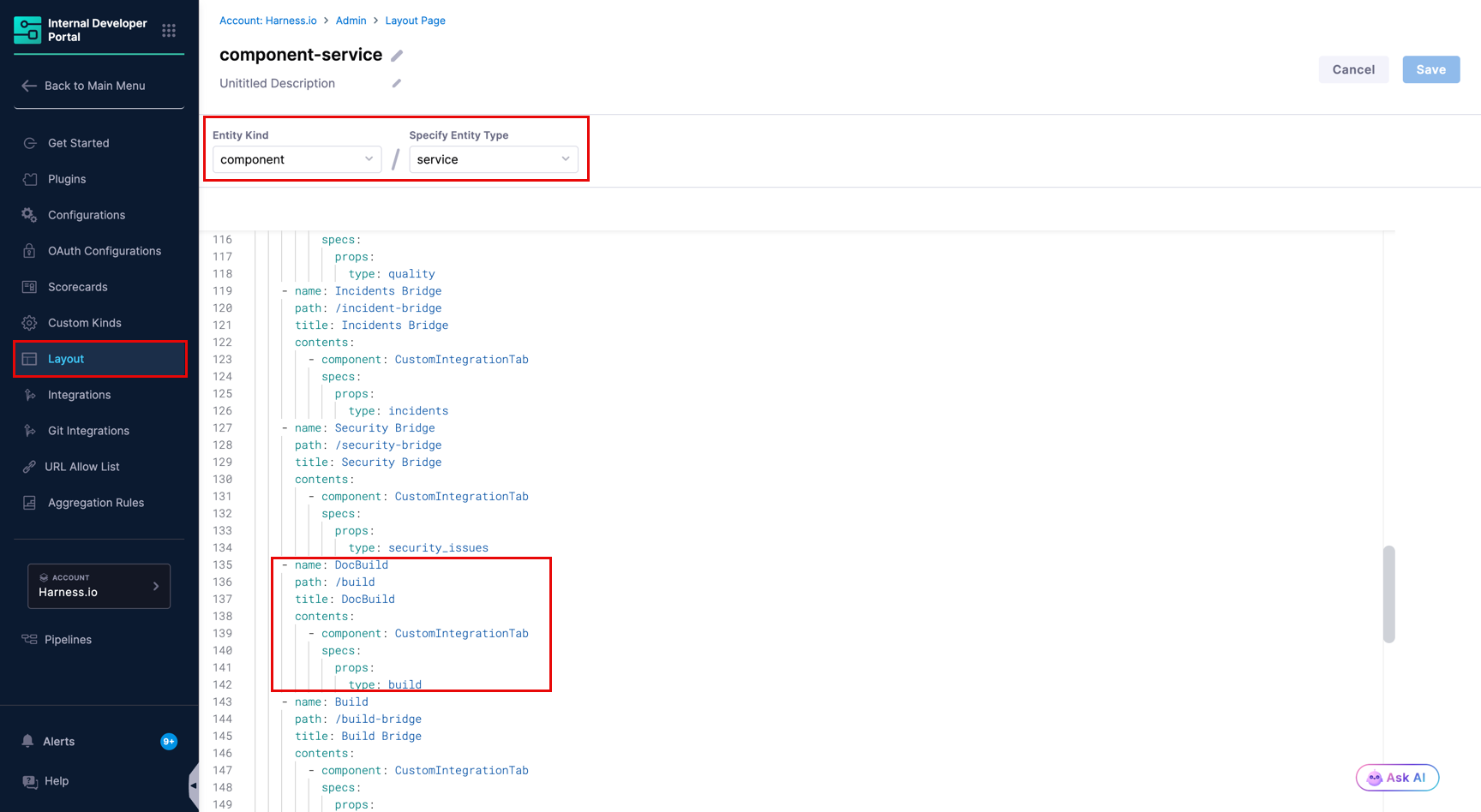

  1. In Harness IDP, go to Configure → Layout → Catalog Entities.

  2. Edit the existing layout for your entity, or create a new one.

  3. Select the Entity Kind and Entity Type that match the entities your records correlate to.

  4. In the YAML editor, add a new top-level tab entry using the CustomIntegrationTab component, and set the data kind in specs.props.type.

    A new top-level tab entry
        - name: Build
          path: /build
          title: Build
          contents:
            - component: CustomIntegrationTab
              specs:
                props:
                  type: build

    Set type to the data schema of the integration whose records you want in this tab: build, deployment, incidents, quality, security_issues, security_scan, or custom. Set name, path, and title to whatever you want the tab called.

  5. Select Save.

The tab now appears on every entity of that kind and type which has correlated data.

To show more than one data kind, add one tab per kind. For example, to show deployments, incidents, and quality alongside the build tab above:

Additional tab entries
    - name: Deployment
      path: /deployment
      title: Deployment
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: deployment
    - name: Incidents
      path: /incidents-bridge
      title: Incidents
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: incidents
    - name: Quality
      path: /quality
      title: Quality
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: quality
    - name: Security Issues
      path: /security-issues
      title: Security Issues
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: security_issues
    - name: Security Scans
      path: /security-scans
      title: Security Scans
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: security_scan
    - name: Custom
      path: /custom-data
      title: Custom Data
      contents:
        - component: CustomIntegrationTab
          specs:
            props:
              type: custom
tip

Each tab is bound to a data kind, not to a specific integration. If three Jenkins pipelines each push builds through their own integration, all of them appear in the same Build tab, and users filter between them.

What users see on the tab​

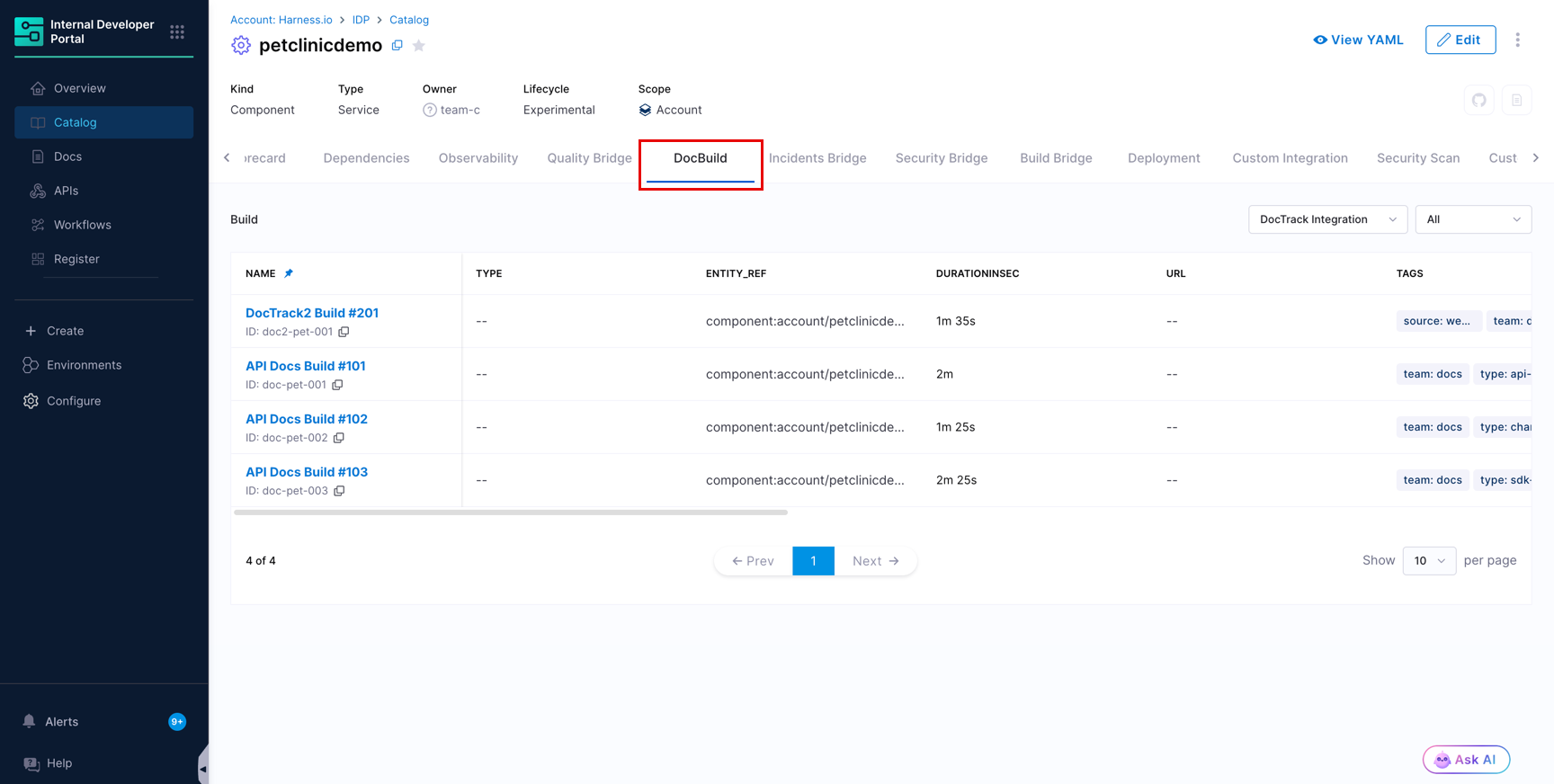

The tab lists the records correlated to that entity, most recent first.

Columns​

The columns come from the Column selections you made in the Schema Fields Table when configuring the integration. To change what is displayed, edit the integration and adjust those selections.

If a record includes a url value, its name becomes a link back to the record in the source tool, so users can jump from a build row to the build in Jenkins.

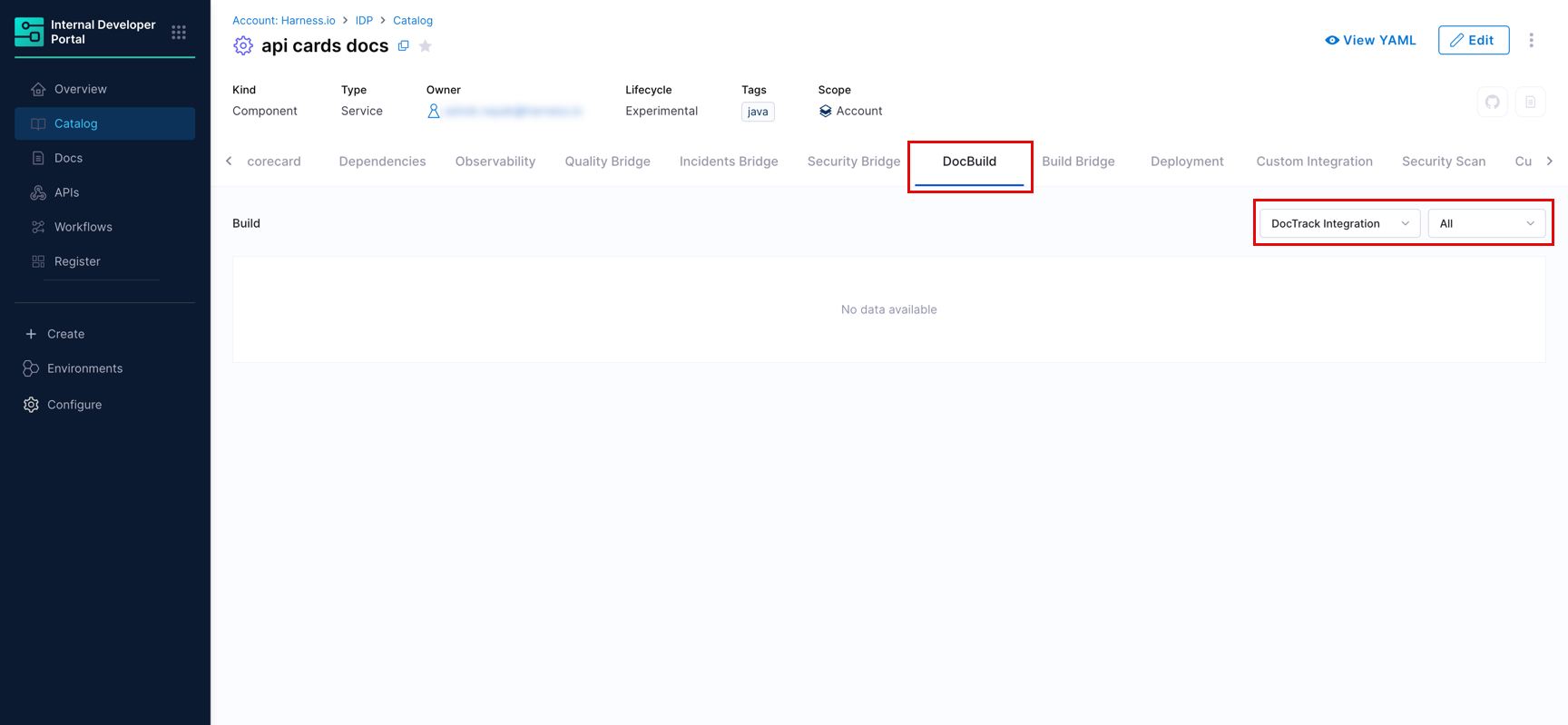

Filters​

Two filters appear above the table, and each is shown only when it is useful:

FilterWhen it appears
IntegrationWhen more than one integration has contributed data of this kind to this entity.
TypeWhen the ingested records carry a type value.

Both default to showing everything. The Type filter is why sending type is worth the effort: it lets users separate rollbacks from standard deployments in a single tab.

Record details​

Select any row to open a details panel showing the full record, including fields that are not displayed as columns, along with its identifier, data kind, source integration, type, and created and last updated timestamps.

tip

The details panel is the fastest way to debug a correlation or mapping problem. If a record looks wrong there, the issue is in the payload or the webhook mapping, not in the layout.

Scope and visibility​

An entity can display data from integrations at its own scope and at any parent scope. An entity in a project sees data from integrations created in that project and from account-level integrations, but not from integrations created in a different project.

Go to Scope for details.

Next steps​

Go to FAQs for common questions and troubleshooting.
