Datadog Integration

Last updated on May 26, 2026

---

The Datadog integration automatically discovers services from your Datadog account and brings them into the IDP Catalog. Once discovered, entities can be registered as new catalog entries or merged into existing ones.

For each service, the integration collects the following resources from Datadog:

Resource	What it provides
Service	Core metadata from the Datadog Service Catalog such as description, contacts, resources, and repository information.
Monitor	Monitor metrics and health summary using queries.
SLO	Service Level Objective data associated with the service.
Service Dependency	Upstream and downstream service relationships, scoped to an environment you configure.

---

Before you begin

The following are needed to get the integration running:

• Ensure the feature flag IDP_CATALOG_CD_AUTO_DISCOVERY is enabled. Contact Harness Support to enable it.
• You have the required RBAC permissions to manage integrations. All integration operations require the IDP_INTEGRATION_EDIT permission on the IDP_INTEGRATION resource type.
• A Datadog connector is configured in Harness with a valid Datadog URL, Application Key, and API Key. You can also create the connector during the integration setup.

Proxy Configuration

If your environment blocks outbound third-party traffic and routes it through a proxy, you will need to configure proxy settings on your Harness Delegate. Once configured there, the proxy settings are automatically picked up by IDP integrations. No additional setup is needed on the integration side.

Go to Configure delegate proxy settings to configure proxy settings on your Harness Delegate.

---

Enable the Datadog Integration

1. Navigate to the Integrations Page

1. In Harness, open the Internal Developer Portal.

2. From the left sidebar, click Configure.

3. In the left navigation menu, click Integrations.



   Figure 1: Navigation Path of Datadog Integration

4. On the Integrations page, click + New Integration at the top.

5. Select DataDog from the integration type picker. You will be taken to the Datadog Integration configuration page.

2. Configure Setup & Connectivity

This section connects Harness IDP to your Datadog account.

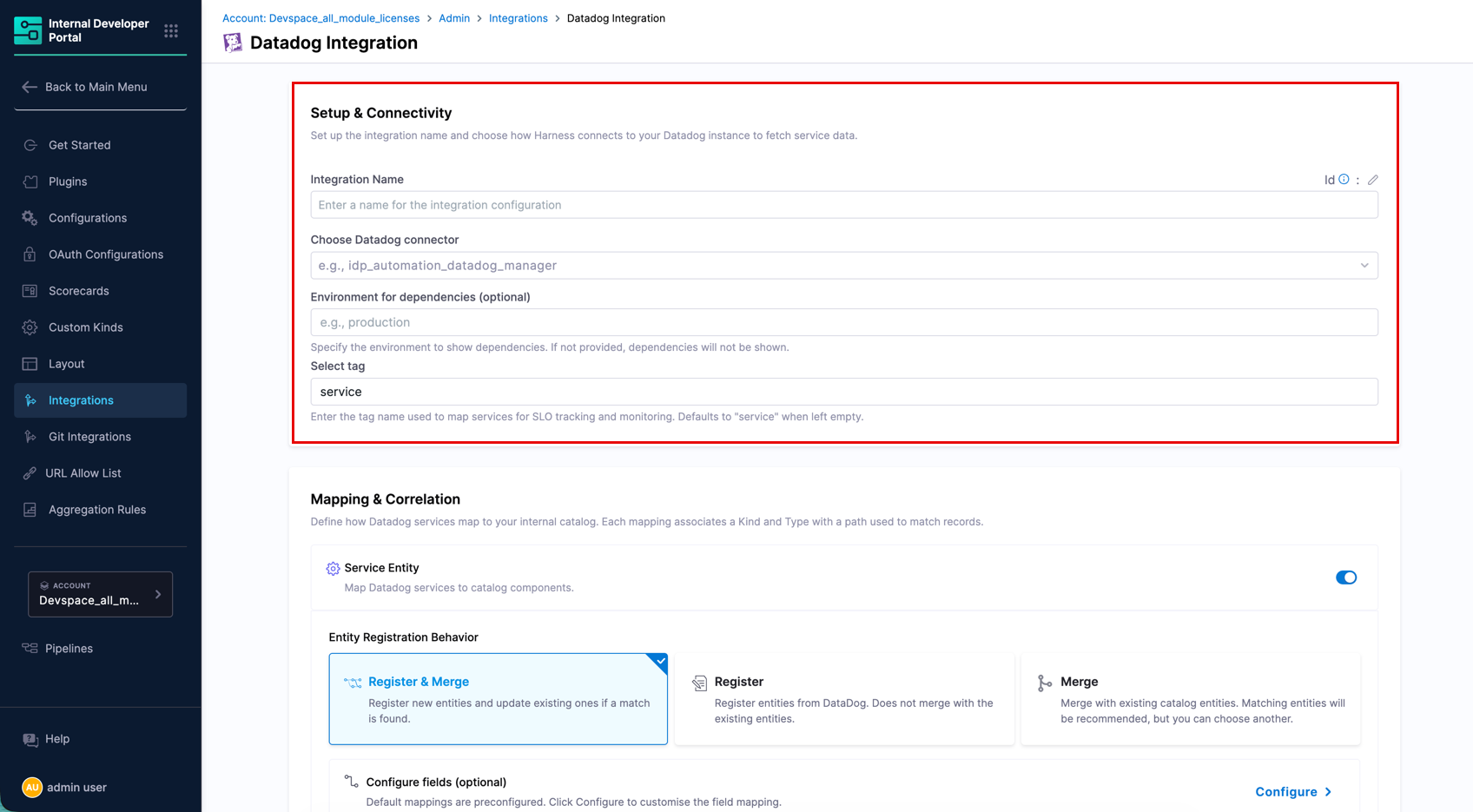

Figure 2: Setup & Connectivity

1. Enter a name in the Integration Name field. This name appears on the integration card on the Integrations page (e.g., Datadog Prod Observability).

2. Click the Choose Datadog connector dropdown and select the Datadog connector you want to use to pull data into the IDP.

   Don't have a Datadog connector yet?

   If no connectors appear in the dropdown, you need to first create a Datadog connector in Harness.

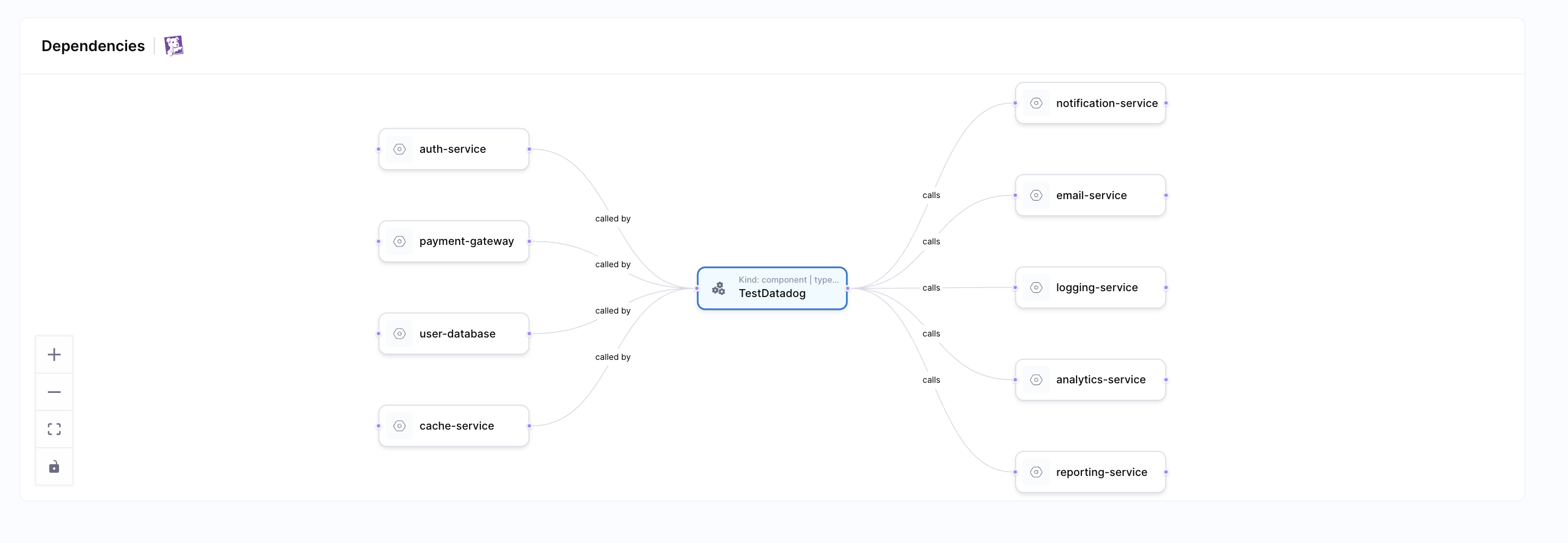

3. (Optional) In the Environment for dependencies field, enter the environment name whose service dependencies you want to see on entity pages (e.g., production). Leave it empty if you do not need dependency information.

   note

   Service dependencies are tracked by Datadog based on recent APM traces. If a service is down and not generating traces, it will not appear in the dependency view.

4. The Select tag field defaults to service. This is a reserved Datadog tag used to map services for SLO tracking and monitoring. Only change this value if you have a specific reason to use a different tag, as modifying it may affect how services are identified and matched.

Create a Datadog Connector

If you do not have an existing Datadog connector, you can create one directly from the integration setup flow. The below video tutorial covers all the steps in depth.

1. Click the Choose Datadog connector dropdown, then click + New Connector.

2. Overview: Give a name to your Datadog connector. Optionally add a description and tags, then click Continue.

3. Credentials: Provide the following and then click Next:

   Field	Description
   URL	The base URL of your Datadog instance (e.g., https://api.datadoghq.com) followed by /api/. Exclude versions if any (e.g., v1)
   Encrypted Application Key	The Datadog Application Key. Click Create or Select a Secret to store it securely. The following scopes are required: apm_service_catalog_read apm_read monitors_read slos_read metrics_read
   Encrypted API Key	The Datadog API Key. Click Create or Select a Secret to store it securely.

4. Delegates Setup: Select the delegate(s) this connector will use to communicate with Datadog.

   • Choose Use any available Delegate to let Harness automatically select an available delegate.
   • Choose Only use Delegates with all of the following tags to pin the connector to specific delegates by tag.

   Click Save and Continue.

5. Verify Connection: Harness tests the connection using the provided credentials and delegate. Once verified, click Finish to save the connector.

3. Configure Mapping & Correlation

This section defines how Datadog services are mapped to IDP catalog entities and how they are correlated with existing records.

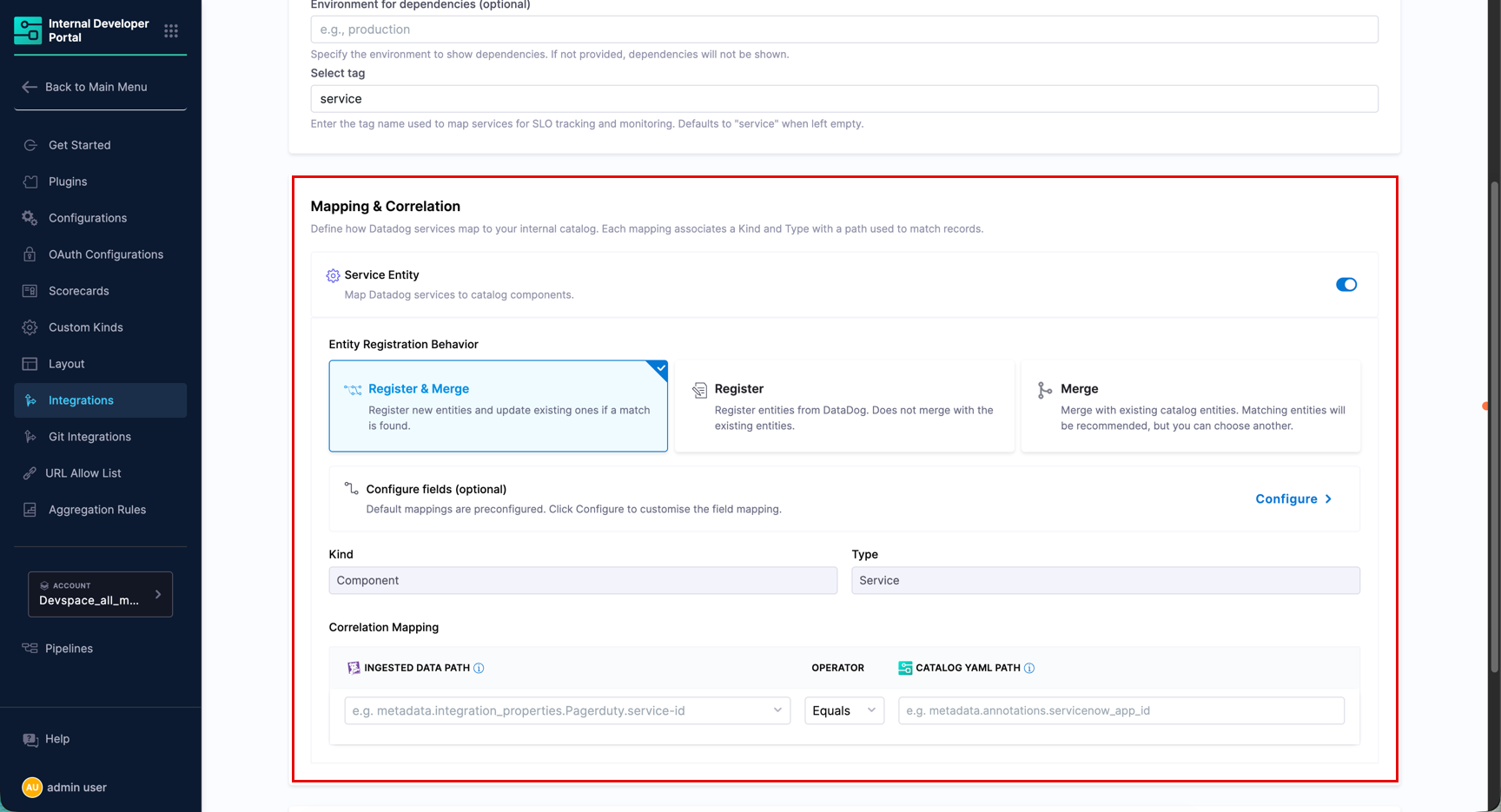

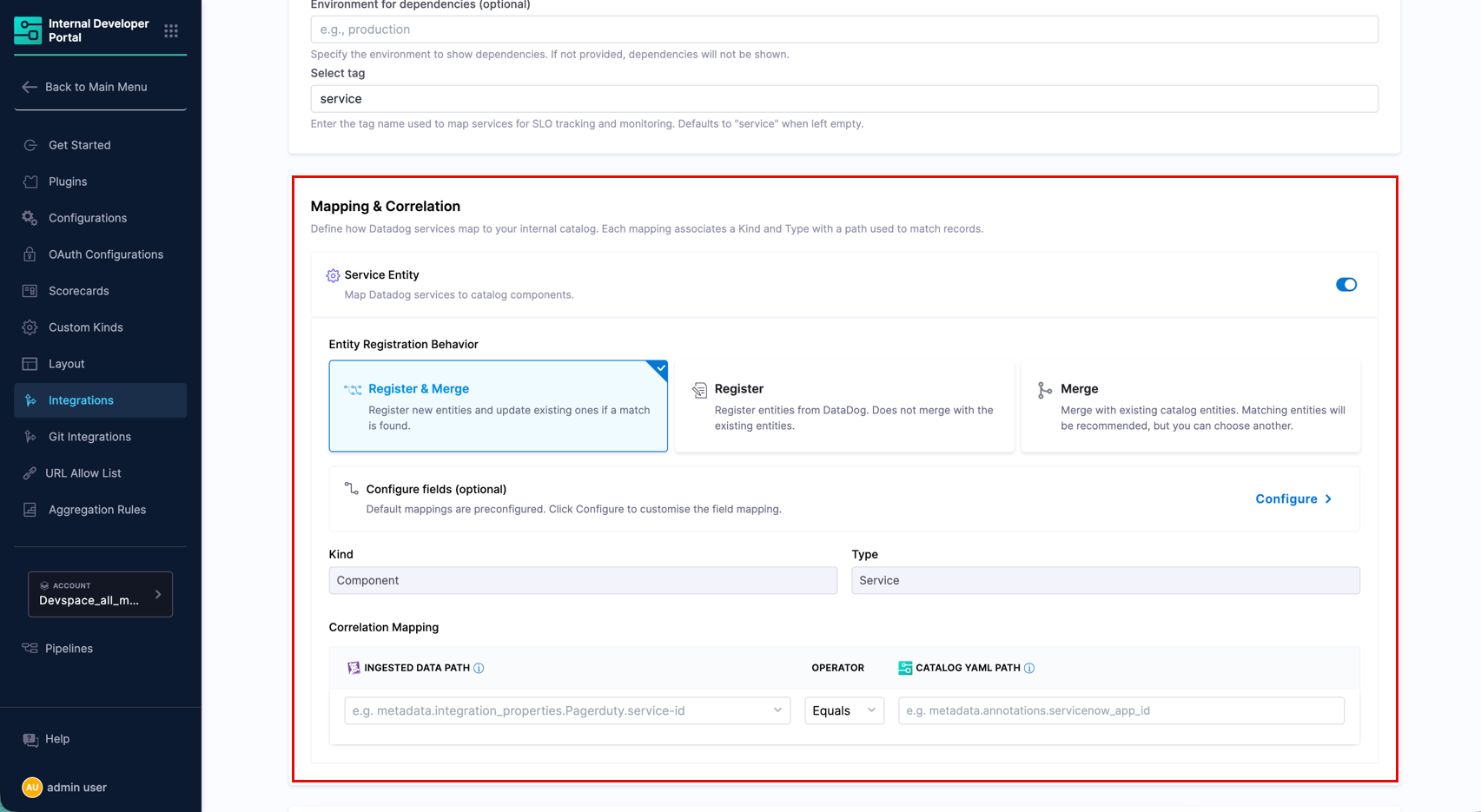

Figure 3: Mapping & Correlation

Service Entity

The Service Entity mapping imports Datadog services as catalog components.

1. Ensure the Service Entity toggle is turned on.

2. Under Entity Registration Behavior, choose how services are brought into the catalog:

   • Register & Merge (Default) - Registers new entities and updates existing ones when a match is found. This is the recommended option for most setups.
   • Register - Creates new catalog entities from Datadog. Does not merge with existing entities.
   • Merge - Links discovered services to existing catalog entities. Matching entities are recommended automatically, but you can choose a different one.

3. The default Kind is Component and Type is Service. These are pre-configured and apply to all Datadog service imports.

4. Under Correlation Mapping, set the Ingested Data Path (from Datadog) and the corresponding Catalog YAML Path (from your IDP entity) to define how records are matched. The operator defaults to Equals.

5. Optionally, click Configure next to Configure fields to customize which Datadog fields are synced to the catalog. By default, all available fields are selected.

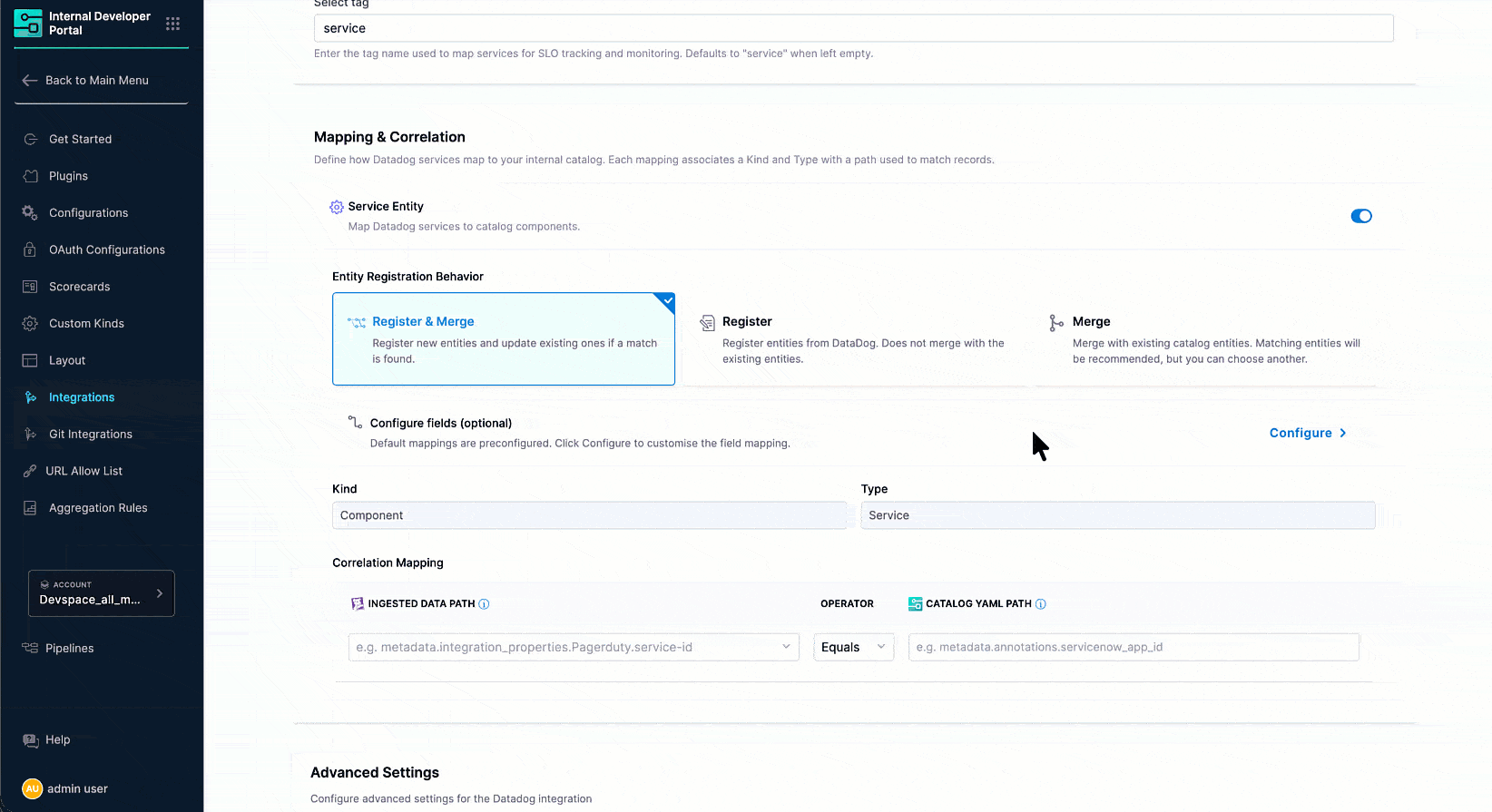

   Figure 4: Configure Datadog Service Fields

4. Configure Advanced Settings

The Advanced Settings section controls how frequently IDP syncs with Datadog.

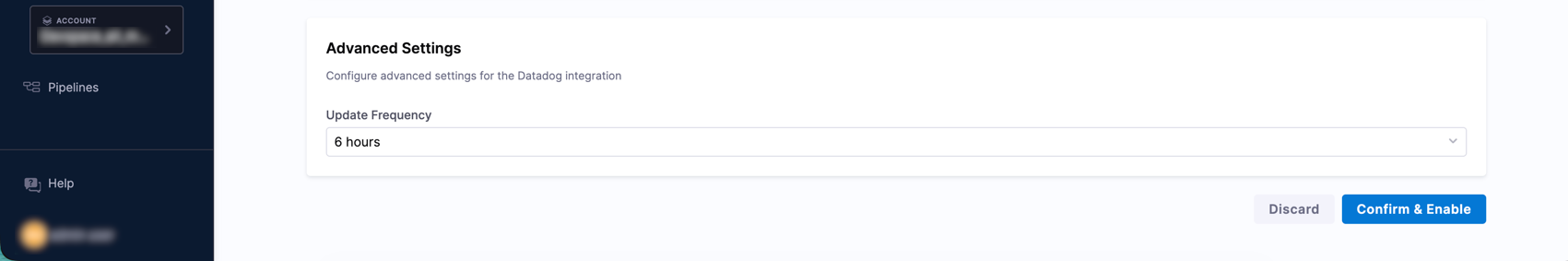

Figure 5: Advanced Settings

1. Select an Update Frequency from the dropdown to control how often IDP polls Datadog for new data.

2. Once all sections are configured, click Confirm & Enable.

The integration is now enabled and IDP begins syncing data from Datadog. Discovered services appear in the Discovered tab.

---

Discover and Import Datadog Entities

This section covers how to view the Datadog services discovered by the integration and import them into your IDP Catalog.

Discovered Tab

After the integration runs, all Datadog services detected appear in the Discovered tab. If no entities appear yet, the tab shows a Discovering Services state, indicating the sync is still in progress.

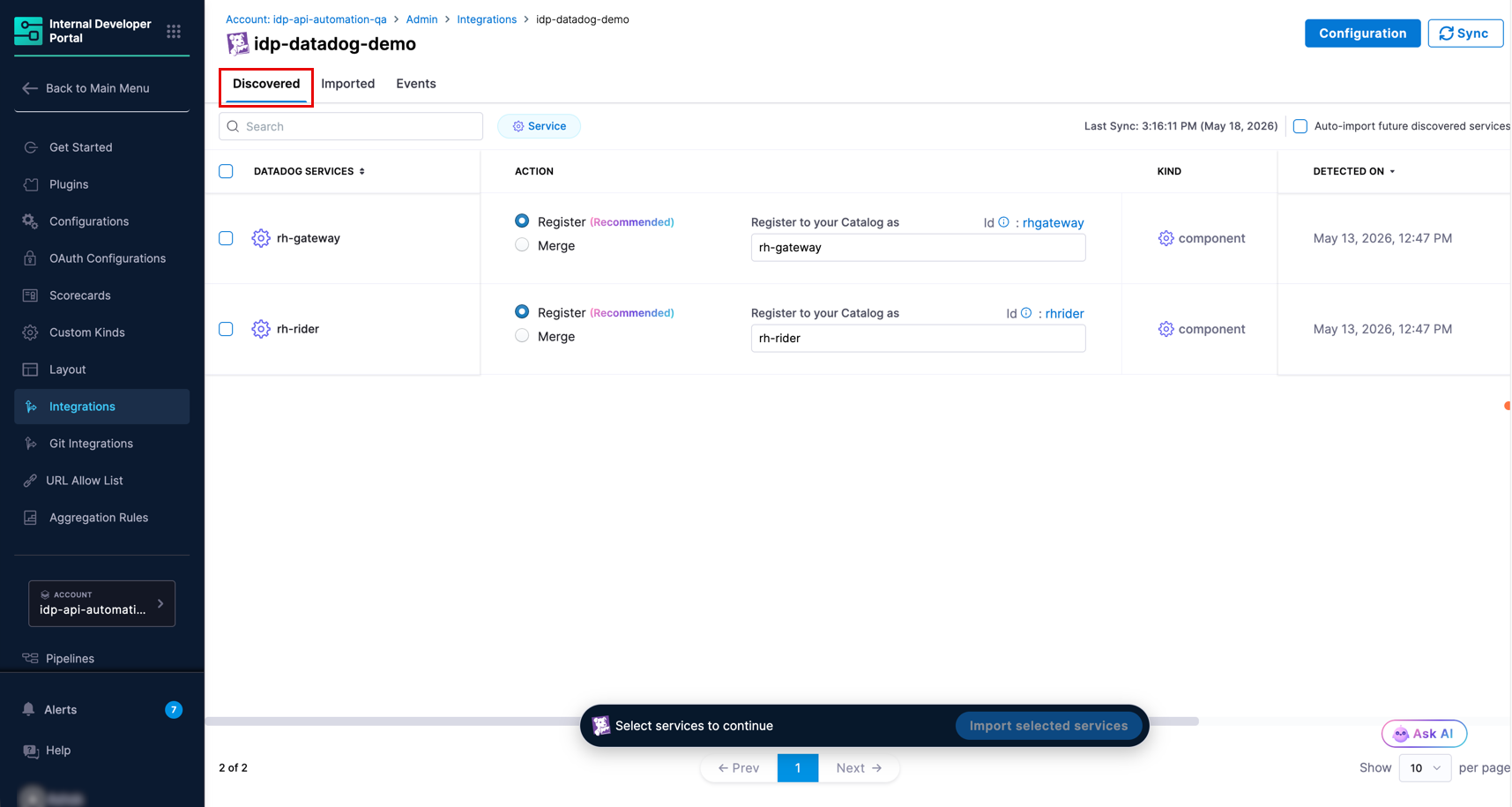

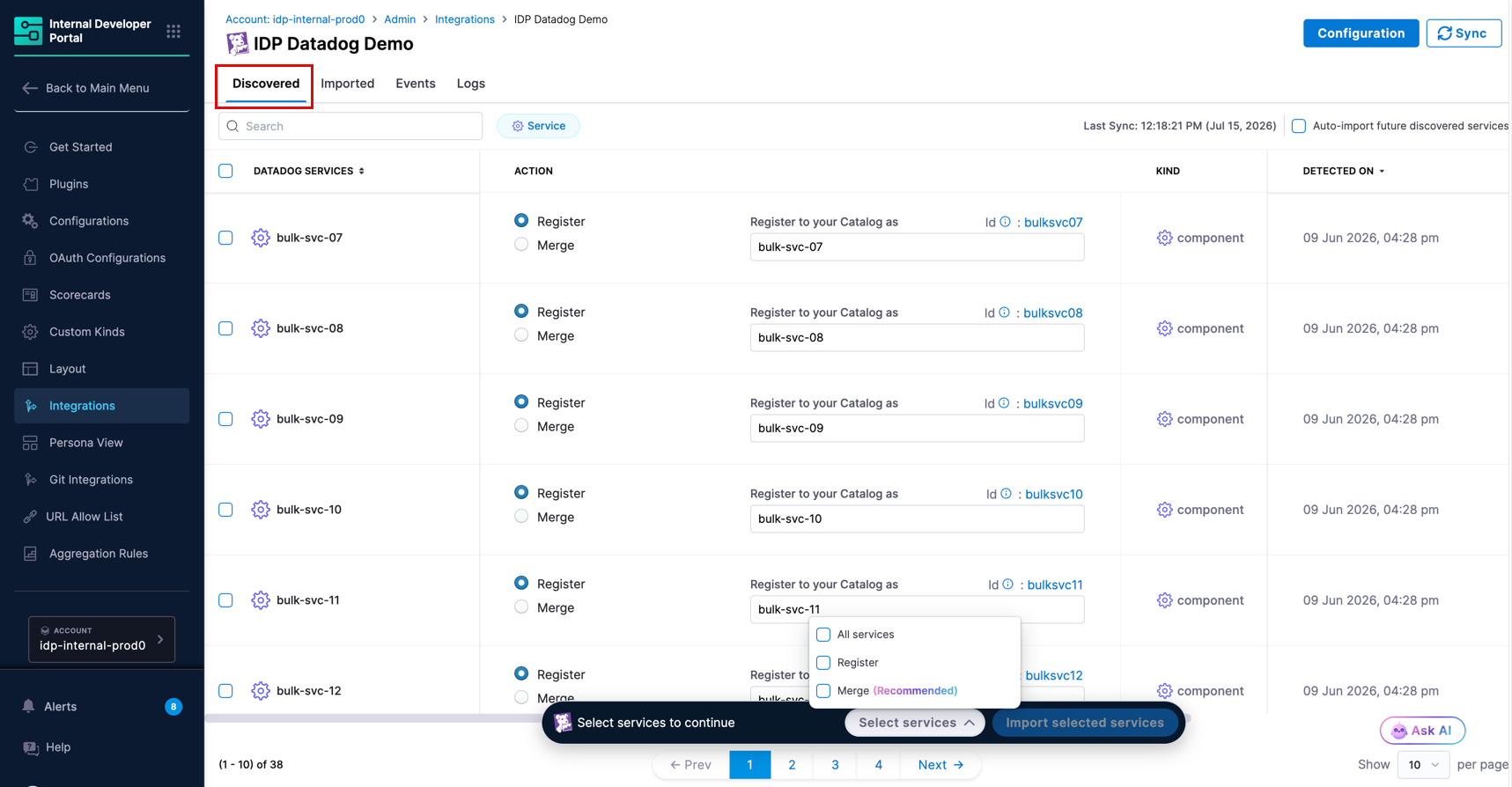

Figure 6: Discovered tab in progress

Use the Sync button at the top right to manually trigger a refresh if needed.

Once discovery completes, each discovered service appears with its name, recommended catalog action, kind, type, and detection date. You can bring entities into the catalog using one of the following actions:

• Register (shown as Recommended when no matching catalog entity exists) - Creates a new catalog entity populated with Datadog metadata.
• Merge - Links the discovered entity to an existing catalog entity, enriching it with Datadog data. If IDP finds a catalog entity with a matching name, Merge is pre-selected and the suggested entity is shown automatically.

Bulk Import

Select multiple entities using the checkboxes and click Import selected entities at the bottom of the page to import them all at once.

Imported Tab

The Imported tab displays all Datadog services that have been brought into the catalog.

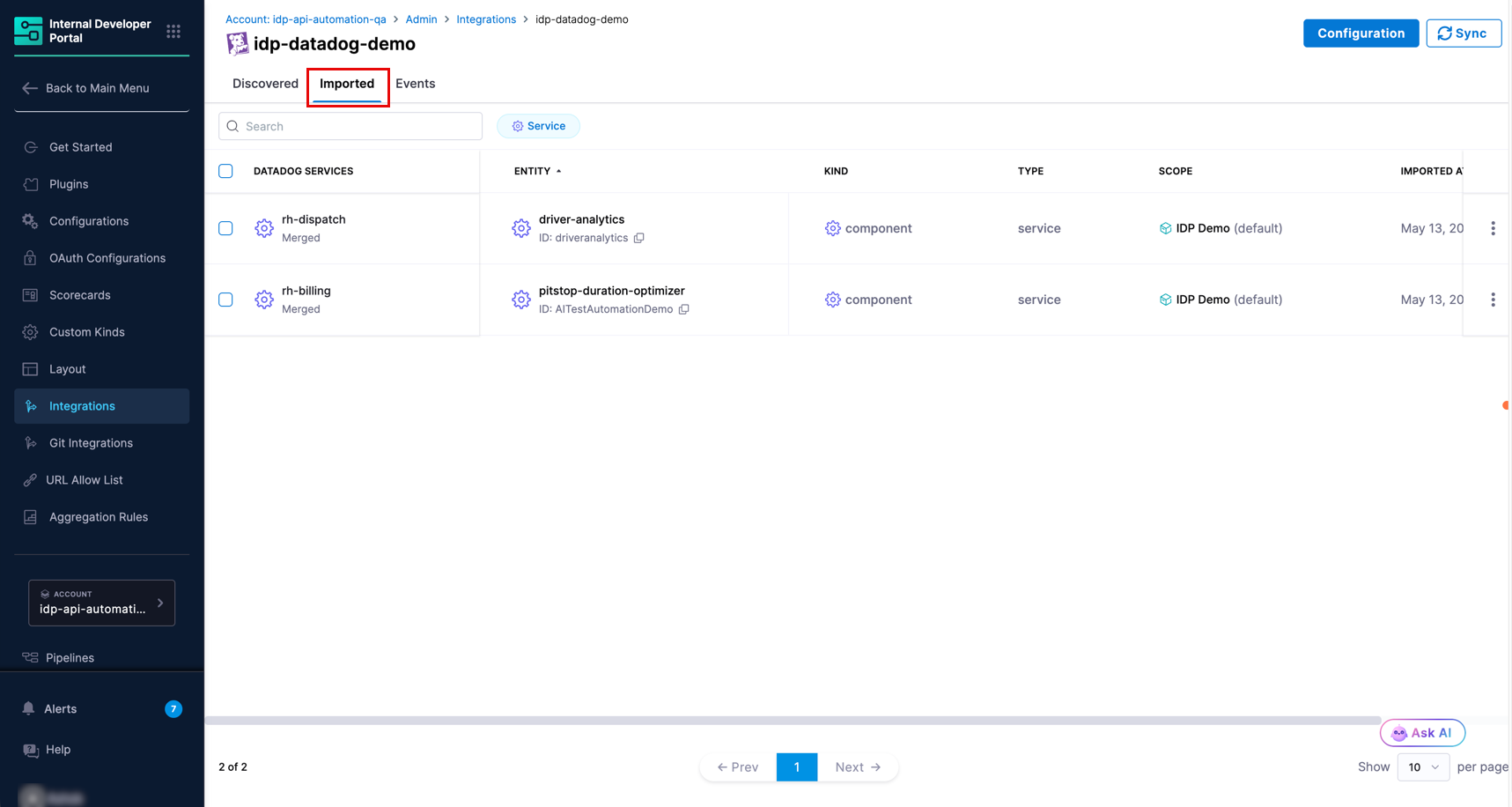

Figure 7: Imported tab

It displays the following data:

Column	Description
Datadog Services	The name of the service from Datadog, along with its import status (e.g., Merged).
Entity	The linked IDP catalog entity and its ID.
Kind	The catalog entity kind (e.g., component).
Type	The catalog entity type (e.g., service).
Scope	The Harness account scope the entity belongs to.
Imported	The timestamp when the entity was imported.

Unlink an Imported Entity

To stop syncing a specific entity without deleting the catalog entity, use the three-dot menu on any row and select Unlink. This stops sync updates while keeping the IDP entity and its existing data intact.

---

View Datadog Entities in the Catalog

Once imported, Datadog entities are available in the Catalog section of IDP as standard catalog entities.

Each imported Datadog service is registered with:

• Kind: Component
• Type: Service
• Scope: The Harness account the integration belongs to

Figure 8: IDP Catalog Entity Page for a Datadog service

Open any entity to view its Overview, Scorecards, and other configured tabs. The Integrations section on the Overview tab reflects the Datadog connection status for the entity.

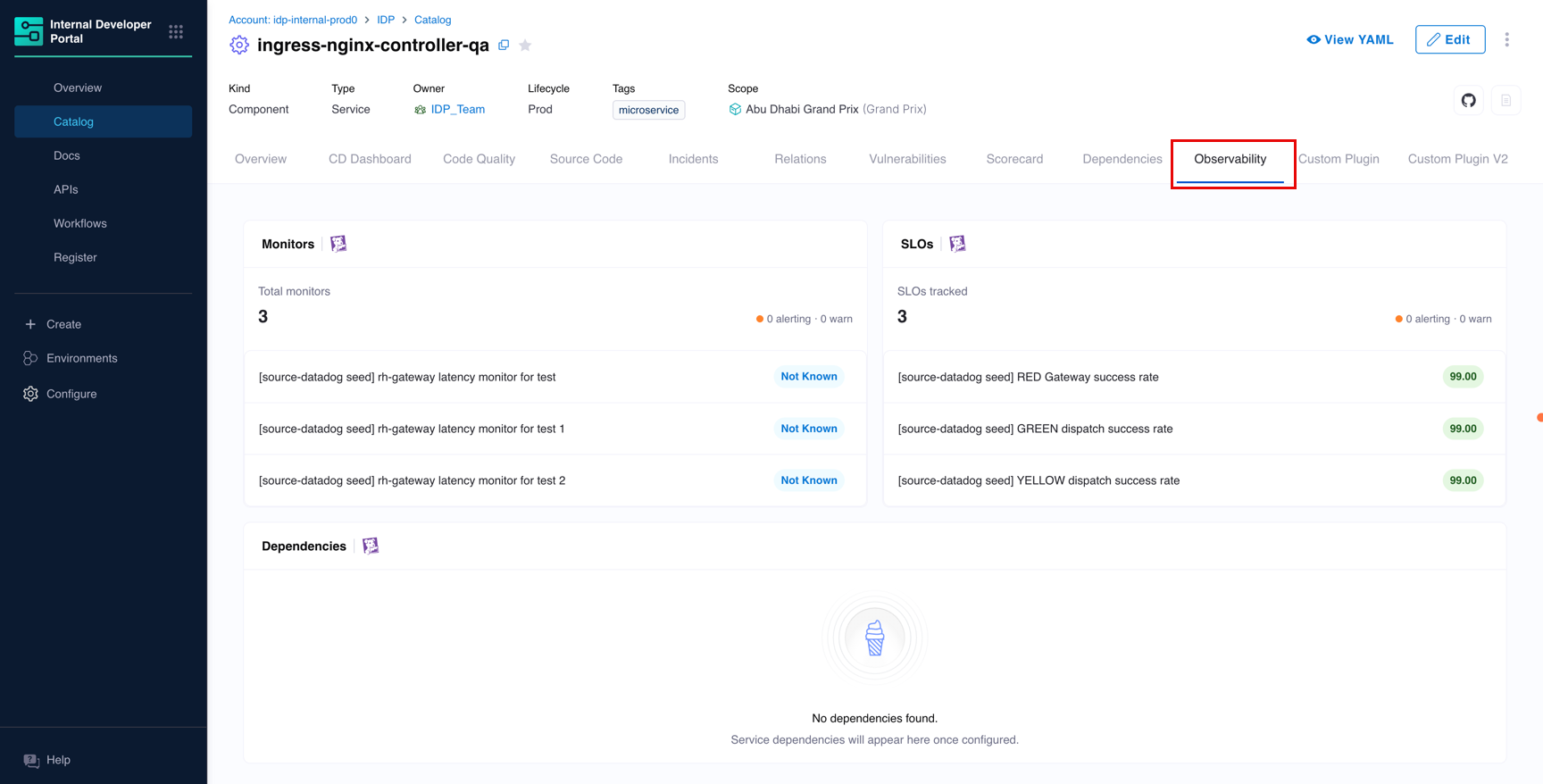

Figure 9: IDP Catalog Entity Page for a Datadog service

Ingested Properties

To inspect the raw data ingested from Datadog, open the entity and click View YAML, then select Ingested Properties in the Entity Inspector.

Figure 10: Entity Inspector showing Datadog Ingested Properties

Ingested properties are stored in two sections of the entity YAML:

• metadata.integration - Tracks which Datadog integration instances are linked to this entity, including the entity action (e.g., MERGE) and the linked entity UUID.
• integration_properties.Datadog - Contains the Datadog-specific data for the entity, including fields like description, monitorCount, monitors_summary, monitors_summary_count, links, contacts, docs, downstreamServiceNames, githubHtmlUrl, languages, and more.

---

Manage the Datadog Integration

Edit the Integration

To update the integration name, switch the Datadog connector, or change the mapping and correlation settings, navigate to the Integrations page, find your Datadog integration card, and click View. From there, click Configuration to open the edit screen.

Suspend Auto-Discovery

If auto-discovery is suspended, new entities will not appear in the Discovered tab. Existing imported entities remain unchanged in the catalog and the sync between Datadog and their corresponding IDP entities will stop.

To suspend auto-discovery:

1. Go to Integrations and open your Datadog integration using the View button.
2. Click Configuration at the top.
3. In the Danger Zone section, click Suspend.
4. Confirm the action.

You may re-enable it at any time by following the same steps.
