Dynatrace Integration

Last updated on

The Dynatrace integration automatically discovers services from your Dynatrace account and brings them into the IDP Catalog. Once discovered, entities can be registered as new catalog entries or merged into existing ones.

For each service, the integration collects the following resources from Dynatrace:

ResourceWhat it provides
ServiceCore metadata from Dynatrace such as service name, type, and related entity information.
MonitorMonitor metrics and health summary using queries.
ProblemsIssues and anomalies detected by Dynatrace, fetched from the start date you configure during setup.
SLOService Level Objective data associated with the service. Requires a platform token.

Before you begin​

The following are needed to get the integration running:

  • Ensure the feature flag IDP_CATALOG_CD_AUTO_DISCOVERY is enabled. Contact Harness Support to enable it.
  • You have the required RBAC permissions to manage integrations. All integration operations require the IDP_INTEGRATION_EDIT permission on the IDP_INTEGRATION resource type.
  • A Dynatrace connector is configured in Harness with Dynatrace Classic URL (format: https://xxxxxxxx.live.dynatrace.com/) and an API Token (access token in Dynatrace). You can also create the connector during the integration setup. Ensure the access token must have the following scopes:
    • entities.read
    • problems.read
    • metrics.read
    • ReadSyntheticData, ExternalSyntheticIntegration, and DataExport (required for monitor data)
  • (Optional) A Dynatrace platform token with the slo:slos:read scope if you want SLO data to flow into IDP.
Proxy Configuration

If your environment blocks outbound third-party traffic and routes it through a proxy, you will need to configure proxy settings on your Harness Delegate. Once configured there, the proxy settings are automatically picked up by IDP integrations. No additional setup is needed on the integration side.

Go to Configure delegate proxy settings to configure proxy settings on your Harness Delegate.

Enable the Dynatrace Integration​

1. Navigate to the Integrations Page​

  1. In Harness, open the Internal Developer Portal.

  2. From the left sidebar, click Configure.

  3. In the left navigation menu, click Integrations.

  4. On the Integrations page, click + New Integration at the top.

  5. Select Dynatrace from the integration type picker. You will be taken to the Dynatrace Integration configuration page.

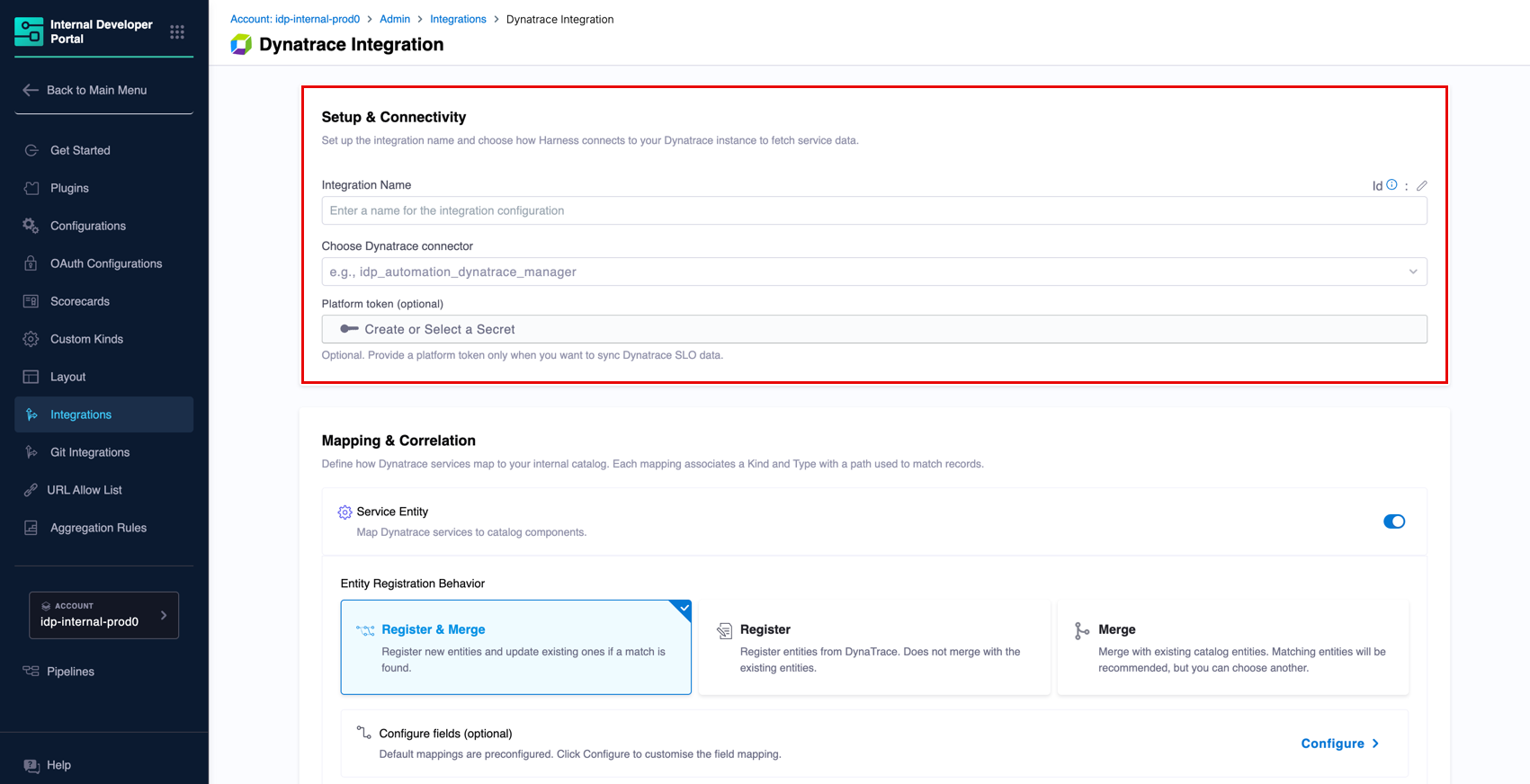

2. Configure Setup & Connectivity​

This section connects Harness IDP to your Dynatrace account.

  1. Enter a name in the Integration Name field. This name appears on the integration card on the Integrations page (e.g., Dynatrace PreQA Observability).

  2. Click the Choose Dynatrace connector dropdown and select the Dynatrace connector you want to use to pull data into IDP.

    Don't have a Dynatrace connector yet?

    If no connectors appear in the dropdown, you need to first create a Dynatrace connector (classic) in Harness. Once saved, it will appear in the dropdown.

  3. (Optional) In the Platform token field, enter a Dynatrace platform token if you want to collect SLO data too. Leave it empty if you do not need SLO data to flow into IDP. The platform token must have the scope slo:slos:read included.

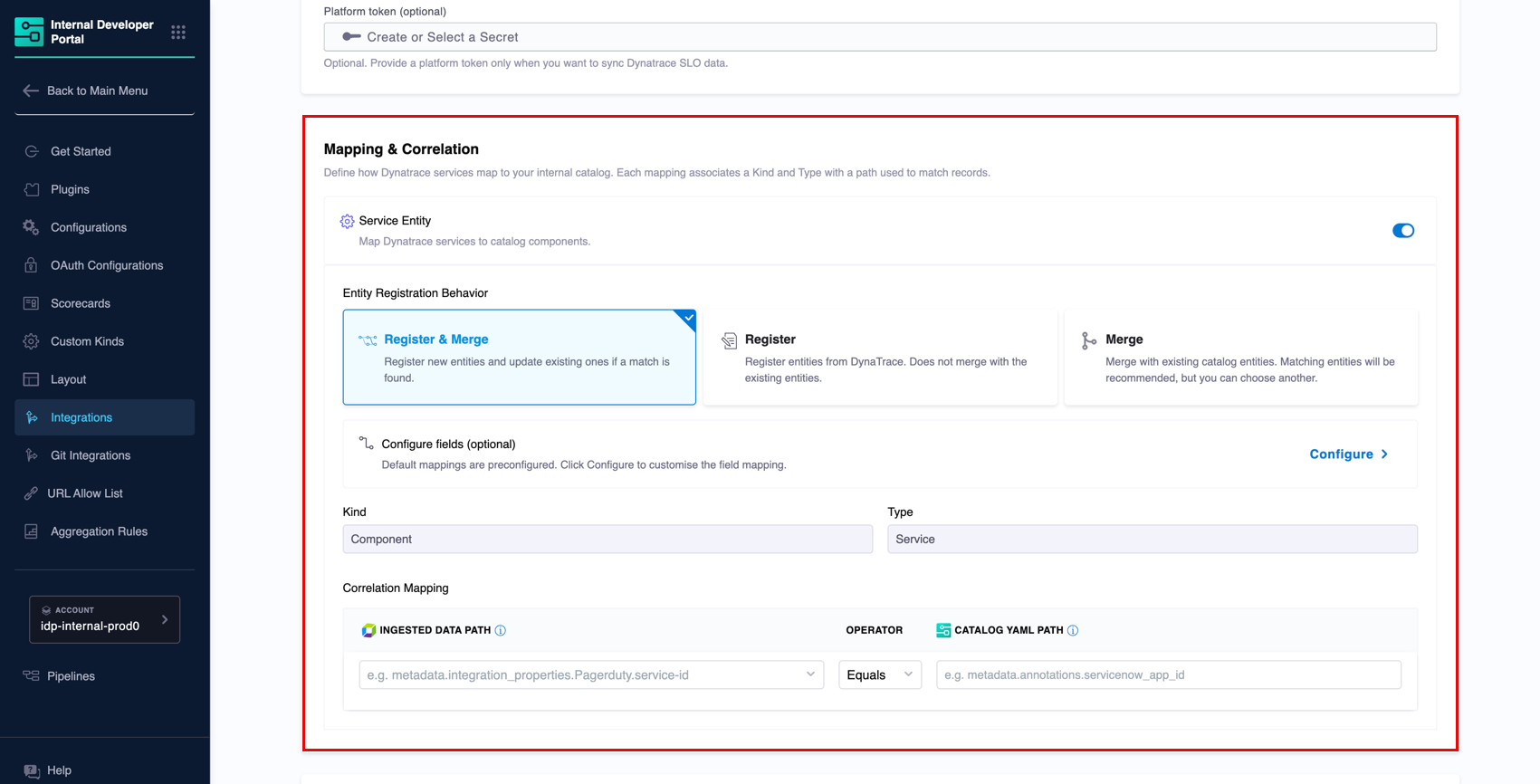

3. Configure Mapping & Correlation​

This section defines how Dynatrace services are mapped to IDP catalog entities and how they are correlated with existing records.

Service Entity​

The Service Entity mapping imports Dynatrace services as catalog components.

  1. Ensure the Service Entity toggle is turned on.

  2. Under Entity Registration Behavior, choose how services are brought into the catalog:

    • Register & Merge (Default) - Registers new entities and updates existing ones when a match is found. This is the recommended option for most setups.
    • Register - Creates new catalog entities from Dynatrace. Does not merge with existing entities.
    • Merge - Links discovered services to existing catalog entities. Matching entities are recommended automatically, but you can choose a different one.

  3. The default Kind is Component and Type is Service. These are pre-configured and apply to all Dynatrace service imports.

  4. Under Correlation Mapping, the Ingested Data Path and Catalog YAML Path both default to name, meaning services are matched by name. You can change this to any other field pair if your setup requires a different matching strategy.

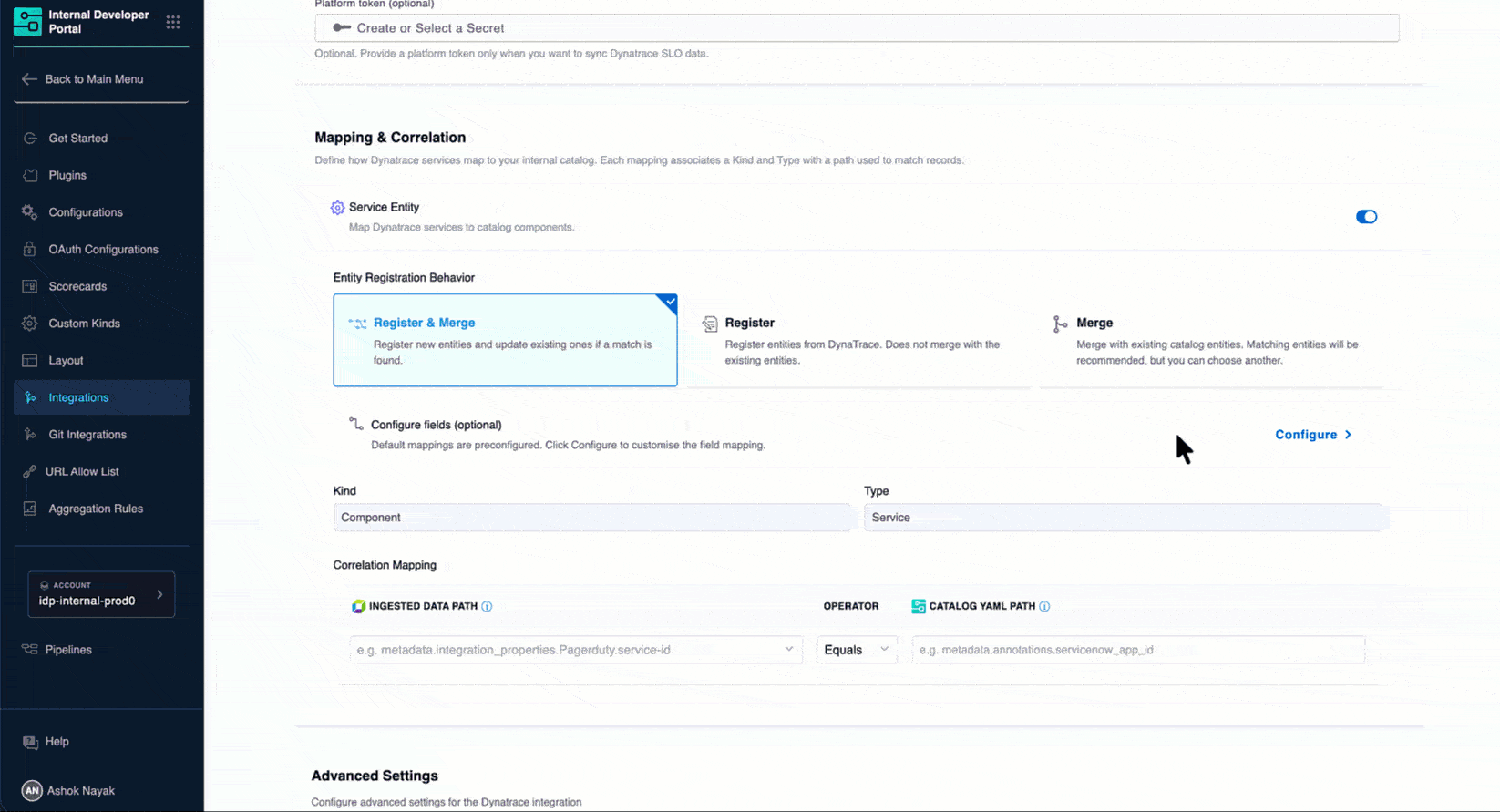

  5. Optionally, click Configure next to Configure fields to customize which Dynatrace fields are synced to the catalog. By default, all available fields are selected.

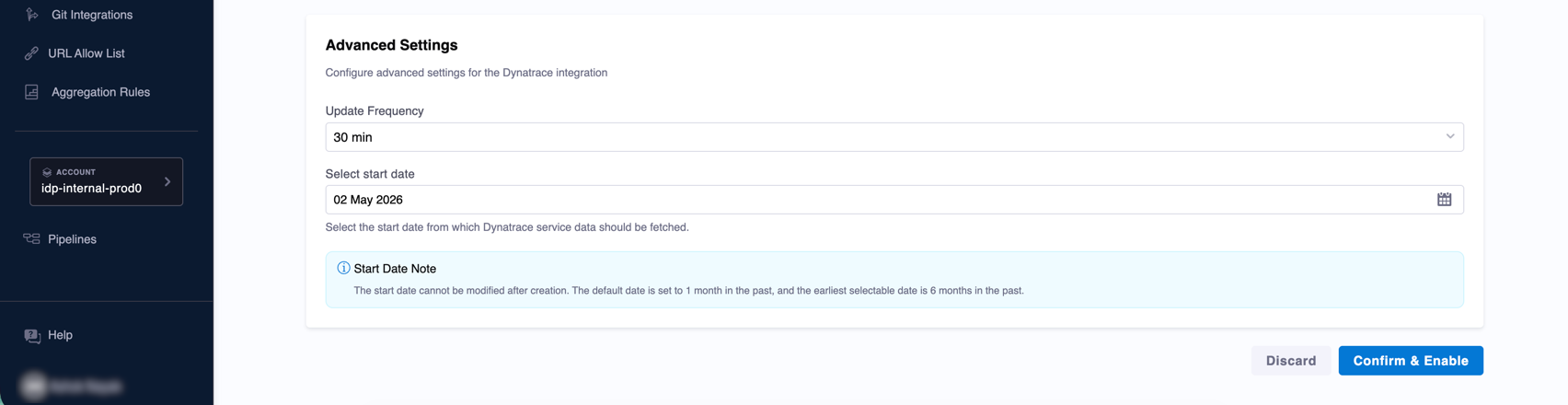

4. Configure Advanced Settings​

The Advanced Settings section controls the sync frequency and how far back in time Dynatrace data is fetched.

  1. Select an Update Frequency from the dropdown to control how often IDP polls Dynatrace for new data.

    Available options: 10 min, 30 min, 1 hour, 3 hours, 6 hours, 12 hours, 1 day, 2 days, 7 days.

  2. Set a Start date to define how far back Dynatrace Problems data should be fetched. The default is set to one month before the date of integration creation. The earliest you can go back is six months.

    warning

    The start date cannot be changed after the integration is created. Set it carefully before clicking Confirm & Enable.

  3. Once all sections are configured, click Confirm & Enable.

The integration is now enabled and IDP begins syncing data from Dynatrace. Discovered services appear in the Discovered tab.

Discover and Import Dynatrace Entities​

This section covers how to view the Dynatrace services discovered by the integration and import them into your IDP Catalog.

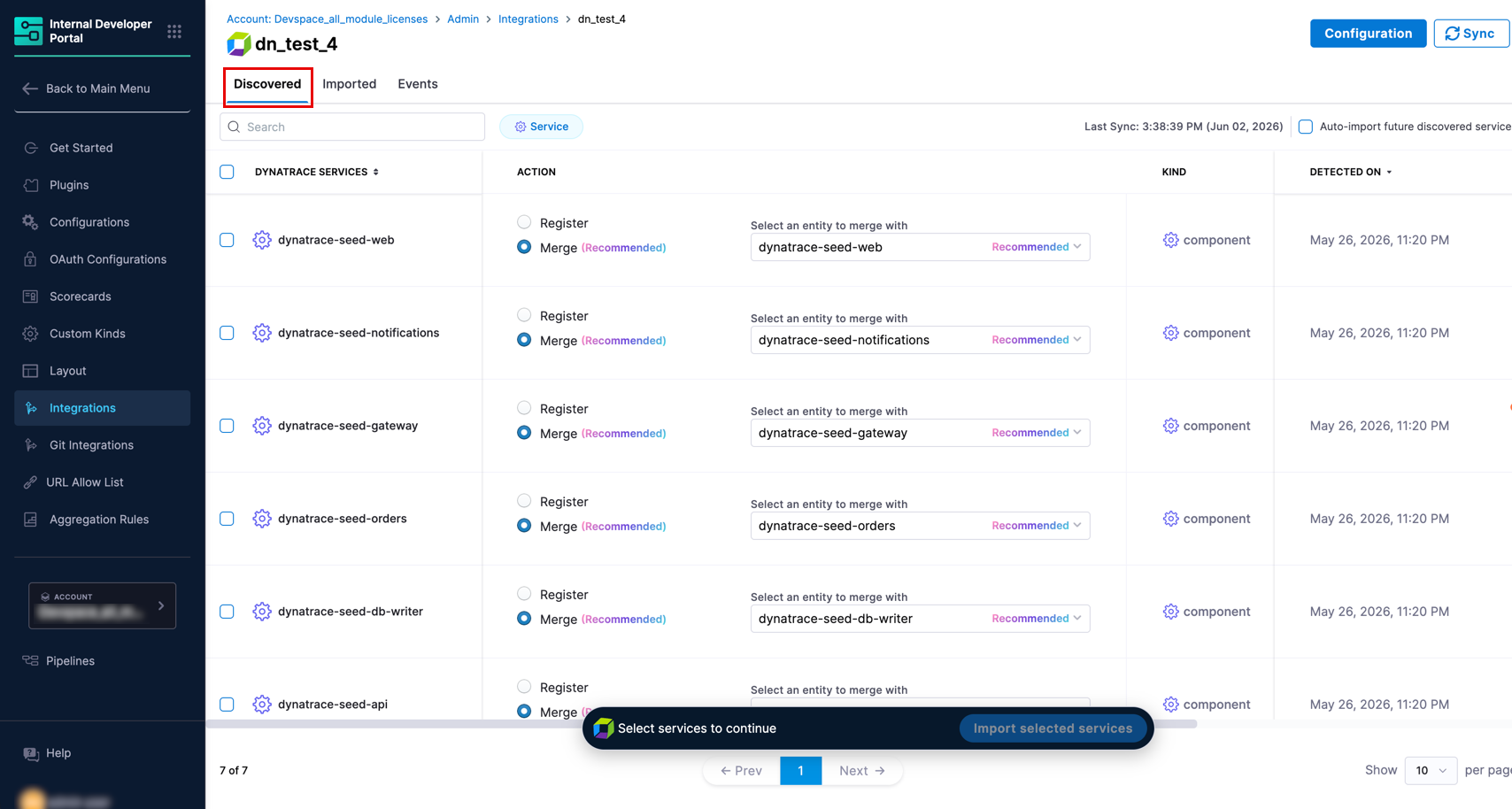

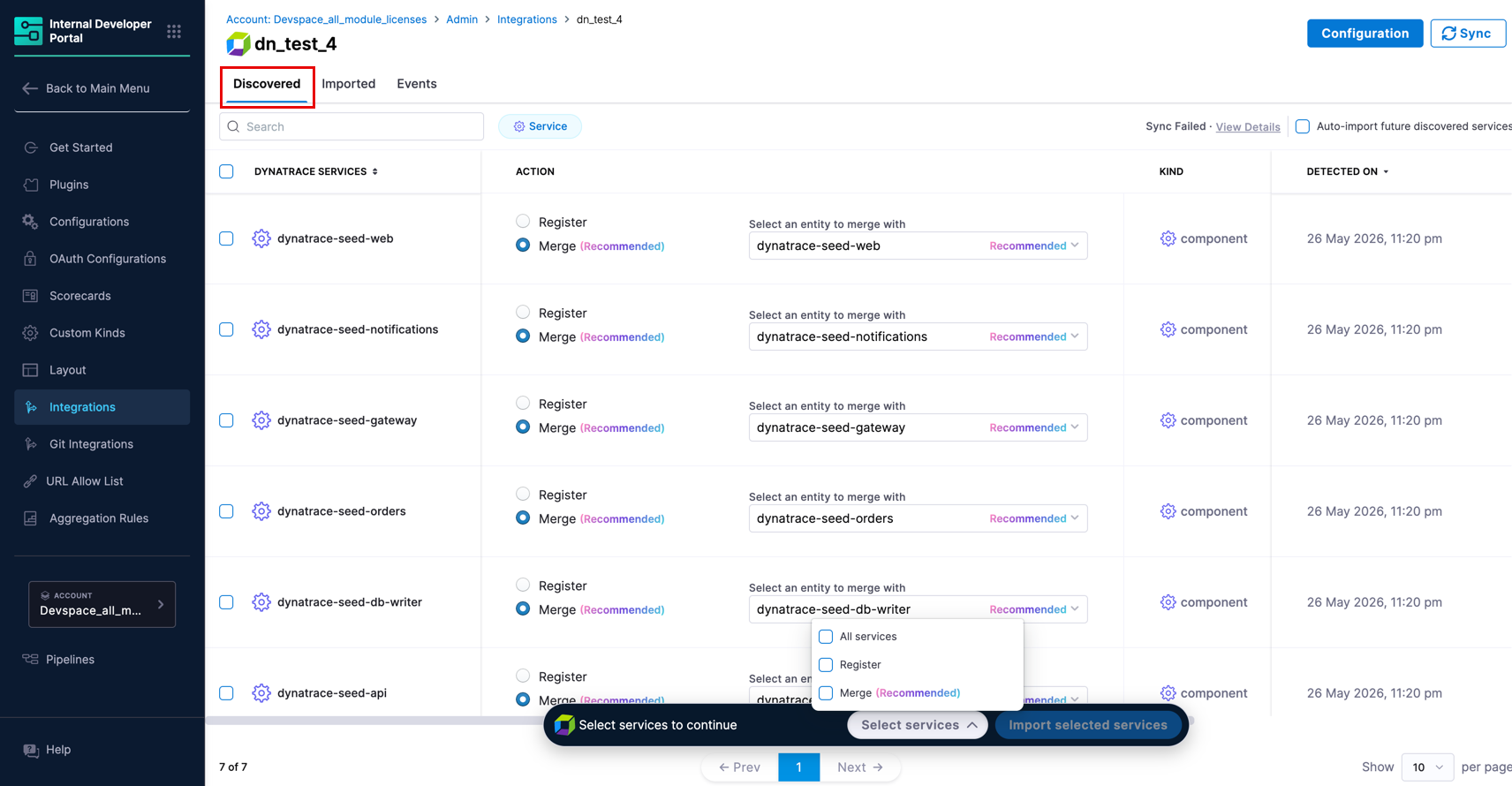

Discovered Tab​

After the integration runs, all Dynatrace services detected appear in the Discovered tab. If no services appear yet, the sync may still be in progress. Use the Sync button at the top right to manually trigger a refresh if needed.

Once discovery completes, each discovered service appears with its name, recommended catalog action, kind, type, and detection date. You can bring entities into the catalog using one of the following actions:

  • Register (shown as Recommended when no matching catalog entity exists) - Creates a new catalog entity populated with Dynatrace metadata.
  • Merge - Links the discovered entity to an existing catalog entity, enriching it with Dynatrace data. If IDP finds a catalog entity with a matching name, Merge is pre-selected and the suggested entity is shown automatically.
Bulk Import

Select multiple entities using the checkboxes and click Import selected entities at the bottom of the page to import them all at once.

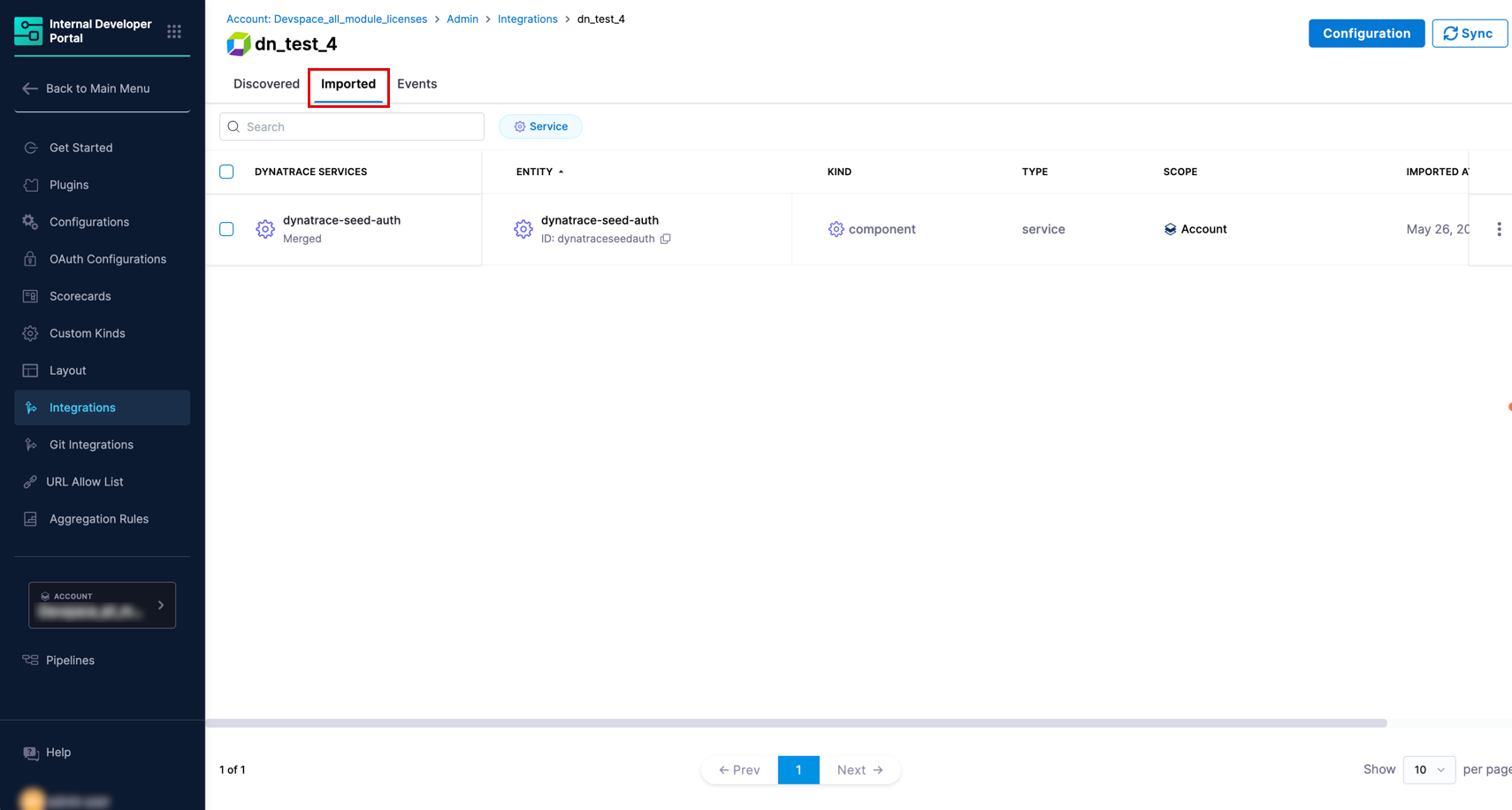

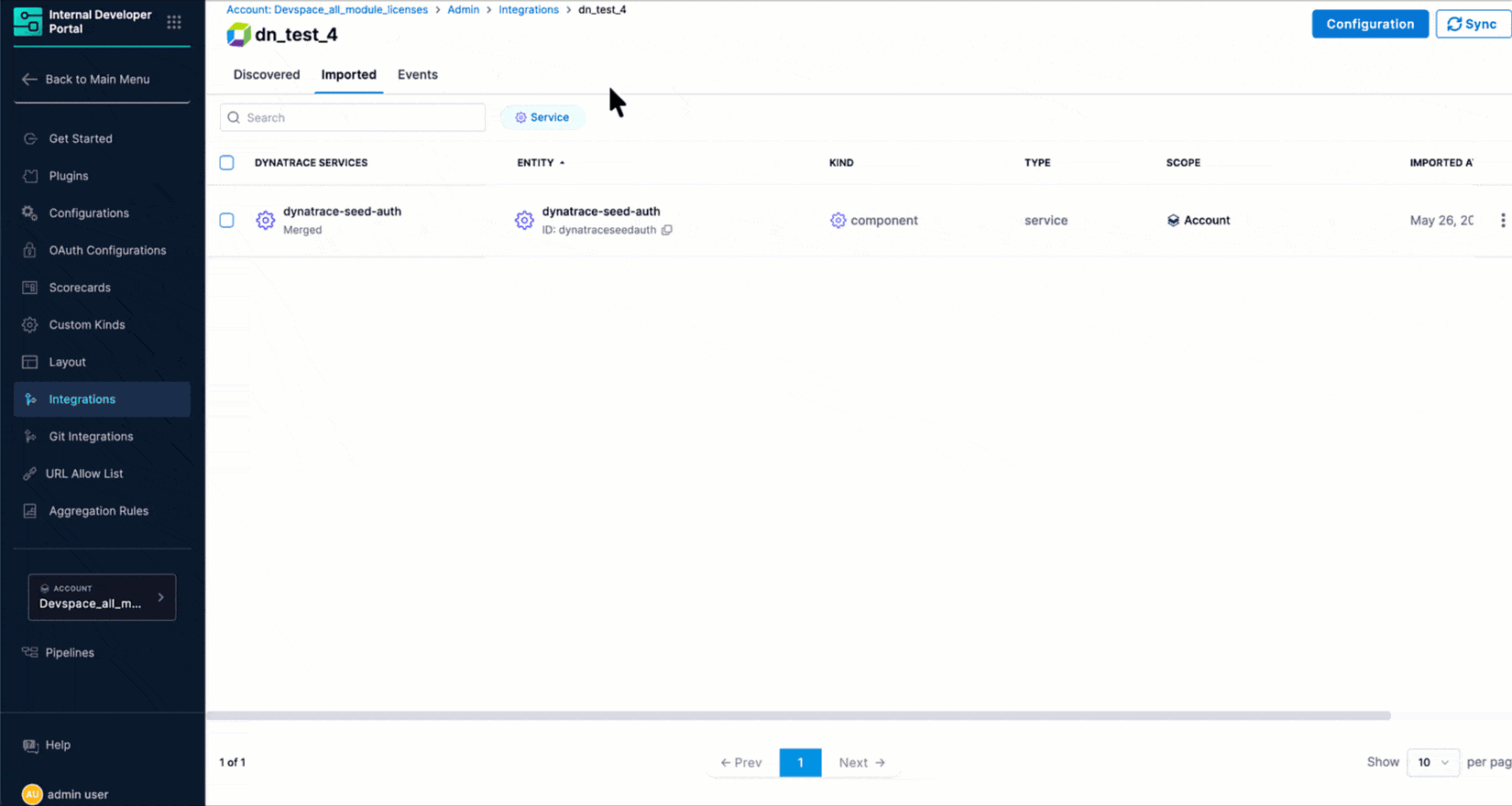

Imported Tab​

The Imported tab displays all Dynatrace services that have been brought into the catalog.

It displays the following data:

ColumnDescription
Dynatrace ServicesThe name of the service from Dynatrace, along with its import status (e.g., Merged).
EntityThe linked IDP catalog entity and its ID.
KindThe catalog entity kind (e.g., component).
TypeThe catalog entity type (e.g., service).
ScopeThe Harness account scope the entity belongs to.
ImportedThe timestamp when the entity was imported.
Unlink an Imported Entity

To stop syncing a specific entity without deleting the catalog entity, use the three-dot menu on any row and select Unlink. This stops sync updates while keeping the IDP entity and its existing data intact.

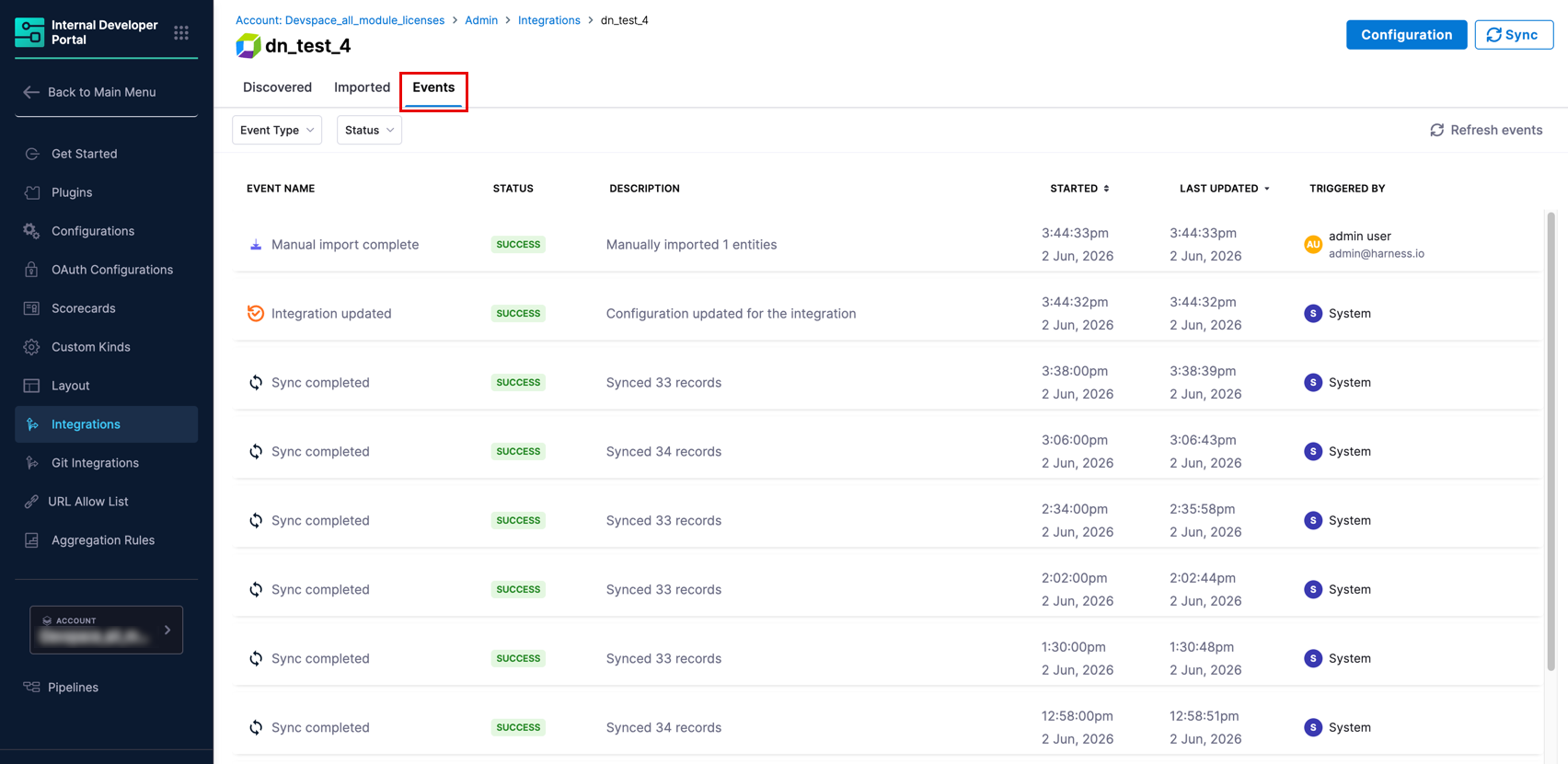

Events Tab​

The Events tab provides a log of sync activity for this integration, including discovery runs, import actions, and any errors encountered during sync. Use this tab to troubleshoot unexpected behavior or verify that a sync completed successfully.

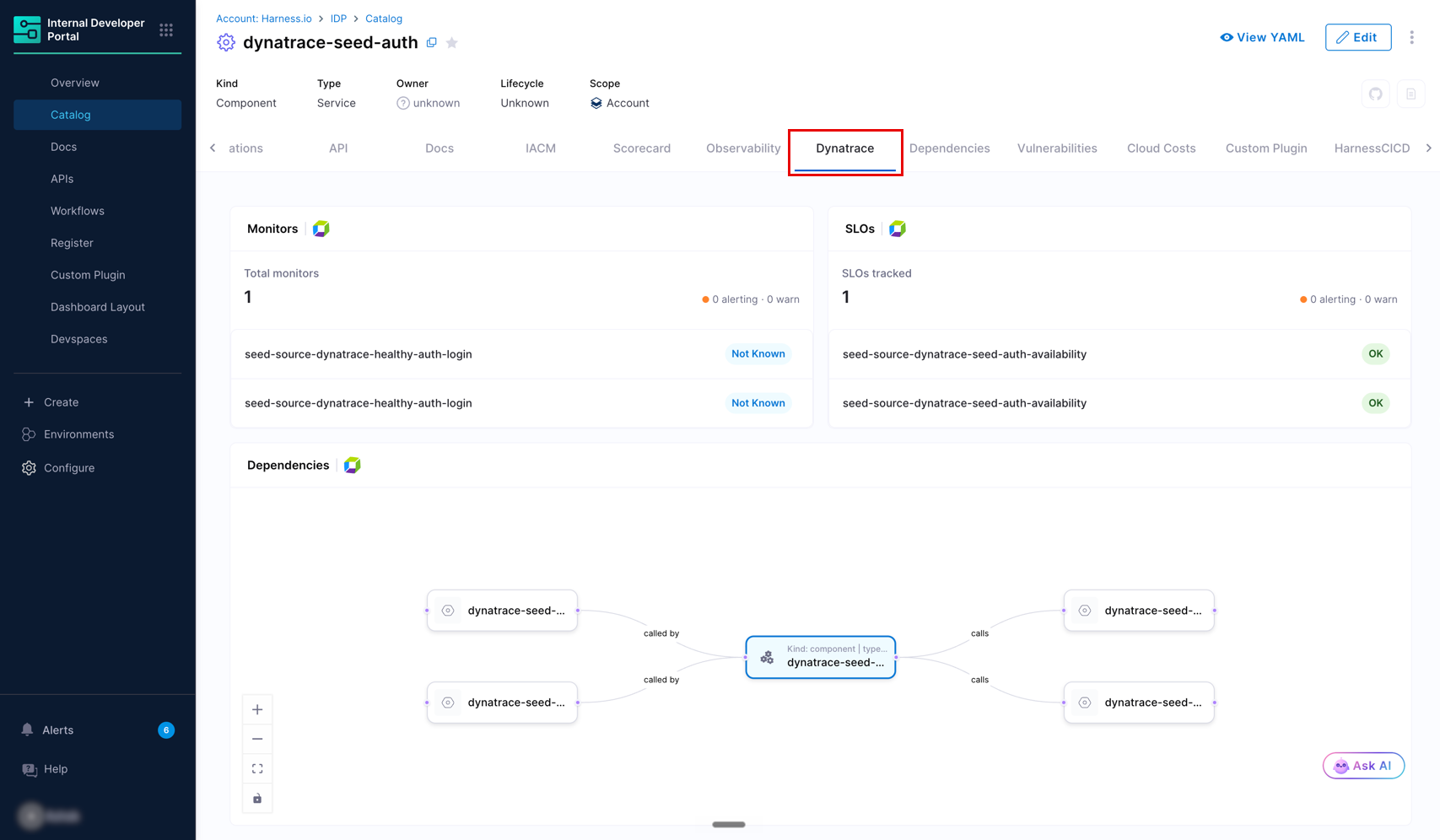

View Dynatrace Entities in the Catalog​

info

The UI to visualize this data on catalog entity pages will be available in the upcoming release.

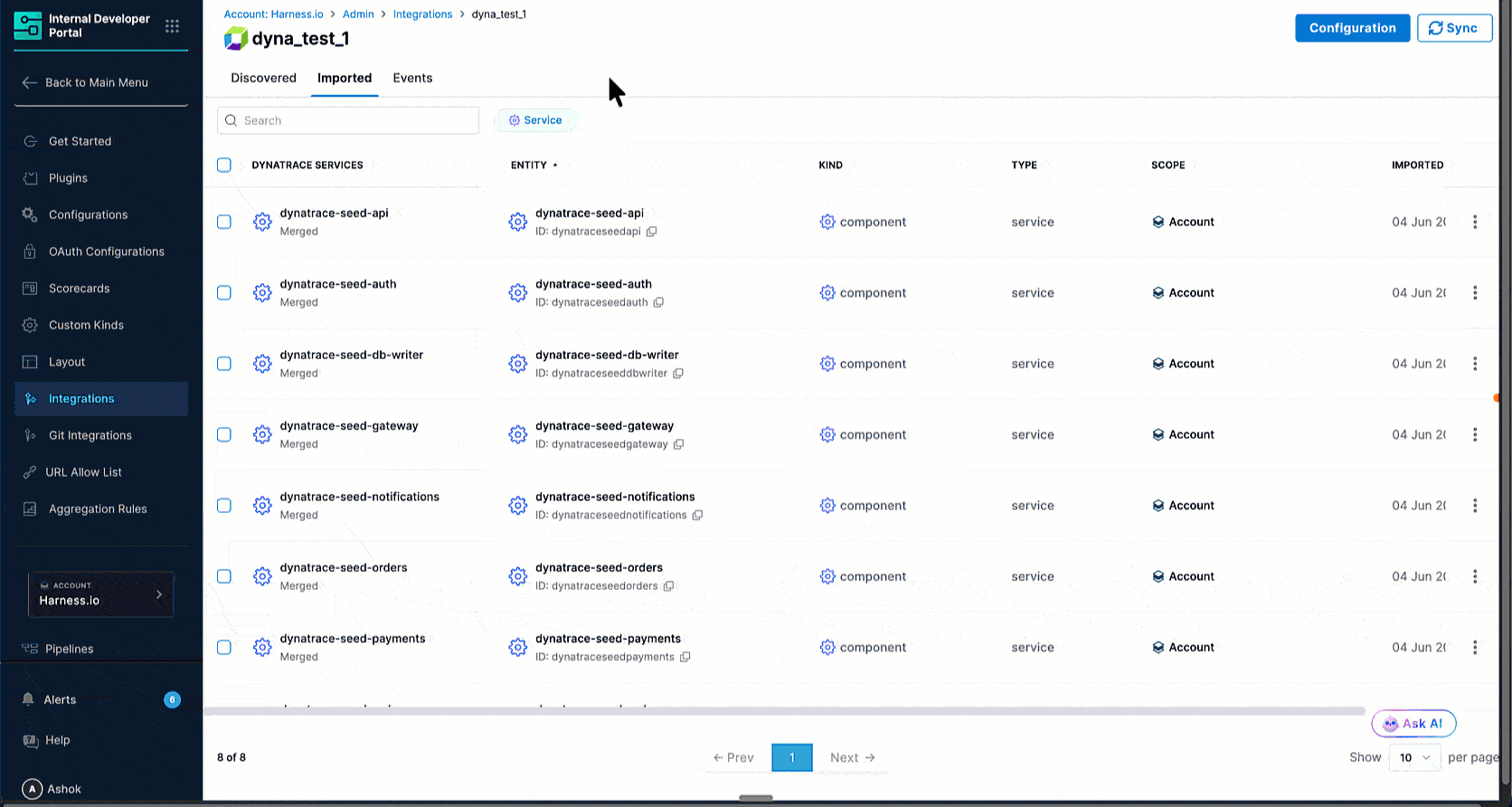

Once imported, Dynatrace entities are available in the Catalog section of IDP as standard catalog entities.

Each imported Dynatrace service is registered with:

  • Kind: Component
  • Type: Service
  • Scope: The Harness account the integration belongs to

Open any entity to view its Overview, Scorecards, and other configured tabs.

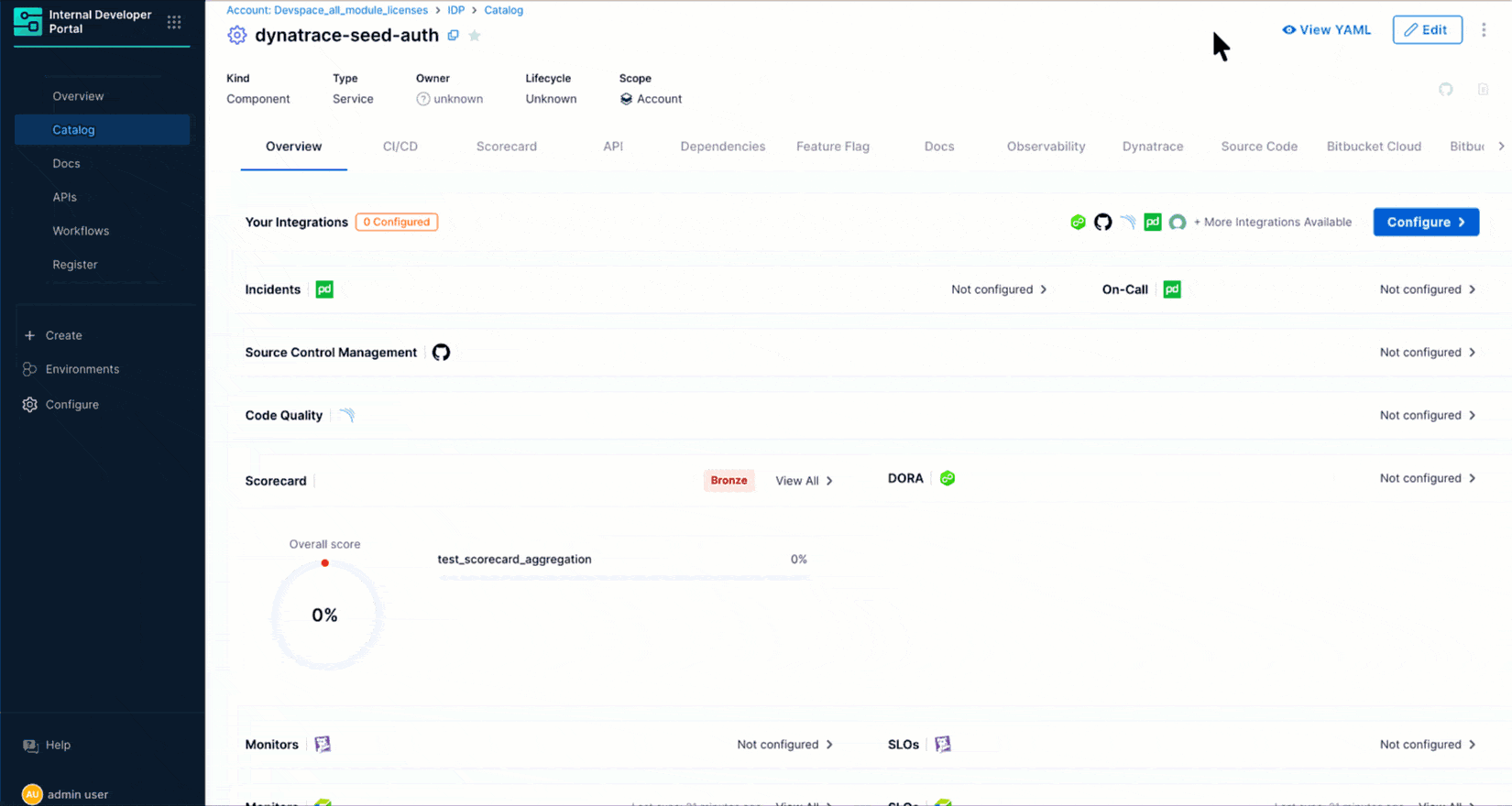

Ingested Properties​

To inspect the raw data ingested from Dynatrace, open the entity and click View YAML, then select Ingested Properties in the Entity Inspector.

Ingested properties are stored in two sections of the entity YAML:

  • metadata.integration - Tracks which Dynatrace integration instances are linked to this entity, including the entity action (e.g., MERGE) and the linked entity UUID.
  • integration_properties.DynaTrace - Contains the Dynatrace-specific data for the entity, including fields synced from the Dynatrace service.

Manage the Dynatrace Integration​

Edit the Integration​

To update the integration name, switch the Dynatrace connector, or change the mapping and correlation settings, navigate to the Integrations page, find your Dynatrace integration card, and click View. From there, click Configuration to open the edit screen.

Suspend Auto-Discovery​

If auto-discovery is suspended, new entities will not appear in the Discovered tab. Existing imported entities remain unchanged in the catalog and the sync between Dynatrace and their corresponding IDP entities will stop.

To suspend auto-discovery:

  1. Go to Integrations and open your Dynatrace integration using the View button.
  2. Click Configuration at the top.
  3. In the Danger Zone section, click Suspend.
  4. Confirm the action.

You may re-enable it at any time by following the same steps.
