GitHub Integration

Last updated on May 20, 2026

---

The GitHub integration automatically discovers repositories, teams, and AI assets from your GitHub organization and brings them into the IDP Catalog. Once discovered, entities can be registered as new catalog entries or merged into existing ones, enriching them with GitHub-sourced metadata for service discovery, team ownership, and dependency mapping.

---

Before you begin

The following are needed to get the integration running:

• The feature flag IDP_CATALOG_CD_AUTO_DISCOVERY is enabled. Contact Harness Support to enable it.
• You have the required RBAC permissions to manage integrations. All integration operations require the IDP_INTEGRATION_EDIT permission on the IDP_INTEGRATION resource type.
• A GitHub PAT Connector or GitHub App Connector is configured in Harness with the credentials needed to access your GitHub organization. Ensure that the connector has the necessary permissions on your GitHub. You can create a new connector directly during the integration setup.
• For each GitHub org, user has to maintain one integration.

Proxy Configuration

If your environment blocks outbound third-party traffic and routes it through a proxy, you'll need to configure proxy settings on your Harness Delegate. Once configured there, the proxy settings are automatically picked up by IDP integrations. No additional setup is needed on the integration side.

Here's how to set it up: Configure delegate proxy settings

---

Enable the GitHub Integration

1. Navigate to the Integrations Page

1. In Harness, open the Internal Developer Portal.

2. From the left sidebar, click Configure.

3. In the left navigation menu, click Integrations.



   Figure 1: Navigation Path of GitHub Integration

4. On the Integrations page, click + New Integration at the top.

5. Select GitHub from the integration type picker. You will be taken to the Auto Discover GitHub Integration page.

2. Configure Setup & Connectivity

This section connects Harness IDP to your GitHub organization.

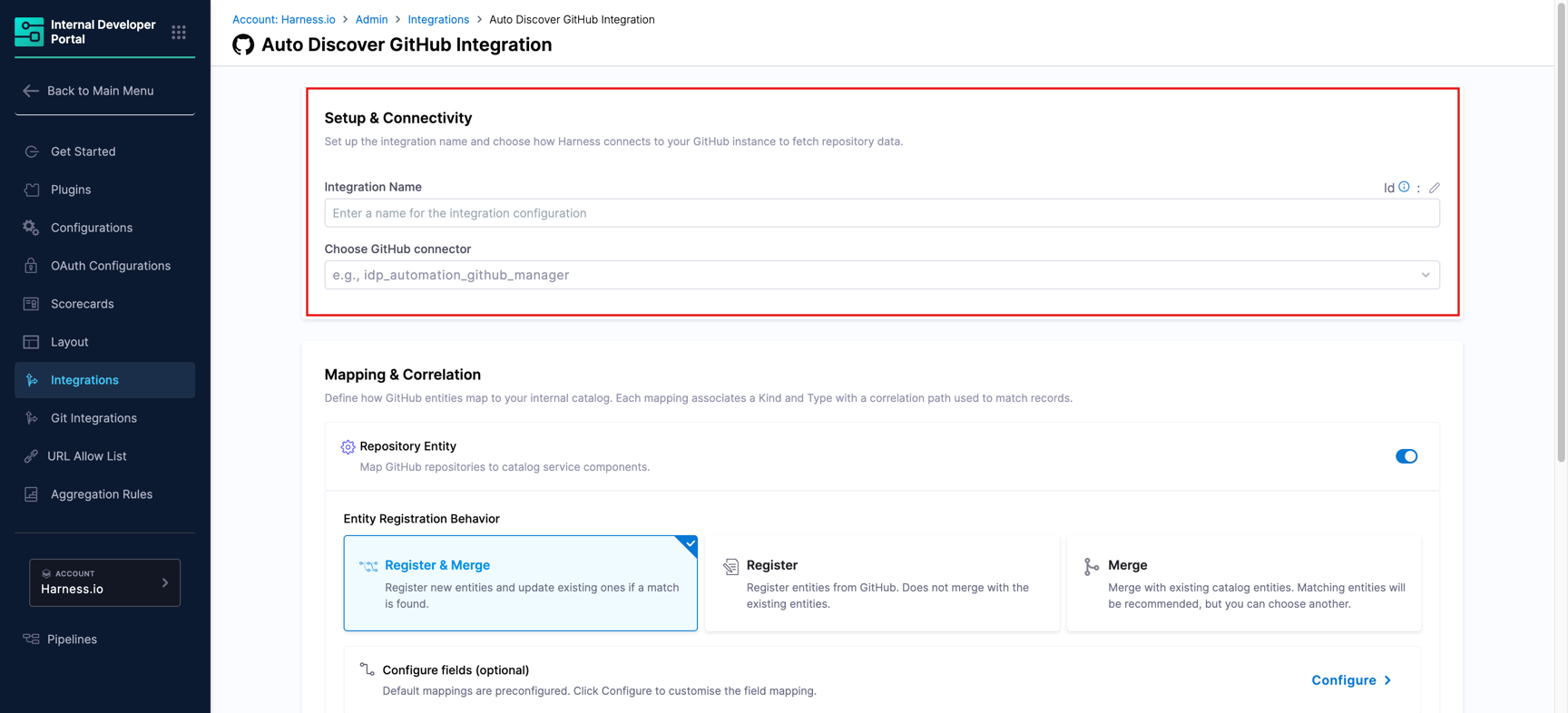

Figure 2: Setup & Connectivity

1. Enter a name in the Integration Name field. This name appears on the integration card on the Integrations page (e.g., GitHub Production).

2. Click the Choose GitHub connector dropdown and select the GitHub connector you want to use to pull data into the IDP.

   Connector requires org-level permissions

   The GitHub integration performs org-level queries to discover repositories and teams across your organization. Ensure the GitHub connector you select has org-level permissions on your GitHub.

   Don't have a GitHub connector yet?

   If no connectors appear in the dropdown, you need to first create a GitHub connector in Harness. Once saved, it will appear in the dropdown here.

3. Configure Mapping & Correlation

This section defines how GitHub entities are mapped to IDP catalog entities and how they are correlated with existing records.

The integration supports three entity types: Repository Entity, Team Entity, and AI Assets Entity, each with its own toggle, registration behavior, and field configuration.

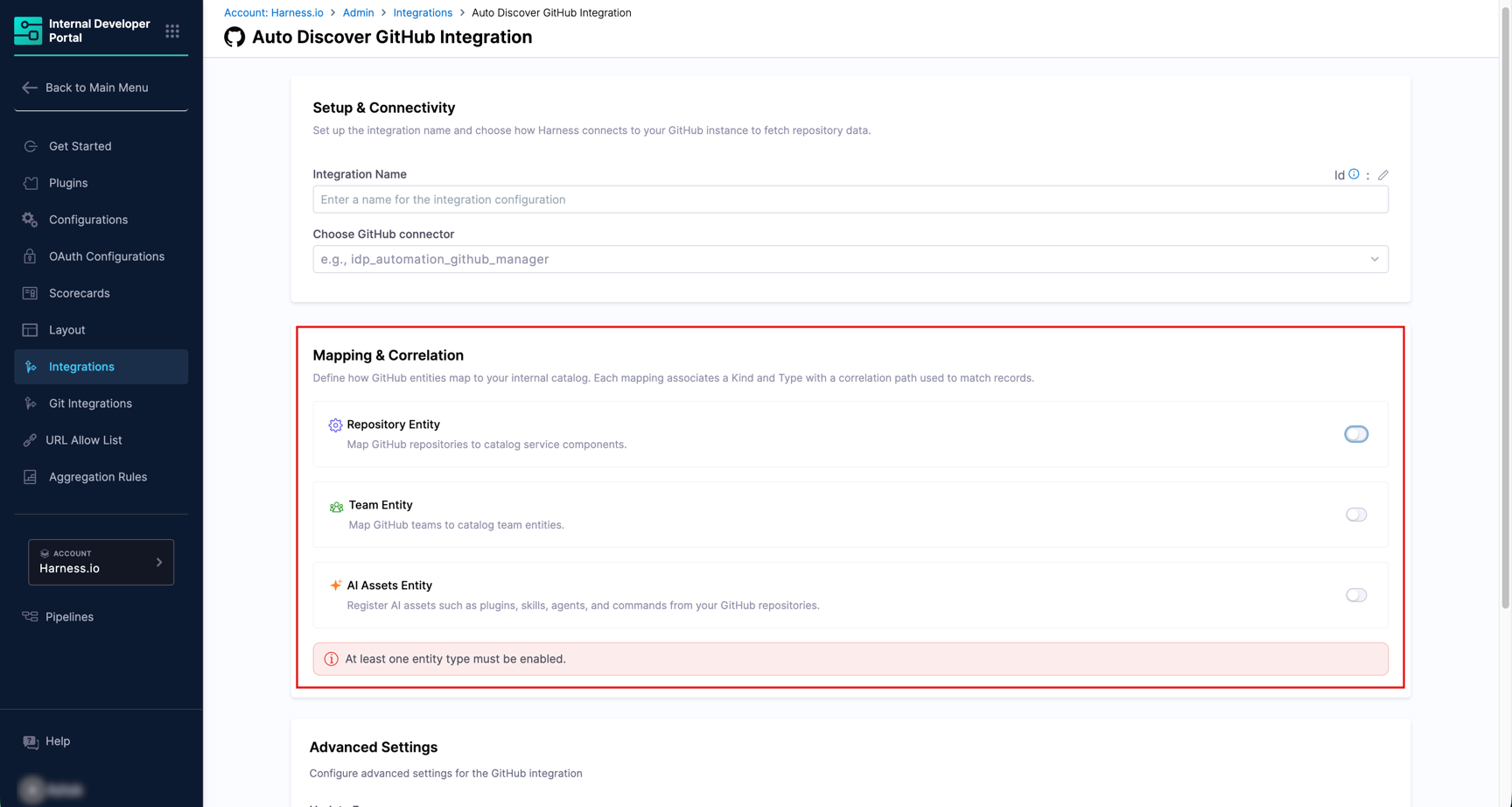

Figure 3: Available Entities - Repository, Team, and AI Assets

Repository Entity

The Repository Entity mapping imports GitHub repositories as catalog entities, with configurable Kind or Type.

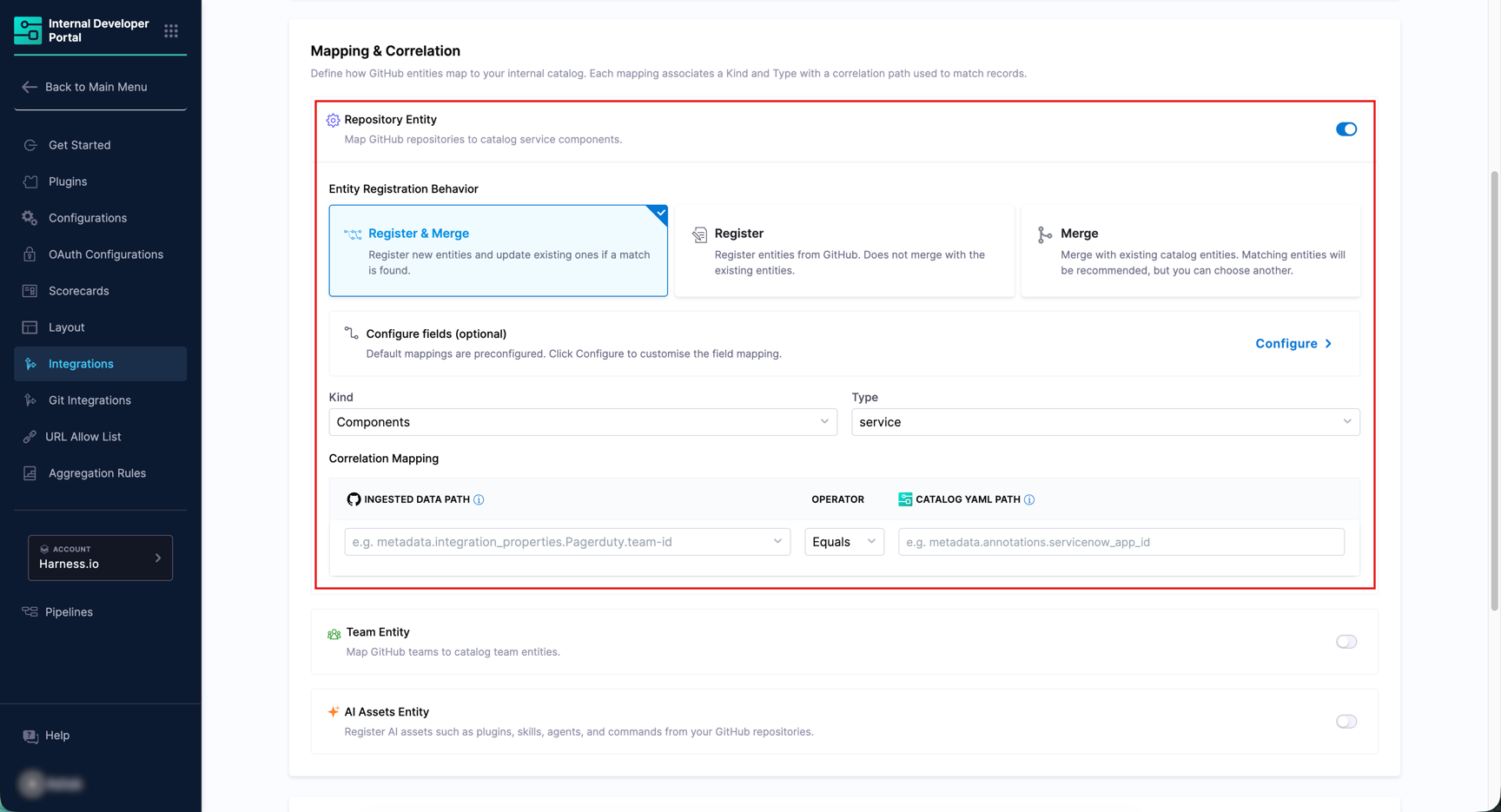

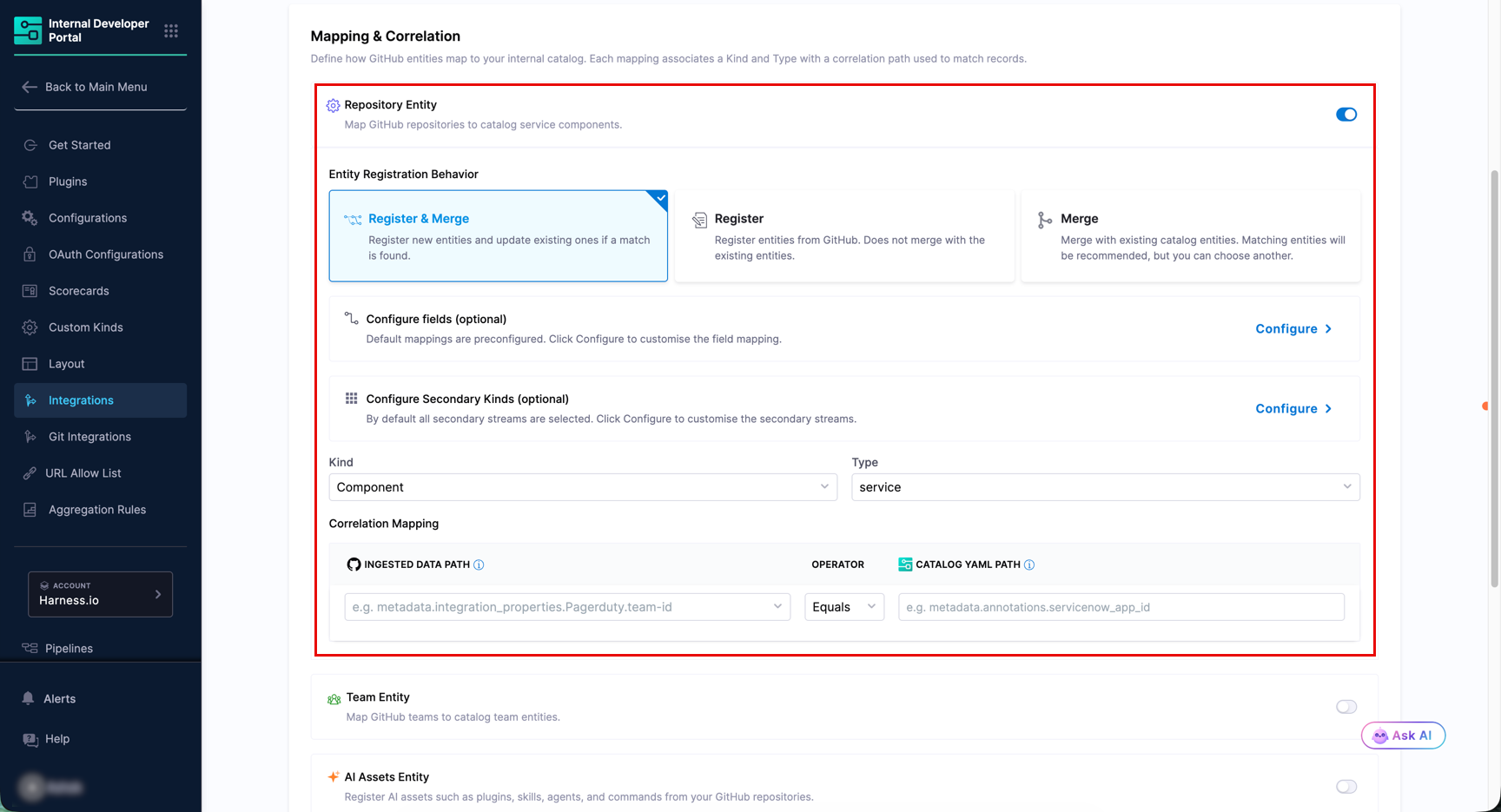

Figure 4: Enable Repository Entity

1. Ensure the Repository Entity toggle is turned on.

2. Under Entity Registration Behavior, choose how repositories are brought into the catalog:

   • Register & Merge (Default) - Registers new entities and updates existing ones when a match is found. This is the recommended option for most setups.
   • Register - Creates new catalog entities from GitHub. Does not merge with existing entities.
   • Merge - Links discovered repositories to existing catalog entities. Matching entities are recommended automatically, but you can choose a different one.

3. Choose the Kind and Type from the dropdown. By default, it is Component and service respectively. Configurability varies by registration behavior:

   Registration Behavior	Kind	Type
   Register & Merge	Configurable	Configurable
   Register	Configurable	Configurable
   Merge	Configurable	Not configurable

4. Under Correlation Mapping, set the Ingested Data Path (from GitHub) and the corresponding Catalog YAML Path (from your IDP entity) to define how records are matched. The operator supports Equals and Contains.

5. Optionally, click Configure next to Configure fields (optional) to customize which GitHub fields are synced to the catalog. By default, all available fields are selected.

   Release Data Limit

   GitHub repository entities include release metadata for the latest 10 releases only (if they exist). Older releases are not ingested into the catalog.

6. Optionally, click Configure next to Configure Secondary Kinds (optional) to control which additional data streams are synced for each repository. By default, all secondary kinds are selected.

   Secondary kinds enrich each repository entity with development activity data. By surfacing commits, pull requests, issues, and repository statistics, IDP gives teams an instant view of how actively an entity is being developed, how stable it is, and whether it is progressing or at risk, all without leaving the platform.

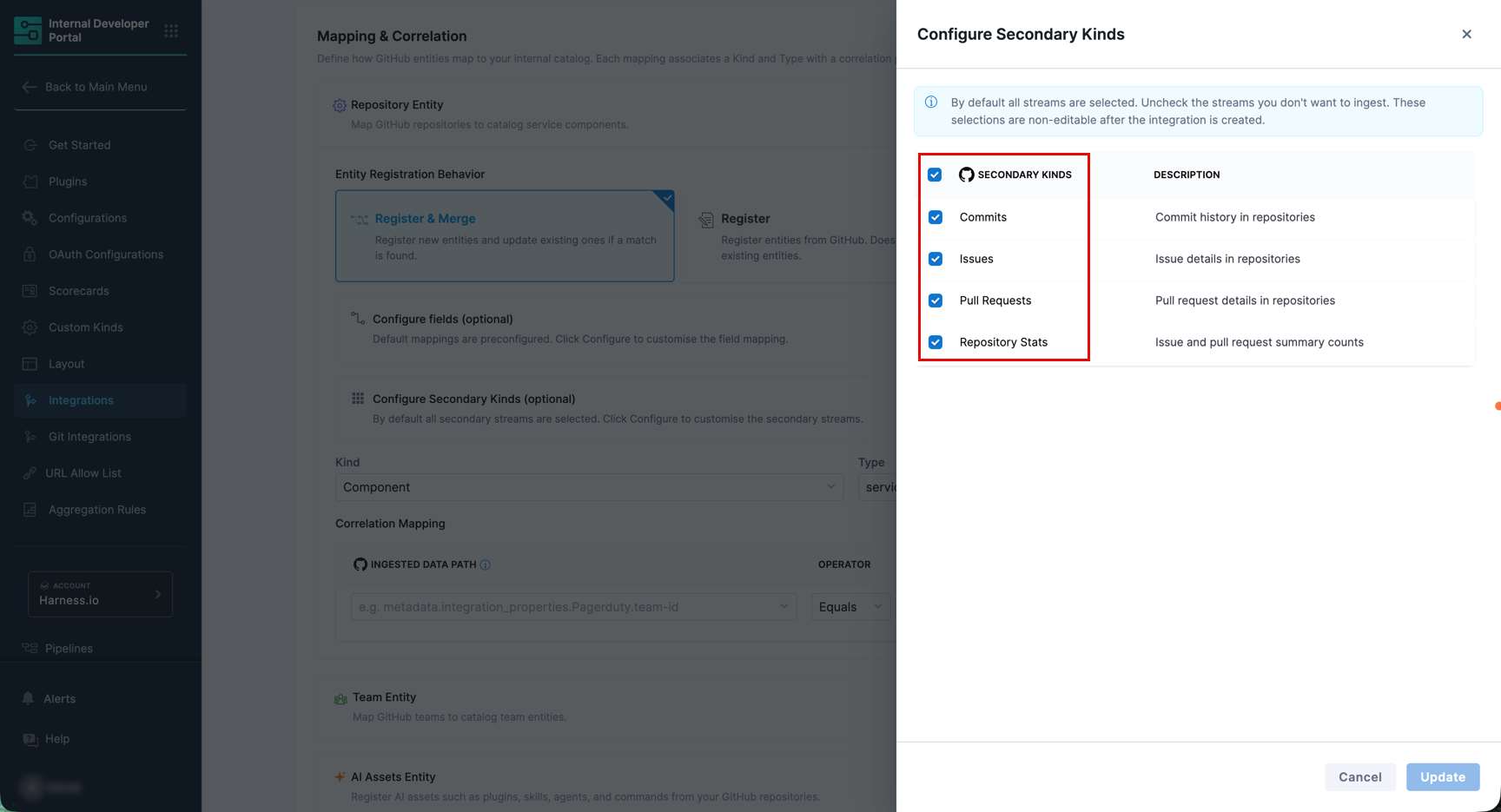

   Figure 5: Configure Secondary Kinds panel

   The following secondary kinds are available:

   Secondary Kind	Description
   Commits	Commit history for each repository. The first sync ingests the last 100 commits per repository.
   Issues	Open and closed issues for each repository.
   Pull Requests	Pull request details for each repository. The first sync ingests pull requests from the last 30 days; subsequent syncs backfill all new pull requests incrementally.
   Repository Stats	Summary counts for each repository, including open PRs, closed PRs, merged PRs, and open issues.

   Secondary kinds cannot be changed after setup

   These selections are locked once the integration is created and cannot be modified later. Choose carefully before confirming.

   Where does this data appear?

   Secondary kinds data is surfaced on the Entity Details page for each repository. It does not appear in the Ingested Properties YAML in the Entity Inspector.

Team Entity

The Team Entity mapping imports GitHub teams as catalog entities, with configurable Kind or Type.

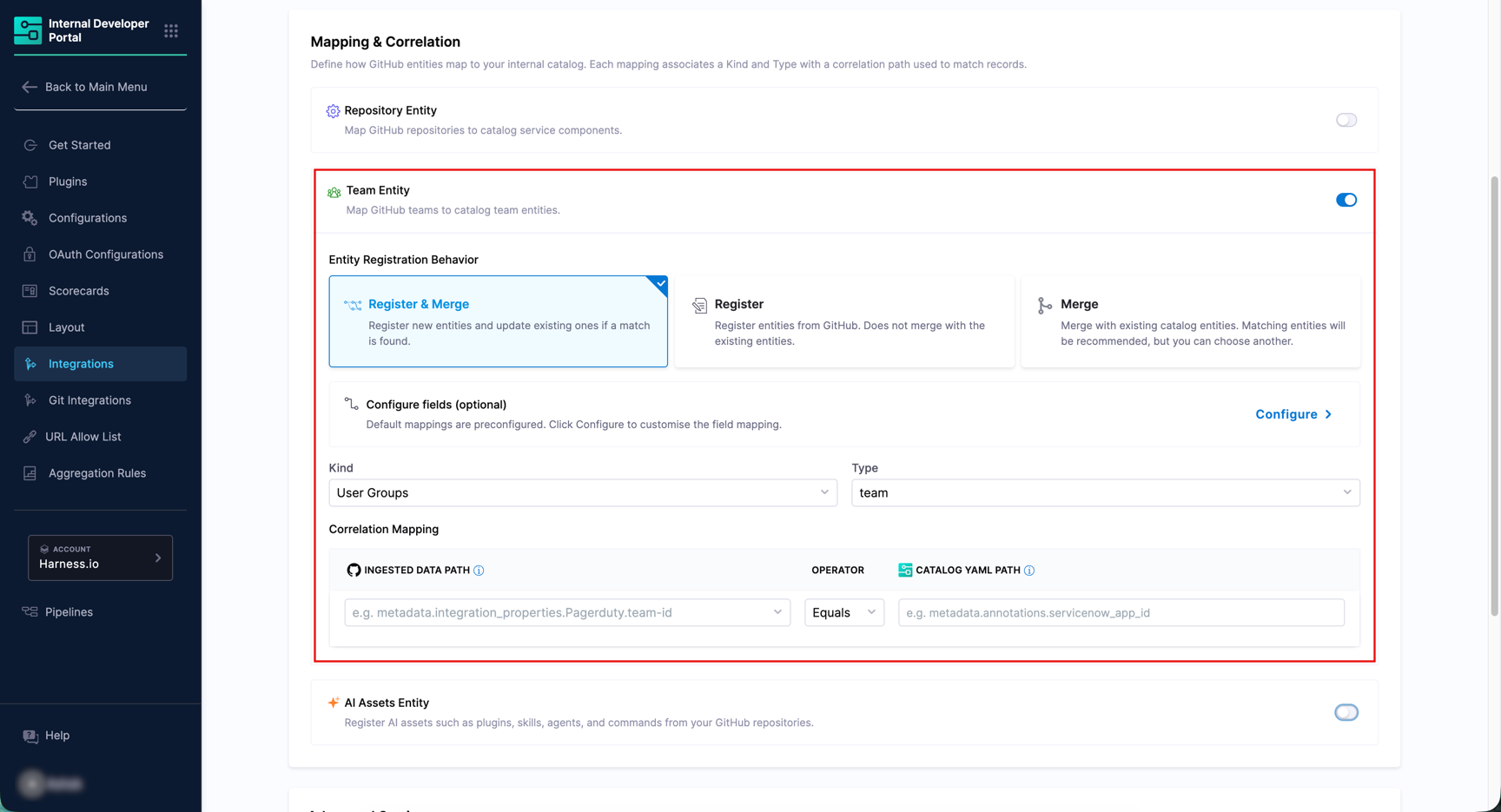

Figure 6: Enable Team Entity

1. Ensure the Team Entity toggle is turned on.

2. Under Entity Registration Behavior, choose the registration behavior as described above for Repository Entity.

3. Choose the Kind and Type from the dropdown. By default, it is User Groups and Team respectively. Configurability varies by registration behavior:

   Registration Behavior	Kind	Type
   Register & Merge	Configurable	Configurable
   Register	Configurable	Configurable
   Merge	Configurable	Not configurable

4. Configure the Correlation Mapping fields as needed.

5. Optionally, click Configure next to Configure fields (optional) to customize the field mapping.

Repository Visibility for Teams

The catalog only surfaces repositories for which the GitHub team has Admin permission. Repositories with lower-level access will not show up in the Ingested Properties.

AI Assets Entity

The AI Assets Entity mapping discovers and imports AI/ML assets found in your GitHub repositories through manifest-level, API-based scanning. No repository cloning is required.

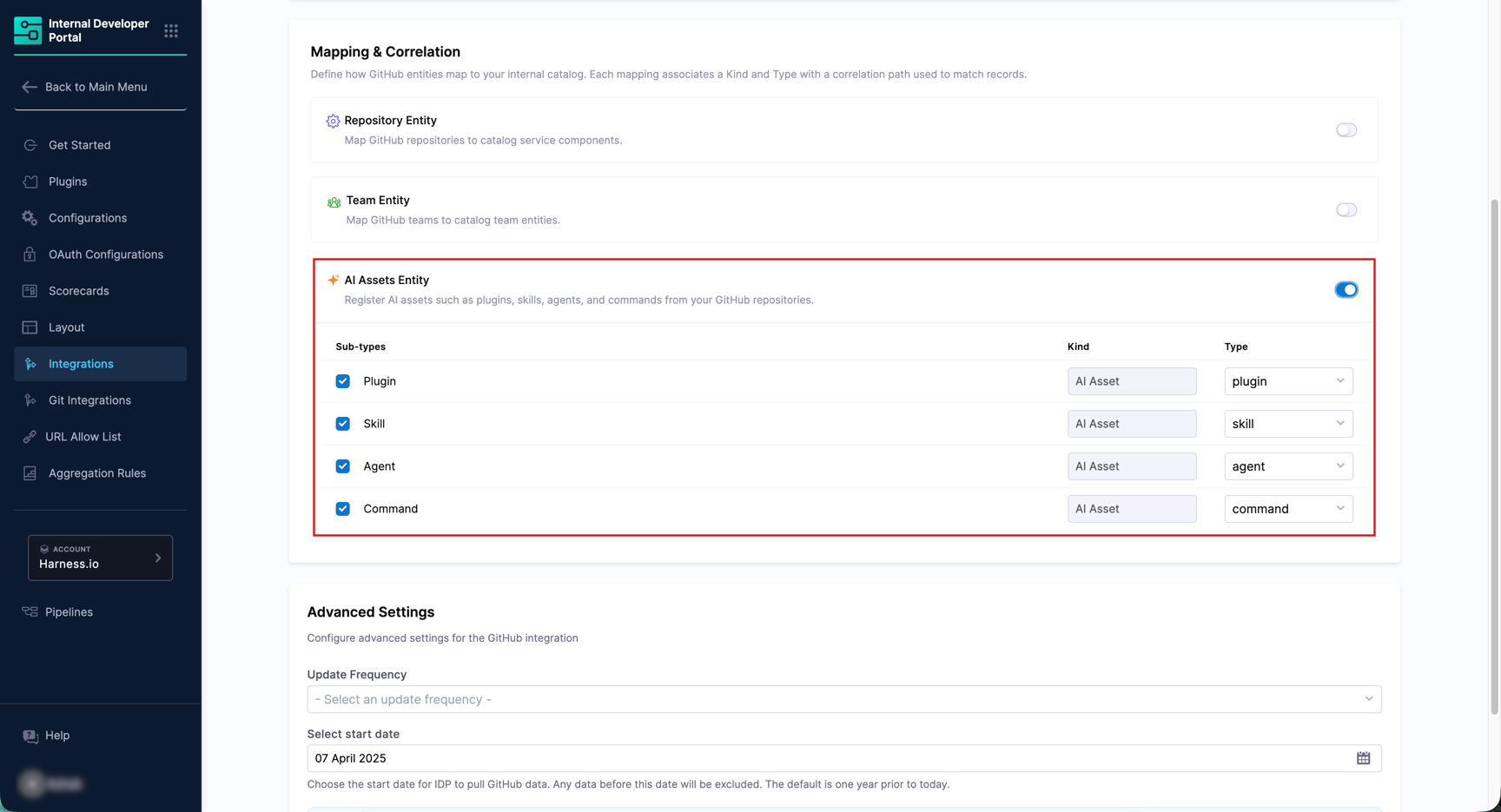

Figure 7: Enable AI Assets Entity

You can discover the following class of asset:

• ai_asset - Claude Code ecosystem components defined in .claude-plugin/ manifests or standalone .claude/ directories. Includes the following types:

  Type	Description	Example
  plugin	A Claude Code plugin bundle	make-agent-friendly, harness-hql
  skill	A user-invocable task definition	python-conventions, hql, dbops
  agent	An autonomous agent definition	python-explorer, doc-generator
  command	A CLI-style command	run, suggest-workflows, add-fme-step

Monorepo Support

The current implementation scans for plugin manifests and .claude/ directories at the repository root only. Subdirectory scanning of AI assets in a monorepo might be planned in a future release.

Find your imported entities in the Catalog

This asset class is registered in the IDP Catalog under AIAsset kind with its respective types, and is browsable under the AI Assets tab in the Catalog

View AI Asset Instructions

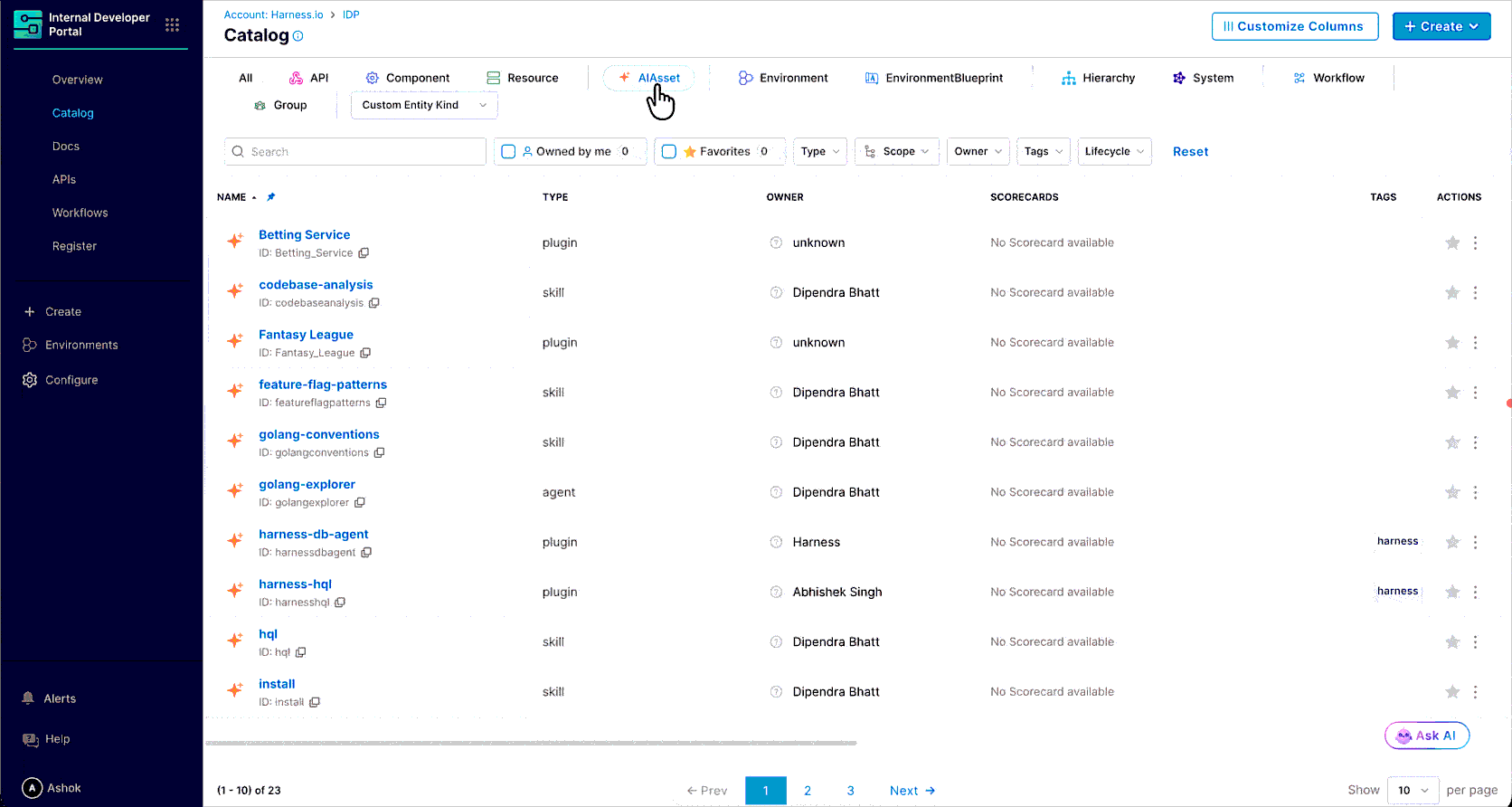

When AI assets of type skill or agent are imported, IDP automatically fetches their corresponding instruction file (for example, SKILL.md) from GitHub and stores it along with the entity. This powers the Instructions tab on the entity page as shown below.

Figure 7a: AI Assets Instructions

Additional metadata is also captured as annotations on the entity, including commit count, last commit message, author, and source location. These are visible in the Entity Inspector under Metadata.

However, this requires you to add an InstructionsTab component to your AI Asset layout:

1. Go to Configure → Layout in the IDP sidebar.

2. In Catalog Entities, click AI Asset.

3. Click Edit Layout.

4. Add the following definition (within tabs object) to your layout YAML:

   - path: /instructions
     title: Instructions
     contents:
       - component: InstructionsTab

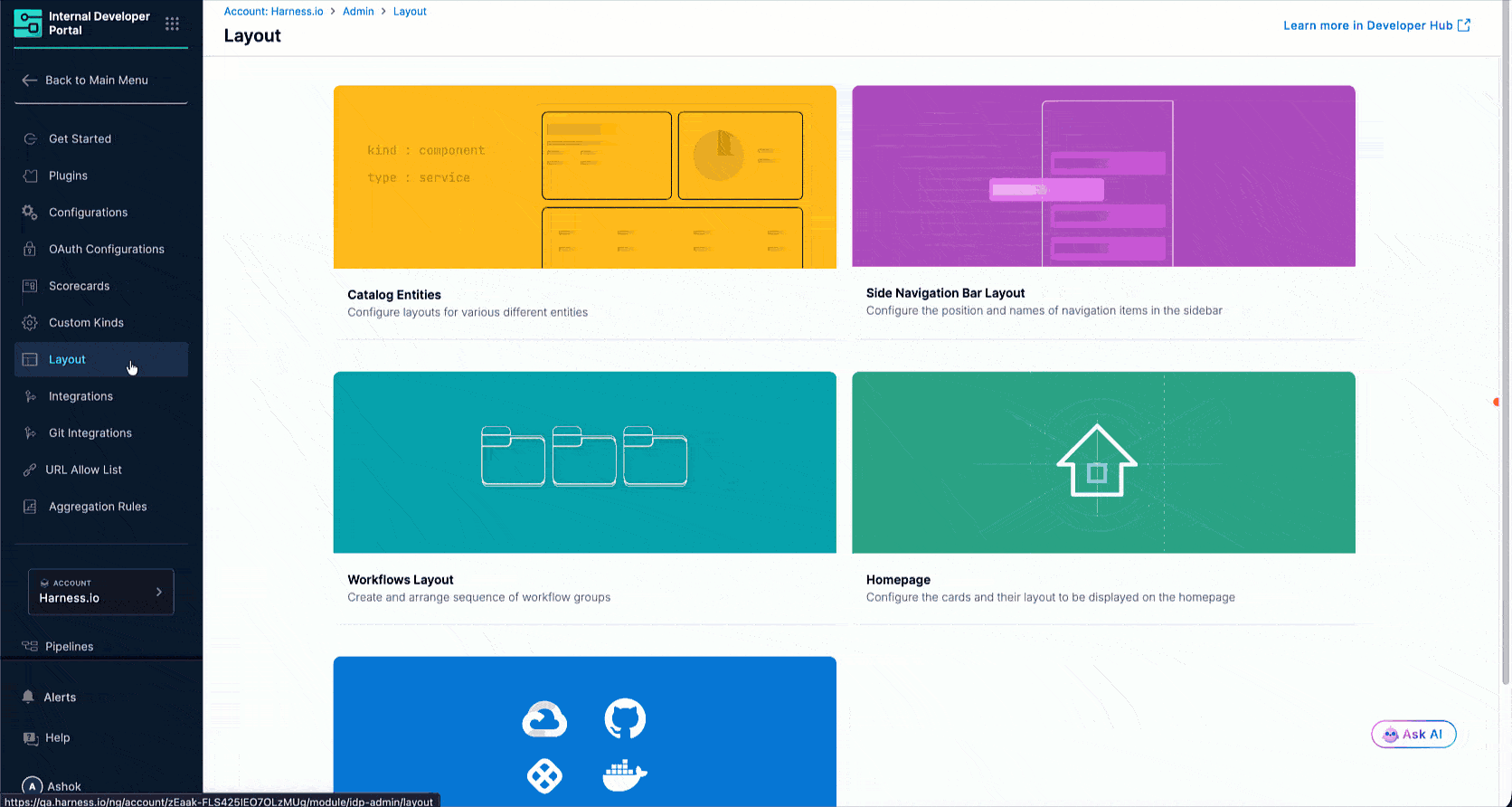

   Figure 7b: Edit Layout to display Instructions tab on Entity

5. Click Save.

Once added, the Instructions tab appears on each AI asset entity page and renders the instruction file fetched from GitHub.

info

The Instructions tab is currently supported for skill and agent type AI assets. Support for command type may be added in a future release.

4. Configure Advanced Settings

The Advanced Settings section controls how frequently IDP syncs with GitHub and how far back historical data is pulled.

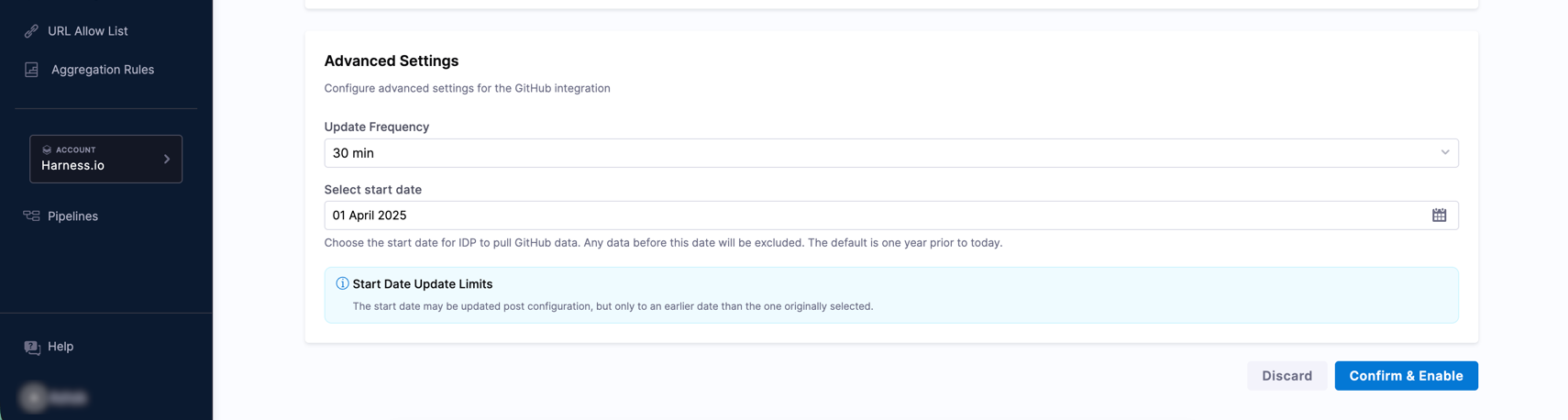

Figure 8: Advanced Settings

1. Select an Update Frequency from the dropdown to control how often IDP polls GitHub for new data.

2. Set the Select start date to define the earliest date from which IDP will pull GitHub data. Any data before this date will be excluded. By default, this is set to one year prior to today.

   Start Date Update Limits

   The start date may be updated after the integration is configured, but only to an earlier date (up to 1 year old) than the one originally selected. It cannot be moved forward.

3. Once all sections are configured, click Confirm & Enable. A confirmation dialog will appear before the changes are applied.

The integration is now enabled and IDP begins syncing data from GitHub. Discovered repositories, teams, and AI assets appear in the Discovered tab.

---

Discover and Import GitHub Entities

This section covers how to view the GitHub entities discovered by the integration and import them into your IDP Catalog.

Discovered tab

After the integration runs, all GitHub entities detected appear in the Discovered tab. Use the Repository, Team, and AI Assets sub-tabs to switch between entity types. If entities do not appear, use the Sync button at the top right to manually refresh.

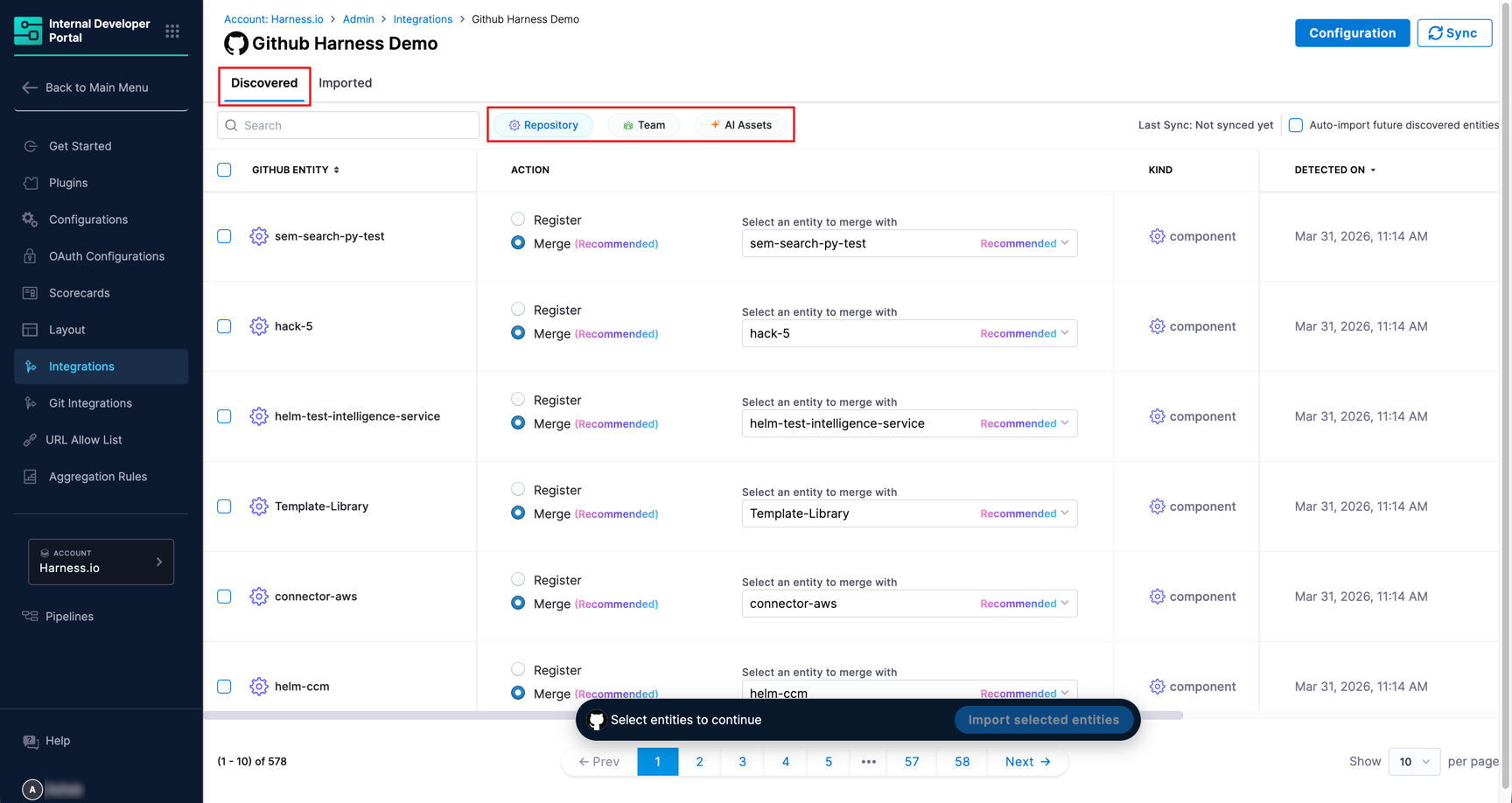

Figure 9: 'Discovered' tab showing GitHub Repositories, Teams, and AI Assets

For each discovered entity, you can see its name, the recommended catalog action, kind, and the date it was detected. You can choose how to bring entities into the catalog using one of the following actions:

• Register (shown as Recommended when no matching catalog entity exists) - Creates a new catalog entity populated with the GitHub metadata. Type is editable by the user.
• Merge (shown as Recommended when a matching catalog entity is found) - Links the discovered entity to an existing catalog entity, enriching it with GitHub data. The suggested matching entity is shown automatically and can be changed.

Bulk Import and Auto Import Options

• Bulk Import - Select multiple entities using the checkboxes and click Import selected entities at the bottom of the page to import them all at once. The selection widget shows a count of selected entities.
• Auto Import - Toggle Auto-import future discovered entities in the top right of the Discovered tab to automatically import all future entities without manual review. You can change this preference at any time.

Imported tab

The Imported tab displays all GitHub entities that have been brought into the catalog. Use the Repository, Team, and AI Assets sub-tabs to view each entity type separately.

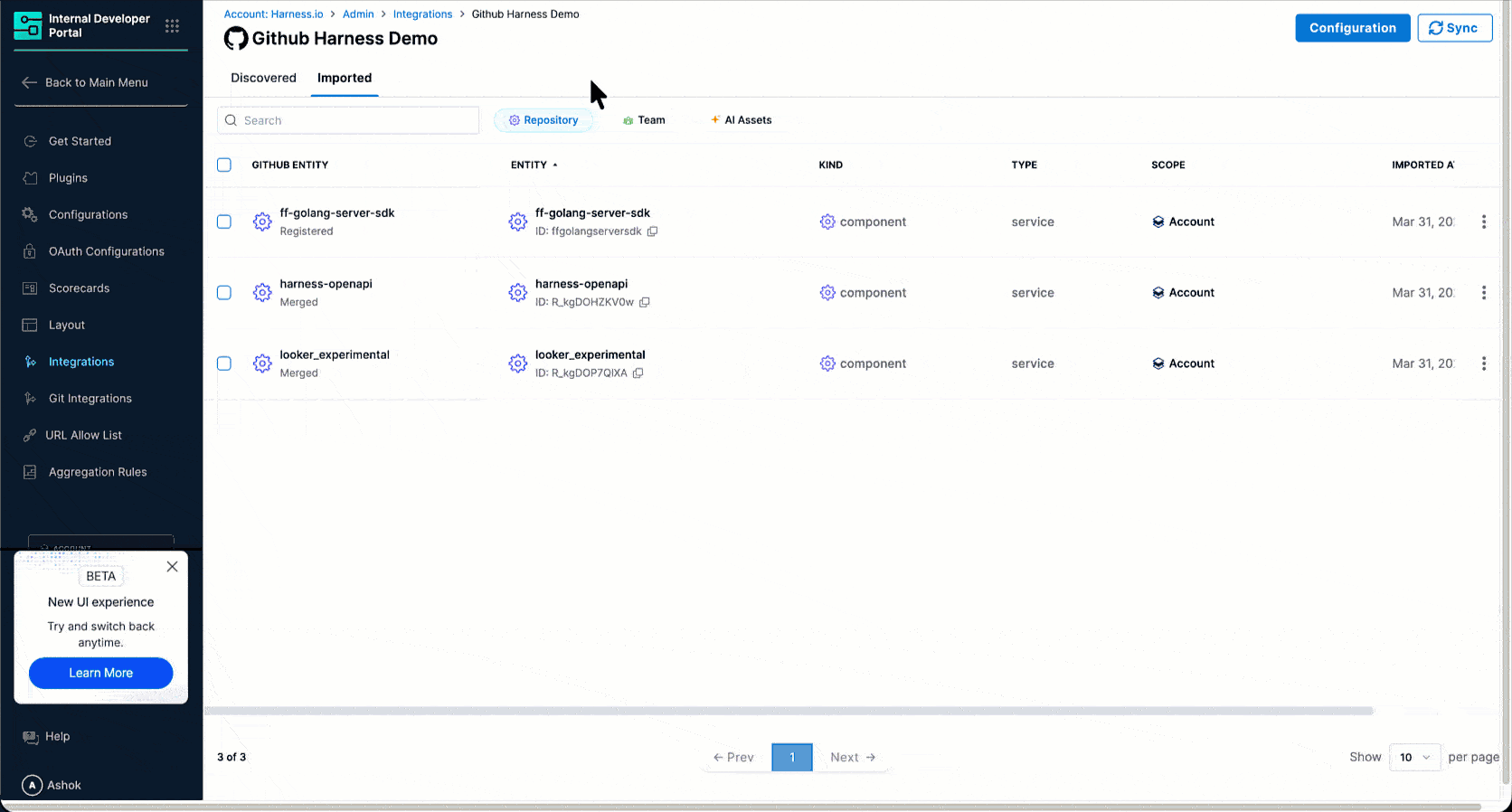

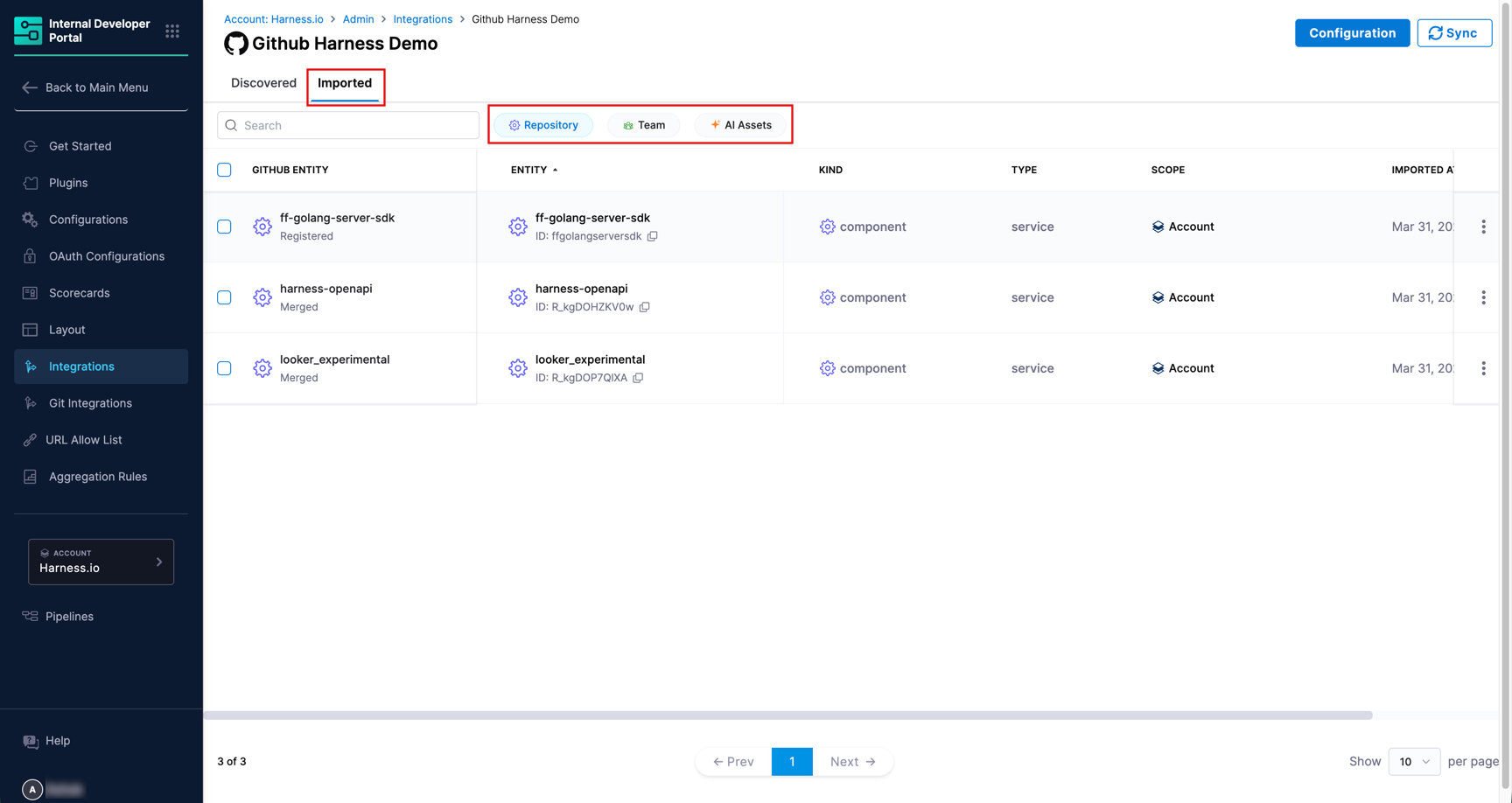

Figure 10: 'Imported' tab showing GitHub entities linked to catalog entities

It displays the following data:

Column	Description
GitHub Entity	The name of the entity from GitHub, along with its import status (for example, Merged or Registered).
Entity	The linked IDP catalog entity and its ID.
Kind	The catalog entity kind (e.g., component for repositories, group for teams, aiasset for AI assets).
Type	The catalog entity type (e.g., service for repositories, team for teams).
Scope	The Harness account scope the entity belongs to.
Imported At	The timestamp when the entity was imported.

Unlink an Imported Entity

To stop syncing a specific entity without deleting the catalog entity, use the three-dot menu on any row and select Unlink. This stops sync updates while keeping the IDP entity and its existing data intact.

---

View GitHub Entities in the Catalog

Once imported, GitHub entities are available in the Catalog section of IDP as standard catalog entities.

Each imported GitHub repository is registered with:

• Kind: Component
• Type: service
• Scope: The Harness account the integration belongs to

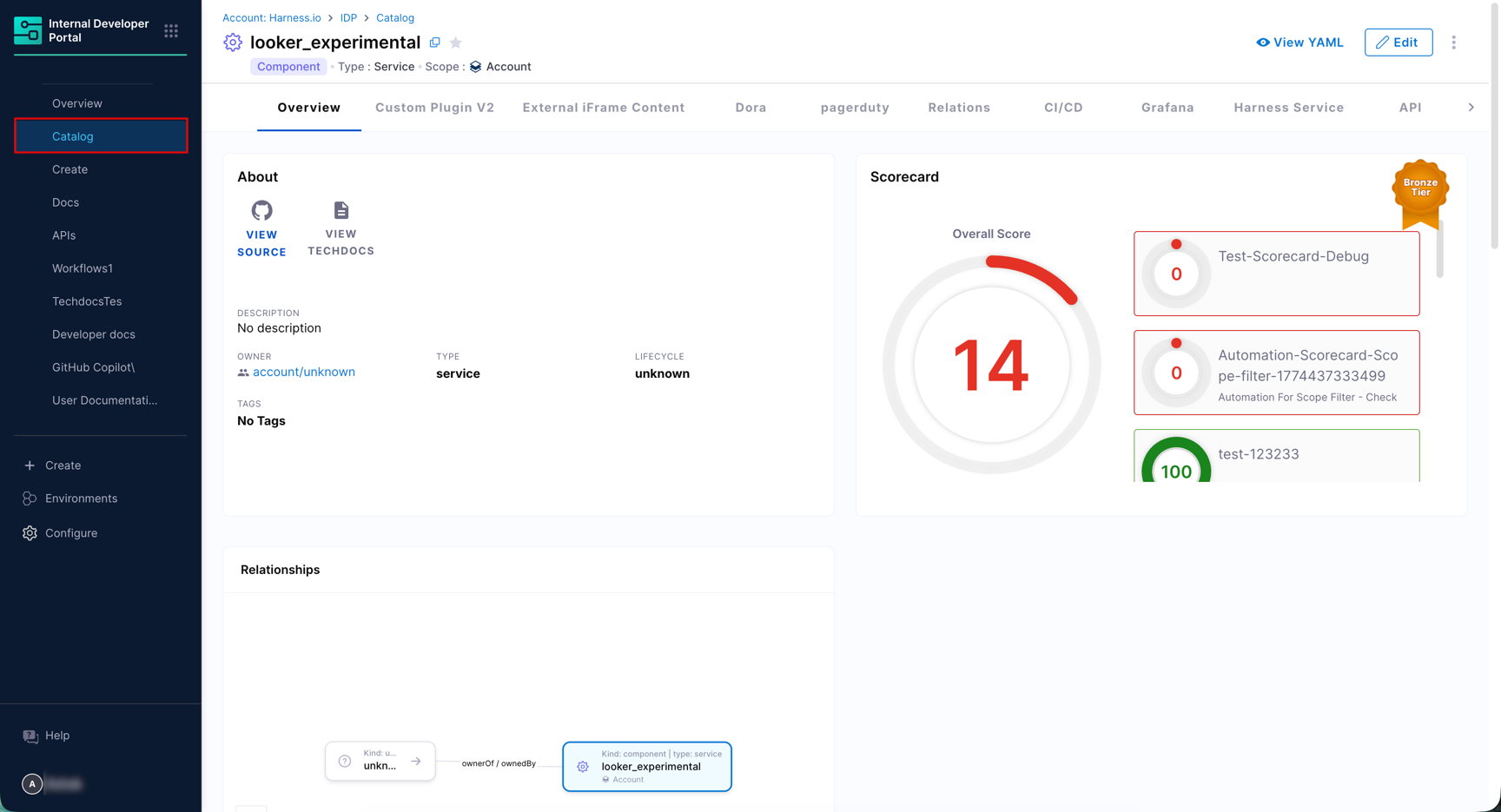

Figure 11: IDP Catalog Entity Page showing Service/Team/AI-Asset Relationship

Each imported GitHub team is registered with:

• Kind: Group
• Type: Team
• Scope: The Harness account the integration belongs to

Each imported AI asset is registered with:

• Kind: aiasset
• Scope: The Harness account the integration belongs to

Open any entity to view its Overview, Relationships, Scorecards, and any other tabs configured for your entity layout. The Relationships section reflects ownership links between AI assets, teams, and repositories as discovered from GitHub.

Ingested Properties

To inspect the raw data ingested from GitHub, open the entity and click View YAML → Ingested Properties in the Entity Inspector.

Figure 12: Entity Inspector Page showing Ingested Properties

Ingested properties are stored in two sections of the entity YAML:

• metadata.integration - Tracks which integrations are linked to this entity, including the entity action (e.g., REGISTER or MERGE) and the linked entity UUID for each integration instance.
• integration_properties.GitHub - Contains the GitHub-specific data for the entity, organized by entity type. For repository entities, this includes repository metadata such as name, URL, and associated teams. For team entities, this includes team membership and hierarchy data.

---

Manage the GitHub Integration

Edit the Integration

To update the integration name, switch the GitHub connector, or change the mapping and correlation settings, navigate to the Integrations page, find your GitHub integration card, and click View. From there, click Configuration to open the edit screen.

Suspend Auto-Discovery

If auto-discovery is suspended, new entities will not appear in the Discovered tab. Existing imported entities remain unchanged in the catalog and the sync between GitHub and their corresponding IDP entities will stop.

To suspend auto-discovery:

1. Go to Integrations and open your GitHub integration using the View button.
2. Click Configuration at the top.
3. In the Danger Zone section, click Suspend.
4. Confirm the action.

You may re-enable it at any time by following the same steps.

---

GitHub Permissions

The GitHub Integration connector supports three credential types. The table below summarizes the minimum permissions required for each. Detailed breakdowns follow.

Credential Type	Minimum Permission
Classic Personal Access Token	repo scope, read:org scope + SSO authorization (if applicable)
Fine-Grained Personal Access Token	Repository: Metadata (Read-only), Organization: Members (Read-only)
GitHub App	Repository: Metadata (Read-only), Organization: Members (Read-only)

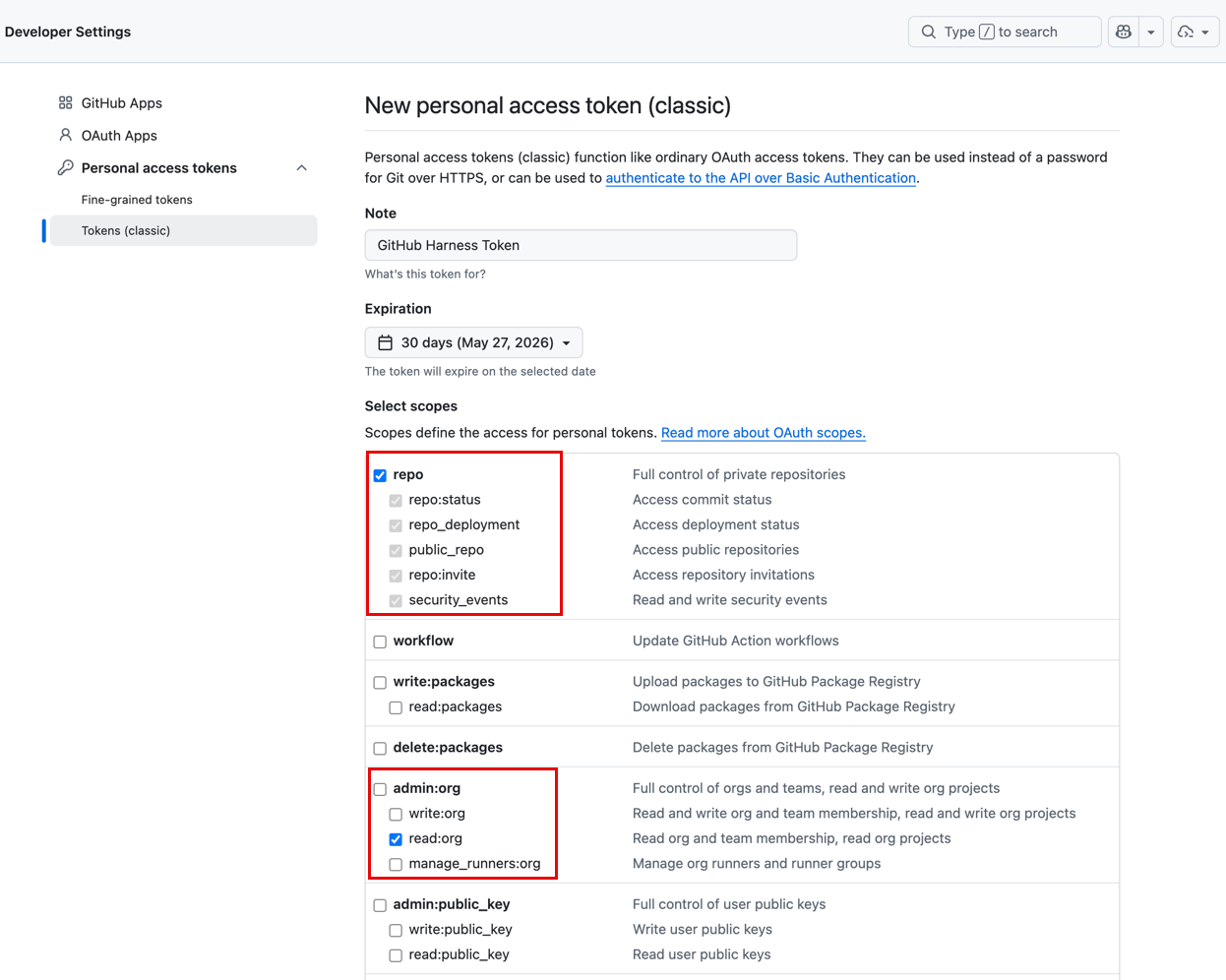

Classic Personal Access Token

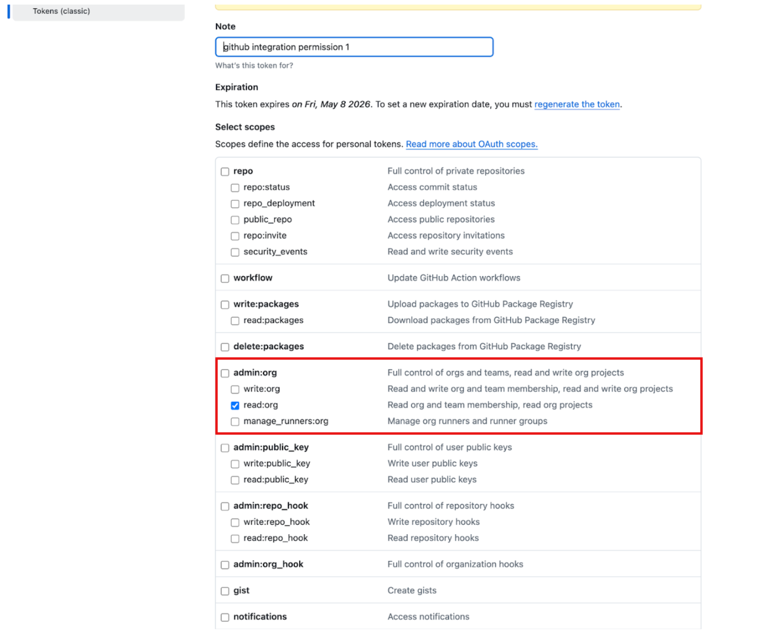

The following scopes are required for IDP to perform org-level discovery of repositories and teams:

• repo - Required to read private repository information. Classic PATs on GitHub do not offer a read-only scope for private repositories, so this broader scope is necessary even though IDP only reads repository data.
• read:org (under admin:org) - Grants read access to organization and team membership, and org projects.

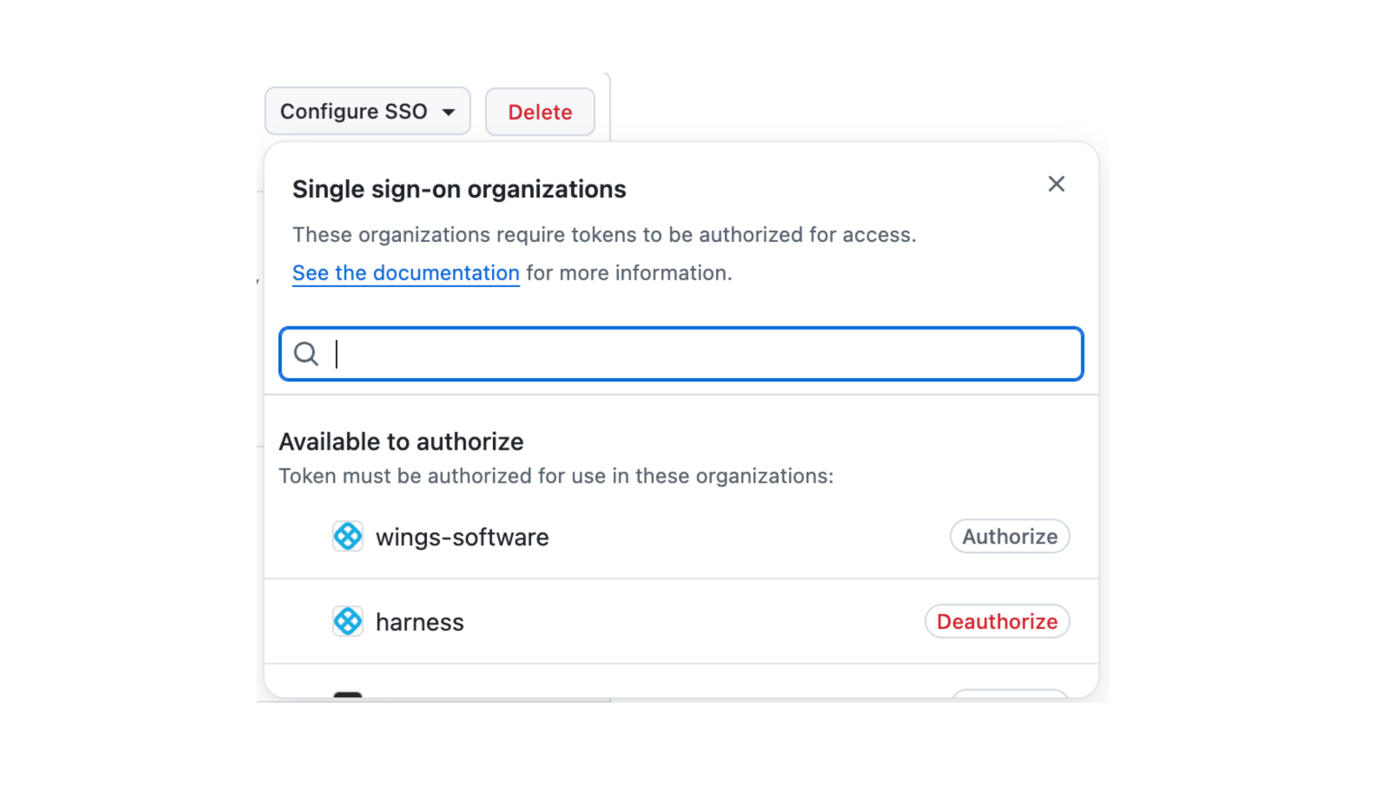

If your GitHub organization enforces SAML SSO, the token must also be explicitly authorized for that organization after it is generated. Without SSO authorization, org-level queries will fail even if read:org is selected.

To authorize, navigate to your token on the GitHub tokens page, click Configure SSO, and authorize the token for the relevant organization.

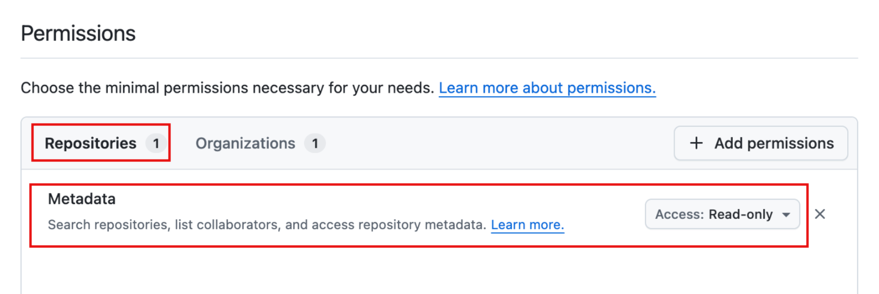

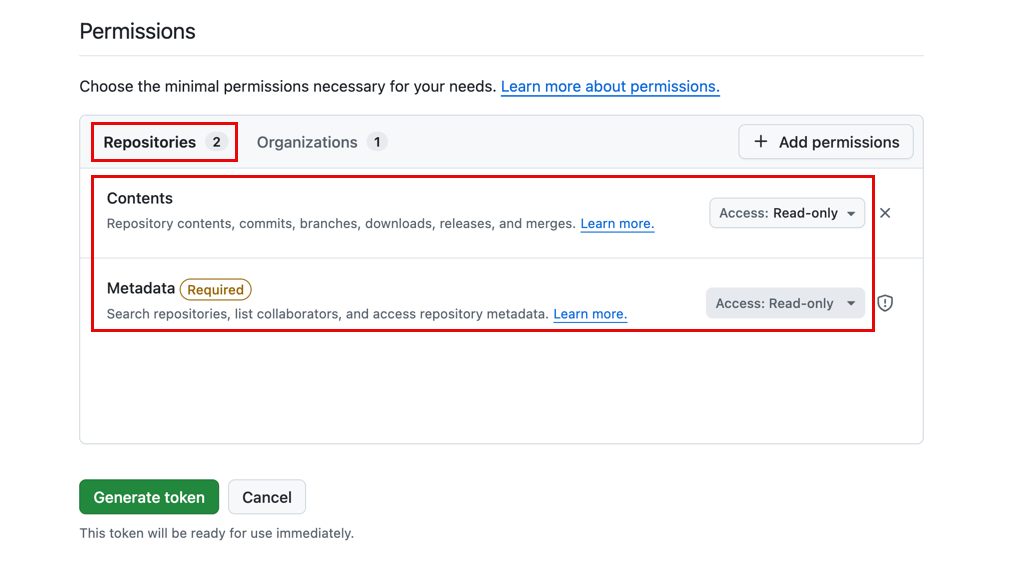

Fine-Grained Personal Access Token

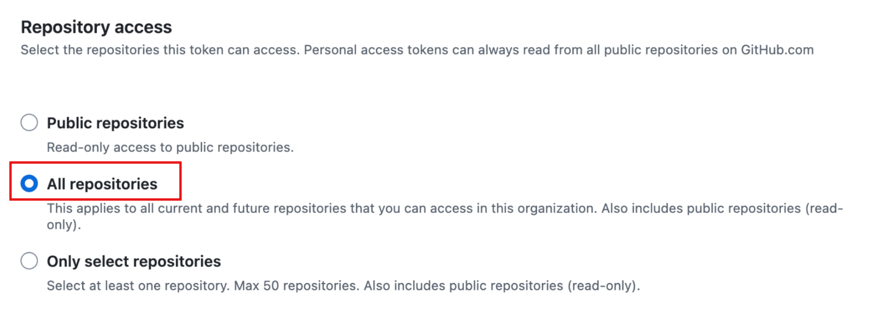

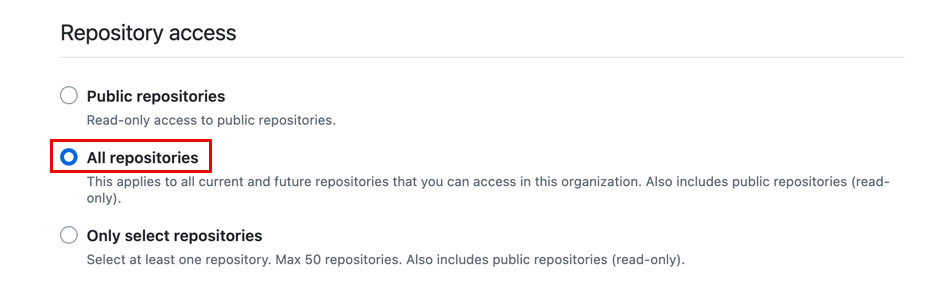

• Repository access must be set to All repositories so that IDP can discover all repositories in the organization.

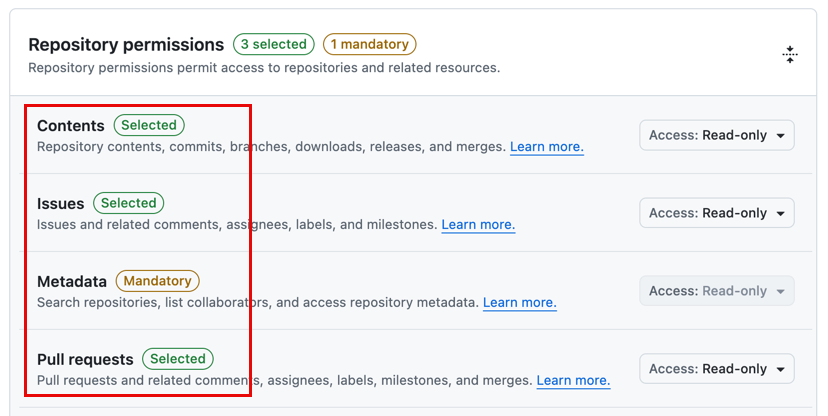

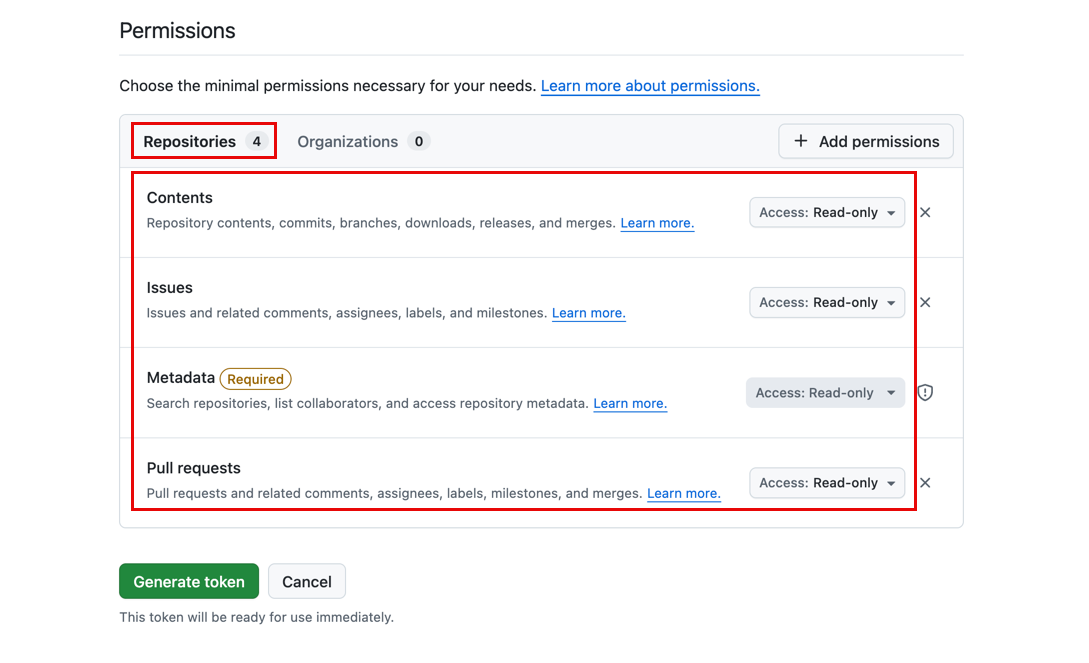

• Under the Repositories permission tab, set the following options to Read-only:

  • Contents
  • Issues
  • Metadata
  • Pull Requests

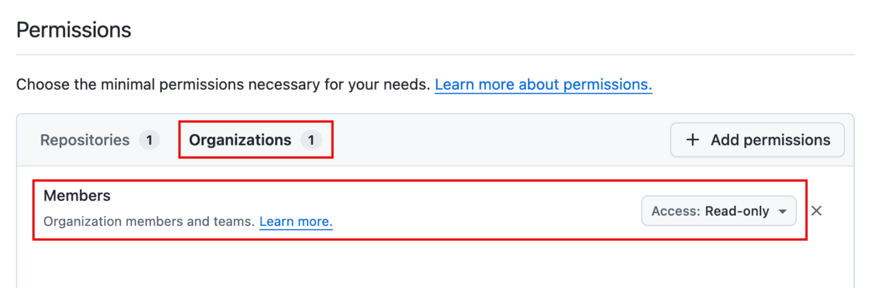

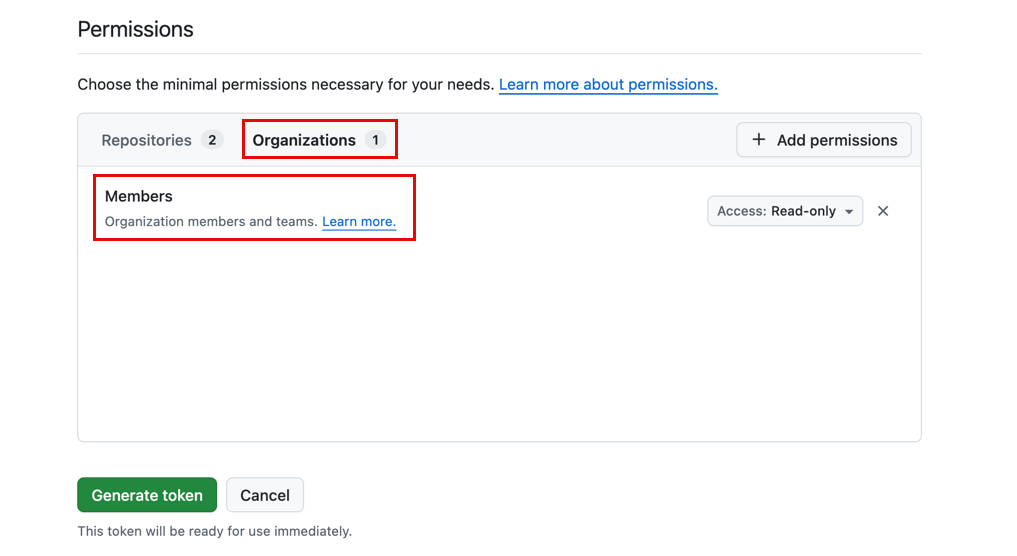

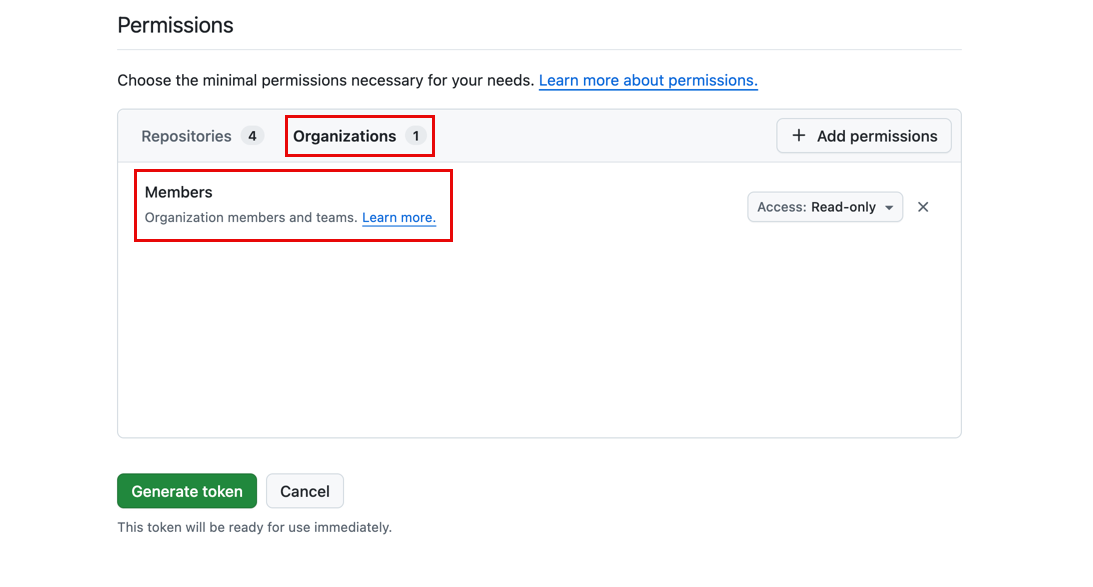

• Under the Organizations permission tab, set Members to Read-only.



The Resource owner must be set to the organization, not a personal account. Fine-grained tokens are scoped to a single resource owner, so one token covers one organization. If you need to connect multiple GitHub organizations, create a separate token and a separate Harness connector for each.

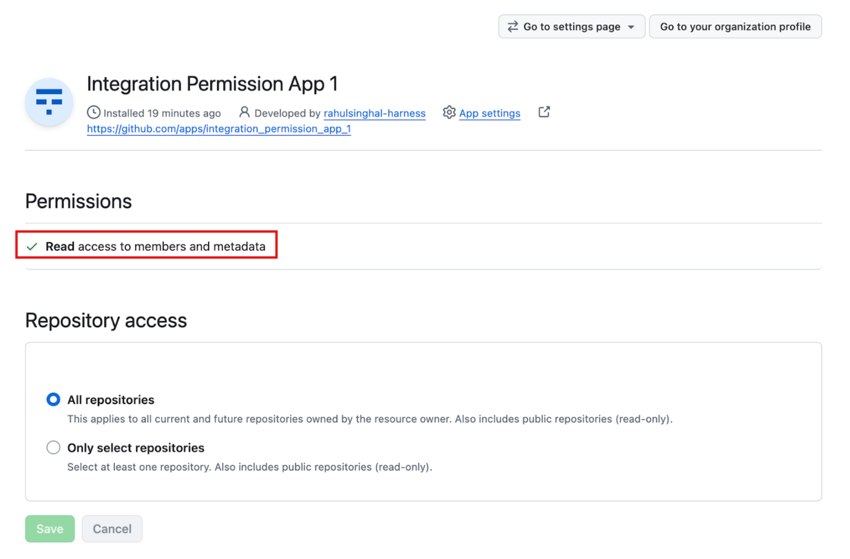

GitHub App

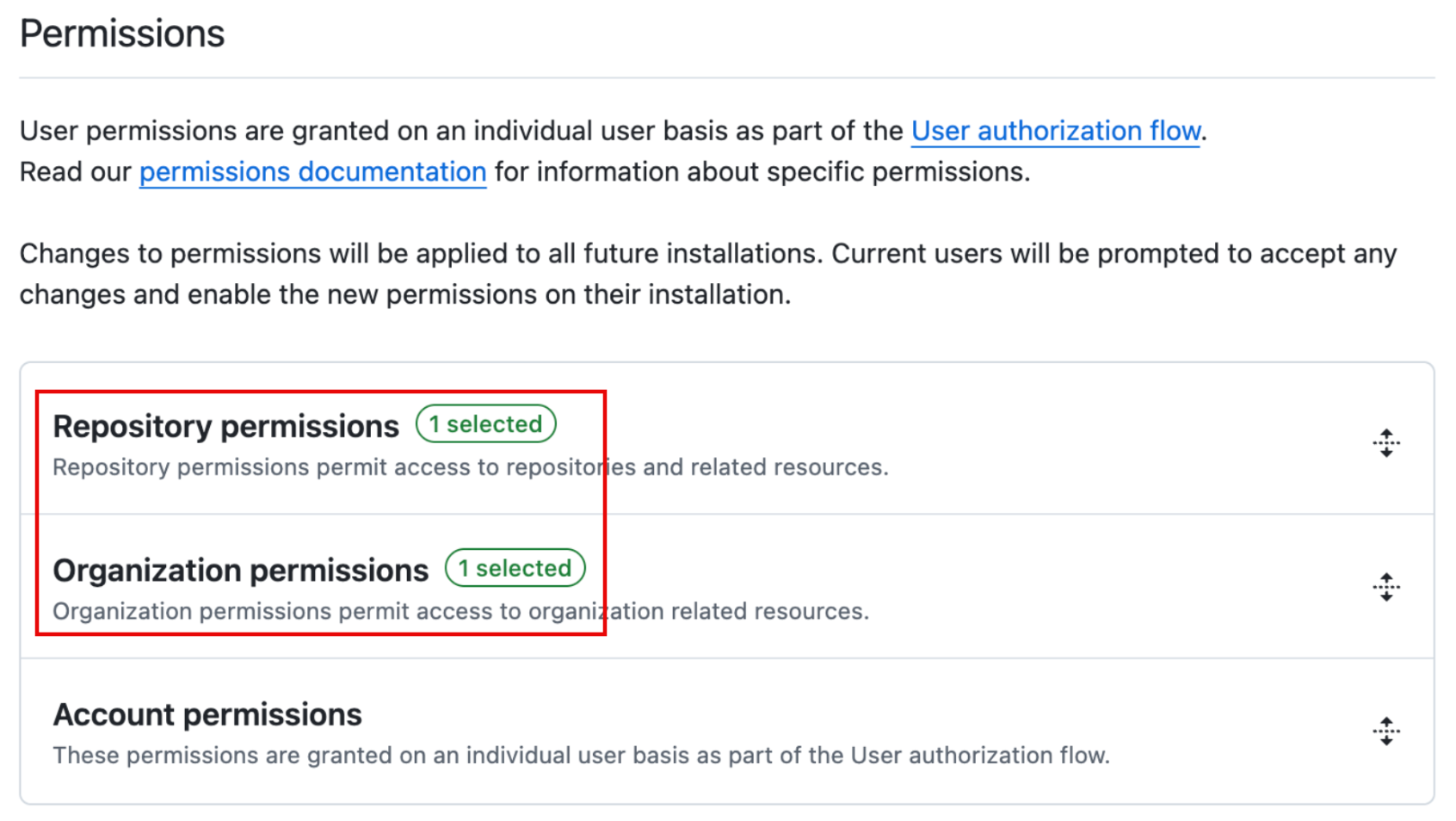

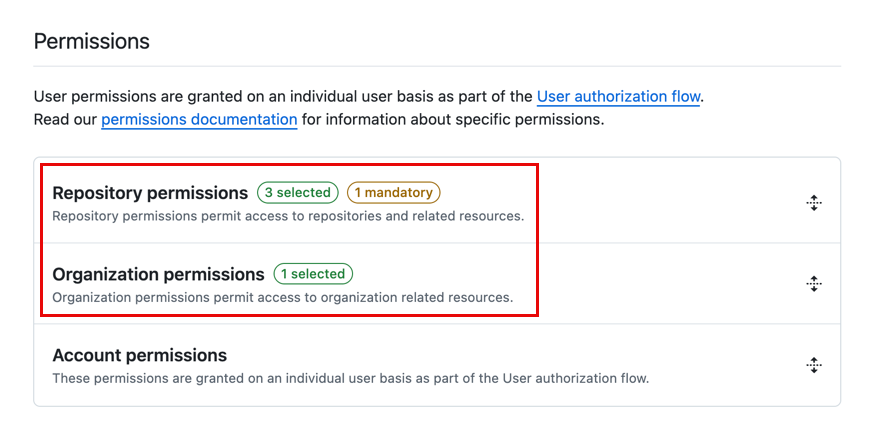

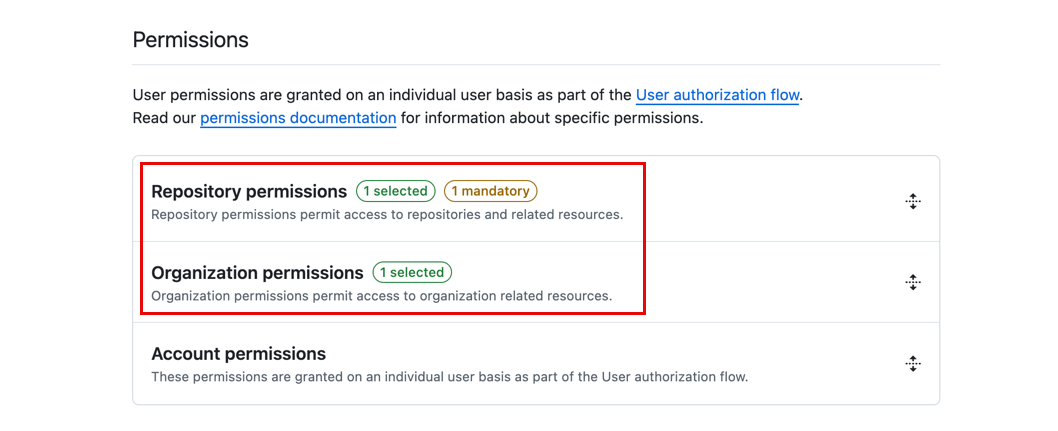

• When configuring the app, the Permissions section should have the required permissions configured under both Repository permissions and Organization permissions.

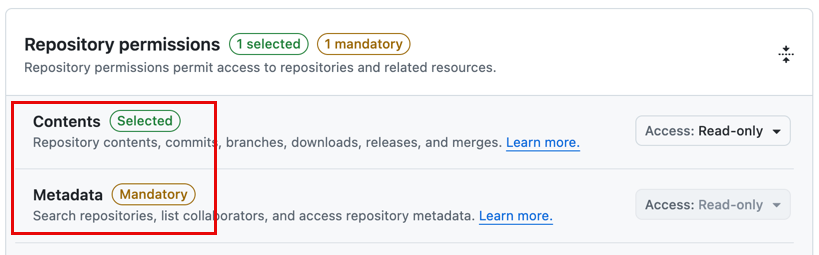

• In Repository permissions, confirm that the following options are set to Read-only:

  • Contents
  • Issues
  • Metadata
  • Pull Requests

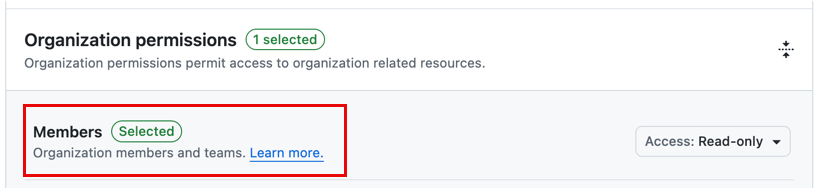

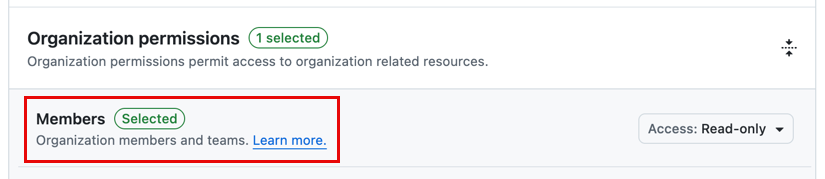

  Similarly, under Organization permissions, set Members to Read-only.



• The app must be installed on the organization for the permissions to take effect. Once installed, the app's permission summary on the org's installed apps page will confirm: Read access to members and metadata
