API endpoint extraction and enrichment

Last updated on Jul 13, 2026

When you register a catalog entity with kind: API and type: openapi, Harness IDP automatically parses the OpenAPI spec you provide and extracts a structured, trimmed representation of its endpoints. This extracted data appears in the entity's Ingested Properties under metadata.apis and can then be enriched with custom metadata from your own tools, scripts, or external services.

This page explains what gets extracted, how to configure the entity definition so extraction works reliably, and how to write enrichment data to individual endpoints using the Catalog Custom Properties API.

Before you begin

This feature is gated behind the IDP_API_ENDPOINT_EXTRACTION feature flag. Contact Harness Support to enable it for your account.

How endpoint extraction works

After an API entity is saved, IDP parses spec.definition and extracts each endpoint from the spec.

Rather than storing the full specification (which can run to tens of thousands of lines), IDP stores only the operationally relevant fields per endpoint: path, HTTP method, summary, operation ID, and tags. This trimmed representation is stored in the entity's Ingested Properties under metadata.apis (explained in the next section).

Extraction runs each time the entity is created or updated in IDP. If the spec file changes at its source after the entity is already registered, re-save the entity in IDP to pick up the latest version.

The metadata.apis structure

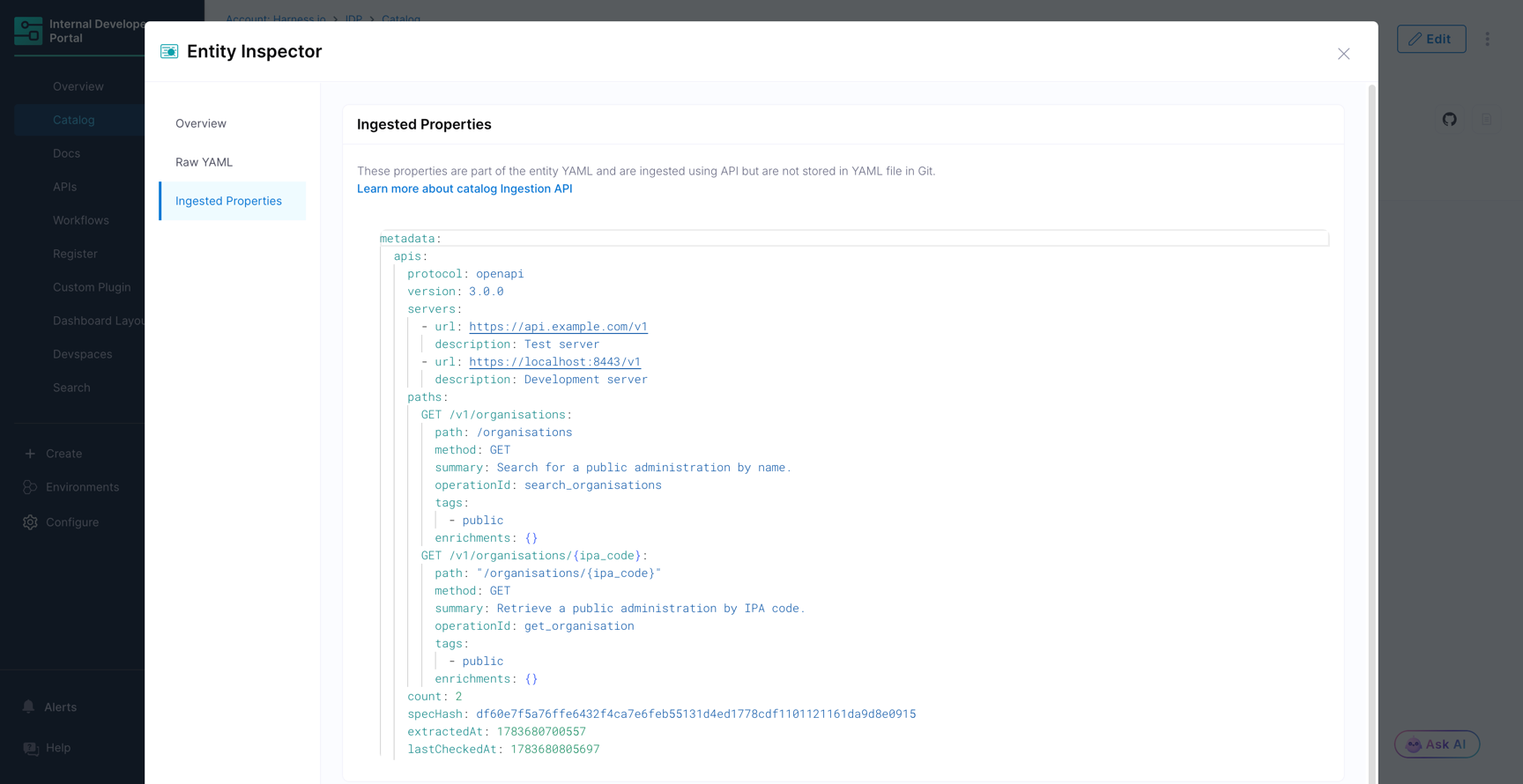

After a successful extraction, the entity's Ingested Properties contain a metadata.apis block. Here is an example for a spec with two endpoints:

metadata:
  apis:
    protocol: openapi
    version: 3.0.0
    servers:
      - url: https://api.example.com/v1
        description: Test server
      - url: https://localhost:8443/v1
        description: Development server
    paths:
      GET /v1/organisations:
        path: /organisations
        method: GET
        summary: Search for a public administration by name.
        description: Connects to the index and searches for a public administration by name.
        operationId: search_organisations
        tags:
          - public
        deprecated: false
        enrichments: {}
      GET /v1/organisations/{ipa_code}:
        path: "/organisations/{ipa_code}"
        method: GET
        summary: Retrieve a public administration by IPA code.
        description: Retrieves information about a specific public administration using its IPA code.
        operationId: get_organisation
        tags:
          - public
        deprecated: false
        enrichments: {}
    count: 2
    specHash: df60e7f5a76ffe6432f4ca7e6feb55131d4ed1778cdf1101121161da9d8e0915
    extractedAt: 1783680700557
    lastCheckedAt: 1783680805697
    extractionStatus: success

Every field in metadata.apis except enrichments is system-managed. IDP writes those fields during extraction and they cannot be modified through the API. Attempting to write to any system-managed path returns HTTP 400. The enrichments: {} block on each endpoint is the only location where you or an external service can write data.

Configure the spec for extraction

Endpoint extraction relies on IDP being able to read the OpenAPI spec. The method you use to provide the spec in spec.definition determines what prerequisites you need.

Method 1: Inline spec definition

You can embed the entire OpenAPI spec (either in JSON or YAML) directly inside the entity YAML using a literal block scalar in spec.definition:

spec:
  lifecycle: production
  definition: |
    openapi: "3.0.0"
    info:
      title: Starter Kit API
      version: 1.0.0
    servers:
      - url: https://api.example.com/v1
    paths:
      /organisations:
        get:
          summary: Search for a public administration by name.
          operationId: search_organisations
          tags:
            - public
      /organisations/{ipa_code}:
        get:
          summary: Retrieve a public administration by IPA code.
          operationId: get_organisation
          tags:
            - public

Method 2: Git-hosted spec via placeholders

If your spec lives in a Git repository, reference it using a placeholder in spec.definition. The placeholder tells IDP what file format to expect when it fetches the content:

Placeholder	Use when the spec file is
`$yaml`	A YAML file (`.yaml` or `.yml`)
`$json`	A JSON file (`.json`)
`$text`	Any other text format, or when the file type is ambiguous

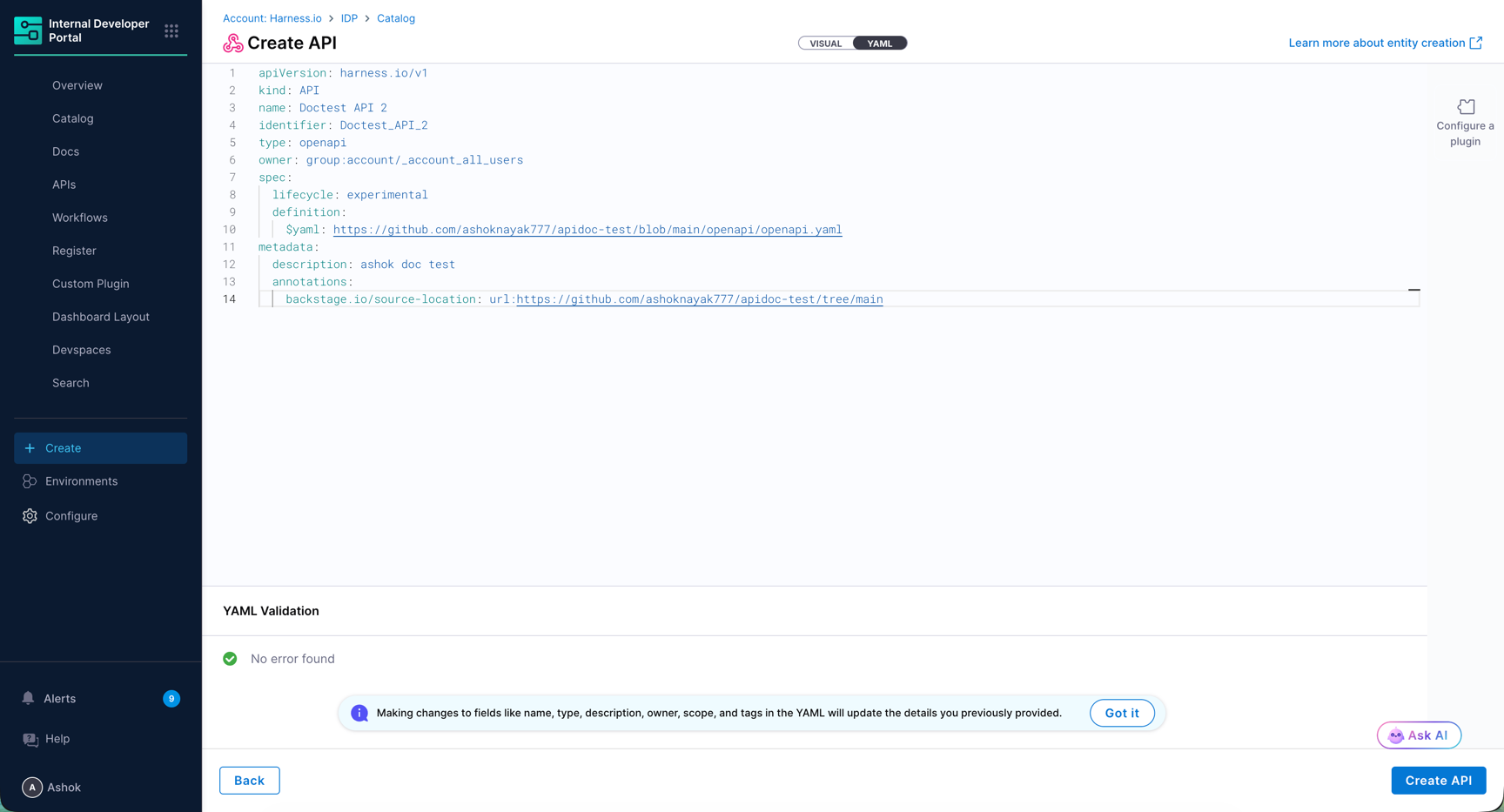

spec:
  lifecycle: production
  definition:
    $yaml: https://github.com/your-org/your-repo/blob/main/openapi.yaml

caution

Placeholders in Harness IDP support only Git-based URLs (GitHub, GitLab, Bitbucket, Azure Repo). They do not resolve arbitrary public HTTP URLs. If you have a spec hosted at a non-Git HTTP endpoint, use the bare-URL method mentioned in this doc. Users familiar with open-source Backstage may expect any HTTP URL to work here; that is not the case in Harness IDP.

Using a Git placeholder requires two additional prerequisites.

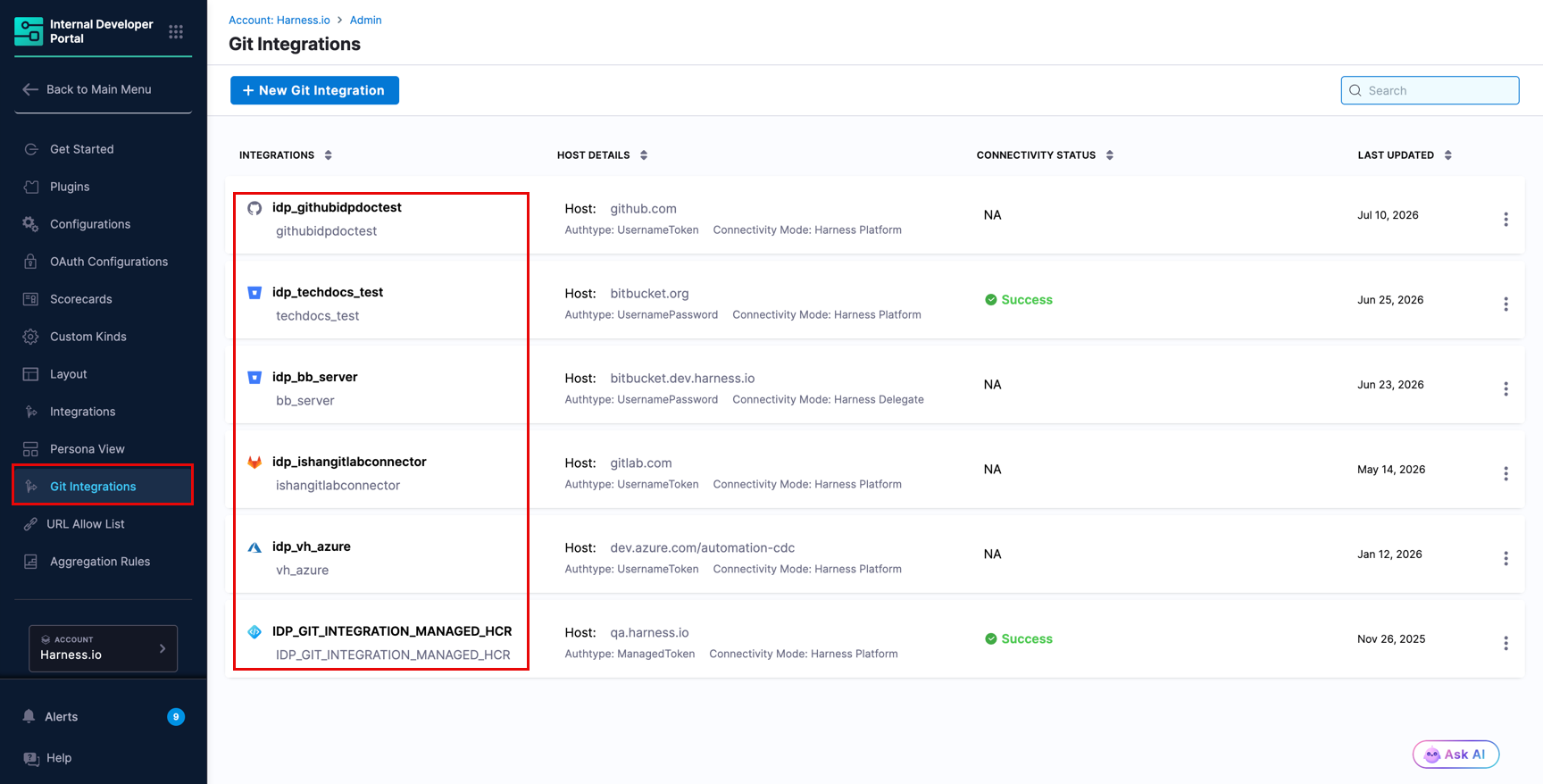

Prerequisite 1: Configure a Git Integration

A Git Integration supplies the credentials IDP uses when fetching the spec. Go to Configure → Git Integrations, select + New Git Integration, and choose your provider. Select an existing Harness connector or create one, validate permissions, and save.

info

Only one Git Integration per provider host is active at a time. If your Harness account has multiple connectors for the same provider, the one registered in Git Integrations is the one IDP uses for all spec fetches from that provider.

Prerequisite 2: Add the source-location annotation (private repositories only)

For private repositories, add the backstage.io/source-location annotation to your entity YAML, pointing to the repository root. IDP uses this annotation to resolve the correct Git credentials during the fetch:

metadata:
  description: My payment service API
  annotations:
    backstage.io/source-location: url:https://github.com/your-org/your-repo/tree/main

This annotation is not required for public Git repositories.

Method 3: Bare URL (public HTTP)

If the spec is hosted at a publicly accessible non-Git URL, provide the URL directly as the value of spec.definition, without a $ placeholder prefix:

spec:
  lifecycle: production
  definition: https://petstore.swagger.io/v2/swagger.json

IDP fetches the URL directly. No Git Integration is needed. However, for the spec to render in the UI, the domain must also be added to the URL Allow List.

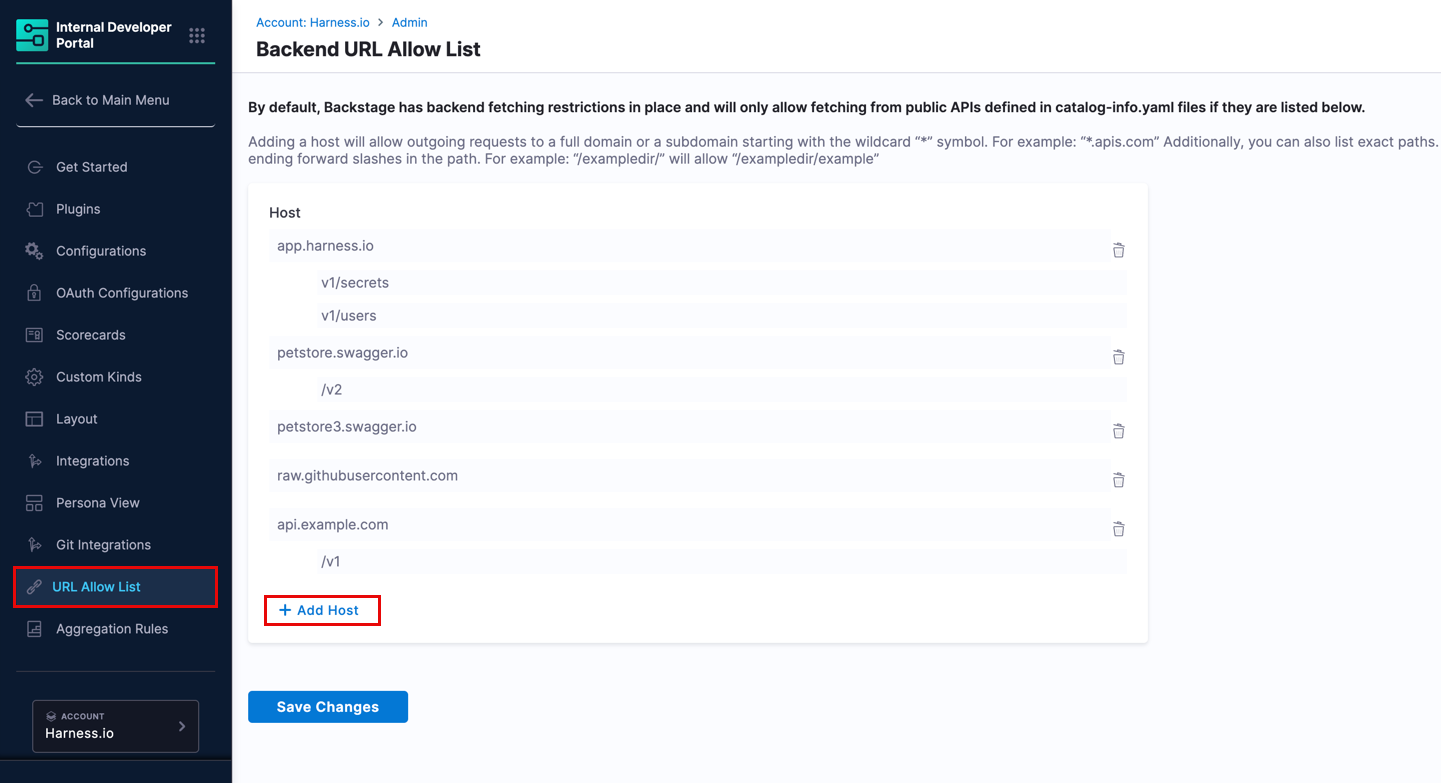

Configure the URL Allow List (for UI rendering)

In IDP, go to Configure → URL Allow List and add the host of the URL where your spec is served. You can use a wildcard to cover subdomains (for example, *.swagger.io). Subdirectory matching is supported with a trailing slash (for example, /v2/ matches /v2/swagger.json).

info

The URL Allow List controls which domains the IDP frontend can render. It is not required for backend extraction or enrichment. Git-hosted specs fetched via a Git Integration connector are not subject to this restriction.

Enrich endpoint data

Once endpoints are extracted, you can attach custom metadata to any endpoint using the Catalog Custom Properties (CCP) API. Enrichments are stored separately from the extracted spec data and are never written to the entity's catalog-info.yaml in Git. Any service or tool that can make an authenticated HTTP request can write enrichments: your own scripts, CI/CD steps, or external integrations.

tip

Enrichment data written to endpoint properties is also available as a data source for Scorecard rules, allowing you to define and measure API quality checks against enriched values such as risk scores or compliance tags.

Go to the Catalog Ingestion API reference to review the general CCP API contract.

The writable path

The property path for any enrichment write is:

metadata.apis.paths."<METHOD path>".enrichments.<your_key>

The endpoint key (for example, GET /v1/organisations) contains a space, so it must be wrapped in escaped double quotes when used in the dotted property path:

metadata.apis.paths.\"GET /v1/organisations\".enrichments.riskScore

Any depth below enrichments is valid and is created automatically:

# Single-level key
metadata.apis.paths.\"GET /v1/organisations\".enrichments.criticality

# Nested key
metadata.apis.paths.\"GET /v1/organisations\".enrichments.owner.team.name

info

The endpoint key is case-sensitive and must match exactly what appears in metadata.apis.paths. Check the Entity Inspector → Ingested Properties for the exact key of each endpoint before writing.

Request format

Endpoint: POST /v1/catalog/custom-properties/entity

Headers:

Harness-Account: <accountId>
x-api-key: <PAT or SAT>
Content-Type: application/json

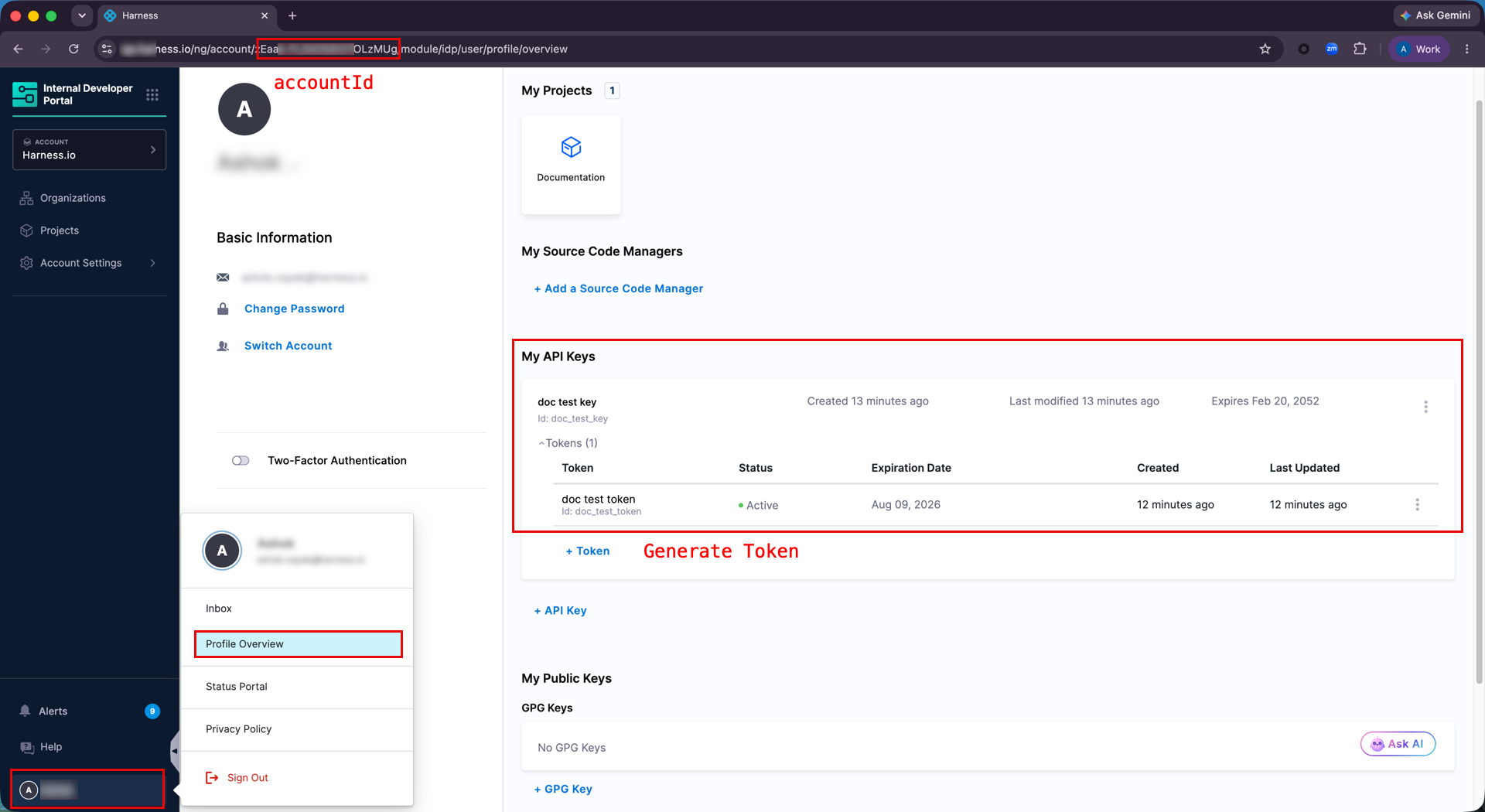

You can get accountId and PAT token as shown below:

Body:

{
  "entity_ref": "api:account/<identifier>",
  "properties": [
    {
      "property": "metadata.apis.paths.\"<METHOD path>\".enrichments.<key>",
      "value": "<any JSON value>",
      "mode": "replace"
    }
  ]
}

Points to remember

The entity_ref identifier is the entity's identifier field (not name). Find it in Entity Inspector → Raw YAML.
The properties array accepts multiple entries in a single request. One invalid entry fails the entire request.
Append ?dryRun=true to the request URL to validate the request without persisting any data.

Modes:

Mode	Behavior
`replace` (default)	Sets or overwrites the value at the path. Applied if `mode` is omitted or unrecognized.
`append`	For arrays, concatenates new items onto the existing list. For objects, merges keys. For scalars, behaves like `replace`.

Examples

Write a scalar value

curl -X POST 'https://app.harness.io/gateway/v1/catalog/custom-properties/entity' \
  -H 'Harness-Account: <accountId>' \
  -H 'x-api-key: <token>' \
  -H 'Content-Type: application/json' \
  -d '{
    "entity_ref": "api:account/<identifier>",
    "properties": [
      {
        "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.riskScore",
        "value": 8.5,
        "mode": "replace"
      }
    ]
  }'

Results

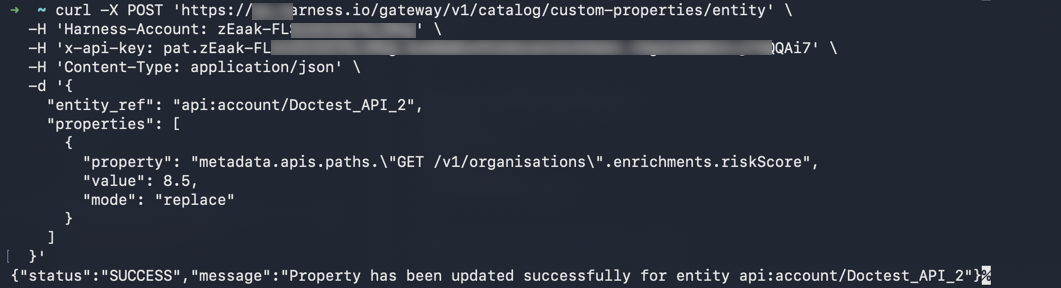

Successful Curl Request

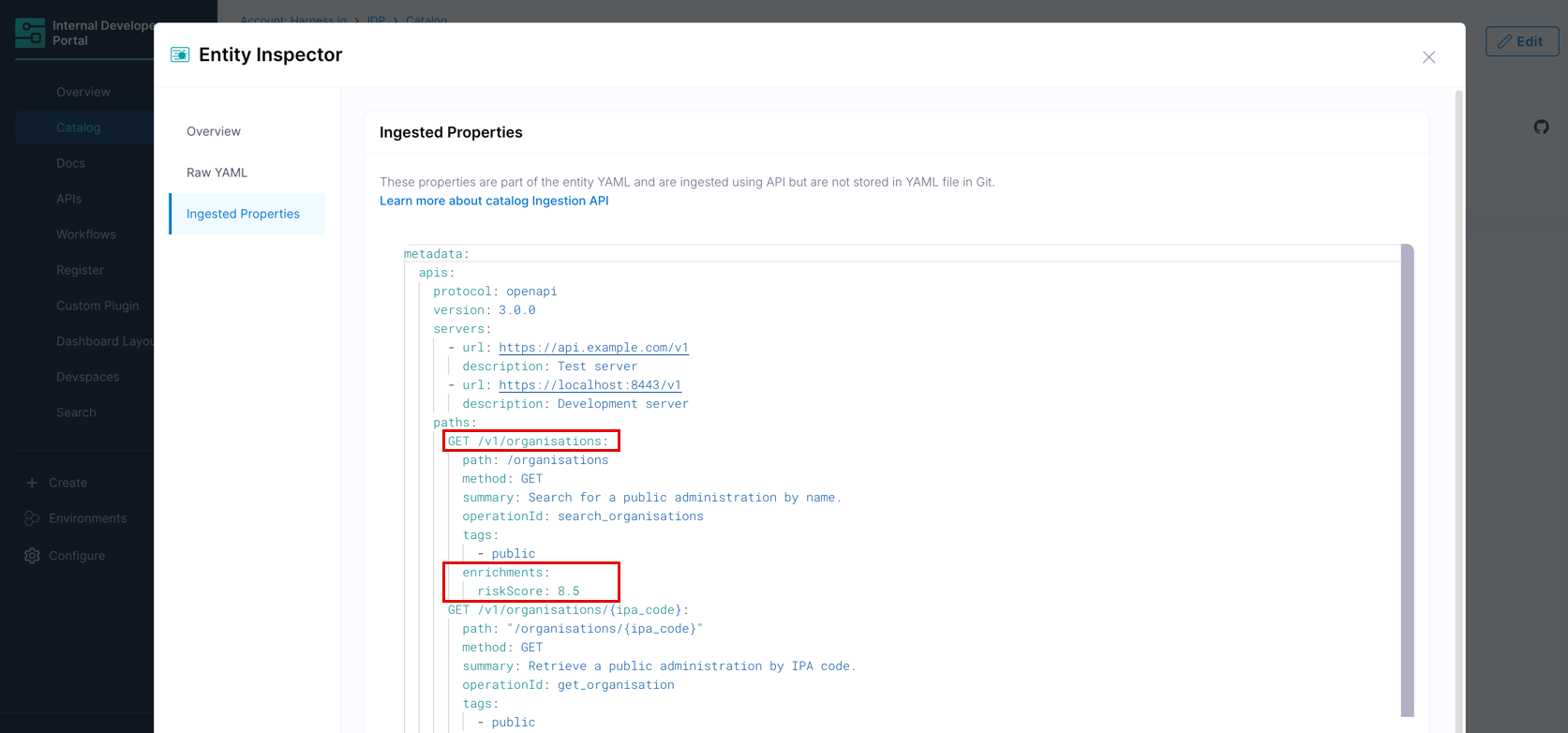

Successful Enrichment of API Endpoint

caution

The endpoint key in the property path must match exactly what appears under metadata.apis.paths in Ingested Properties, including the server base path prefix. In this example the spec defines servers.url as https://api.example.com/v1, so IDP prepends /v1 to every endpoint path when building the key. Check Entity Inspector → Ingested Properties for the exact keys on your entity before writing enrichments.

Write multiple properties at once

Multiple properties for the same endpoint (or across different endpoints) can be written in a single request:

curl -X POST 'https://app.harness.io/gateway/v1/catalog/custom-properties/entity' \
  -H 'Harness-Account: <accountId>' \
  -H 'x-api-key: <token>' \
  -H 'Content-Type: application/json' \
  -d '{
    "entity_ref": "api:account/<identifier>",
    "properties": [
      {
        "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.riskScore",
        "value": 8.5,
        "mode": "replace"
      },
      {
        "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.public",
        "value": false,
        "mode": "replace"
      }
    ]
  }'

Write a list, then extend it

First write (sets the list):

  "properties": [
    {
      "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.compliance",
      "value": ["pci", "gdpr"],
      "mode": "replace"
    }
  ]

Second write (adds to the list without overwriting):

  "properties": [
    {
      "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.compliance",
      "value": ["soc2"],
      "mode": "append"
    }
  ]

Result: compliance: [pci, gdpr, soc2]

Write a nested object

  "properties": [
    {
      "property": "metadata.apis.paths.\"GET /v1/organisations\".enrichments.owner",
      "value": { "team": "payments", "slack": "#pay" },
      "mode": "replace"
    }
  ]

Result:

enrichments:
  owner:
    team: payments
    slack: "#pay"

What is blocked

All fields under metadata.apis other than enrichments are system-managed. Writes to these paths return HTTP 400 INVALID_REQUEST:

Blocked path	Reason
`metadata.apis`	System-managed root
`metadata.apis.count`	Set by the extraction process
`metadata.apis.specHash`	Set by the extraction process
`metadata.apis.paths."GET /v1/organisations".summary`	Endpoint field, not under `enrichments`
`metadata.apis.paths."GET /v1/organisations".method`	Endpoint field, not under `enrichments`

Writes to paths outside metadata.apis (for example, metadata.team) are normal custom property writes and are not restricted.

Read enrichments

curl -X GET \
  'https://app.harness.io/gateway/v1/catalog/custom-properties/entity?entity_ref=api:account/<identifier>' \
  -H 'Harness-Account: <accountId>' \
  -H 'x-api-key: <token>'

The merged result is also visible in the Entity Inspector under Ingested Properties.

Delete an enrichment

curl -X DELETE 'https://app.harness.io/gateway/v1/catalog/custom-properties/entity' \
  -H 'Harness-Account: <accountId>' \
  -H 'x-api-key: <token>' \
  -H 'Content-Type: application/json' \
  -d '{
    "entity_ref": "api:account/<identifier>",
    "properties": ["metadata.apis.paths.\"GET /v1/organisations\".enrichments.riskScore"]
  }'

Enrichment lifecycle

Enrichments are stored separately from the extracted spec data. When the spec re-fetches and extraction runs again, enrichments for endpoints still present in the spec carry forward unchanged. If an endpoint is removed from the spec, all enrichments for that endpoint are deleted along with it.

Avoid writing to a property path that names a non-existent endpoint key. The request will succeed, but the enrichment will never appear in Ingested Properties because no extraction result exists to attach it to.
