Create Entity of a Custom Kind

Last updated on

Once a custom kind exists, any user with catalog write access can create entities of that kind, through the catalog UI or via a YAML file.

From the Catalog UI (Visual)​

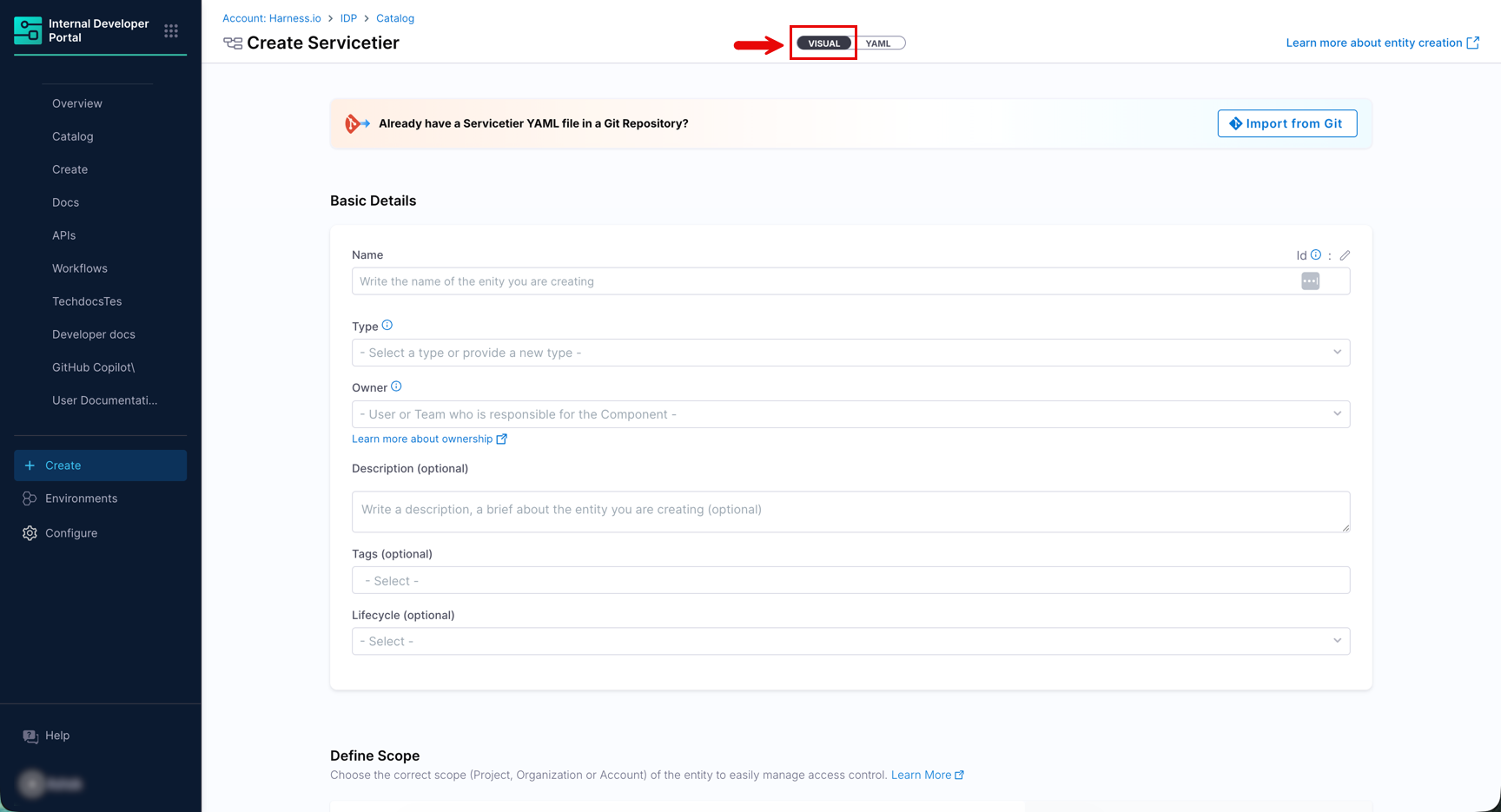

Figure 1: Creating Entity Visually in Catalog UI

  1. Go to Catalog and click + Create.

  2. Under If you have Custom Entity Kinds, select your kind from the dropdown.

  3. Fill in the form fields: Name, Type, Owner, Tags, Description, Lifecycle, and System.

  4. Choose the Scope (Account, Organization, or Project) and storage location (Inline or Remote Git).

  5. Click Review YAML to preview the generated YAML, fix errors if any, and then click Create Component to finish.

From a YAML file​

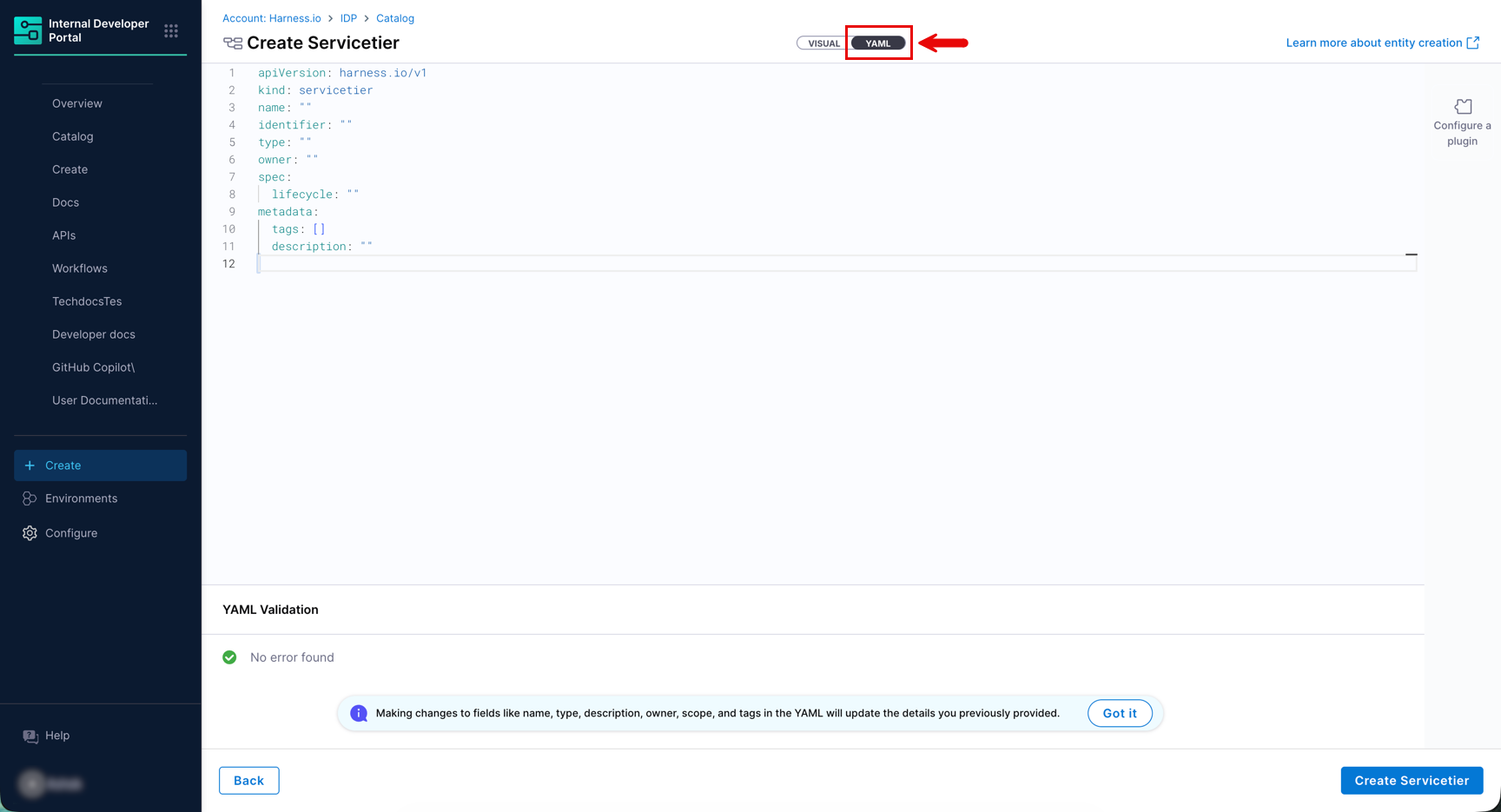

Figure 2: Creating Entity in YAML

Write a YAML file where kind matches your custom kind name exactly (case-sensitive). All custom fields must go under spec or metadata, not at the root level.

apiVersion: harness.io/v1
kind: ServiceTier
type: gold
identifier: Acme_Corp_Gold_Tier
name: Acme Corp Gold Tier
owner: group:account/_account_all_users
spec:
  lifecycle: production
metadata:
  tier: gold
  tags:
    - support
    - gold

Register this file through the catalog registration flow, the ingestion API, or by pushing it to a connected Git repository.

Your new entity will be available in the catalog as shown below:

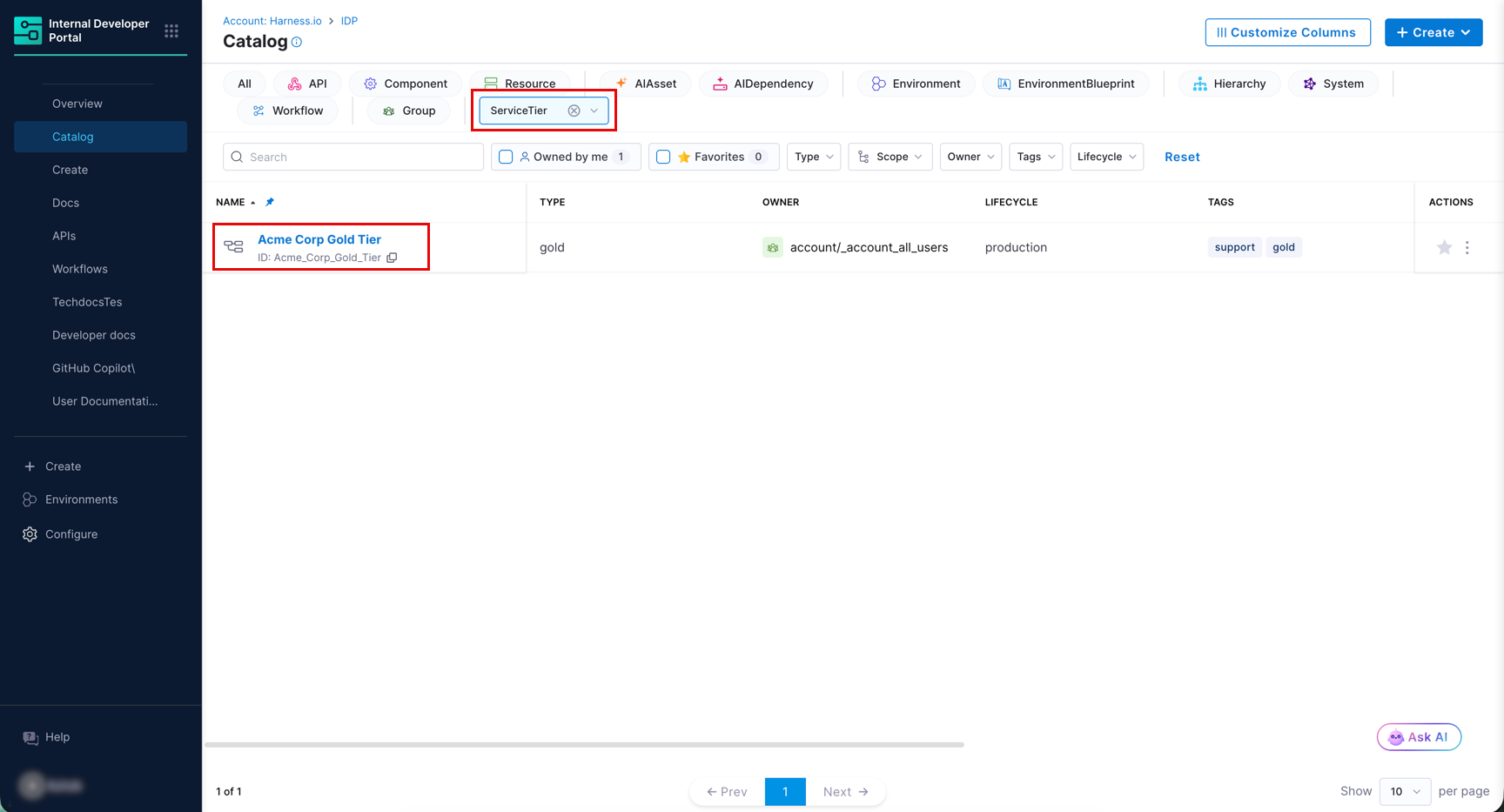

Figure 3: New Entity of Custom Kind shown in Catalog
