Create an Environment Blueprint

Last updated on

An Environment Blueprint is a reusable template that defines the infrastructure, services, dependencies, and lifecycle configuration for environments your team creates. Platform engineers own and maintain blueprints. Developers use them to spin up self-service environments on demand.

This page walks through the full process of creating a blueprint using the Harness IDP UI. Go to Environment Blueprint YAML to review the complete YAML schema.

Before you begin​

Step 1: Open the Create Blueprint form​

  1. In Harness IDP, select Environments in the left navigation.
  2. Select the Environment Blueprints tab.

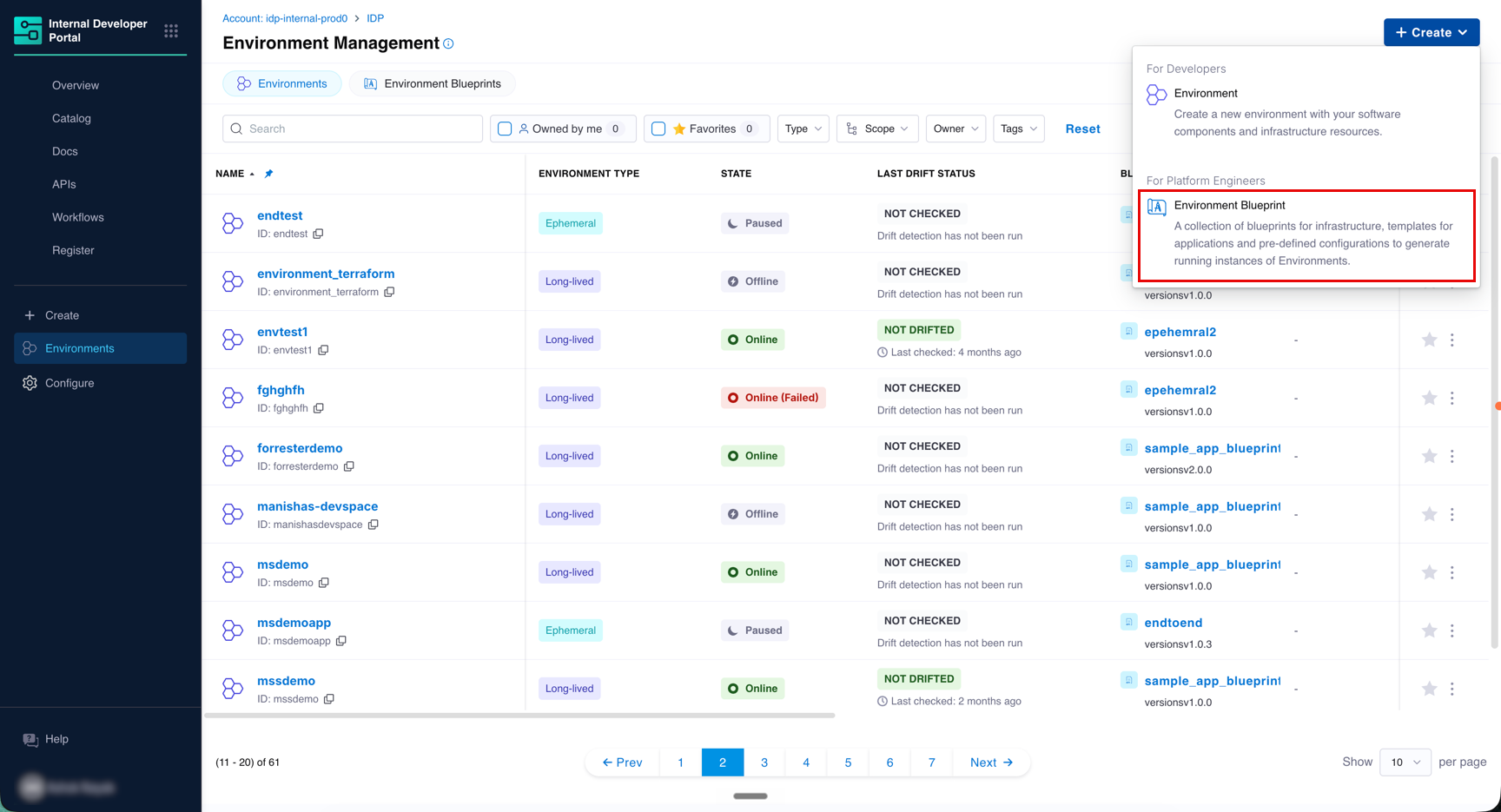

  3. Click + Create in the top right corner.
  4. In the dropdown, select Environment Blueprint.
info

The + Create dropdown also shows an Environment option under For Developers. That option is for creating an environment from an existing blueprint, not for creating the blueprint itself.

Step 2: Fill in General Details​

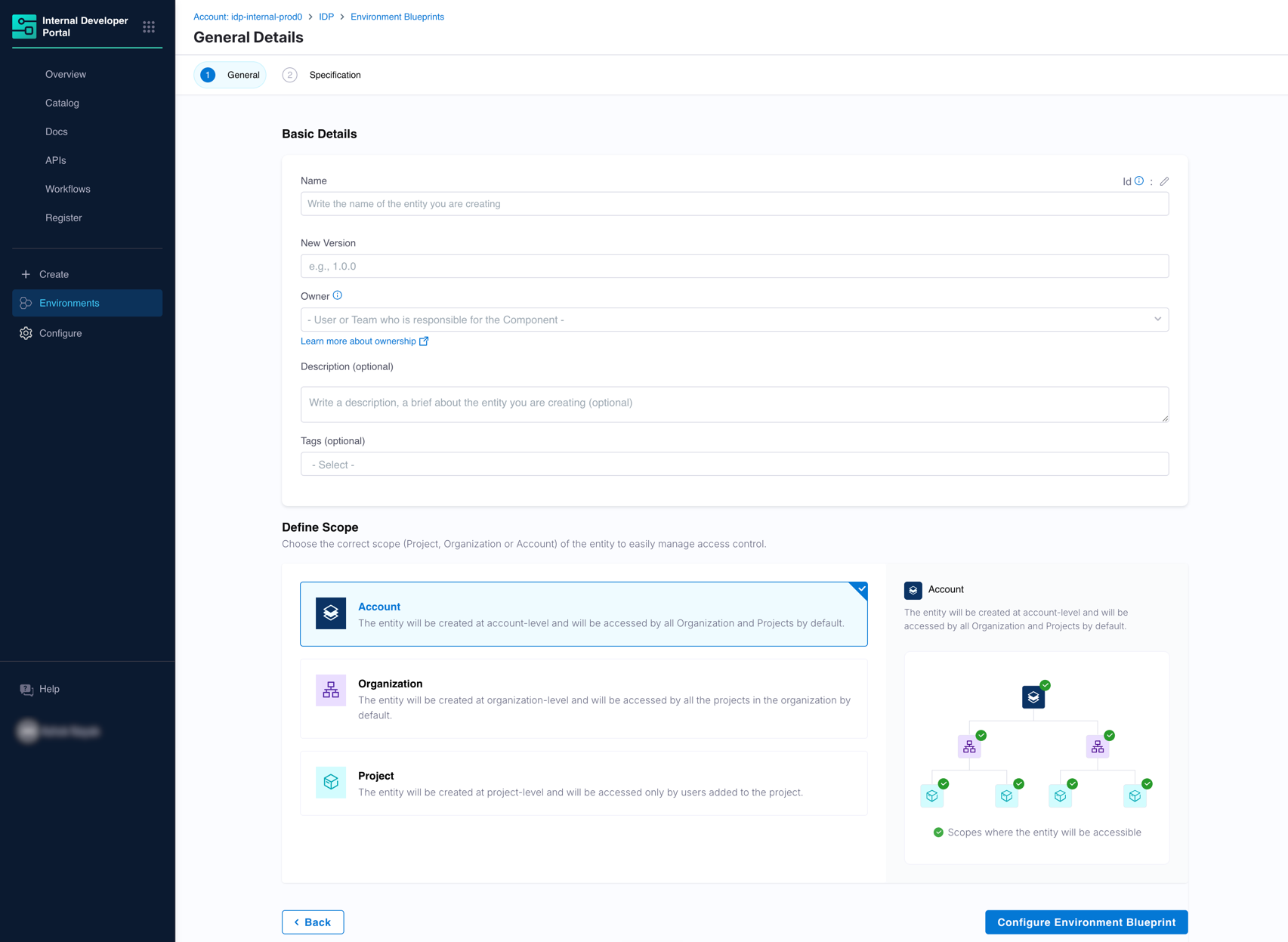

The General Details step collects the blueprint's identity and access scope.

Basic Details​

FieldRequiredDescription
NameYesA human-readable display name for the blueprint (for example, PR Testing Environment).
New VersionYesThe initial version number for this blueprint (for example, 1.0.0). This becomes the first entry in the blueprint's version history.
OwnerNoThe user or team responsible for maintaining this blueprint.
DescriptionNoA short description of what environments this blueprint creates.
TagsNoLabels to help teams filter and discover the blueprint.

Define Scope​

Choose the scope at which this blueprint will be created. The scope determines which teams and projects can access and use it.

ScopeWho can access the blueprint
AccountAll organizations and projects in your account. Use this for organization-wide standard blueprints.
OrganizationAll projects within the organization.
ProjectOnly users in the specified project.
info

Environments are always created at the project scope. An environment can reference a blueprint from its own project, its parent organization, or the account level. Account-scoped blueprints are the most broadly reusable. Go to Scope and Hierarchy to learn more.

Click Configure Environment Blueprint to proceed.

Step 3: Write the Blueprint YAML​

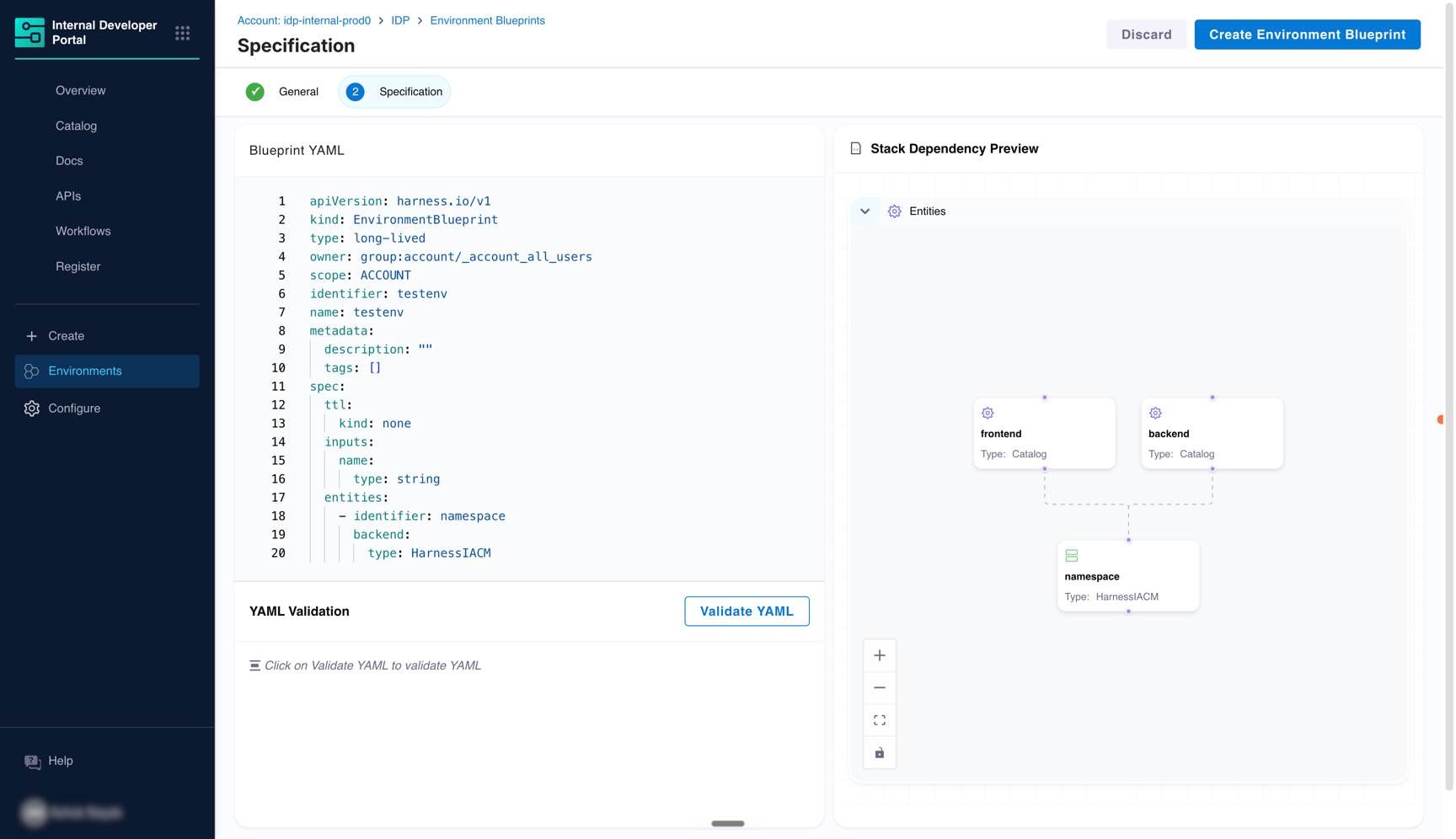

The Specification step has two panels:

  • Blueprint YAML (left): A code editor where you write or paste the blueprint YAML definition.
  • Stack Dependency Preview (right): A live visual diagram that updates as you type, showing the dependency graph between the entities you define.

Write your blueprint YAML in the editor. The blueprint defines:

  • Infrastructure entities using the HarnessIACM backend type
  • Service entities using the Catalog backend type
  • Dependencies between entities
  • Blueprint-level and entity-level user inputs
  • TTL configuration (for ephemeral environments)

Go to Environment Blueprint YAML to review the full schema. Go to Example Blueprint YAML to see a complete working reference.

Validate the YAML​

Before saving, use the built-in YAML validator to check that all referenced entities exist in a target project.

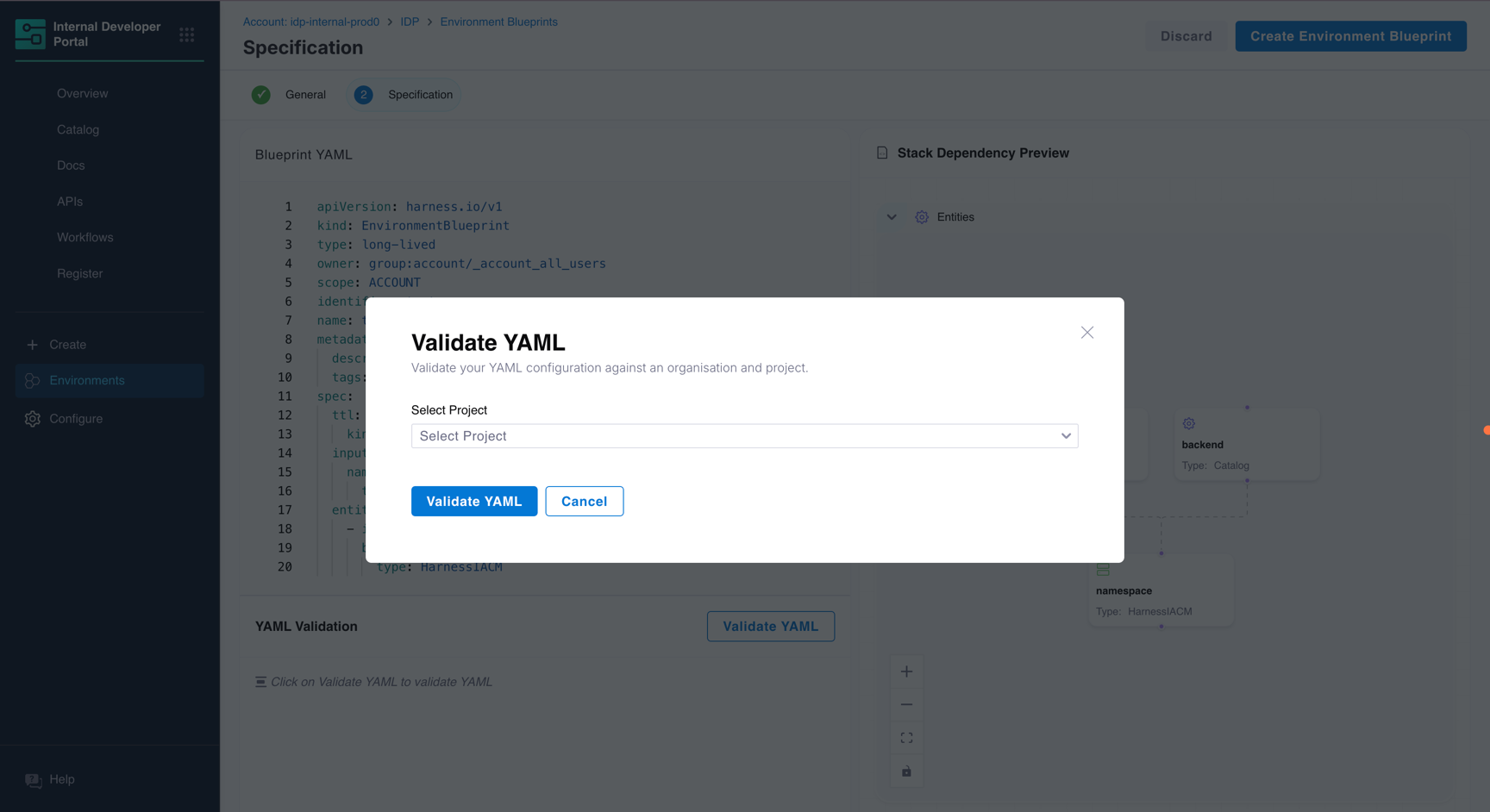

  1. In the YAML Validation section at the bottom of the page, click Validate YAML.
  2. In the dialog, select the project to validate against.
  3. Click Validate YAML.

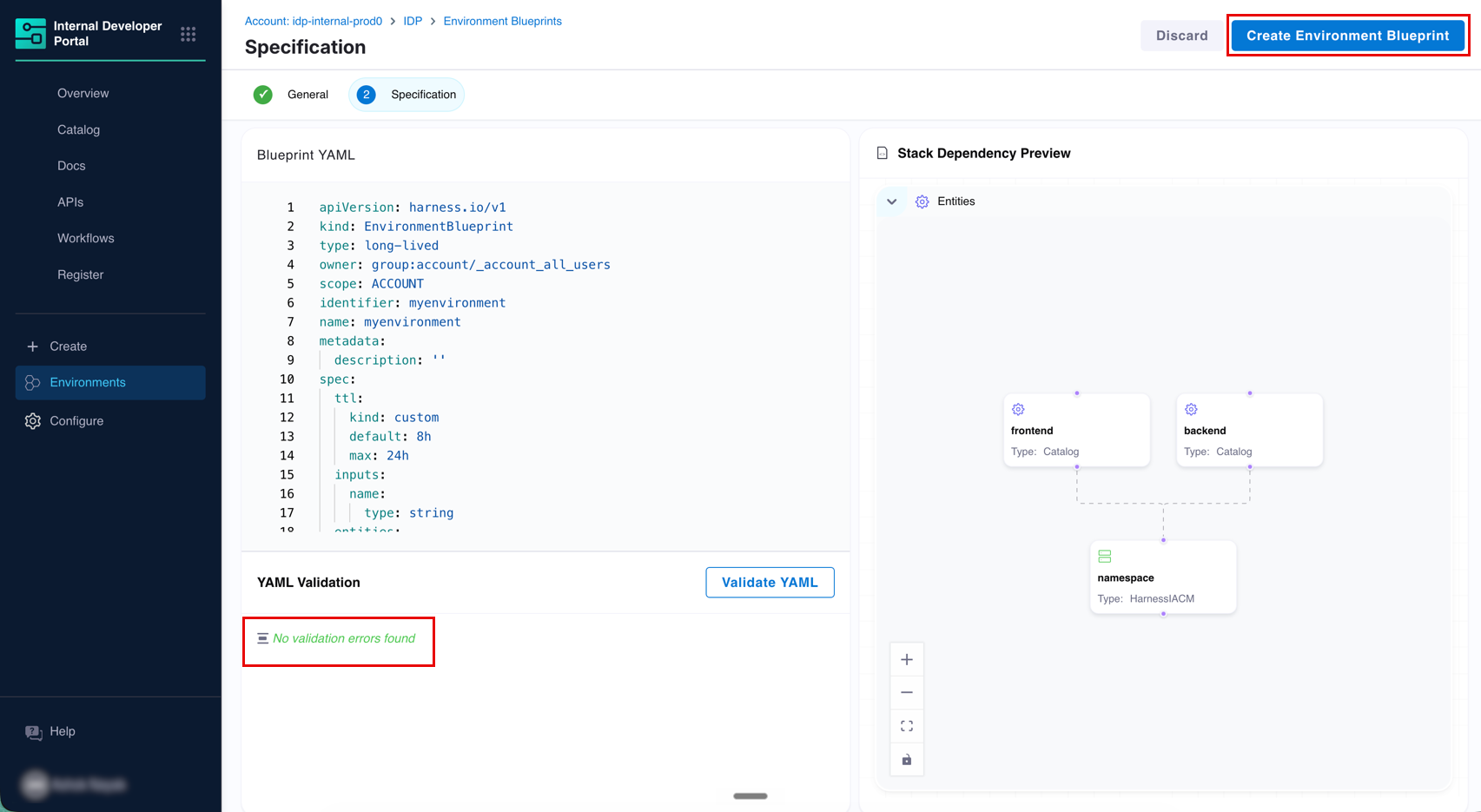

Validation results appear below the button:

  • A passing validation confirms all referenced entities (services, workspace templates, pipelines) exist in the selected project.
  • A failing validation shows the specific entity reference that could not be resolved, for example: NotFound: Entity with entityRef = component:frontend not found.
tip

Validating your blueprint before saving helps catch unresolved entity references early, before developers encounter errors when creating environments. It is recommended to validate against a project where your referenced catalog components, workspace templates, and pipelines already exist.

OPA Policy Enforcement

If your account has OPA governance policies enforced for blueprints, clicking Create Environment Blueprint will trigger a Policy Set Evaluations modal. If a policy fails, the blueprint will not be saved. For example, a common policy requirement is that blueprints must define a TTL. In that case, setting ttl.kind: none in your blueprint YAML will fail such a policy. Update the TTL configuration before saving. Go to Centralized Policy Governance to learn more.

Step 4: Create the Blueprint​

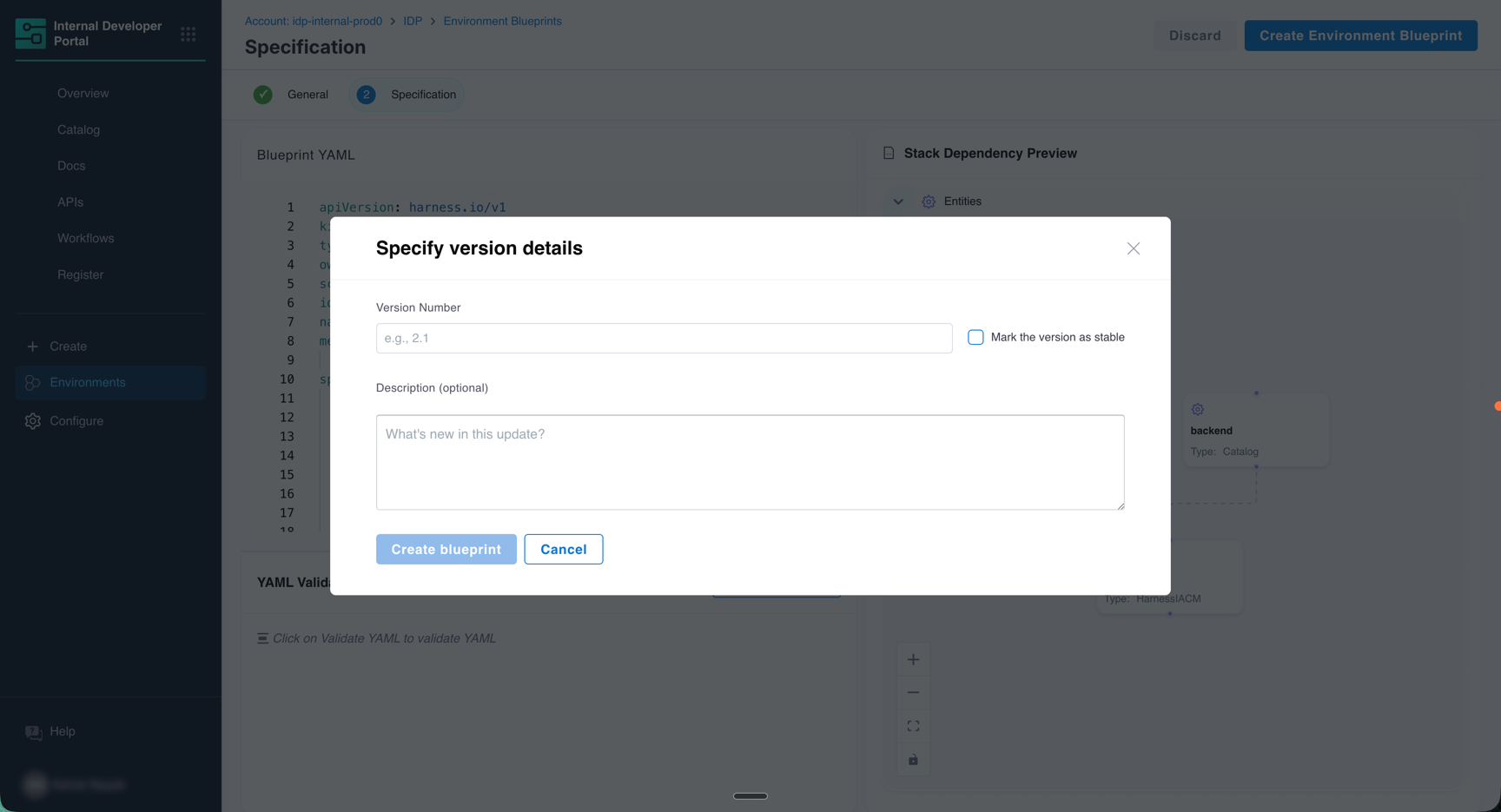

Click Create Environment Blueprint in the top right corner. The Specify version details dialog appears.

FieldDescription
Version NumberPre-filled from the value you entered in General Details. You can edit it here before saving.
Mark the version as stableCheck this to designate this version as the recommended version for new environment creation. Only stable versions appear by default in the version selection dropdown when developers create environments.
DescriptionOptional. A changelog note describing what this version introduces.

Click Create blueprint to finalize.

Result​

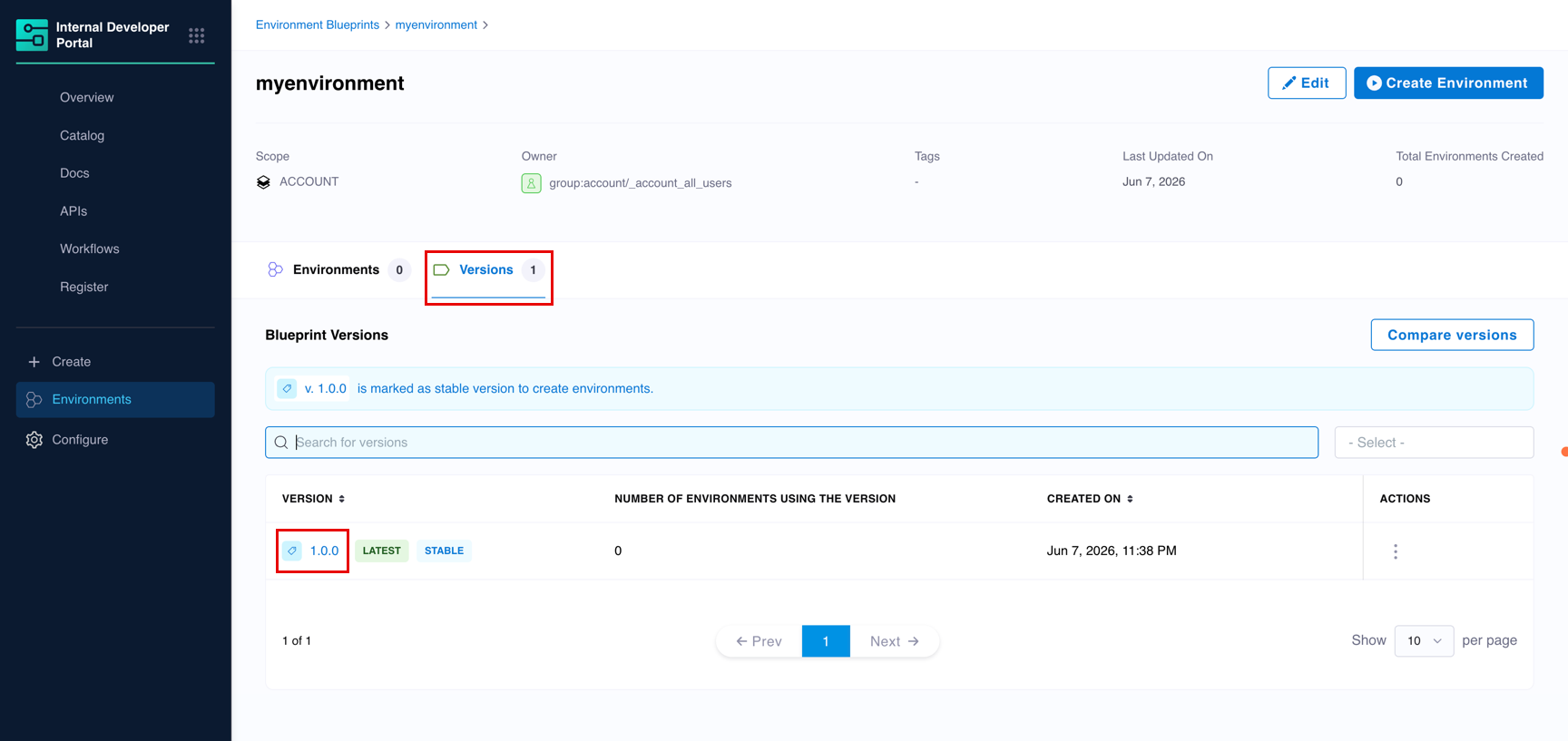

After creation, Harness IDP opens the blueprint detail page. The Versions tab shows the version you just created. If you marked it stable, it appears tagged as both LATEST and STABLE.

From here you can:

  • Click Create Environment to create an environment using this blueprint.
  • Select the Versions tab to manage, compare, or deprecate versions. Go to Versioning to learn more.
  • Click Edit to update the blueprint's general details.
