Populate Workflow Dropdowns from Harness APIs

Last updated on May 21, 2026

Platform teams often need pickers backed by live Harness data (RBAC scopes, variables, services, projects) instead of static enums. HarnessEntitySelector is a workflow form field that runs in the browser, applies Harness auth, and populates a dropdown from Harness API. Each user sees only the organizations, projects, services, connectors, or other resources they can access.

This is different from SelectFieldFromApi, which requires a backend proxy with a configured static token. HarnessEntitySelector works directly against Harness gateway endpoints with no proxy setup.

info

HarnessEntitySelector is for Harness-internal APIs only: NG APIs, platform APIs, and workflow APIs under the same gateway as the IDP UI. For external APIs (GitHub, Dynatrace, Jira, and so on), continue using SelectFieldFromApi with a backend proxy.

Before you begin

IDP workflow authoring access: Ability to create or edit workflow templates in IDP. Go to RBAC in Harness to configure roles.
Harness account access: The logged-in user's token is used for all API calls. Dropdown results reflect the user's own account permissions, so no additional token or proxy setup is needed.

How it works

You provide a relative path to a Harness gateway endpoint, along with optional query params, a request body (for POST), and response mapping selectors.
When the form loads, the field calls that endpoint with the user's session token and the account's accountIdentifier appended automatically.
The response is mapped to dropdown options using arraySelector, valueSelector, and labelSelector.
The user's selection is stored as a string (single select) or string[] (multi-select).

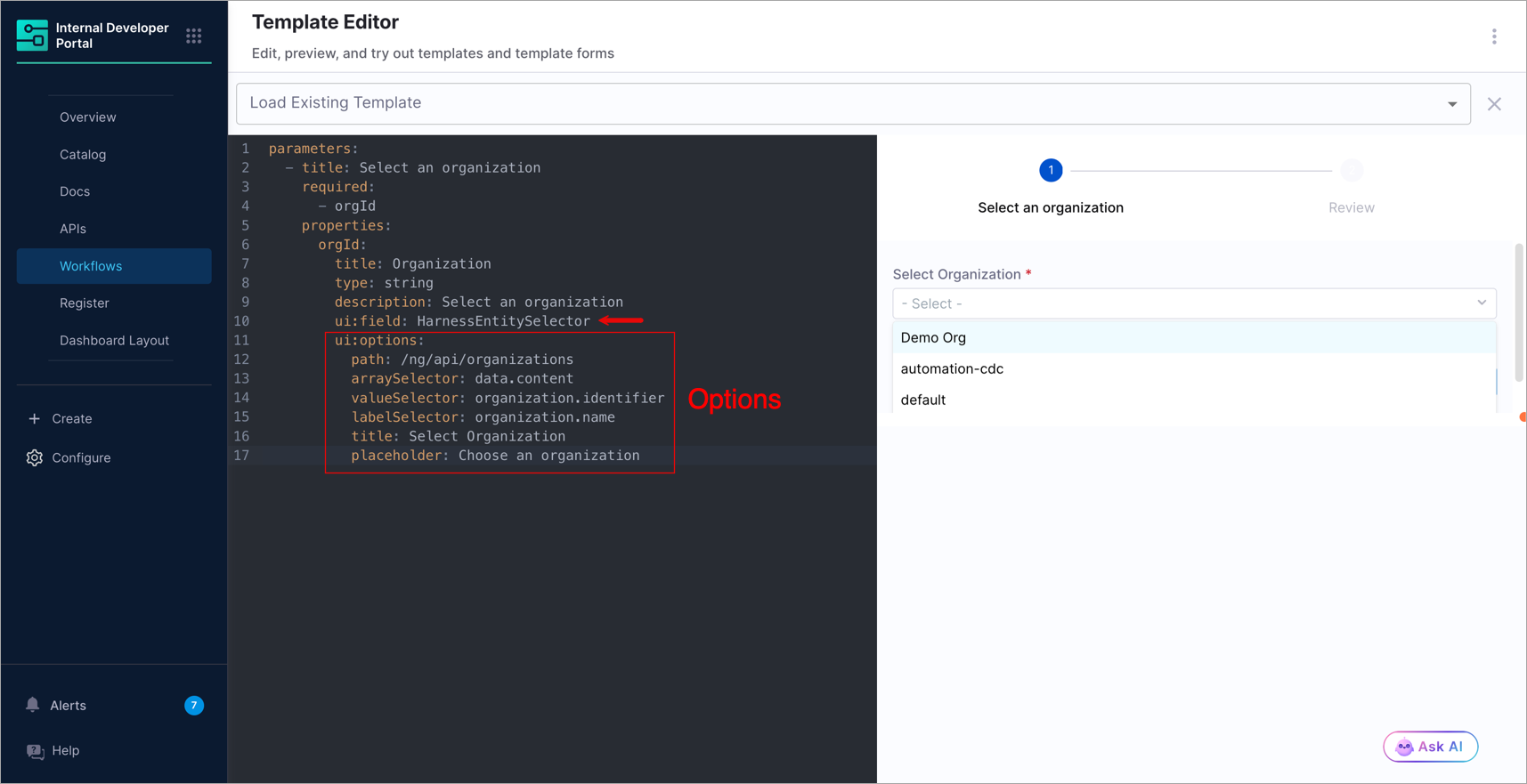

Options reference

Set ui:field: HarnessEntitySelector on any string or array property to use this field. All further configuration goes under ui:options as shown below.

Option	Required	Description
`path`	Yes	Relative gateway path, e.g. `/ng/api/services`. Supports Nunjucks templating with `{{ parameters.<field> }}`.
`method`	No	`GET` (default), `POST`, `PUT`, or `PATCH`.
`params`	No	Query parameters (string values, Nunjucks-templated). `accountIdentifier` and `routingId` are appended automatically.
`body`	No	JSON body for non-GET requests (Nunjucks-templated).
`headers`	No	Additional request headers.
`arraySelector`	No	Dot path to the array inside the response, e.g. `data.content`. If omitted, the root of the response is used.
`valueSelector`	No	Dot path on each item for the stored value, e.g. `service.identifier`.
`labelSelector`	No	Dot path on each item for the display label. Defaults to `valueSelector`.
`searchQueryParam`	No	When set, binds a search box to this query parameter. Input is debounced by 300 ms.
`title`	No	Field label. Defaults to `Select`.
`placeholder`	No	Placeholder text. Defaults to `Select from results`.
`description`	No	Helper text shown under the field.
`allowArbitraryValues`	No	When `true`, lets users type a value not in the list. Defaults to `false`.
`setContextData`	No	Writes fields from the selected row into workflow context for use in downstream steps. Single-select only.

Examples

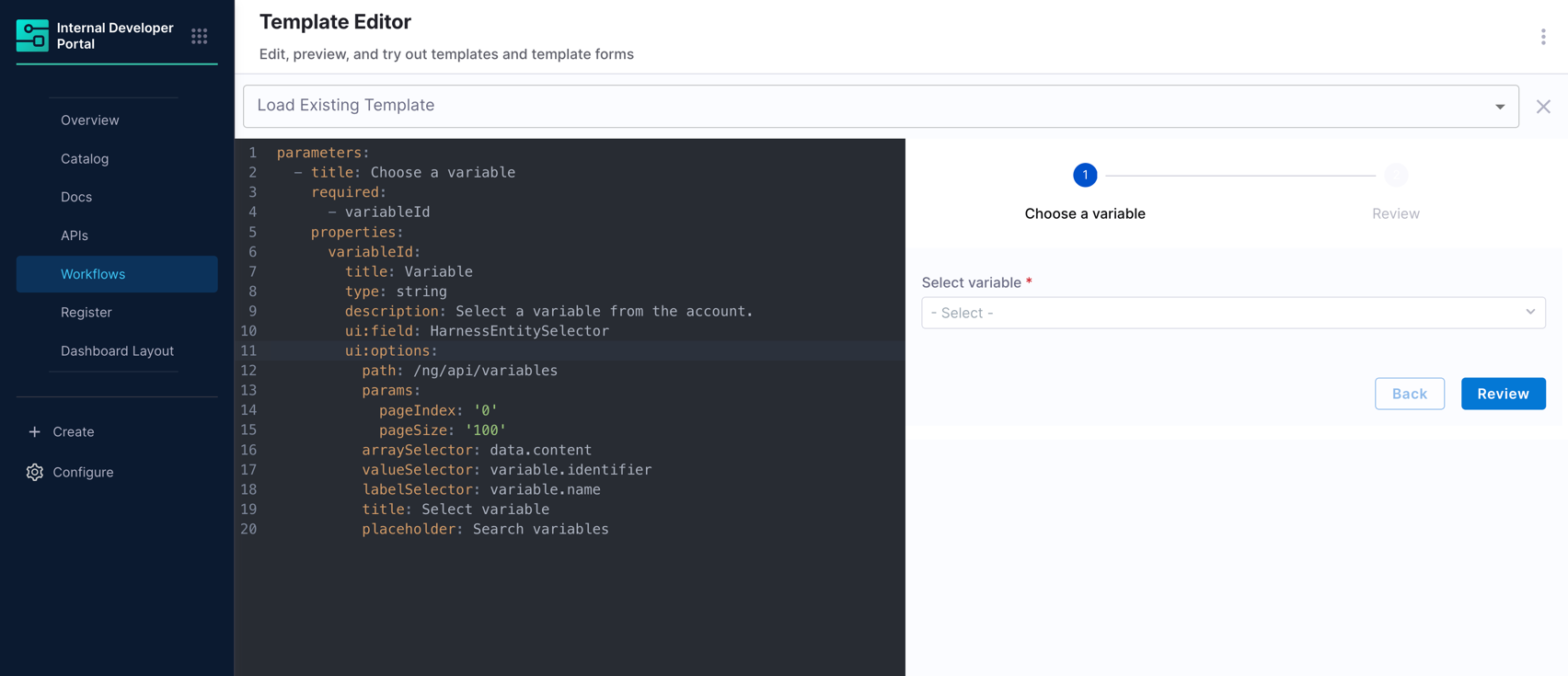

Fetches the first page of variables in the account and lets the user pick one. This is the simplest usage: a GET with pagination params and three selectors.

Template for Simple dropdown
parameters:
  - title: Choose a variable
    required:
      - variableId
    properties:
      variableId:
        title: Variable
        type: string
        description: Select a variable from the account.
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/variables
          params:
            pageIndex: '0'
            pageSize: '100'
          arraySelector: data.content
          valueSelector: variable.identifier
          labelSelector: variable.name
          title: Select variable
          placeholder: Search variables

arraySelector: data.content points at the list inside the JSON response. valueSelector and labelSelector then read fields from each item in that list. The stored form value is variable.identifier.

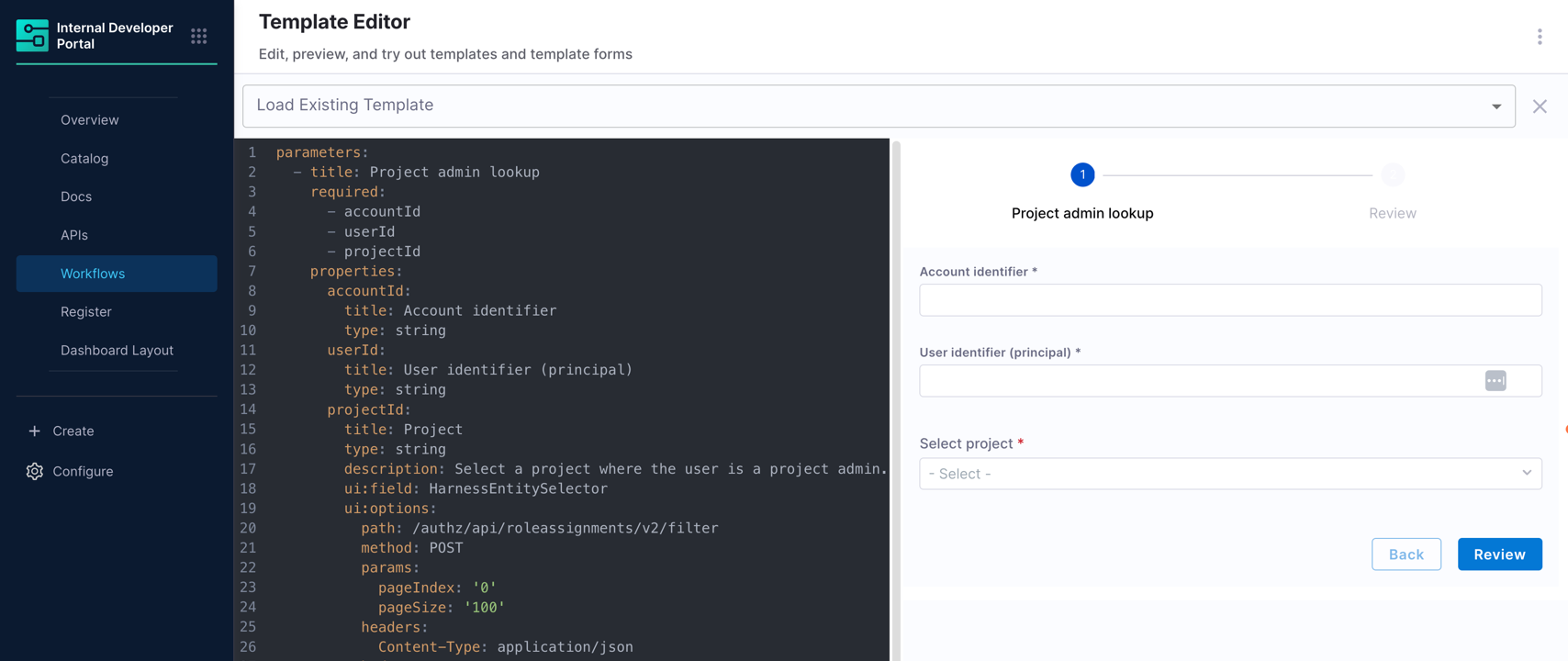

Filtered results using POST

Some Harness APIs require a POST body to filter results. Use method: POST and provide the filter in body. The body supports Nunjucks templating against parameters, so you can pass form values into the request at runtime.

Template for Filtered Results
parameters:
  - title: Project admin lookup
    required:
      - accountId
      - userId
      - projectId
    properties:
      accountId:
        title: Account identifier
        type: string
      userId:
        title: User identifier (principal)
        type: string
      projectId:
        title: Project
        type: string
        description: Select a project where the user is a project admin.
        ui:field: HarnessEntitySelector
        ui:options:
          path: /authz/api/roleassignments/v2/filter
          method: POST
          params:
            pageIndex: '0'
            pageSize: '100'
          headers:
            Content-Type: application/json
          body:
            roleFilter:
              - _project_admin
            scopeFilters:
              - accountIdentifier: '{{ parameters.accountId }}'
                filter: INCLUDING_CHILD_SCOPES
            principalFilter:
              identifier: '{{ parameters.userId }}'
              type: USER
          arraySelector: data.content
          valueSelector: scope.projectIdentifier
          labelSelector: scope.projectIdentifier
          title: Select project
          setContextData:
            selectedProjectId: scope.projectIdentifier
            selectedOrgId: scope.orgIdentifier

caution

Use {{ parameters.accountId }} style references to workflow inputs rather than hard-coded production identifiers in the body.

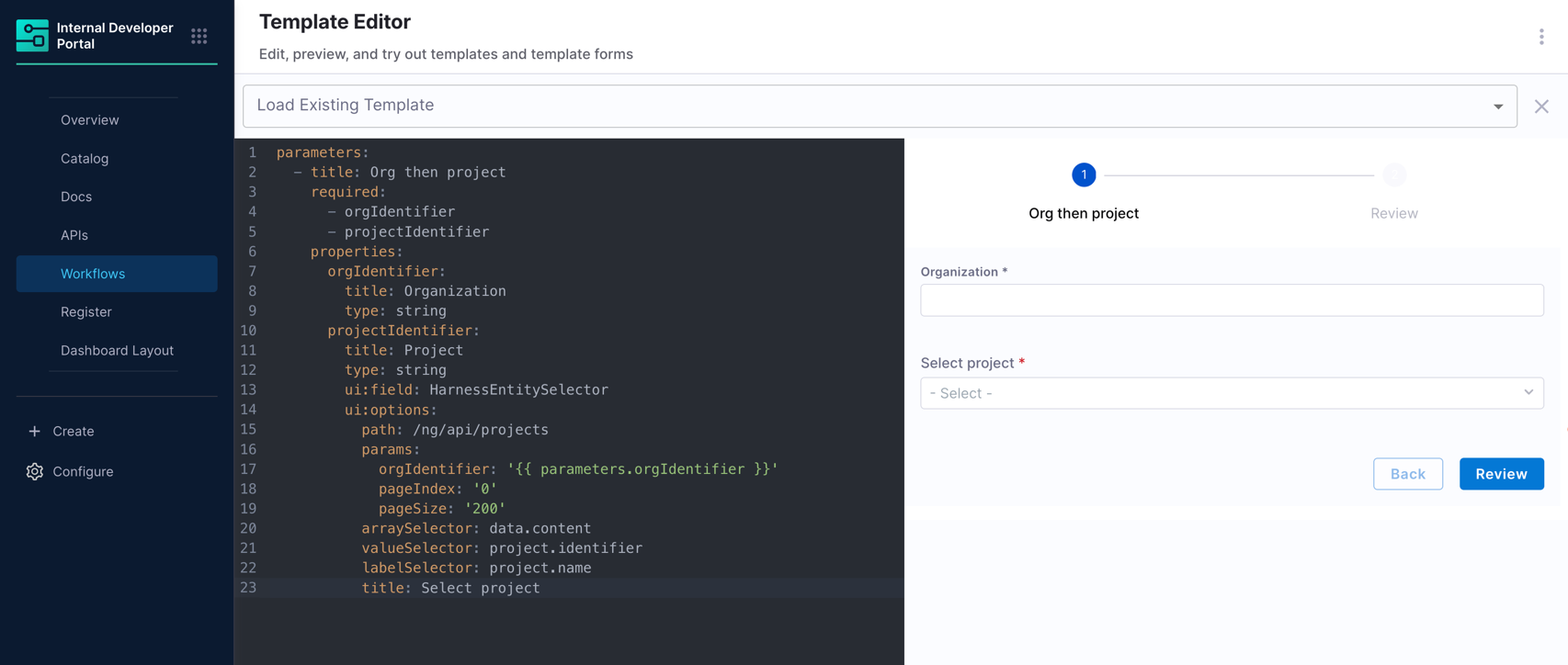

2-chained dropdowns: Org and Project

Any value in path, params, or body can reference a previous field using {{ parameters.<fieldName> }}. The field waits until all referenced fields have a value before making the API call. This gives you dependent dropdowns without extra wiring.

Template for 2-chained dropdowns
parameters:
  - title: Org then project
    required:
      - orgIdentifier
      - projectIdentifier
    properties:
      orgIdentifier:
        title: Organization
        type: string
      projectIdentifier:
        title: Project
        type: string
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/projects
          params:
            orgIdentifier: '{{ parameters.orgIdentifier }}'
            pageIndex: '0'
            pageSize: '200'
          arraySelector: data.content
          valueSelector: project.identifier
          labelSelector: project.name
          title: Select project

tip

The projectIdentifier field stays idle until orgIdentifier is filled. Order your fields so users fill dependencies first.

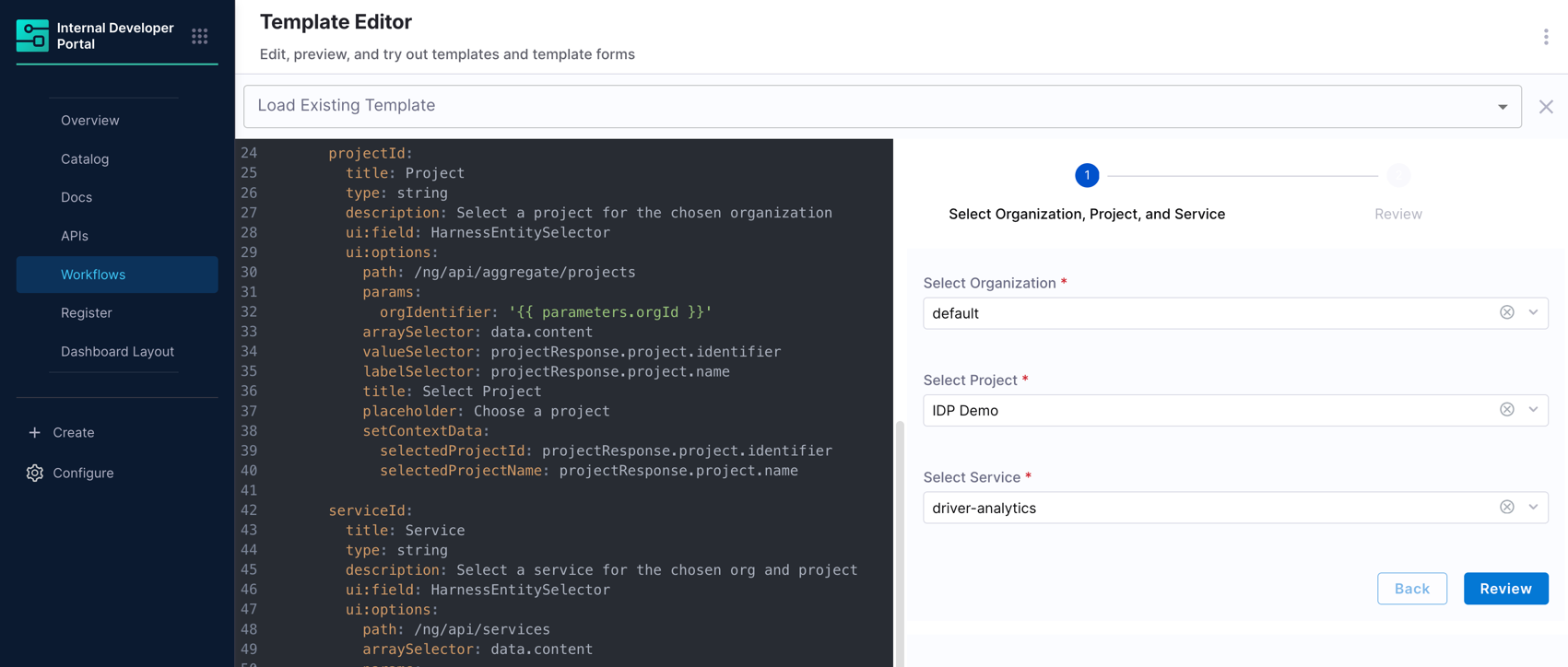

3-chained dropdowns: Org, Project, and Service

Three chained pickers in a single step. Each field uses {{ parameters.<field> }} so later requests wait until earlier selections exist.

Template for 3-chained dropdowns
parameters:
  - title: Select Organization, Project, and Service
    required:
      - orgId
      - projectId
      - serviceId
    properties:
      orgId:
        title: Organization
        type: string
        description: Select an organization
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/organizations
          arraySelector: data.content
          valueSelector: organization.identifier
          labelSelector: organization.name
          title: Select Organization
          placeholder: Choose an organization
          setContextData:
            selectedOrgId: organization.identifier
            selectedOrgName: organization.name

      projectId:
        title: Project
        type: string
        description: Select a project for the chosen organization
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/aggregate/projects
          params:
            orgIdentifier: '{{ parameters.orgId }}'
          arraySelector: data.content
          valueSelector: projectResponse.project.identifier
          labelSelector: projectResponse.project.name
          title: Select Project
          placeholder: Choose a project
          setContextData:
            selectedProjectId: projectResponse.project.identifier
            selectedProjectName: projectResponse.project.name

      serviceId:
        title: Service
        type: string
        description: Select a service for the chosen org and project
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/services
          arraySelector: data.content
          params:
            projectIdentifier: '{{ parameters.projectId }}'
            orgIdentifier: '{{ parameters.orgId }}'
          valueSelector: identifier
          labelSelector: name
          title: Select Service
          placeholder: Choose a service
          setContextData:
            selectedServiceId: identifier
            selectedServiceName: name

The flow:

Organization loads immediately, no dependencies.
Project waits for orgId, then fetches with orgIdentifier as a query param.
Service waits for both orgId and projectId, then lists services scoped to that org and project pair.

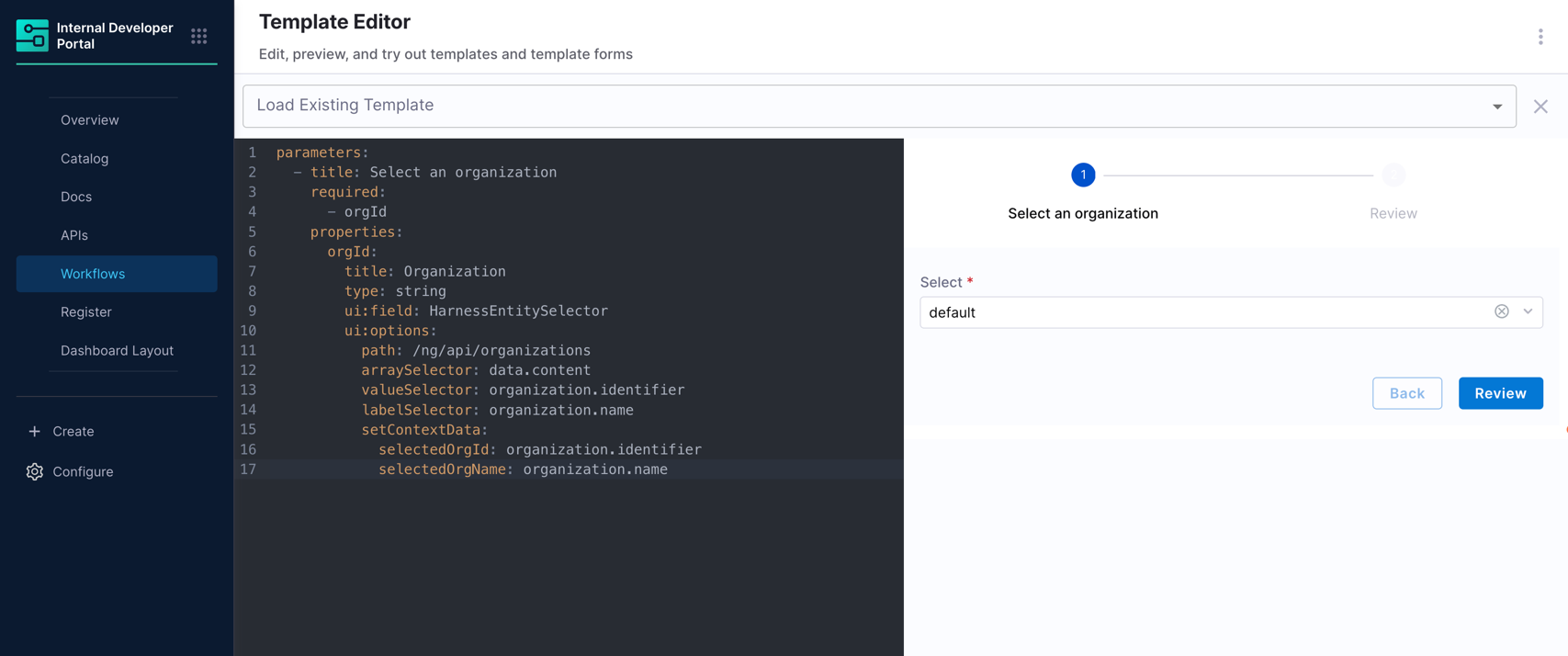

setContextData: Pass selection data to downstream steps

When a user selects a row, setContextData writes additional fields from that row into the workflow's form context so downstream steps can consume them. Each key under setContextData is a context key. Its value is a dot path on the same row object used by valueSelector and labelSelector.

Template for setContextData
parameters:
  - title: Select an organization
    required:
      - orgId
    properties:
      orgId:
        title: Organization
        type: string
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/organizations
          arraySelector: data.content
          valueSelector: organization.identifier
          labelSelector: organization.name
          setContextData:
            selectedOrgId: organization.identifier
            selectedOrgName: organization.name

tip

setContextData paths must start from the raw row object, not a shortened alias. If your valueSelector is projectResponse.project.identifier, your setContextData paths must also start from projectResponse, for example projectResponse.project.name, not project.name.

info

Keys published via setContextData are not automatically available under parameters for this field's own fetch templates. Design chained dependencies using real form fields with {{ parameters.<field> }} references.

setContextData is ignored for multi-select fields (type: array).

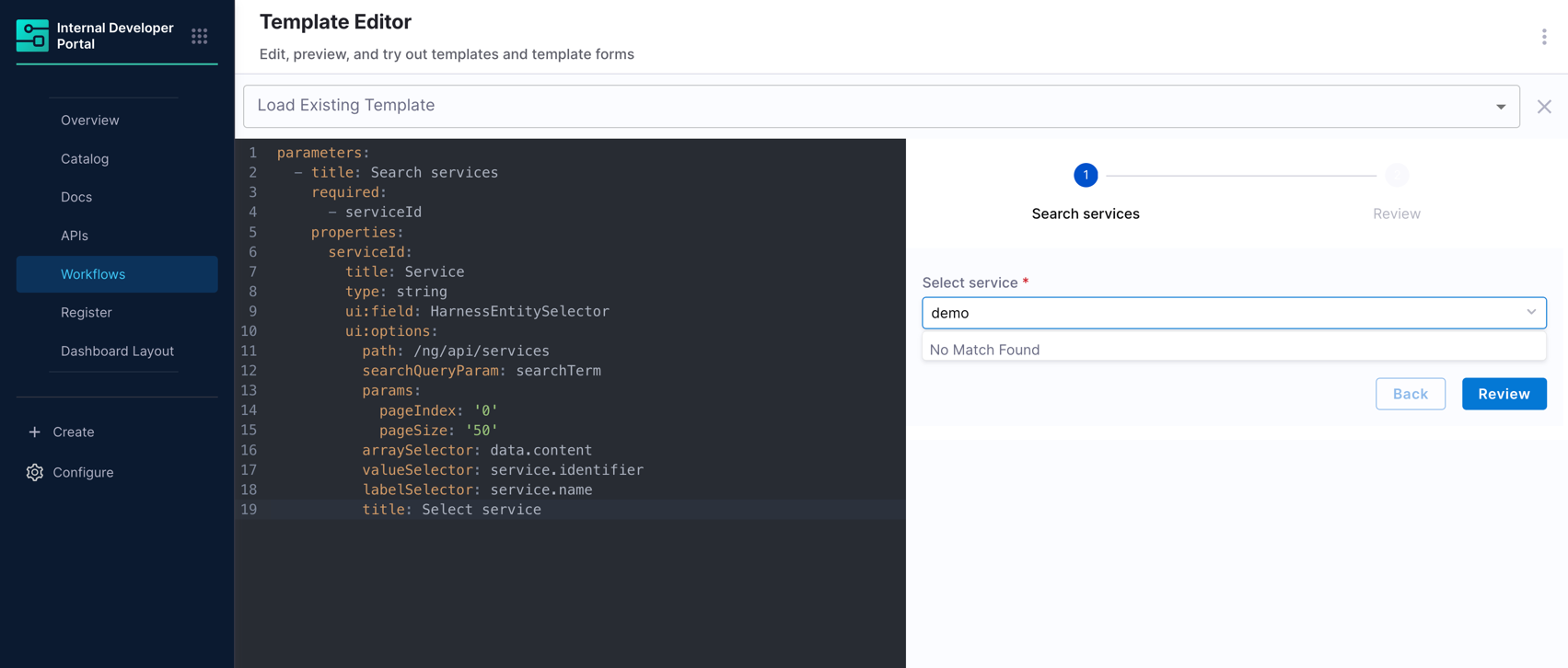

When searchQueryParam is set, the field passes the user's typed text to that query parameter after a 300 ms debounce. The API must support that parameter.

Template for Search-as-you-type dropdown
parameters:
  - title: Search services
    required:
      - serviceId
    properties:
      serviceId:
        title: Service
        type: string
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/services
          searchQueryParam: searchTerm
          params:
            pageIndex: '0'
            pageSize: '50'
          arraySelector: data.content
          valueSelector: service.identifier
          labelSelector: service.name
          title: Select service

Use searchQueryParam for large lists where loading all options upfront is impractical.

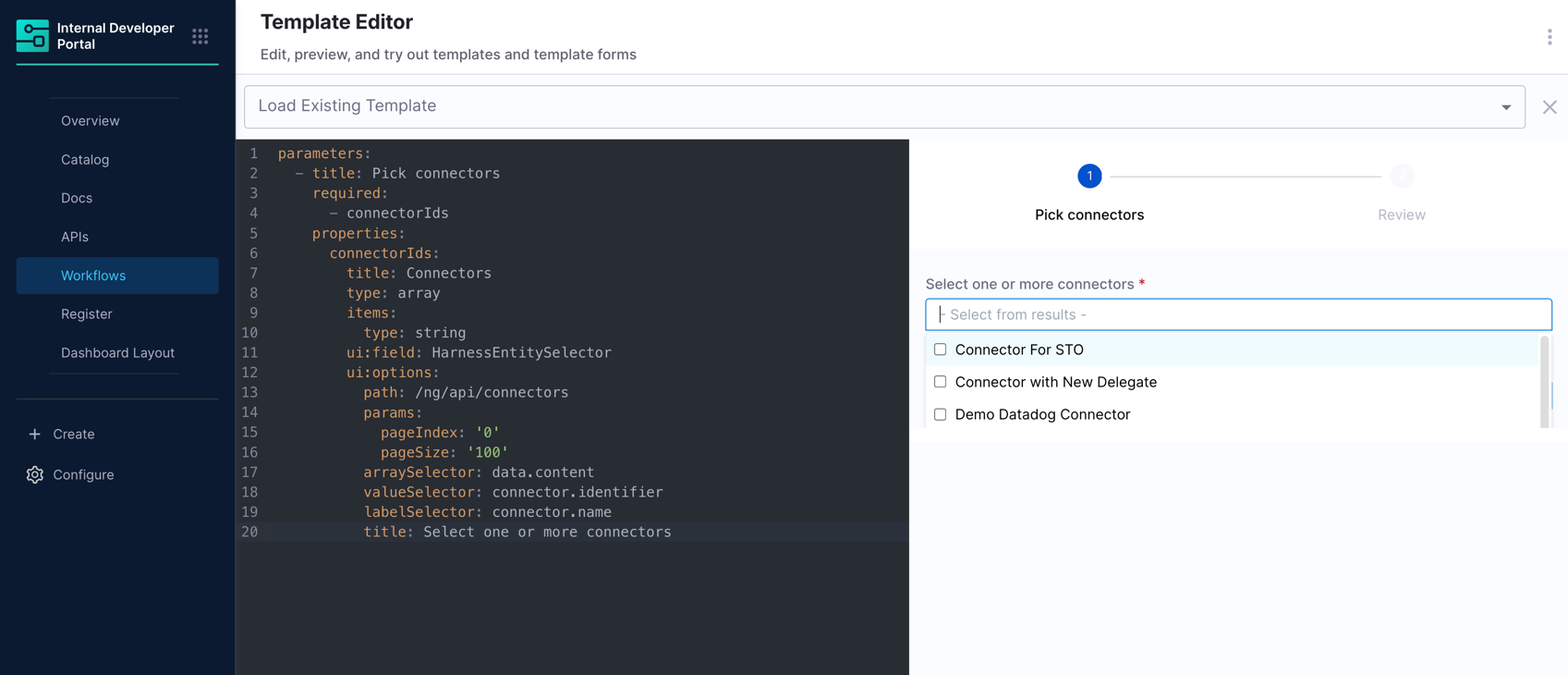

Select multiple values

Set the property type to array to allow selecting multiple values. The stored form value is string[].

Template for multi-selection
parameters:
  - title: Pick connectors
    required:
      - connectorIds
    properties:
      connectorIds:
        title: Connectors
        type: array
        items:
          type: string
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/connectors
          params:
            pageIndex: '0'
            pageSize: '100'
          arraySelector: data.content
          valueSelector: connector.identifier
          labelSelector: connector.name
          title: Select one or more connectors

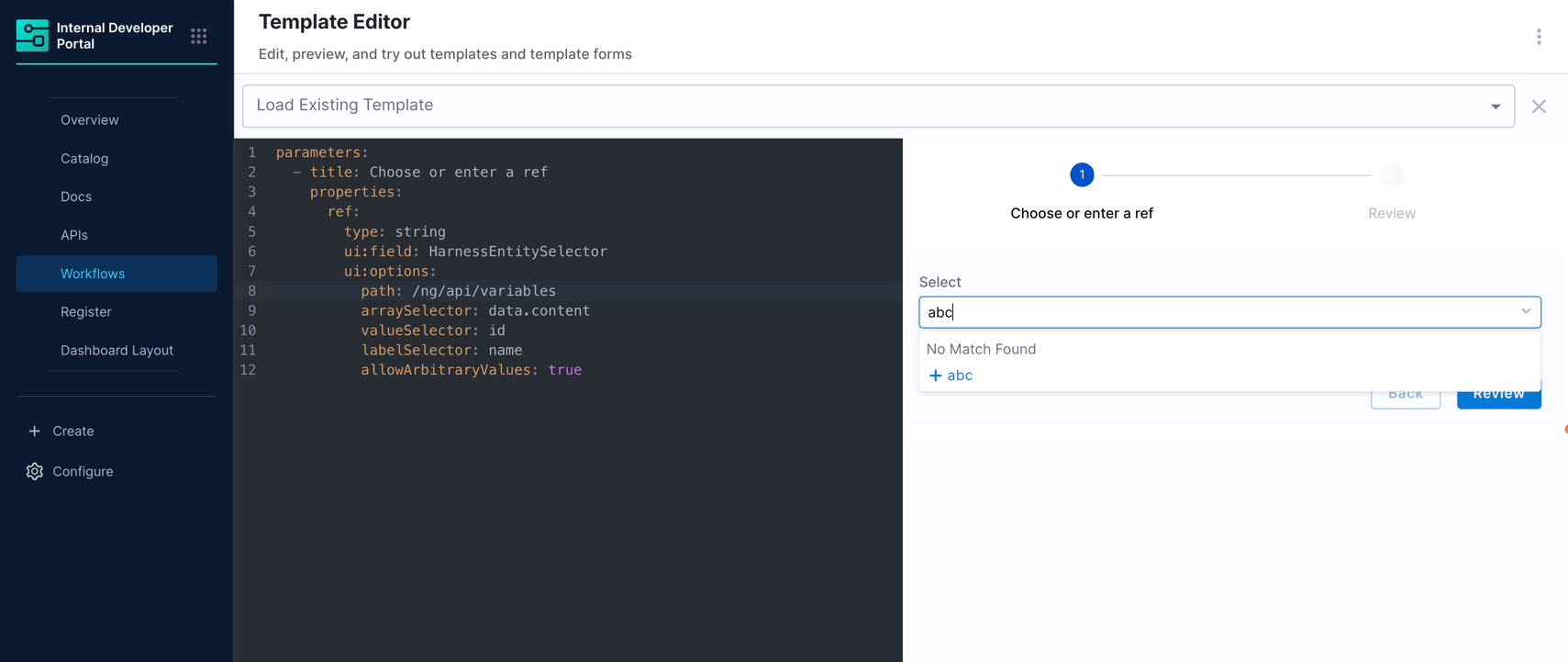

Free-text with suggestions

Set allowArbitraryValues: true to let users type a value that is not in the API response. Useful when the list is a suggestion, not a strict constraint. Replace /ng/api/some-list with a real Harness gateway path for your use case.

Template for free-text with suggestions
parameters:
  - title: Choose or enter a ref
    properties:
      ref:
        type: string
        ui:field: HarnessEntitySelector
        ui:options:
          path: /ng/api/some-list
          arraySelector: data.content
          valueSelector: id
          labelSelector: name
          allowArbitraryValues: true

Troubleshooting

Symptom	Things to check
Empty dropdown	Wrong `arraySelector`. API returned an empty page. A dependency field is not filled. `valueSelector` does not match the item shape.
Field never loads	A `{{ parameters.x }}` reference exists but field `x` has not been filled yet.
`setContextData` has no effect	Confirm the workflow provides `updateFormContext`. The field must be single-select. A row must be selected.
400 or 404 from API	Wrong `path` or gateway routing. Incorrect POST `body` shape. Missing org or project scope.
"Invalid configuration" message	`path` is missing or `method` has an invalid value.
