Scorecard Checks

Checks are the building blocks of scorecards. A check is a query performed against a data point for a software component, which results in either Pass or Fail. Checks help you evaluate whether your software components meet specific criteria and standards.

Create Custom Checks​

You can create custom checks to evaluate data points from different data sources and use them in your scorecards.

  1. In your Harness IDP account, navigate to Configure → Scorecards
  2. On the Scorecards page, go to the Checks tab and select Create Custom Check in the top-right corner
  3. On the Create Check page, add the following information:
    • Name: A descriptive name for your check
    • Description: Explain what the check validates
    • Tags (optional): Add tags for better organization
  4. Under Rules Configuration, configure your rules using either Basic or Advanced mode (see Rules Configuration for details)
  5. (Optional) Add a Rule Description for each rule to provide context and clarify what the rule validates
  6. Click Save changes to save the check and its rule configuration

Rules Configuration​

Harness IDP provides two modes for configuring rules in your custom checks: Basic and Advanced. Each mode is designed to cater to different levels of complexity.

Basic Rules Configuration​

The Basic mode offers a user-friendly interface for creating simple rule expressions without requiring technical expertise.

Key Features:

  • No Nested Operations: Keeps configuration straightforward and easy to understand
  • Multiple Rules: Add multiple rules and define how they should be evaluated together
  • Operation Between Rules: Choose how rules are combined:
    • All Of (AND operation): All rules must be satisfied for the check to pass
    • Any Of (OR operation): At least one rule must be satisfied for the check to pass

Rule Components:

Each rule in Basic mode consists of four components:

  1. Data Source: Select the data source you want to evaluate (e.g., GitHub, GitLab, Bitbucket, PagerDuty)
  2. Data Point: Choose the specific data point from the selected data source (e.g., repository name, branch protection status, number of open issues)
  3. Operator: Select the comparison operator (e.g., equals, not equals, greater than, less than, contains)
  4. Value: Specify the value to compare against

Example:

Let's create a simple check to ensure a repository has branch protection enabled:

  1. Operation Between Rules: Select All Of (AND operation)
  2. Rule Configuration:
    • Data Source: Bitbucket
    • Data Point: Is Branch Protected
    • Operator: Equals
    • Value: true
    • Rule Description: "Ensure main branch is protected"

This basic rule checks if the main branch has protection enabled in Bitbucket.

Advanced Rules Configuration​

The Advanced mode provides a powerful Rules Expression Editor that allows you to write complex rule expressions using JEXL (Java Expression Language).

Key Features:

  • JEXL-Powered: Write complex rule expressions using JEXL syntax, which supports nested operations, conditional logic, and advanced operators. Refer to the JEXL Reference for more details
  • Expression Validation: Built-in JEXL validation ensures your expressions are syntactically correct before saving
  • Generate Rule: Use the + Generate Rule button to quickly insert rule templates or snippets

Mode Components:

  1. Rules Expression Editor: A text area where you can write your JEXL expressions. The expressions can reference data points from various data sources and apply complex logic to evaluate them

  2. JEXL Expression Validation: After writing your expression, click the Validate JEXL button to check if your syntax is correct. The validation feedback will appear below the editor, helping you identify and fix any errors before saving the check

Example:

Here's a complex check that validates multiple conditions across different data sources:

catalog.pagerdutyAnnotationExists == true &&
catalog.annotationExists."jira/project-key" == true &&
bitbucket.extractStringFromAFile."main"."catalog-info.yaml"."/test-/" == "True" &&
harness.PercentageOfCIPipelinePassingInPastSevenDays == "test" &&
bitbucket.isBranchProtected."main" == true &&
bitbucket.isFileExists."catalog-info.yaml"."main" == true &&
catalog.annotationExists."backstage.io/kubernetes-id" == true

This advanced rule checks if:

  • PagerDuty annotation exists in the catalog
  • Jira project key annotation is present
  • A specific string pattern exists in the catalog-info.yaml file
  • CI pipeline success rate meets requirements
  • Main branch is protected in Bitbucket
  • catalog-info.yaml file exists in the main branch
  • Kubernetes ID annotation is configured
info

Switching from Advanced to Basic Mode:

  • JEXL validation occurs automatically
  • Switching is blocked if the expression is invalid or contains mixed && and || operators
  • Allowed: A && B && C or A || B || C (only AND or OR operators)
  • Not Allowed: A && B || C (mixed AND/OR operators)

Additional Notes:

  • A Data Sources tab is available on the Scorecards page to view supported data sources and their corresponding data points
  • Git data sources (GitHub, GitLab, Bitbucket) do not support monorepos

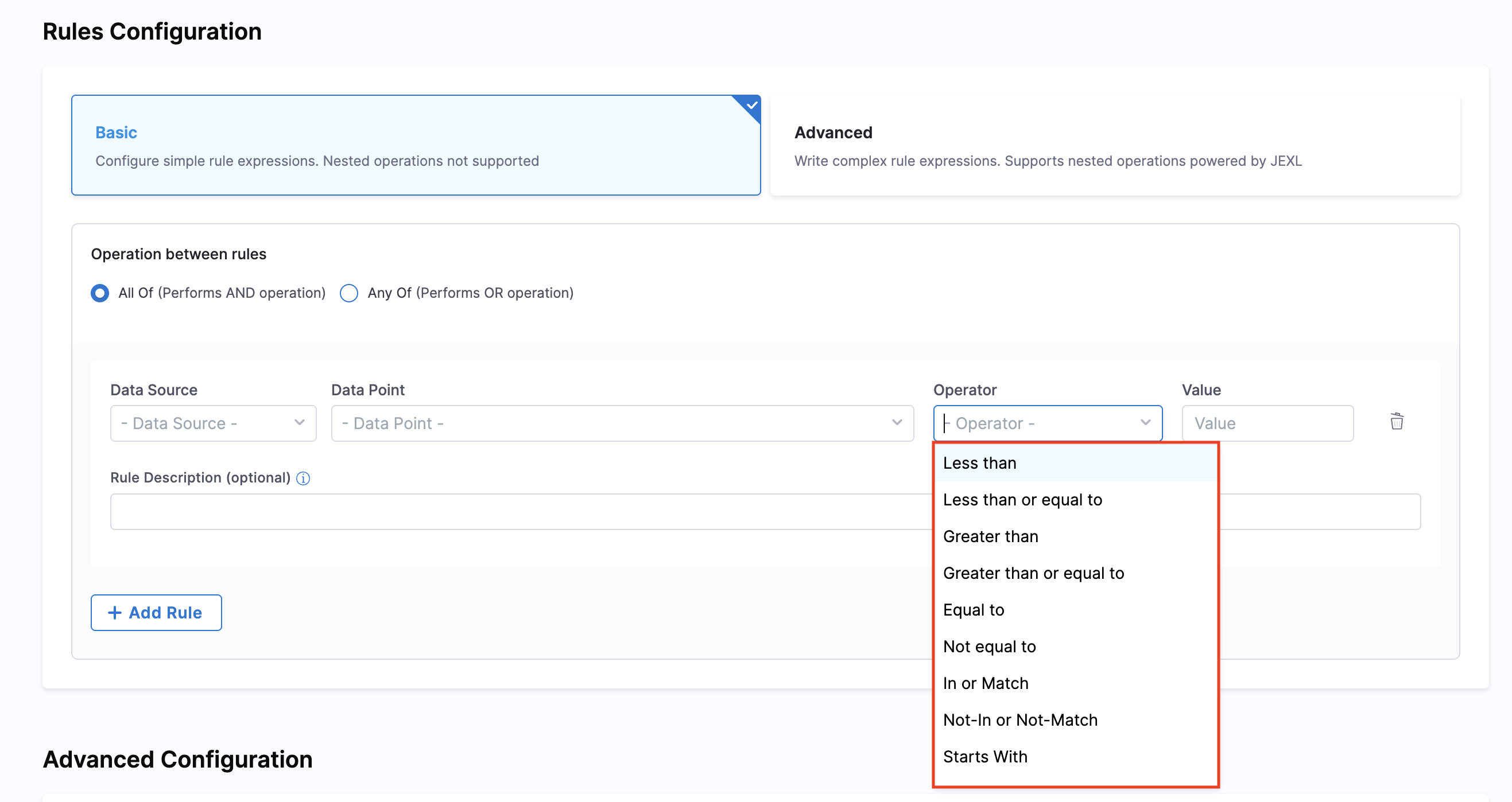

Supported Operators​

The following operators are available for all data points:

  1. Less Than (<)
  2. Less than or equal to (<=)
  3. Greater than (>)
  4. Greater than or equal to (>=)
  5. Equal to (==)
  6. Not equal to (!=)
  7. In or Match: Checks if a value exists in a list or matches a pattern
  8. Not-In or Not-Match: Checks if a value does not exist in a list or doesn't match a pattern
  9. Starts With: Checks if a string starts with a specific value

Use YAML Metadata as Inputs​

You can use entity definitions from your entity YAML file or from additional properties ingested using APIs as input variables in Scorecard Checks.

JEXL Format Examples:

  • <+metadata.testCoverageScore>
  • <+metadata.annotations['backstage.io/techdocs-ref']>
  • <+metadata.harnessData.name>

Example YAML:

...
metadata:
  name: idp-module
  harnessData:
    name: idp-module-prod
    path: idp
    priority: P0,P1
  annotations:
    jira/project-key: IDP
...

In this example, the check <+metadata.harnessData.name> will fetch the value idp-module-prod from the YAML.

info

Some data sources like PagerDuty and Kubernetes depend on plugins to fetch data. These plugins use annotations in the catalog-info.yaml file as well as proxy configurations defined in the plugins section.
