View Scorecard Results

You can view the Scorecard results in your Catalog entity pages. This helps you keep a track of the score of your components and monitor their performance. There a few ways you can monitor and view the Scorecard results regularly.

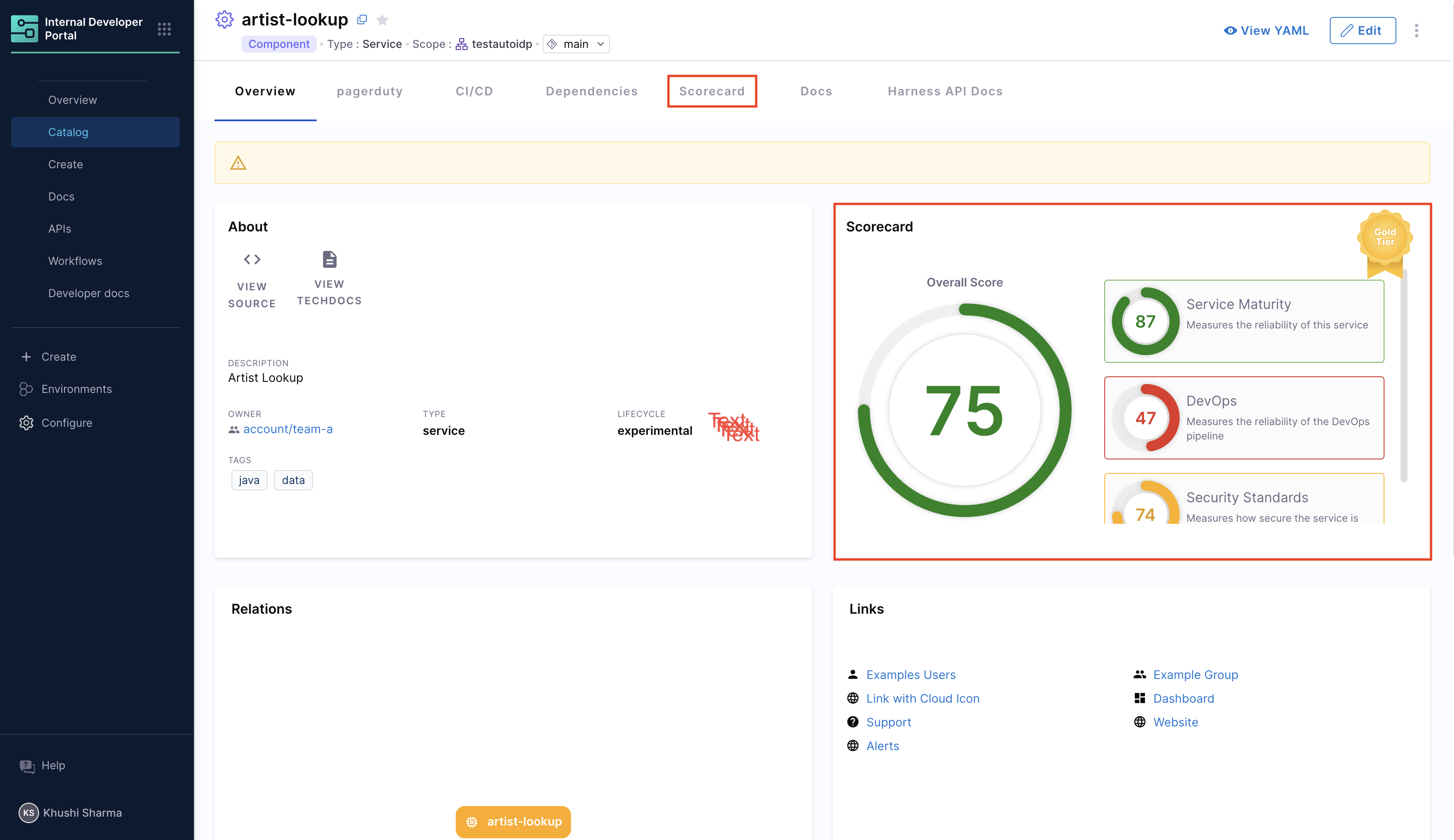

Scorecard View​

Scorecards have two main UI components that are developer-facing and displayed in the Catalog:

  1. Card: A small card on the Overview page that displays scores
  2. Tab: A detailed tab view that shows check details and score computation

After creating a Scorecard, you can track its aggregate trends and component-wise details in the Trends Dashboard. This dashboard displays the number of components the Scorecard applies to and provides detailed scores for each component.

info

The Trends Dashboard updates every 24 hours. Newly created Scorecards (or Checks) will appear in the dashboard after the next update at 12:00 AM UTC.

Follow these steps to view the Trends Dashboard for a scorecard:

  1. Click Configure in the side navigation bar to open the admin view of Harness IDP
  2. Click Scorecards to view all available Scorecards in your account
  3. Select the Scorecard you want to track

  1. The dashboard will display all components where the Scorecard was executed along with their detailed scores
  2. You can export the aggregate data by clicking Export CSV to download it in CSV format

Similarly, you can track trends for individual Checks to view component details and status updates.

info

Scorecard Check jobs run twice a day, with a 12-hour interval between each run. If you run a check now, the next one will automatically run after 12 hours.

Follow these steps to view the Trends Dashboard for a check:

  1. Click Configure in the side navigation bar and go to Harness IDP's admin view
  2. Click Scorecards and navigate to the Checks section
  3. Here, you'll find a list of all created Checks
  4. Locate the Check you want to analyze and click on the Check Stats field

  1. The dashboard will open, displaying component-wise details and insights
  2. You can export the aggregate data by clicking Export CSV to download it in CSV format
