Adding ServiceNow approval steps and stages

You can use ServiceNow tickets to approve or reject a Pipeline or stage at any point in its execution.

During deployment, a ServiceNow ticket's fields are evaluated according to the criteria you define, and its approval/rejection determines if the Pipeline or stage may proceed.

Approvals can be added as stages or in-between stage steps to prevent stage execution from proceeding without approval.

For example, in a Kubernetes Blue Green Deployment, you might want to add an approval step between the Stage Deployment step, where the new app version is deployed to the staging environment, and the Swap Primary with Stage step, where production traffic is routed to the pods for the new version.

Before you begin​

Review: ServiceNow Approval Stages vs Steps​

You can use ServiceNow Approvals in two ways:

  • ServiceNow Approval step: you can add a ServiceNow Approval step to any Pipeline or Approval stage.

  • ServiceNow Approval stage: the ServiceNow Approval stage.

UTC Timezone Only​

The ServiceNow API only allows date time and time values in the UTC timezone. Consequently, input for any datetime/time fields in Harness ServiceNow steps must be provided in UTC format irrespective of time zone settings in your ServiceNow account.

The timezone settings govern the display value of the settings not their actual value.

The display values in the Harness UI depend on ServiceNow timezone settings.

Step: Add an Approval Step​

In your Pipeline, click Add Stage.

Click Approval. The Stage settings appear.

In Name, enter a name for your Stage and select ServiceNow as approval type. Click Setup Stage. The pipeline appears.

In the pipeline, click ServiceNow Approval. The ServiceNow Approval settings appear.

In Timeout, enter how long you want Harness to try to complete the step before failing (and initiating the stage or step Failure Strategy).

You can use **w** for week, **d** for day, **h** for hour, **m** for minutes, **s** for seconds and **ms** for milliseconds. For example, 1d for one day.

ServiceNow communication can take a few minutes. Do not use a brief timeout.

The maximum is 3w 3d 20h 30m. In ServiceNow Connector, create or select the ServiceNow Connector you want to use.

Select the ServiceNow Ticket Type. Use the same type as the ticket you created in the Workflow.

Enter the ServiceNow Ticket Number.

In Retry Interval, set how long the step should wait to fetch details again for calculating Approval or Rejection criteria.

Step 2: Set Approval Criteria​

The Approval Criteria in the step determines if the Pipeline or stage is approved or rejected. Define the approval criteria using the ServiceNow status items.

Whether the Pipeline/stage stops executing depends on the stage or step Failure Strategy.You can specify criteria using Conditions and/or JEXL Expression. If you use them in combination, they both must evaluate to True for the step to be successful.

In Conditions, you can use the ServiceNow ticket related fields to define approval criteria. Four supported operators are =, !=, in, and not in. For example,

  • The condition for the State field to be in Resolved, Closed, or Cancelled can be specified as:
  • The condition for the State field to not be in either New, In Progress, or On Hold can be specified as:
  • The condition for the State field to be in Resolved, Closed, or Cancelled without fixed Ticket Type can be specified as:
important

Multiple conditions with the same Jira field are not allowed. Such use cases can be solved using in, not in operators, or JEXL Expression.

In JEXL Expression, you can use JEXL expressions. You can use a JEXL expression if the field is set to Fixed value or Expression.

Option: Set Rejection Criteria​

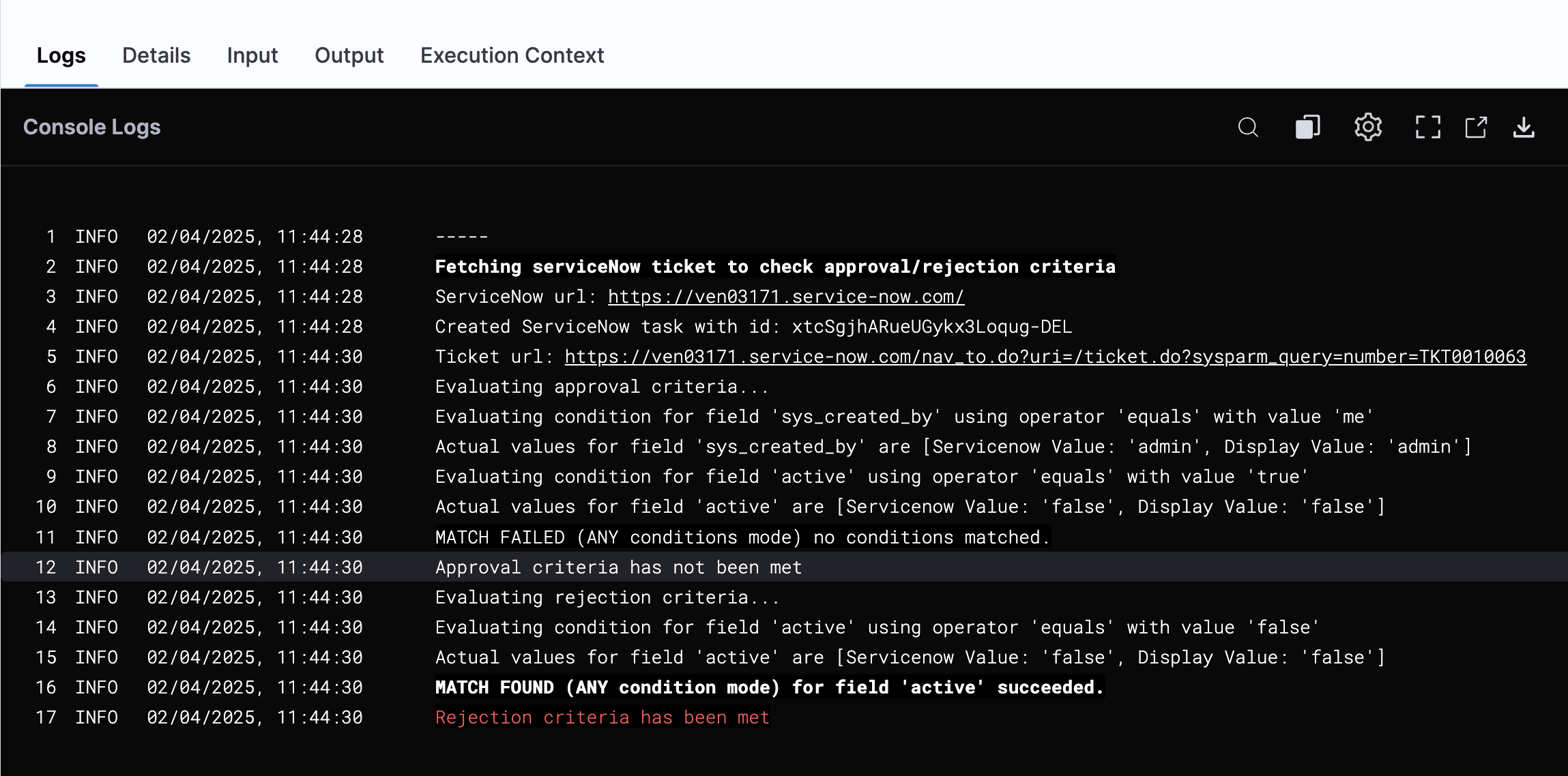

In Optional Configuration, in Rejection Criteria, you can define criteria for rejecting the approval. Define the rejected criteria using the ServiceNow status items.

If you add rejection criteria, it is used in addition to the settings in Approval Criteria.

Option: Approval Change Window​

In Approval Change Window, use Window Start and Window End values to specify the window in which Harness will proceed with the deployment. Once this step is approved, Harness proceeds with deployment if the current time is within this window. The values that appear depend on the type selected in Ticket Type.

The start and end times use the time zone set in the ServiceNow account selected in the ServiceNow Connector.

Option: Advanced Settings​

In Advanced, you can use the following options:

Step 3: Apply and Test​

Click Apply Changes. The ServiceNow approval step is added to the stage.

Run the Pipeline.

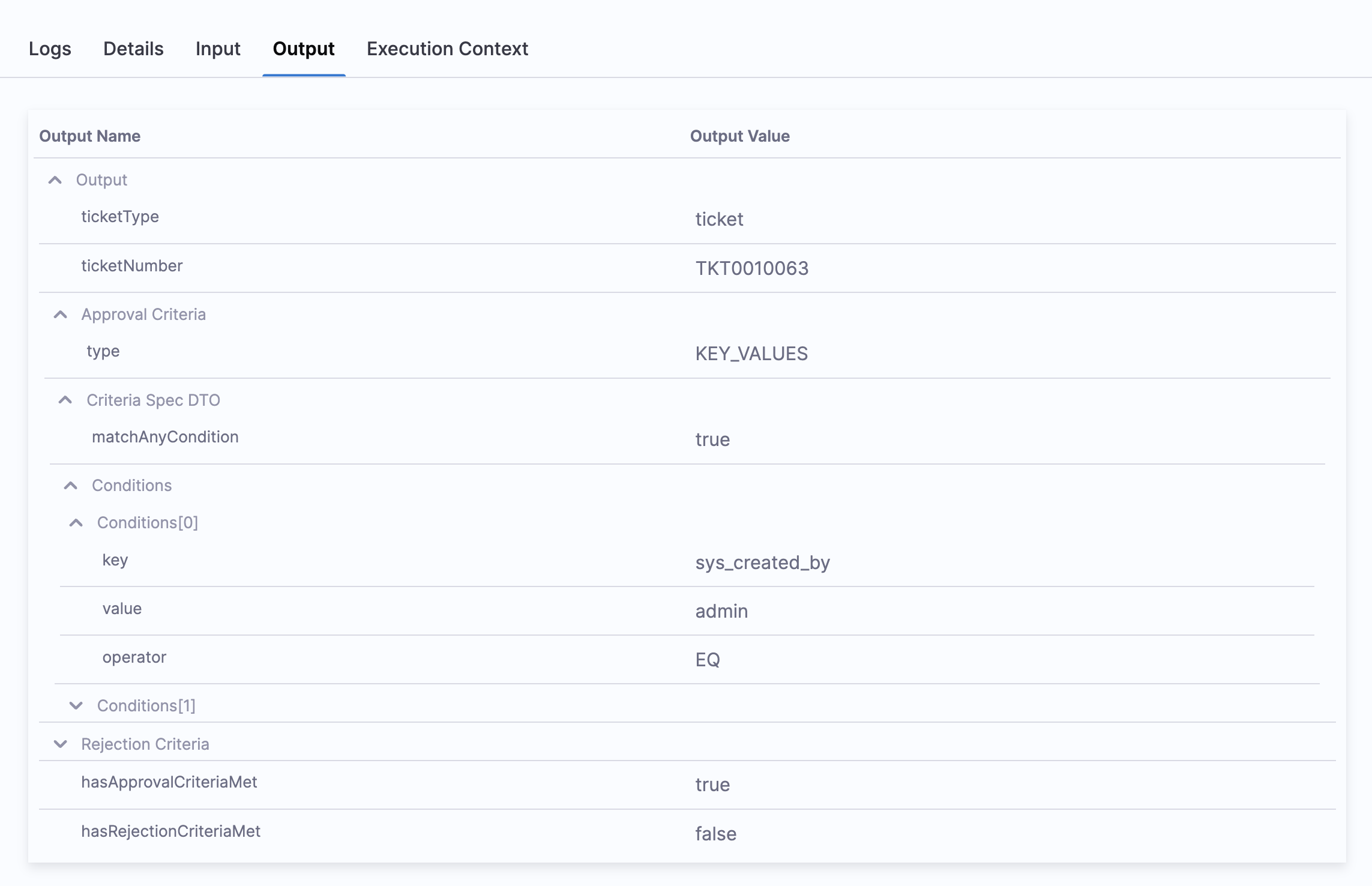

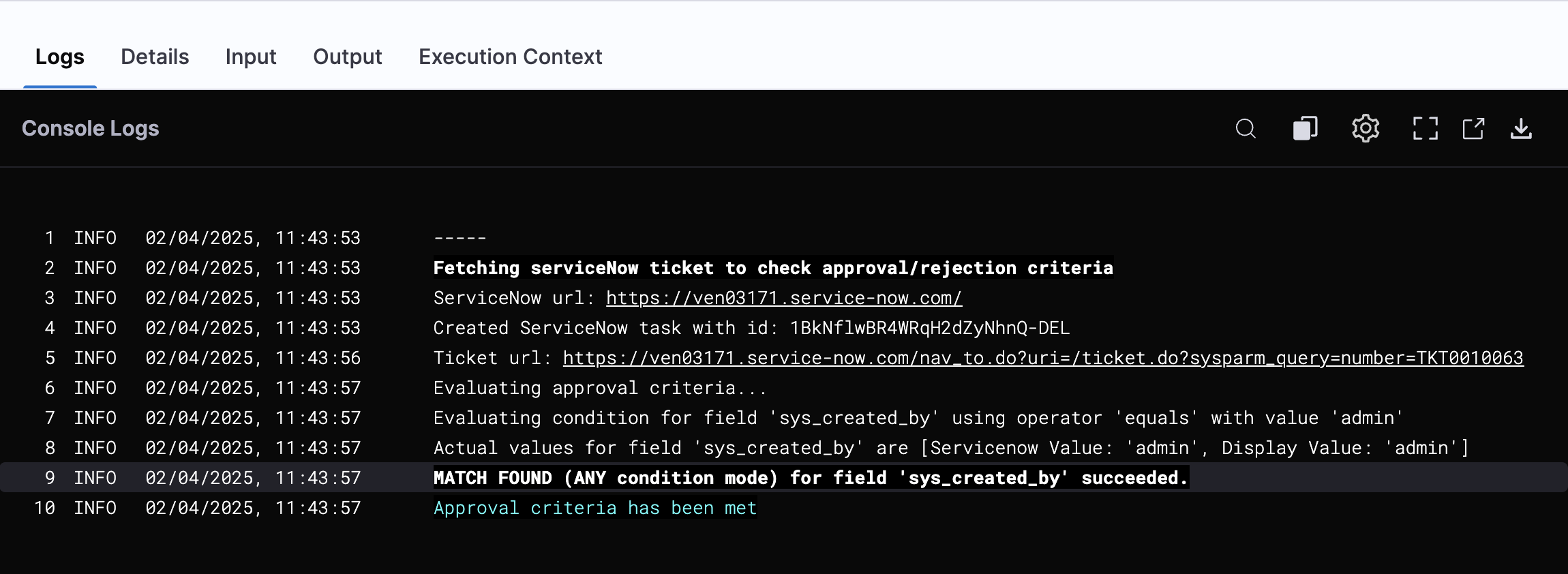

When the ServiceNow Approval step is reached, you can see its approval and rejection criteria:

Review: Issue expressions​

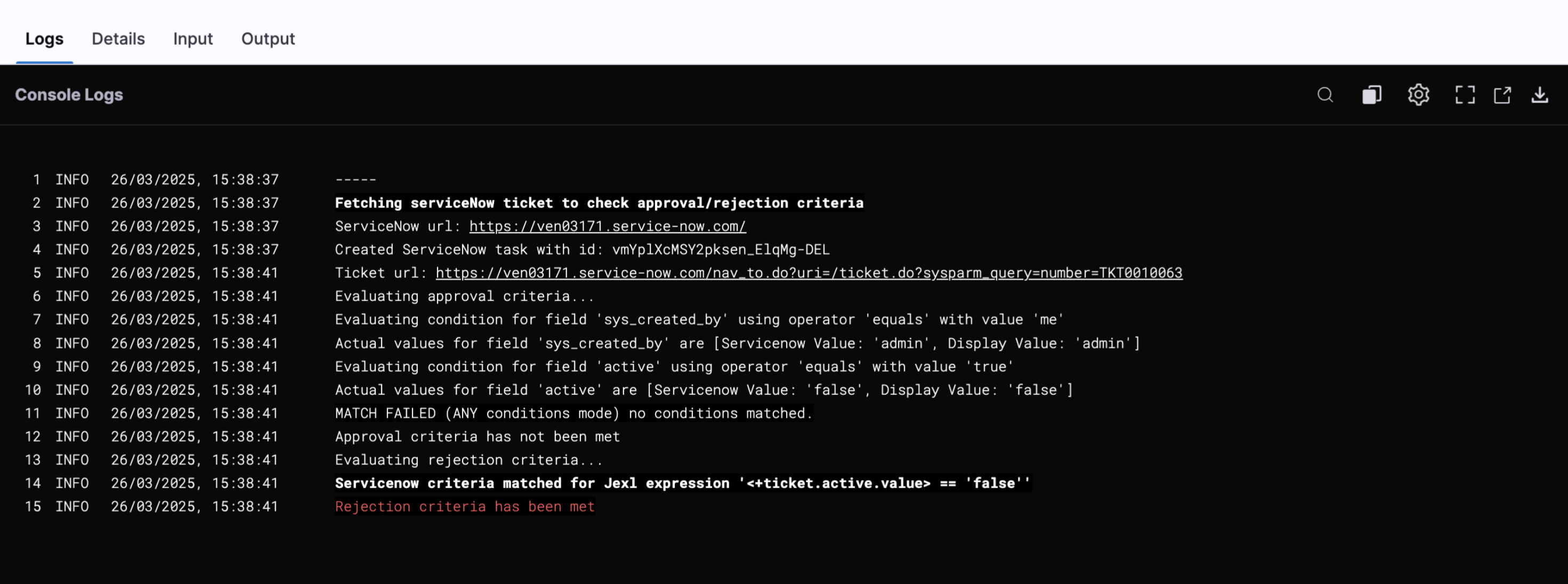

You can use <+ticket> to refer to the value in the JEXL Expression setting.

For example, <+ticket.state.displayValue> == "New" in the Approval Criteria, JEXL Expression checks to see if the status of the ticket is New.

state is a ticket field. You can use any ticket field.

Custom table support​

For details, go to Custom table support in Create ServiceNow tickets in CD stages.
