Connect to monitoring and logging systems

Connect Harness to monitoring and logging systems by adding a verification provider Connector.

You can add a verification provider Connector inline when developing your pipeline, or separately in your Account/Org/Project's resources. Once you add the Connector, it is available in Pipelines of the same Account/Org/Project.

Monitoring and Logging Systems Scope

You can add a verification provider Connector at the Account/Org/Project scope.

This topic explains how to add a verification provider Connector at the Project scope. The process is same for Org and Account.

Add AppDynamics

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click AppDynamics in Monitoring and Logging Systems. The AppDynamics connector settings appear.



4. In Name, enter a name for this connector. You will use this name when selecting the Verification Provider in Harness Environments and Workflows. If you plan to use multiple providers of the same type, ensure that you give each provider a different name.

5. Click Continue.

6. In the Controller URL field, enter the URL of the AppDynamic controller in the format: http://<Controller_Host>:<port>/controller</port>. For example, https://xxxx.saas.appdynamics.com/controller.



7. In Account Name, enter the name of AppDynamics account you want to use. For Harness On-Prem, enter customer1.

8. In Authentication, you can choose one of the following options:

   • Username and Password: In User Name and Password, enter the credentials to authenticate with the AppDynamics server. In Password, you can choose Create or Select a secret.
   • API Client: In Client Id and Client Secret fields, enter a valid Id and secret string that the application uses to prove its identity when requesting a token. In Client Secret, you can choose Create or Select a secret.

9. Click Continue. The Setup Delegates settings appear.

10. You can choose Connect via any available delegate or Connect only via delegates which has all of the following tags. If you select a Delegate, Harness will always use that Delegate for this Connector.

11. Click Save and Continue.

12. Once the Test Connection succeeds, click Finish. AppDynamics is listed under the list of Connectors.

Add Prometheus

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click Prometheusin Monitoring and Logging Systems. The Prometheus connector settings appear.



4. In Name, enter a name for this connector. If you are going to use multiple providers of the same type, ensure that you give each provider a different name.

5. Click Continue.

6. In the URL field, enter the URL of your Prometheus account. You cannot use a Grafana URL.



note

You cannot use a Grafana URL.

1. Click Next. The Setup Delegates settings appear.
2. You can choose Connect via any available delegate or Connect only via delegates which has all of the following tags. If you select a Delegate, Harness will always use that Delegate for this Connector.
3. Click Save and Continue.
4. Once the Test Connection succeeds, clickFinish. Prometheus is listed under the list of Connectors.

Add New Relic

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click New Relic in Monitoring and Logging Systems. The New Relic connector settings appear.



4. In Name, enter a name for this connector. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. Click Continue.

6. In the New Relic URL field, select the URL of your New Relic Insights API.

note

New Relic supports multiple APIs. Harness connector leverages the NerdGraph API or the deprecated New Relic Insights API that supports NRQL. See Step 8 for more details on connecting to either APIs.

Currently, the NerdGraph API is behind the feature flag CV_NEWRELIC_NEW_API. Contact Harness Support to enable the feature.

7. To get the New Relic Account ID for your New Relic account, copy the number after the /accounts/ portion of the URL in the New Relic Dashboard.
8. In Encrypted API Key, you can choose Create or Select a secret.

For secrets and other sensitive settings, select or create a new Text Secret. Enter the API key needed to connect with the server.

If you are having trouble connecting to the API, follow the docs linked below depending on whether you're using the NerdGraph API or the Insight Query API.

NerdGraph API

note

Currently, this feature is behind the feature flag CV_NEWRELIC_NEW_API. Contact Harness Support to enable the feature.

• For steps on connecting to the NerdGraph API, go to NerdGraph API in the New Relic documentation.
• To gain access to this API, use the user key for a specific account.

Insights Query API (DEPRECATED)

• For steps on generating the New Relic API key, go to Insights query API in the New Relic documentation.

• If you have trouble finding the step on generating the Insights query key, look for the API key types help in the New Relic help panel:

1. Click Continue. The Setup Delegates settings appear.
2. You can choose Connect via any available delegate or Connect only via delegates which has all of the following tags. If you select a Delegate, Harness will always use that Delegate for this Connector.
3. Click Save and Continue.
4. Once the Test Connection succeeds, click Finish. New Relic is listed under the list of Connectors.

Usage scope is inherited from the secrets used in the settings. Pro or higher subscription level is needed. For more information, see Introduction to New Relic's REST API Explorer from New Relic.

Add Splunk

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click Splunkin Monitoring and Logging Systems. The Splunk connector settings appear.



4. In Name, enter a name for this connector. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. Click Continue.

6. In the URL field, enter the URL for accessing the REST API on the Splunk server. Include the port number in the format https://deployment-name.cloud.splunk.com:8089. The default port number is 8089. The port number is required for hosted Splunk, such as https://mycompany.splunkcloud.com:8089.



Splunk APIs require that you authenticate with a non-SAML account. To access your Splunk Cloud deployment using the Splunk REST API and SDKs, submit a support case requesting access on the Support Portal. For managed deployments, Splunk Support opens port 8089 for REST access. You can specify a range of IP addresses to control who can access the REST API. For self-service deployments, Splunk Support defines a dedicated user and sends you credentials that enable that user to access the REST API. For information see Using the REST API with Splunk Cloud.

Ensure that the Splunk user account used to authenticate Harness with Splunk is assigned to a role that contains the following REST-related capabilities:

• Search.
• Access to the indexes you want to search.

In the following example we've created a new Splunk role named Harness User, and assigned it search capability:

We've given this role access to All non-internal indexes. However, we could restrict the access to only the few relevant indexes:

1. In the Username field, enter the username of your Splunk account.
2. In Password field, you can choose Create or Select a secret.

note

For secrets and other sensitive settings, select or create a new Text Secret.

1. Click Connect and Save. The Setup Delegates settings appear.
2. You can choose Connect via any available delegate or Connect only via delegates which has all of the following tags. If you select a Delegate, Harness will always use that Delegate for this Connector.
3. Click Save and Continue.
4. Once the Test Connection succeeds, click Finish. Splunk is listed under the list of Connectors.

Add Google Cloud Operations (formerly Stackdriver)

note

For details on settings and permissions, see Google Cloud Platform (GCP) Connector Settings Reference.

Google Cloud Metrics and Google Cloud Logs are supported with GCP connector. See Add a GCP Connector.

The following roles must be attached to the account used to connect Harness and Google Cloud Operations as a Google Cloud Provider:

• Stackdriver Logs - The minimum role requirement is logging.viewer
• Stackdriver Metrics - The minimum role requirements are compute.networkViewer and monitoring.viewer.

See Access control from Google.

Add Splunk Observability [SignalFX]

1. Open a Harness Project.

2. Under Project Setup, select Connectors > + New Connector.

3. Under Monitoring and Logging Systems, select Splunk Observability [SignalFX].

   The connector settings dialog appears.

4. In the Overview tab, enter a name for the connector, an optional description, and a tag, and then select Continue.

   If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. In the Credentials tab, enter the following, and then select Next:

   • In URL, enter the URL of your Splunk Observability [SignalFX] account. The URL format should be one of the following:

     • For streaming ingestion: https://stream.<realm>.signalfx.com

     • For API access: https://api.<realm>.signalfx.com

     Where <realm> is your specific realm identifier.

   • In API Token, select Create or Select a Secret. In the Create or Select an Existing Secret dialog that appears, you can either select an existing token that you have generated in Splunk Observability. The token must have the authorization scope set as API Token.

   To create a new secret:

   1. Select + New Secret Text.

   2. In the Add new Encrypted Text dialog, select a secret manager and enter a name for the secret.

   3. In Secret Value, enter the API token generated in Splunk Observability (SignalFx). The token must have the authorization scope set as API Token. To learn about creating Splunk Observability (SignalFx) API access token, go to Create and manage authentication tokens using Splunk Observability Cloud.

   4. Add an optional description and a tag, and then select Save.

   The secret appears in the API Token field.

6. In the Delegates Setup tab, choose one of the following:

   • Use any available Delegate: Harness automatically assigns an available delegate.

   • Only use Delegates with all of the following tags: You can enter tags to ensure that Harness selects only the delegates that have been assigned those specific tags.

7. Select Save and Continue. Harness verifies the connection.

8. After successful verification, select Finish.

   The Splunk Observability [SignalFX] connector is added to the list of connectors.



9. Select a connector to view its details.

Add Datadog

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click Datadog in Monitoring and Logging Systems. The Datadog connector settings appear.



4. In Name, enter a name for this connector. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. Click Continue.

6. Connect to a Datadog dashboard. To connect to a Datadog dashboard:

7. Copy the protocol and domain part of the URL such as https://app.datadoghq.com/.

8. Append a trailing api/ to create the following URL: https://app.datadoghq.com/api/. The trailing forward slash after apiis mandatory. If your URL has v1 at the end of it, remove v1.

9. In URL field, enter the URL https://app.datadoghq.com/api/. The trailing forward slash after api (api/) is mandatory.

10. Your URL should look like one of the following:

    • https://app.datadoghq.com/api/
    • https://us3.datadoghq.com/api/
    • https://us5.datadoghq.com/api/
    • https://app.datadoghq.eu/api/
    • https://app.ddog-gov.com/api/

11. In Encrypted APP Key, enter the application key.

    To create an application key in Datadog, do the following:

    1. In Datadog, hover over Integrations, and then click APIs. The APIs page appears.



    2. In Application Keys, in New application key, enter a name for the application key, such as Harness, and click Create Application Key.

    3. Copy the application key and, in Harness, paste it into the Application Key field.

12. In Encrypted API Key, enter the API key for API calls.

    To create an API key in Datadog, do the following:

    1. In Datadog, hover over Integrations, and then click APIs. The APIs page appears.



    2. In API Keys, in New API key, enter the name for the new API key, such as Harness, and then click Create API key.

    3. Copy the API key and, in Harness, paste it into the API Key field.

13. Click Next. The Setup Delegates settings appear.

14. You can choose Connect via any available delegate or Connect only via delegates which has all of the following tags. If you select a Delegate, Harness will always use that Delegate for this Connector.

15. Click Save and Continue.

16. Once the Test Connection succeeds, click Finish. Datadog is listed under the list of Connectors.

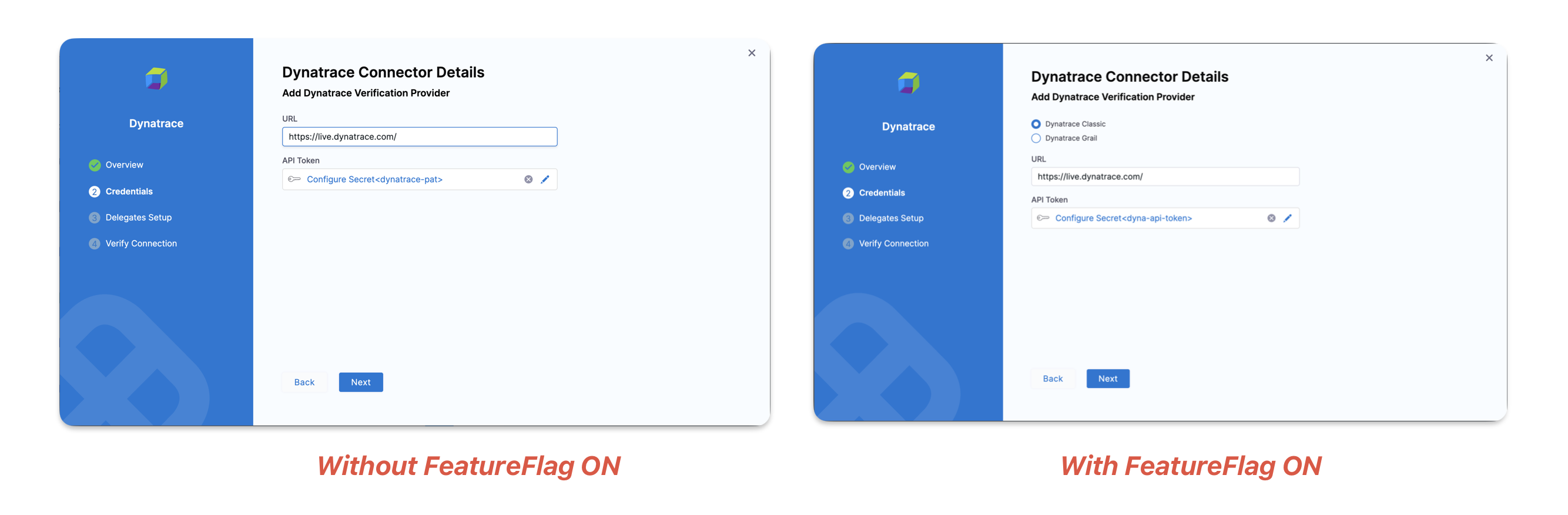

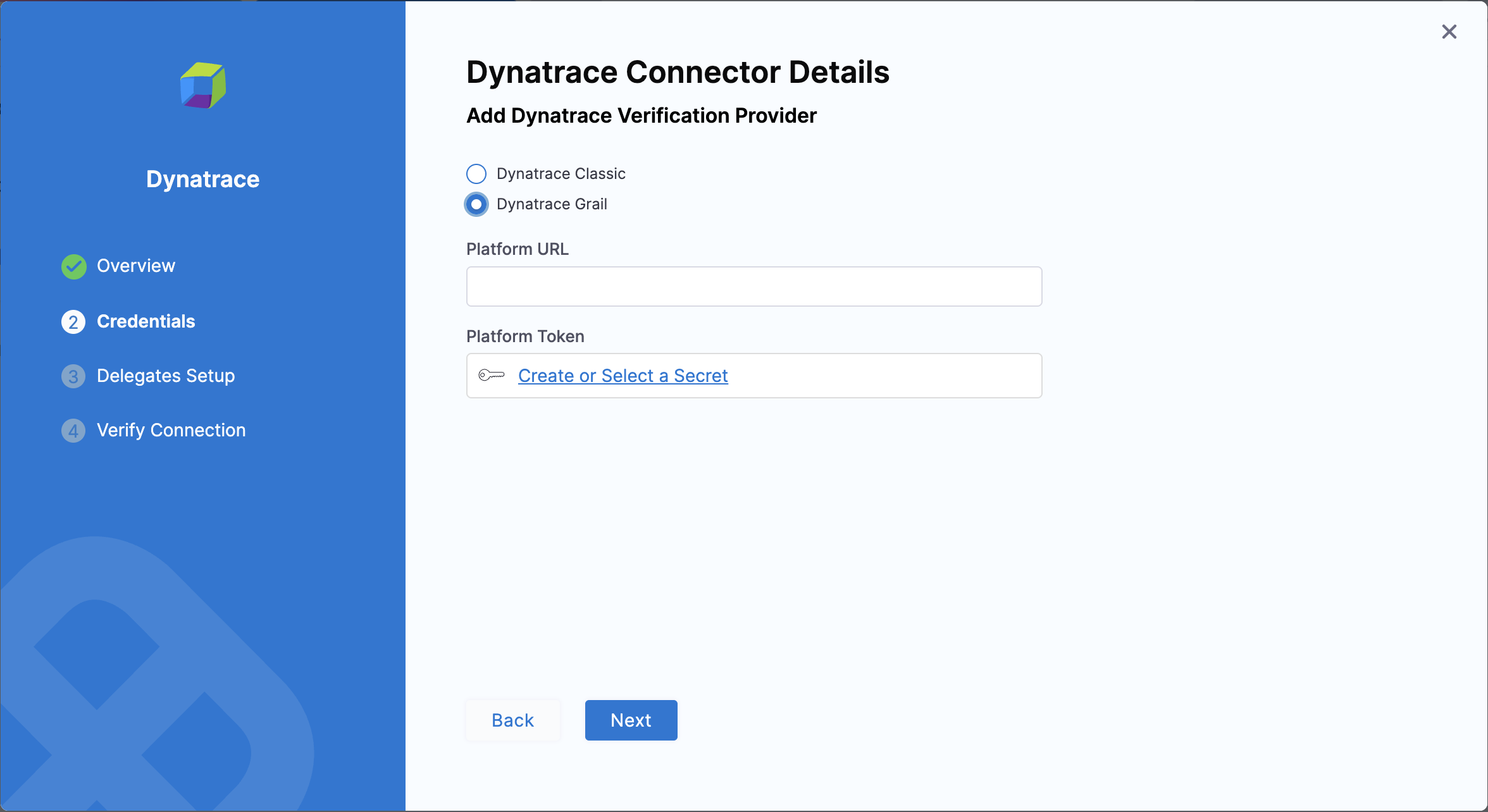

Add Dynatrace

1. Open a Harness Project.

2. Under Project Setup, select Connectors > + New Connector.

3. Under Monitoring and Logging Systems, select Dynatrace.

4. In the dialog that appears, in the Overview tab, enter a name for the connector, an optional description, and a tag, and then select Continue. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. In the Credentials tab, enter the URL of your Dynatrace account. You must use HTTPS to establishing connections with Dynatrace.

6. Select the API Token field > + New Secret Text.

7. In the Add New Encrypted Text dialog, select a secret manager, and then enter a name for the secret.

8. In the Secret Value field, enter the API token generated in Dynatrace. If you don’t have one, follow these steps to create an API token in Dynatrace:

   1. Sign in to your Dynatrace environment.
   2. In the Dynatrace menu, select Access tokens > Select Generate new token.
   3. Enter a name for your token.
   4. Be sure to provide a meaningful name for each token you generate. Proper naming helps you efficiently manage your tokens and delete them when they're no longer needed.
   5. Select the following scopes:
      • Read metrics: This is needed to fetch data from the Dynatrace service for collecting information to perform verification.
      • Read entities: This is necessary to obtain the list of Dynatrace services and the available metrics for the specified service.
   6. Select Generate token.
   7. Copy the generated token to the clipboard. Store the token in a password manager for future use. You can only access your token once upon creation. You can't reveal it afterward.

   For more information on generating Dynatrace API tokens, go to Dynatrace API - Tokens and authentication.

9. Select Save.

10. In the Create or Select an Existing Secret dialog, select the Dynatrace secret that you added, and then select Apply Selected.

11. Select Next.

12. In the Delegates Setup tab, choose one of the following:

• Use any available Delegate: Harness automatically assigns an available delegate.

• Only use Delegates with all of the following tags: You can enter tags to ensure that Harness selects only the delegates that have been assigned those specific tags.

13. Select Save and Continue. Harness verifies the connection.

14. Once the verification is successful, select Finish. The Dynatrace connector is added to the list of connectors.

Add Custom Health

1. Open a Harness Project.

2. In Project Setup, click Connectors.

3. Click + Connector, and click Custom Healthin Monitoring and Logging Systems. The Custom Health connector settings appear.



4. In Name, enter a name for this connector. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

5. Click Continue.

6. In URL, enter the URL of the metrics data provider. For example, https://mycompany.appd.com.

7. In Headers, enter the query headers required by your metrics data provider. In Key, enter a valid query key. In Value, you can create or select a key by clicking Create or Select a Secret. You can also enter a Plaintext value**.**

8. Click Next. The Parameters setting appears.

9. In Parameters, enter the request parameters. In Key, enter a valid query key. In Value, you can create or select by clicking Create or Select a Secret or enter a Plaintext value**.**

10. Click Next. The Validation Path settings appear.

11. In Request Method, select GET or POST.

12. In Validation Path, enter the query string from your metric provider.

13. Click Next. The Setup Delegates settings appear.

14. You can choose Connect via any available Delegate or Connect only via Delegates which has all of the following tag**.** If you select a Delegate, Harness will always use that Delegate for this Connector.

15. Click Save and Continue.

16. Once the Test Connection succeeds, click Finish. Custom Health is listed under the list of Connectors.

Add Grafana Loki

1. Open a Harness Project.

2. Under Project Setup, select Connectors > + New Connector.

3. Under Monitoring and Logging Systems, select CustomHealth.

4. In the Create or Select an Existing Connector dialog, select + New Connector.

5. In the Overview tab, enter a name for the connector, an optional description, and a tag, and then select Continue. If you are going to use multiple providers of the same type, ensure you give each provider a different name.

6. In the Headers tab, enter the following and select Next:

   • Base URL of your Grafana Loki account. By default, Grafana Loki exposes its API on the 3100 port without any authentication.
   • Optionally, the Key and Value pair for the Grafana Loki log stream that you want to select in the query. For more information on the log stream selector and key-value pairs, go to Log stream selector.

7. Optionally, in the Parameters tab, enter the Key and Value pair.

8. In the Validation Path tab, select either the GET or POST request method and enter the Validation Path. If you select POST, then you should also enter the request body.

9. In the Delegates Setup tab, choose one of the following:

   • Use any available Delegate: Harness automatically assigns an available delegate.

   • Only use Delegates with all of the following tags: You can enter tags to ensure that Harness selects only the delegates that have been assigned those specific tags.

10. Select Save and Continue.

Harness verifies the connection.

11. Once the verification is successful, select Finish.

The Grafana Loki connector is added to the list of connectors.
