Install a Delegate on Kubernetes

Last updated on Feb 4, 2026

Closed Beta

The new Harness Delegate is currently in closed beta and available only to select customers. Access is determined by the product team and is based on current supported use cases and steps.

This guide describes how to install the new Harness Delegate in a Kubernetes cluster. The Kubernetes delegate runs as a deployment in your cluster and can execute CI builds and other Harness tasks.

info

To learn more about the new delegate, including architecture, capabilities, and how it compares to the legacy delegate, go to:

New Delegate Overview - Complete guide to the new delegate
Feature Parity - Detailed feature comparison

Important

The new Harness Delegate is in Beta and can only be used for CI Stage Pipelines with limited step and connector support. The latest delegate does not yet support running builds in a remote cluster—your delegate must be installed in the same Kubernetes cluster where it will run CI builds.

Feature Flags

To use the new delegate for different operations, you need to enable the appropriate feature flags in your Harness account:

Feature Flag	Purpose	When to Enable
`CI_V0_K8S_BUILDS_USE_RUNNER`	Routes CI stages with Kubernetes infrastructure to the new delegate	Enable this if you want all CI stages with Kubernetes infrastructure to use the new delegate account-wide. Alternatively, you can use a stage variable `HARNESS_CI_INTERNAL_ROUTE_TO_RUNNER` set to `true` for individual stages.
`PL_USE_RUNNER`	Enables the new delegate for connector tests and secret manager operations	Enable this to use the new delegate for connector connectivity tests and secret manager operations (create, update, rename, delete secrets).

Note: Feature flags are account-level settings. Contact your Harness administrator to enable these flags if you don't have the necessary permissions.

Get Account ID, Token, and Harness URL

Before installing the delegate, you need to obtain your Harness account credentials. These values are required for the delegate to authenticate and connect to the Harness platform.

Navigate to the delegate listing page in your Harness account. The URL format is:

https://<your-harness-url>/ng/account/<account-id>/module/ci/settings/delegates/list

Click + New Delegate.
Select Docker as the installation type. Even though you're installing in Kubernetes, selecting Docker will prompt you to enter the required credentials.
Copy the values from the installation command:
- ACCOUNT_ID - Your Harness account identifier
- DELEGATE_TOKEN - Authentication token for the delegate
- MANAGER_HOST_AND_PORT - Your Harness platform URL
Save these values for the next step. In the following sections, these will be referred to as your Account ID, Delegate Token, and Harness URL, respectively.

Install the Delegate in Kubernetes

The Kubernetes delegate is deployed using a manifest that includes a namespace, a service account, RBAC permissions, secrets, a deployment, and a horizontal pod autoscaler.

Download the Kubernetes Manifest

Copy the Kubernetes manifest YAML below and save it to a file named delegate_deployment.yaml (or any name you prefer) on your local machine.

Click to view the complete Kubernetes manifest

apiVersion: v1
kind: Namespace
metadata:
  name: "PUT_YOUR_DELEGATE_NAMESPACE"

---

apiVersion: v1
kind: ServiceAccount
metadata:
  name: "PUT_YOUR_DELEGATE_NAME"
  namespace: "PUT_YOUR_DELEGATE_NAMESPACE"

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: "PUT_YOUR_DELEGATE_NAME"
subjects:
  - kind: ServiceAccount
    name: "PUT_YOUR_DELEGATE_NAME"
    namespace: "PUT_YOUR_DELEGATE_NAMESPACE"
roleRef:
  kind: ClusterRole
  name: cluster-admin
  apiGroup: rbac.authorization.k8s.io

---

apiVersion: v1
kind: Secret
metadata:
  name: "PUT_YOUR_DELEGATE_NAME"
  namespace: "PUT_YOUR_DELEGATE_NAMESPACE"
type: Opaque
data:
  HARNESS_DELEGATE_TOKEN: "PUT_YOUR_DELEGATE_TOKEN"

---

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    harness.io/name: "PUT_YOUR_DELEGATE_NAME"
  name: "PUT_YOUR_DELEGATE_NAME"
  namespace: "PUT_YOUR_DELEGATE_NAMESPACE"
spec:
  replicas: 1
  minReadySeconds: 10
  selector:
    matchLabels:
      harness.io/name: "PUT_YOUR_DELEGATE_NAME"
  template:
    metadata:
      labels:
        harness.io/name: "PUT_YOUR_DELEGATE_NAME"
      annotations:
        prometheus.io/scrape: "true"
        prometheus.io/port: "3000"
        prometheus.io/path: "/metrics"
    spec:
      serviceAccountName: "PUT_YOUR_DELEGATE_NAME"
      terminationGracePeriodSeconds: 600
      restartPolicy: Always
      containers:
      - image: "PUT_YOUR_DELEGATE_IMAGE"
        imagePullPolicy: Always
        name: delegate
        securityContext:
          allowPrivilegeEscalation: false
          runAsUser: 0
        resources:
          limits:
            memory: "256Mi"
          requests:
            cpu: "0.5"
            memory: "256Mi"
        livenessProbe:
          httpGet:
            path: /health
            port: 3000
          initialDelaySeconds: 10
          periodSeconds: 10
          failureThreshold: 5
        readinessProbe:
          httpGet:
            path: /health
            port: 3000
          initialDelaySeconds: 5
          periodSeconds: 10
          failureThreshold: 5
        envFrom:
        - secretRef:
            name: "PUT_YOUR_DELEGATE_NAME"
        env:
        - name: HARNESS_ACCOUNT_ID
          value: "PUT_YOUR_ACCOUNT_ID"
        - name: HARNESS_MANAGER_HOST_AND_PORT
          value: "PUT_YOUR_MANAGER_ENDPOINT"
        - name: HARNESS_DELEGATE_NAME
          value: "PUT_YOUR_DELEGATE_NAME"
        - name: HARNESS_DELEGATE_TAGS
          value: "PUT_YOUR_DELEGATE_TAGS"
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: POD_SERVICE_ACCOUNT_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.serviceAccountName

---

apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
   name: "PUT_YOUR_DELEGATE_NAME"
   namespace: "PUT_YOUR_DELEGATE_NAMESPACE"
   labels:
       harness.io/name: "PUT_YOUR_DELEGATE_NAME"
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: "PUT_YOUR_DELEGATE_NAME"
  minReplicas: 1
  maxReplicas: 1
  targetCPUUtilizationPercentage: 99

Configure the Manifest

Open the downloaded YAML file and replace the following placeholders with your actual values:

Placeholder	Description	Example
`PUT_YOUR_DELEGATE_NAMESPACE`	Kubernetes namespace for the delegate	`harness-delegate`
`PUT_YOUR_DELEGATE_NAME`	Name for your delegate	`k8s-delegate`
`PUT_YOUR_DELEGATE_TOKEN`	Delegate token (obtained in previous step)	Base64 encoded token
`PUT_YOUR_DELEGATE_IMAGE`	Delegate container image	`us-docker.pkg.dev/gar-prod-setup/harness-public/harness/delegate:1.30.1`
`PUT_YOUR_ACCOUNT_ID`	Account ID (obtained in previous step)	Your Harness account ID
`PUT_YOUR_MANAGER_ENDPOINT`	Harness URL (obtained in previous step)	`https://app.harness.io`
`PUT_YOUR_DELEGATE_TAGS`	Comma-separated delegate tags	`k8s,runner,production`

Delegate Tags: The HARNESS_DELEGATE_TAGS environment variable accepts a comma-separated string of tags. You can specify multiple tags to organize and filter delegates. For example: k8s,runner,production,qa-signoff-k8s. These tags are used when selecting delegates for connectors and pipeline stages.

Deploy the Delegate

Once you've configured all the placeholders in the manifest, apply it to your Kubernetes cluster:

kubectl apply -f delegate_deployment.yaml

The manifest creates the following Kubernetes resources:

Namespace - Isolated environment for the delegate
ServiceAccount - Kubernetes service account for the delegate pod
ClusterRoleBinding - Grants cluster-admin permissions to the service account
Secret - Stores the delegate token securely
Deployment - Manages the delegate pod lifecycle
HorizontalPodAutoscaler - Automatically scales the delegate based on CPU usage

Verify Installation

After applying the manifest, verify that the delegate is running:

kubectl get pods -n <your-delegate-namespace>

You should see a pod with your delegate name in a Running state. Check the pod logs to ensure it's connecting to Harness:

kubectl logs -n <your-delegate-namespace> <delegate-pod-name> -f

Once the pod is running, navigate to Project Settings > Delegates in the Harness UI. Your new delegate should appear in the list with a Connected status, indicating it's successfully communicating with the Harness platform.

Using the Kubernetes Delegate

Once your delegate is installed and connected, you can use it for CI stages with Kubernetes infrastructure, connector tests, and secret manager operations.

CI Stage with Kubernetes Infrastructure

To use the new delegate for CI builds, configure your pipeline stage to use Kubernetes infrastructure and route tasks to it.

Create a Kubernetes Cluster Connector

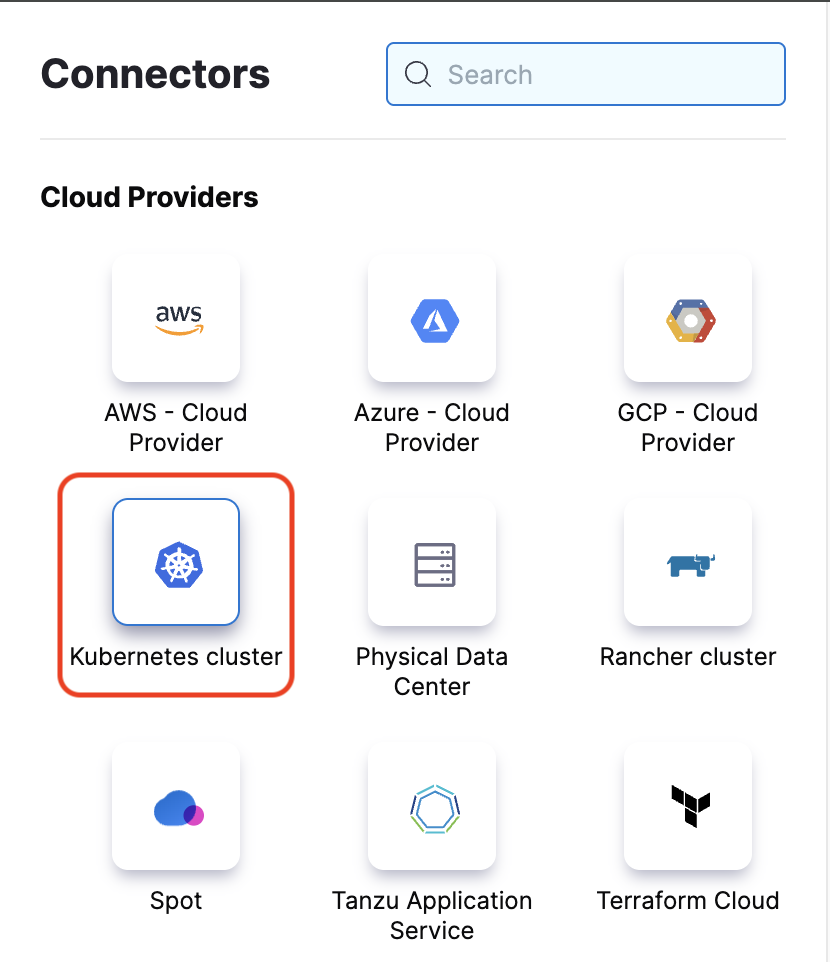

In your Harness project, go to Connectors and create a new Kubernetes Cluster connector.

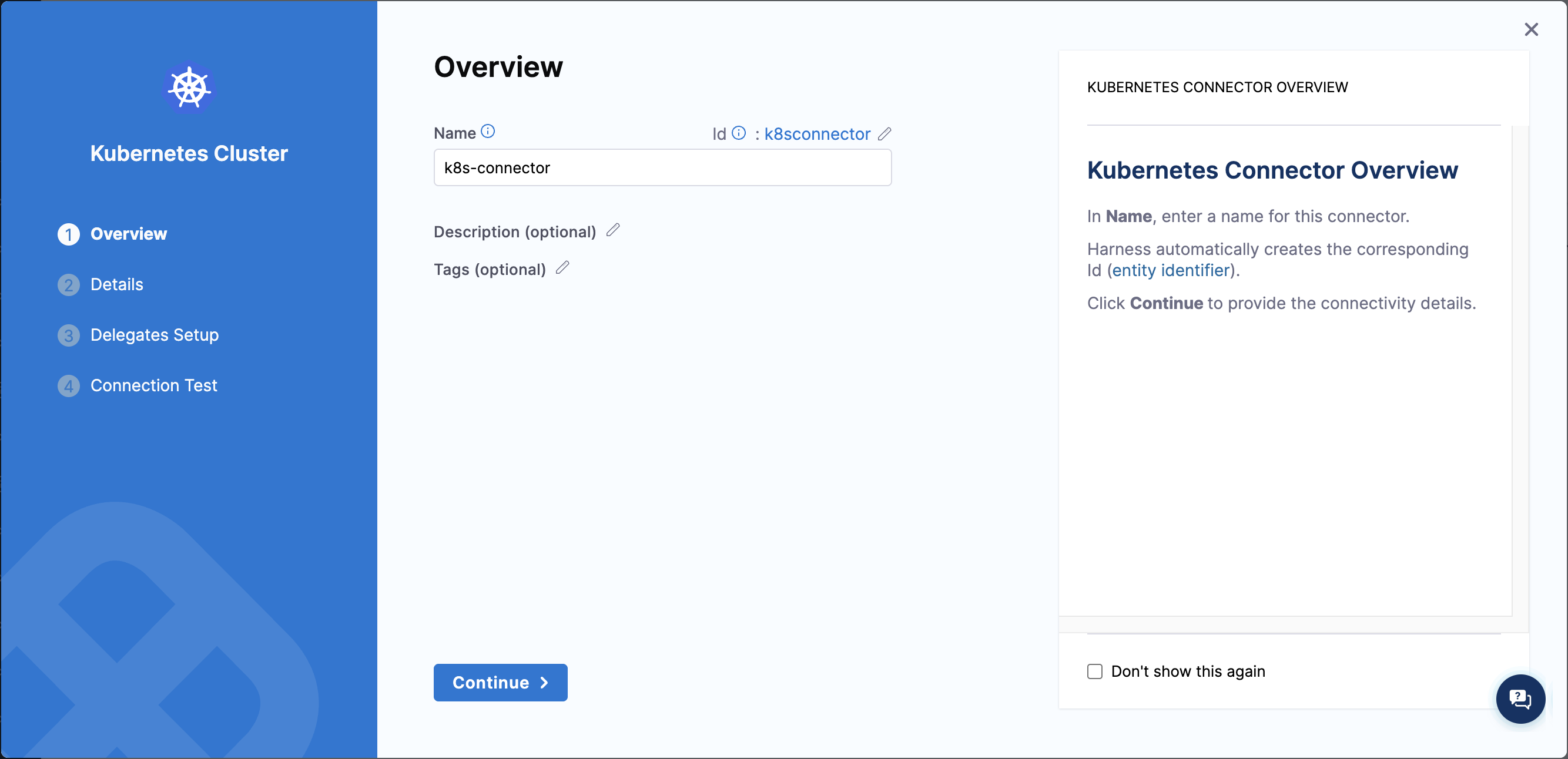

In the Overview step, enter a name for your connector and click Continue.

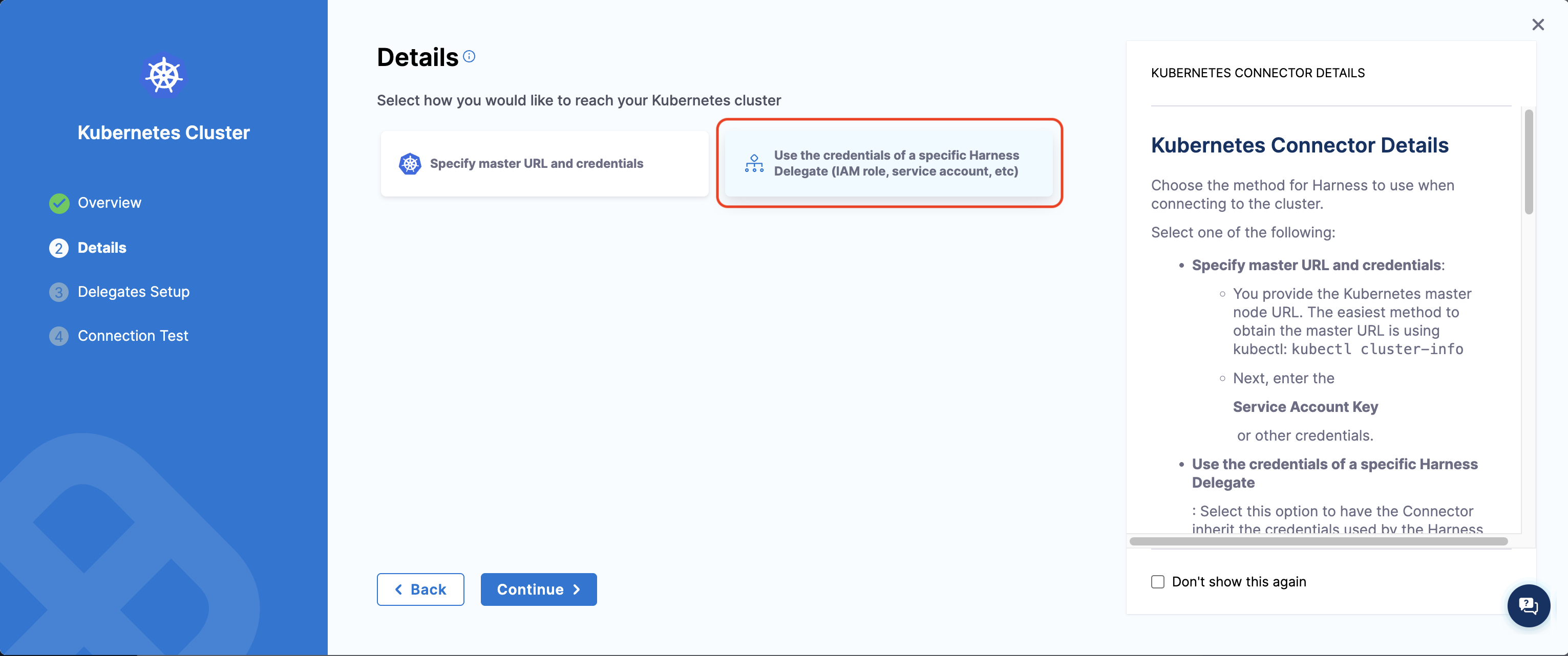

In the Details step, select Use the credentials of a specific Harness Delegate (IAM role, service account, etc).

In the Delegates Setup step, configure delegate selection:
- Choose Only use Delegates with all of the following tags
- Add tags that match your delegate tags (the tags you specified in HARNESS_DELEGATE_TAGS during installation)
- Verify that your delegate appears in the matching delegates list with a green checkmark

Save the connector. You may see a connector test error—this is expected, as connector tests are not yet fully supported for the new delegate. The connector will work correctly even if the test connection is not successful.

Configure CI Stage Infrastructure

In your CI pipeline stage, go to the Infrastructure tab.
Select Kubernetes as your infrastructure type.
Select the Kubernetes cluster connector you created.
Specify a namespace where the builds will run. This should be a pre-existing namespace in your cluster.

Enable New Delegate Routing

To route CI tasks to the new delegate, you can either:

Use a stage variable (recommended for testing): Go to your pipeline stage's Advanced tab, add a variable named HARNESS_CI_INTERNAL_ROUTE_TO_RUNNER, and set its value to true. This enables new delegate routing for that specific stage only.
Enable the feature flag (account-wide): Enable CI_V0_K8S_BUILDS_USE_RUNNER in your Harness account (see Feature Flags for details). This routes all CI stages with Kubernetes infrastructure to the new delegate, while still respecting the delegate selectors configured in your Kubernetes connectors.

Connector Tests and Secret Manager Operations

To use the new delegate for connector connectivity tests and secret manager operations (create, update, rename, and delete secrets):

Enable the feature flag PL_USE_RUNNER in your Harness account (see Feature Flags for details).
In your connector's Delegates Setup section, select delegate tags that match your delegate installation.
The delegate will automatically be used for connector tests and secret manager operations when the tags match.

info

Not all connectors are supported by the new delegate. Check the supported connectors list before configuring your connectors.

Connectors and Steps Support

The new delegate currently supports a limited set of connectors and CI steps. The following sections detail what's currently supported and any known limitations.

Supported Connectors

Connector Type	Caveats
Docker Registry	Only the DockerHub provider type is supported
GitHub	Full support for GitHub connectors
HashiCorp Vault	AppRole and Token Auth are supported; set Renewal Interval to 0 (zero)
AWS Secrets Manager	Access Key and IAM Role Credential Type authentications are supported

Supported CI Steps

Step Type	Caveats
Initialize	Fully supported
Git Clone	Supports only GitHub connectors
Run	Fully supported
Background	Fully supported
Plugin	Fully supported
Upload to Artifactory, S3, and GCS	Fully supported for artifact uploads
Cache Intelligence	Fully supported for cache operations
