Manage pipeline access with tag-based RBAC

Last updated on

Tags are metadata that take the form of key-value pairs or key-only flags. For example:

  • type: prod - Identifies production pipelines.
  • security: high_severity - Marks pipelines with high security criticality.
  • dev_only - A key with no value that acts as a flag for development-only pipelines.

You can attach these tags to Harness entities, such as pipelines, services, environments, repositories, etc. They allow you to organize, search, and filter Harness entities. You can add multiple tags to an entity, creating a list of tags.

Tag-based RBAC allows you to control pipeline access using tags instead of manually selecting individual pipelines in resource groups. This approach simplifies permission management when you have multiple pipelines and need to grant consistent access based on environment, criticality, or other criteria.

note

Currently, this feature is behind the feature flag PIE_TAG_BASED_ACCESS_TO_PIPELINES. Contact Harness Support to enable it.

What will you learn in this topic?​

By the end of this topic, you will know how to:

Before you begin​

Before you use tags with pipelines, ensure you have the following:

  • Understanding of tags: Familiarity with how tags work as metadata for organizing Harness entities. Go to Tags with Pipeline to learn the basics.
  • Resource group configuration: Knowledge of how to configure resource groups in Harness. Go to Manage resource groups to configure resource groups.
  • User group management: Understanding of creating and managing user groups in Harness. Go to Manage user groups to create user groups.

Manage environment-based entity access​

Take the example of pipelines to understand how tags are used for environment-based access. Suppose you manage three pipelines for different environments: Dev, QA, and Production. You want specific users in each environment to have appropriate access. For example, you want developers to have access to all Dev and QA pipelines, and DevOps admins to have Pipeline Execute and Edit permissions to Production pipelines.

Instead of manually adding each pipeline to a resource group and assigning permissions to users individually, you can use a type: dev_only tag to grant developers access to all Dev and QA pipelines.

To access a subset of Dev pipelines, you can select specified pipelines or use By Tag. If you have multiple pipelines, you can avoid searching through a list of pipelines and select them individually by leveraging By Tag option. In addition, when you add new Dev pipelines in Harness, you would not have to manually include each new pipeline in the resource group. You can apply the tag to your pipeline, and relevant users will automatically have access to the newly added Dev pipelines.

Step 1: Apply tags to pipelines​

Based on the example in the previous section, tag your pipelines that deploy to the Dev environment with the tag type: dev_only. Go to Tags reference to add tags to pipelines.

Step 2: Configure the resource group to use tag-based access​

After you select the resources for which you want to provide user access such as Pipelines, Services, Environments, select the By Tag option.

Step 3: Select the tag in the resource group​

Provide the tag of the pipelines you want users to have access to. In this case, use the tag type: dev_only.

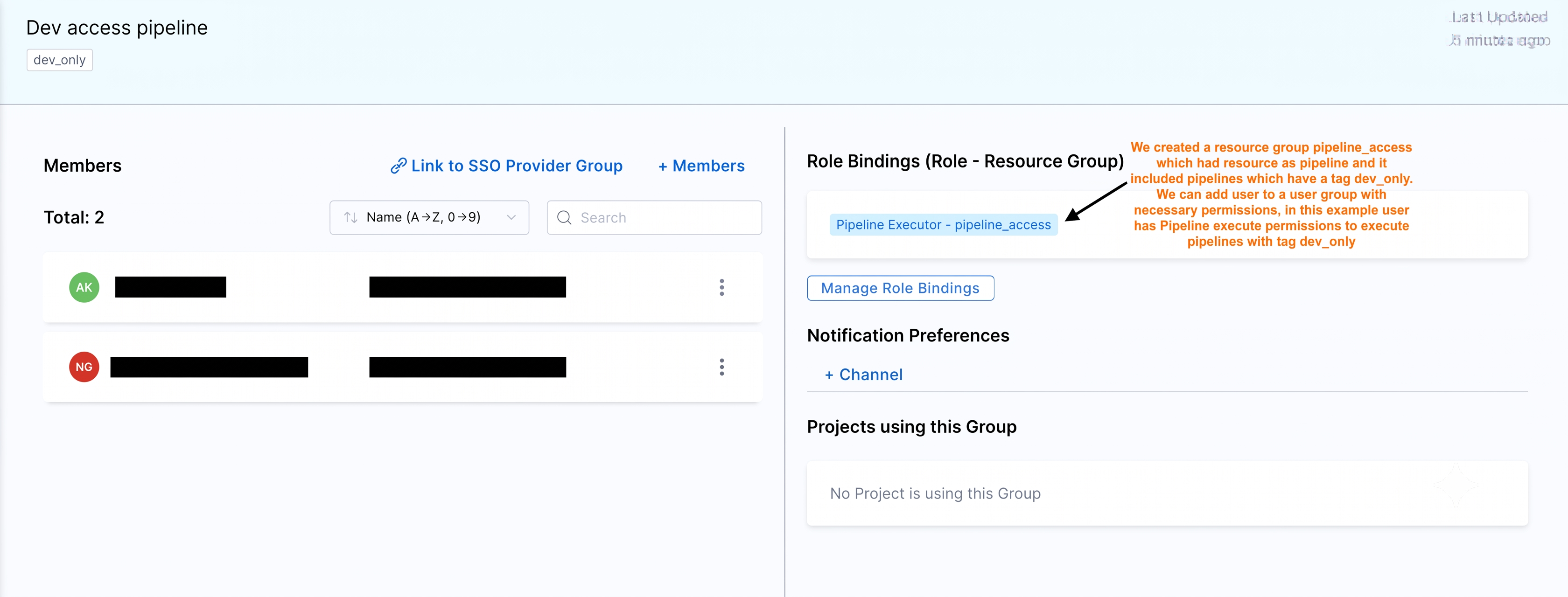

Step 4: Assign the resource group to a user group​

You can grant users the required access by adding users to a user group and assigning permissions to the resource group. For example, you can create a user group for developers that has Pipeline Execute access to this resource group. This ensures that all users in this group have access to pipelines tagged with type: dev_only.

Remove tags​

If you want to remove a pipeline from the resource group, remove the tag from the pipeline. Go to remove tags from pipeline for detailed steps. The pipeline is automatically removed from the resource group without requiring you to edit the resource group.

Tag behavior with Git-stored pipelines​

When you work with tag-based resource groups, Harness uses the tag found in the Harness metadata for the pipeline.

When pipelines are stored in Git, tags behave in the following manner:

  • Different branches may have different tags: Different versions of the pipeline stored in different branches may have different tags.
  • Direct Git updates do not sync tags: Updating the tag in the pipeline directly in Git does not update it in Harness. You must save the pipeline through the Harness UI to sync the tags.
  • Saving a branch updates Harness tags: When you save a different branch of the pipeline in the Harness UI, Harness updates the tags in the system to match the tags from that specific branch.
  • Pipeline editors control resource group membership: The editor of the pipeline can add or remove it from the resource group by editing the tags. The editor does not need to edit the resource group directly or have access to it.
  • Expression tags are not resolved at rest: Using expressions as tags means they are resolved only during runtime. Neither the pipeline executions nor the pipeline with expression tags will be added to the resource group.

This behavior can impact tag-based resource groups. Specifically, a pipeline may enter or exit a group based on the last saved branch from the UI.
