Reconcile pipeline template changes
If any entity referenced in a pipeline is updated, Harness prompts you to update the pipeline if you're viewing the pipeline in Pipeline Studio. Harness detects updates made to the referenced entities using Pipeline Studio or YAML view.
This process of updating the referenced entities in the pipeline is called pipeline reconciliation. It ensures that you are aware that referenced entities have updates and you can choose to integrate those changes into the pipeline.
One of the most common example of pipeline reconciliation is when you increase or decrease the number of runtime inputs.
Let's consider a scenario with three templates: a pipeline template, a stage template, and a step template. In this scenario, the pipeline serves as the parent template, the stage is the pipeline's child template, and the step is the stage's child template.
Step Template
template:
name: step_template_1
identifier: step_template_1
versionLabel: v1
type: Step
projectIdentifier: Pipeline_Samples
orgIdentifier: default1
tags: {}
spec:
timeout: 10m
type: ShellScript
spec:
shell: Bash
executionTarget: {}
delegateSelectors: []
source:
type: Inline
spec:
script: echo hello
environmentVariables:
- name: var1
type: String
value: val1
outputVariables: []
Stage Template
template:
name: stage_template_1
identifier: stage_template_1
versionLabel: v1
type: Stage
projectIdentifier: Pipeline_Samples
orgIdentifier: default
tags: {}
spec:
type: Custom
spec:
execution:
steps:
- step:
name: steptemp1
identifier: steptemp1
template:
templateRef: step_template_1
versionLabel: v1
Pipeline Template
template:
name: pipeline_template_1
identifier: pipeline_template_1
versionLabel: v1
type: Pipeline
projectIdentifier: Pipeline_Samples
orgIdentifier: default
tags: {}
spec:
stages:
- stage:
name: stagetemp1
identifier: stagetemp1
tags: {}
template:
templateRef: stage_template_1
versionLabel: v1
In this pipeline template, both step and stage templates are utilized. In this example, when you update a variable at a step level, you changed the value of variable from Fixed value to Runtime input.
Step template
template:
name: step_template_1
identifier: step_template_1
versionLabel: v1
type: Step
projectIdentifier: Pipeline_Samples
orgIdentifier: default
tags: {}
spec:
timeout: 10m
type: ShellScript
spec:
shell: Bash
executionTarget: {}
delegateSelectors: []
source:
type: Inline
spec:
script: echo hello
environmentVariables:
- name: var1
type: String
value: <+input>
outputVariables: []
When you update a child entity, the step template and the parent entities, i.e., stage and pipeline templates must be updated as well. In this scenario, the concept of reconciliation comes into play.
When you move to the pipeline template, you can see the message: Some of the entities referenced in this template have gone out of sync. along with a Reconcile button.
Harness calls the refreshed YAML API POST https://app.harness.io/template/api/refresh-template/refreshed-yaml when you select the Reconcile option in Pipeline Studio. This API gets the latest pipeline YAML. Harness shows the difference between the original and the refreshed YAML in the UI on the Template Error Inspection page.
First, you will be asked to update the stage template, and then the pipeline template. You also have the option to Update all unsynced entities at once.
Every reconciliation requires saving the pipeline. Specifically, if the pipeline is remote, you must to do a git push every time to ensure that the latest version of the pipeline is saved.
Pipeline reconciliation allows you to add or remove allowed values to your runtime inputs. However, if you add new allowed values to the parent entity, it will not allow the same. Parent entity can have subset of allowed values that are present in child entity.
For example, You have a pipeline that uses a stage and step template.
Step template
template:
name: step_template_1
identifier: step_template_1
versionLabel: v1
type: Step
projectIdentifier: CD_Samples
orgIdentifier: default
tags: {}
spec:
timeout: 10m
type: ShellScript
spec:
shell: Bash
executionTarget: {}
delegateSelectors: []
source:
type: Inline
spec:
script: echo hello
environmentVariables:
- name: var1
type: String
value: <+input>.allowedValues(a,b,c,d)
outputVariables: []
The parent entities like stage or pipeline can have subsets of the above mentioned allowed values. But, if you add a new value, for example,e in the parent entity, then it won't allow you to add the same since the child entity in the step template doesn't have that updated value in it's allowed value. The parent entity in the above scenario picks up allowed values from the child entity.
How Harness detects changes
Harness APIs detect pipeline template changes that require reconciliation. Harness warns you in the UI when a pipeline references a template with updated entities you must reconcile.
Harness calls the Validate template inputs API GET https://app.harness.io/pipeline/api/refresh-template/validate-template-inputs when you select the Reconcile option in the Pipeline Studio. For more information, go to Validate template inputs in the API documentation.
When you save pipeline changes, the Validate pipeline API POST https://app.harness.io/pipeline/api/pipelines/{pipelineIdentifier}/validate starts an asynchronous pipeline validation. The same flow is also executed when you view a pipeline (by making a GET call from the Pipelines list page). The YAML is fetched from the cache, so the results may not be the latest.
Harness fetches the response of the validation event from the Get Pipeline validation event data API GET https://app.harness.io/pipeline/api/pipelines/validate/{uuid}. This API includes the information to determine whether reconciliation is required.
What changes are shown
When reconciling a pipeline, Harness shows you the diff between the current YAML configuration and the updated YAML configuration.
The diff shows only those changes that involve runtime inputs. The following list illustrates the updates that Harness highlights in the diff:
-
A field requiring a runtime input was added. This includes scenarios in which the referenced entity was updated to reference another entity, and this change introduced runtime inputs to the configuration (for example, a referenced service was updated to use an artifact source template, and the source template requires runtime inputs).
The converse is true: a field requiring a runtime input is removed, either directly or by the removal of a referenced entity such as the artifact source template in the previous example.
-
A field's value type was changed from a fixed value or expression to a runtime input, or from a runtime input to a fixed value or expression.
Resolve conflicts in the pipeline YAML
Harness warns you when a pipeline references a template that needs to be reconciled when you change it.
To resolve conflicts in the pipeline YAML, do the following:
-
In the Pipeline Studio, select Reconcile. The Template Error Inspection page opens.
You can view the Git YAML differences for the pipeline and see which lines have been modified. The differences are calculated based on the data, not exact string matches. Therefore, a different quote symbol, such as,
"versus'for the same value might not be recognized as a difference. This is not an issue or error. -
Update the YAML with the required changes.
-
Select Save. Harness reconciles the change, making it the default state.
Harness calls the update pipeline API
PUT https://app.harness.io/pipeline/api/pipelines/{pipelineIdentifier}, and saves the updated YAML.
Bulk Reconciliation of templates
Currently this feature is behind Feature Flag PIPE_BULK_RECONCILIATION. Please contact Harness Support(mailto:support@harness.io) to enable this FF.
When changes are made to the runtime inputs in a template—such as adding or removing inputs—and the template is referenced by multiple entities (like other templates, stages, or pipelines), you can trigger a Bulk Reconciliation directly from the template page. This process ensures that all dependent entities are synchronized with the updated template in a single operation.
For example you have a step template:-
template:
name: ReconcileStepTemplate
identifier: ReconcileStepTemplate
versionLabel: v1
type: Step
projectIdentifier: ShivamTemplate
orgIdentifier: default
tags: {}
spec:
timeout: <+input>
type: ShellScript
spec:
shell: Bash
executionTarget: {}
delegateSelectors: []
source:
type: Inline
spec:
script: <+input>
environmentVariables:
- name: var1
type: String
value: <+input>
outputVariables: []
includeInfraSelectors: <+input>
In this example, when you update a variable at a step level, you changed the value of ShellScript from Runtime input to Fixed value.
template:
name: ReconcileStepTemplate
identifier: ReconcileStepTemplate
versionLabel: v1
type: Step
projectIdentifier: Testemplate
orgIdentifier: default
tags: {}
spec:
timeout: <+input>
type: ShellScript
spec:
shell: Bash
executionTarget: {}
delegateSelectors: []
source:
type: Inline
spec:
script: echo hello
environmentVariables:
- name: var1
type: String
value: <+input>
outputVariables: []
includeInfraSelectors: <+input>

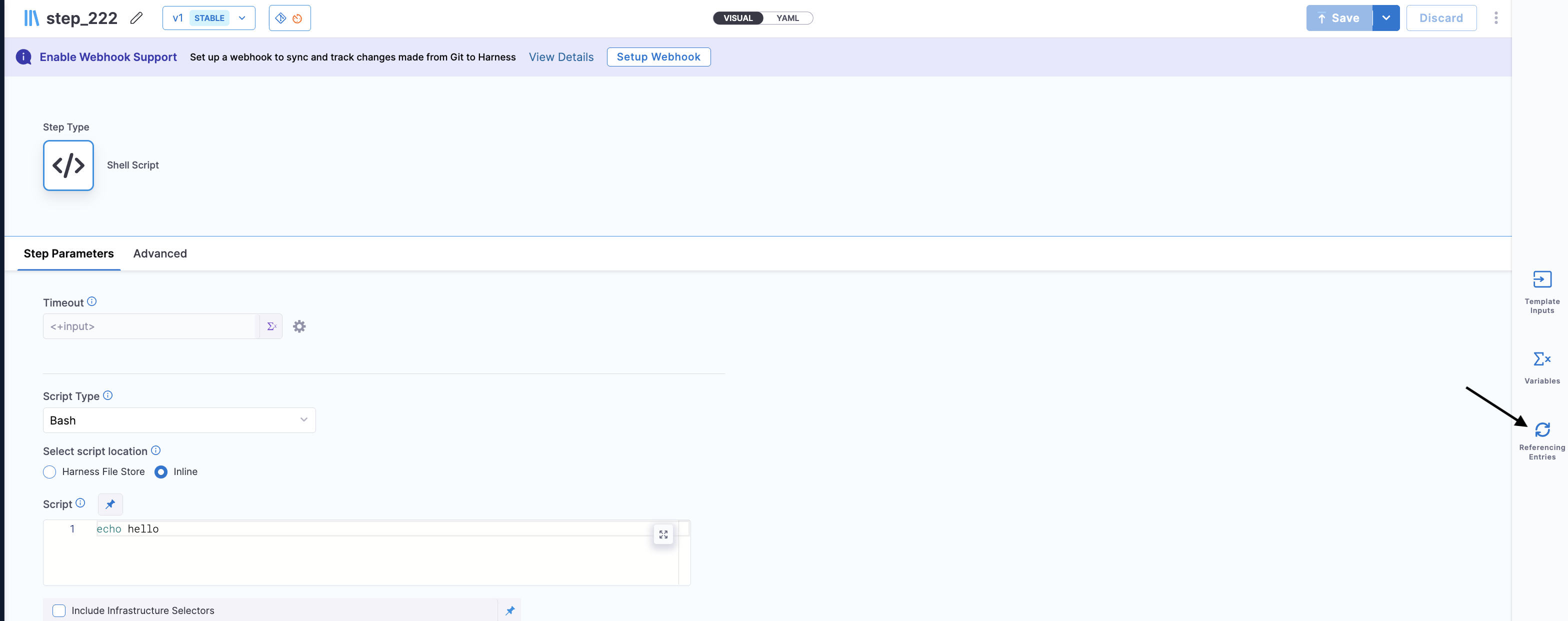

After saving the template, click on the three dots and select Reconcile References.

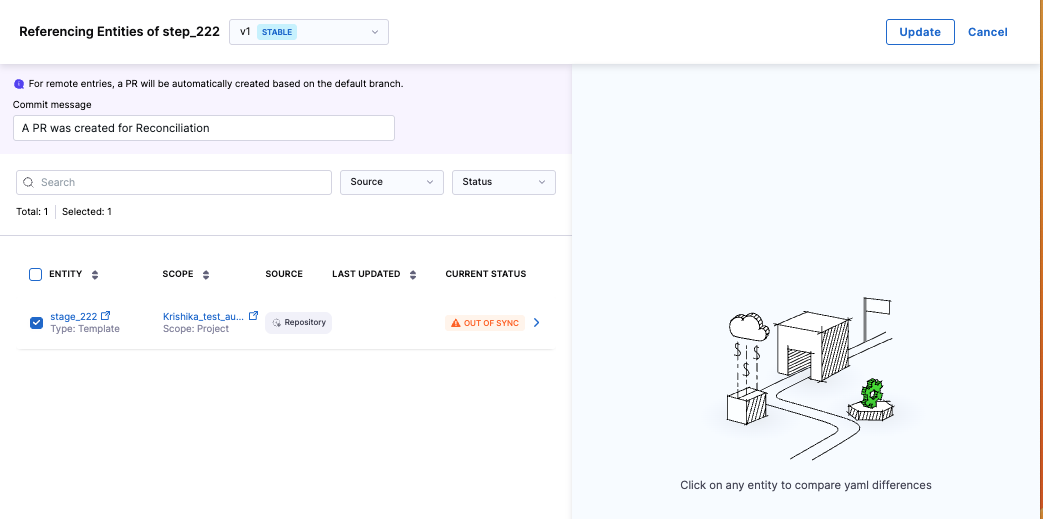

When you select Reconcile References, a list of all entities consuming that step template appears:

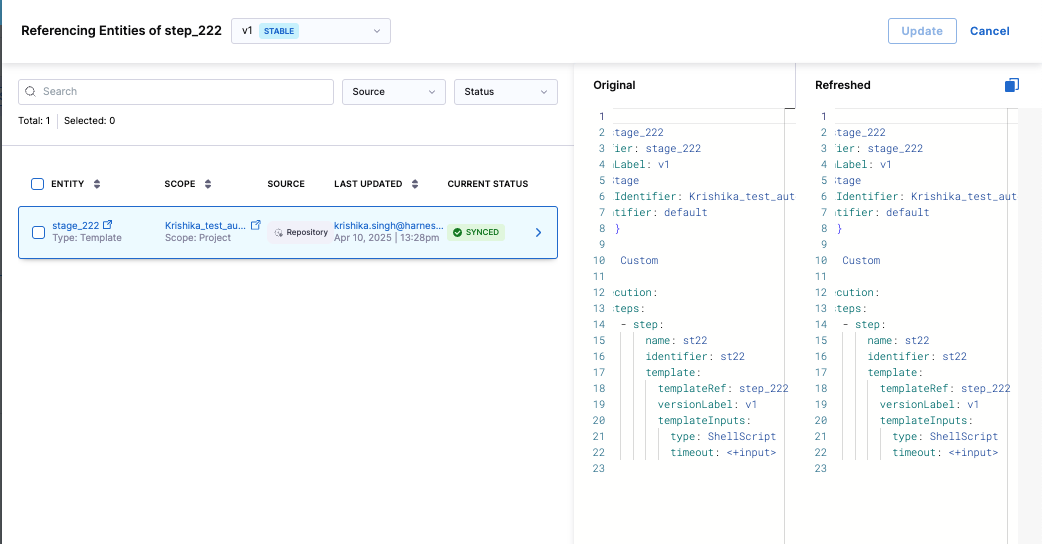

You can select the entities and click on Update All Unsynced Entities to synchronize them with the updated template.

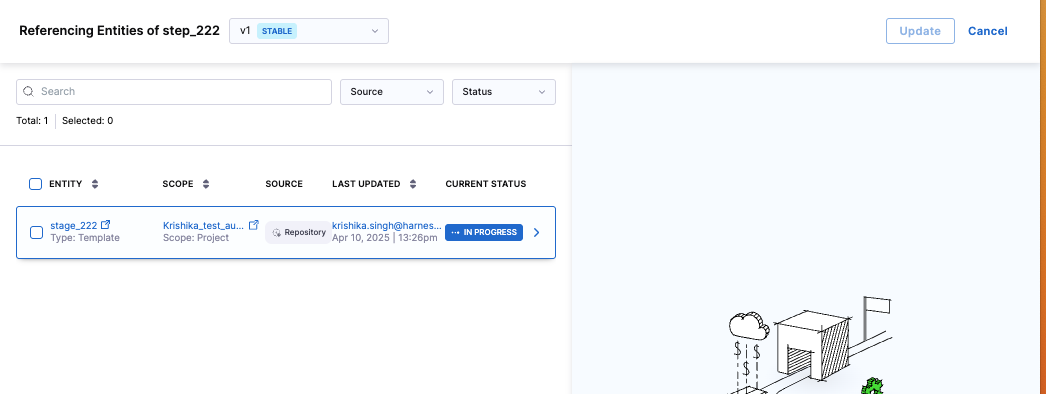

To view the reconciliation status, click on Reference Reconciliation History.

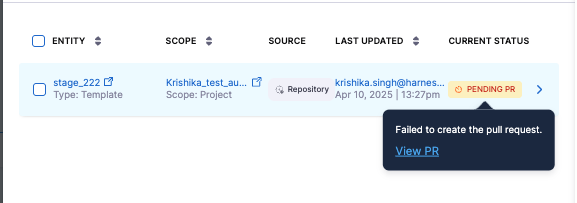

Here, you can view the Details, Status, Start Time of each reconciliation.
Clicking on Details will show the individual status of each reconciled entity.
Important Points for Bulk Reconciliation
- Only inline entities and direct references to templates are supported.
- The user triggering the bulk reconciliation must have Pipeline Edit permissions for the entities being updated.
- The username of the individual who triggered the bulk reconciliation will appear in audit logs for update events.
- You can select up to 25 entities in a single bulk reconciliation.
