Override template advanced settings

Last updated on Jul 30, 2026

Templates allow the same logic to be reused across multiple pipelines, stages, steps, and step groups. Template overrides extend that reuse by allowing template owners to define a common value for an advanced setting once, while enabling individual callers to override only the values they need, without editing or duplicating the template.

This topic explains how a template owner allows specific advanced settings to be overridden, and how a caller overrides those settings when it references the template. A caller is any entity that references a template, for example, a pipeline that references a stage template, or a stage that references a step template.

Template overrides are supported for the following template types:

note

This feature is behind the feature flag PIPE_TEMPLATE_OVERRIDES. Contact Harness Support to enable it for your account.

Template overrides are supported only for templates that use the v0 YAML version. They apply to both inline and remote templates.

What will you learn in this topic?

How template overrides work and when to use them.
How a template owner allows advanced settings to be overridden.
How a caller overrides the settings a template allows.
Which advanced settings are overridable for each template type.
The limitations to know before you use this feature.

How template overrides work

When many entities reference the same template, most of them use the same value for a given advanced setting, and only a few need a different one. Without template overrides, each caller that needs a different value has to duplicate the template.

For example, a stage template is used in 50 pipelines. In 49 of them, the stage runs after a manual approval. In one pipeline, the stage must run automatically. Template overrides let the template set the common value, and let that one pipeline override it, without a second template.

A runtime input gives the same outcome, but then all 50 callers must pass the value, including the 49 that use the common one. With template overrides, the template holds the common value, and only the one caller that needs a different value provides an override. The other 49 callers pass nothing.

Template overrides use two YAML fields:

allowedOverrides (on the template): The template owner lists the advanced settings that callers are allowed to override. It sits in parallel with template.spec. If a setting is not listed here, callers cannot override it. An empty or absent allowedOverrides means nothing can be overridden.
templateOverrides (on the caller): The entity that references the template supplies new values for the settings it wants to change. templateOverrides sits next to templateInputs on the caller.

During template resolution, Harness applies an override only when the caller requests it and the template allows it. The override is applied as the final step, so an allowed override replaces the template's own value.

An override for a setting the template does not allow is ignored.

Allow overrides on a template

The template owner decides which advanced settings callers may override. This applies to Step, Stage, Step Group, and Pipeline templates.

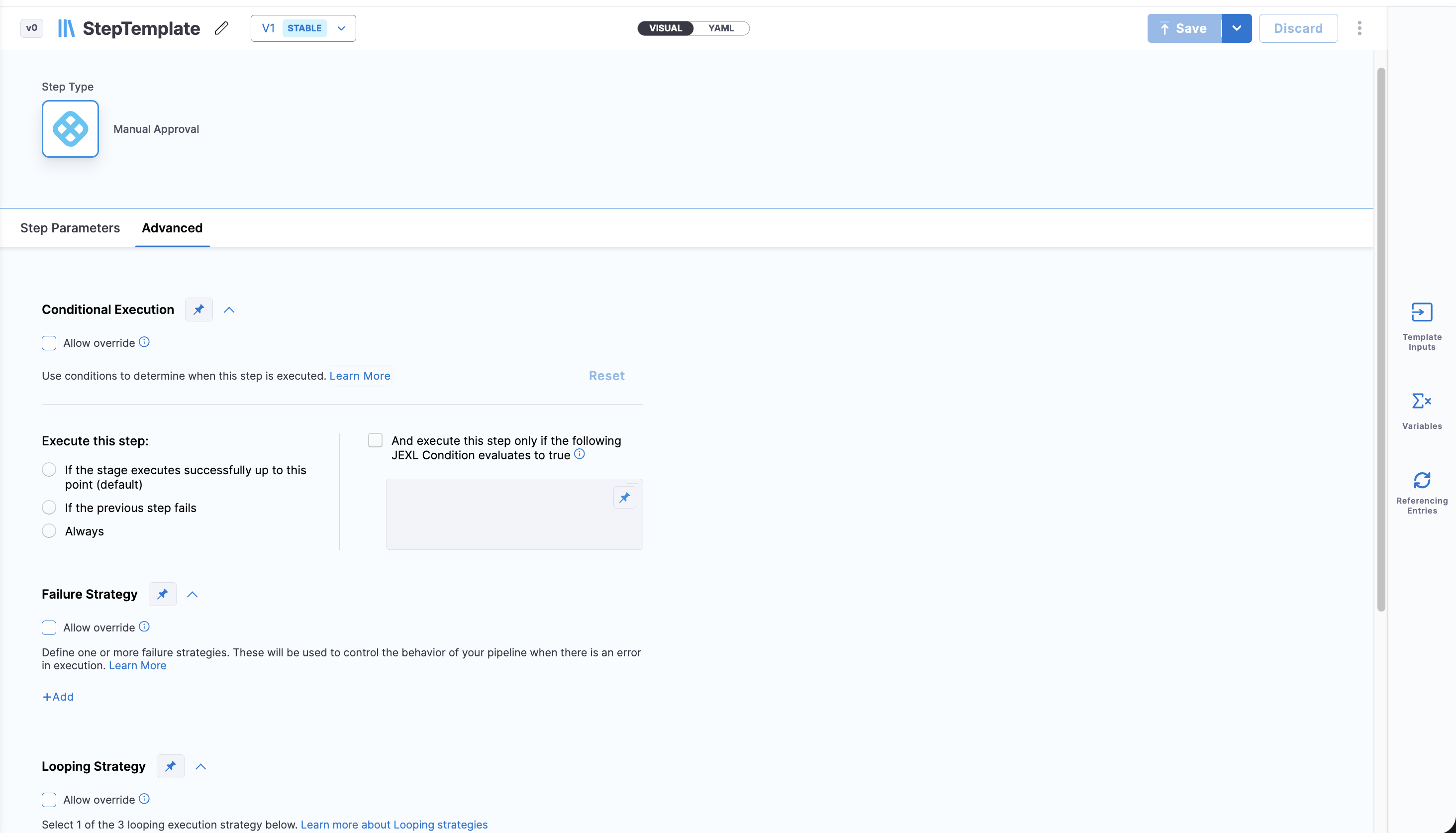

Open the template in the Template Studio, or create a new one.
Configure the advanced setting you want to make overridable with the default value that most callers should use. Each setting is overridable only for certain template types. Go to Supported settings by template type to check which settings apply.
In the Advanced section, select Allow override for that setting.
Save the template.

When you allow a setting, Harness adds it to the template's allowedOverrides list in YAML.

The following examples show the allowedOverrides block for each template type. List only the settings you want callers to override. Each example lists every setting that is overridable for that template type.

Step template

template:
  identifier: myStepTemplate
  type: Step
  spec:
    type: ShellScript
    spec: { ... }
  allowedOverrides:              # settings this template lets its callers override
    - ConditionalExecution       # when
    - LoopingStrategy            # strategy
    - FailureStrategy            # failureStrategies
    - PolicyEnforcement          # enforce
    - DelegateSelectors          # delegateSelectors

Stage template

template:
  identifier: myStageTemplate
  type: Stage
  spec:
    type: Custom
    spec:
      execution:
        steps:
          - step:
              type: ShellScript
              spec: { ... }
  allowedOverrides:              # settings this template lets its callers override
    - ConditionalExecution       # when
    - LoopingStrategy            # strategy
    - ExecutionStrategy          # runMode
    - FailureStrategy            # failureStrategies
    - DelegateSelectors          # delegateSelectors

Step group template

template:
  identifier: myStepGroupTemplate
  type: StepGroup
  spec:
    steps:
      - step:
          type: ShellScript
          spec: { ... }
  allowedOverrides:              # settings this template lets its callers override
    - ConditionalExecution       # when
    - LoopingStrategy            # strategy
    - FailureStrategy            # failureStrategies
    - DelegateSelectors          # delegateSelectors

Pipeline template

template:
  identifier: myPipelineTemplate
  type: Pipeline
  spec:
    stages:
      - stage:
          type: Custom
          spec: { ... }
  allowedOverrides:              # settings this template lets its callers override
    - PipelineTimeout            # timeout
    - AllowStageExecutions       # allowStageExecutions
    - FixedInputsOnRerun         # fixedInputsOnRerun
    - DelegateSelectors          # delegateSelectors

Override settings from a caller

A caller supplies new values for the settings the template allows. You can do this in the pipeline UI or in YAML.

A caller is any entity that references the template. For example, when a Shell Script step template is used in a pipeline, that pipeline step is the caller. The same applies to any caller, such as a stage that references a step template, or a pipeline that references a stage template.

Override values do support runtime inputs (<+input>), but Harness discourages this. If you want a setting to be supplied at run time, use a template input instead of a runtime override.

If an override is set as a runtime input and no value is supplied at run time, Harness does not fall back to the template's common value. Instead, it uses a default value from the Harness system, the same way it does for a runtime template input that is left unset.

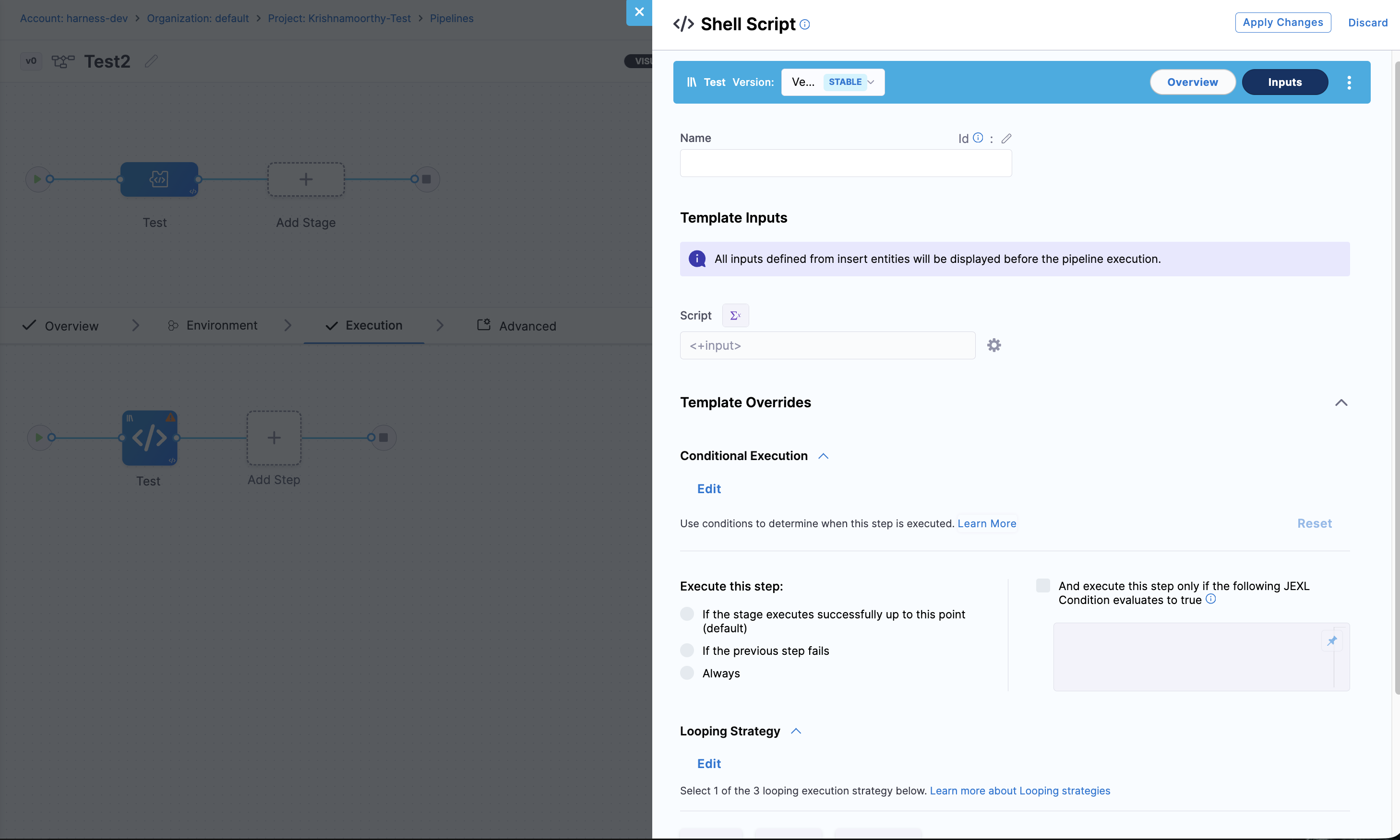

To override a setting from the UI:

Open the pipeline or other entity that references the template.
Select the templated stage, step group, or step, and open the Inputs section. The settings the template allows appear under Template Overrides, next to Template Inputs. For each allowed setting, select Edit and provide the value you want to use for this caller. Only the settings the template allows are available to override.
Save the entity.

note

When you edit an allowed setting under Template Overrides, the value you enter applies only to this caller. The template's own value stays unchanged, and other entities that reference the same template are not affected. Harness records the value in the caller's templateOverrides block, and applies it as the last step during template resolution, so the override replaces the template's value for this pipeline or stage. The overridden value takes effect the next time the entity runs.

YAML example

Add a templateOverrides block next to templateInputs. Provide a value only for the settings the template allows. Overrides for settings that are not allowed are ignored.

- stage:
    template:
      templateRef: myStageTemplate
      versionLabel: v2
      templateInputs:                # values for the template's <+input> fields
        type: Custom
      templateOverrides:
        when:                        # fixed value
          pipelineStatus: Failure
        failureStrategies:           # fixed value
          - onFailure:
              errors: [AllErrors]
              action:
                type: Ignore
        runMode:                     # NOT in the template's allowedOverrides -> ignored
          type: POST_PRODUCTION_ROLLBACK

In this example, the template allows ConditionalExecution and FailureStrategy, so the caller overrides when and failureStrategies with fixed values. The runMode override is not in the template's allowedOverrides, so Harness ignores it. At execution time, the compiled YAML shows the overridden values.

Supported settings by template type

A setting is overridable only for the template types marked below. When you edit allowedOverrides on a template, Harness offers only the settings that apply to that template type.

Legend: ✅ Supported, ❌ Not supported.

Advanced setting	`allowedOverrides` value	YAML field	Step	Stage	Step Group	Pipeline
Conditional Execution	`ConditionalExecution`	`when`	✅	✅	✅	❌
Looping Strategy	`LoopingStrategy`	`strategy`	✅	✅	✅	❌
Execution Strategy	`ExecutionStrategy`	`runMode`	❌	✅	❌	❌
Failure Strategy	`FailureStrategy`	`failureStrategies`	✅	✅	✅	❌
Policy Enforcement	`PolicyEnforcement`	`enforce`	✅	❌	❌	❌
Delegate Selectors	`DelegateSelectors`	`delegateSelectors`	✅	✅	✅	✅
Pipeline Timeout	`PipelineTimeout`	`timeout`	❌	❌	❌	✅
Allow Stage Executions	`AllowStageExecutions`	`allowStageExecutions`	❌	❌	❌	✅
Fixed Inputs on Re-run	`FixedInputsOnRerun`	`fixedInputsOnRerun`	❌	❌	❌	✅

For a pipeline template, only pipeline-level advanced settings are overridable. Advanced settings on the stages inside a pipeline template cannot be overridden from the pipeline caller. For delegate selectors, only the node-level delegate selector is supported, not selectors set inside a specific step's own configuration.

Limitations

Only v0 YAML templates are supported. Template overrides apply to templates that use the v0 YAML version, whether they are inline or remote. Templates on later YAML versions cannot use allowedOverrides or templateOverrides.
A setting configured as a runtime input cannot be allowed for override. If an advanced setting in the template is set to <+input>, you cannot add it to allowedOverrides, and Harness blocks the save with an error.
Overrides are not retroactive. Updating allowedOverrides on a template updates only that template. Entities that already reference the template are not reconciled or re-saved. The new allow-list takes effect the next time the referencing entity runs.
Removing a setting from allowedOverrides silently disables it. If the template owner removes a setting from allowedOverrides while a caller is still providing that override, Harness ignores the caller's value and does not notify the caller. The caller keeps the override in its YAML, but the value no longer applies.
Only allowed settings apply. An override for a setting that the template does not list in allowedOverrides is ignored.
Pipeline templates override pipeline-level settings only. Stage-level advanced settings inside a pipeline template cannot be overridden from the pipeline caller.

Do not override settings outside templateOverrides

Before template overrides existed, some users overrode a setting when they put it in parallel with the template block in the YAML editor. This is not the official way to override a setting. It still works today in the YAML editor, but Harness discourages it. Move any such overrides to templateOverrides on the caller. Harness plans to block this unofficial approach in a future release.
