Get started with Artifact Tracker and Changesets

Last updated on

Artifact Tracker catalogs every container image your pipelines produce and computes a changeset between each artifact version and the previous one. A changeset includes the commits and, optionally, Jira tickets introduced between versions. When you need to know what changed in a release, the changeset shows you without digging through Git history.

This topic walks you through the one-time setup and shows you how to use the day-to-day views once Artifact Tracker is up and running.

Feature availability

Artifact Tracker and Changesets require the following feature flags to be enabled. Contact Harness Support to enable these flags for your account:

  • RMG_ENABLE_CHANGESET_CONFIGURATION
  • PIPE_DIRECT_PIPELINES_EXECUTION
  • RMG_ENABLE_WEBHOOK_QUEUE_SUPPORT

Before you begin​

You need the following connectors configured. You can reuse existing connectors or create new ones.

How Artifact Tracker works​

The following diagram shows how Artifact Tracker captures and processes container images:

Artifact Tracker records every artifact regardless of whether a release is running. Changesets require a Git connector to compute the commit diff. Linking tickets to changesets requires a ticket connector and a regex pattern to extract ticket IDs from commit messages.

Add the RO Notify step to your build pipeline​

The RO Notify step is a pipeline step that reports published artifact details to Release Management. This step acts as the bridge between your CI/CD pipelines and Release Orchestration, enabling automatic tracking of every artifact your pipelines produce.

When you use native Harness build and push steps (such as Build and Push to Docker Registry), artifacts produced within the pipeline are captured automatically without additional configuration. The RO Notify step detects these artifacts and forwards their metadata to the Artifact Tracker catalog.

The RO Notify step runs immediately after your artifact is published and completes in seconds. It does not modify or interact with the artifact itself. It only reports metadata to Release Management for tracking and changeset computation.

note

The RO Notify step is not supported inside a CI stage. If your artifact is published from a CI stage, add a separate Custom stage after it and place the RO Notify step there.

Perform the following steps to add the RO Notify step to your build pipeline:

  1. In your build pipeline, click Add Stage after the stage that publishes the artifact.
  2. Select Custom as the stage type, then click Set Up Stage.
  3. Enter a stage name, such as Notify Release Management, then click Save.
  4. In the Execution tab, click Add Step.
  5. Select RO Notify from the step library.
  6. Configure the RO Notify step:
    • Name: Enter a step name, such as Report Artifact.
    • Leave other fields empty if you are using native Harness build and push steps. The step will automatically detect and capture published artifacts.
  7. Click Apply Changes, then Save the pipeline.
Advanced configuration

If you need to override the automatic detection or specify artifacts manually, you can configure:

  • Artifact Path: The full path to the artifact (for example, my-org/payment-service)
  • Artifact Tag: The specific tag or version (for example, <+pipeline.sequenceId> or 1.2.3)
  • Artifact Registry: The registry to scope the mapping to a specific registry

These fields are optional and only needed when automatic detection does not capture the artifacts you want to track.

Configure default connectors​

Default connectors apply to all mapped services unless overridden at the service mapping level. Connector configuration is available at the project, organization, or account level. The defaults you set on this page are inherited by every mapped service unless overridden.

Perform the following steps to configure default connectors:

  1. In Harness, navigate to Release Orchestration.
  2. In the left navigation, under Artifacts, click Configurations.
  3. Click Connectors.
  4. Configure the following integrations:

Git Integration​

Configure the Git connector for commit comparison between artifact versions.

Perform the following steps to configure Git integration:

  1. Under Git Integration, click Git Provider.
  2. Select Harness Code Repository or a third-party Git provider.
  3. If you selected a third-party provider, select the Git Connector from the dropdown.
  4. Click Save.

Ticket Integration​

Configure the ticket connector to link Jira or ServiceNow tickets to changesets.

Perform the following steps to configure ticket integration:

  1. Under Ticket Integration, click Ticket Connector.
  2. Select your Jira or ServiceNow connector from the dropdown.
  3. (Optional) Enter a Ticket Regex Pattern if you need a different pattern from the default [A-Z]+-[0-9]+. The default pattern matches Jira-style ticket keys such as RM-123 or ABC-4567 (one or more uppercase letters, a dash, then one or more digits). Leave blank to use the default.
  4. Click Save.

Infrastructure​

Configure the Kubernetes cluster connector and namespace where changeset pods run.

Perform the following steps to configure infrastructure:

  1. Under Infrastructure, select the Kubernetes Cluster Connector from the dropdown.
  2. Enter the Namespace where changeset pods will run.
  3. Click Save.

Artifact Registry​

Configure the Docker registry connector to pull container images for git diff and ticket lookup.

Perform the following steps to configure the artifact registry:

  1. Under Artifact Registry, select the Docker Registry Connector from the dropdown.
  2. Click Save.

Semantic Versioning​

Semantic versioning is enabled by default. When enabled, changesets compare semantic versions instead of arrival order.

For example, if payment-service has versions 1.0.0 and 2.0.0, and hotfix 1.0.1 arrives later, the changeset compares 1.0.0 to 1.0.1 instead of 2.0.0 to 1.0.1.

Perform the following steps to disable semantic versioning:

  1. Under Semantic Versioning, toggle the setting to Off.
  2. Click Save.

Map your services​

Service mappings connect artifact paths to Harness CD services and apply default connector settings. Artifacts that do not match any mapping are still stored in the catalog, but changesets are not computed until you create a mapping.

Perform the following steps to create a service mapping:

  1. In the left navigation, under Artifacts, click Configurations.
  2. Click Service Mappings.
  3. Click Create Service Mapping.
  4. Configure the mapping:
    • Artifact Path: Enter the artifact path, for example my-org/payment-service.
    • Artifact Registry: (Optional) Select a specific registry to scope the mapping.
    • Service Ref: Select the Harness CD service this artifact belongs to.
  5. (Optional) Override any default connector settings for this specific mapping:
    • Git Connector: Select a different Git connector if this service uses a different repository.
    • Ticket Connector: Select a different ticket connector or modify the ticket regex pattern.
    • Semantic Versioning: Toggle to enable or disable for this specific service.
  6. Click Save.

Repeat these steps for each service you want to track.

Artifacts are captured in the catalog regardless of this step. Complete this step only if you want to link specific artifact versions to a release.

Perform the following steps to link artifacts to a release:

  1. Open the release process where you want to capture artifacts.
  2. Add a Pipeline Queue activity to the release process.
  3. Configure the Pipeline Queue activity to listen for the build pipeline that publishes the artifact.

While the Pipeline Queue activity is running, any matching pipeline execution that includes the RO Notify step automatically links its published artifacts to the release.

If no release is listening, artifacts are still captured in the catalog but are not attached to a specific release.

How artifacts are automatically tracked​

After you complete the setup steps, the process runs automatically. When your build pipeline publishes a new image version:

  1. The RO Notify step reports the artifact details to Release Management, which records the artifact in the catalog.
  2. If a release is listening (from the Link artifacts to releases step) and a service mapping exists (from the Map your services step), the artifact is linked to the release.
  3. If a Git connector is configured, Release Management diffs this version against the previous version and lists the commits.
  4. If a ticket connector and regex pattern are configured, commit messages are scanned for ticket IDs, which are resolved against Jira or ServiceNow and attached to the changeset.

The first artifact received for a mapping has no previous version to diff against. It becomes the baseline. The next version produces the first changeset.

View artifact catalog and changesets​

After setup and pipeline runs complete, view artifacts and changesets.

View all artifacts​

Perform the following steps to view all artifacts:

  1. In the left navigation, under Artifacts, click Explorer.
  2. Use the grouping options to filter by service or artifact path.
  3. Click on any artifact to view all tags and versions for that artifact.

View changesets​

Perform the following steps to view changesets:

  1. In the left navigation, under Artifacts, click Changesets.
  2. Use the filters to search by:
    • Artifact path
    • Commit SHA
    • Ticket ID
  3. Click on any changeset to view:
    • Commits introduced between the two versions
    • Linked Jira or ServiceNow tickets
    • Changeset status (Success, Failed, or Running)

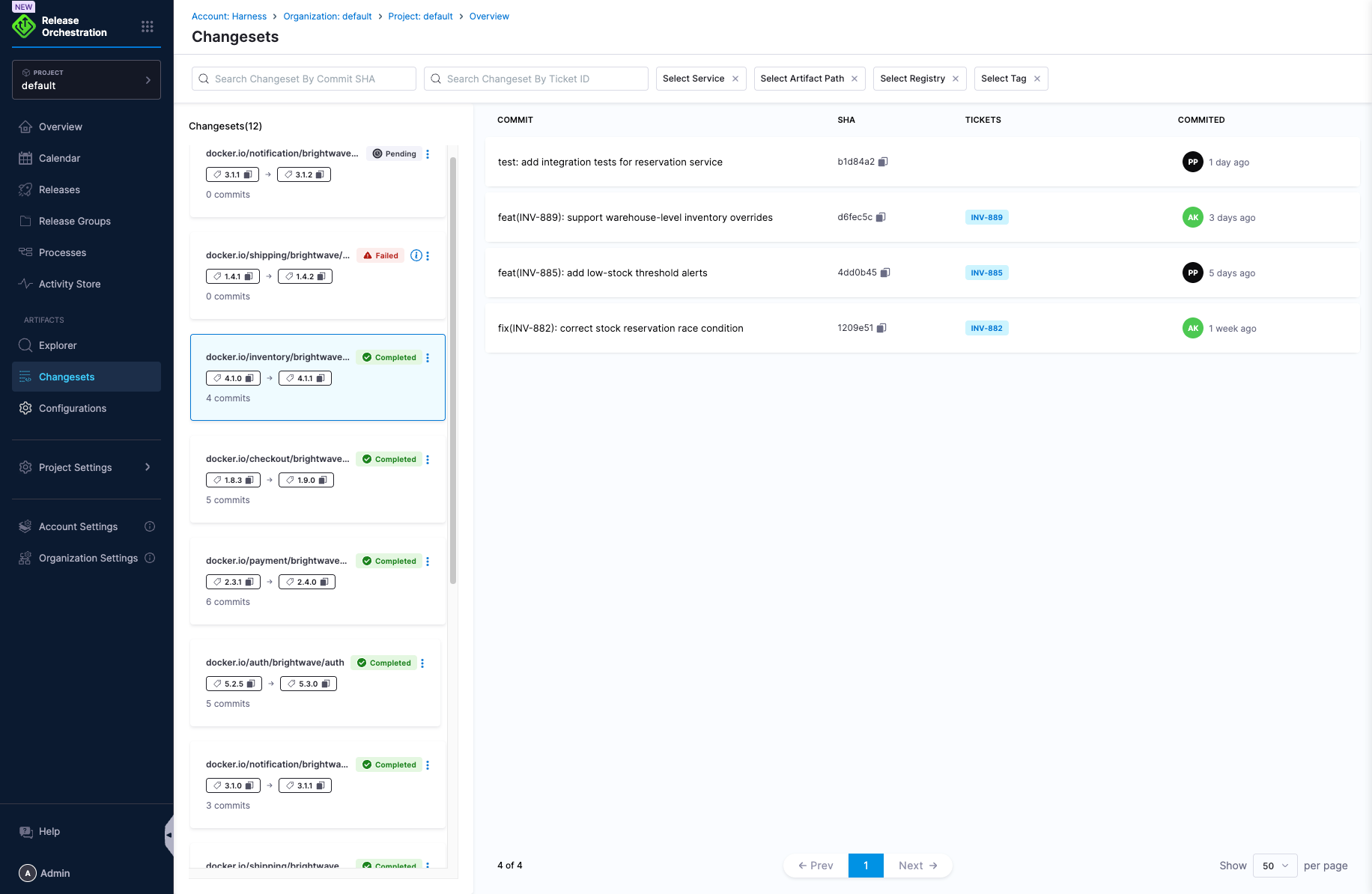

Changeset details showing commits and linked tickets

View changesets in a release​

Perform the following steps to view changesets in a release:

  1. Navigate to the specific release.
  2. Click the Changesets tab.
  3. View all changesets tied to this release, including:
    • Commit lists
    • Linked tickets
    • Changeset status

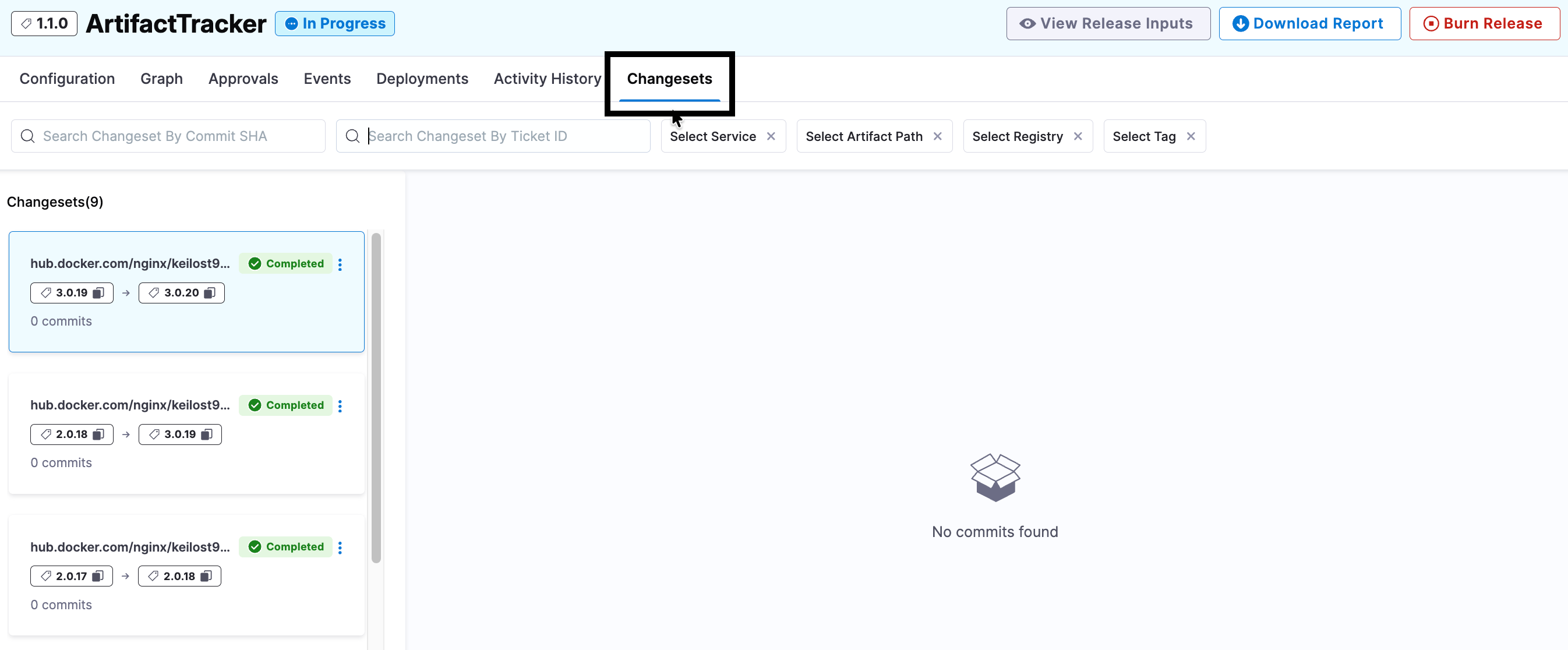

Changesets view in a release

Manage changesets​

Retry failed changesets and edit tags when the baseline version is incorrect.

Retry a failed changeset​

If a changeset fails because of a git clone timeout or Jira being unreachable, perform the following steps to retry:

  1. Navigate to Artifacts > Changesets.
  2. Click on the failed changeset.
  3. Review the error logs to understand the failure.
  4. Click Retry Changeset to recompute the changeset.

Edit changeset tags​

If the baseline version is incorrect because an out-of-band hotfix was not captured, perform the following steps to edit tags:

  1. Navigate to Artifacts > Changesets.
  2. Click on the changeset you want to edit.
  3. Click Edit Tags.
  4. Update the From Tag and To Tag tags to the correct versions.
  5. Click Apply, then click Retry Changeset to recompute the diff.
note

Editing tags only affects the selected changeset. It does not change how future artifacts resolve their baseline.

Connector configuration and available data​

The following table shows what data is available based on the connectors you configure:

Git connectorTicket connectorResult
Not configuredNot configuredArtifact tracked in the catalog only. No changeset.
ConfiguredNot configuredArtifact tracked with changeset showing commits. No ticket links.
ConfiguredConfiguredArtifact tracked with changeset showing commits and linked tickets.
Not configuredConfiguredArtifact tracked only. Tickets cannot be extracted without a commit diff.

Troubleshooting​

No changeset appears for a new artifact version even though the RO Notify step ran successfully

Confirm that a service mapping exists for the artifact path and registry. Navigate to Artifacts > Configurations > Service Mappings and verify the artifact path matches exactly. If a release is required, confirm a Pipeline Queue activity is actively listening for the build pipeline.

Changeset shows commits but no linked tickets

Verify that a ticket connector is configured in Artifacts > Configurations > Connectors > Ticket Integration. Confirm the ticket regex pattern matches the format used in your commit messages. Check that commit messages actually contain ticket IDs. The default regex pattern is [A-Z]+-[0-9]+, which matches Jira-style keys like RM-123.

Changeset failed with a git clone timeout or connection error

Open the changeset and review the error logs. Verify the Git connector has correct credentials and network access. Check that the Kubernetes cluster connector has permissions to create pods in the specified namespace. Retry the changeset after fixing connector permissions or network issues.

Artifact is tracked but not linked to any release

Confirm a Pipeline Queue activity is configured in the release process and is actively listening when the RO Notify step runs. Artifacts are still captured in the catalog and can be linked to a release later.

The RO Notify step fails in a CI stage

The RO Notify step is not supported inside a CI stage. Add a separate Custom stage after the CI stage and place the RO Notify step in the Custom stage instead.

Next steps​

After configuration, you can:
