Process Modeling
Process modeling in Release Orchestration allows you to define your release workflows using phases, activities, dependencies, and variables. You can create processes using AI-based generation or manual configuration to match your team's specific requirements.
AI-based process creation
Harness supports creation of processes using Harness AI. Most of the time, release processes are available in a textual fashion, documented in different sources. Release Orchestration enables users to provide that process documentation and create the process as an entity in Harness Release Orchestration.

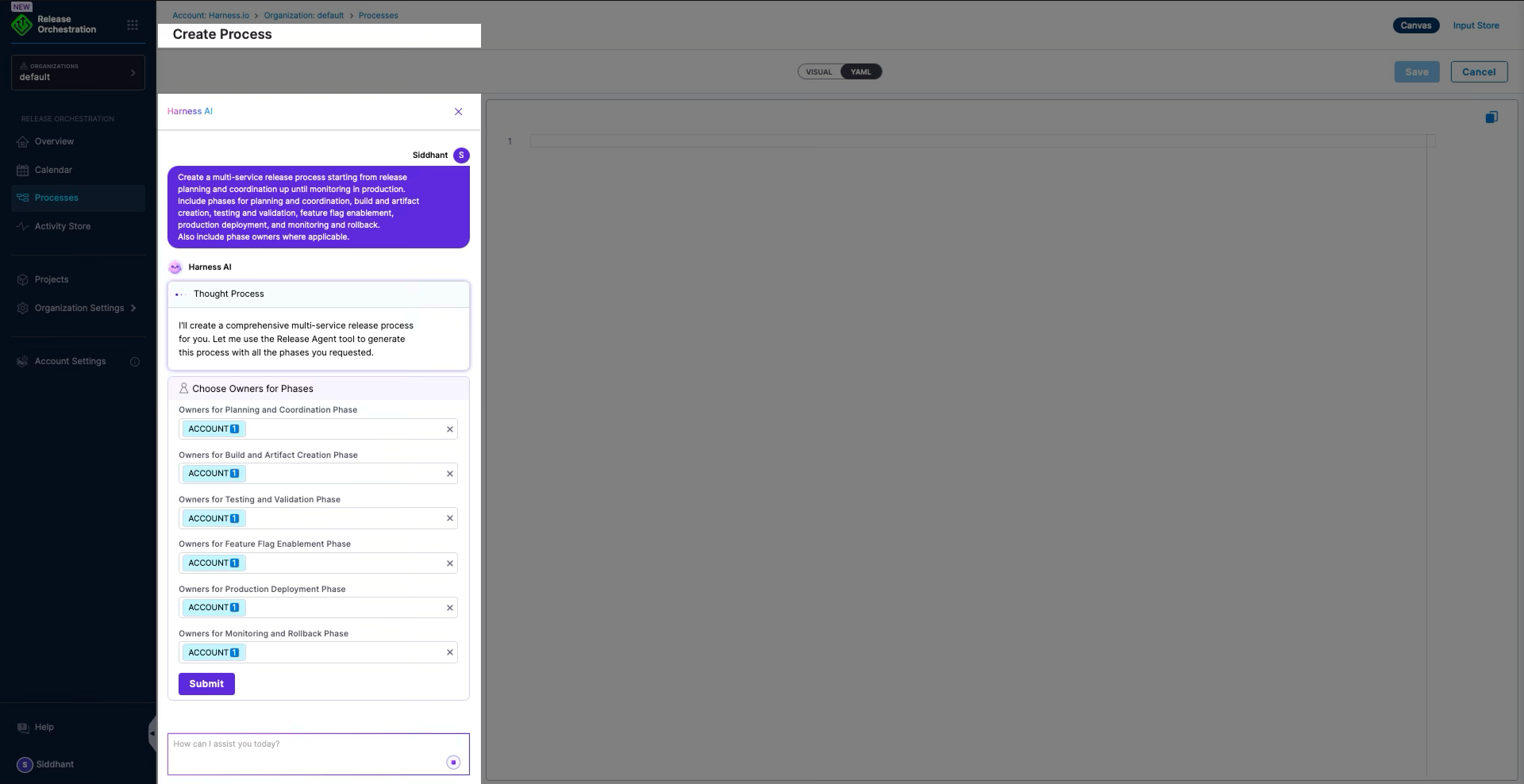

To create a process using Harness AI , navigate to processes --> Click on Create Process ( as shown below )
Provide the instructions to define your release process through the prompt. An example of the same has been provided below:
Example prompt:
Create a multi-service release process starting from release planning and coordination up until monitoring in production. The process includes the following phases:
- Release planning and coordination (Owner: Release Manager)
- Build and artifact creation
- Testing and validation
- Feature flag enablement
- Production deployment
- Monitoring and rollback
Once you provide the above prompt and ask Harness AI to create the process, it automatically:
- Creates phases: Identifies logical groups of activities as phases (e.g., Release Planning and Coordination, Testing Validation, Feature Flag Enablement, Deployment, Monitoring, Rollback and Documentation).
- Assigns owners: Automatically assigns owners for individual phases based on the documentation provided in the prompt or ask you to provide the relevant owners.
- Creates activities: Generates activities within each phase.
- Infers dependencies: Determines execution order and dependencies.

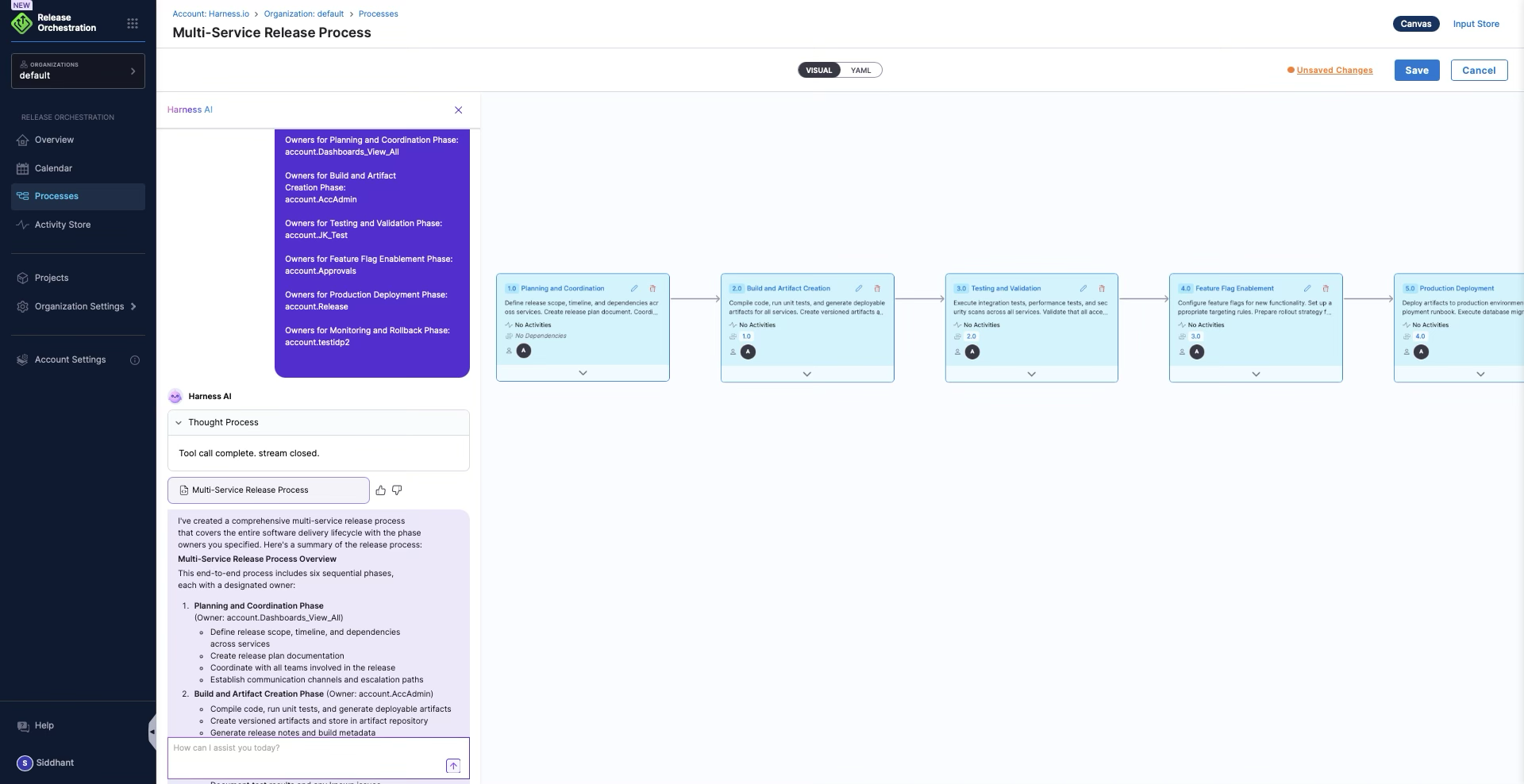

As soon as you shared the above prompt with Harness AI for process creation, It asks us to provide the relevant owners for each phase. Once we chose the owners , Harness AI starts creating the YAML for the release process. The same YAML can be visualised as a step by step release process as shown below:
You can also manually define phases, activities, and dependencies to match your team's software release process. Even though Manual Modelling allows you to create all the essential components for your release process manually , we still recommend to leverage Harness AI for your release orchestration process creation.
Process Structure
Basic Structure
A process consists of:
- Metadata: Name and description
- Inputs: Required parameters (captured using an Input Store when executing)
- Variables: Process-wide variables
- Phases: Major stages
- Activities: Tasks within phases
- Dependencies: Execution order rules
Example (YAML)
The following example uses the same YAML shape as a real process created in Release Orchestration (nested phase and activity blocks, depends-on, owners, and optional if and data fields).
process:
name: Comprehensive Release Process
description: A structured release process covering build, test, and deployment phases
id: comprehensive_release_process
phases:
- phase:
id: build_phase
name: Build Phase
description: Build and validate artifacts before testing.
owners:
- Development Team
depends-on: []
activities:
- activity: AutoPipe
id: AutoPipe
name: AutoPipe90
description: ""
depends-on: []
- activity: AutoPipe
id: AutoPipe12
name: AutoPipe12
description: ""
depends-on:
- AutoPipe
- activity: AutoPipe
id: TestActivity00
name: TestActivity00
description: ""
depends-on:
- AutoPipe12
if: <+90>
- activity: ManualTest
id: AutoIioo
name: Auto_deploy
description: doc
depends-on:
- AutoPipe12
- phase:
id: test_phase
name: Test Phase
description: Execute tests and quality gates before deployment.
owners:
- QA Team
depends-on:
- build_phase
activities:
- activity: TestActivity
id: TestActivity
name: TestActivity
depends-on: []
- phase:
id: deploy_phase
name: Deploy to Staging1 Phase
owners:
- DevOps Team
depends-on:
- test_phase
activities:
- activity: WaitingActivity
id: WaitingActivity
name: WaitingActivity
depends-on: []
data:
pipeline:
pipeline: default/MyProject/MyPipeline
inputSet: {}
Modeling Complex Release Processes
You can model complex release processes with different sequences of execution in terms of parallel and sequential execution.
Common Execution Patterns
Sequential Execution
Activities execute one after another:
Activity A → Activity B → Activity C
Parallel Execution
Activities execute simultaneously:
Activity A ─┐
├→ Activity D
Activity B ─┤
└→ Activity E
Activity C ─┘
Conditional Execution
Activities execute based on conditions:
Activity A → [Condition] → Activity B (if true)
└→ Activity C (if false)
Phase Dependencies
Phases can have dependencies preconfigured. For example:
- The test phase has dependencies on the build phase
- The validation phase has dependencies on the build phase
- Phases execute in the order defined by their dependencies
Activity Dependencies
Activities within each phase can also have dependencies. For example:
- Activity 3 (a manual pipeline or automated activity) and Activity 3.1 (a manual activity) are dependent on Activity 2 (an automated pipeline activity)
- Activities execute in the order defined by their dependencies
- Dependencies can be configured to support both parallel and sequential execution
Example: Complex Process Structure
A pre-built, preconfigured process might have:
- Build Phase: Contains build activities
- Test Phase: Depends on Build Phase, contains test activities
- Validation Phase: Depends on Build Phase, contains validation activities
- Activities with dependencies: Activities within phases that depend on other activities
With this structure, it is possible to model complex release processes and execute them using a release.
Process blueprints
Start with blueprints for common scenarios:
- Standard production release
- Hotfix release
- Multi-service release
- Scheduled release
Customize a blueprint to fit your needs.
