datadog-probe

Last updated on Apr 13, 2026

---

Datadog APM probe allows you to query Datadog metrics or run Synthetic tests and compare the results against specified criteria.

When to use

• Monitor Datadog metrics (e.g., system.cpu.user, trace.servlet.request.duration) as steady-state indicators during chaos
• Use Datadog Synthetic tests to validate end-to-end user flows under failure conditions
• Validate that Datadog-monitored SLOs remain within acceptable thresholds during fault injection

Prerequisites

• An active Datadog account
• Access to the Datadog API from the Kubernetes execution plane
• A Datadog API key and Application key for authentication

Steps to configure

1. Navigate to Project Settings > Chaos Probes and click New Probe

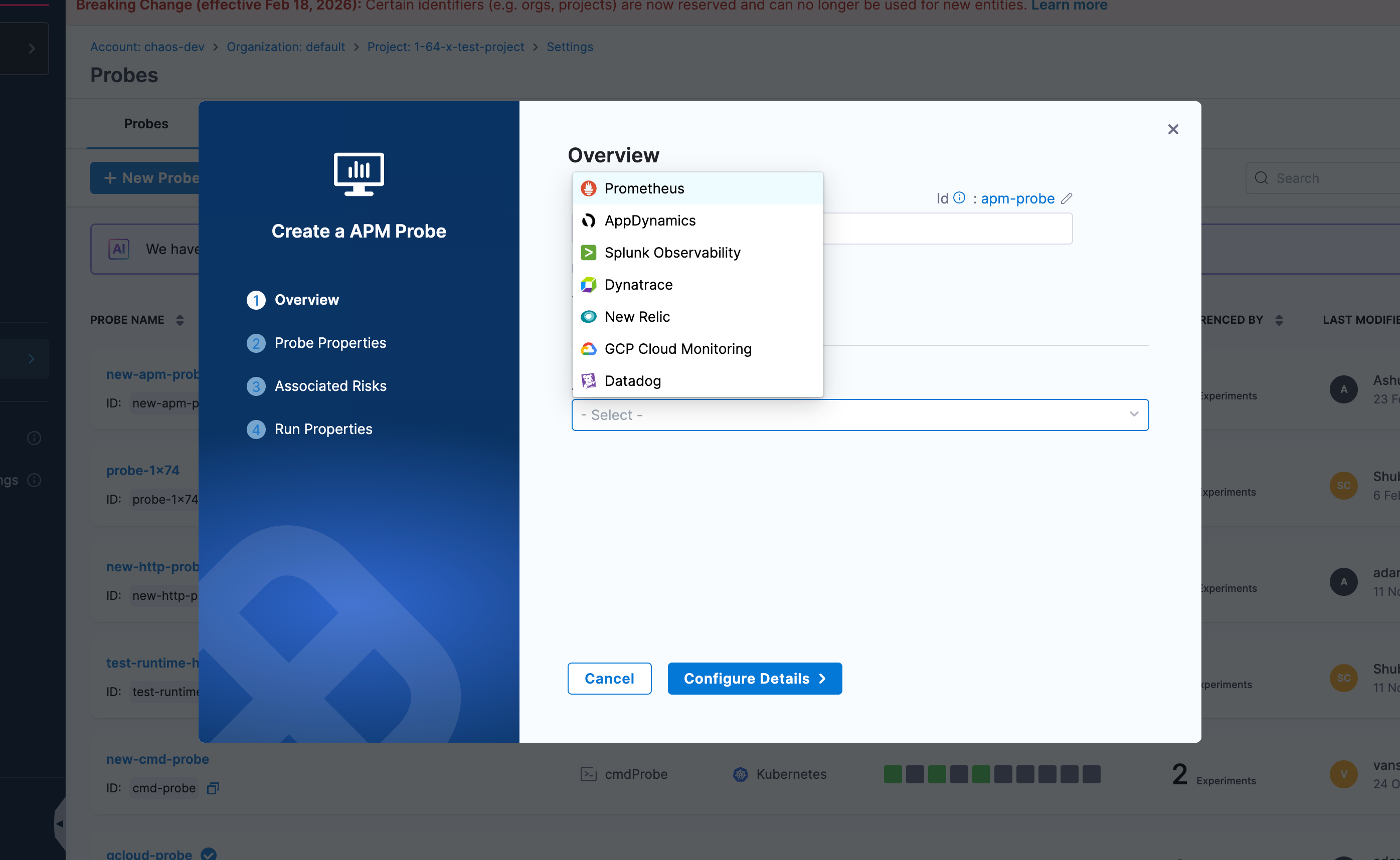

2. Select the APM Probe

3. Provide the name of the probe and select Datadog under APM Type



4. Under Variables, define any reusable values you want to reference in probe properties or run properties. For each variable, specify the type (String or Number), name, value (fixed or runtime input), and whether it's required at runtime.

5. Under Datadog connector, click on Select a Connector

6. In Connector settings, you can either choose an existing connector or click + New Connector

7. Provide the connector details:

   • Name: Enter a name for your Datadog connector
   • Description (optional): Add a description for the connector
   • Tags (optional): Add tags for better organization

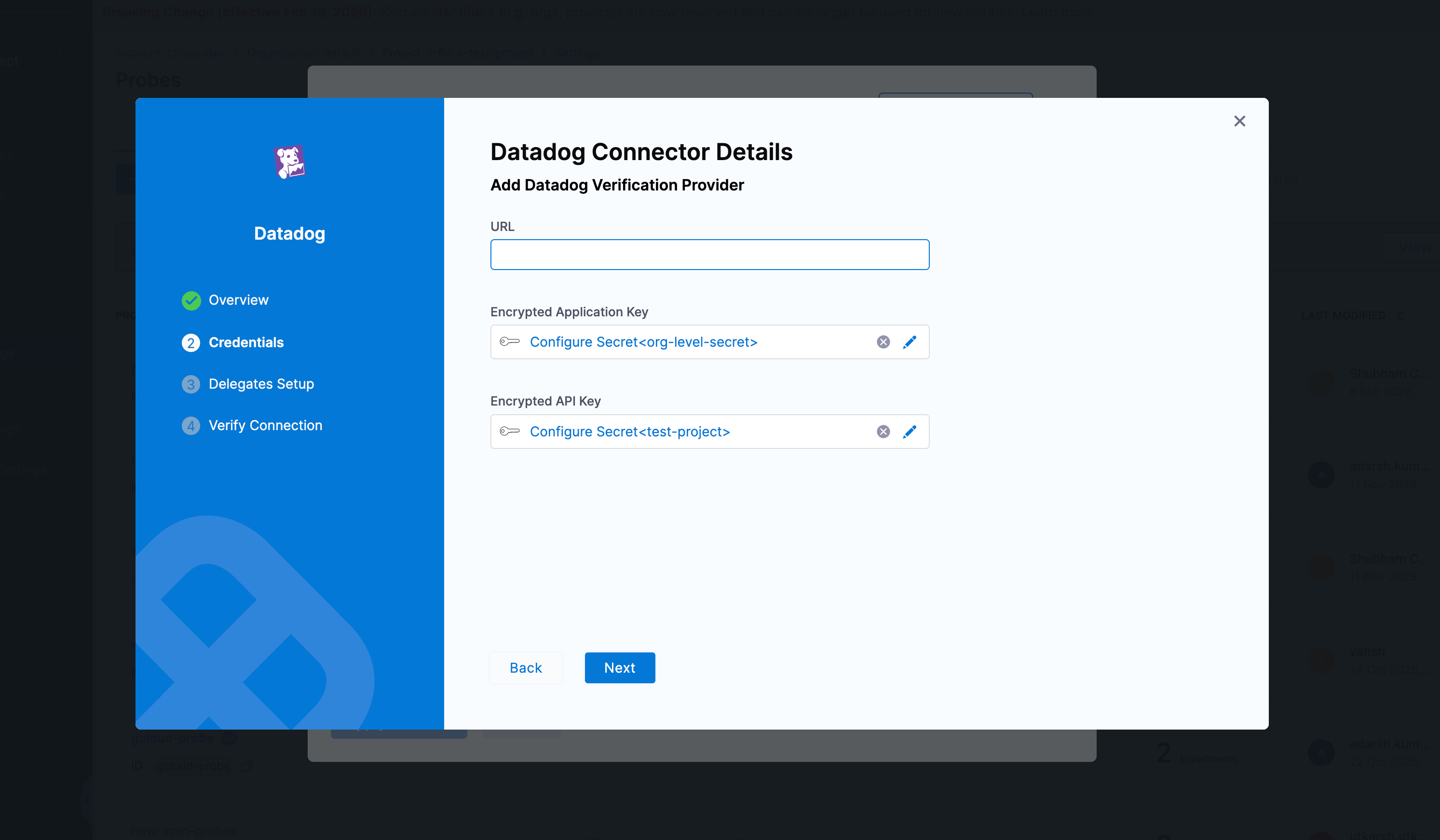

8. Configure the Datadog connector credentials:

   • URL: Enter your Datadog instance URL
   • Encrypted Application Key: Click on Create or Select a Secret to provide your Datadog Application key
     • For more details, refer to Datadog Application Keys documentation
   • Encrypted API Key: Click on Create or Select a Secret to provide your Datadog API key
     • For more details, refer to Datadog API Keys documentation

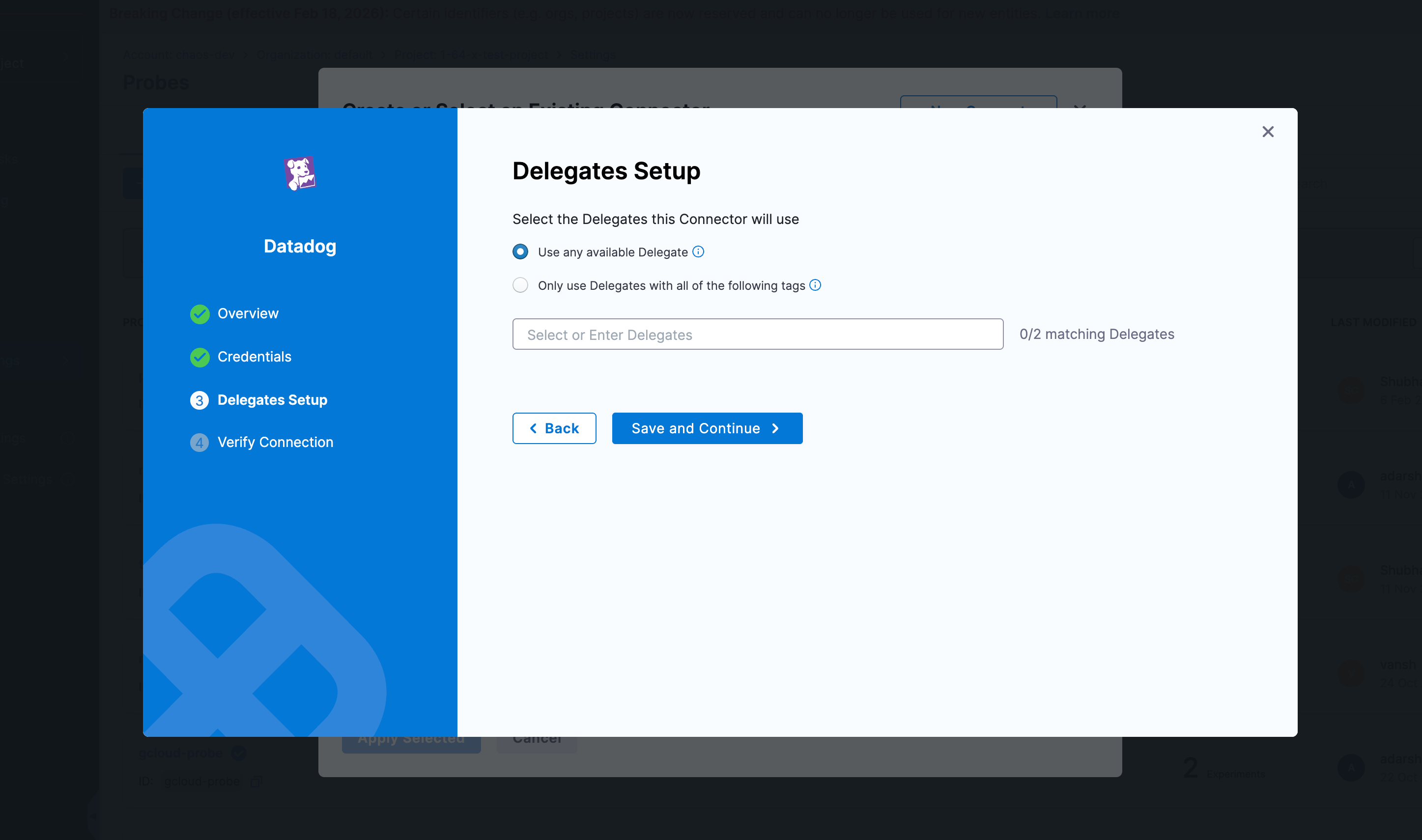

9. Click Next to proceed to Delegates Setup. Select the delegate this connector will use:

   • Use any available Delegate: Harness will use any available delegate
   • Only use Delegates with all of the following tags: Select a specific delegate by tag



10. Click Save and Continue to verify the connection, then click Finish

11. Once the connector is created and selected, click on Configure Details

12. Under Probe Properties, select the query mode and provide the required parameters:

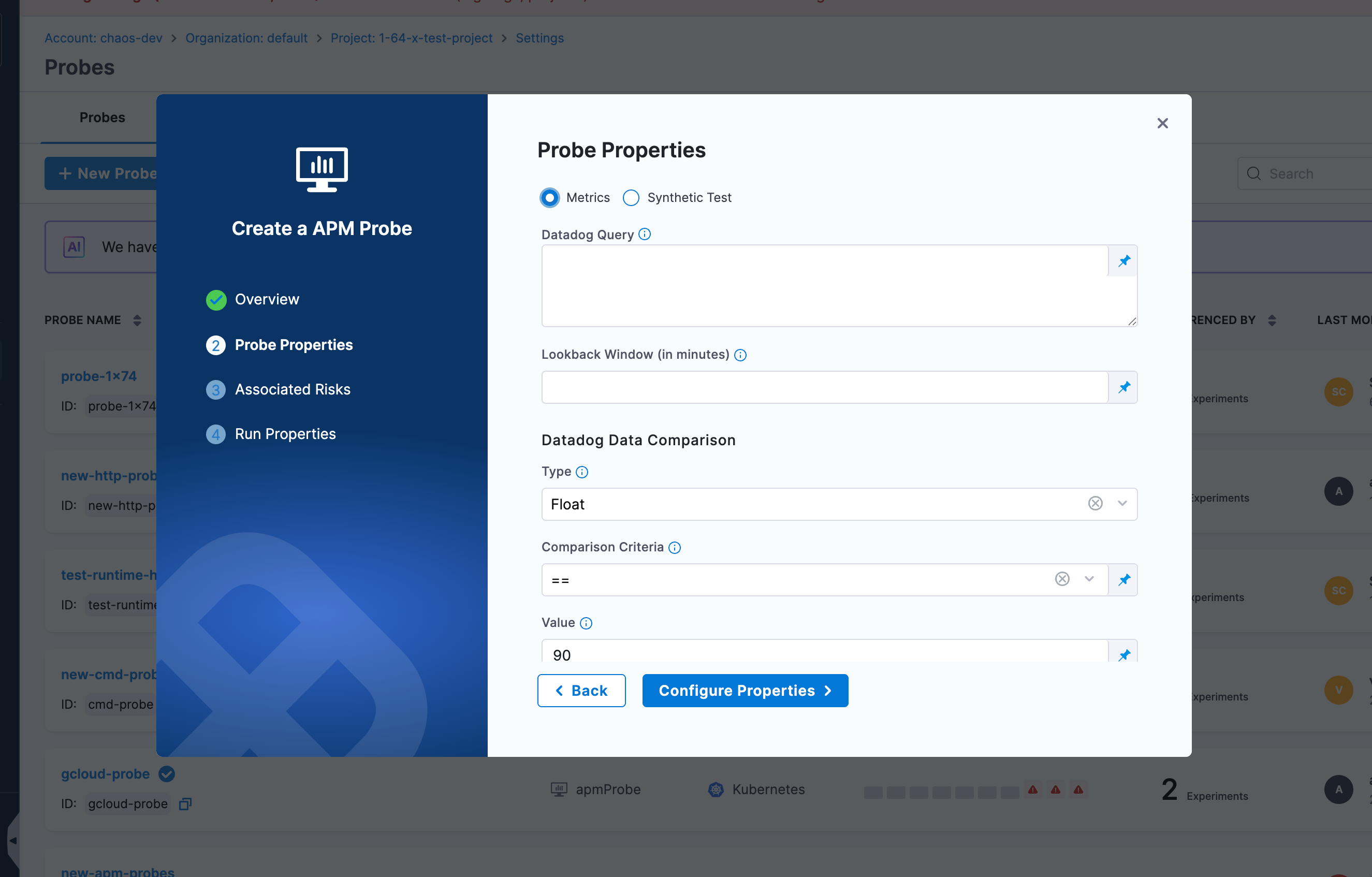

    • Metrics mode:

      • Datadog Query: Enter your Datadog metrics query

        • Example: avg:system.cpu.user{host:my-host}
        • For more details, refer to Datadog Metrics documentation

      • Lookback Window (in minutes): Specify the time range in minutes to look back for metrics

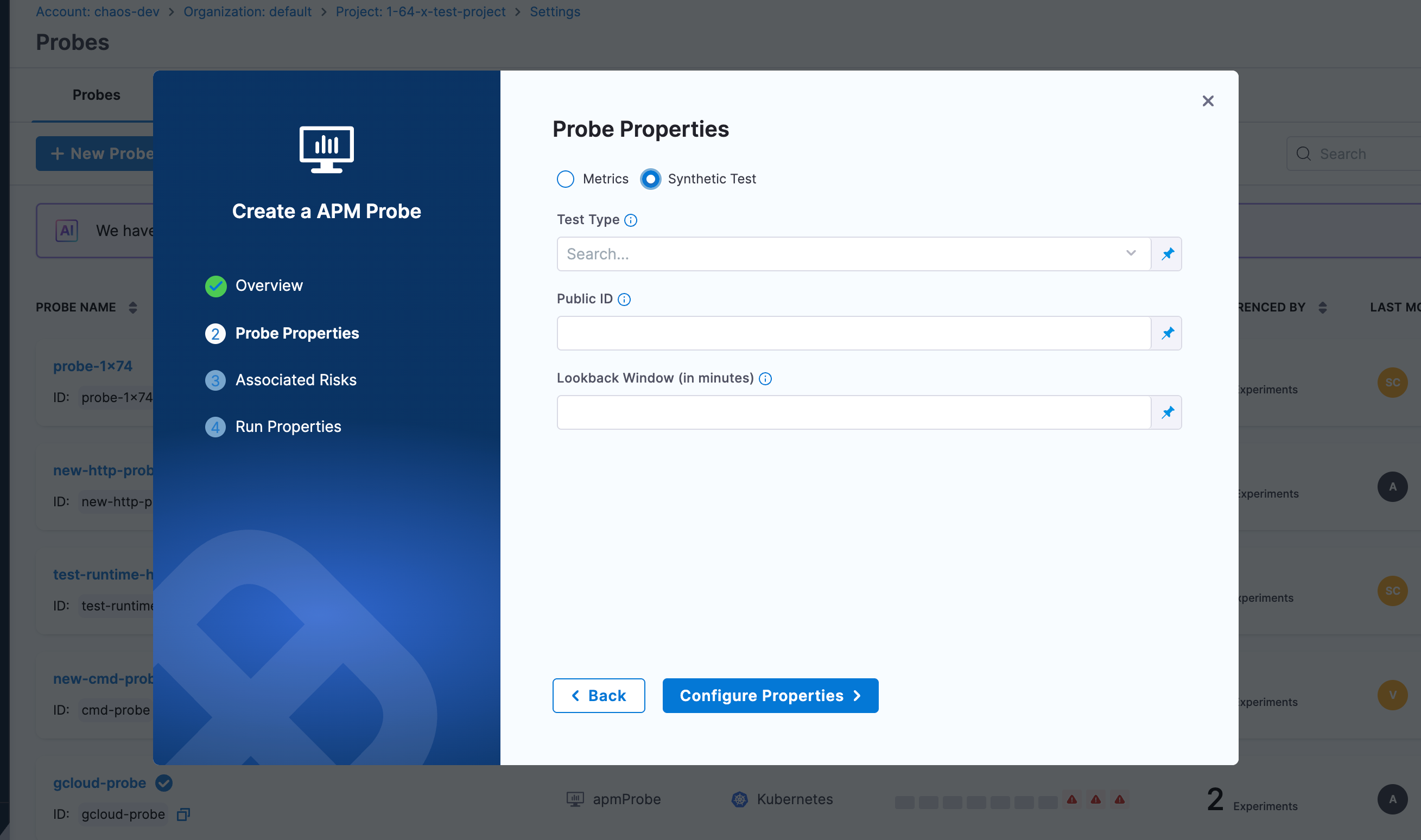

    • Synthetic Test mode:

      • Provide the Synthetic test details to evaluate the probe outcome based on test results

      • For more details, refer to Datadog Synthetics documentation



13. Under Datadog Data Comparison, provide the comparison criteria:

    • Type: Select the data type for comparison (e.g., Float)
    • Comparison Criteria: Select the comparison operator (e.g., >=, <=, ==, !=, >, <)
    • Value: Enter the expected value to compare against the metric result

14. Click Configure Properties to proceed to Associated Risks. Optionally associate one or more resilience risks with this probe, then click Next

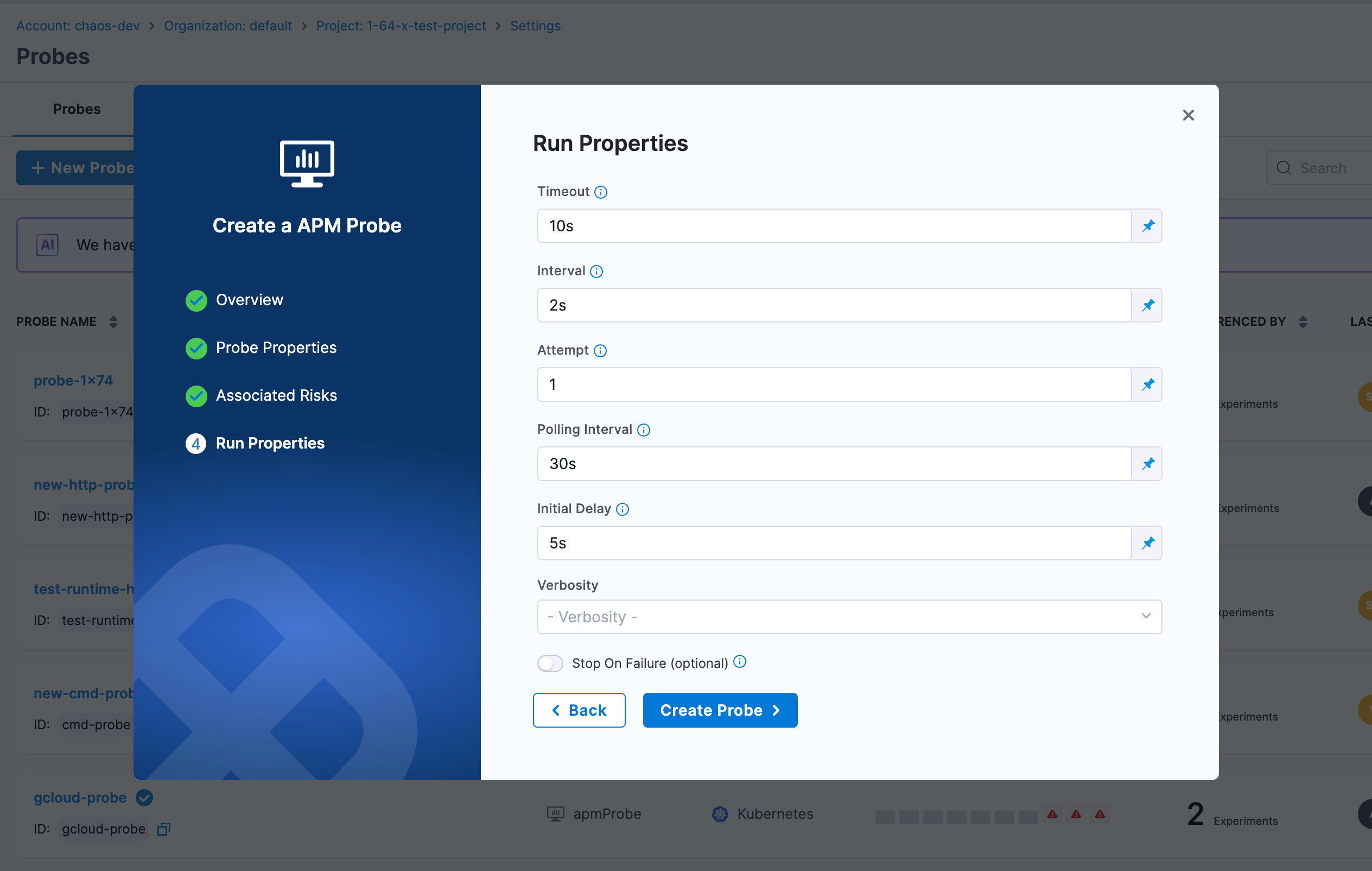

15. Provide the Run Properties:

    • Timeout: Set the timeout duration for the probe execution (e.g., 10s)
    • Interval: Set the interval between probe executions (e.g., 2s)
    • Attempt: Number of attempts for the probe (e.g., 1)
    • Polling Interval: Time between successive probe polls (e.g., 30s)
    • Initial Delay: Delay before the first probe execution (e.g., 5s)
    • Verbosity: Set the verbosity level for probe logs
    • Stop On Failure (Optional): Toggle to stop the experiment if the probe fails



16. Then click on Create Probe
