Sign Artifacts with Harness GitLab CI/CD

Last updated on

Software artifacts are often shared across multiple environments before they reach production. Without a trusted way to prove who created an artifact and whether it has been modified, organizations cannot confidently establish its authenticity or detect unauthorized changes during the software delivery process.

Harness Supply Chain Security (SCS) integrates with GitLab CI/CD to automate artifact signing as part of your GitLab workflow. It enables you to digitally sign container images and local artifacts during pipeline execution using Cosign. The generated signature is uploaded to the SCS module, helping you establish artifact authenticity, detect tampering, and strengthen trust across your software supply chain.

What will you learn in this topic?​

By the end of this topic, you will be able to:

  • Set up Harness GitLab CI/CD integration from your SCS project.
  • Configure artifact signing in your GitLab workflow using the Artifact Signing component.
  • Configure artifact signing using keyless, key-based, or Secret Manager signing methods.
  • Sign container images or local artifacts and upload the signature bundle to the SCS module.

Before you begin​

Make a note of the following before you proceed with signing artifacts using GitLab CI/CD:

  • Understand how to create Harness API keys using Personal API Keys or Service Account API Keys. For more information, go to Manage API Keys and Service Account API Keys, respectively.
  • If you're using key-based or Secret Manager signing or verification, create or configure a Cosign key pair before configuring the pipeline. For step-by-step instructions, see Quickstart Signing and Verifying with Cosign, which explains how to generate a local key pair or create one using a supported KMS provider. The key should be generated using Cosign of type ecdsa-P256. You don't need to install Cosign on your GitLab runner. The harness/ssca-plugin container image used by the Harness GitLab CI/CD components includes Cosign, so no additional installation is required.
  • If you plan to use Secret Manager attestation, store your signing key in a supported secret manager. Currently, Harness supports HashiCorp Vault. For GitLab CI/CD, you point the component at the key through pipeline variables such as KMS_KEY (and VAULT_ADDR when the key is stored in HashiCorp Vault), so you don't need to configure a Harness Secret Manager connector. For setup steps specific to HashiCorp Vault, see the Add a HashiCorp Vault secret manager.
  • Ensure that your GitLab runners support Docker-in-Docker (DinD). The component runs using the docker:24-dind service. For more information, go to Use Docker-in-Docker.

Understand artifact signing with Harness GitLab CI/CD​

Harness SCS integrates with GitLab CI/CD through reusable GitLab CI/CD components. These components enable you to automate software supply chain security tasks in your GitLab pipelines, helping you build, verify, and govern software artifacts without adding custom implementation to your CI/CD workflow.

The Artifact Signing capability enables you to digitally sign container images and local artifacts during pipeline execution using Cosign. The generated signature establishes the authenticity and integrity of an artifact by creating verifiable proof that it was signed using a trusted identity or signing key. It supports keyless, key-based, and Secret Manager signing, allowing you to choose the signing approach that best fits your organization's security requirements. The signature bundle is uploaded to the SCS module, where it can be used for subsequent downstream verification and policy enforcement workflows.

By incorporating artifact signing into your GitLab pipeline, you can build trust in software artifacts before they are distributed or deployed and help ensure that only authenticated artifacts move through your software delivery lifecycle.

Why use it?When to use it?How can you leverage it?
Digitally sign software artifacts to establish their authenticity and integrity.When you want to ensure that artifacts can be verified before distribution or deployment.Use artifact signatures to support provenance verification, policy enforcement, and trusted software delivery across your software supply chain.

Set up Harness GitLab CI/CD​

Before configuring artifact signing in your GitLab pipeline, set up Harness GitLab CI/CD from your SCS project. The setup guides you through creating or selecting a Harness API key and generates a project-specific YAML configuration with your Harness account ID, organization ID, project ID, and account URL already populated. You can copy this configuration into your GitLab workflow and update the remaining inputs as needed.

Complete the following steps to set up Harness GitLab CI/CD:

  1. Navigate to the Integrations page under the Manage section from the sidebar navigation of your SCS account.
  2. Click the Add Integration button to go to the Configure Integration page.
    Alternatively, you can access this page by clicking Get Started > Get Started from the sidebar navigation of your SCS account.
  3. Scroll down to the GitLab collapsible and click it to expand.
  4. Click the Configure button under Configure GitLab CI/CD in your pipeline to generate SBOM and SLSA, and sign artifacts to open the Configure Integration page, where the Artifact Security feature cards are displayed.

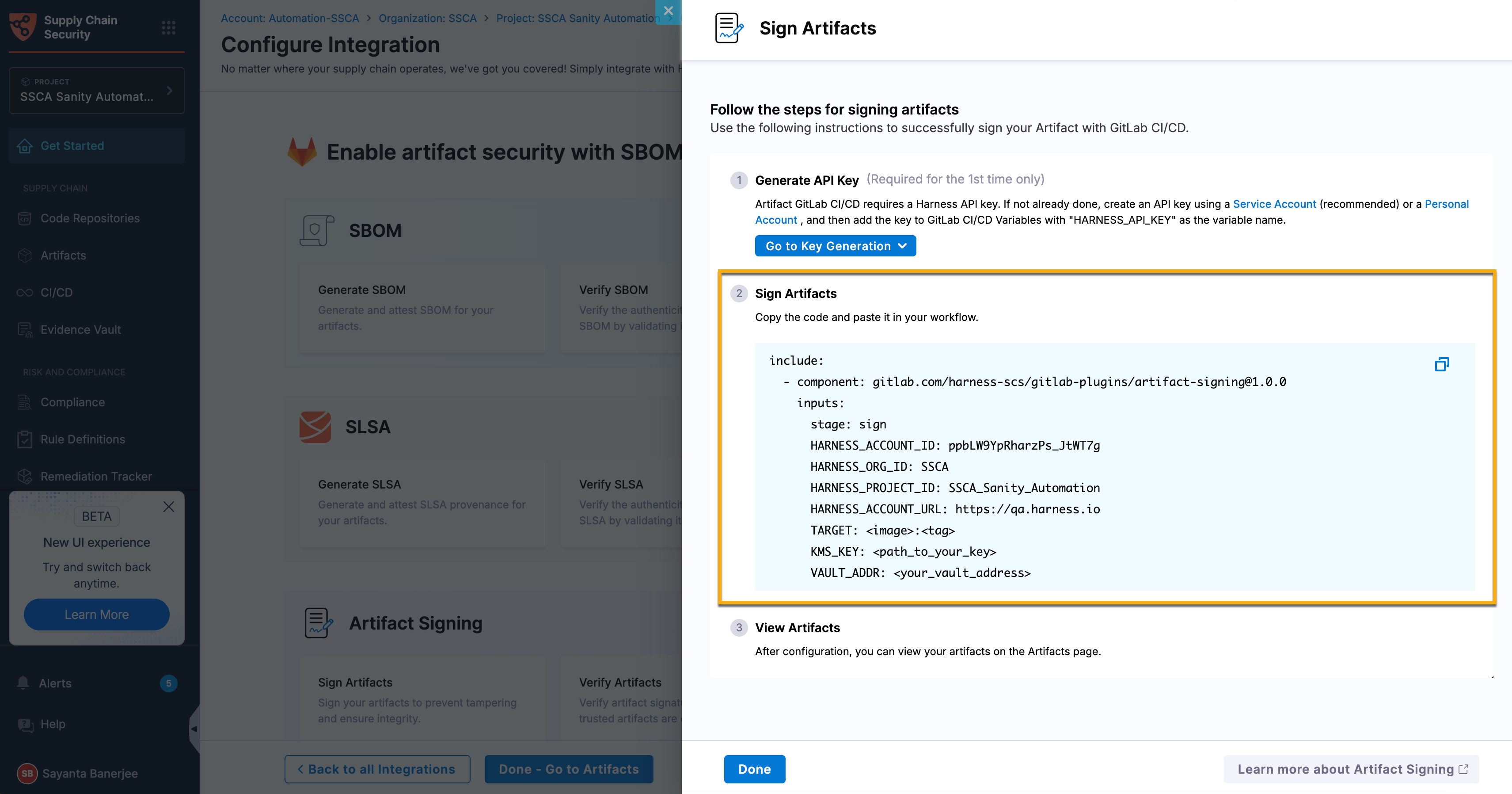

  5. Click the Sign Artifacts card to open the Sign Artifacts sidepanel.
  6. Click the Go to Key Generation button to create the Harness API key required to configure Harness GitLab CI/CD.
    • Select Using Service Account from the dropdown to create the API key using a service account. For more information, see Service Account API Keys.
    • Select Using Personal Account from the dropdown to create a personal API key. Personal API keys are created at the account level and inherit the permissions assigned to your user account. For more information, see Manage API Keys.
  7. Click Copy in the upper-right corner of the code block to copy the generated GitLab CI/CD configuration, and then paste it into your GitLab workflow file.

Configure artifact signing in GitLab CI/CD​

After setting up Harness GitLab CI/CD, configure the Artifact Signing component in your GitLab workflow file. Add the required GitLab CI/CD variables to your GitLab project, configure the component inputs, configure the signing method, and run the pipeline. During pipeline execution, the component signs the specified artifact and uploads the generated signature bundle to the SCS module. For the authoritative list of component inputs and defaults, see the CI/CD Catalog at SCS GitLab Plugins.

Complete the following steps to configure Artifact Signing:

  1. Add the required GitLab CI/CD variables
  2. Include the Artifact Signing component
  3. Configure the signing method
  4. Review the workflow
  5. Run the pipeline

Step 1 - Add the required GitLab CI/CD variables​

Before configuring the Artifact Signing component, add the following variables to your GitLab project. For step-by-step instructions, see Define a CI/CD Variable for a project.

VariableDescriptionRequiredExampleMasked?
HARNESS_API_KEYHarness Personal API Key or Service Account API Key used to authenticate with Harness.Yespat.xxxxxxxxxYes
HARNESS_ACCOUNT_IDHarness account identifier.YesAbCdEf123456No
HARNESS_ORG_IDHarness organization identifier.YesSCS_OrgNo
HARNESS_PROJECT_IDHarness project identifier.YesSCSNo
HARNESS_ACCOUNT_URLHarness account URL.Yeshttps://example.harness.ioNo
note

Masked GitLab CI/CD variables cannot be passed through component inputs. For this reason, the Harness scope variables (HARNESS_ACCOUNT_ID, HARNESS_ORG_ID, HARNESS_PROJECT_ID, and HARNESS_ACCOUNT_URL) must remain unmasked so that they can be wired through the component inputs. HARNESS_API_KEY remains masked and is consumed directly from the job environment, not passed as a component input. These values are included in the generated YAML provided during the Set up Harness GitLab CI/CD workflow.

Step 2 - Include the Artifact Signing component​

Add an scs stage to your GitLab workflow file, or set the stage input on the component to an existing stage. Then, include the Harness Artifact Signing component in your GitLab workflow file.

The following code snippet demonstrates how to add the scs stage and include the Artifact Signing component in your GitLab workflow file. The snippet includes the minimum required component inputs because the component requires the Harness scope variables and the target artifact to run.

stages: [scs]

include:
  - component: gitlab.com/harness-scs/gitlab-plugins/artifact-signing@1.0.0
    inputs:
      HARNESS_ACCOUNT_ID: $HARNESS_ACCOUNT_ID
      HARNESS_ORG_ID: $HARNESS_ORG_ID
      HARNESS_PROJECT_ID: $HARNESS_PROJECT_ID
      HARNESS_ACCOUNT_URL: $HARNESS_ACCOUNT_URL
      TARGET: $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA

Configure the component using the GitLab CI/CD variables created in the previous step and the following component inputs.

InputDescriptionRequiredDefaultExample
HARNESS_ACCOUNT_IDHarness account ID. Pass a non-masked CI/CD variable reference.YesN/A$HARNESS_ACCOUNT_ID
HARNESS_ORG_IDHarness organization ID. Pass a non-masked CI/CD variable reference.YesN/A$HARNESS_ORG_ID
HARNESS_PROJECT_IDHarness project ID. Pass a non-masked CI/CD variable reference.YesN/A$HARNESS_PROJECT_ID
HARNESS_ACCOUNT_URLHarness base URL with scheme. Pass a non-masked CI/CD variable reference.YesN/A$HARNESS_ACCOUNT_URL
TARGETContainer image reference when SOURCE is container, or artifact file path when SOURCE is local.YesN/A$CI_REGISTRY_IMAGE:$CI_COMMIT_SHA
SOURCEArtifact source. Supported values are container and local.Nocontainerlocal
ARTIFACT_NAMEDisplay name for a local artifact. Applicable when SOURCE=local.NoFile name from TARGETpayment-service
ARTIFACT_VERSIONArtifact version. Applicable when SOURCE=local.NoN/A$CI_COMMIT_SHORT_SHA
stageGitLab pipeline stage in which the component runs.Noscssecurity
job-nameName of the GitLab job created by the component.Noscs-artifact-signingsign-artifact
note

By default, the component signs a container image. To sign a local artifact, set SOURCE to local. When using a local artifact, specify the artifact path in TARGET and provide an ARTIFACT_VERSION.

To choose a signing method, configure the signing inputs (SIGN_WITH, OIDC_PROVIDER, FULCIO_URL, KMS_KEY, and VAULT_ADDR) as described in Step 3 - Configure the signing method.

Override the generated job​

Standard GitLab job keywords, such as needs, before_script, script, after_script, allow_failure, and tags, are not component inputs. To set them, redeclare the generated job (default name scs-artifact-signing, or the value of job-name) in your workflow file. GitLab merges your keys into the generated job.

scs-artifact-signing:
  needs: [build-image]
  tags: [docker, linux]
  before_script:
    - echo "Starting artifact signing"
  after_script:
    - echo "Artifact signing complete"
note

If you are signing an image in a private registry that is not the GitLab container registry, provide the registry credentials as masked GitLab CI/CD variables so that the component can access the image.

Step 3 - Configure the signing method​

Harness supports the following signing methods:

  • Keyless signing – Uses OpenID Connect (OIDC) identities to sign artifacts without managing long-lived signing keys.
  • Key-based signing – Uses a cryptographic key managed through your organization's key management solution.
  • Secret Manager – Uses signing keys stored in a supported secret manager.
note

Artifact signing always runs, and SIGN_WITH selects the signing method. It defaults to secret-manager, which requires KMS_KEY and VAULT_ADDR. Configure one of the signing methods below before running the pipeline.

Configure the appropriate signing inputs based on the signing method you want to use.

Configure the following inputs to sign artifacts using keyless signing. This method uses an OpenID Connect (OIDC) identity to authenticate the signing operation without requiring long-lived signing keys. For GitLab CI/CD, set OIDC_PROVIDER to non-harness. The harness OIDC provider is not supported as of now. Keyless signing requires GitLab 15.7 or later, because it depends on GitLab id_tokens.

InputDescriptionRequired
SIGN_WITHSpecifies the signing method. Set the value to keyless.Yes
OIDC_PROVIDEROIDC provider used to obtain the signing identity. For GitLab CI/CD, set the value to non-harness.Yes
FULCIO_URLFulcio certificate authority endpoint. Used when OIDC_PROVIDER is non-harness. Defaults to https://fulcio.sigstore.dev.No

Provide the OIDC token to the generated job using id_tokens. The component reads the token from PLUGIN_NON_HARNESS_OIDC_TOKEN.

stages: [scs]

include:
  - component: gitlab.com/harness-scs/gitlab-plugins/artifact-signing@1.0.0
    inputs:
      HARNESS_ACCOUNT_ID: $HARNESS_ACCOUNT_ID
      HARNESS_ORG_ID: $HARNESS_ORG_ID
      HARNESS_PROJECT_ID: $HARNESS_PROJECT_ID
      HARNESS_ACCOUNT_URL: $HARNESS_ACCOUNT_URL
      TARGET: $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA
      SIGN_WITH: keyless
      OIDC_PROVIDER: non-harness

scs-artifact-signing:
  id_tokens:
    PLUGIN_NON_HARNESS_OIDC_TOKEN:
      aud: sigstore

Step 4 - Review the workflow​

After configuring the required GitLab CI/CD variables and component inputs, your GitLab workflow file should resemble the following example. This example signs a container image using Cosign with a signing key stored in HashiCorp Vault and uploads the generated signature to Harness SCS. The Harness scope variables are wired through inputs, HARNESS_API_KEY remains a masked GitLab CI/CD variable, and the Vault variables (KMS_KEY and VAULT_ADDR) are provided for Secret Manager signing.

include:
  - component: gitlab.com/harness-scs/gitlab-plugins/artifact-signing@1.0.0
    inputs:
      HARNESS_ACCOUNT_ID: $HARNESS_ACCOUNT_ID
      HARNESS_ORG_ID: $HARNESS_ORG_ID
      HARNESS_PROJECT_ID: $HARNESS_PROJECT_ID
      HARNESS_ACCOUNT_URL: $HARNESS_ACCOUNT_URL
      TARGET: $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA
      SIGN_WITH: secret-manager
      KMS_KEY: hashivault://cosign
      VAULT_ADDR: $VAULT_ADDR

Step 5 - Run the pipeline​

Commit and push your changes to trigger the GitLab pipeline. During pipeline execution, the Artifact Signing component signs the specified artifact and uploads the generated signature bundle to the SCS module. The signed artifact can then be verified as part of subsequent software supply chain security workflows. For more information on running a GitLab pipeline, see Tutorial: Create and run your first GitLab CI/CD pipeline.

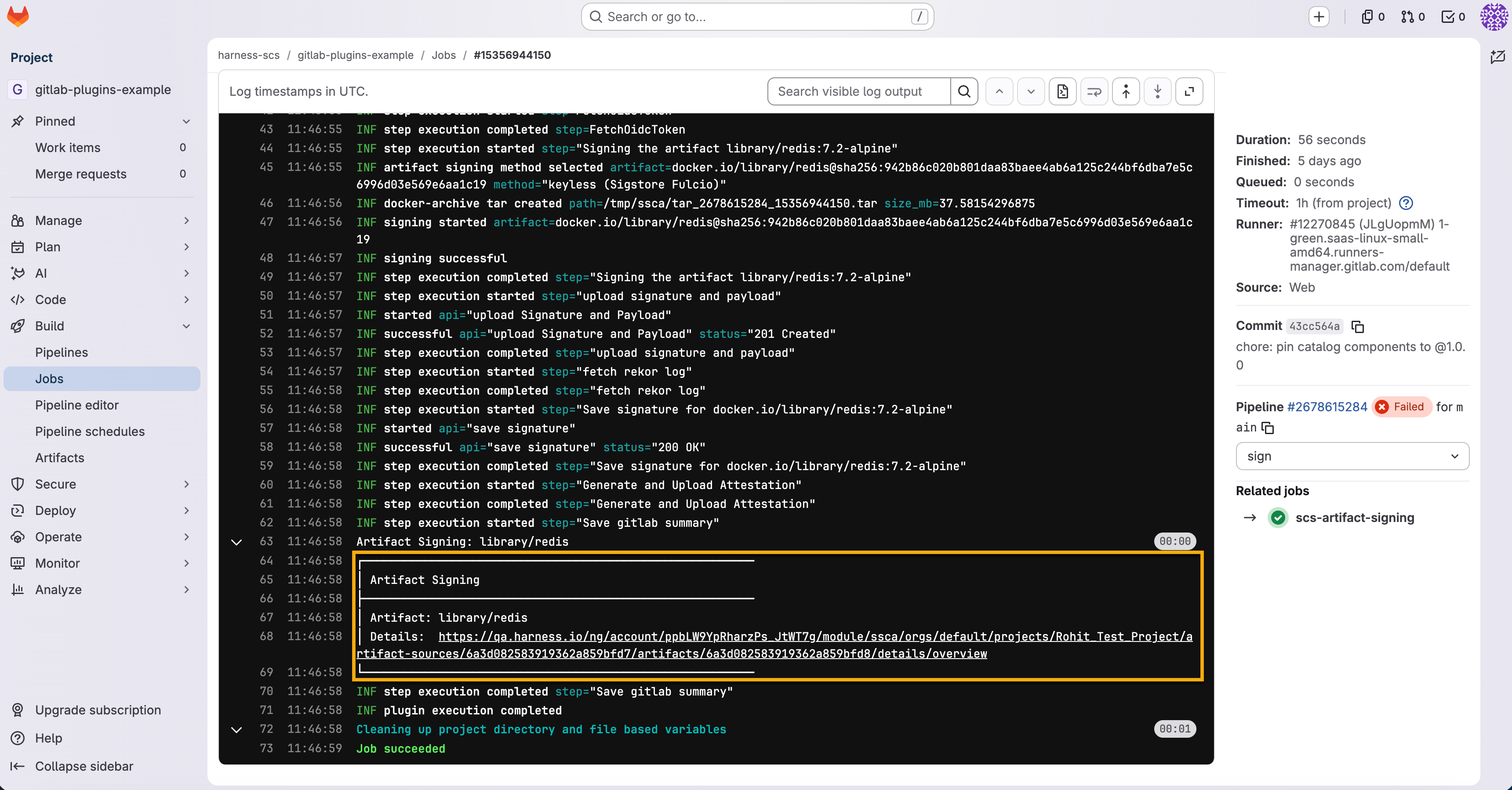

After the pipeline completes, open the job execution logs and click the Harness Artifact Details link to view the generated artifact in SCS. For more information on viewing the status of a job and details of the pipeline, see View the status of your pipeline and jobs.

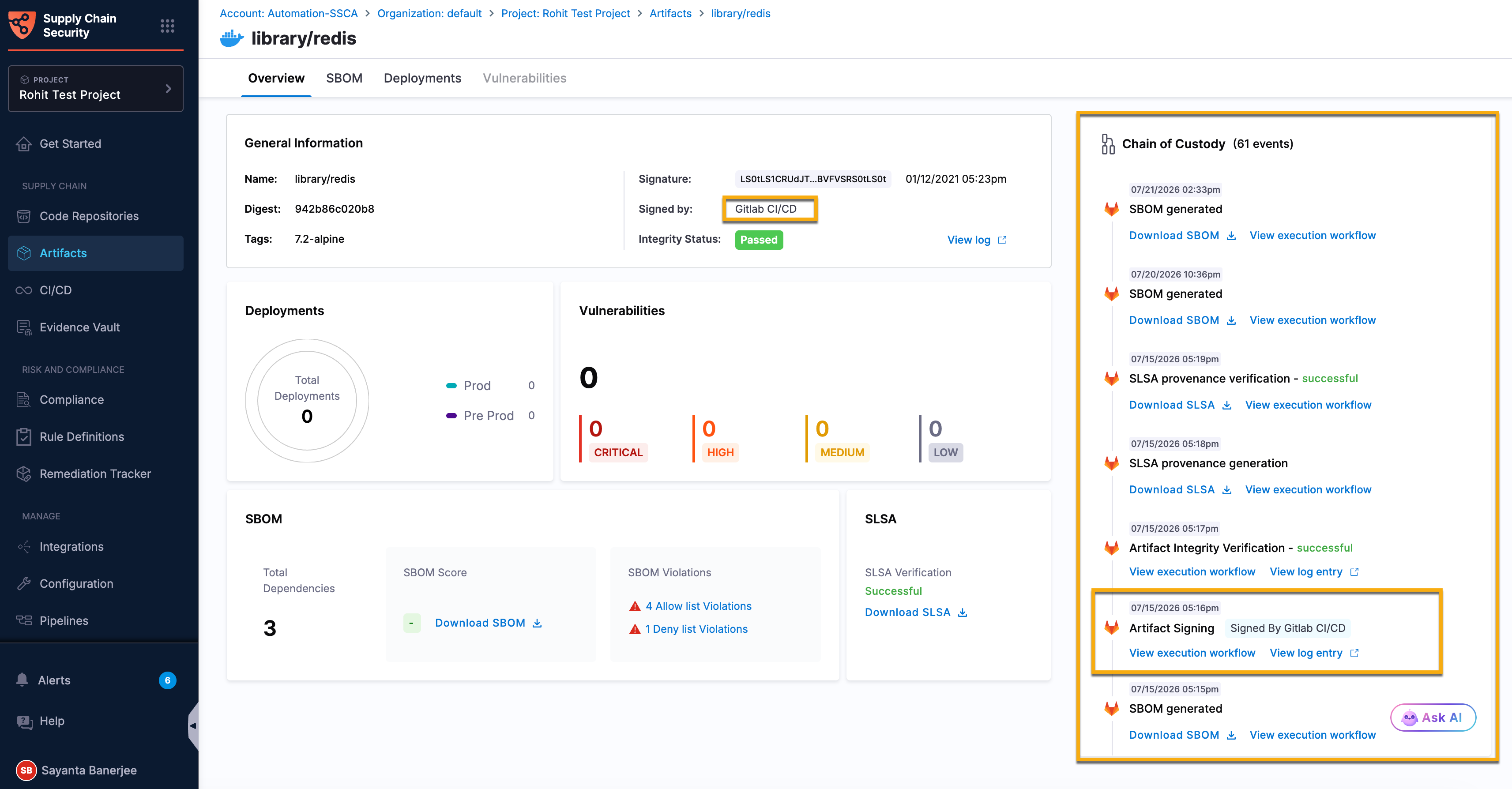

The Artifact Details page displays the artifact signature and its associated security results. The signing operation is also recorded in the Chain of Custody, providing an immutable audit trail of the artifact lifecycle and the associated GitLab CI/CD pipeline execution. For more information on navigating through artifacts, see Artifact Overview.

Example artifact signing workflow​

Example Artifact signing workflow for a container image

The following example demonstrates how to configure the Artifact Signing component in a GitLab workflow to sign a container image. The example uses Cosign with a signing key stored in HashiCorp Vault and uploads the generated signature bundle to Harness SCS.

stages:
  - build
  - scs

build-image:
  stage: build
  image: docker:24.0.5
  services:
    - docker:24.0.5-dind
  script:
    - docker build -t $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA .
    - docker push $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA

include:
  - component: gitlab.com/harness-scs/gitlab-plugins/artifact-signing@1.0.0
    inputs:
      stage: scs
      job-name: sign-artifact
      HARNESS_ACCOUNT_ID: $HARNESS_ACCOUNT_ID
      HARNESS_ORG_ID: $HARNESS_ORG_ID
      HARNESS_PROJECT_ID: $HARNESS_PROJECT_ID
      HARNESS_ACCOUNT_URL: $HARNESS_ACCOUNT_URL

      TARGET: $CI_REGISTRY_IMAGE:$CI_COMMIT_SHA

      SIGN_WITH: secret-manager
      KMS_KEY: hashivault://cosign
      VAULT_ADDR: $VAULT_ADDR
Example Artifact signing workflow for a local artifact

The following example signs a local artifact. It builds the artifact in an earlier job, passes it forward with artifacts, and uses needs so the signing job runs after the artifact is available. When SOURCE is local, TARGET is the artifact file path and ARTIFACT_VERSION is required.

stages:
  - build
  - scs

build-artifact:
  stage: build
  script:
    - ./build.sh -o $CI_PROJECT_DIR/target/myapp.jar
  artifacts:
    paths:
      - target/myapp.jar

scs-artifact-signing:
  needs: [build-artifact]

include:
  - component: gitlab.com/harness-scs/gitlab-plugins/artifact-signing@1.0.0
    inputs:
      HARNESS_ACCOUNT_ID: $HARNESS_ACCOUNT_ID
      HARNESS_ORG_ID: $HARNESS_ORG_ID
      HARNESS_PROJECT_ID: $HARNESS_PROJECT_ID
      HARNESS_ACCOUNT_URL: $HARNESS_ACCOUNT_URL

      SOURCE: local
      TARGET: $CI_PROJECT_DIR/target/myapp.jar
      ARTIFACT_VERSION: $CI_COMMIT_SHORT_SHA
      SIGN_WITH: secret-manager
      KMS_KEY: hashivault://cosign
      VAULT_ADDR: $VAULT_ADDR
