Verify the Signed Artifacts

Last updated on

After you sign the artifact using the Artifact Signing step, it’s crucial to verify that the artifact has not been tampered and was signed by a trusted source. The Artifact Verification process enables you to validate the integrity and authenticity of the signed artifact before it’s deployed.

Artifact Verification in SCS​

The artifact verification step ensures the authenticity of the signed artifact by validating it with the corresponding public key. If the public key matches the signed artifact it confirms that the artifact is intact, secure, and originates from a trusted source.

Artifact Verification step configuration​

The Artifact Verification step pulls the .sig file from the artifact registry and verifies it with the corresponding public key. In the artifact signing step, if you have chosen not to push the .sig file to the registry, then for the artifact verification .sig file will instead be pulled from the Harness database. This process ensures that the artifact was signed by a trusted entity, thereby confirming its integrity and authenticity.

When adding this step to a deploy stage, ensure it's placed within a container step group and you enable the container based execution.

Artifact Verification step supports both container and non-container images.

Container Images​

You can search for Artifact Verification and add it to either the Build , Deploy or Security stage of a Harness pipeline

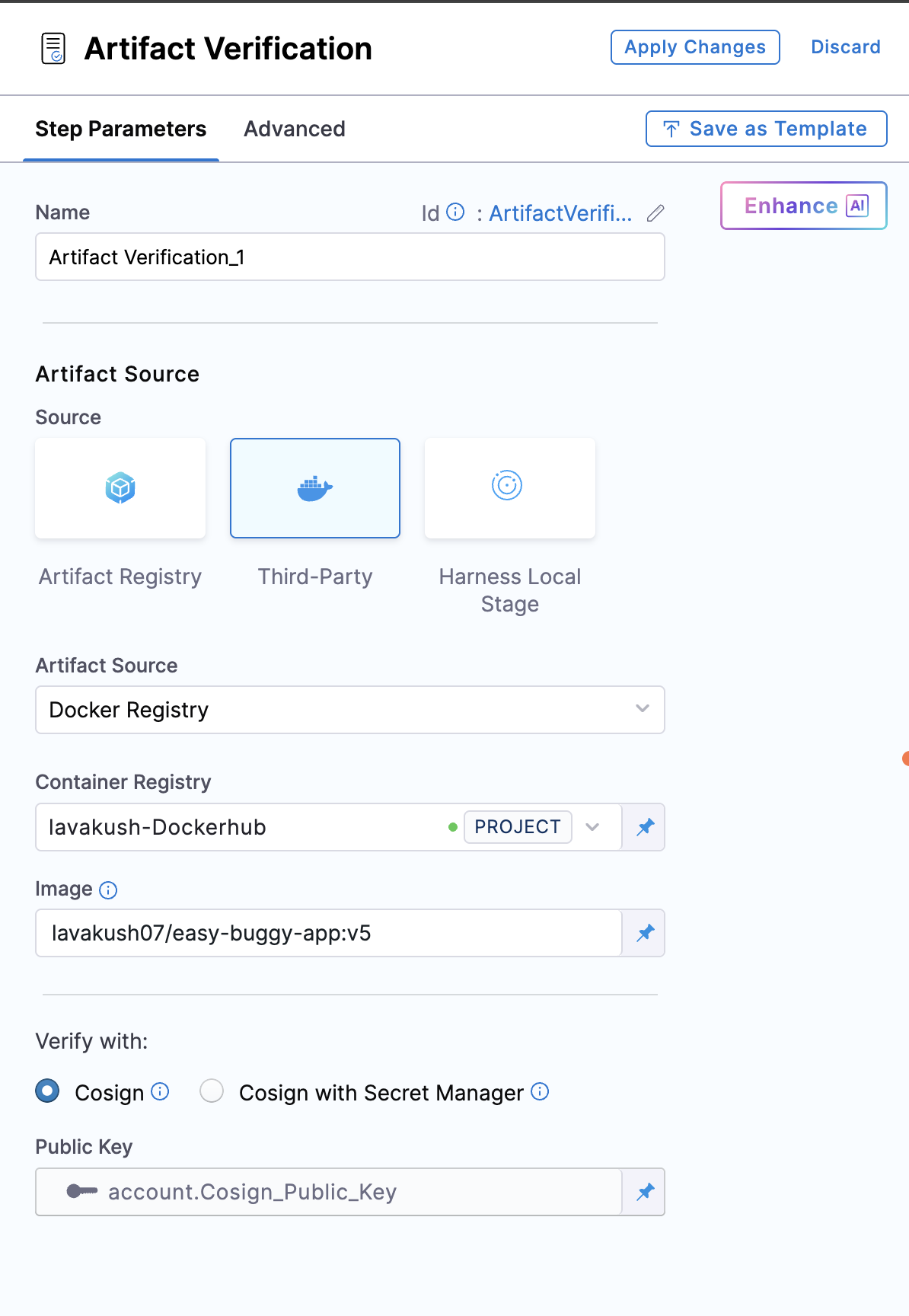

Follow the instructions below to configure the Artifact Verification step.

  • Name: Provide a name for the verification step.

  • Artifact Source: Select the source container registry (e.g., DockerHub, ACR, ECR, etc.).

  • Registry: Select the Harness Registry configured for the Harness Artifact Registry where your artifact is stored.

  • Image: Enter the name of your image with tag or digest, such as imagename:tag or imagename:digest.

Non-Container Images​

Artifacts aren't limited to container images. Signed non-container artifacts can also be verified where the unique identifier (digest SHA) generated during the signing step is used to locate and verify the artifact during the verification process.

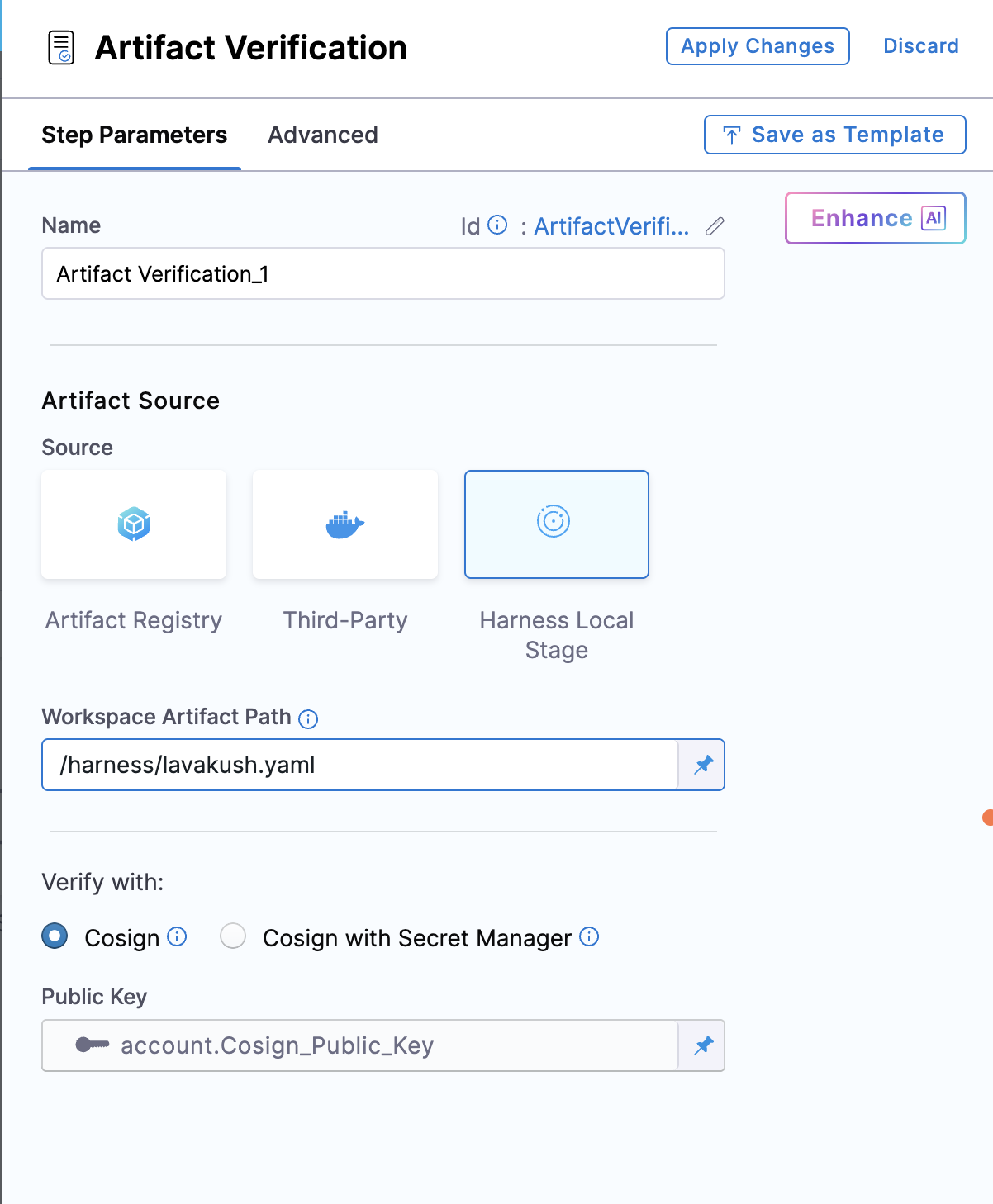

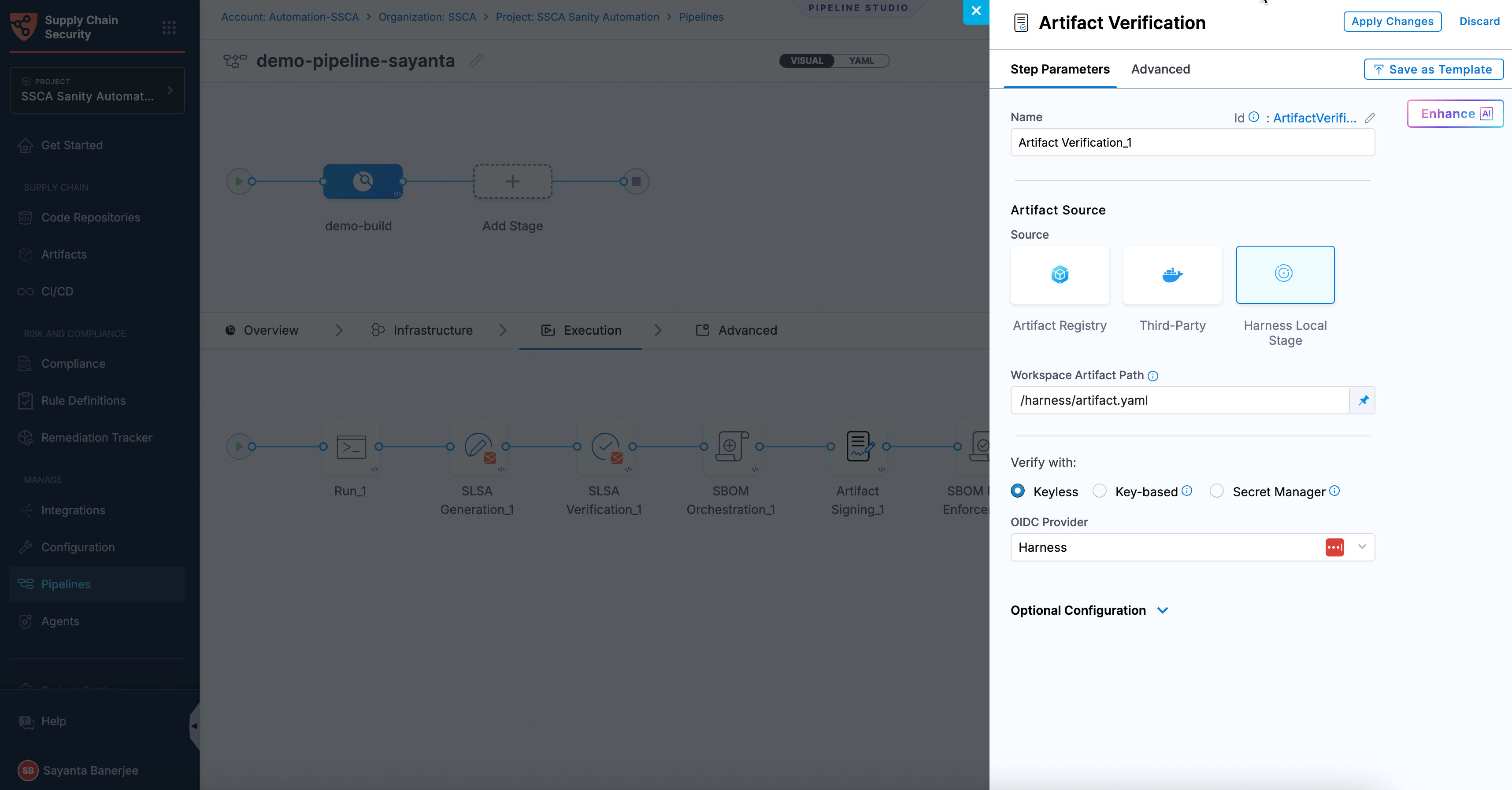

To configure Artifact Verification for non-container images, provide the following details:

Name: Provide a name for the verification step.

Artifact Source: Select the Harness Local Stage as the source of the artifact.

Workspace Artifact Path: Specify the exact artifact path used during the signing step.

Non-container images can be verified using Cosign or Cosign with Secret Manager, just like container images.

Verify the Artifacts​

You can perform artifact verification using Cosign with the following verification methods:

  • Keyless - Uses short-lived, automatically generated keys based on identity to verify artifacts without storing private keys.
  • Key-based - Uses a user-managed private and public key pair to verify artifacts, requiring secure key storage and handling.
  • Secret Manager - A secure service used to store, manage, and access sensitive data such as cryptographic keys without exposing them directly in pipelines.

Based on the verification type you select, click the tab below and specify the configurations for the Artifact Verification step to perform the verification.

Keyless verification using Cosign allows you to verify the authenticity and integrity of artifacts without requiring access to a private signing key. During verification, Cosign uses the certificate and signature stored in the attestation bundle to validate that the artifact was signed by a trusted identity and has not been tampered with. It checks the certificate chain against trusted root certificates, verifies the signature using the public key embedded in the certificate, and ensures that the certificate was valid at the time of signing.

note

In air-gapped environments, transparency log (Tlog) checks are skipped. The transparency log records signing events in a tamper-evident log, enabling independent verification. By default, the airgap setting is enabled, which prevents attestations from being pushed to the Rekor transparency log.

To sign artifacts with Keyless signing using cosign, complete the following steps:

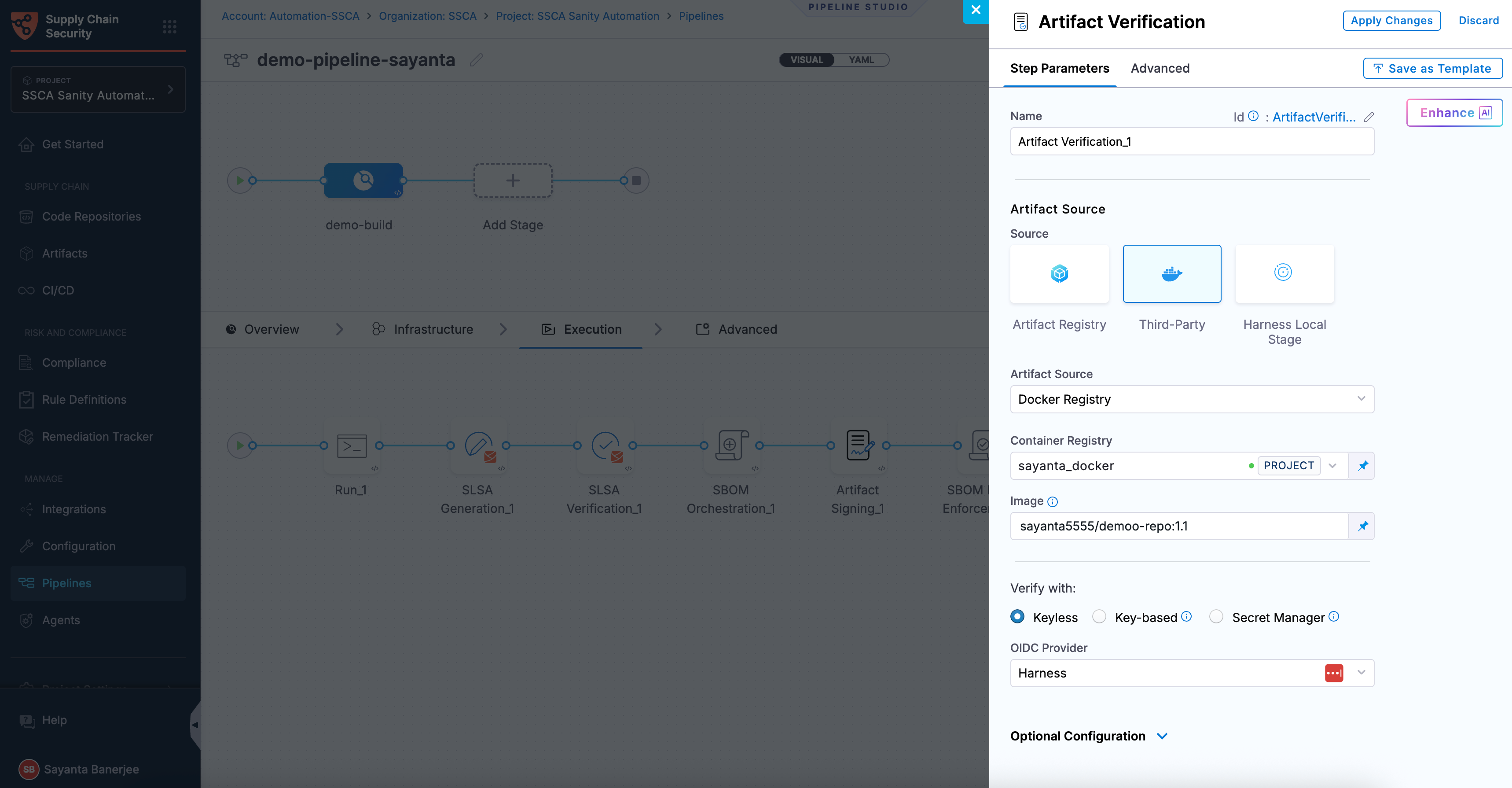

  1. Click the radio button beside Keyless under Verify with: to select Keyless verification.

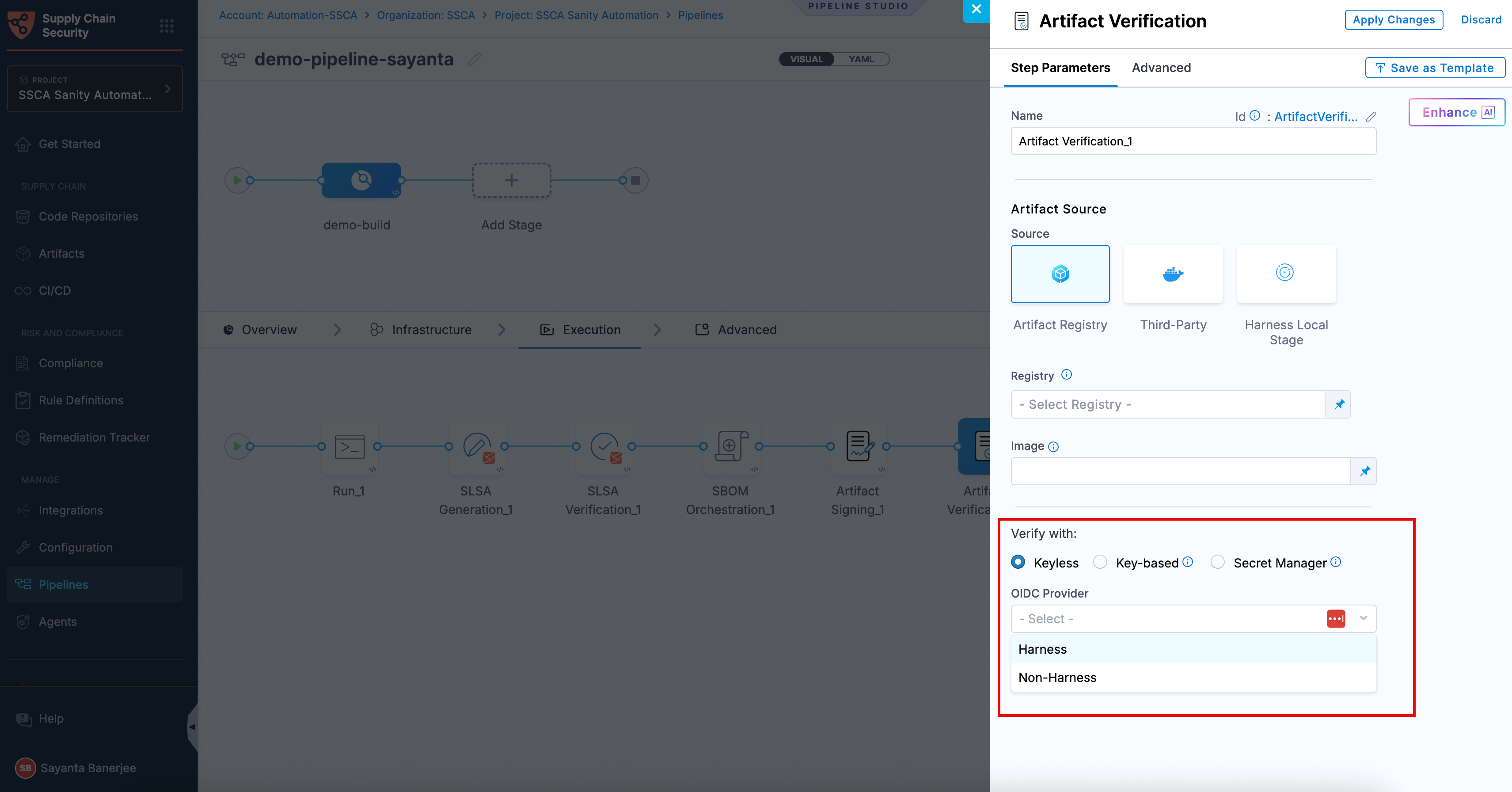

  2. Select your preferred OIDC Provider from the dropdown under OIDC Provider. The available options are:

Harness OIDC​

Harness OIDC allows you to use the pipeline’s built-in identity for keyless verification. In this approach, Harness acts as the OIDC provider and automatically generates an OIDC token during pipeline execution. Cosign uses this token to verify the artifact signature without requiring access to a private key.

The verification process checks the artifact’s signature and certificate using the identity from the OIDC token. It confirms that the artifact was signed by a trusted source, has not been tampered with, and matches the expected artifact. No additional configuration is required when using Harness as the OIDC provider.

Non-Harness OIDC​

Non-Harness OIDC allows you to use an external identity provider for keyless verification. In this approach, the OIDC token is retrieved during pipeline execution from a configured connector, such as AWS, Azure, or GCP. This token is then used by Cosign to verify the artifact signature against the identity issued by the external provider.

The verification process checks the artifact’s signature and certificate to ensure that it was signed by a trusted identity, has not been tampered with, and matches the expected artifact. To use a Non-Harness OIDC provider for verification, you must configure the OIDC connector for keyless signing. For setup instructions, see the Non-Harness OIDC section in the Sign Artifact documentation.

View Verified Artifacts​

Once the artifact is signed and verified, you will be able to see the Artifact Integrity Verification status from the Artifacts Overview tab.

  • If the signed artifact is successfully verified using the public key, the verification status is displayed as Passed, along with the links to the corresponding rekor log entry and the execution results.

  • If the verification fails, the status is displayed as Failed.

note

Rekor logs are disabled by default. To enable them, click on Project Settings, navigate to Default Settings, and disable Airgap mode in Supply Chain Security.

Example Pipeline For Artifact Verification​

This example demonstrates how to implement artifact Verification in the Build stage of the pipeline.

This example Build stage has three steps:

  • Build and Push an Image to Docker Registry: This step builds the cloned codebase and pushes the image to the container registry (DockerHub, ACR, etc.).

  • Artifact Signing: Pulls the artifact from the registry and signs it with a private key pair and pushes the .sig file back to the artifact registry.

  • Artifact Verification: Verifies the signed artifact using the corresponding public key to confirm its source and integrity.

To replicate the Artifact Verification step you can use the below sample pipeline YAML

Sample Pipeline YAML

pipeline:
  name: ArtifactVerification
  identifier: ArtifactVerification
  tags: {}
  projectIdentifier: Harness
  orgIdentifier: default
  properties:
    ci:
      codebase:
        connectorRef: Harnessgithub
        build: <+input>
  stages:
    - stage:
        name: Build
        identifier: Build
        description: ""
        type: CI
        spec:
          cloneCodebase: true
          caching:
            enabled: true
          buildIntelligence:
            enabled: true
          execution:
            steps:
              - step:
                  type: BuildAndPushDockerRegistry
                  name: BuildAndPushDockerRegistry_1
                  identifier: BuildAndPushDockerRegistry_1
                  spec:
                    connectorRef: lavakushDockerhub
                    repo: lavakush07/easy-buggy-app
                    tags:
                      - v5
                    caching: true
              - step:
                  type: SscaArtifactSigning
                  name: Artifact Signing_1
                  identifier: ArtifactSigning_1
                  spec:
                    source:
                      type: docker
                      spec:
                        connector: lavakushDockerhub
                        image: lavakush07/easy-buggy-app:v5
                    signing:
                      type: cosign
                      spec:
                        private_key: account.Cosign_Private_Key
                        password: account.Cosign_Password
                    uploadSignature:
                      upload: true
              - step:
                  type: SscaArtifactVerification
                  name: Artifact Verification_1
                  identifier: ArtifactVerification_1
                  spec:
                    source:
                      type: docker
                      spec:
                        connector: lavakushDockerhub
                        image: lavakush07/easy-buggy-app:v5
                    verifySign:
                      type: cosign
                      spec:
                        public_key: account.Cosign_Public_Key
          infrastructure:
            type: KubernetesDirect
            spec:
              connectorRef: account.harness_kubernetes_connector
              namespace: artifactverification
              automountServiceAccountToken: true
              nodeSelector: {}
              os: Linux
        variables:
          - name: LOG_LEVEL
            type: String
            description: ""
            required: false
            value: TRACE
